KitchenAid KBLS36FKB01 User manual

CABINET PARTS
1
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
6−03 Litho In U.S.A. (tpm) Part No. 8198081
36" BOTTOM MOUNT
BUILT IN REFRIGERATOR

CABINET PARTS
2
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
LIT2254715 Use & Care Guide
LIT2221286 Energy Label
LIT2254723 Service & Wiring
Sheet
LIT628370 Modular Icemaker
Service Sheet
LIT2215852 Installation
Instructions
2 Cabinet (Not A
Serviceable Part)
3 2005004 Grommet, Tube
Crossover
4 1112023 Roller, Front &
Rear (4)
5 Support, Leveler
Assembly
2004506 Refrigerator Side
2004505 Freezer Side
6 2005006 Grommet, Wiring
7 2005007 Grommet,
Flexible
8 489399 Screw
9 2006442 Mounting Bracket,
Grill
10 2005921 Screw
11 1112849 Cap, Grommet
13 2204516 Tube, Drain
Condensate
14 2207470 Shim−Hinge, Door
15 2221070 Clip, Tube
16 488946 Tube, Clamp
17 2001295 Screw, Door Stop
18 2221134 Hinge, Door
Refrigerator Top
19 2005783 Cam−Closer,
Door
21 2006617 Bracket, Support
22 2002903 Bushing
23 2209022 Housing, Water
Filter
24 2004517 Spring, Door
Closure
25 486194 Screw
26 2203221 Filter, Water
27 2006960 Bushing−Arm,
Extension
28 2006388 Gap, Cover
(Bottom)
29 2005101 Hinge, Bottom
Refrigerator
30 489464 Screw, 8−18 x 1/2
31 489282 Screw
32 Skirt, Grille−
Bottom
2209024B Black
2209024T Biscuit
2209024W White
33 2006346 Washer
34 Grille Base,
Front
2215889B Black
2215889T Biscuit
2215889W White
35 3400878 Screw
36 2209133 Cover, Rear
38 2221094 Arm, Extension
39 2221096 Bracket, Switch
40 2215938 Cover, Switch
41 1163283 Screw
42 Cap, Water Filter
2186494B Black
2186494T Biscuit
2186494W White
43 2001415 Screw (4)
44 487415 Screw, 8−18 x 3/8
45 1118894 Switch, Rocker Arm
46 9791833 Clip
47 2207578 Clip, Snap−In (2)

3

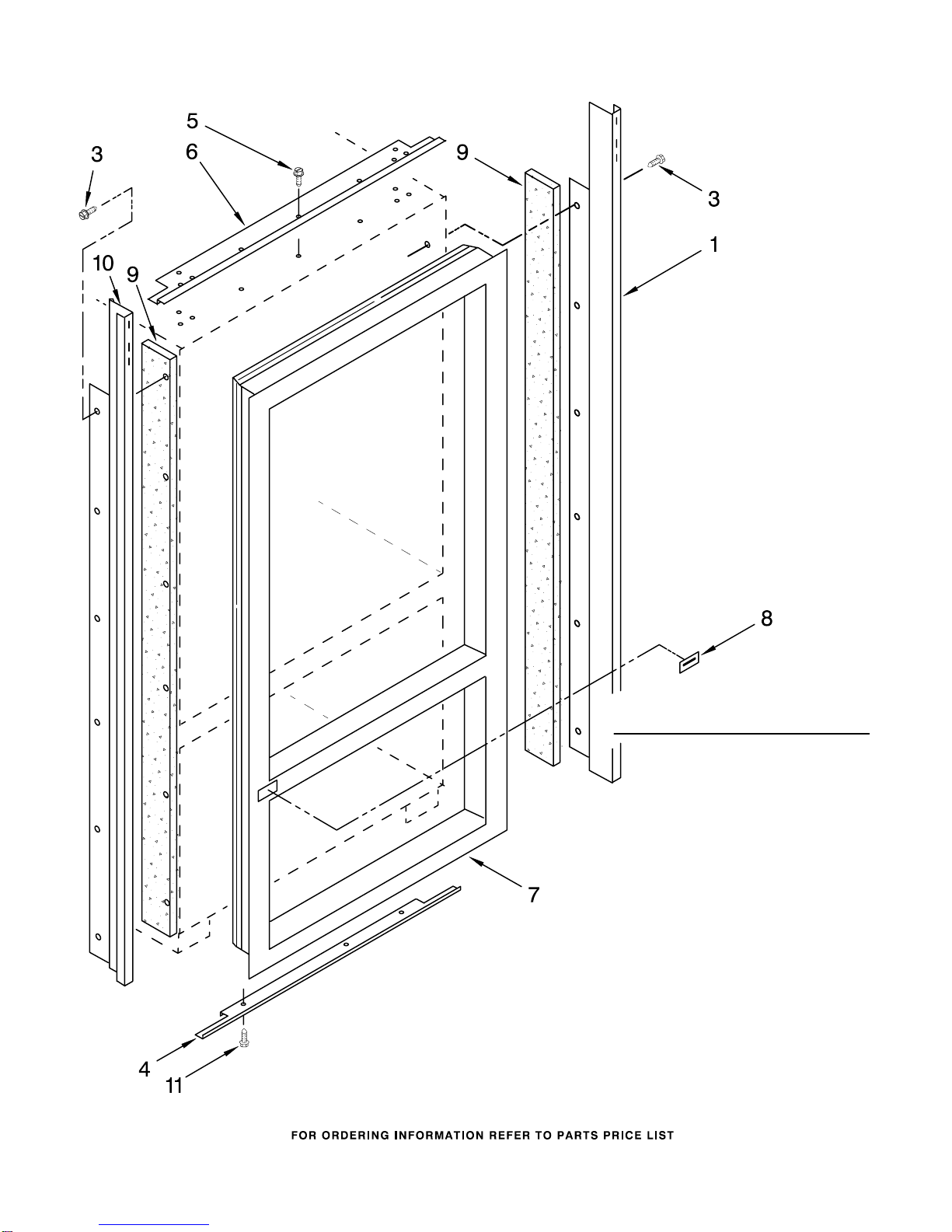

CABINET AND BREAKER TRIM PARTS
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION
1 Cabinet, Trim
Right Side
2215919B Black
2215919T Biscuit
2215919W White
8201535 Etched Aluminum
3 1163283 Screw
4 2254724 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2003645 Cabinet, Trim Top
7 Breaker Trim
(Not Serviced)
8 2005782 Cover, Hinge
9 2005925 Seal−Trim,Side
10 Cabinet Trim,
Left Side
2215936B Black
2215936T Biscuit
2215936W White
2215936 Etched Aluminum
11 489464 Screw, 8−18 x 1/2

TOP GRILLE AND UNIT COVER PARTS
4
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2215973W White
2215973B Black
2215973T Biscuit
2215973 Etched Aluminum
2 2209490 Cover, Unit
4 2215830 Back Panel
5 2209492 Guard, Wiring
6 487415 Screw
7 2187423 Wire Assembly
8 2215678 Baffle−Air,
Condenser
9 489348 Clamp
10 488908 Screw, 10−12 x 1/2

LINER PARTS
5
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081

6
LINER PARTS
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Liner,
Refrigerator
(Not Servicable)
2 Liner,Freezer
(Not Servicable)
3 2215610 Cover, Heat
Exchanger
4 2215827 Diffuser Cap,
Left Side
5 2005931 Diffuser Cap,
Right Side
6 2171846 Release Valve
7 487539 Screw, 8−15 x 1/2
8 486194 Screw
9 2208968 Motor, Grommet
10 2006148 Wiring Channel,
Freezer Rear
11 2215844 Foam, Fan Shroud
12 2215910 Grommet, Flexible
13 2215606 Shroud, Evaporator
Fan
14 2169142 Blade, Fan
15 2208939 Motor, Fan
16 2155590 Retainer,
Fan Motor
17 2221296 Air Baffle
Assembly
18 2215503 Bracket
19 8201595 Wiring Channel
20 2221261 Wiring Harness,
Freezer
21 2215833 Cover, Evaporator
Assembly
22 1116793 Cover, Thermistor
23 2213442 Thermistor
24 2209208 Drain Tube,
Condensate
25 2215530 Insulation, Baffle
26 2215531 Cover, Air
Diffuser
27 2204595 Heater−Tube,
Drain
28 2204538 Insulation, Tube
Drain
29 2204537 Cover, Tube
Drain
31 2215835 Housing, Switch
32 1157158 Screw, 8−18 x 3/8
33 2187377 Wire, Jumper
35 2209204 Clip, Thermistor
36 2215612 Cover, Air Duct
37 2215816 Control Panel
38 2221064 Overlay, Control
Panel
39 2209159 Circuit Board
(User Interface)
40 2215670 Insert, Control
Box
41 489464 Screw
42 2162085 Socket, Light
43 2160708 Light Bulb
44 2187424 Harness, Control
Box
45 8201534 Channel, Wiring
Freezer Light
46 1115375 Clip, Wiring
47 1115373 Switch, Rocker
48 2005792 Wiring Cover,
Icemaker
49 2187378 Defrost Bi−Metal
50 2215829 Diffuser Assembly
51 2221121 Support, Control
Box
52 489006 Screw

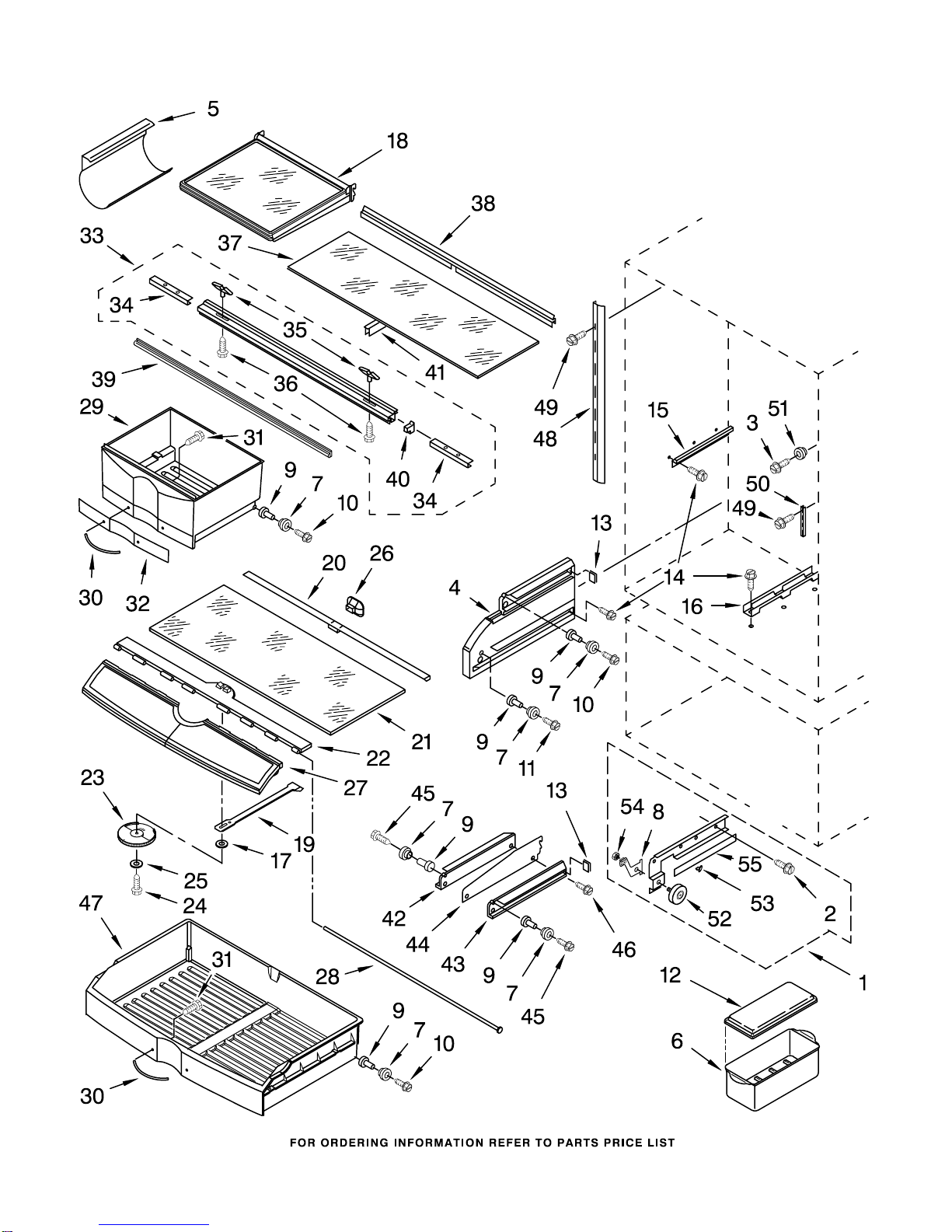

REFRIGERATOR SHELF PARTS
7
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081

REFRIGERATOR SHELF PARTS
8
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Slide, Freezer
Basket
2221278 Right Side
2221279 Left Side
2 9751808 Screw, 8−15 x 1.00
3 8281158 Screw,
8−18 x 1.375
4 Spacer, Crisper
2005138 Right Side
2005139 Left Side
5 2179404 Rack, Wine
6 2216625 Egg Bin
7 2188212 Roller
8 Bracket, Spacer
2221280 Right
2221281 Left
9 2174478 Eyelet, Roller
10 489211 Screw,
10−16 x .750
11 489261 Screw
12 2169935 Cover
13 1113169 Roller Stop
14 486194 Screw
15 2005987 Support, Crisper
Shelf (2)
16 2006454 Rail, Deli
Center
17 2207549 Washer
18 2005571 Shelf (4)
19 2005429 Air Damper, Deli
20 2005151 Rail−Rear, Deli
21 2005152 Glass Shelf, Deli
22 2220883 Rail−Front, Deli
23 2005415 Control Knob, Deli
24 2006235 Screw,
10−16 x .375
25 2006252 Washer
26 2005165 Connector, Deli
Pan
27 2222655 Lid, Deli Pan
28 2005923 Hinge Rod, Deli
Pan
29 2005157 Cripser Pan
30 2005480 Handle, Crisper
Pan
31 2006253 Screw,
8−32 x .340
32 2005986 Overlay, Crisper
Pan
33 2220885 Rail−Front,
Crisper Shelf
34 2005425 Vent, Crisper
Shelf
35 2005413 Slide−Humidity,
Crisper Shelf
36 2006254 Screw,
6−19 x .250
37 2005477 Glass, Crisper
Shelf
38 2005478 Rail−Rear,
Crisper Shelf
39 2005479 Seal−Front,
Crisper Shelf
40 2005984 Insulation,
Crisper Rail
41 2005985 Baffle−Center,
Crisper Shelf
42 2005794 Center Support,
Left Half
43 2005795 Center Support,
Right Half
44 2005796 Bracket, Center
Support
45 2003478 Screw,
10−16 x .625
46 2006235 Screw,
10−16 x .375
47 2222741 Deli Pan
48 2005410 Ladder, Shelf (4)
49 2006475 Screw,
50 2005797 Ladder, Crisper
Support
51 2196483 Shelf Stud
(Includes Item 3)
52 2221260 Roller
53 2207522 Bumper
54 2207415 Nut
55 2207569 Shim

FREEZER DOOR AND BASKET PARTS
9
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081

FREEZER DOOR AND BASKET PARTS
10
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION
1 2188601 Freezer Door
Panel (Includes
Item 9)
2 2204525 Divider, Basket
3 2207429 Clamp, Divider
4 2207415 Nut, Crimp
5 488649 Screw
6 Cover−Trim,
Handle
2006331 Black
2006330 Biscuit
2006328 White
2006327 Etched Aluminum
7 Trim−Door, Side
2006304 Black
2006303 Biscuit
2005869 White
2005868 Etched Aluminum
8 Trim−Door, Bottom
2006282 Black
2006281 Biscuit
2006279 White
2006278 Etched Aluminum
9 2188533 Door Gasket,
Magnetic
10 Cover−Trim, Side
2006326 Black
2006325 Biscuit
2006323 White
2006322 Etched Aluminum
11 Handle, Door
2006292 Black
2006291 Biscuit
2005392 White
2005188 Etched Aluminum
12 2204542 Roller
13 Trim, Corner
2006273 Black
2006272 Biscuit
2006270 White
2207457 Chrome
14 Screw, 8−15 x 1/2
8281252 Black
8281253 Biscuit
8281251 White
8281250 Stainless Steel
15 2207533 Bracket, Assembly
Freezer Basket
17 2005376 Basket, Upper
18 2174124 Pan, Ice Cube
19 2207454 Nut, Hex
20 2207471 Bushing
21 3400507 Screw
22 2006244 Basket, Freezer
Lower
24 2207576 Spacer
25 2207415 Nut
26 2207550 Roller

REFRIGERATOR DOOR PARTS
11
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081

REFRIGERATOR DOOR PARTS
12
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2188600 Refrigerator
Door (Includes
Item 9)
2 Cover−Trim,
Handle
2006341 Black
2006340 Biscuit
2006338 White
2006337 Etched Aluminum
3 2005171 Hinge Assembly,
Top
4 2004520 Spacer−Hinge,
Top
5 489282 Screw, 10−32 x 3/4
6 2003985 Hinge Assembly,
Bottom
7 Corner Trim
2006273 Black
2006272 Biscuit
2006270 White
2207457 Chrome
8 Trim−Door, Side
2006277 Black
2006276 Biscuit
2005860 White
2005859 Etched Aluminum
9 2188532 Door Gasket,
Magnetic
10 Screw, 8/15 x 1/2
8281252 Black
8281253 Biscuit
8281251 White
8281250 Stainless Steel
11 Handle, Door
2006300 Black
2006299 Biscuit
2005854 White
2005853 Etched Aluminum
12 2005982 Gasket (2)
13 2003982 Spacer−Hinge,
Bottom
14 Trim−Door, Bottom
2006286 Black
2006285 Biscuit
2005863 White
2005862 Etched Aluminum
15 Cover−Trim, Side
2006336 Black
2006335 Biscuit
2006333 White
2006332 Etched Aluminum
17 Trim−Door, Top
2006290 Black
2006289 Biscuit
2005866 White
2005865 Etched Aluminum
18 2005482 Tube, Door
Shelf
19 2005417 Shelf, Door (2)
20 489276 Screw, 8−18 x 3/4
21 2005542 End Cap, Left
22 2005541 End Cap, Right
23 2006152 Tube, Door
Shelf (Gallon)
26 2005983 Door, Utility
Bin (2)
(Includes Item 12)
27 2006154 Door Shelf,
Gallon
28 2165792 Butter Tray

UPPER UNIT PARTS
13
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081

UPPER UNIT PARTS
14
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2209324 Inverter Box
2 489373 Screw, Compressor
Mounting (4)
3 2208937 Compressor
(Includes Items
6, 9 & 21)
(Also Order
876765 Tube Kit)
4 2199929 Housing, Control
Board
5 2215641 Bracket, Fan Motor
6 1100826 Grommet, Mounting
7 2209038 Shroud, Condenser
(Right)
8 2215665 Panel, Condenser
Front
9 2215676 Terminal Cover
10 2209037 Shroud, Condenser
(Left)
11 2254740 Control Board
12 2203075 Spacer (5)
13 2209493 Bracket, Inverter
Box
14 486899 Screw
15 1157158 Screw
16 2209062 Condenser
17 943447 Grommet (4)
18 2187422 Wire, Jumper
19 488208 Screw
20 487522 Screw
21 2199167 Drier
22 487869 Screw
23 2206036 Motor, Fan
24 2190685 Blade, Fan
25 2003169 Orifice, Fan
27 8281160 Screw
29 486692 Speed Nut
32 2000645 Sleeve,
Condenser
34 2194319 Process, Tube
35 486194 Screw
36 2209495 Cover, Fan
37 2215628 Cover, Condenser
39 2003381 Service Cord
41 549193 Clamp, Cord
42 1113229 Switch, Power
Disconnect
43 487294 Screw, Ground
44 653035 Clip, Cord Plug
45 2187418 Wiring Harness,
Unit Compartment
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.75 oz.
(R−134A)

LOWER UNIT AND TUBE PARTS
15
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081

LOWER UNIT AND TUBE PARTS
16
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION
3 486194 Screw
6 2209035 Suction Tube
7 2207486 Heater, Defrost
(Rear)
8 2209454 Tube, Connect
(Drier)
9 2209451 Heater, Drain Pan
10 2209450 Hanger, Heater
11 2005908 Shield, Drain Pan
12 2204543 Support, Heater
13 2209036 Tube, Discharge
16 2209465 Evaporator
17 2207485 Heater, Defrost
(Front)
18 2204510 Clamp, Heater (2)
21 857547 Wire Tie
22 2215691 Clip, Heat
Exchanger
25 2001264 Drain Pan
26 Bracket, Drain Pan
1113206 Left
1113207 Right
27 513942 Dampener
28 2215648 Damper, Heater

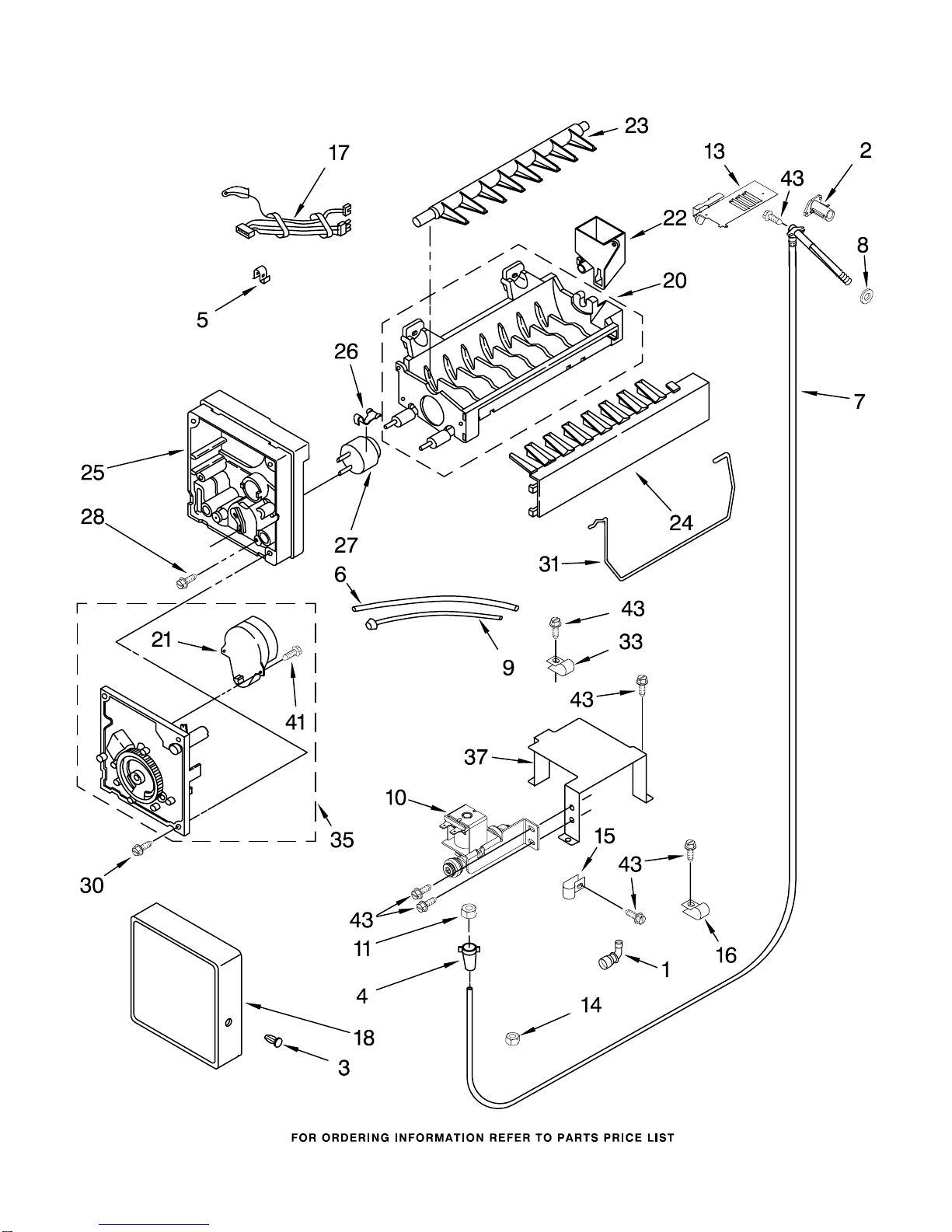

ICEMAKER PARTS
17
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081

ICEMAKER PARTS
18
PARTS NOT ILLUSTRATED
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01
(Black) (Biscuit) (White) (Etched Aluminum)
8198081
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2204597 Tube, Valve
2 2221240 Heater, Fill Tube
3 489115 Fastener, Snap−In
4 841707 Insert, Tube
5 628379 Clip, Fuse
6 2214613 Tube, Filter Inlet
7 2221140 Water Inlet
Tube Assembly
8 1106508 Seal Gasket
9 2254800 Tube, Filter
Outlet
10 2254709 Valve, Solenoid
11 2204357 Nut, Compression
13 2221231 Heat Shield
14 2215656 Plug, Water Valve
15 489348 Clamp, Nylon
Valve
16 488946 Clamp Tube
17 2254792 Wire Assembly,
Icemaker
18 2221232 Cover
20 628228 Mold & Heater
(Also Order
542638 Silicone
Grease)
21 628398 Motor
22 628356 Cup−Water Fill
23 2194711 Ejector
24 2182124 Ice Striper
25 2195914 Support
26 627796 Retainer
Thermostat (2)
27 627985 Thermostat
(Also Order
542639 Cement
Alumilastic)
28 489322 Screw
30 489276 Screw
31 2221172 Shut Off Arm
33 2208136 Clip, Water Tube
35 628399 Module Assembly
(Includes Items
21 & 41)
37 2221282 Water Valve
Mounting Bracket
41 489136 Screw (2)
43 489464 Screw
100 4317943 Complete Icemaker
Assembly
Illus. Part
No. No. DESCRIPTION
2220952 Front Panel Kit
(White)
2220953 Front Panel Kit
(Black)
2220954 Front Panel Kit
(Biscuit)
2220955 Front Panel Kit
(Stainless Steel)
Black Acrylic Static
Cleaner Part No. 978849
