KitchenAid KSBS25FKBL00 User manual

1
CABINET PARTS
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
REFRIGERATOR
8−03 Litho In U.S.A. (kdj) Part No. 8197829 Rev. B

CABINET PARTS
2
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LITERATURE PARTS
1 LIT2221516 Use & Care Guide
LIT2214447 Service & Wiring
Sheet
LIT2219971 Energy Label
LIT628370 Modular Icemaker
Service Sheet
2 2203007 Front Roller (2)
3 3400512 Bolt
4 2203008 Roller (Rear) (2)
5 3400511 Bolt
6 488649 Screw
7 489478 Screw
8 2209558 Clip
9 2156056 Shim
10 3400515 Screw
12 Hinge Top
2203124W Right, White
2203124T Right, Biscuit
2203124B Right, Black
2199935W Left, White
2199935T Left, Biscuit
2199935B Left, Black
16 2208137 Hinge & Cam Assy
19 3400103 Screw
20 981126 Pin
21 Filler, Wrapper
2203067W White
2203067T Biscuit
2203067B Black
22 Grille
2199904W White
2199904T Biscuit
2199904B Black
23 489497 Screw
24 2199840 Housing, Water
Filter
25 2203220 Water Filter
26 489478 Screw
27 Cap, Water
Filter
2186494W White
2186494T Biscuit
2186494B Black
35 489464 Screw
41 940139 Drain Fitting
42 2199954 Extension Tube
43 1108439 Clip, Drain Tube
47 2214385 Cover, Unit
48 Cabinet (Not A
Serviceable Part)
52 549193 Clamp, Service
Cord
53 489084 Screw

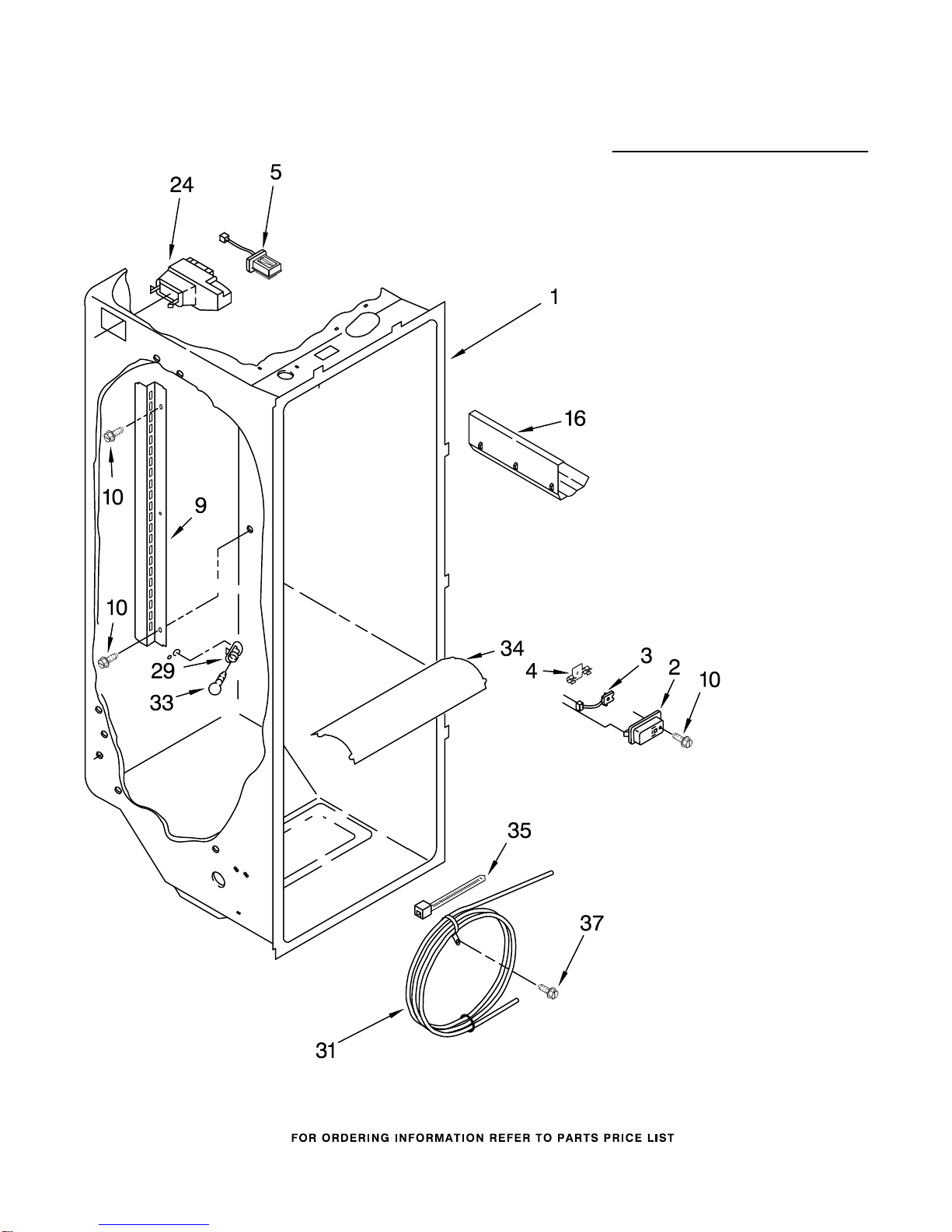

REFRIGERATOR LINER PARTS
3
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 1116793 Cover, Thermistor
3 2213442 Thermistor
4 2209204 Clip, Thermistor
5 2220377 Air Baffle
9 2181796 Ladder, Shelf
10 489478 Screw
16 2179404 Rack, Wine & Egg
24 2214367 Air Diffuser
Assembly
29 2162085 Socket
31 2196171 Reservoir
33 527949 Light Bulb
34 2203266 Light Lens
35 2205813 Strap
37 489478 Screw

REFRIGERATOR SHELF PARTS
4
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION
1 2203054 Shelf Assembly
Cantilever
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side
5 2203034 Cover, Meat Pan
(Includes Items
13, 14 & 15)
8 2203038 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2, 3, 4,
11, 12, 13,
14 & 19)
10 2174148 Glass, Cover
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
16 2179227 Crisper Pan
(Includes 13, 14,
18, 19, & 21)
17 2203036 Meat Pan
(Includes 13, 14,
19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174076 Window, Meat Pan
23 2216624 Egg Bin
27 2203027 Cover, Beverage
28 2203028 Beverage Pan
29 2203029 Handle, Beverage

5

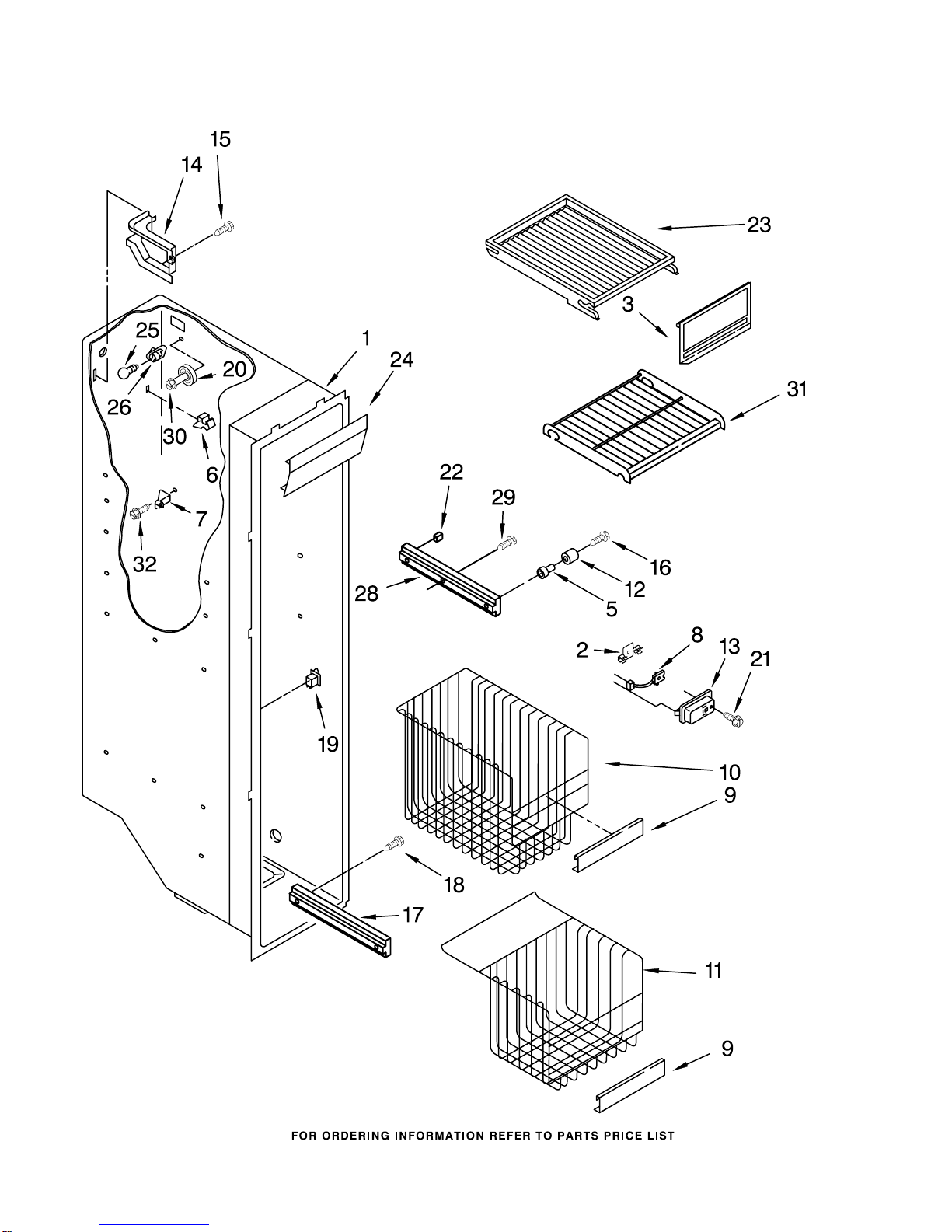

FREEZER LINER PARTS
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829

6
FREEZER LINER PARTS
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2209204 Clip, Thermistor
3 2199860 Door, Ice
Compartment
5 2174478 Eyelet, Roller
6 842534 Clip, Air Duct (2)
7 2196206 Support, Stud (4)
8 2213442 Thermistor
9 2199867 Trim, Basket
10 2199863 Basket (2)
11 2199892 Basket, Shallow
12 2188212 Roller
13 1116793 Cover, Thermistor
14 2203111 Wiring Cover
15 489464 Screw
16 489211 Screw
17 Slide, Basket
2208198 Right Side (2)
2208197 Left Side (2)
18 489355 Screw
19 1115373 Switch, Rocker Arm
20 2196483 Stud (12)
21 489478 Screw
22 1113169 Stop, Roller
23 2209533 Shelf, Top
Compartment
24 2199965 Light Lens
25 527949 Light Bulb
26 2162085 Light Socket
28 Slide, Container
2002721 Left Side
2002720 Right Side
29 2003478 Screw
30 8281158 Screw (12)
31 2199861 Shelf
32 3400893 Screw (4)

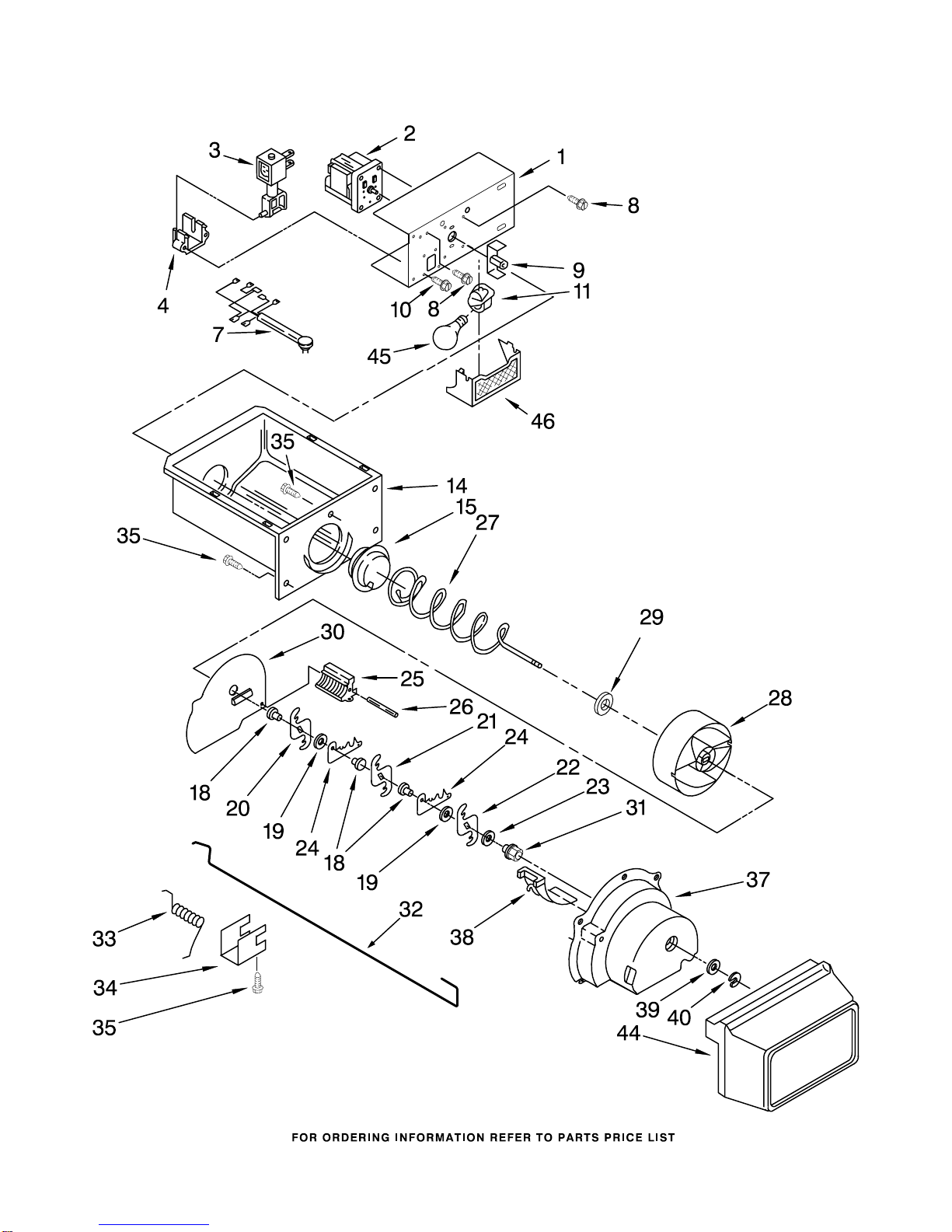

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION
1 2214579 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
7 2206503 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 2205716 Coupling, Motor
10 489355 Screw
11 2162085 Socket, Light
14 2199895 Ice Container
15 983668 Coupling, Conveyor
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 2160602 Conveyor
28 2196194 Drum
29 3400912 Washer
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2002728 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2180348 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
44 2199913 Front Cover,
Ice Container
45 527949 Light Bulb
46 2171706 Light Lens,
Dispenser

9
REFRIGERATOR DOOR PARTS
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829

REFRIGERATOR DOOR PARTS
10
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #8)
2210773W White
2210773T Biscuit
2210773B Black
3 2182399 Door, Compartment
4 2182190 Trim, Door Shelf
5 3196537 Screw
6 2199986 Bin, Door
7 Trim, Door (Top)
2207312W White
2207312T Biscuit
2207312B Black
8 Door Gasket,
Magnetic
2209561 Mist Beige
2209563 Black
9 Handle
2207308W White
2207308T Biscuit
2207308B Black
10 3400012 Screw
11 2159124 Gasket
12 2195497 Divider, Bin
13 Trim, Door
(Bottom)
2207314W White
2207314T Biscuit
2207314B Black
14 2182179 Door Closer,
Upper Cam
15 489420 Screw
16 Bracket, Door Stop
2210774 Chrome
2214451 Black
17 1113948 Retainer, Shelf
Ladder (2)
18 1113949 Ladder, Shelf (2)
19 2203087 Trim, Door Shelf
20 3196180 Screw
21 2165792 Butter Dish
22 2199983 Bin, Door (3)
23 2195916 Endcap (2)
25 Trim, Door
(Hinge Side)
2207310W White
2207310T Biscuit
2207310B Black
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #8)
2210773W White
2210773T Biscuit
2210773B Black
3 2182399 Door, Compartment
4 2182190 Trim, Door Shelf
5 3196537 Screw
6 2199986 Bin, Door
7 Trim, Door (Top)
2207312W White
2207312T Biscuit
2207312B Black
8 Door Gasket,
Magnetic
2209561 Mist Beige
2209563 Black
9 Handle
2207308W White
2207308T Biscuit
2207308B Black
10 3400012 Screw
11 2159124 Gasket
12 2195497 Divider, Bin
13 Trim, Door
(Bottom)
2207314W White
2207314T Biscuit
2207314B Black
14 2182179 Door Closer,
Upper Cam
15 489420 Screw
16 Bracket, Door Stop
2210774 Chrome
2214451 Black
17 1113948 Retainer, Shelf
Ladder (2)
18 1113949 Ladder, Shelf (2)
19 2203087 Trim, Door Shelf
20 3196180 Screw
21 2165792 Butter Dish
22 2199983 Bin, Door (3)
23 2195916 Endcap (2)
25 Trim, Door
(Hinge Side)
2207310W White
2207310T Biscuit
2207310B Black

11
FREEZER DOOR PARTS
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829

12
FREEZER DOOR PARTS
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes Item #8
And Dispenser
Front Parts)
2214473W White
2214473T Biscuit
2214473B Black
2 Retainer, Handle
2207309W White
2207309T Biscuit
2207309B Black
3 3400012 Screw
4 489491 Screw
5 3196537 Screw
6 2199990 Trim, Door Shelf
8 Door Gasket,
Magnetic
2209560 Mist Beige
2209562 Black
9 2199991 Trim, Door Shelf
10 488500 Screw
11 2187667 Wiring Harness,
Freezer Door
12 2182179 Door Closer,
Upper Cam
13 489420 Screw
14 Bracket, Door Stop
2210774 Chrome
2214451 Black
15 2156006 Plug, Trim
17 Trim, Door
(Bottom)
2207315W White
2207315T Biscuit
2207315B Black
18 Trim, Door (Top)
2207313W White
2207313T Biscuit
2207313B Black
19 2208147 Ladder Shelf,
Assembly (2)
21 3196180 Screw
22 2195916 Endcap
23 2199992 Bin, Door (2)
24 2195917 Endcap
25 Trim, Door
(Hinge Side)
2207311W White
2207311T Biscuit
2207311B Black

13

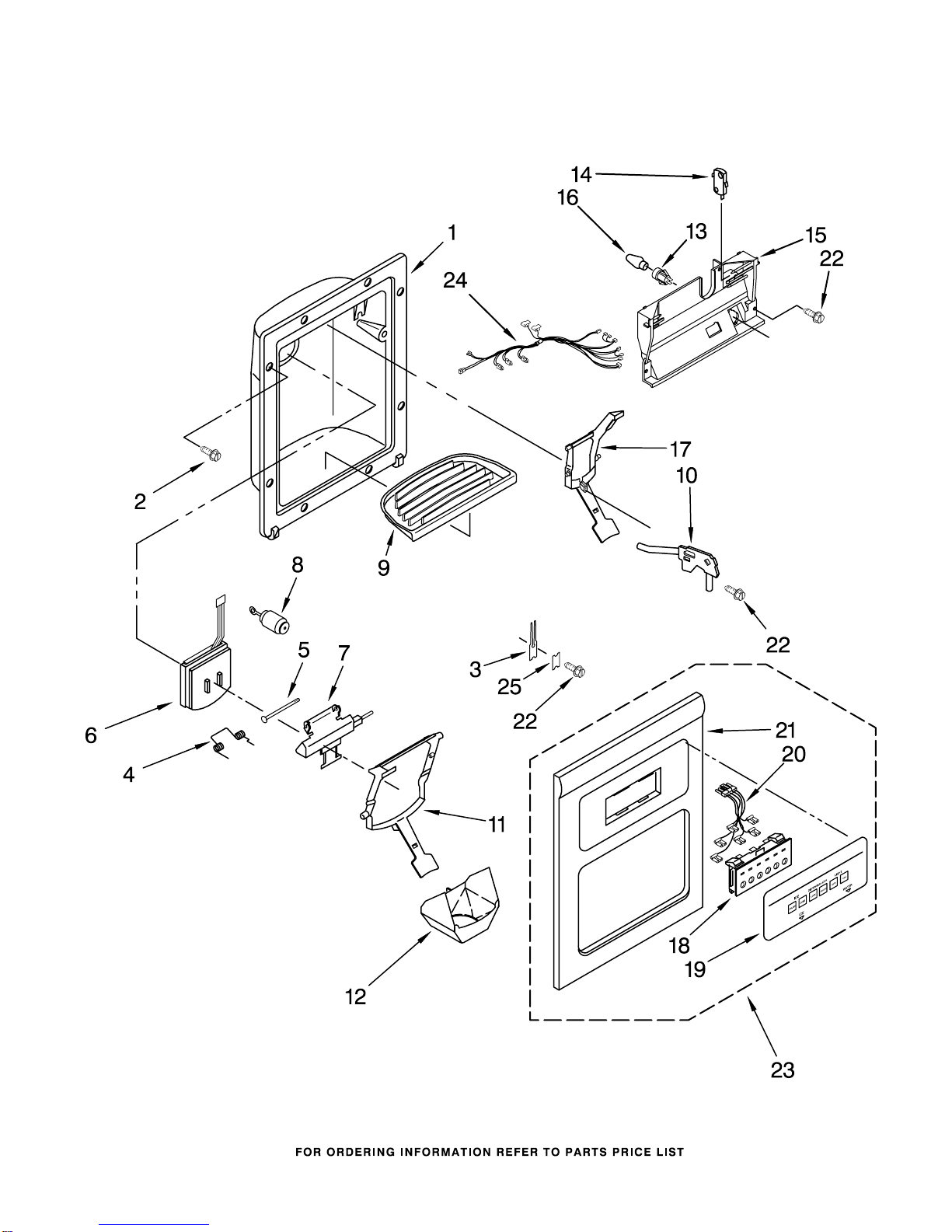

DISPENSER FRONT PARTS
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829

DISPENSER FRONT PARTS
14
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 489101 Screw
3 2194719 Retainer, Levers
4 2180209 Spring, Torsion
5 2196195 Pin
6 2180352 Door, Ice
7 2206423 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2180323 White
2186860 Biscuit
2180325 Black
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2180259 White (White
Shadow Pad)
2186850 Biscuit (Almond
Shadow Pad)
2180261 Black (Storm
Grey Pad)
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch (2)
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2180268 White (White
Shadow Pad)
2186852 Biscuit (Almond
Shadow Pad)
2180270 Black (Storm
Grey Pad)
18 Switch Assembly
(Not Available,
Order #23)
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 2196199 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
2219821W White
2219821T Biscuit
2219821B Black
24 2203091 Wire Harness,
Control Mounting
Bracket
25 2195051 Strain Relief

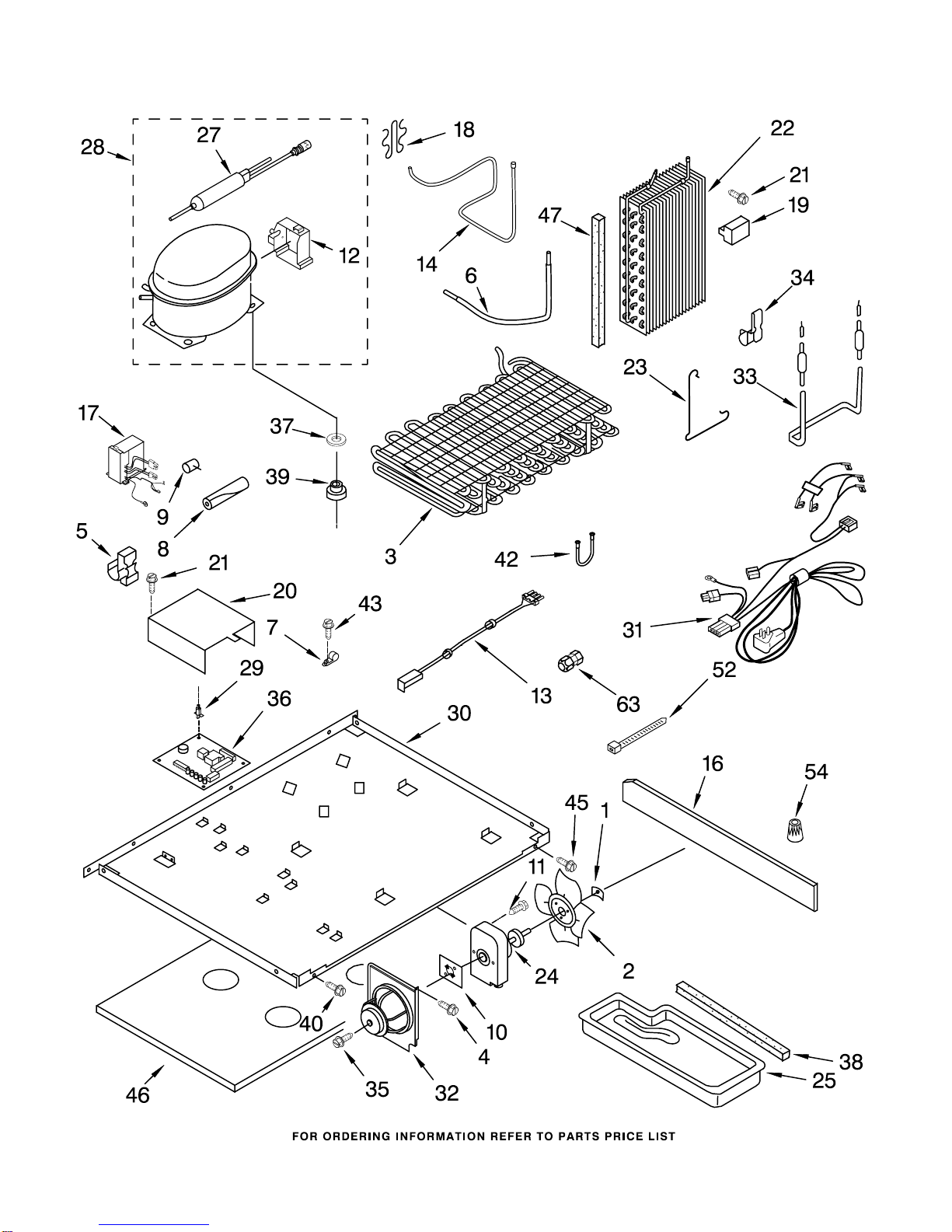

UNIT PARTS
15
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829

UNIT PARTS
16
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 486692 Speed Nut
2 2190685 Fan, Blade
3 2205983 Condenser
Assembly
4 489464 Screw
5 2155658 Clip, Wire
6 2214366 Tube, Condenser
to Heat Loop
7 2185788 Clamp, Tube
8 2161302 Sleeve
9 2158826 Dampener
10 2210750 Bracket, Insert
11 8281197 Screw
12 2215676 Cover, Terminal
13 2214361 Wire Assembly
14 2214365 Tube Suction
16 2203020 Extension,
Air Baffle
17 2209324 Inverter Box
18 2163787 Clip, Compressor
Mounting (4)
19 2208183 Block, Evaporator
20 2199929 Housing, Control
Board
21 489478 Screw
22 2209611 Evaporator
23 2161324 Clamp
24 2206036 Fan, Motor
25 1105523 Tray, Evaporator
27 2199167 Drier
28 2208937 Compressor
(Includes Items
12, & 27)
(Also Order
876765 Tube Kit)
29 2203075 Spacer
30 2210728 Unit Mounting
Plate
31 2212052 Unit, Harness
32 2208157 Fan, Motor Bracket
33 2210737 Heater, Defrost
34 2161330 Clip
35 8281196 Screw
36 2221536 Board, Control
37 680975 Washer
38 2203876 Gasket
39 2163786 Grommet (4)
40 3400515 Screw
42 2199806 Tube, Heat Loop
43 489491 Screw
45 3400514 Screw
46 2214509 Insulation,
Mounting Plate
47 2203160 Side Support
52 2205813 Strap
54 227991 Wire Connector
63 2196152 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.25 oz.
(R−134A)

AIR FLOW PARTS
17
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2210746 Air Scoop
4 2208184 Block, Fan Scroll
5 2199931 Air Duct Freezer
7 2208939 Fan Motor
8 2169142 Fan Blade
10 2208959 Fan Grommet
11 2182146 Duct, Icemaker
12 2214359 Harness, Fan
Evaporator, And
Heater, Bi−Metal
13 2155789 Gasket Cover
14 2205813 Wire Tie
16 2210780 Gasket
17 2203122 Cover, Evaporator
18 489464 Screw
19 Evaporator,
Cover Rail
2199922 Right
2199923 Left
21 489478 Screw

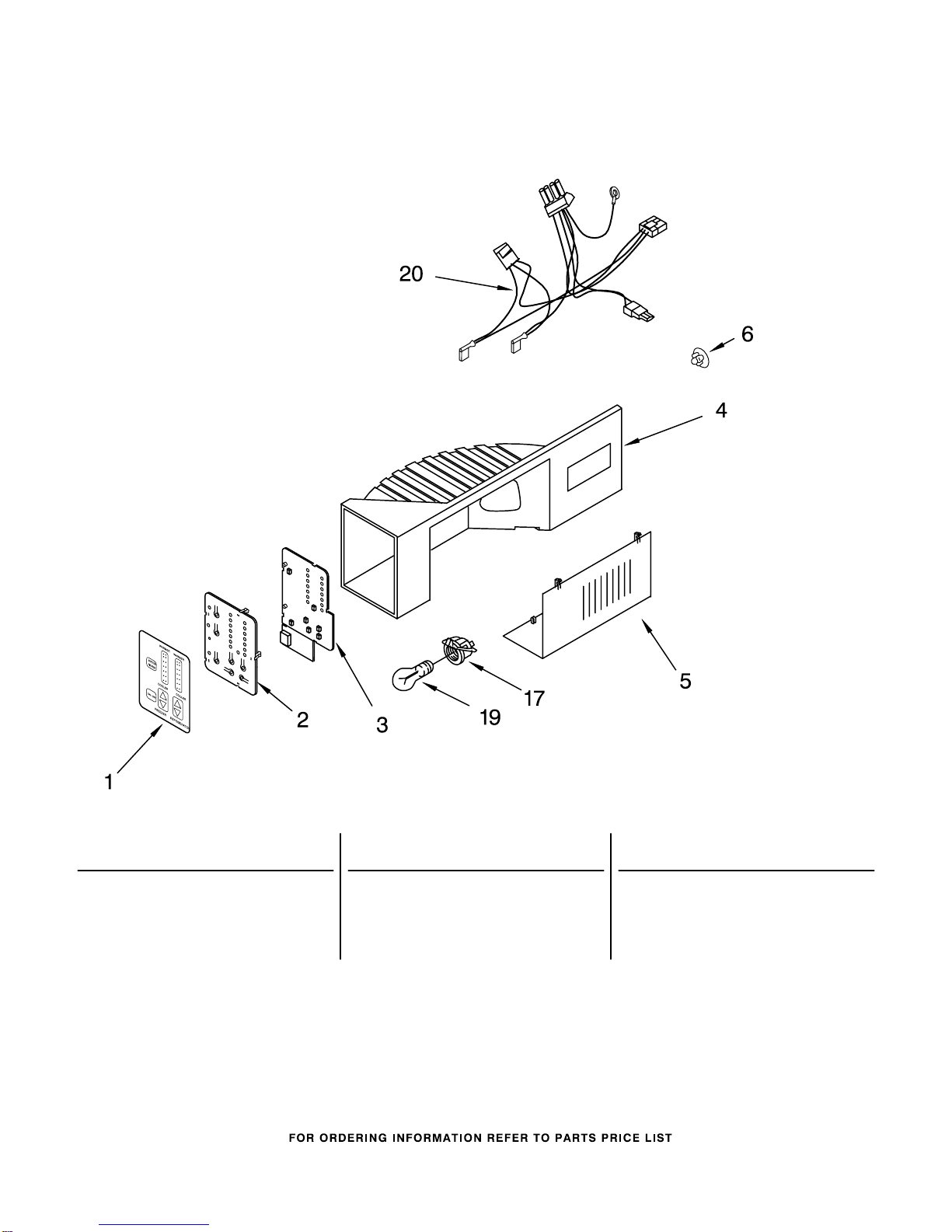

CONTROL PARTS
18
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2203081 Overlay
2 2208141 Retainer, Circuit
Board
3 2214765 Circuit Board,
Interface
4 2199717 Control Box
5 2203108 Light Lens
6 940014 Hole Plug
17 2162085 Light Socket
19 850166 Light Bulb
20 2220781 Control Box
Harness

19

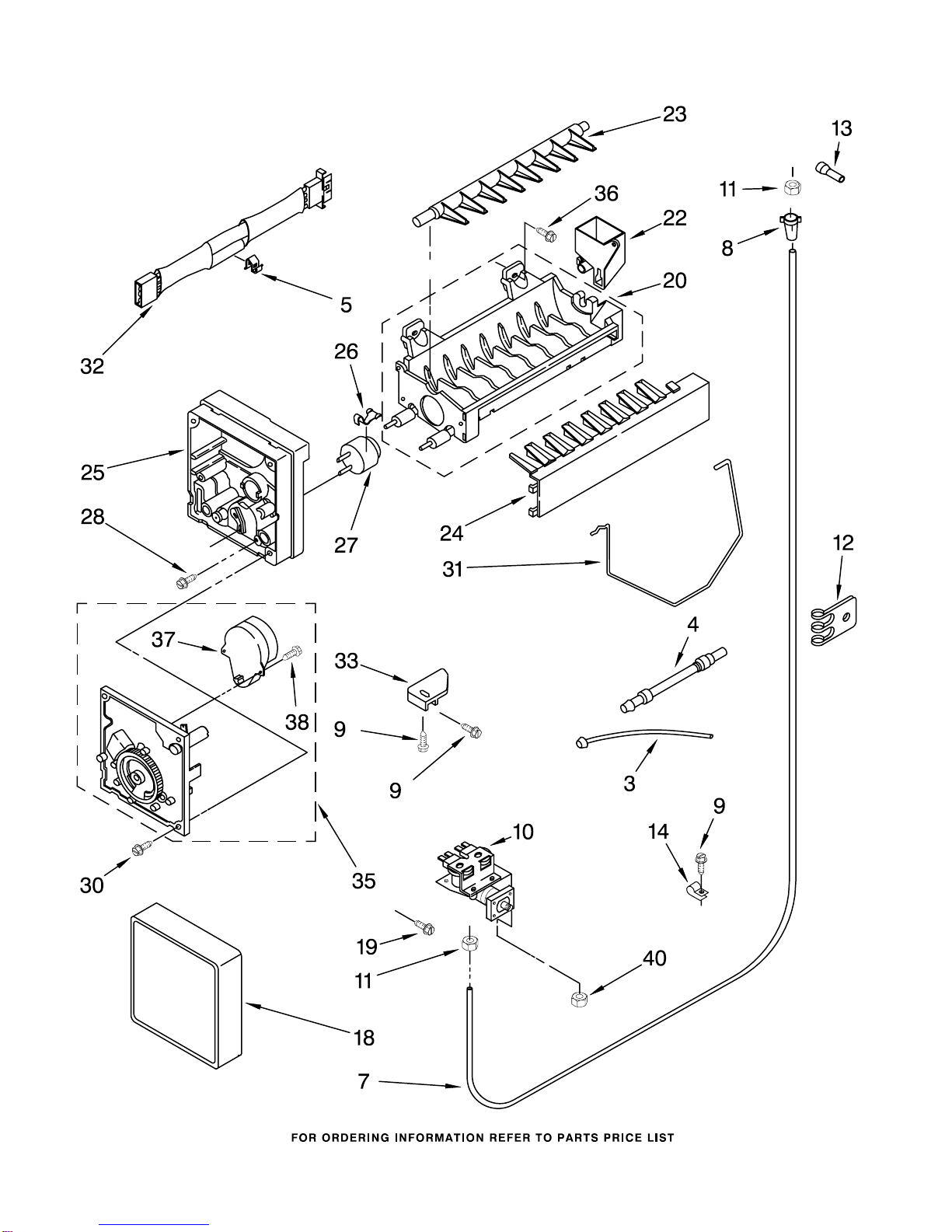

ICEMAKER PARTS
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829

ICEMAKER PARTS
20
For Models: KSBS25FKWH00, KSBS25FKBT00, KSBS25FKBL00
(White) (Biscuit) (Black)
8197829
Illus. Part
No. No. DESCRIPTION
3 2203127 Tube, Filter
Outlet
4 2214613 Tube, Filter
Inlet
5 628379 Clip, Fuse
7 2181940 Tube, Water
8 2181939 Insert, Tube
9 489478 Screw
10 2199838 Valve, Solenoid
11 627018 Nut, Compression
12 2208136 Clip, Water Tube
13 2203024 Tube, Water
Inlet
14 488878 Tube Clamp
18 2174155 Cover
19 488649 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
22 628356 Cup, Water Fill
23 2194711 Ejector
24 2182124 Ice Striper
25 2194712 Support
26 627796 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 489322 Screw
30 489276 Screw
31 2171593 Shut Off Arm
32 628256 Harness, Wiring
33 628320 Bracket
35 628399 Module Assembly
(Includes Items
37 and 38)
36 488208 Screw
37 628398 Motor
38 489136 Screw
40 1129179 Nut, Compression
100 4317943 Complete Icemaker
Assembly
