KitchenAid KSCS25FKBL02 User manual

1
CABINET PARTS
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
6−03 Litho In U.S.A. (kdj) Part No. 8198540
REFRIGERATOR

CABINET PARTS
2
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LITERATURE PARTS
1 LIT2221544 Use & Care Guide
LIT2221548 Service & Wiring
Sheet
LIT2260953 Energy Label
LIT628370 Modular Icemaker
Service Sheet
2 2203007 Front Roller (2)
3 3400512 Bolt
4 2203008 Roller (Rear) (2)
5 3400511 Bolt
6 2155311 Door Closer,
Lower Cam
7 489478 Screw
8 2209558 Clip
9 2156056 Shim
10 3400515 Screw
11 3400108 Screw
12 Hinge Top, Left
2199935W White
2199935T Biscuit
2199935B Black
13 3400858 Screw
14 Hinge Top, Right
2203124W White
2203124T Biscuit
2203124B Black
16 2208137 Hinge & Cam Assy
19 3400103 Screw
20 981126 Pin
21 Filler, Wrapper
2203067W White
2203067T Biscuit
2203067B Black
22 Grille
2199904W White
2199904T Biscuit
2199904B Black
23 3400113 Screw
24 2199840 Housing, Water
Filter
25 2203220 Water Filter
26 489478 Screw
27 Cap, Water
Filter
2186494W White
2186494T Biscuit
2186494B Black
41 940139 Drain Fitting
42 2199954 Extension Tube
43 1108439 Clip, Drain Tube
47 2214385 Cover, Unit
48 Cabinet (Not A
Serviceable Part)
52 549193 Clamp, Service
Cord
53 489084 Screw

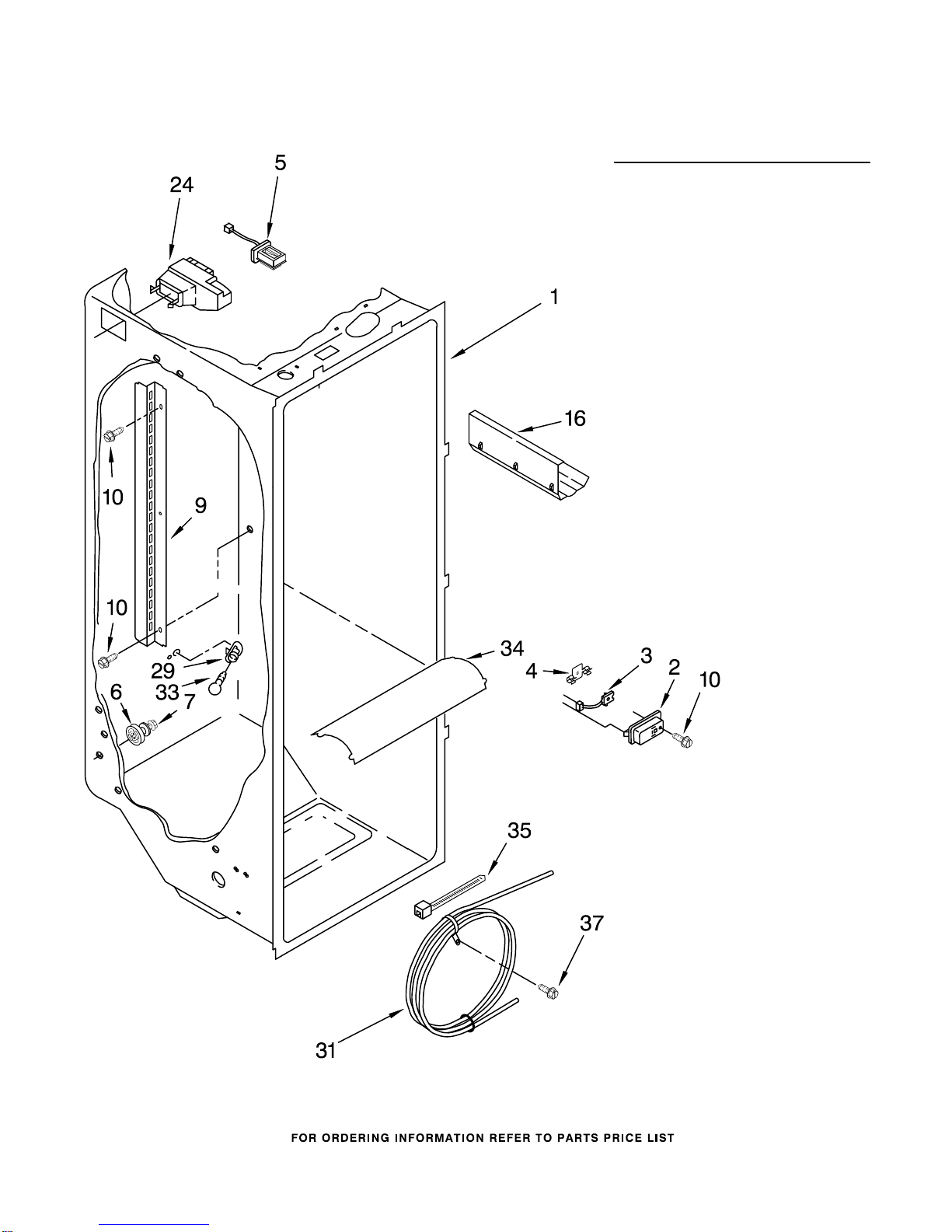

REFRIGERATOR LINER PARTS
3
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 1116793 Cover, Thermistor
3 2213442 Thermistor
4 2209204 Clip, Thermistor
5 2220377 Air Baffle Assy
6 2196485 Stud, Assembly
7 3400894 Screw
9 2181796 Ladder, Shelf
10 489478 Screw
16 2179404 Rack, Wine & Egg
24 2214367 Air Diffuser
Assembly
29 2162085 Socket
31 2196171 Reservoir
33 527949 Light Bulb
34 2203266 Light Lens
35 2205813 Strap
37 489478 Screw

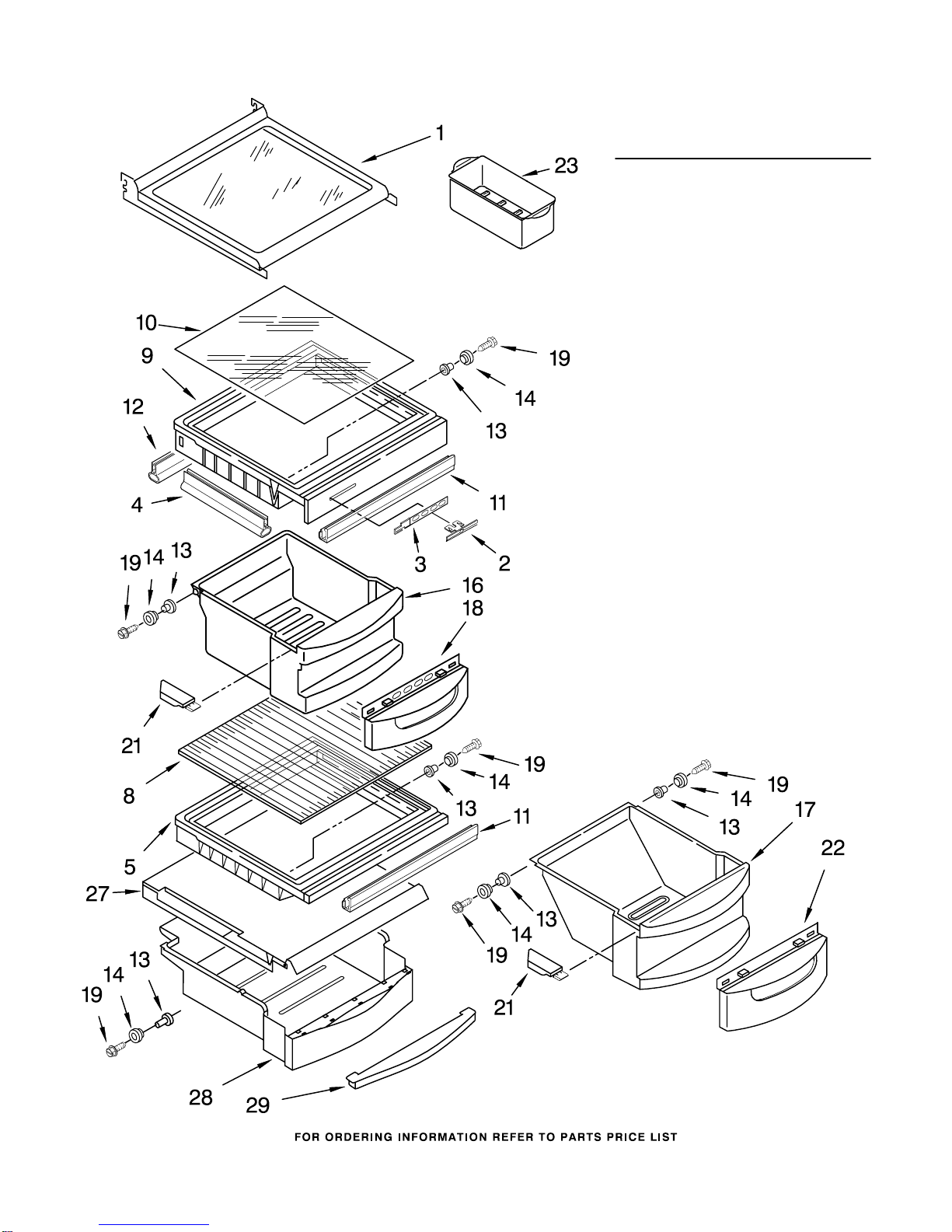

REFRIGERATOR SHELF PARTS
4
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
1 2203054 Shelf Assembly
Cantilever
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side
5 2203034 Cover, Meat Pan
(Includes Items
13, 14 & 19)
8 2203038 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2, 3, 4,
11, 12, 13,
14 & 19)
10 2174148 Glass, Cover
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
16 2179227 Crisper Pan
(Includes 13, 14,
18, 19, & 21)
17 2203036 Meat Pan
(Includes 13, 14,
19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174076 Window, Meat Pan
23 2216624 Egg Bin
27 2203027 Cover, Beverage
28 2203028 Beverage Pan
29 2203029 Handle, Beverage

5
FREEZER LINER PARTS
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540

6
FREEZER LINER PARTS
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2209204 Clip, Thermistor
3 2199860 Door, Ice
Compartment
5 2174478 Eyelet, Roller
6 842534 Clip, Air Duct (2)
7 2196206 Support, Stud (4)
8 2213442 Thermistor
9 2199867 Trim, Basket
10 2199863 Basket (2)
11 2199892 Basket, Shallow
12 2188212 Roller
13 1116793 Cover, Thermistor
14 2203111 Wiring Cover
15 489464 Screw
16 489211 Screw
17 Slide, Basket
2208198 Right Side (2)
2208197 Left Side (2)
18 489355 Screw
19 1115373 Switch, Rocker Arm
20 2196483 Stud (12)
21 489478 Screw
22 1113169 Stop, Roller
23 2209533 Shelf, Top
Compartment
24 2199965 Light Lens
25 527949 Light Bulb
26 2162085 Light Socket
28 Slide, Container
2002721 Left Side
2002720 Right Side
29 2003478 Screw
30 8281158 Screw (12)
31 2199861 Shelf
32 3400893 Screw (4)

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
1 2214579 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
7 2206503 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 2205716 Coupling, Motor
10 489355 Screw
11 2162085 Socket, Light
14 2199895 Ice Container
15 983668 Coupling, Conveyor
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 2160602 Conveyor
28 2196194 Drum
29 3400912 Washer
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2002728 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2180348 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
44 2199913 Front Cover,
Ice Container
45 527949 Light Bulb
46 2171706 Light Lens,
Dispenser

9

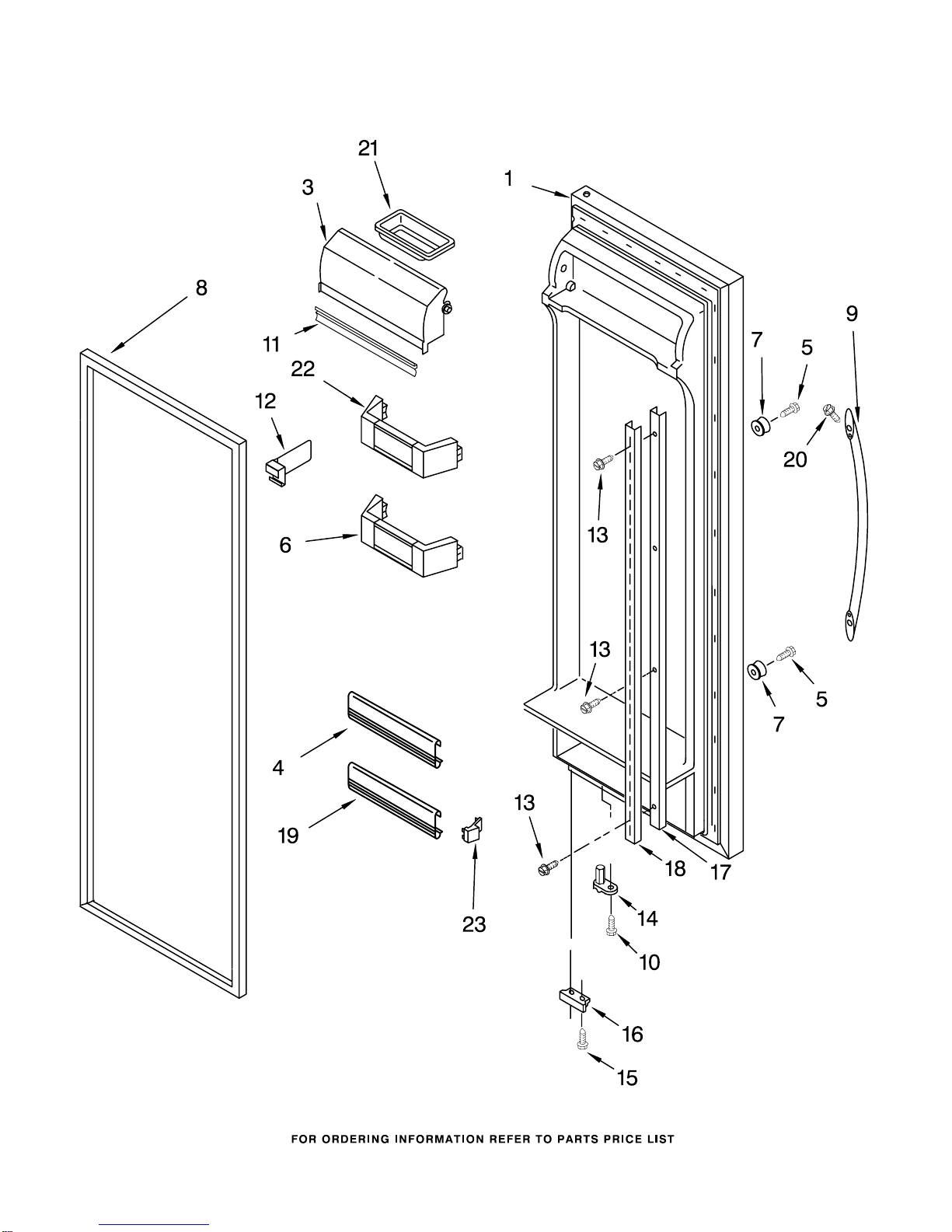

REFRIGERATOR DOOR PARTS
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540

REFRIGERATOR DOOR PARTS
10
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #8)
2221551W White
2221551T Biscuit
2221551B Black
2214482S Stainless Steel
3 2218122 Door, Compartment
4 2256010 Trim, Door Shelf
5 488208 Screw
6 2199986 Bin, Door
7 2203690 Stud, Handle
8 Door Gasket,
Magnetic
2221305 Mist Beige
2221310 Black
9 Handle
2188635W White
2188635T Biscuit
2188635B Black
2188635S Stainless Steel
10 3400012 Screw
11 2159124 Gasket
12 2195497 Divider, Bin
13 8281210 Screw
14 2182179 Door Closer,
Upper Cam
15 489420 Screw
16 Bracket, Door Stop
2210774 Chrome
2214451 Black
17 1113948 Retainer, Shelf
Ladder (2)
18 1113949 Ladder, Shelf (2)
19 2203087 Trim, Door Shelf
20 98654 Screw
21 2165792 Butter Dish
22 2199983 Bin, Door (3)
23 2195916 Endcap (2)

11

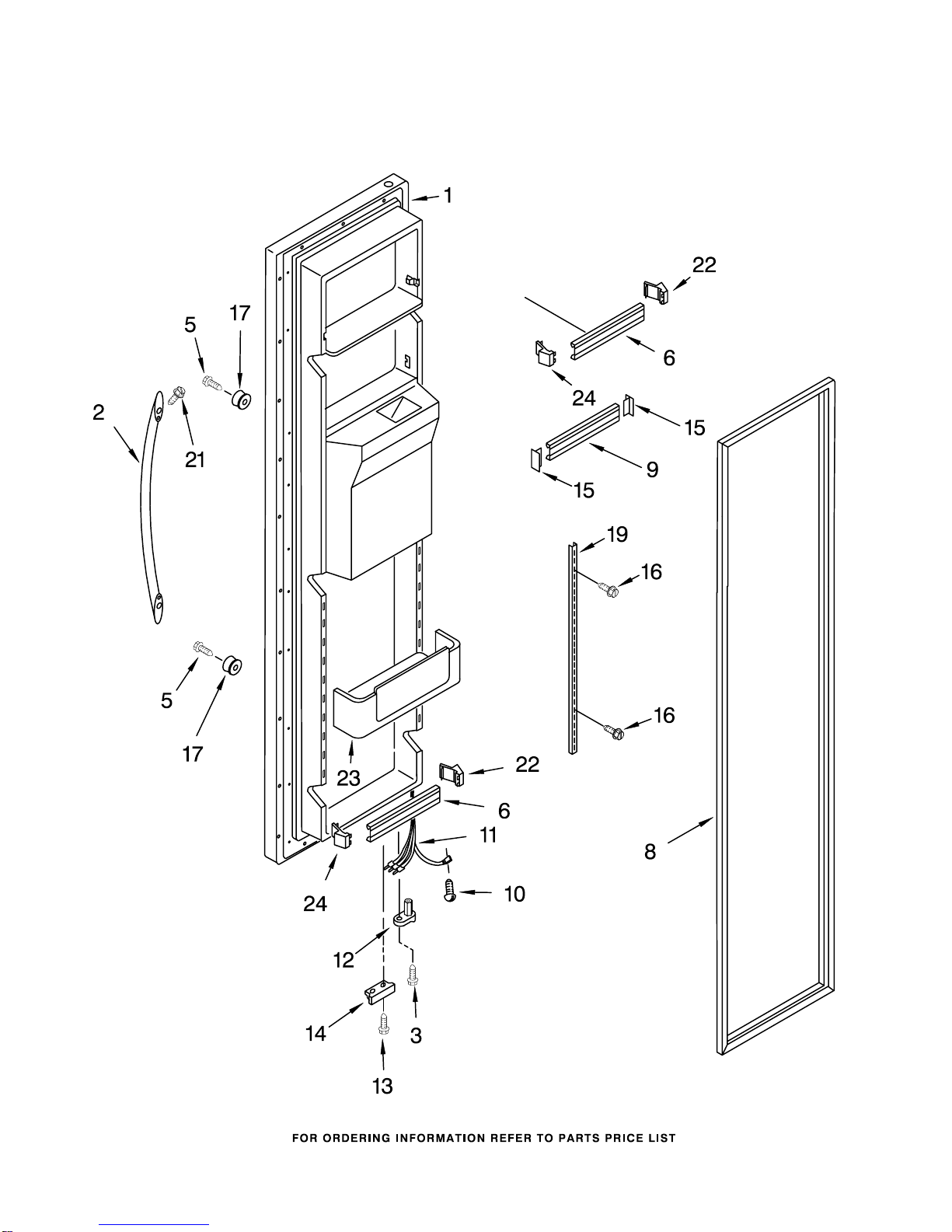

FREEZER DOOR PARTS
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540

12
FREEZER DOOR PARTS
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes Item #8
And Dispenser
Front Parts)
2221555W White
2221555T Biscuit
2221555B Black
2214484S Stainless Steel
2 Handle
2188635W White
2188635T Biscuit
2188635B Black
2188635S Stainless Steel
3 3400012 Screw
5 488208 Screw
6 2199990 Trim, Door Shelf
8 Door Gasket,
Magnetic
2221304 Mist Beige
2221309 Black
9 2199991 Trim, Door Shelf
10 488500 Screw
11 2187667 Wiring Harness
12 2182179 Door Closer,
Upper Cam
13 489420 Screw
14 Bracket, Door Stop
2210774 Chrome
2214451 Black
15 2156006 Plug, Trim
16 8281210 Screw
17 2203690 Stud, Handle
19 2208147 Ladder Shelf,
Assembly (2)
21 98654 Screw
22 2195916 Endcap
23 2199992 Bin, Door (2)
24 2195917 Endcap

13
DISPENSER FRONT PARTS
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540

DISPENSER FRONT PARTS
14
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3369138 Screw
3 2194719 Retainer, Levers
4 2180209 Spring, Torsion
5 2196195 Pin
6 2180352 Door, Ice
7 2206423 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2180323 White
2186860 Biscuit
2180325 Black
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2180259 White
2186850 Biscuit
2180261 Black (Storm
Grey Pad)
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch (2)
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2180268 White
2186852 Biscuit
2180270 Black (Storm
Grey Pad)
18 Switch Assembly
(Not Available,
Order #23)
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 2187409 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
2219823W White
2219823T Biscuit
2219823B Black
25 2195051 Strain Relief
26 2203091 Wire Harness,
Cntrl Mtg Bracket

UNIT PARTS
15
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540

UNIT PARTS
16
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 486692 Speed Nut
2 2190685 Fan, Blade
3 2205983 Condenser
Assembly
4 489464 Screw
5 2208280 Clip, Wire
6 2214366 Tube, Condenser
to Heat Loop
7 2185788 Clamp, Tube
8 2161302 Sleeve
9 2158826 Dampener
10 2210750 Bracket, Insert
11 8281197 Screw
12 2215676 Cover, Terminal
13 2187390 Unit Harness
14 2214365 Tube Suction
16 2203020 Extension,
Air Baffle
17 2221559 Inverter Box
18 2163787 Clip, Compressor
Mounting (4)
19 2208183 Block, Evaporator
20 2257354 Housing, Control
Board
21 489478 Screw
22 2209611 Evaporator
23 2161324 Clamp
24 2206036 Fan, Motor
25 1105523 Tray, Evaporator
27 2199167 Drier
28 2223393 Compressor
(Includes Items
12, & 27)
(Also Order
876765 Tube Kit)
29 2203075 Spacer
30 2223711 Unit Mounting
Plate
31 2187664 Harness,
Main Control
32 2208157 Fan, Motor Bracket
33 2210737 Heater, Defrost
34 2161330 Clip
35 8281196 Screw
36 2252095 Board, Control
37 680975 Washer
38 2203876 Gasket
39 2163786 Grommet (4)
40 3400515 Screw
41 2196155 Bi−Metal, Defrost
42 2199806 Tube, Heat Loop
43 489491 Screw
46 2223712 Insulation,
Mounting Plate
47 2203160 Side Support
52 2205813 Strap
63 2209709 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.25 oz.
(R−134A)

AIR FLOW PARTS
17
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2210746 Air Scoop
4 2208184 Block, Fan Scroll
5 2199931 Air Duct Freezer
7 2259385 Fan Motor
8 2169142 Fan Blade
10 2208959 Fan Grommet
11 2182146 Duct, Icemaker
12 2187710 Harness, Fan
Evaporator, And
Heater, Bi−Metal
13 2155789 Gasket Cover
14 2205813 Wire Tie
16 2210780 Gasket
17 2203122 Cover, Evaporator
18 489464 Screw
19 Evaporator,
Cover Rail
2199922 Right
2199923 Left
21 489478 Screw

CONTROL PARTS
18
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
1 2203081 Overlay
2 2221538 Retainer, Circuit
Board
3 2214765 Circuit Board,
Interface
4 2199717 Control Box
5 2203108 Light Lens
6 940014 Hole Plug
17 2162085 Light Socket
19 850166 Light Bulb
20 2214376 Control Box
Harness

19
ICEMAKER PARTS
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540

ICEMAKER PARTS
20
For Models: KSCS25FKWH02, KSCS25FKBT02, KSCS25FKBL02, KSCS25FKSS02
(White) (Biscuit) (Black) (Stainless Steel)
8198540
Illus. Part
No. No. DESCRIPTION
3 2203127 Tube, Filter
Outlet
4 2214613 Tube, Filter
Inlet
5 628379 Clip, Fuse
7 2181940 Tube, Water
8 2181939 Insert, Tube
9 489478 Screw
10 2199838 Valve, Solenoid
11 627018 Nut, Compression
12 2208136 Clip, Water Tube
13 2203024 Tube, Water
Inlet
14 488878 Tube Clamp
18 2174155 Cover
19 488649 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
22 628356 Cup, Water Fill
23 627843 Ejector
24 2182124 Ice Striper
25 2194712 Support
26 627796 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 489322 Screw
30 489276 Screw
31 2209675 Shut Off Arm
32 2187464 Harness, Wiring
33 628320 Bracket
35 626653 Module Assembly
(Includes Items
37 and 38)
36 488208 Screw
37 627811 Motor
38 489136 Screw
40 1129179 Nut, Compression
100 4317943 Complete Icemaker
Assembly
