KitchenAid KSRG25FKBL01 User manual

CABINET PARTS
1
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
REFRIGERATOR
4−01 Printed In U.S.A. (mek) Part No. 8197618 Rev. A

CABINET PARTS
2
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LITERATURE PARTS
1 LIT2216271 Use & Care Guide
LIT2216952 Service & Wiring
Sheet
LIT2219704 Energy Label
LIT628370 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top, RC
10 8281149 Screw
11 Hinge Cover, FC
2203407W White
2203407B Black
2203407T Biscuit
12 2217075 Hinge Bottom (2)
13 Filler, Wrapper
2196094 White
2196097 Black
2196150 Biscuit
14 Grille
2186881W White
2186881B Black
2186881T Biscuit
15 489497 Screw
16 2203770 Hinge, Top FC
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2204203 Cover, Unit
22 Hinge Cover, RC
2203408W White
2203408B Black
2203408T Biscuit
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2203220 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186884W White
2186884B Black
2186884T Biscuit
31 Cabinet (Not A
Serviceable Part)
32 8281227 Screw

REFRIGERATOR LINER PARTS
3
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
6 2196485 Stud Assembly
7 3400894 Screw
8 2196483 Stud Assembly
9 2206273 Ladder, Shelf (2)
10 8281158 Screw
11 486298 Screw (2)
12 487539 Screw
13 2205813 Strap
16 2179404 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2209754 Air Diffuser
Assembly
25 2152019 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2209687 Reservoir
33 527949 Light Bulb
34 2206269 Light Lens
37 488280 Screw

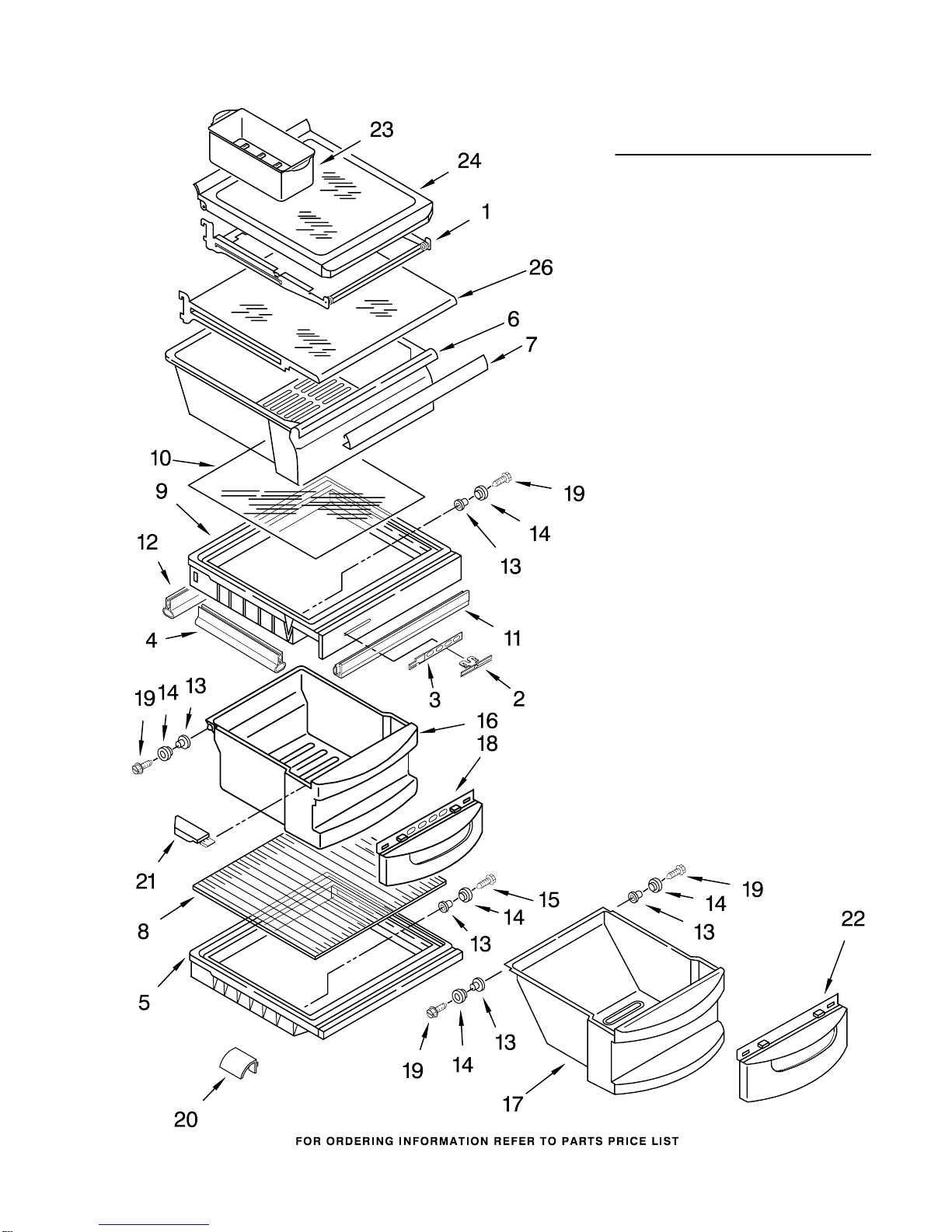

REFRIGERATOR SHELF PARTS
4
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION
1 2195975 Shelf Assembly,
Cantilever (3)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2161491 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2209677 Snack Pan
7 2179243 Trim, Handle
8 2189526 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2174148 Glass, Cover
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2179231 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174362 Window, Meat Pan
23 2182730 Egg Bin
24 2216102 Shelf & Roller
Assembly
26 2206346 Shelf, Snack Pan

FREEZER LINER PARTS
5
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618

FREEZER LINER PARTS
6
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 941839 Hole Plug
6 2181765 Basket, Tall
7 Track, Basket−Dual
2216106 Right Side
2216107 Left Side
9 2211746 Shelf, Slide Out
Upper
12 2171766 Basket, Front
13 Shelf Track
2181760 Right Side
2181759 Left Side
14 2205837 Shelf
15 2181764 Basket, Sloped
16 486298 Screw
17 842534 Clip, Air Duct
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2198585 P.C. Board
Emitter
27 2198642 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
31 2198665 Tube, P.C. Board
32 2162085 Light Socket
33 527949 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2198588 Cover, Receiver
37 2198637 Slide, Ice Maker
Shut Off
38 2198586 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2211506 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 527949 Light Bulb
45 Ladder
2198609 Left Side
2198610 Right Side
46 2198639 Shield, Wiring

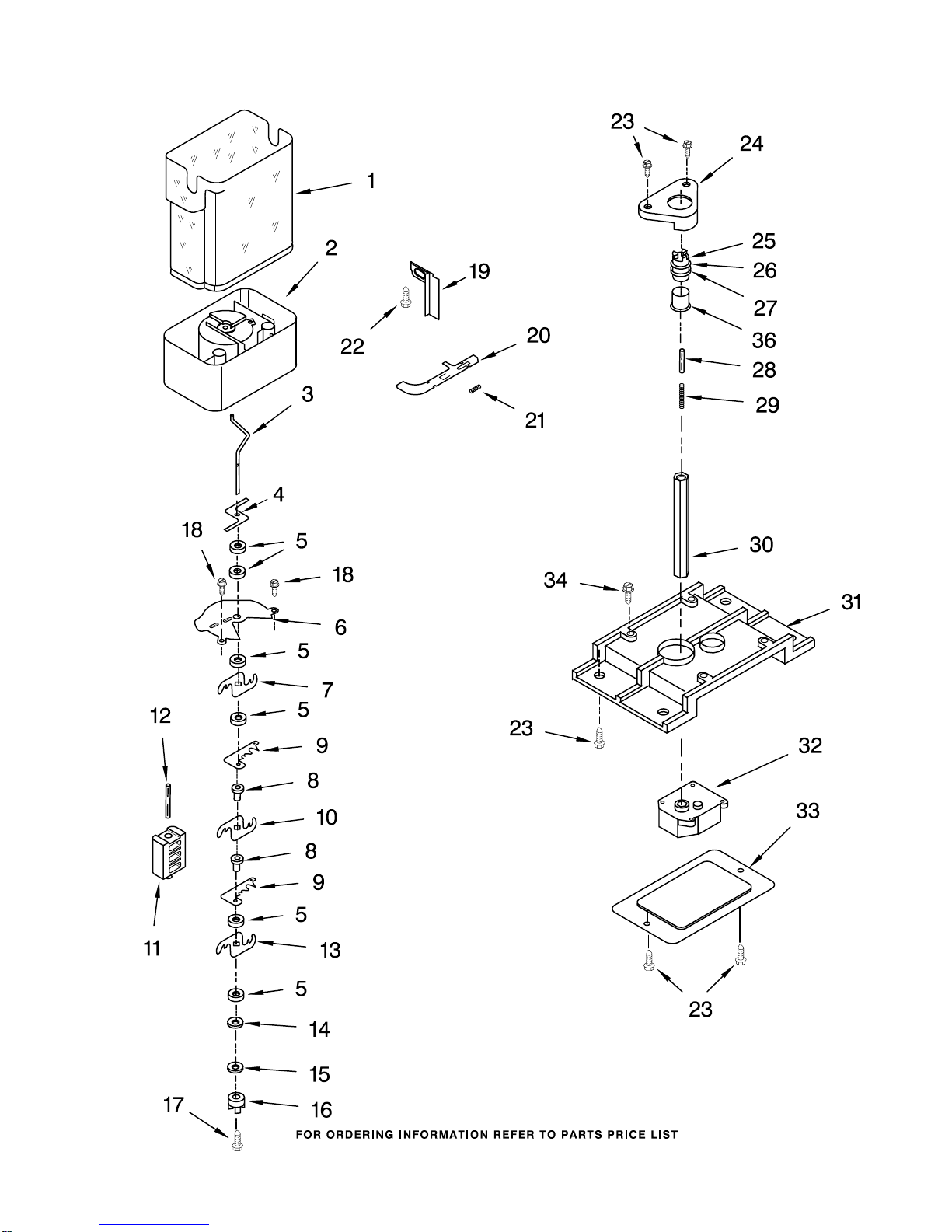

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2212367 Crusher Bin
3 2211590 Auger
4 2198603 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2198591 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2198601 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2198604 Coupling
17 8281164 Screw
18 3400065 Screw
19 2198605 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2212369 Holder
25 2198627 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
28 2198666 Pin
29 2198607 Spring
30 2198624 Drive Shaft
31 2198655 Bracket, Motor
32 2198594 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
36 2212365 Sleeve, Coupling

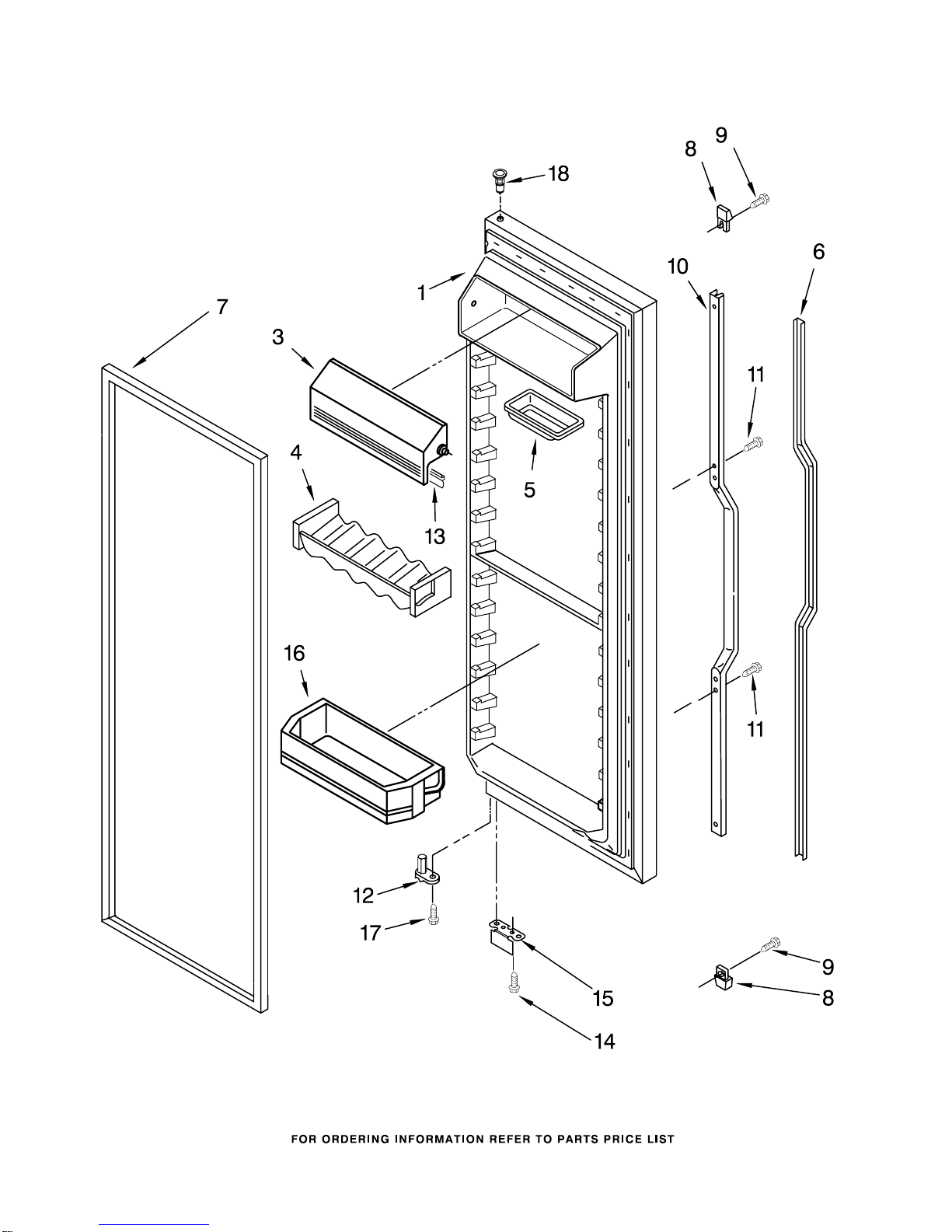

REFRIGERATOR DOOR PARTS
9
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618

REFRIGERATOR DOOR PARTS
10
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2207327W White
2207327B Black
2207327T Biscuit
3 2182399 Door, Compartment
4 2193409 Holder, Beverage
5 2165792 Butter Dish
6 Insert, Handle
2173825 White
2173829 Black
2186863T Biscuit
7 Door Gasket,
Magnetic (Service)
2196243 Mist Beige
2196241 Black
8 End Cap, Handle
2194778W White
2194778B Black
2194778T Biscuit
9 3400852 Screw
10 Retainer, Insert
2194777W White
2194777B Black
2194777T Biscuit
11 489463 Screw
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 Bracket, Door Stop
2206629 Chrome
16 2171063 Shelf Bin (4)
17 3400012 Screw
18 2182180 Thimble−Top

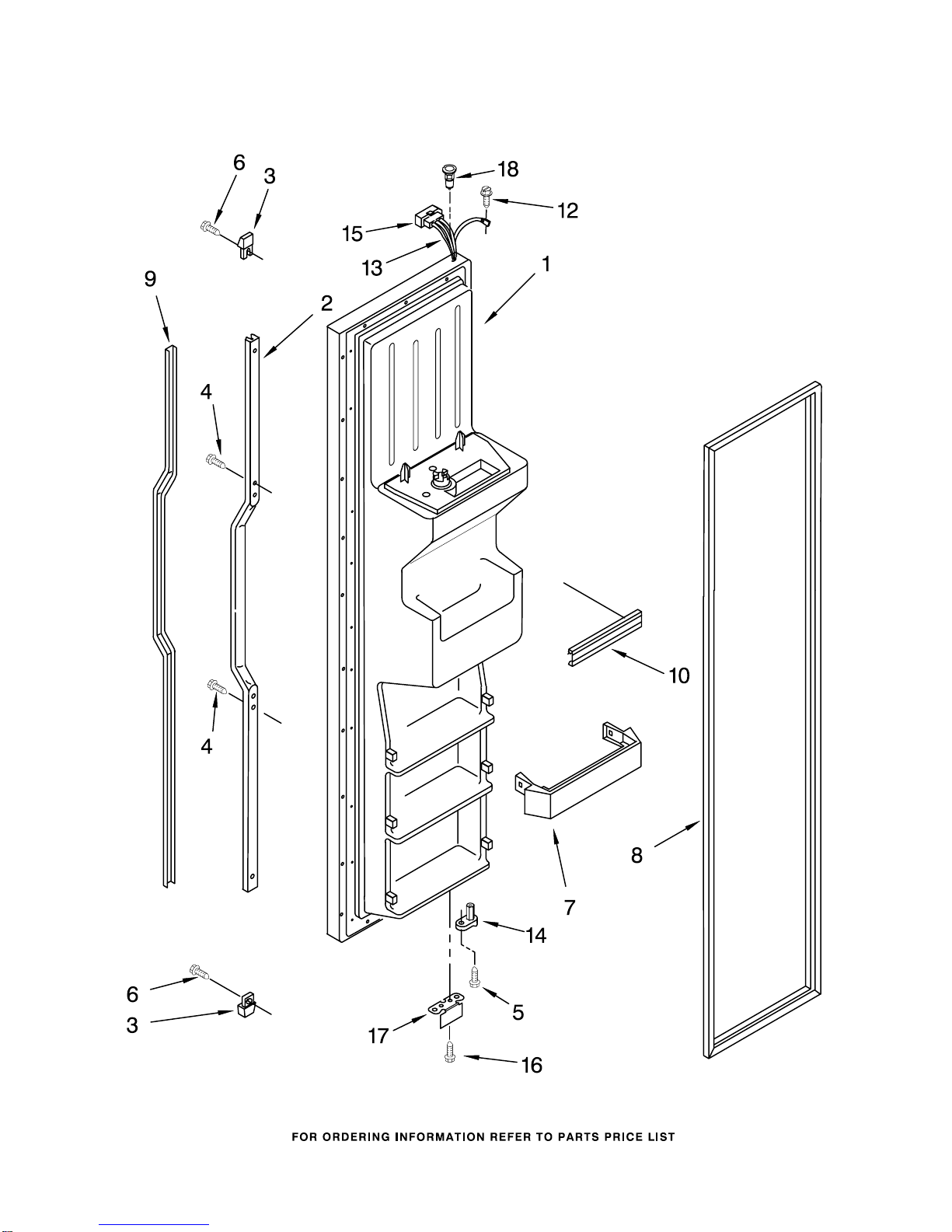

FREEZER DOOR PARTS
11
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618

FREEZER DOOR PARTS
12
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2216569W White
2216569B Black
2216569T Biscuit
2 Retainer, Insert
2194777W White
2194777B Black
2194777T Biscuit
3 End Cap (2)
2194778W White
2194778B Black
2194778T Biscuit
4 489463 Screw
5 3400012 Screw
6 3400852 Screw
7 2171070 Shelf Bin (4)
8 Door Gasket,
Magnetic (Service)
2196244 Mist Beige
2196242 Black
9 Insert, Handle
2173825 White
2173829 Black
2186863T Biscuit
10 2198630 Trim, Door Shelf
12 488500 Screw
13 2206178 Wire Harness
14 2182179 Door Closer,
Upper Cam
15 2154473 Connector
16 489420 Screw
17 Bracket, Door Stop
2206629 Chrome
18 2182181 Thimble−Top

DISPENSER FRONT PARTS
13
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618

DISPENSER FRONT PARTS
14
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 489000 Screw
3 2194719 Retainer, Levers
4 2180209 Spring, Torsion
5 2196195 Pin
6 2180352 Door, Ice
7 2206423 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670B Black
2206670T Biscuit
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2180259 White (White
Shadow Pad)
2180261 Black (Storm
Grey Pad)
2186850 Biscuit (Almond
Shadow Pad)
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch (4)
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2180268 White (White
Shadow Pad)
2180270 Black (Storm
Grey Pad)
2186852 Biscuit (Almond
Shadow Pad)
18 Switch Assembly
(Not Available
Order #23)
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 2198622 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
2207333W White
2207333B Black
2207333T Biscuit
25 2195051 Strain Relief

AIR FLOW PARTS
15
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2198595 Air Scoop
4 2212377 Air Duct, Upper
5 2198580 Air Duct Freezer
7 2162404 Fan Motor
8 2169142 Fan Blade
10 2176759 Fan Grommet (2)
12 2206504 Harness, Fan
Evaporator, And
Heater, Bi−Metal
13 2155789 Gasket Cover
14 2172840 Wire Tie
16 2203876 Gasket
17 2206314 Cover, Evaporator
18 489355 Screw
21 489478 Screw
22 2203595 Support, R.S
23 2203596 Support, L.S

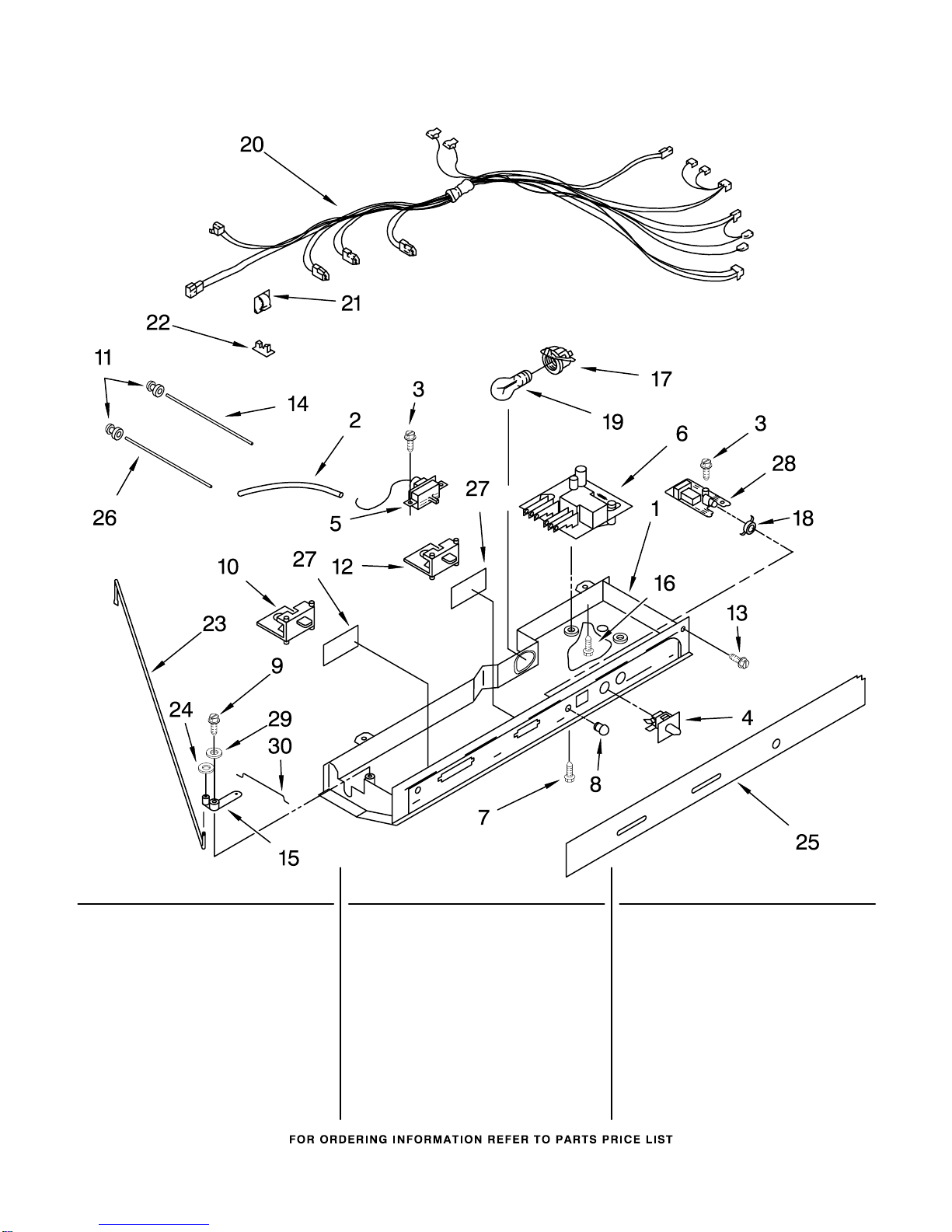

CONTROL PARTS
16
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2181738 Control Box
2 2196001 Tube Barrier,
Thermostat
3 489214 Screw (3)
4 2149705 Light Switch
5 2161282 Thermostat
6 2188159 Adaptive Defrost
Control
7 489398 Screw (2)
8 2200096 Cover, Light
Lens
9 627068 Screw
10 2181741 Slide, Air Control
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
13 489084 Screw (2)
14 2179920 Light Bar (RC)
15 2161306 Arm, Pivot
16 489290 Screw (2)
17 2162085 Light Socket
19 527949 Light Bulb
18 2200097 Retainer, Light
Lens
20 2211318 Control Box
Harness
21 1115374 Clip, Wiring
22 1115375 Clip, Wiring
23 2161308 Connecting Rod
24 489391 Fastner, Push−On
25 2211959 Escutcheon,
Control Box
26 2179921 Light Bar (FC)
27 2175513 Window
28 2203384 P.C. Board
Filter Indicator
29 489203 Spring, Washer
30 2161307 Connecting Rod
(Short)

UNIT PARTS
17
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618

UNIT PARTS
18
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 486692 Speed Nut
2 2190685 Fan, Blade
3 2204484 Condenser
Assembly
4 489464 Screw
5 2208280 Clip, Wire
7 2204239 Tube Suction
8 2161302 Sleeve
9 2158826 Dampener
10 2206006 Bracket, Insert
11 8281160 Screw
12 4387731 Cover (Service
Compressor Only)
13 4387835 Overload,
(Service, includes
Relay)
15 2212194 Start Device,
Combination
(Start Relay and
Overload) for
Production
Compressor
17 Capacitor
2169373 (Production)
4387764 (Service)
18 2211760 Tube, Condenser
to Heat Loop
19 509812 Screw Grommet
20 2216914 Clip, Condenser
21 489478 Screw
22 2209611 Evaporator
23 2161324 Clamp
24 2206005 Fan, Motor
25 1105523 Tray, Evaporator
26 2149294 Heat Shield
27 2199167 Drier
28 2212192 Compressor
(Includes Items
12, 13, 15, 17,
27 & 38)
(Also Order
876765 Tube Kit)
29 488687 Screw
30 2157396 Unit Mounting
Frame
31 2216411 Unit, Harness
32 2181929 Fan, Motor Bracket
33 2188175 Heater, Defrost
34 2161330 Clip
35 2196155 Bi−Metal, Defrost
37 489473 Screw
39 2183042 Grommet (4)
40 489340 Screw
41 2196202 Air Baffle
42 2155547 Clip, Heat Shield
43 2206281 Unit Cover, Bottom
44 489396 Clip
48 1127906 Unit Mounting
Rail
49 8281232 Screw
50 2186495 Guard, Fan
52 2172840 Strap
53 489427 Screw
54 227991 Wire Connector
55 488649 Screw
63 2209709 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618

ICEMAKER PARTS
20
For Models: KSRG25FKWH01, KSRG25FKBL01, KSRG25FKBT01
(White) (Black) (Biscuit)
8197618
Illus. Part
No. No. DESCRIPTION
1 2198677 Connector, Water
Tube
2 2198578 Fitting, Water
Tube
3 2186493 Tube, Filter
Outlet
4 2186492 Tube, Filter
Inlet
5 628379 Clip, Fuse
6 2200083 Nut, Compression
7 2211507 Tube, Water
9 489478 Screw
10 2205762 Valve, Solenoid
11 627018 Nut, Compression
14 489385 Tube Clamp
18 2174358 Cover
19 488649 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
22 628356 Cup, Water Fill
23 2194711 Ejector
24 2198598 Ice Striper
25 2194712 Support
26 627796 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 489322 Screw
30 489276 Screw
32 2198599 Harness, Wiring
33 2212322 Bracket, Icemaker
Mounting
35 628399 Module Assembly
(Includes Items
37 & 38)
37 628398 Motor
38 489136 Screw
40 1129179 Nut, Compression
