CABINET PARTS
1
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
08−06 Printed In U.S.A. (kdr) Part No. 8214932

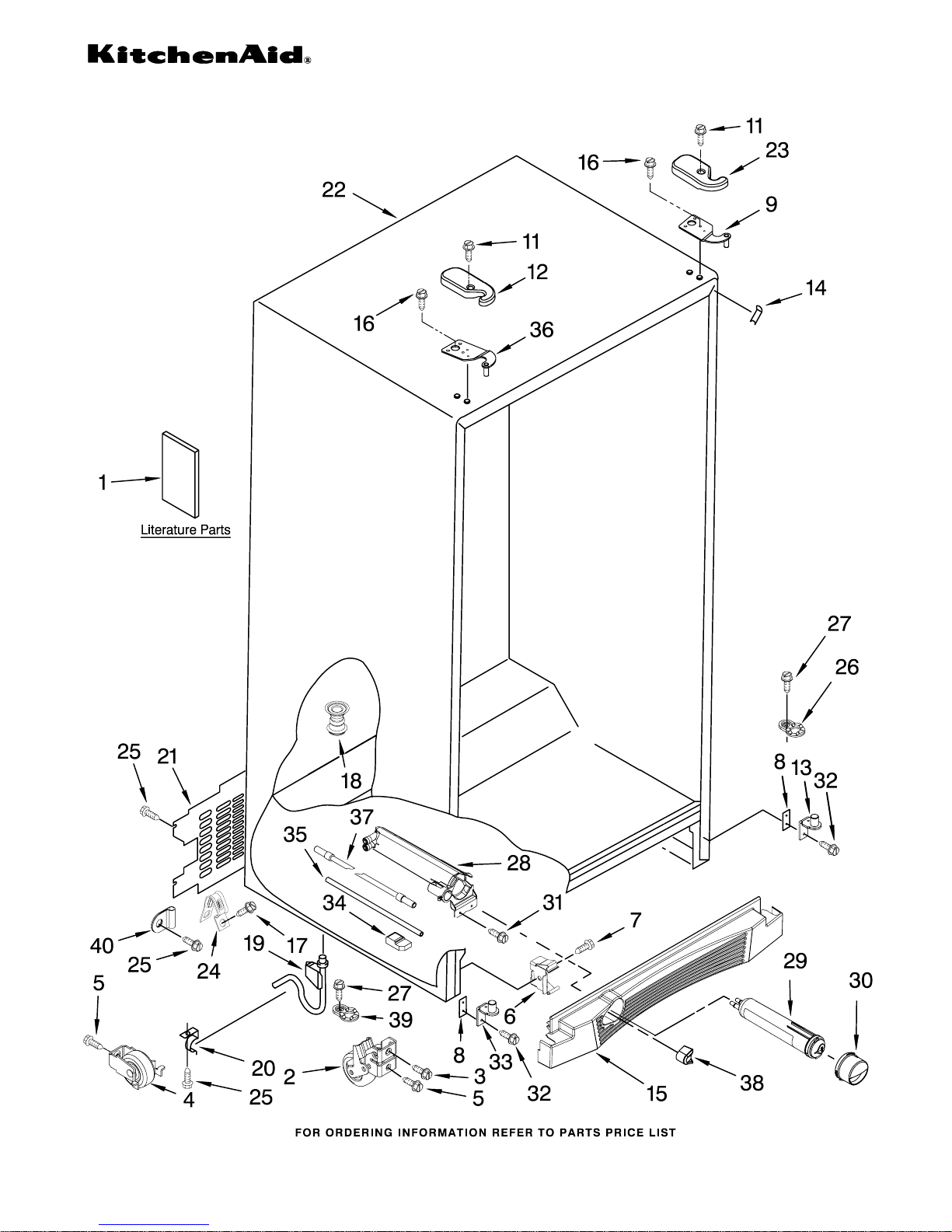

REFRIGERATOR

CABINET PARTS
2
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2318847 Energy Guide
2318586 Owner’s Manual
2303925 Service Sheet
2303929 Wiring Sheet
2220407 Modular Icemaker
Service Sheet
2308395 Instruction Sheet,
Door Removal
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 488500 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
11 8281227 Screw
12 Hinge Cover
2203407W White
2203407T Biscuit
2203407B Black
2203407AP Apollo Gray
13 2304322 Bottom Hinge (RC)
14 Filler, Wrapper
2196094 White
2196150 Biscuit
2196097 Black
2315169 Apollo Gray
15 Grille
2303292W White
2303292T Biscuit
2303292B Black
2303292AP Apollo Gray
16 489497 Screw
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Extension Tube
20 1108439 Clip, Drain Tube
21 2188735 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408T Biscuit
2203408B Black
2203408AP Apollo Gray
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer, RC
27 489483 Screw
28 2260507 Housing, Water
Filter
29 4396841 Water Filter
30 Cap, Water
Filter
2260502W White
2260502T Biscuit
2260502B Black
2260502AP Apollo Gray
31 489500 Screw
32 3400113 Screw
33 2303141 Bottom Hinge (FC)
34 2260519 Block, Housing
Support
35 2255012 Tube, Filter
Outlet
36 2203770 Hinge Top (FC)
37 2319867 Tube, Filter
Inlet
38 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
2260503AP Apollo Gray
39 2223751 Door Closer, FC
40 2305373 Clamp, Cord

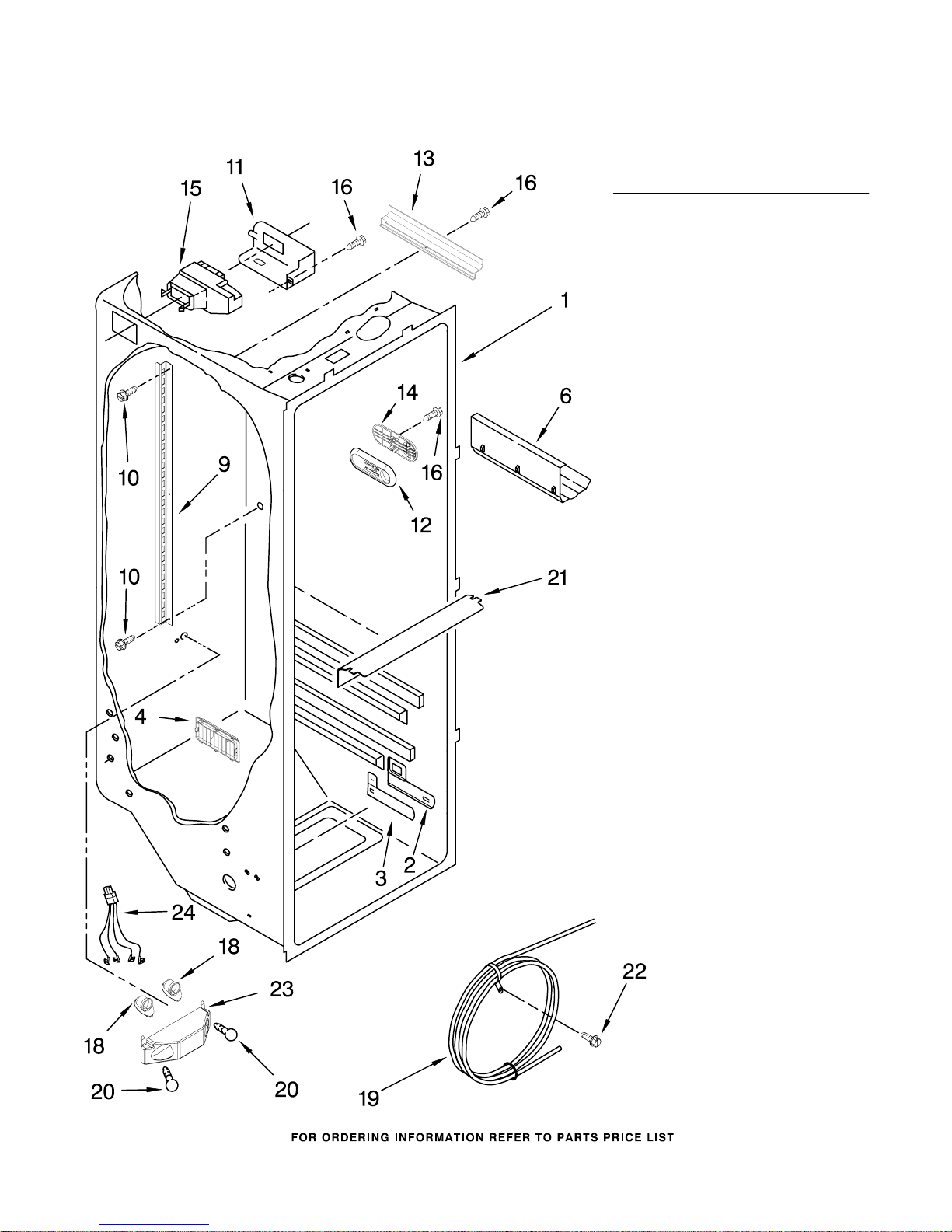

REFRIGERATOR LINER PARTS
3
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2255612 Escutcheon, Meat
Pan Control
3 2301339 Slide Meat
Pan Control
4 2257741 Louver
6 2179404 Wine Rack Asm
9 2319866 Shelf Ladder
10 489478 Screw
11 2212240 Cover, Air
Diffuser
12 2301234 Door Control Asm
13 2150331 Cover, Conduit
14 2301235 Slide, Door
Control
15 2216112 Air Diffuser
Assembly
16
W10004810 Screw
18 2162085 Socket
19 2305226 Reservoir
20 2255743 Light Bulb
21 2209769 Light Lens
22 488280 Screw
23 2256035 Bracket,
Dual Crisper
24 2256037 Wire Harness,
Dual Crisper

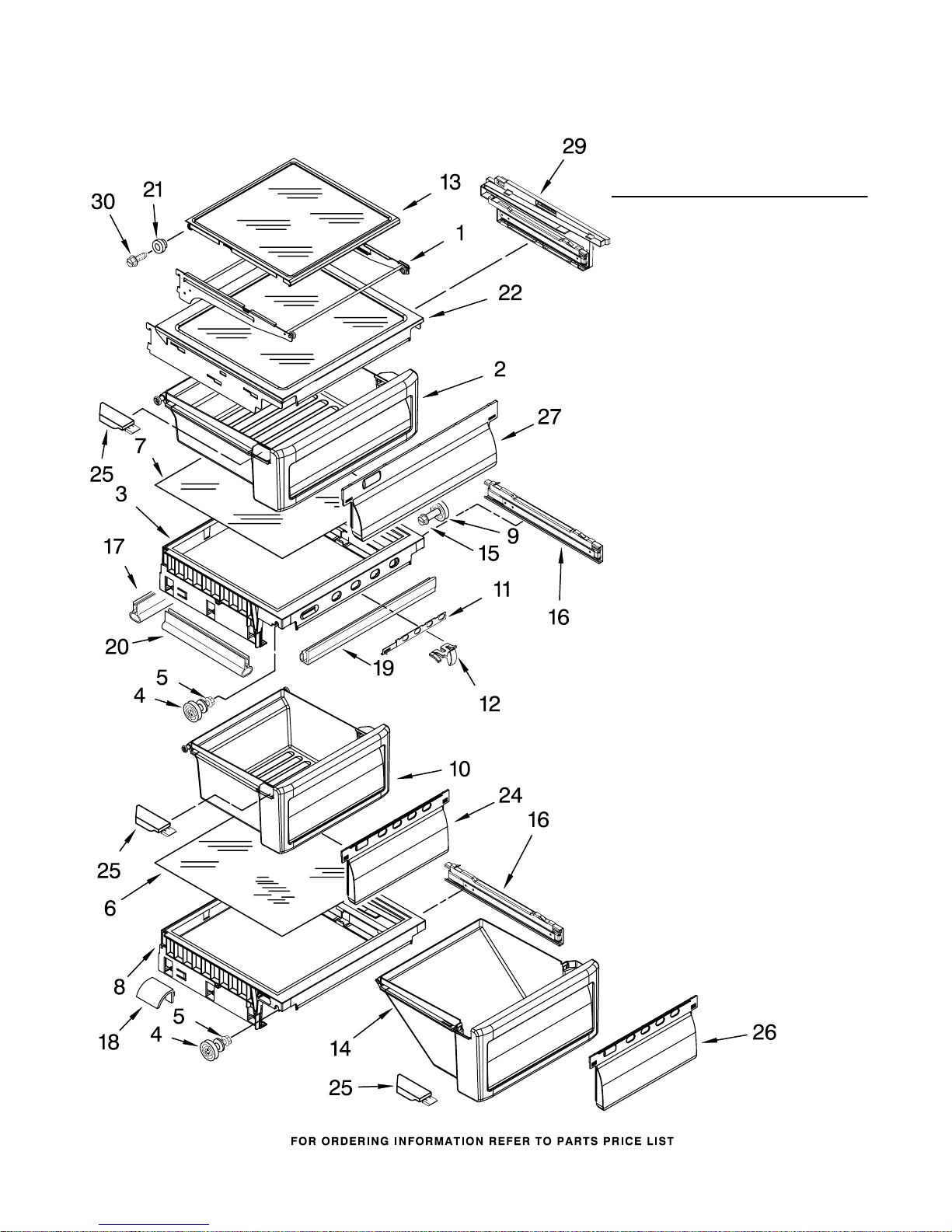

REFRIGERATOR SHELF PARTS
4
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION
1 2301072 Frame Assembly (2)
2 2301023 Snack Pan Asm
3 2301567 Cover, Crisper
4 2196485 Stud Assembly
5 3400894 Screw
6 2301028 Glass, Meat Cover
7 2301027 Glass, Cover
8 2301568 Cover, Meat Pan
9 2196483 Stud Assembly
10 2301031 Crisper Pan Asm
(Includes 24 & 25)
11 2301026 Slide, Humidity
Control
12 2301025 Knob, Humidity
Control
13 2301084 Shelf and Roller
Assembly (2)
14 2301022 Meat Pan Asm
(Includes 25 & 26)
15 8281158 Screw
16 Glide Assembly
2301548 Right Side
2301549 Left Side
17 2301115 Gasket, Rear
18 2301126 Deflector
19 2301116 Gasket, Front
20 2301117 Gasket, Side (2)
21 2188212 Roller (2)
22 2301566 Shelf Assembly
24 2301001 Window, Crisper
25 Cap, Corner
2301016 Right Side
2301017 Left Side
26 2301227 Window, Meat Pan
27 2301006 Window, Snack Pan
29 Support Assembly
2301569 Right Side
2301570 Left Side
30 489439 Screw (2)

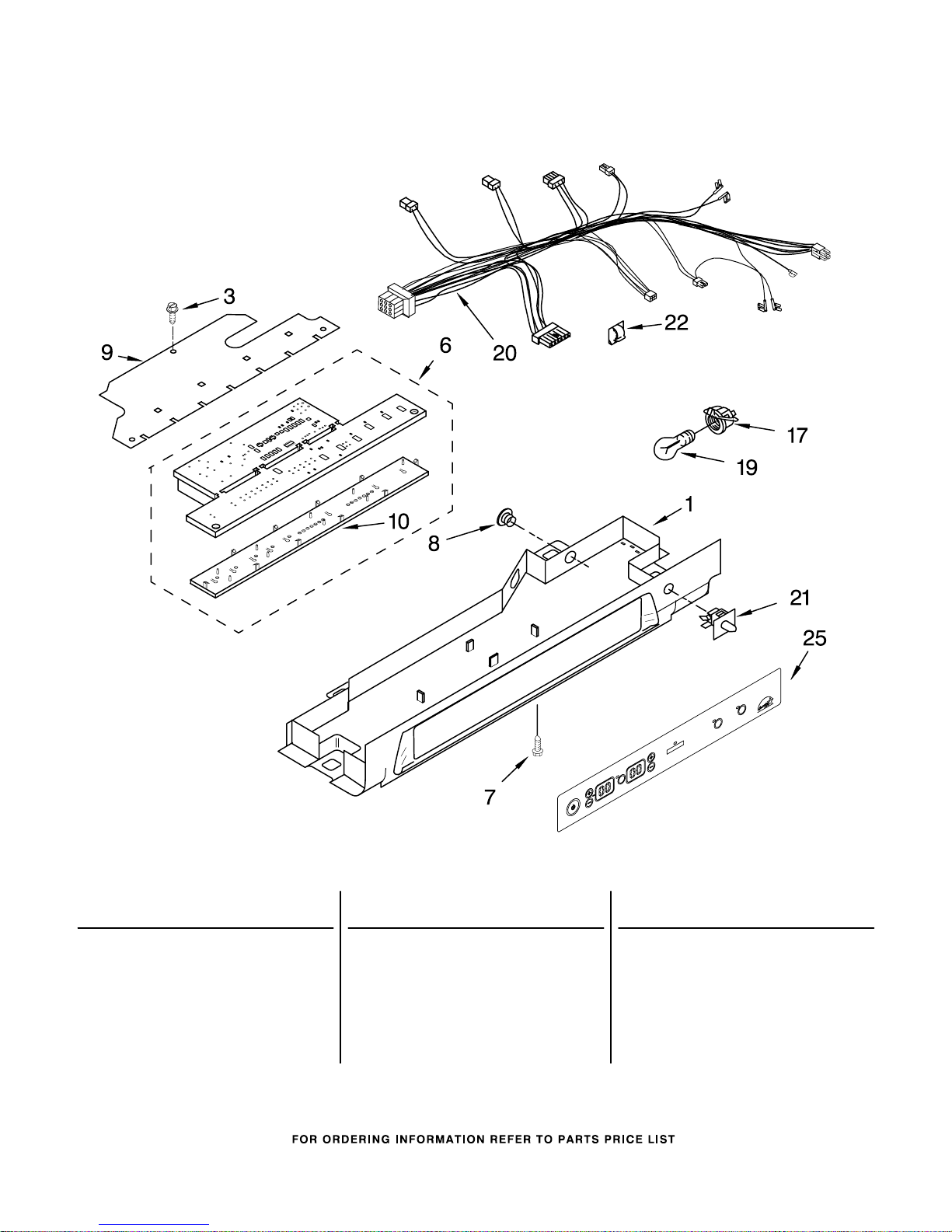

FREEZER LINER PARTS
5
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932

FREEZER LINER PARTS
6
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2301138 Top Basket
3 2198697 Gasket
4 Glide Assembly,
Top Basket
2301540 Right Side
2301541 Left Side
6 2301139 Basket, Tall
8 Glide Assembly,
Middle/Bottom
Basket
2301542 Right Side
2301543 Left Side
11 3400893 Screw
12 2301134K Front, Basket
14 2205837K Shelf (2)
15 2301140 Basket, Sloped
16 8534064 Screw (12)
17 842534 Clip, Air Duct (2)
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2255590 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255561 Cover, Receiver
37 2301340 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2198609 Left Side
2198610 Right Side
46 2303234 Shield, Wiring

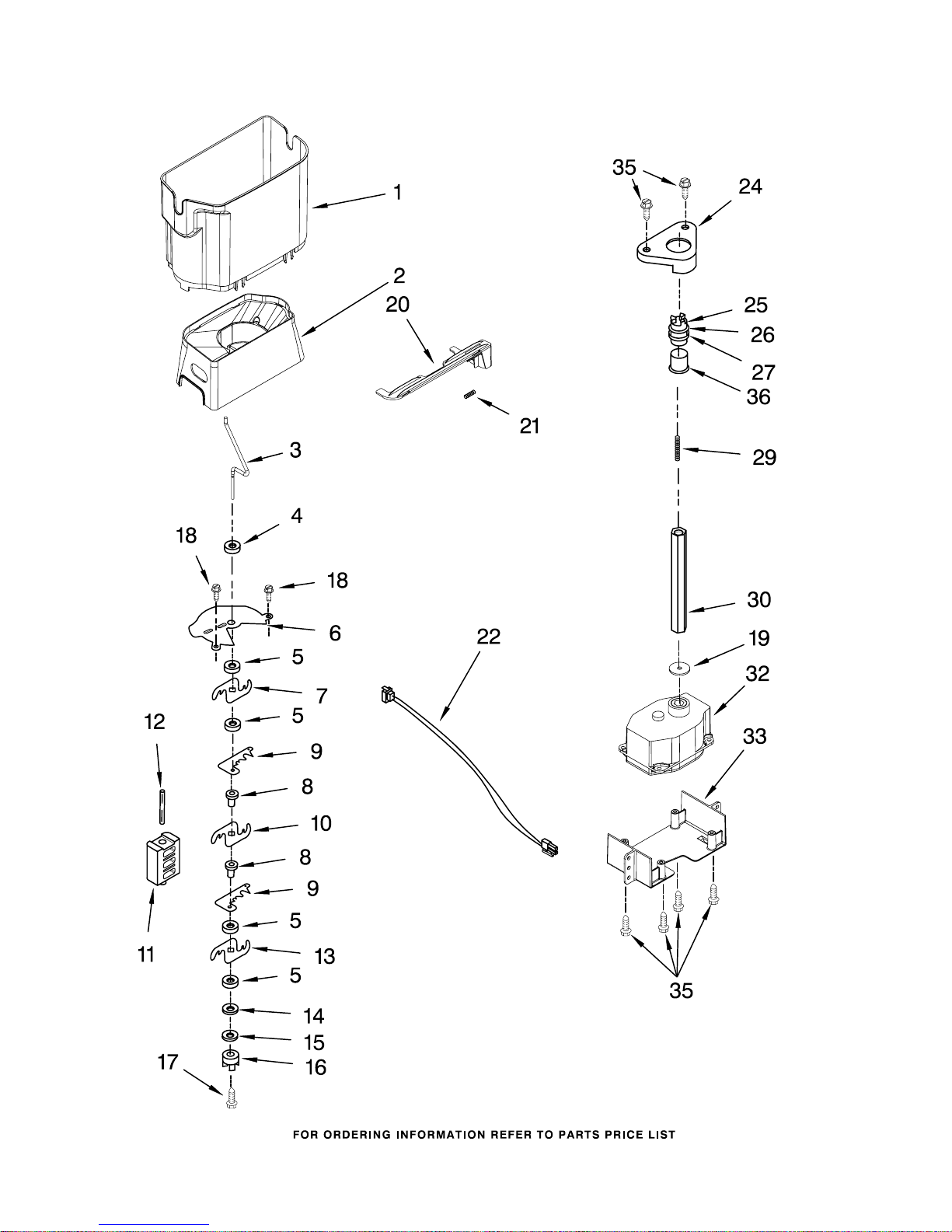

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION
1 2305336 Ice Bin
2 2305294 Crusher Bin
3 2258222 Auger
4 2258220 Washer, Auger
5 1119007 Spacer, Flat (4)
6 2305244 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2305382 Rubber Boot
20 2305441 Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Assembly,
IDI Motor
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 2305243 Drive Shaft
32 2252130 Dispenser, Motor
33 2305208 Bracket, Motor
35 8281163 Screw
36 2212365 Sleeve, Coupling
100 2305425 Ice Container
(Complete)

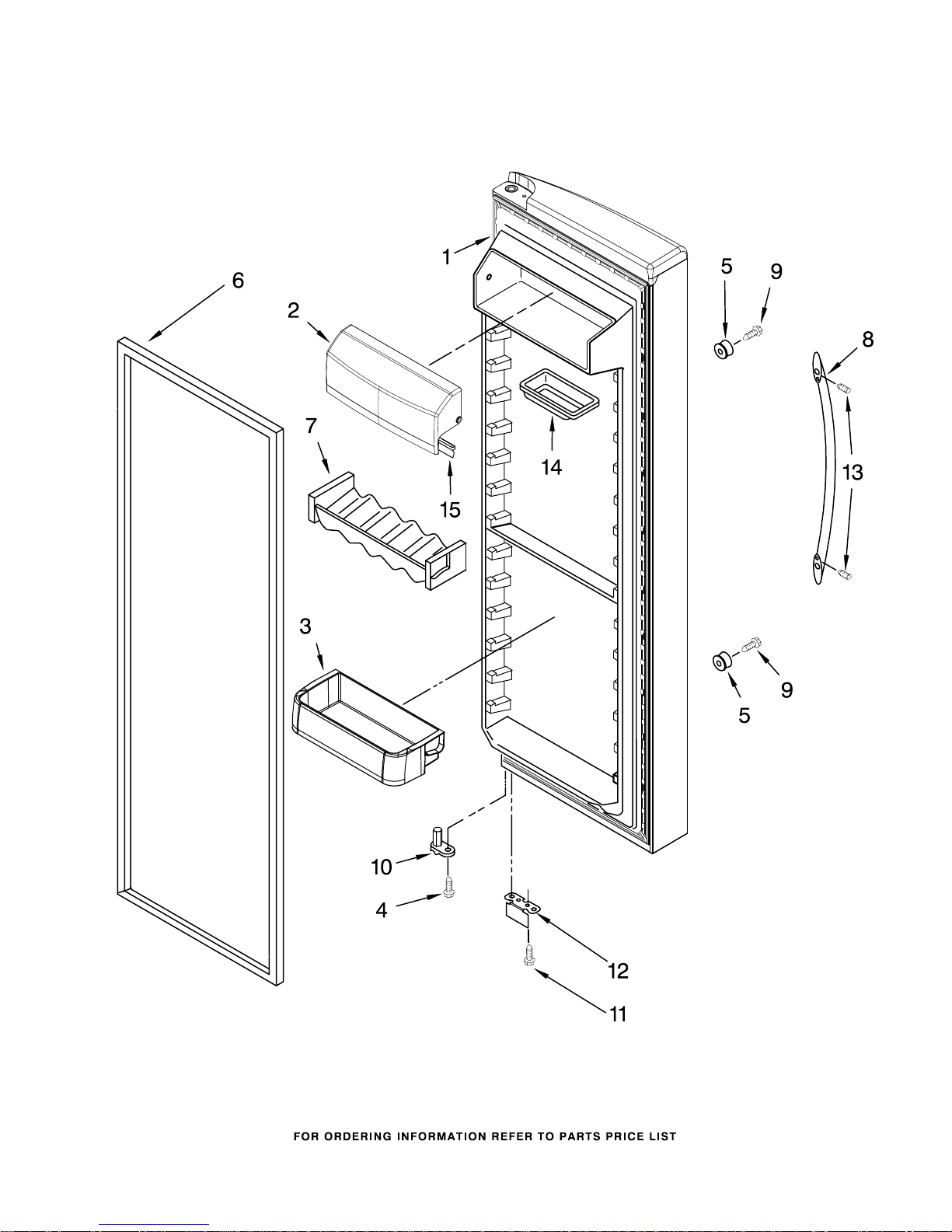

REFRIGERATOR DOOR PARTS
9
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932

REFRIGERATOR DOOR PARTS
10
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
2301168W White
2301168T Biscuit
2301168B Black
2301168SB Stainless Steel
2301168SUA Monochromatic
Stainless
2 2301486 Door Compartment
(Includes #15)
3 2223434K Door Bin (4)
4 3400012 Screw
5 2219698 Stud, Handle
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
7 2193409K Beverage Holder
8 Handle
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
9 488208 Screw
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2200082 Chrome
2200082B Black
13 Screw
W10010140 Chrome
W10010150 Black
14 2165792K Dish, Butter
15 2159124 Gasket

FREEZER DOOR PARTS
11
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932

FREEZER DOOR PARTS
12
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2303516W White
2303516T Biscuit
2303516B Black
2303516SB Stainless Steel
2318451SUA Monochromatic
Stainless
2 Handle
2319727W White
2319727T Biscuit
2319727B Black
2319727S Stainless Steel
3 2223559K Trivet (3)
4 2219698 Stud, Handle
7 488208 Screw
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
9 2304895 Safety Barrier
12 2223752 Door Closer,
Upper Cam
13 489420 Screw
14 Bracket, Door Stop
2303113 Chrome
2303113B Black
15 Screw
W10010140 Chrome
W10010150 Black
17 3400012 Screw
Following Parts Not Illustrated
2310084 Wire Assembly,
Freezer Door
2305405 Tube,
Water Dispenser

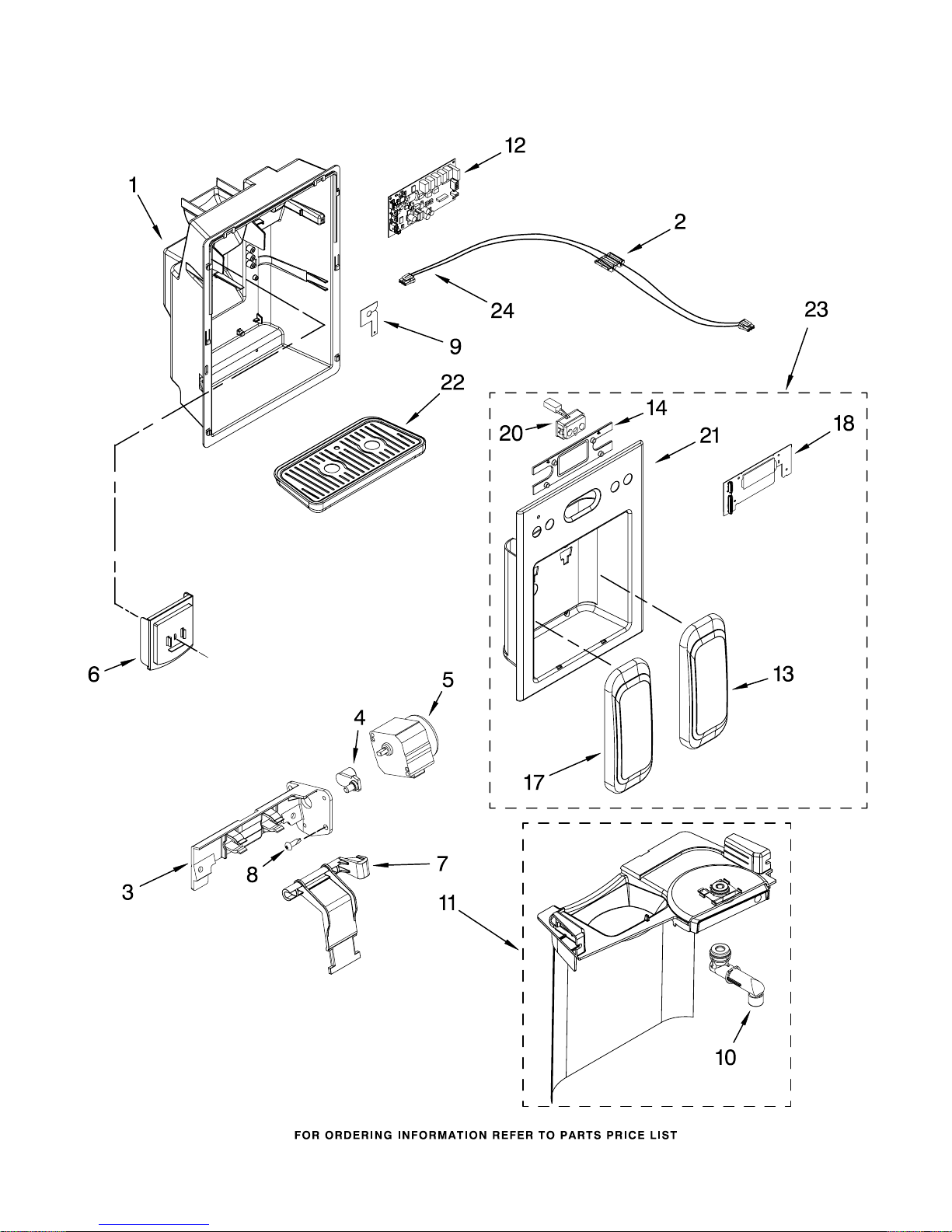

DISPENSER FRONT PARTS
13
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932

DISPENSER FRONT PARTS
14
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 2308165 Ferrite Bead
3 2305202 Bracket, Motor
4 2305242 Connector, Door
Bracket
5 2305262 Motor, Ice Door
6 2305258 Door, Ice
7 2305204 Support, Ice Door
8 4449745 Screw (2)
9 2305447 Clip, Wiring
10 2305236 Spigot
11 2305461 Seperator Assembly
12 2303843 Electronic
Cover (2)
Control (Core)
13 Pad, Water
2305307CE For White Model
2305307MN For Biscuit Model
2305307GE For Black and
Stainless Model
2305307AS For Monochromatic
Stainless Model
14 2305343 Lens, Front
Cover
17 Pad, Ice
2305306CE For White Model
2305306MN For Biscuit Model
2305306GE For Black and
Stainless Model
2305306AS For Monochromatic
Stainless Model
18 2304140 Cover, Electronic
Control
20 2303841 LED Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 Drip Tray
Assembly
2315110W White
2315110T Biscuit
2315110B Black
2315110US Universal Silver
23 Front Cover
Assembly
(Includes Items
14, 17, 18,
20, & 21)
2305310W White
2305310T Biscuit
2305310B Black
2318441US Universal Silver
24 2187814 Wire Assembly,
User Interface
(Includes #2)

AIR FLOW PARTS
15
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
4 2313359 Air Duct, Upper
5 2198580 Air Duct Freezer
6 2319914 Bi−metal, Defrost
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2188819 Thermister
10 2176759 Fan Grommet (2)
11 2304241 Gasket, Evaporator
12 2310238 Harness, Fan
Evaporator
(Includes #6)
13 2155789 Gasket, Fan Scroll
14 2172840 Strap
16 2203876 Gasket
17 2206314 Cover, Evaporator
(Includes #11)
18 8281159 Screw (6)
21 489478 Screw
22 2203595 Support, R.S.
23 2203596 Support, L.S.

CONTROL PARTS
16
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2212005 Control Box
3 3196537 Screw (4)
6 2321712 Electronic
Control
7 8281244 Screw (4)
8 940014 Hole Plug
9 2216879 Cover, Control
Box
10 Insert, Control
Board (Not
Available,
Order #6)
17 2162085 Light Socket
19 2255743 Light Bulb
20 2216115 Control Box
Harness
21 2219875 Switch
22 1115374 Clip, Wiring
25 2318773 Overlay,
Control Box

UNIT PARTS
17
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932

UNIT PARTS
18
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
2 2225834 Fan, Blade
3 2304902 Condenser Assembly
4 489464 Screw
5 2216914 Clip, Condenser
6 2261599 Tube, Condenser to
Heat Loop
7 2304289 Heat Shield
And Drain Pan
8 2205765 Tube Suction
10 8533993 Screw
12 4387731 Cover
(Service Only)
13 2154697 Overload
(Service Only)
15 2255199 Clip, Retaining
16 2319792 Start−Device,
Combination
(Start Relay and
Overload) for
Production
Compressor Only
17 Capacitor
2169373 Production
1118576 Service
20 2304899 Unit Cover, Bottom
21 489396 Clip
22 2188823 Evaporator
23 2161324 Clip
24 2188874 Motor, Fan
25 1105523 Tray, Evaporator
26 2310229 Harness, Unit
27 Drier
2319825 Production
4387019 Service
28 2318413 Compressor
(Includes Items
12, 13, 17, 27,
29, 31 & 39)
(Also Order
876765 Tube Kit)
29 2183454 Relay
(Service Only)
30 2304904 Unit Mounting
Frame
31 4387765 Wire, Capacitor
(Service Only)
32 2181929 Bracket, Fan Motor
33 2188175 Heater, Defrost
34 2304287 Clip, Heater
37 489373 Screw
39 Grommet (4)
1100826 Production
4387558 Service
40 489340 Screw
41 2196202 Air Baffle
42 2155547 Clip, Heat
48 2305374 Unit Mounting
Rail
49 8281232 Screw
50 2260517 Guard, Fan
51 2161302 Sleeve
52 2172840 Wire Tie
53 489427 Screw
55 489478 Screw
59 2208280 Clip, Wire & Tube
63 2305227 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932

ICEMAKER PARTS
20
For Models: KSRS25CSWH00, KSRS25CSBT00, KSRS25CSBL00, KSRS25CSSS00, KSRS25CSMS00
(White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless)
8214932
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256096 Fitting and
Water Tube
5 628379 Clip, Fuse
9 489478 Screw (3)
10 2305225 Smart Valve
16 2305274 Clip, Tube
18 2174358 Cover
19 488649 Screw
20 2255835 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
22 628356 Bearing & Inlet
23 627843 Ejector
24 2198598 Ice Stripper
25 2194712 Support
26 2315522 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 8533917 Screw
29 2303583 Bracket, Ice Maker
Mounting
30 489276 Screw
32 2187467 Harness, Wiring
35 626678 Module Assembly
(Includes Items
37 & 38)
37 626676 Motor
38 489136 Screw
100 626663 Icemaker Assembly
