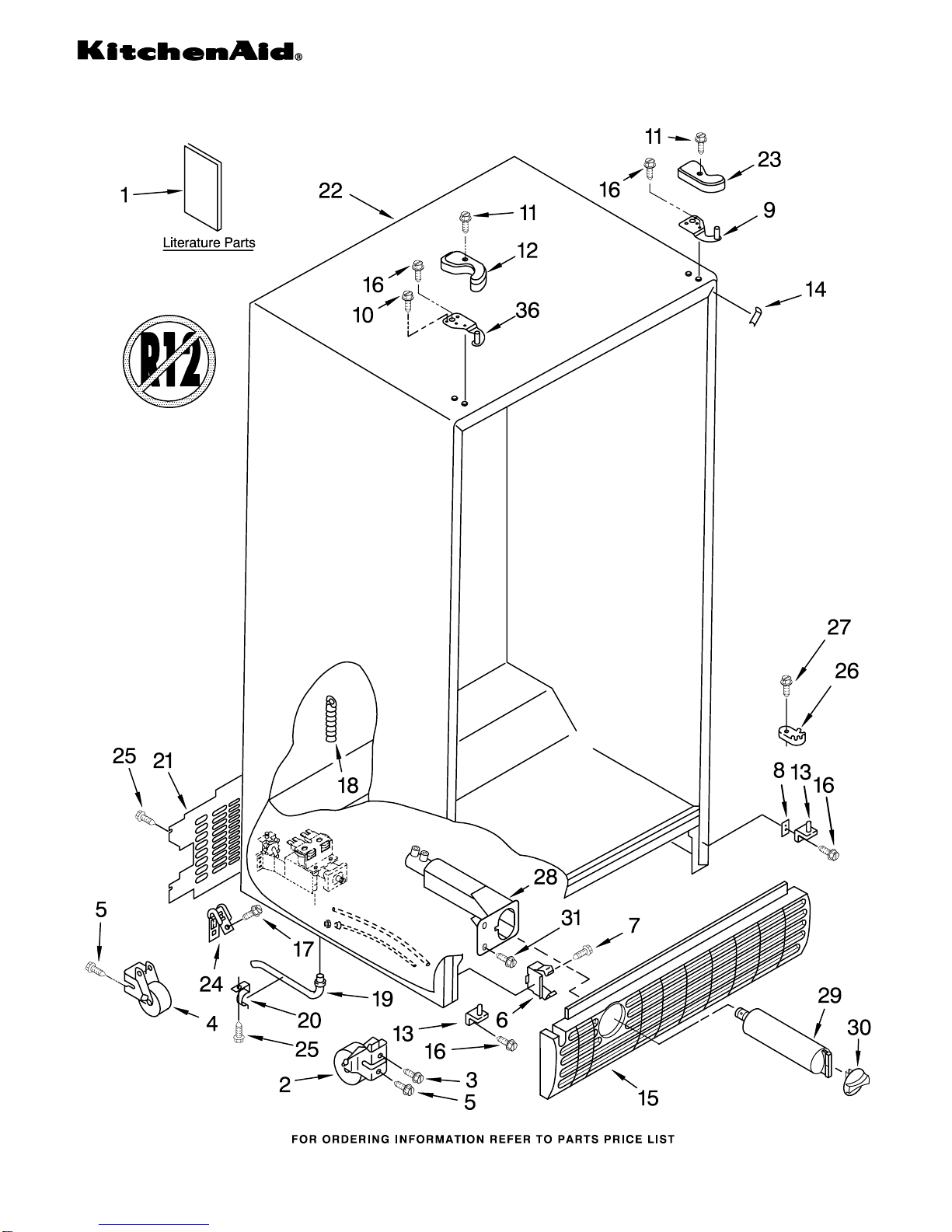

CABINET PARTS
1
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
1−02 Printed In U.S.A. (mek) Part No. 8197620 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
LITERATURE PARTS
1 LIT2220322 Energy Guide
LIT2220276 Owner’s Manual
LIT2216935 Service & Wiring
Sheet
LIT628370 Modular Icemaker
Service Sheet
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT787808 Refrigerator
LIT787316 Icemaker
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 Shim
2156056 (1)
2209697 (1)
9 2203771 Hinge Top (RC)
10 8281149 Screw
11 8281227 Screw
12 Hinge Cover
2203407W White
2203407T Biscuit
2203407B Black
2203407BU Cobalt Blue
13 2217075 Hinge Bottom (2)
14 Filler, Wrapper
2196094 White
2196150 Biscuit
2196097 Black
2205991 Cobalt Blue
15 Grille
2186881W White
2186881T Biscuit
2186881B Black
2186881BU Cobalt Blue
16 489497 Screw
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Extension Tube
20 1108439 Clip, Drain Tube
21 2204203 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408T Biscuit
2203408B Black
2203408BU Cobalt Blue
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer,
Lower Cam (2)
27 489483 Screw
28 2186443 Housing, Water
Filter
29 2203220 Water Filter
30 Cap, Water
Filter
2186884W White
2186884T Biscuit
2186884B Black
2186884BU Cobalt Blue
31 489500 Screw
36 2203770 Hinge Top (FC)

REFRIGERATOR LINER PARTS
3
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
5 2205813 Strap
6 8281158 Screw
8 2196483 Stud Assembly
9 2206273 Shelf Ladder
10 487539 Screw
11 486298 Screw (2)
13 1123919 Bracket Retainer
14 489290 Screw
15 2209751 Air Diffuser
Assembly
16 2212240 Air Diffuser
Cover
17 2150331 Cover, Wiring
18 2162085 Socket
19 2217199 Reservoir
20 527949 Light Bulb
21 2206269 Light Lens
22 488280 Screw
23 2179404 Rack, Wine & Egg
24 2196485 Stud Assembly
25 3400894 Screw

REFRIGERATOR SHELF PARTS
4
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION
1 2195978 Shelf Assembly,
Cantilever (2)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2161491 Cover, Meat Pan
(Includes Items
13, 14, & 15)
6 2174148 Glass, Cover
8 2189526 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14, & 19)
11 2174272 Gasket, (Front)
12 2174274 Gasket, (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19, & 21)
17 2179231 Meat Pan
(Includes 13,
14, 19, & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174362 Window, Meat Pan
23 2216624 Egg Bin
24 2174021 Shelf & Roller
Assembly
25 489439 Screw
32 2209677 Snack, Pan
33 2179243 Trim, Handle
34 2206346 Shelf, Snack Pan

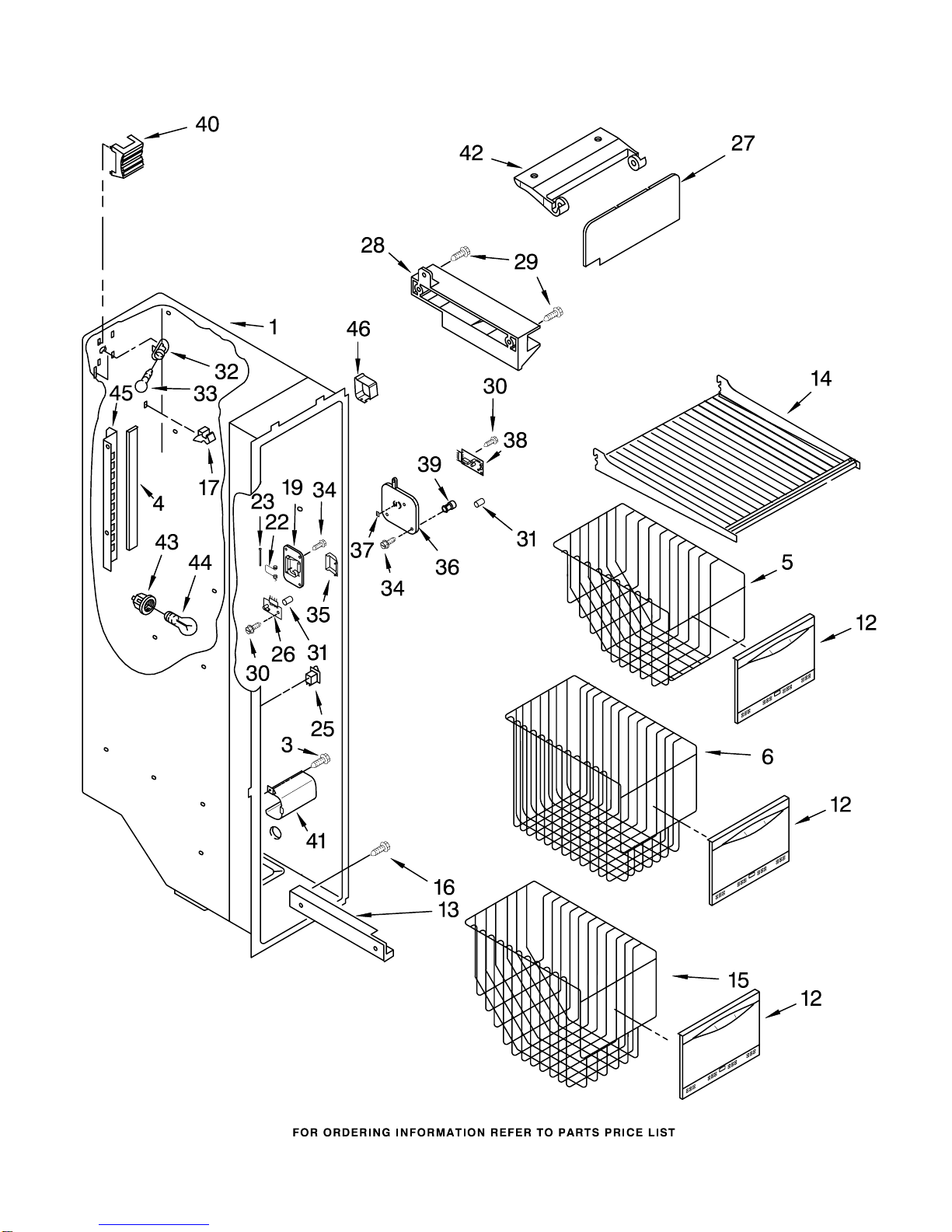

FREEZER LINER PARTS
5
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620

FREEZER LINER PARTS
6
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
3 3400893 Screw
4 2198697 Gasket
5 2205834 Basket, Top
6 2205833 Basket, Tall
12 2205826 Basket, Front
13 Shelf Track
2181760 Right Side
2181759 Left Side
14 2205837 Shelf
15 2205832 Basket, Sloped
16 486298 Screw (8)
17 842534 Clip, Air Duct (2)
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2198585 P.C. Board
Emitter
27 2198642 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
31 2198665 Tube, P.C. Board
32 2162085 Light Socket
33 527949 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2198588 Cover, Receiver
37 2198637 Slide, Ice Maker
Shut Off
38 2198586 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 527949 Light Bulb
45 Ladder
2198609 Left Side
2198610 Right Side
46 2219878 Shield, Wiring

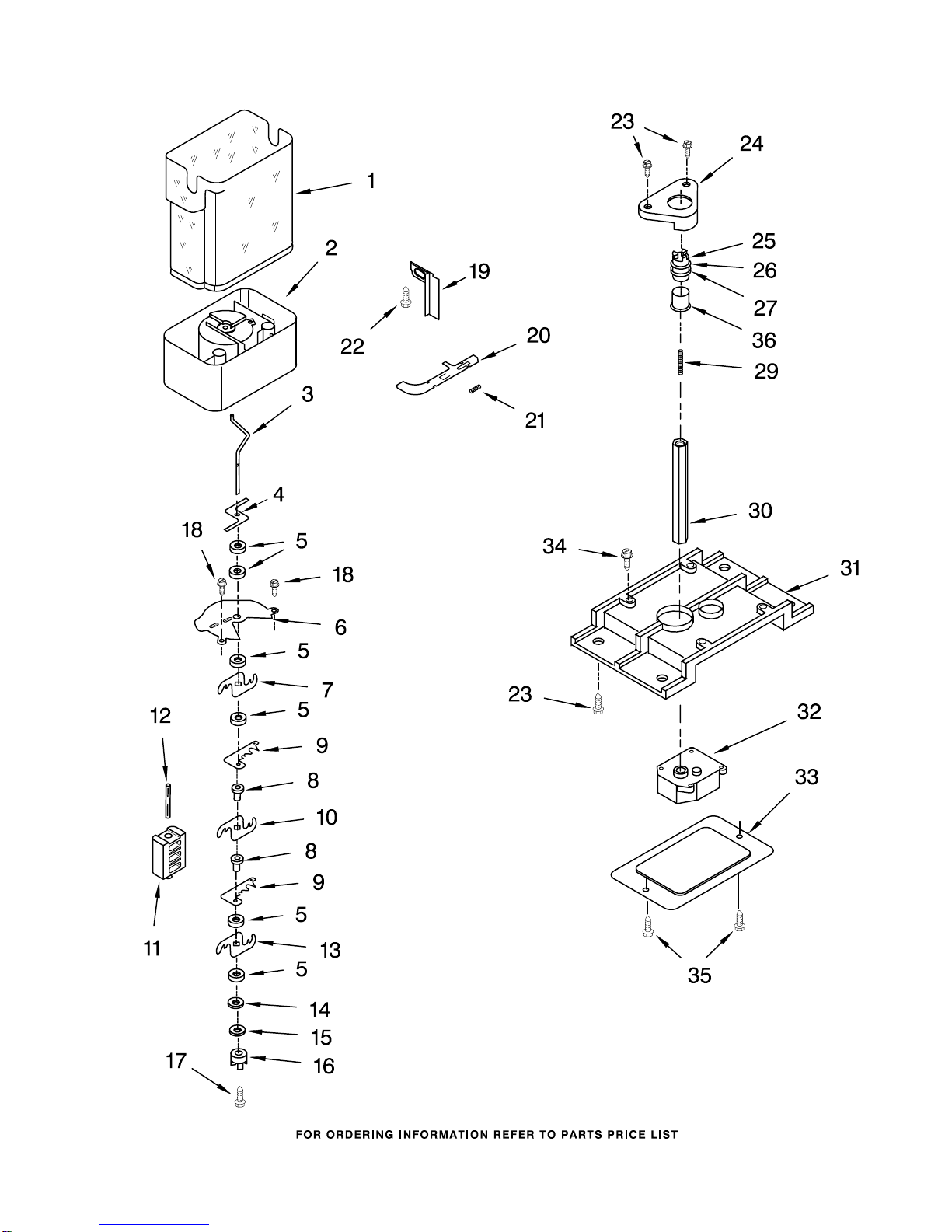

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2212367 Crusher Bin
3 2211590 Auger
4 2198603 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2198591 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2198601 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2198604 Coupling
17 8281164 Screw
18 3400065 Screw
19 2198605 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw (2)
23 8281163 Screw
24 2212369 Holder
25 2198627 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 999536 Drive Shaft
31 2198655 Bracket, Motor
32 2198594 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
35 489478 Screw
36 2212365 Sleeve, Coupling

REFRIGERATOR DOOR PARTS
9
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620

REFRIGERATOR DOOR PARTS
10
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
2207183W White
2207183T Biscuit
2207183B Black
2207183S Stainless
2207183BU Cobalt Blue
2 2182399 Compartment Door
3 2205821 Shelf Bin (4)
4 3400012 Screw
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
7 2193409 Beverage Holder
8 Handle
2207112W White
2207112T Biscuit
2207112B Black
2207112S Stainless Steel
2207112BU Cobalt Blue
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2200082 Chrome
2220082B Black
13 Screw (4)
3400898 White
8281135 Biscuit
3400899 Black
3400897 Chrome
8281178 Cobalt Blue
18 2165792 Butter, Dish
20 2159124 Gasket
21 Endcap
2207111W White
2207111T Biscuit
2207111B Black
2207111CH Satin Chrome

FREEZER DOOR PARTS
11
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620

FREEZER DOOR PARTS
12
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2216062W White
2216062T Biscuit
2216062B Black
2216062S Stainless
2216062BU Cobalt Blue
2 Handle
2207112W White
2207112T Biscuit
2207112B Black
2207112S Stainless
2207112BU Cobalt Blue
3 2171070 Shelf Bin (3)
5 2206178 Dispenser Harness
6 2154473 Connector
7 Screw (4)
3400898 White
8281135 Biscuit
3400899 Black
3400897 Chrome
8281178 Cobalt Blue
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
10 2219982 Trim, Door Shelf
12 2182179 Door Closer,
Upper Cam
13 489420 Screw
14 Bracket, Door Stop
2200082 Chrome
2200082B Black
17 3400012 Screw
19 488500 Screw
23 Endcap
2207110W White
2207110T Biscuit
2207110B Black
2207110CH Satin Chrome

DISPENSER FRONT PARTS
13
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620

DISPENSER FRONT PARTS
14
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196165 Screw
3 2194719 Retainer, Levers
4 2180209 Spring, Torsion
5 2196195 Pin
6 2180352 Door, Ice
7 2206423 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2207109W White
2207109T Biscuit
2207109B Black
2207109BU Cobalt Blue
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2180259 White (White
Shadow Pad)
2186850 Biscuit (Almond
Shadow Pad)
2180261 Black (Storm
Grey Pad)
2207151 Cobalt Blue
(Cobalt Blue Pad)
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2180268 White (White
Shadow Pad)
2186852 Biscuit (Almond
Shadow Pad)
2180270 Black (Storm
Grey Pad)
2207149 Cobalt Blue
(Cobalt BluePad)
18 Switch Assembly
(Not Available,
Order #23)
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 2187406 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
2207153W White
2207153T Biscuit
2207153B Black
2207153BU Cobalt Blue
25 2195051 Strain Relief
26 3400065 Screw

AIR FLOW PARTS
15
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 2198595 Air Scoop
4 2212377 Air Duct, Upper
5 2198580 Air Duct Freezer
7 2149299 Fan Motor
8 2169142 Fan Blade
10 2176759 Fan Grommet (2)
12 2206504 Harness, Fan
Evaporator
And Heater
13 2155789 Gasket,
Evaporator Cover
14 2172840 Strap
16 2203876 Gasket
17 2206314 Cover, Evaporator
18 489355 Screw (6)
21 489478 Screw
22 2203595 Support, R.S.
23 2203596 Support, L.S.

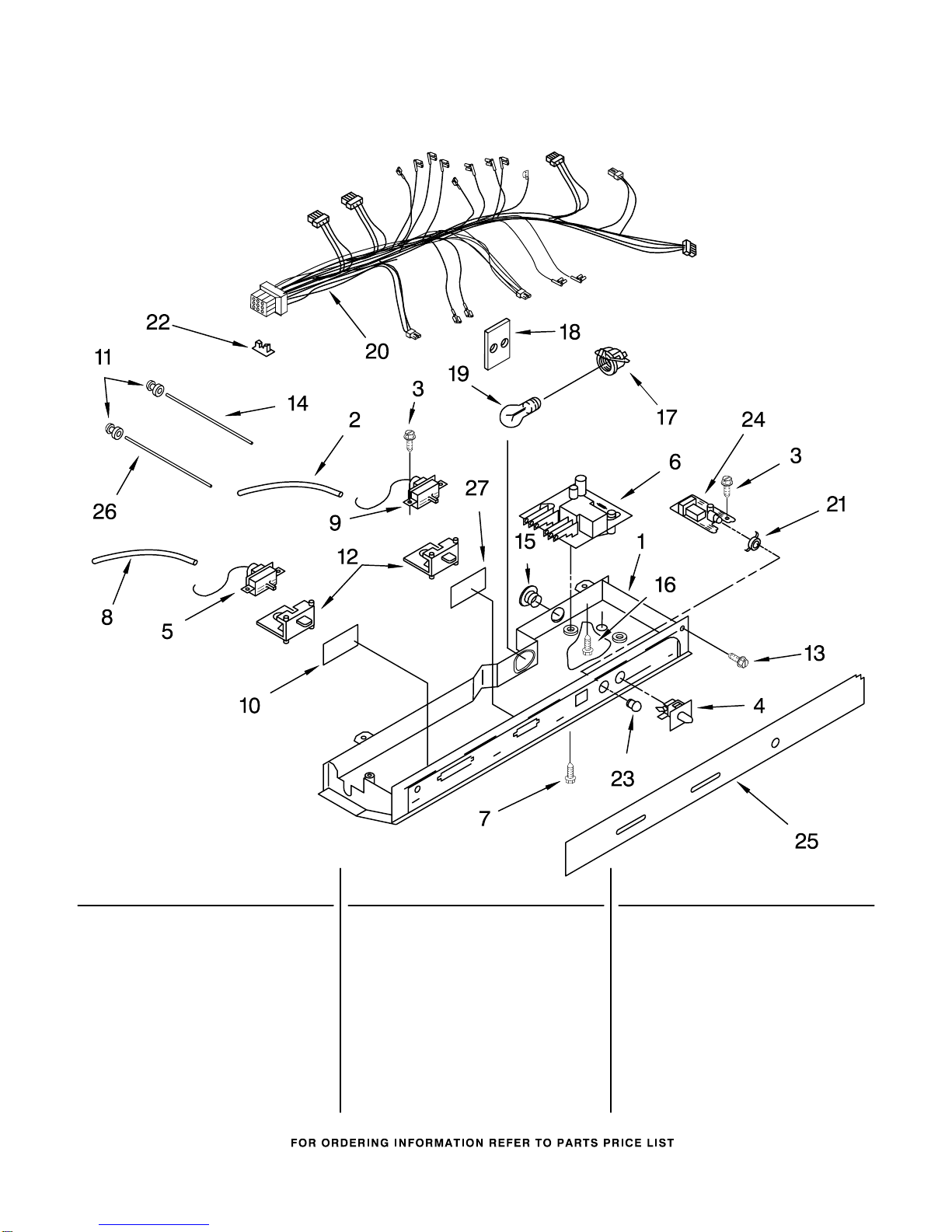

CONTROL PARTS
16
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2200134 Control Box
2 2182150 Tube Barrier,
Thermostat (RC)
3 489214 Screw (3)
4 2149705 Switch, Light
5 2161461 Thermostat (FC)
6 2188159 Adaptive Defrost
Control
7 489398 Screw (2)
8 2196003 Tube Barrier,
Thermostat (FC)
9 2161460 Thermostat (RC)
10 2172940 Window
11 2172906 Grommet, Light Bar
12 2161466 Slide, Thermostat
13 489084 Screw (2)
14 2179920 Light Bar (RC)
15 940014 Hole Plug
16 489290 Screw (2)
17 2162085 Light Socket
18 2172931 Heat Shield
19 527949 Light Bulb
20 2206517 Control Box
Harness
21 2200097 Retainer,
Light Lens
22 1115375 Clip, Wiring
23 2200096 Cover, Light Lens
24 2203384 P.C. Board
Filter Indicator
25 2200099 Escutcheon,
Control Box
26 2179921 Light Bar (FC)
27 2172941 Window

UNIT PARTS
Production Compressor Requires Production Electrical Components.
Service Compressor Requires Service Electrical Components.
For Further Information, Refer to Standard Brand and Related Components.
17
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620

UNIT PARTS
18
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 486692 Speed Nut
2 2190685 Fan, Blade
3 2204484 Condenser Assembly
4 489464 Screw
5 2216914 Clip, Condenser
6 2211760 Tube, Condenser to
Heat Loop
7 2149294 Heat Shield
And Drain Pan
8 2204239 Tube Suction
9 2158826 Dampener (3)
12 4387731 Cover (Service
Compressor Only)
13 4387835 Overload (Service
Compressor Only)
16 2212194 Start−Device,
Combination
(Start Relay and
Overload) for
Production
Compressor Only
17 Capacitor
999532 (Production)
4387764 (Service)
19 509812 Screw Grommet
20 2206281 Unit Cover, Bottom
21 489396 Clip
22 2209611 Evaporator
23 2161324 Clip
24 2188537 Motor, Fan
25 1105523 Tray, Evaporator
26 2187398 Harness, Unit
27 2199167 Drier
28 2212192 Compressor
(Includes Items
12, 13, 17, & 27)
(Also Order
876765 Tube Kit)
30 2157397 Unit Mounting
Frame
32 2181929 Bracket, Fan Motor
33 2188175 Heater, Defrost
34 2161330 Clip, Heater
35 2196155 Bi−Metal, Defrost
37 489473 Screw
39 Grommet (4)
2183042 (Production)
4387558 (Service)
40 489340 Screw
41 2196202 Air Baffle
42 2155547 Clip, Heat
48 1127911 Unit Mounting
Rail
49 8281232 Screw
50 2186495 Guard, Fan
51 2161302 Sleeve
52 2172840 Wire Tie
53 489427 Screw
54 850145 Wire Connector
55 489478 Screw
59 2208280 Clip, Wire & Tube
61 488687 Screw
63 2209709 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620

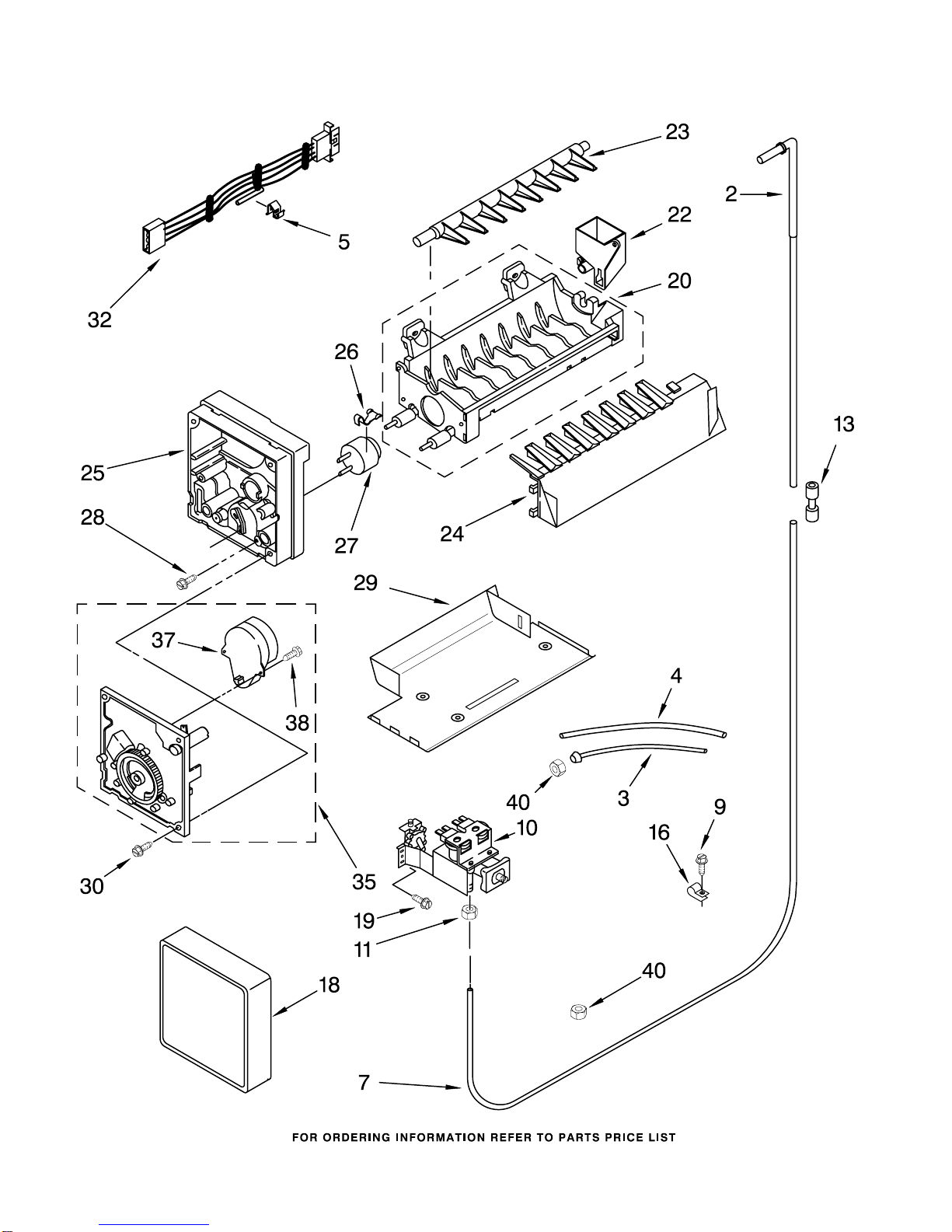

ICEMAKER PARTS
20
For Models: KSRS25IKWH01, KSRS25IKBT01, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKBU01
(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)
8197620
Illus. Part
No. No. DESCRIPTION
2 2198578 Fitting, Water
Tube
3 2186493 Tube, Filter
Outlet
4 2186492 Tube, Filter
Inlet
5 628379 Clip, Fuse
7 2211507 Tube, Water
9 489478 Screw
10 2205762 Valve, Solenoid
11 627018 Nut, Compression
13 2198677 Connector,
Water Tube
16 489385 Clamp, Tube
18 2174358 Cover
19 488649 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
22 628356 Bearing & Inlet
23 2194711 Ejector
24 2198598 Ice Striper
25 2194712 Support
26 627796 Retainer,
Thermostat
27 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 489322 Screw
29 2212322 Bracket, Ice Maker
Mounting
30 489276 Screw
32 2187467 Harness, Wiring
35 628399 Module Assembly
(Includes Items
37 & 38)
37 628398 Motor
38 489136 Screw
40 1129179 Nut, Compression
