KitchenAid KSCS23INBL01 User manual

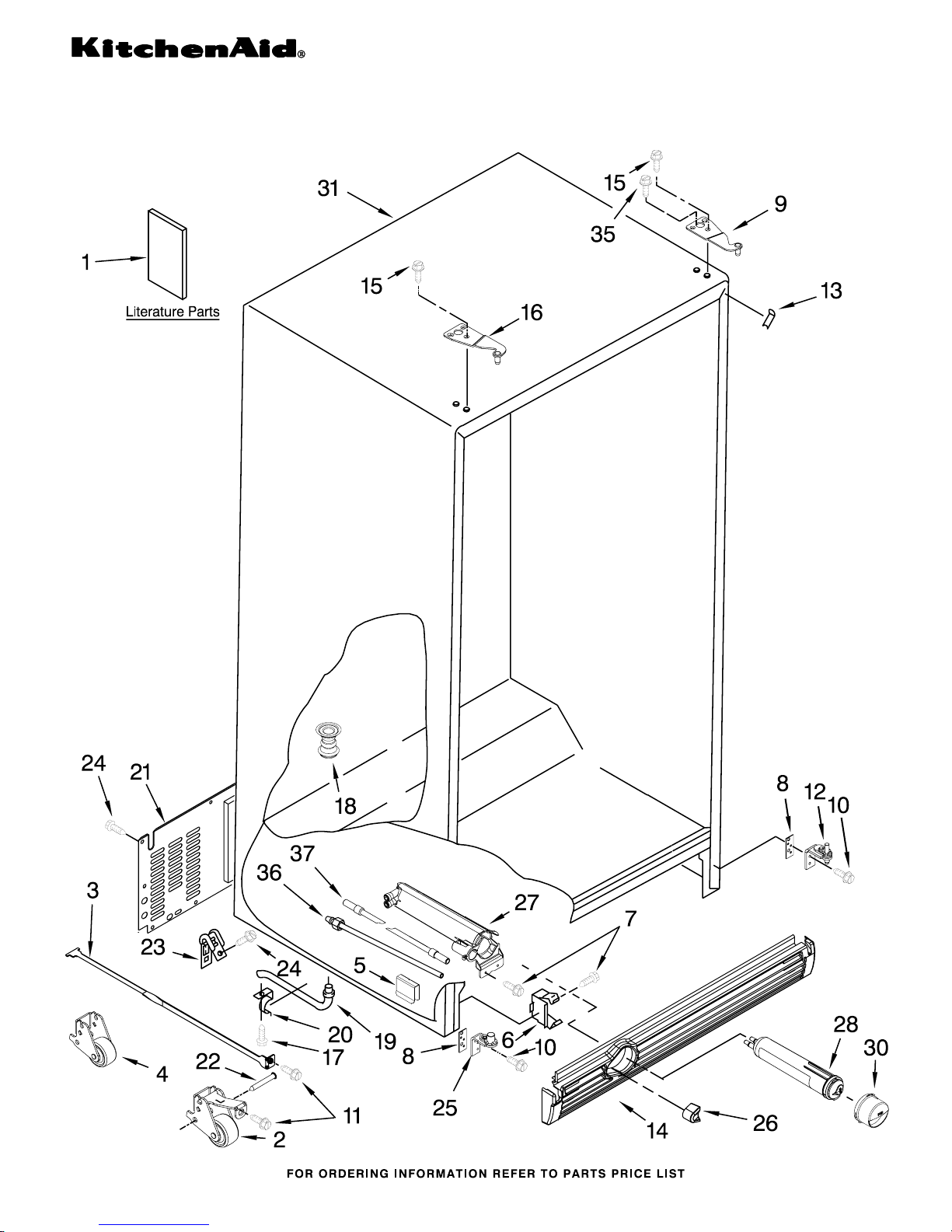

CABINET PARTS
1
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
07−06 Printed In U.S.A. (kdr) Part No. 8214626 Rev. A.
REFRIGERATOR

CABINET PARTS
2
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2318583 Use & Care Guide
2223419 Service & Wiring
Sheet
2223996 Installation
Instructions
2318613 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 489478 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008T Biscuit
2307008B Black
2307008AP Apollo Gray
10 3400113 Screw
11 3400243 Screw
12 2223520 Hinge Assembly,
Bottom−RC
13 Filler, Wrapper
2223893W White
2223893T Biscuit
2223893B Black
2223893AP Apollo Gray
14 Grille
2322206W White
2322206T Biscuit
2322206B Black
2322206AP Apollo Gray
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007T Biscuit
2307007B Black
2307007AP Apollo Gray
17 489464 Screw
18 940139 Drain Fitting
19 2199954 Tube, Extension
20 1108439 Clip, Drain Tube
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2223460 Hinge Assembly,
Bottom−FC
26 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
2260503AP Apollo Gray
27 2260526 Housing, Water
Filter
28 4396841 Water Filter
30 Cap, Water
Filter
2260518W White
2260518T Biscuit
2260518B Black
2260518AP Apollo Gray
31 Cabinet (Not A
Serviceable Part)
35 3400858 Screw
36 2224020 Tube, Filter
Outlet
37 2319868 Tube, Filter
Inlet

REFRIGERATOR LINER PARTS
3
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2224121 Escutcheon, Meat
Pan Control
3 2224123 Slide Meat
Pan Control
6 1118894 Switch, Rocker
Arm
7 2188820 Thermistor
9 2319866 Ladder, Shelf (2)
10 2301234 Housing, Door
Control
11 489084 Screw
13 2301235 Slide, Door
Control
14 2171846 Release Valve
15 2209204 Clip, Thermistor
16 2179404K Rack, Wine & Egg
17 1116793 Cover, Thermistor
18 489478 Screw
19 2304597 Gasket,
Air Baffle
20 2223403 Cover,
Air Baffle
24 2224076 Air Diffuser
Assembly
25 2220377 Air Baffle
29 2162085 Socket
31 2223876 Reservoir
32 2205813 Strap
33 2255743 Light Bulb
34 2223663 Light Lens
37 488280 Screw

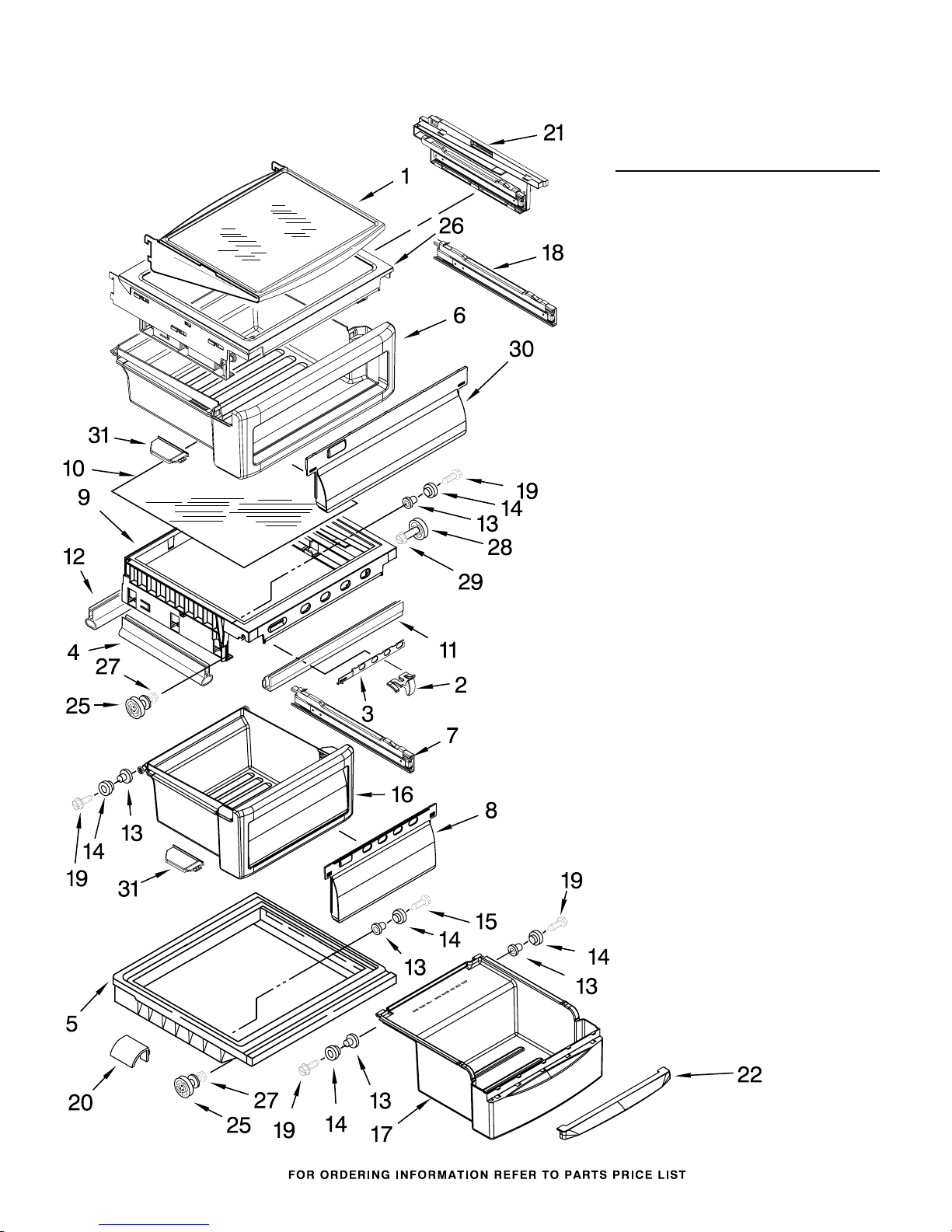

REFRIGERATOR SHELF PARTS
4
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 2224061 Shelf Assembly,
Cantilever (2)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2203027 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2301023 Snack Pan
(Includes 30 & 31)
7 Glide Assembly,
Crisper Pan
2301548 Right Side
2301549 Left Side
8 2301001 Window,
Crisper Pan
9 2301567 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2301027 Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301031 Crisper Pan
(Includes 8, 13
14, 19 & 31)
17 2223790 Meat Pan
(Includes 13,
14, 19 & 22)
18 Glide Assembly,
Snack Pan
2301550 Right Side
2301551 Left Side
19 489261 Screw
20 2223487 Deflector
21 Support Assembly
2301569 Right Side
2301570 Left Side
22 2203031 Handle
25 2196485 Stud Assembly
26 2301566 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side

FREEZER LINER PARTS
5
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626

FREEZER LINER PARTS
6
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
5 2196483 Stud Assembly
6 2223811 Basket, Deep (2)
8 8281158 Screw
9 2223500 Shelf Assembly,
Cantilever (2)
11 2224053 Front, Basket
13 Shelf Track
2223787 Right Side
2223788 Left Side
14 2223681 Shelf, Fixed
15 2223812 Basket, Lower
17 842534 Clip, Air Duct (2)
18 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
19 2259487 Cover, Emitter
20 8534064 Screw
22 2198635 Spring
23 2198634 Pin
24 2198665 Tube, P.C. Board
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2224125 Cover, Ice Maker
28 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255561 Cover, Receiver
37 2301340 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 3400893 Screw
45 Ladder
2198609 Left Side
2198610 Right Side
46 2303378 Shield, Wiring

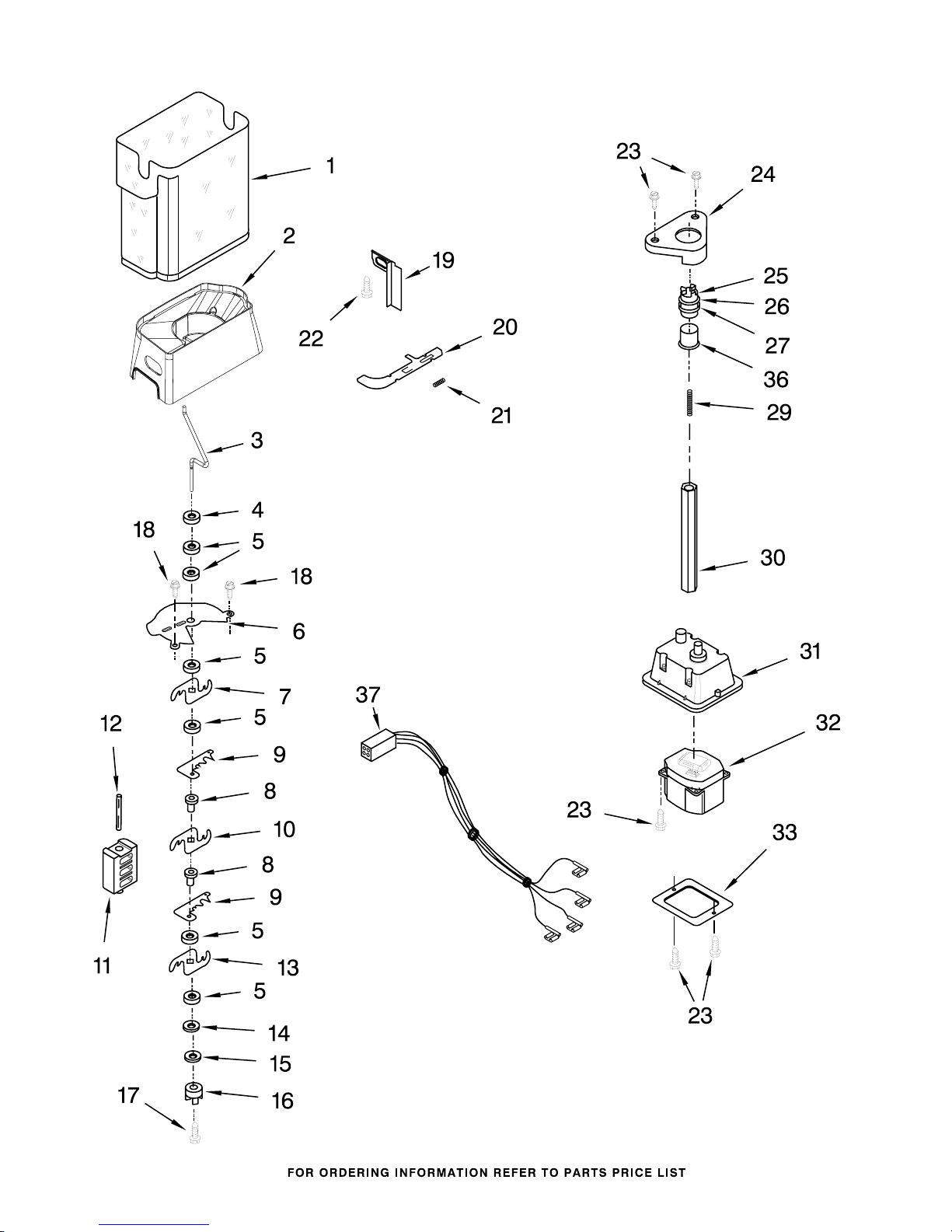

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626

MOTOR AND ICE CONTAINER PARTS
8
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 2223317 Ice Bin
2 2255580 Crusher Bin
3 2258222 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (6)
6 2255460 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2301345 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 999536 Drive Shaft
31 2256154 Enclosure, Motor
32 2252130 Dispenser, Motor
33 2212305 Cover
36 2212365 Sleeve, Coupling
37 2187725 Wire Harness,
IDI Motor
100 2258250 Ice Container
(Complete)

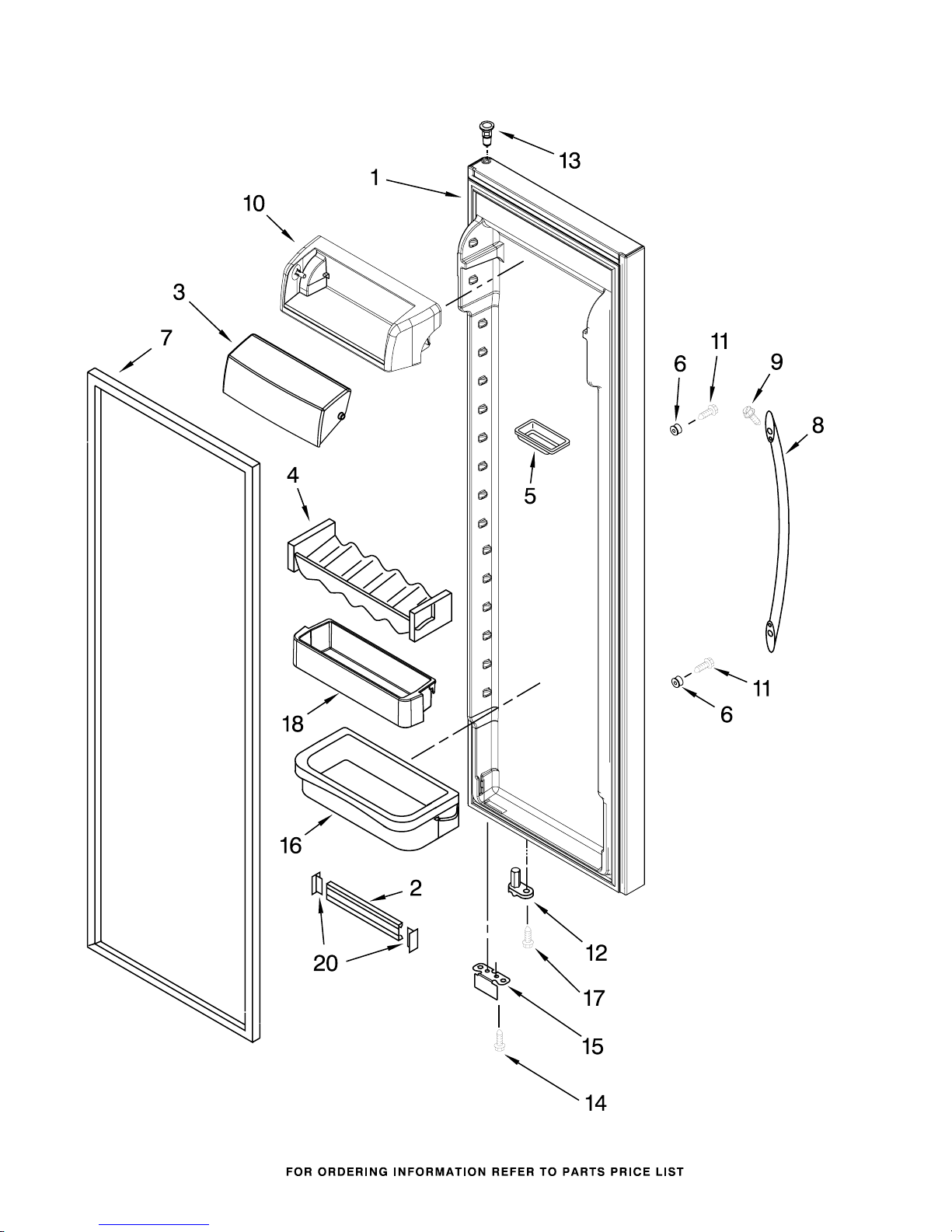

REFRIGERATOR DOOR PARTS
9
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626

REFRIGERATOR DOOR PARTS
10
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2223960W White
2223960T Biscuit
2223960B Black
2223960S Stainless Steel
2223960SU Monochromatic
Stainless
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223883 Caddy, Can
5 2165792K Butter Dish
6 2219698 Stud, Handle
7 Door Gasket,
Magnetic
2223841 Mist Beige
2223911 Black
8 Handle
2304832W White
2304832T Biscuit
2304832B Black
2304832S Stainless Steel
9 Screw
W10010140 Chrome
W10010150 Black
10 2223879 Dairy Compartment
11 488208 Screw
12 2182178 Door Closer,
Upper Cam
13 Thimble, Top
2308050 For White, Black,
Biscuit and
Monochromatic
Stainless Model
2308091 For Stainless
Steel Model
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2223860 Door Bin (3)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
20 2156006K Plug, Trim

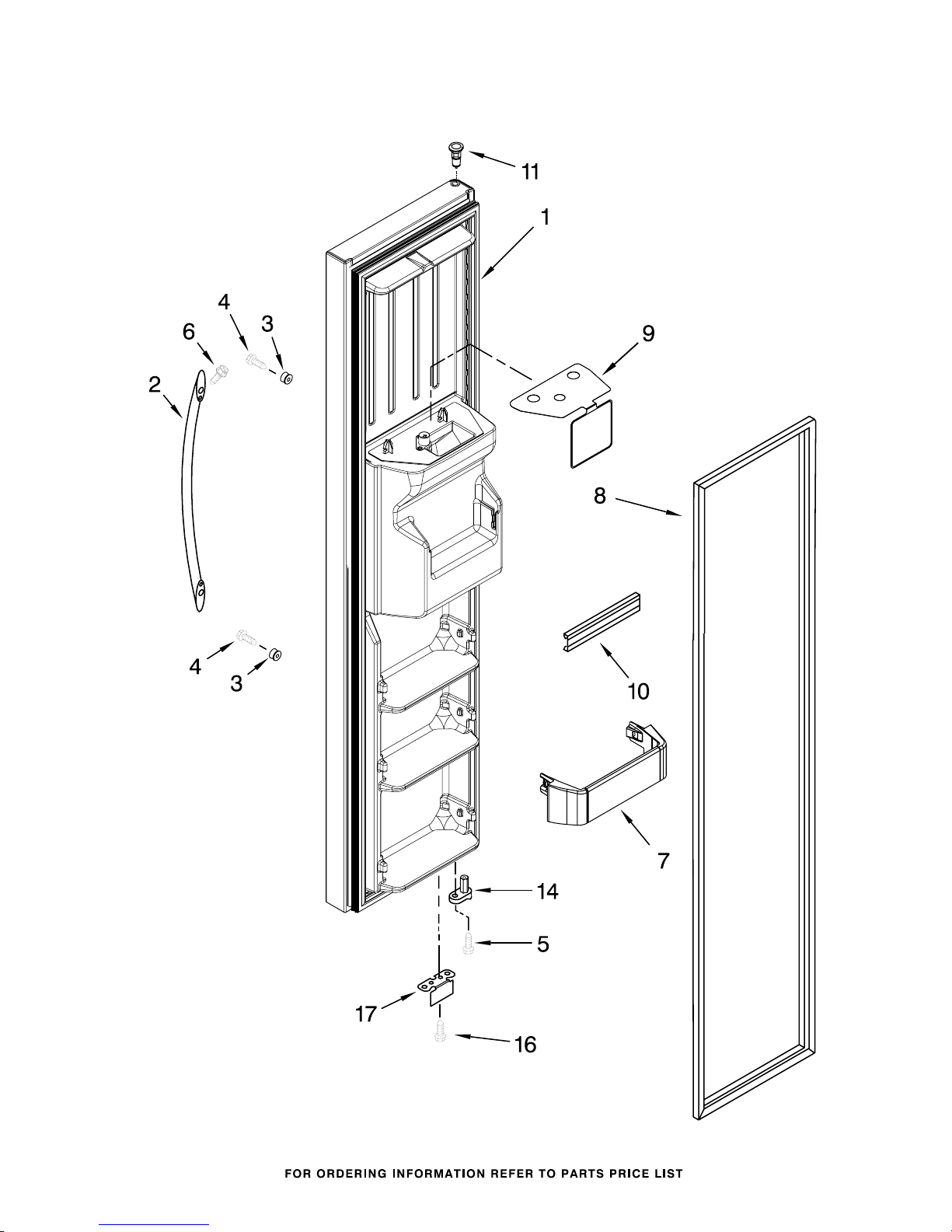

FREEZER DOOR PARTS
11
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626

FREEZER DOOR PARTS
12
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2223965W White
2223965T Biscuit
2223965B Black
2223965SB Stainless Steel
2223965SU Monochromatic
Stainless
2 Handle
2304832W White
2304832T Biscuit
2304832B Black
2304832S Stainless Steel
3 2219698 Stud, Handle
4 488208 Screw
5 3400012 Screw
6 Screw
W10010140 Chrome
W10010150 Black
7 2223559K Shelf Bin (3)
8 Door Gasket,
Magnetic
2223850 Mist Beige
2223912 Black
9 2304895 Safety Barrier
10 2219982 Trim, Door Shelf
11 2308050 Thimble, Top
14 2223752 Door Closer,
Upper Cam
16 489420 Screw
17 Bracket, Door Stop
2306940 Chrome
2306940B Black

13

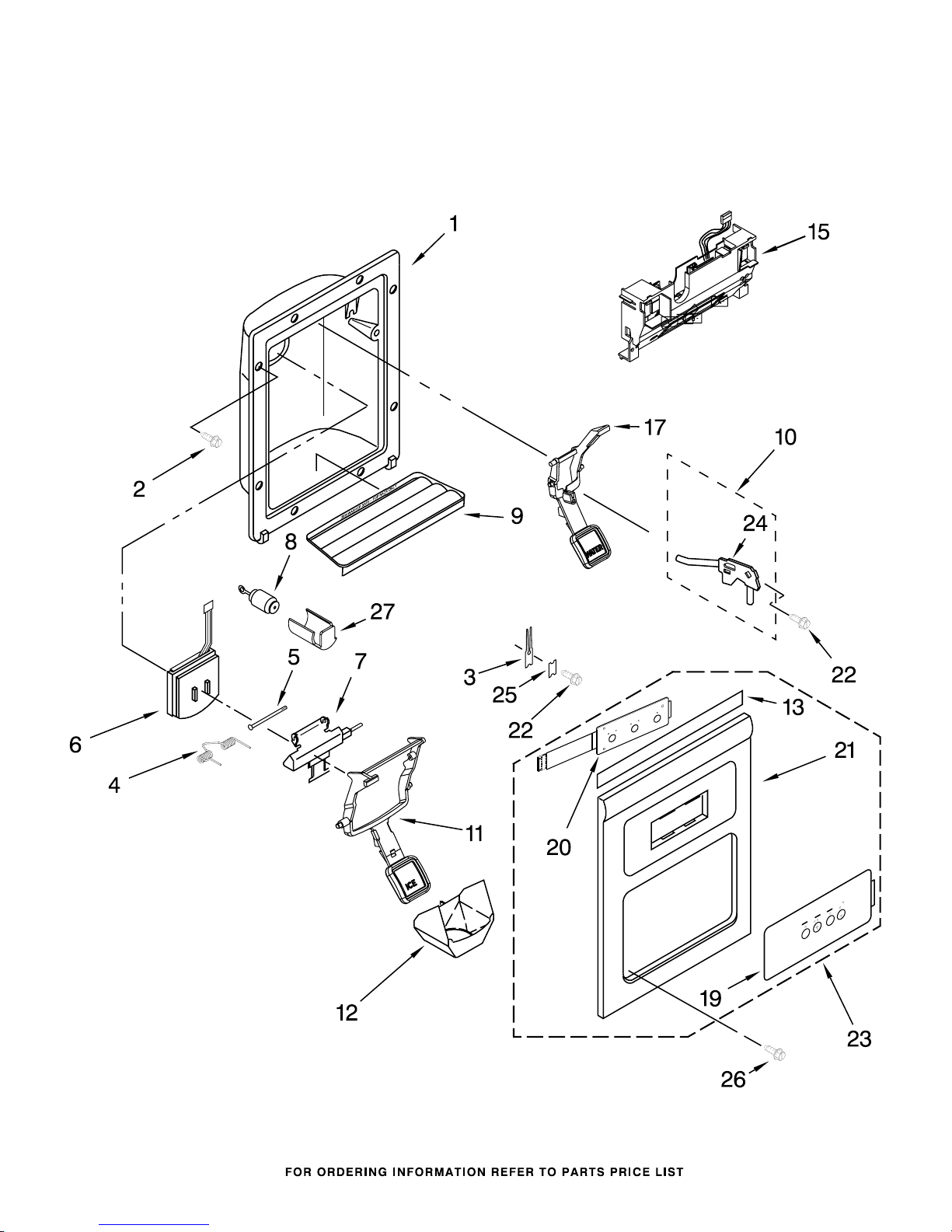

DISPENSER FRONT PARTS
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626

DISPENSER FRONT PARTS
14
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670T Biscuit
2206670B Black
2206670US Universal Silver
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2259396W White
2259396T Biscuit
2259396SB Black
2259396AP Apollo Gray
12 2180224 Guide, Ice
13 2305571 Gasket
15 2306937 Bracket, Control
17 Lever, Water
Dispenser
2259395W White
2259395T Biscuit
2259395SB Black
2259395AP Apollo Gray
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 LED Display
(Not Available,
Order #23)
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
13, 19, 20 & 21)
2224064W White
2224064T Biscuit
2224064B Black
2224064US Universal Silver
24 2304673 Bracket, Dispenser
25 2195051 Strain Relief
26 3400065 Screw
27 2252127 Sleeve, Mechanism

AIR FLOW PARTS
15
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2223733 Retainer,
Fan Motor
3 2223298 Air Scoop
4 2223303 Air Duct, Upper
5 2223771 Air Duct Freezer
6 2319914 Bi−Metal, Defrost
7 2259385 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2223986 Fan Grommet (2)
12 2310236 Harness, Fan
Evaporator
(Includes #6)
13 2155789 Gasket, Fan Scroll
16 2203876 Gasket
17 2223413 Cover, Evaporator
(Includes #9)
18 8281159 Screw
21 489478 Screw
22 2223395 Support, R.S
23 2203596 Support, L.S

CONTROL PARTS
16
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 2319753 Control Box
(Includes #6)
5 2223882 Heat Shield Asm
(Includes #17)
6 2307037 Control Board Asm
10 2223506 Light Lens,
Control Box
17 2223857 Light Socket
19 2223678 Light Bulb

UNIT PARTS
17
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626

UNIT PARTS
18
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 777070 Screw
2 2225834 Fan, Blade
3 2223315 Condenser
Assembly
4 8281197 Screw
5 3400524 Screw (6)
6 2223703 Housing,
Control Board
7 2223351 Tube Suction
8 2161302 Sleeve
10 2301979 Plate, Mounting
11 8281196 Screw
12 2215676 Cover, Terminal
14 2185788 Clamp, Cable
15 488649 Screw
18 2223353 Tube, Condenser
to Heat Loop
19 2307028 Electronic Control
20 2306932 Baseplate
22 2188823 Evaporator
23 2161324 Clamp
24 2188729 Fan, Motor
25 2223398 Tray, Evaporator
26 2224022 Heat Shield
27 2317845 Drier
28 2223801 Compressor
(Includes Items
12 & 39)
29 2223800 Spacer (5)
30
W10000040 Washer (4)
31 2187849 Harness,
Main Control
32 2224024 Fan, Motor Bracket
33 2210737 Heater, Defrost
34 2304287 Clip
36 2304175 Inverter Box
37 489387 Screw (4)
38 2223352 Tube, Discharge
39 Grommet (4)
2183042 Production
4387558 Service
41 2223394 Extension,
Air Baffle
42 2155547 Clip, Heat Shield
45 2187737 Unit Harness
63 2209709 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626

ICEMAKER PARTS
20
For Models: KSCS23INWH01, KSCS23INBT01, KSCS23INBL01, KSCS23INSS01, KSCS23INMS01
(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless)
8214626
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256096 Fitting, Water
Tube
5 628379 Clip, Fuse
9 489478 Screw
10 2315533 Water Valve Asm
14 2208136 Tube Clip
18 2174358 Cover
19 488649 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
22 628356 Cup, Water Fill
23 627843 Ejector
24 2198598 Ice Striper
25 2194712 Support
26 2315522 Retainer,
Thermostat
27 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 8533917 Screw
30 489276 Screw
32 2187467 Harness, Wiring
33 2303583 Bracket, Icemaker
Mounting
35 626678 Module Assembly
(Includes Items
37 & 38)
37 626676 Motor
38 489136 Screw
100 2198597 Icemaker Assembly
