Kitchenware RIV3CL9G User manual

Description: .LWFKHQZDUH&HQWUHISLAND CANOPY CURVED GLASS 90CM
Model Numbers: .RIV3CL9G
Product may vary slightly from the picture
Issue 1
1

Pre-installation
Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every
rangehood is tested and approved before it leaves the factory.
Important:
Please read the entire instructions before installing the rangehood, always switch power off prior to installation.
All electrical work must be done by a registered electrician in accordance with local and national electrical codes
as applicable. For your safety, this product must be earthed.
The power socket must be accessible and enable the end user to isolate the rangehood from the power for the
purpose of internal cleaning or maintenance.
A power outlet should be within 1500mm of the power cord exit from the rangehood.
The canopy hood is not intended for use by persons (including children) with reduced physical, sensory or metal
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety
Children should be supervised to ensure that they do not play with the appliance.
There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances
burning gas or other fuels.
There is a fire risk if cleaning is not carried out in accordance with the instructions. You must read the details
concerning the method and frequency of cleaning.
Do not flambé under the rangehood.
Exhaust air must not be discharged into an existing flue which is used for exhausting fumes from appliances
burning gas or other fuels.
The minimum distance between the hob surface and the lowest part of the rangehood is 600mm. This distance
shall be at least 650mm, if the rangehood is installed over a gas hob. If the instructions for the gas hob specify
a greater distance, this has to be taken into account.
Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air is
fulfilled. If re-circulating, ensure that the side outlet grilles on the upper chimney are not obstructed. Even a
partial obstruction will restrict the efficiency of the rangehood.
Stainless steel is very easily damaged during installation if abraded or knocked by tools. Protect the rangehood
with the cardboard box or plastic bag during installation.
Check the contents of the packaging, check all electrical functions of the canopy before installation.
Canopy is heavy. Please ensure adequate care when installing to prevent personal injury.
CAUTION: Accessible parts may become hot when used with cooking appliances
2

Pre-installation
•The canopy hood is designed for 2400mm or 2700mm ceilings.
•The chimney is telescopic and is designed for hood installations between 650 to 750mm above the
cooking surface.
•Ascertain the desired installation height of the canopy hood.
•Any installation above 750mm will compromise the extraction performance.
•The air outlet from the motor requires 150mm round ducting which requires 170mm diameter hole
in the ceiling.
A=650mm(electric cook top) min
A=650mm(gas cook top) min
3

Pre-Installation - continued
Contents of packaging: Typical equipment required:
1 x rangehood electric drill and screwdriver
1 x packet of fasteners tape measure and spirit level
2 x chimney pieces (upper and lower) step ladder
2 x support frames duct tape (if ducting)
1 x Installation and Operating Instructions jig saw (if ducting)
ladder (if ducting)

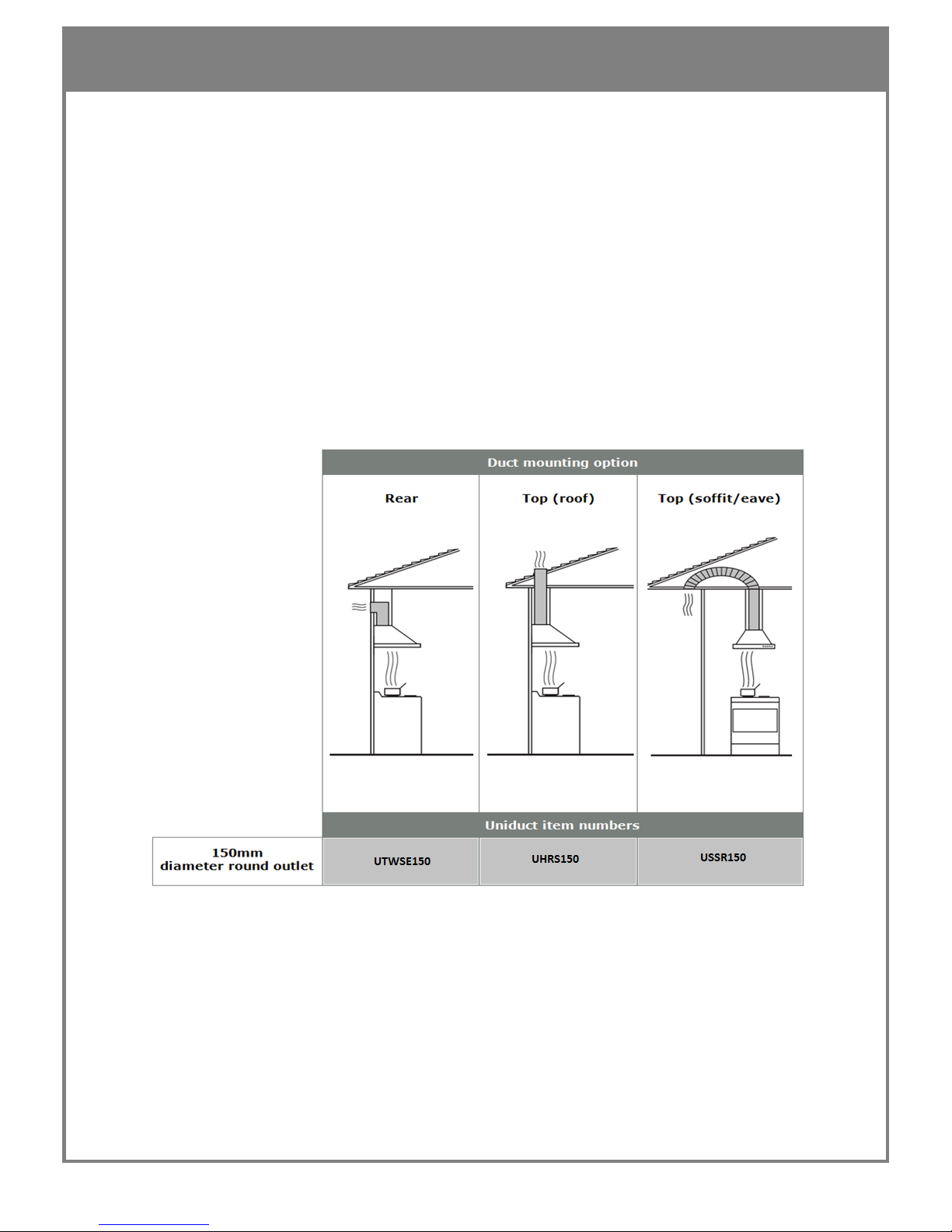

Ducting Options
The method of ducting should be carefully considered before installing the rangehood. The guide below recommends
the ducting components to use for all common ducting configurations - through the top of the home (for the roof and
soffit) and through the rear of the home. 150mm round ducting should be used in conjunction with this model
rangehood.
The highlighted area in the table below gives the recommended Uniduct item numbers for different
mounting and outlet options.
Extra lengths and/or bends may be required, depending on the length required and whether there is any structural
material in the way, e.g. rafters.
Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure.
For NZ phone [phone] or www.robinhood.co.nz. For AUS phone [phone] or www.robinhood.com.au.
4

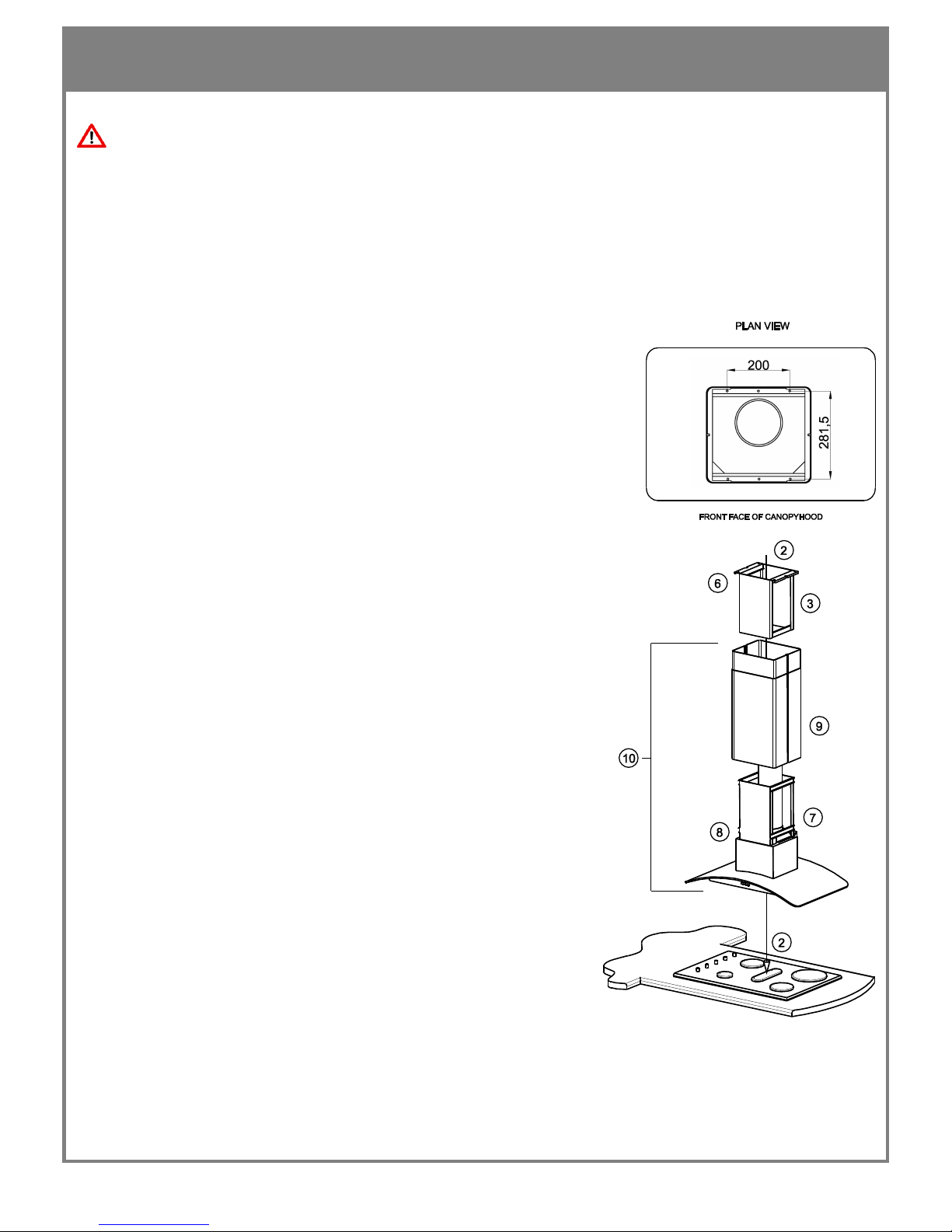

Installation
Before drilling any holes check that the area behind the surface to be drilled is clear of any
electrical cables, pipes etc. Fixing to a solid joist or 50mm deep truss is recommended.
Whenever possible protect the hob top with cardboard or similar.
1. Before commencement unpack the canopy hood and check that it functions correctly.
2. Use a plumb line to mark the centre of the cooking surface on the ceiling.
3. Using the upper support frame as a template mark the eight holes on the ceiling.
4. Ensure that the support frame front edge is parallel with the bench top and
that the plumb line mark is central to the mounting screw holes.
5. Drill holes in the ceiling at the points marked.
a. When fitting to a 50mm truss drill a pilot hole through
the ceiling and the truss.
b. If securing to any other ceiling type please use appropriate
fasteners and follow their instructions of use carefully.
For the ducting mark out and cut a Ø170mm hole in the ceiling.
Note that this hole is not central to the four mounting screw holes.
6. Fix the upper support frame to the ceiling using the screws supplied.
7. Secure ducting to the top of the motor housing, use duct tape if required.
Solid ducting, galvanized or plastic is recommended. Use flexi
ducting only in difficult installations and if used ensure that it is pulled tight.
The smoother, straighter and shorter the ducting the quieter and more
efficient the canopy hood will perform. Tape the power plug to somewhere
near the top of the ducting, this will enable easy access to the plug after
installation.
8. Secure the lower part of the support frame to the top of the canopy hood
using the screws provided.
9. Strip the plastic protective film off the two chimney pieces and place these
over the lower support frame. The lower chimney will rest on top of the
canopy hood and the upper chimney will be extended and secured to the
upper support frame. To ensure that the upper chimney does not slip
inside the lower chimney, secure it so that the upper chimney is showing.
Duct tape or two screws/nails through the upper chimney securing holes
will do this.
10. Offer the canopy hood, lower support frame, chimneys and ducting
up to the upper support frame and secure in place with the four screws
provided. The dimension between the filters and the cooking surface
should be in line with those suggested in the ‘height of canopy hood’
section. An additional person will be required for this operation or a
simple support frame manufactured to the correct dimensions will aid
assembly of the island canopy hood.
Finish assembling the ducting ensuring the path is as short, straight
and smooth as possible.
Connect to the power supply and switch on the power to the
canopy hood.
Slide the upper chimney piece up to the ceiling and secure in place
with the four screws supplied.
Remove the transport tape that holds the oil cup in place under
the motor unit and fit the filters.
5

Control Panel
Cleaning and maintenance
Particular care must be taken with the aluminium filters which must be periodically cleaned (at least every
two months). Remove the grease filters and wash them either by hand using hot soapy water or in the
dishwasher using mild detergent.
Note- some discolouration of the frame may occur.
Caution: Never use abrasive or oil based liquid cleaners.
To clean the stainless steel and glass components of the appliance use mild detergent and warm water. In
areas of high humidity and coastal environments cleaning should be carried out frequently.
LED bulb replacement
1. Switch off the power to the canopy hood and allow the bulb to cool.
2. Use a small bladed screwdriver to pop out the light assembly, taking care not to
damage the surrounding material.
3. Unplug the assembly from the wiring.
4. Plug in the new assembly.
5. Push the light assembly back into place
Optional accessories:
For other accessories, parts and service, please contact your local supplier (Refer to the Warranty
Certificate).
Timer switch
Canopy hood will remain on a low, mid or high speed for 15 minutes to clear away all residual cooking
odours before switching off automatically
6

Product approvals and ratings
The canopy hood is not intended for use by persons (including children) with reduced
physical, sensory or metal capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
There shall be adequate ventilation of the room when the rangehood is used at the same
time as appliances burning gas or other fuels.
You must read the details concerning the method and frequency of cleaning.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Do not flambé under the rangehood.
Exhaust air must not be discharged into an existing flue which is used for exhausting
fumes from appliances burning gas or other fuels.
The minimum distance between the hob surface and the lowest part of the rangehood is
600mm. This distance shall be at least 650mm, if the rangehood is installed over a gas
hob.
If the instructions for the gas hob specify a greater distance, this has to be taken into
account.
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air is fulfilled.
If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
CAUTION: Accessible parts may become hot when used with cooking appliances
Product approval number SGSEA/110866
Product rating 223W, 220-240 Volt,50 hertz
Electrical approval AS/NZS 60335.2.31:2004 + A1 + A2 + A3+ A4
EMC AS/NZS CISPR14:2001
Performance tested IEC61591
Important safety information
7
