Wolf Pro Wall Series User manual

Pro Wall Chimney Ventilation Hoods
INSTALLATI N GUIDE
READ AND SAVE THESE INSTRUCTI NS

Important Note
To ensure the safe and efficient use of Wolf equipment,
please take note of the following types of highlighted
information throughout this guide:
IMP RTANT N TE highlights information that is especially
important.
CAUTI N signals a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
Contents
Wolf Pro Wall Chimney Ventilation Hoods . . . . . . . . . . 3
SafetyInstructions ............................4
Installation Considerations . . . . . . . . . . . . . . . . . . . . . . 5
Pro Wall Chimney Hood Specifications . . . . . . . . . . . . 6
Pro Wall Chimney Hood Installation . . . . . . . . . . . . . . . 8
ServiceInformation...........................18
Features and specifications are subject to change at any time
without notice. Visit wolfappliance.com/specs for the most
up-to-date information.
IMP RTANT N TE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.

Wolf Pro Wall Chimney Ventilation Hoods 3
wolfappliance.com/specs
Pro Wall Chimney Hood Installation
IMP RTANT N TE: This installation must be completed
by a qualified installer or Wolf authorized service center
technician.
Read this entire installation guide prior to installation and
save for the local inspector’s reference. The homeowner
should keep this installation guide for future reference.
This appliance must be installed in accordance with
National Electrical Codes, as well as all state, municipal
and local codes. The correct voltage, frequency and
amperage must be supplied to the appliance from a dedi-
cated, grounded circuit which is protected by a properly
sized circuit breaker or time delay fuse. The proper
voltage, frequency, and amperage ratings are listed on the
product rating plate.
Record the model and serial numbers before installing the
ventilation hood. Both numbers are listed on the product
rating plate, located inside the left wall of the hood shell.
Refer to the illustration below.

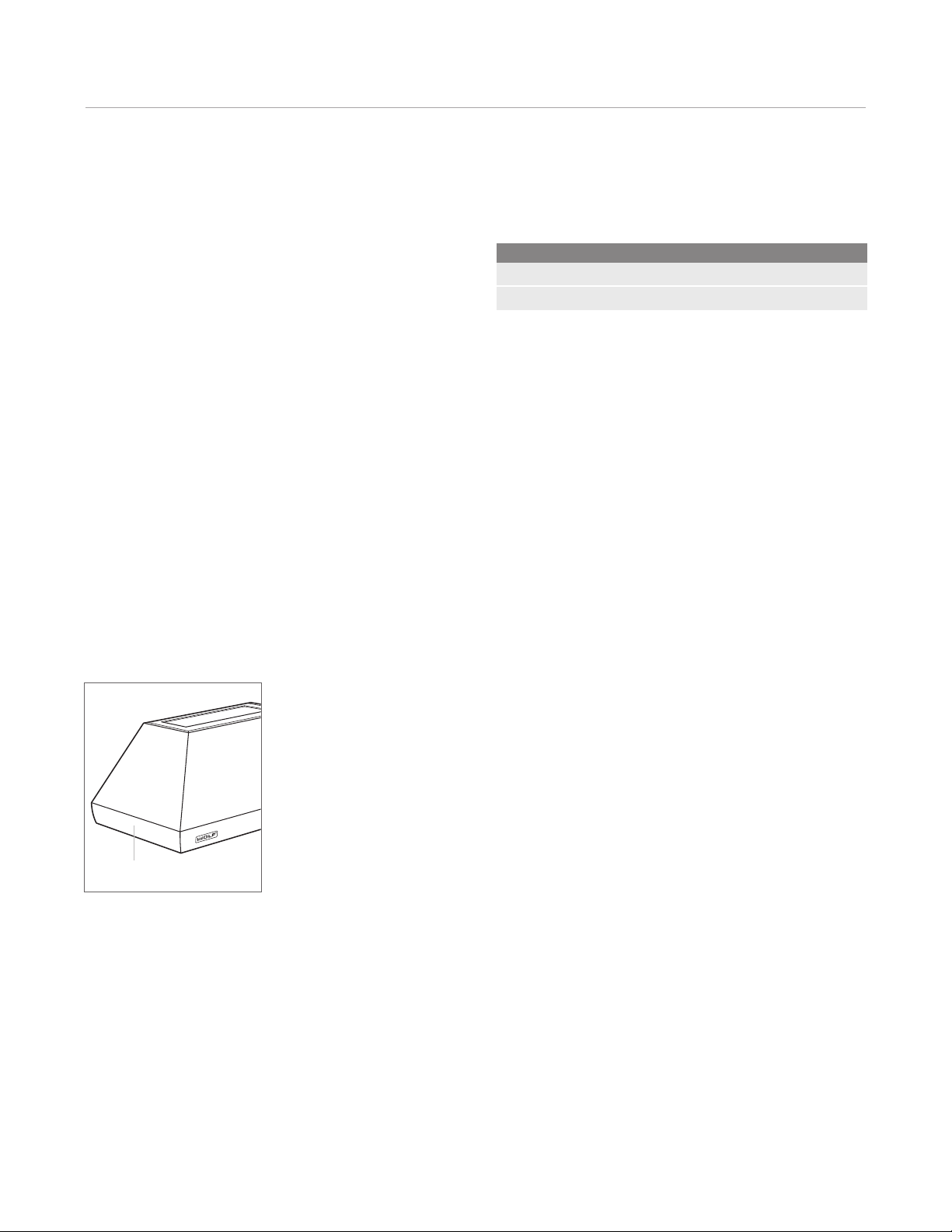

Wolf Pro Wall Chimney Hood
Model Number
Serial Number
Location of rating plate
(inside hood).
RATING PLATE

IMPORTANT INSTRUCTIONS
T REDUCE THE RISK F FIRE, ELECTRIC
SH CK R INJURY, BSERVE THE F LL WING:
• Installation work and electrical wiring must be
done by qualified person(s) in accordance with all
applicable codes and standards, including fire-rated
construction.
• Two installers are recommended due to the size and
weight of the pro ventilation hood.
• Install the pro ventilation hood only with a blower
manufactured by Wolf.
• When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
Safety Instructions 4
To reduce the risk of fire and properly exhaust air,
be certain to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into attics,
crawl spaces or garages.
T REDUCE THE RISK F INJURY T PERS NS IN
THE EVENT F A RANGE T P GREASE FIRE,
BSERVE THE F LL WING:
• Smother flames with close-fitting lid, cookie sheet,
or metal tray, then turn off the burner. Be careful to
prevent burns. If the flames do not go out immedi-
ately, evacuate and call the fire department.
• Never pick up a flaming pan—you may be burned.
• Do not use water, including wet dishcloths or towels
—a violent steam explosion will result.
USE AN EXTINGUISHER NLY IF:
• You know you have a class ABC extinguisher and
you already know how to operate it.
• The fire is small and contained in the area where it
started.
• The fire department is being called.
• You can fight the fire with your back to an exit
(NFPA fire safety tips).
T REDUCE RISK F RANGE T P GREASE FIRE:
A) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
B) Always turn the ventilation hood on when
cooking at high heat or when flambeing foods
such as crepes suzette or cherries jubilee.
C) Clean ventilation fans frequently. Grease should
not be allowed to accumulate on fan or filter.
D) Use proper pan size. Always use cookware
appropriate for the size of the surface burner.
The hood motor has a thermal overload which will
automatically shut off the motor if it becomes over-
heated. The motor will restart when it has cooled
down. If the motor continues to shut off and restart,
have the hood serviced.

Installation Considerations 5
wolfappliance.com/specs
Installation Considerations
Wolf pro wall chimney hoods are recommended for use
with all Wolf cooking appliances and should be at least as
wide as the cooking surface. The ventilation hood should
be installed 30" (762) to 36" (914) above the countertop.
•Proper installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the Wolf warranty. Refer to the Wolf pro
ventilation hoods use & care guide for warranty details,
or visit the contact & support section of our website,
wolfappliance.com.
•Make sure you have the tools and materials necessary
for proper installation.
•Warranty service must be performed by a Wolf author-
ized service center. Wolf is not responsible for service
required to correct a faulty installation.
MATERIALS INCLUDED WITH H D:
•Transition with backdraft damper—attached inside
hood (needs to be removed)
•Two control knobs
•Filters and grease cups (installed in hood)
•Wood mounting strip
•Installation package and hardware
•Installation guide, use & care guide and product
registration card
•Wolf logo nameplate
When performing installation, servicing or cleaning the
ventilation hood, it is recommended that safety glasses
and gloves be worn.
BL WER ASSEMBLIES
Wolf pro ventilation hoods are shipped without the blower
assembly. Internal, in-line and remote blowers are avail-
able through your authorized Wolf dealer. For local dealer
information, visit the find a showroom section of our
website, wolfappliance.com.
The blower will vary in size and is dictated by the cooking
surface, the volume of air that needs to be moved and the
length of the duct run. Refer to ventilation recommenda-
tions in the Wolf design guide.
IMP RTANT N TE: Use only a Wolf blower with the pro
ventilation hood.
DUCT C VER
Optional stainless steel duct covers are available in a
variety of heights for all pro ventilation hoods through
your authorized Wolf dealer. For local dealer information,
visit the find a showroom section of our website,
wolfappliance.com.
IMP RTANT N TE: Installing a duct cover will impact all
aspects of the hood installation including hood location,
ducting, electrical placement and the mounting surface.
BACKSPLASH
Optional stainless steel backsplashes are available in
widths to match all pro wall hoods through your author-
ized Wolf dealer. For local dealer information, visit the find
a showroom section of our website, wolfappliance.com.

Pro Wall Chimney Hood Specifications 6
Overall Dimensions
18" (457)
OVERALL
HEIGHT
4" (102)
24" (610)
OVERALL DEPTH
131/2"
(343)
WIDTH MINUS 18" (457)
36" (914), 42" (1067), 48" (1219)
AND 54" (1372) WIDTHS
PR WALL CHIMNEY H DS
Installation Specifications
PR WALL CHIMNEY H DS
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL
WIDTH OF HOOD
30" (762) TO 36" (914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
24" (610)
DEPTH OF HOOD

Pro Wall Chimney Hood Specifications 7
wolfappliance.com/specs
Installation Specifications
The illustration below provides dimensions critical for
proper installation of the pro wall chimney hood. Dimen-
sions A and B in the illustration will vary with the width of
the hood. Refer to the chart below.
Pro Wall Chimney Hoods
WIDTH F H D AB
36" (914) 18" (457) 9" (228)
42" (1067) 24" (610) 12" (304)
48" (1219) 30" (762) 15" (381)
54" (1371) 36" (914) 18" (457)
B
TO CENTER
OF TRANSITION
A
WIDTH OF TOP PLATE
63/4"
(171)
10"
(254) 7"
(178)
131/2"
(343)
Pro wall chimney hoods.
Electrical Requirements
Wolf pro ventilation hoods require a separate, grounded
120 V AC, 60 Hz power supply. The service should have its
own 15 amp circuit breaker. Locate the electrical supply
through the top of the hood, within the shaded area shown
in the installation specifications illustration on the previous
page.
IMP RTANT N TE: You must follow all National Electrical
Code regulations. In addition, be aware of local codes and
ordinances when installing your service.
Risk of electrical shock. This ventilation hood must be
properly grounded. Electrical service for the hood must
be installed by a qualified electrician in accordance
with all applicable national and local electrical codes.

Pro Wall Chimney Hood Installation 8
Install Ductwork
IMP RTANT N TE: Pro ventilation hoods must exhaust to
the outdoors.
Wolf recommends that the pro wall chimney hood be
installed 30" (762) to 36" (914) above the countertop.
Consult a qualified HVAC engineer for specific ducting
applications.
A 10" (254) round duct is recommended for pro ventilation
hoods. Use only rigid metal ductwork, do not use flex
ducting.
Decide where the ductwork will run between the wall
chimney hood and the outside. Pro wall chimney hoods
have a vertical discharge. A straight, short duct run will
allow the ventilation hood to perform most efficiently. Limit
the number of elbows and transitions. The duct run should
be no longer than 50' (15 m). There is a possibility of noise
issues, if a remote blower is used with a short duct run.
Unless you are using a remote blower, a roof or wall cap
must be installed. Connect 10" (254) round metal
ductwork to the cap and work back towards the hood.
Use duct sealing tape to seal joints between ductwork
sections.
Pro wall chimney hoods have a backdraft damper
included in the transition assembly. Local codes may
require the use of an additional backdraft damper. Contact
your local HVAC professional for specific requirements. In
cold weather installations, a backdraft damper is neces-
sary to minimize the backflow of cold air into the room.
Local building codes may require the use of make-up air.
Consult your local HVAC professional for specific require-
ments in your area.
PR WALL CHIMNEY H DS
To reduce the risk of fire, use only metal ductwork.
DUCTWORK INSTALLATION
THROUGH ROOF
30" (762) TO 36" (914)
BOTTOM OF
HOOD TO
COUNTERTOP
18" (457)
HOOD HEIGHT
OPTIONAL
DUCT COVER
24" (610)
HOOD DEPTH
131/2"
(343)
4" (102)

Pro Wall Chimney Hood Installation 9
wolfappliance.com/specs
2" X4"
BLOCKING
WALL
STUDS
WOOD
MOUNTING
STRIP
BACK OF
HOOD
2" (51)
14"
(356)
16"
(406)
16¾"
(425)

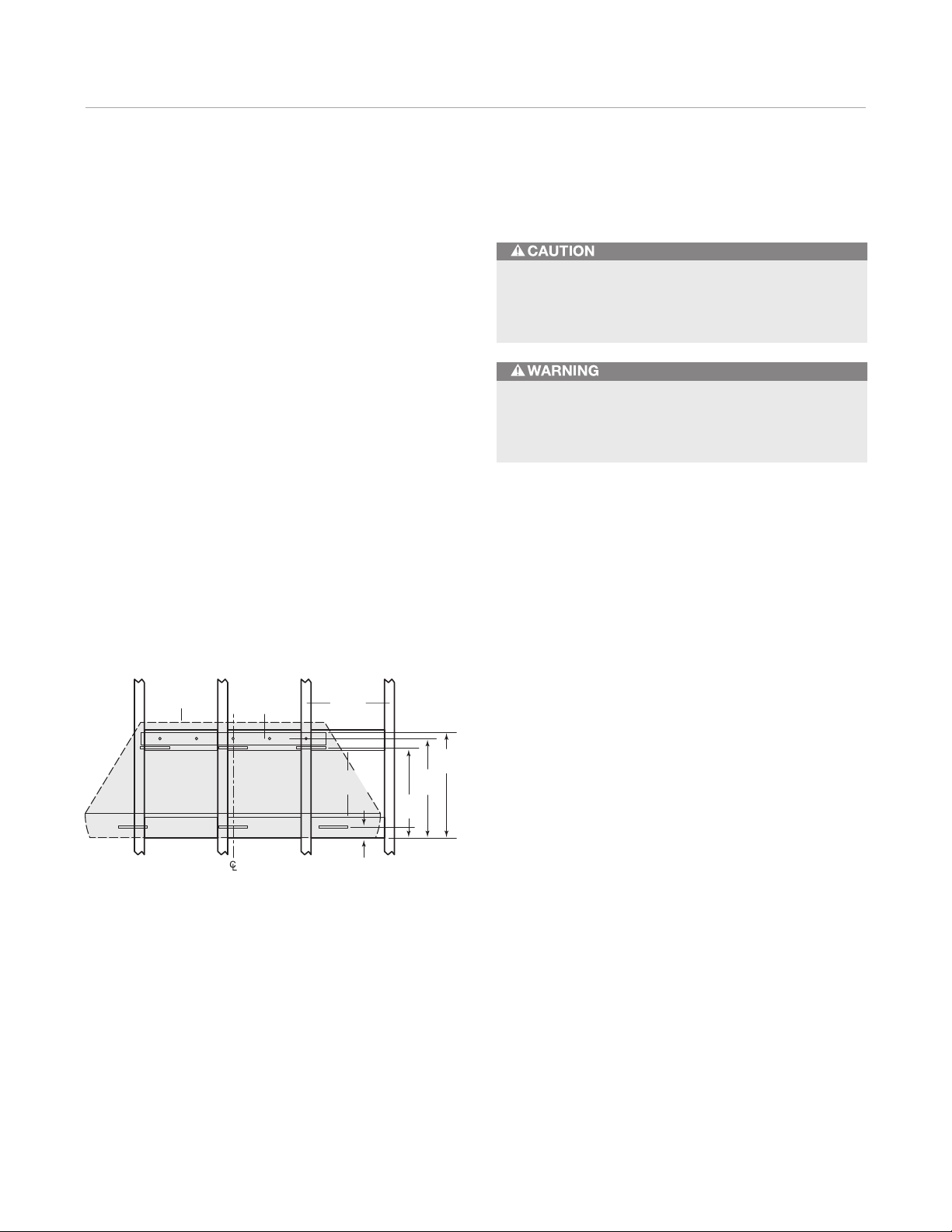

Wall framing.
Wall Framing
IMP RTANT N TE: Aminimum 10" (254) opening in the
ceiling is required to accommodate the ductwork neces-
sary for proper ventilation.
1) Layout dimensions of the back of the wall chimney
hood on the wall (shaded area of illustration below).
Dimensions will vary with the width of the wall chimney
hood. Refer to the illustration and chart on page 6.
2) Construct the wall framing using minimum 2" x 4"
lumber. Proper structural support is required to accom-
modate the weight of the hood.
3) Mark the center location of the hood. Install 2" x 4"
blocking between wall studs. Refer to the illustration
below.
4) Position the wood mounting strip (provided with hood)
on the wall as shown in the illustration below. Secure
the mounting strip to wall studs and blocking using
#10 x 2" (51) flat head screws (provided with hood).
Framing must be fastened together and to ceiling joists
to provide enough structural strength to support the
weight of the hood and internal blower, if applicable.
Due to the weight of the hood, make sure the wood
mounting strip is attached to all available wall studs
and blocking.

Pro Wall Chimney Hood Installation 10
IMP RTANT N TE: For wall chimney hoods using a
600 CFM or 900 CFM internal blower, the internal blower
must be installed before the transition is attached.
4) The hood assembly is shipped with the transition
attached. The transition is shipped upside down in the
top of the hood and must be removed and reinstalled
in the proper position. Separate the transition from the
hood by removing the four shipping screws. Invert and
reattach the transition with the shipping screws.
5) If you are installing an in-line or remote blower, punch
out the knockout hole located on the top of the hood.
Install a wire clamp (provided with hood) for the remote
blower cable. Install another wire clamp in the hole on
top of the hood for the Romex®wire. Refer to the in-
line and remote blowers section on page 16 and follow
installation instructions provided with the blower.
Hood Preparation

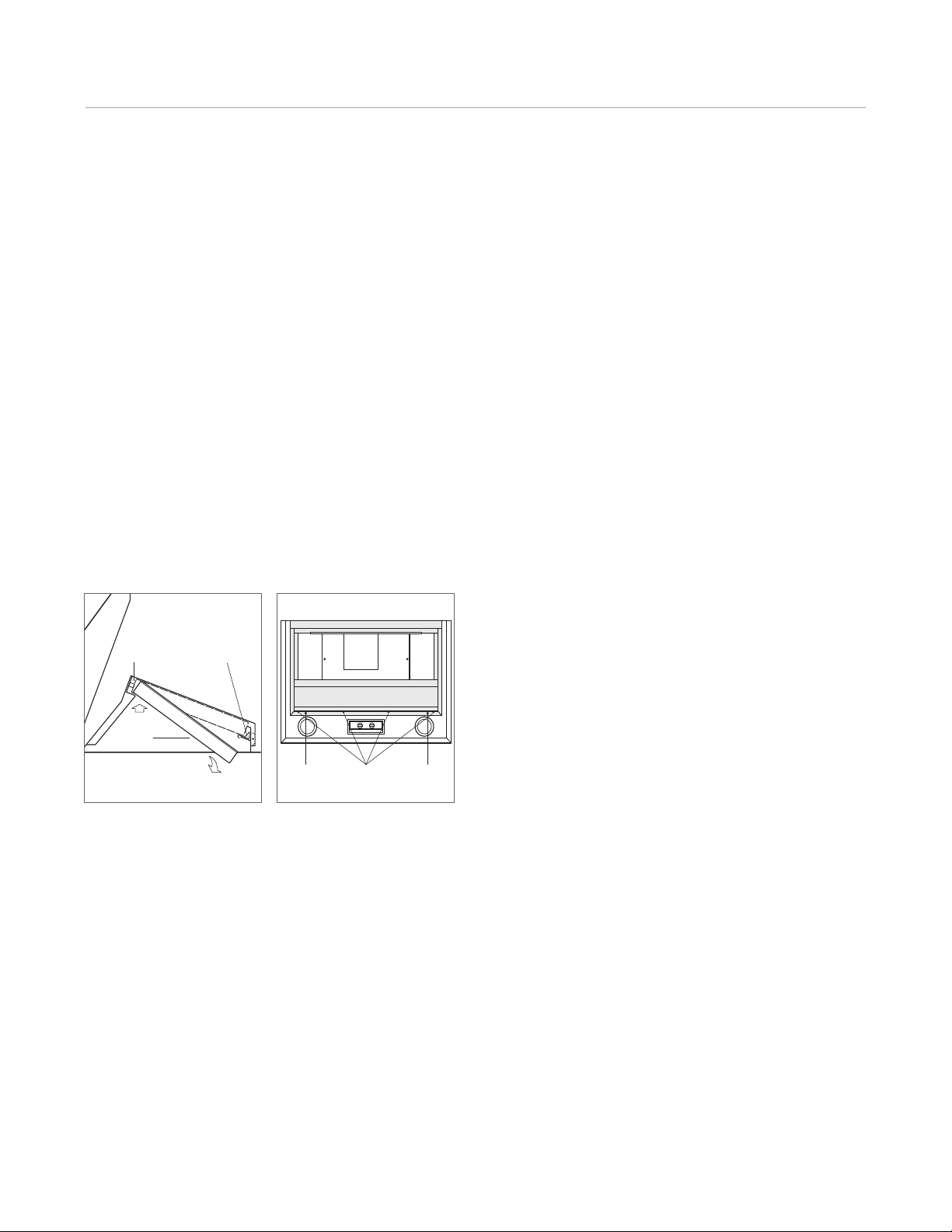

1)Remove the filters of the pro wall chimney hood by
pushing each filter up at the angle it is placed in,
then rotate the bottom of the filter down. Refer to the
illustration below. Remove the center filter first. Gloves
should be worn when handling filters.
2) Slide the grease cups out from the bottom edge of the
back of the hood.
3) Using a Phillips screwdriver, remove the four screws
retaining the hood’s internal frame shown in the
shaded area of the illustration below. Be sure to leave
the other two screws in place. Do not discard the
screws. They will be used to reinstall the internal frame
after installation is complete. Remove the internal
frame and set aside.
GREASE CUP
FILTER
SPRING
SIDE VIEW
Remove filters. Internal frame.
REMOVE
SCREWS
DO NOT
REMOVE
DO NOT
REMOVE

Pro Wall Chimney Hood Installation 11
wolfappliance.com/specs
Duct Cover
IMP RTANT N TE: If an optional duct cover is to be used
with the pro wall chimney hood, it must be attached
before installing the hood.
Installing a duct cover will impact all aspects of the
hood installation, including hood location, ducting,
electrical placement and the mounting surface.
DUCT C VER INSTALLATI N
IMP RTANT N TE: For wall chimney hoods using a
600 CFM or 900 CFM internal blower, refer to installation
instructions provided with the blower assembly. Install the
internal blower prior to installing the duct cover.
1) Attach the duct cover from the inside of the hood
through the filter opening using the screws provided
with the duct cover. Leave screws partially loose until
all screws are installed.
2) Check alignment of the duct cover with the hood and
tighten the four corner screws to secure the duct cover.
Tighten all remaining screws.
3) Proceed with installation of the wall hood.
MOUNTING
SCREW
DUCT
COVER
Duct cover installation.

2)Using the #8 x 2" (51) screws (provided with hood),
secure the hood to the wood mounting strip. Refer to
the illustration below.
3) Using two #8 x 2" (51) screws and washers (provided
with hood), secure the top back of the hood to wall
studs or blocking by the upper slots. Then use three
#8 x 2" (51) screws and washers in the lower slots to
complete the installation of the hood to the wall. Refer
to the illustration below.
4) Connect the 10" (254) round ductwork to the transition
using sheet metal screws and duct sealing tape.
5) If you are installing an internal blower, do not reinstall
the internal frame and filters until blower installation
is complete. Refer to internal blower information on
page 15 and follow installation instructions provided
with the blower.
6) Proceed with hood wiring connections.
Pro Wall Chimney Hood Installation 12
Hood Installation
IMP RTANT N TE: If an optional duct cover is to be used
with the pro wall chimney hood, it must be installed before
installing the hood. Refer to duct cover installation on the
previous page.
IMP RTANT N TE: If a backsplash is to be used, it
should be installed prior to mounting the wall chimney
hood. Refer to installation instructions provided with the
backsplash.
The filters and internal frame must be removed from the
hood prior to installation. Refer to hood preparation on
page 10.
1) Lift the hood into position, resting the top back cavity
of the hood on the wood mounting strip.
UPPER SLOT
LOWER SLOT
MOUNTING
SCREW
WOOD
MOUNTING
STRIP
BACK OF
HOOD

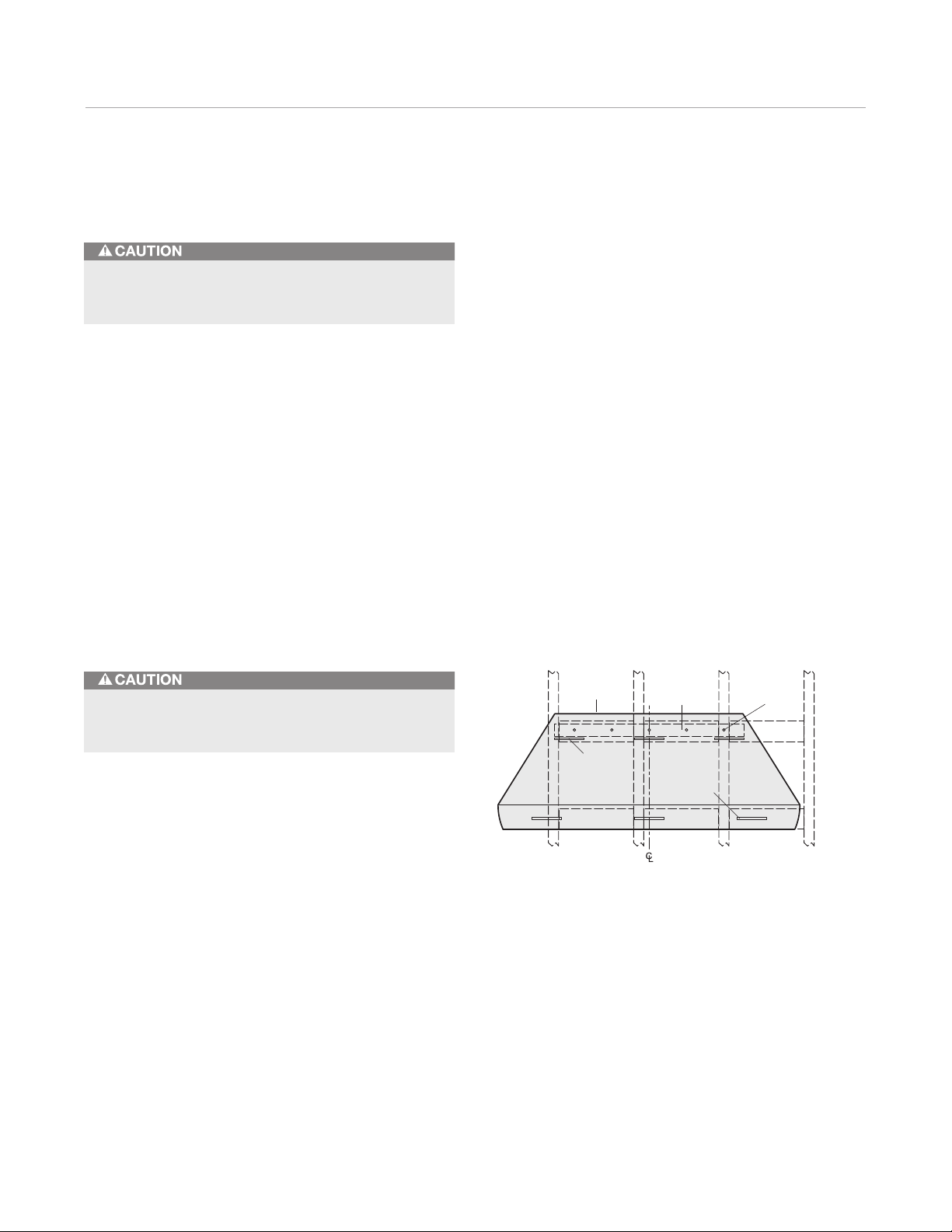

Hood installation.
Due to the weight of the hood, be sure to have
adequate assistance for installation.
Support the hood until it is completely secured to the
wood mounting strip.

Internal Blowers
WIRING F R INTERNAL BL WER
1) Remove the hood electrical box cover. Run Romex®
wire from a 120 V AC, 15 amp circuit to the hood
installation location. Insert the Romex®wire into the
electrical box by running it through the wire clamp
previously installed. Tighten the wire clamp to secure
the wire. Refer to the illustration and chart below for
the location of wiring for your specific hood. Do not
remove the wire connector on the orange wire in the
hood electrical box.
2) Using the wire connectors provided, connect black
wire to power supply black wire, white wire to power
supply white wire and green or bare wire from power
supply to green ground screw in the electrical box.
3) Place all wiring connections inside the electrical box
and reinstall the cover. Make sure all wires are secure
and that no wires are pinched between the cover and
electrical box.
Blower Assemblies
Pro ventilation hoods are shipped without the blower
assembly. Internal, in-line and remote blowers are avail-
able through your authorized Wolf dealer. For local dealer
information, visit the find a showroom section of our
website, wolfappliance.com.
The blower will vary in size and is dictated by the cooking
surface, the volume of air that needs to be moved and the
length of the duct run. Refer to ventilation recommenda-
tions in the Wolf design guide.
IMP RTANT N TE: Use wire connectors or wire nuts
approved by UL or C/UL.
Pro Wall Chimney Hood Installation 13
wolfappliance.com/specs
A
11/2"
(38)
2"
(51)
Location of hood wiring.
Location of Hood Wiring
WIDTH F H D A
36" (914) 2" (51)
42" (1067) 3" (76)
48" (1219) 4" (102)
54" (1371) 4" (102)
Before making electrical connections, make sure the
electrical power is turned off at the service panel.
To reduce the risk of fire and electric shock, install
this ventilation hood only with a blower manufactured
by Wolf.

BL WER INSTALLATI N (1200 CFM)
1) Discard the hex nut provided with the blower.
2) Lift the blower assembly into position inside the hood.
3) Engage the two tabs on the blower into the two slots in
the top plate of the wall chimney hood. Secure the
blower to the threaded studs with two hex nuts
(provided with blower).
5) Plug the blower power cords into receptacles located
near the center of the hood shell. Use the clips on the
interior of the hood to secure excess power cord.
6) Once installation of the blower is complete, reinstall the
internal frame and filters. Refer to complete the instal-
lation on page 17.
IMP RTANT N TE: Before turning electrical power on to
the ventilation hood, make sure the blower is off.
Pro Wall Chimney Hood Installation 14
Internal Blowers
IMP RTANT N TE: Refer to specific installation instruc-
tions provided with each blower assembly for additional
mounting and wiring instructions.
BL WER INSTALLATI N (600 CFM AND 900 CFM)
1) Fasten four hex nuts (provided with blower) to the four
threaded blower studs, leaving a 1/4" (6) gap. Refer to
the illustrations below.
2) Lift the blower into position inside the hood.
3) Engage all the blower studs in the keyholes on top of
the hood. From the top of the hood, secure the blower
to the hood with the four hex nuts on the blower studs.
4) Plug the blower power cord(s) into receptacle(s) near
the center of the hood shell. Use the clips on the
interior of the hood to secure excess power cord.
5) Reattach the transition to the hood with shipping
screws. If a duct cover will be installed with the hood,
refer to instructions on page 11.
6) Once installation of the blower is complete, reinstall the
internal frame and filters. Refer to complete the instal-
lation on page 17.
IMP RTANT N TE: Before turning electrical power on to
the ventilation hood, make sure the blower is off.
THREADED
STUD
HEX NUT
SLOT
TAB
1200 CFM internal blower.
BLOWER
STUD
HEX NUT
600 CFM internal blower. 900 CFM internal blower.
BLOWER
STUD
HEX
NUT

Pro Wall Chimney Hood Installation 15
wolfappliance.com/specs
In-Line and Remote Blowers
WIRING F R IN-LINE R REM TE BL WER
1) Remove the hood electrical box cover. Run Romex®
wire from a 120 V AC, 15 amp circuit to the hood
installation location. Insert the Romex®wire into the
electrical box by running it through the wire clamp
previously installed. Tighten the wire clamp to secure
the wire. Refer to the illustration and chart on the
previous page for the location of wiring for your
specific hood.
2) Run Romex®wire from the in-line or remote blower to
the hood installation location. Insert the blower cable
into the electrical box by running it through the other
wire clamp previously installed. Tighten the wire clamp
to secure the cable.
3) Cut off the butt crimp connector from the end of
orange wire in hood. Strip orange wire about 3/8" (10).
Using an appropriate wire connector (not included),
connect black wire from blower to orange wire in hood.
4) Using the wire connectors provided, connect black
wire to power supply black wire, all white wires
together and green or bare wires from power supply
and blower to green ground screw in the electrical box.
5) Place all wiring connections inside the electrical box
and reinstall the cover. Make sure all wires are secure
and that no wires are pinched between the cover and
electrical box.
Before making electrical connections, make sure the
electrical power is turned off at the service panel.
Do not run wiring through the ductwork.

Pro Wall Chimney Hood Installation 16
IN-LINE AND REM TE BL WER DIMENSI NS
18"
(457)
22"
(559)
247/8"
(632)
12"
(305)
18"
(457)
8"
(203)
1100 CFM in-line blower.
900 CFM remote blower. 1500 CFM remote blower.
1200 CFM remote blower.
241/2"
(622)
151/2"
(394)
281/4"
(718)
203/4"
(527)
243/4"
(629)
14"
(356)
43/4"
(121)
10" (254)
DIAMETER
143/4"
(375)
291/2"
(749)
291/2"
(749)
18" (457)
22"
(559)
101/8"
(257)
71/4"
(184)
10"
(254)
10" (254)
DIAMETER
143/4"
(375)
291/2"
(749)
291/2"
(749)
21" (533)
25"
(635)
103/8"
(264)
71/4"
(184)
10"
(254)
10" (254)
DIAMETER
In-Line and Remote Blowers
BL WER INSTALLATI N
IMP RTANT N TE: Refer to specific installation instruc-
tions provided with each blower assembly for additional
mounting and wiring instructions.
Locate the blower so that the length of the duct run and
number of elbows and transitions are kept to a minimum.
The duct run should be no longer than 50' (15 m). Remote
blowers should be located between wall studs or roof
rafters. Avoid pipes, wires and other ductwork.
Allow enough space for transitions needed between the
blower and connecting ductwork. For best performance,
locate transitions nearest the blower.

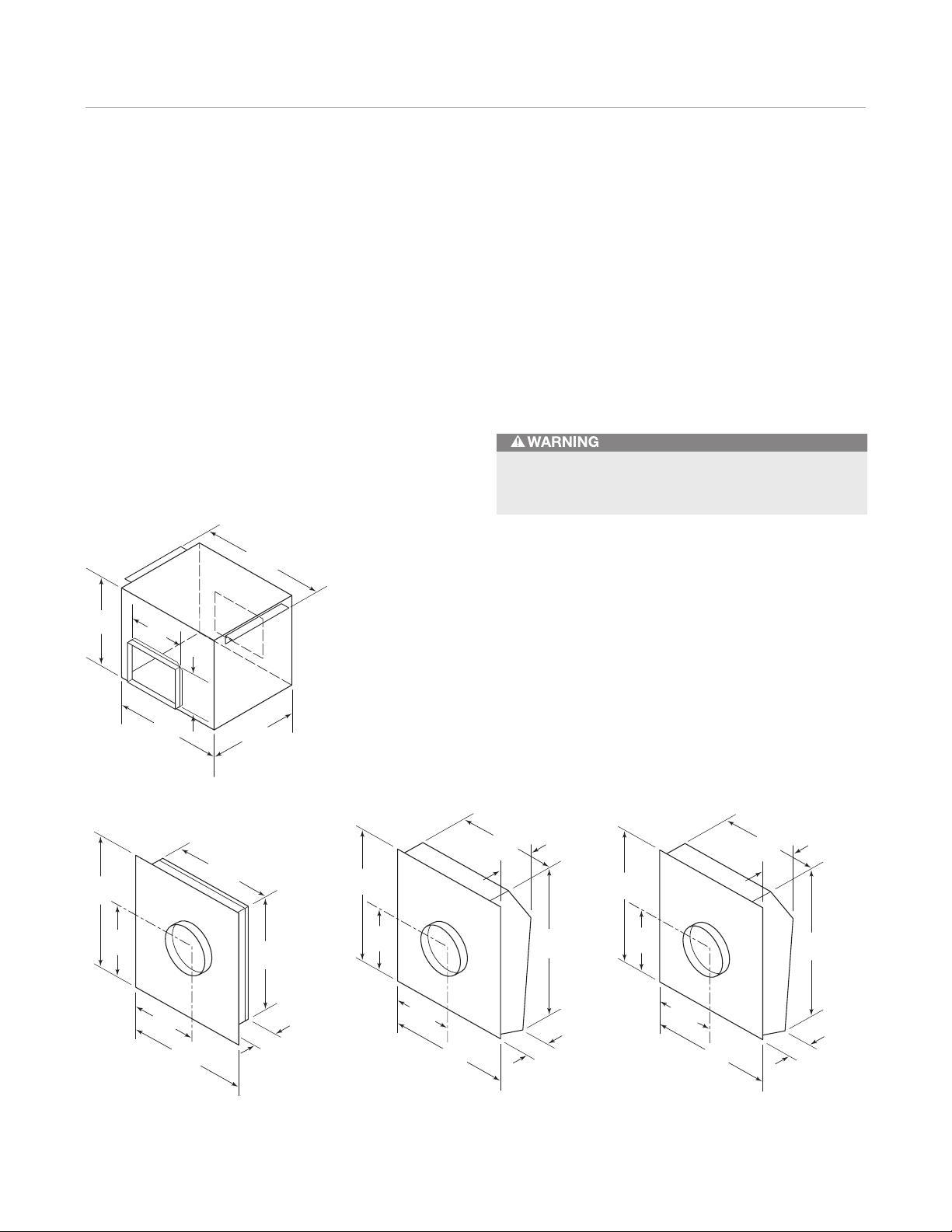

Refer to the illustrations below for overall dimensions of
Wolf in-line and remote blowers. Installation instructions
shipped with each Wolf ventilation product provide
detailed specifications. These instructions can also be
found on our website, wolfappliance.com/specs.
Before making electrical connections, make sure the
electrical power is turned off at the service panel.

Pro Wall Chimney Hood Installation 17
wolfappliance.com/specs
Complete the Installation
INSTALL FILTERS
Reinstall the internal frame on the wall chimney hood.
Refer to hood preparation on page 10.
Slide the grease cups along the bottom edge of the hood
so that the lip of the grease cup overhangs slightly.
To install the filters, orient each filter with lines running
vertically. Position the top edge of the filter as shown in
the illustration below. While pressing up against the
spring, rotate the bottom edge of the filter into position
next to the grease cup. Gloves should be worn when
handling filters.
L G NAMEPLATE
The Wolf logo nameplate does not come installed on the
wall chimney hood since there are various locations that
the nameplate can be attached.
Once you've decided on the location for the nameplate,
clean the mounting area with rubbing alcohol. Remove the
backing paper from the nameplate. Position the nameplate
aligned parallel with the bottom edge of the hood and
press into place.
GREASE CUP
FILTER
SPRING
SIDE VIEW
Filter installation.

Service Information 18
Troubleshooting
IMP RTANT N TE: If the pro ventilation hood does not
operate properly, follow these troubleshooting steps:
•Verify that electrical power is being supplied to the
ventilation hood.
•Check electrical connections to ensure that the
installation has been completed correctly.
•Refer to the troubleshooting guide in the Wolf pro
ventilation hoods use & care guide.
•If the ventilation hood still does not operate properly,
contact a Wolf authorized service center. Do not
attempt to repair the ventilation hood yourself. Wolf is
not responsible for service required to correct a faulty
installation.
Service Information
If service is necessary, maintain the quality built into your
ventilation hood by calling a Wolf authorized service
center.
To obtain the name and number of a Wolf authorized
service center, check the contact & support section of our
website, wolfappliance.com or call Wolf customer service
at 800-332-9513.
When calling for service, you will need the model and
serial numbers of the ventilation hood. This information is
found on the product rating plate, located inside the left
wall of the hood shell. Refer to the illustration below.
Location of rating plate
(inside hood).
RATING PLATE
Before servicing or cleaning, switch power off at the
service panel and lock the service disconnecting means
to prevent power from being switched on accidentally.
If it cannot be locked, securely fasten a prominent
warning tag, to the service panel.

The information and images in this guide are the copyright property of Wolf Appliance, Inc. Neither this guide nor any information or images contained herein
may be copied or used in whole or in part without the express written permission of Wolf Appliance, Inc. ©Wolf Appliance, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The Living itchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.

W LF APPLIANCE, INC. P. . B X 44848 MADIS N, WI 53744 W LFAPPLIANCE.C M 800.332.9513
817002 REV-A 8/2010
