GE UVW9364 Original instructions

Write the model and serial
numbers here:
Model #_________________
Serial # _________________
You can find them on a label
on the inside of the hood.
ESPAÑOL
Para consultar una version en
español de este manual de
instrucciones, visite nuestro sitio de
internet GEAppliances.com.
VENTED RANGE HOODS
With QuietBoost™ Blower
GE is a trademark of the General Electric Company. Manufactured under trademark license.
OWNER’S MANUAL
& INSTALLATION
INSTRUCTIONS
UVW9304
UVW9364
UVW9484
49-2000707 Rev. 5 04-22 GEA
SAFETY INFORMATION .............3
USING THE HOOD
Controls ..................................5
Chef Connect .............................5
Wi-Fi Connect............................ 6
CARE AND CLEANING
Filters ....................................7
Surfaces ..................................8
Lights ....................................8
INSTALLATION
INSTRUCTIONS ...................... 9
TROUBLESHOOTING TIPS......... 25
LIMITED WARRANTY .............. 26
ACCESSORIES ...................... 27
CONSUMER SUPPORT ............. 28

249-2000707 Rev. 5
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.

49-2000707 Rev. 5 3
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
READ AND SAVE THESE INSTRUCTIONS
WARNING TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
B. Before servicing or cleaning unit, switch power off
at service panel and lock the service disconnecting
means to prevent power from being switched
on accidentally. When the service disconnecting
means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the
service panel.
C. Do not use this unit with any solid-state speed
control device.
D. This unit must be grounded.
CAUTION FOR GENERAL VENTILATING USE
ONLY. DO NOT USE TO EXHAUST HAZARDOUS
OR EXPLOSIVE MATERIALS AND VAPORS.
CAUTION To reduce risk of fire and to properly
exhaust air, be sure to duct air outside. Do not vent
exhaust air into spaces within walls or ceilings or into
attics, crawl spaces, or garages.
WARNING TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING*:
A. SMOTHER FLAMES with a close-fitting lid, cookie
sheet or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—You may be
burned.
C. DO NOT USE WATER, including wet dishcloths or
towels—a violent steam explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher,
and you already know how to operate it.
2. The fire is small and contained in the area where
it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
WARNING TO REDUCE THE RISK OF A
RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high
settings. Boil overs cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or
medium settings.
B. Always turn hood ON when cooking on high heat or
when flambéing food (i.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware
appropriate for the size of the surface element.

449-2000707 Rev. 5
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
READ AND SAVE THESE INSTRUCTIONS
How to Remove Protective Shipping Film and Packaging Tape
Carefully grasp a corner of the protective shipping film
with your fingers and slowly peel it from the appliance
surface. Do not use any sharp items to remove the film.
Remove all of the film before using the appliance for the
first time.
To assure no damage is done to the finish of the
product, the safest way to remove the adhesive from
packaging tape on new appliances is an application of
a household liquid dishwashing detergent. Apply with a
soft cloth and allow to soak.
NOTE: The adhesive must be removed from all parts.
WARNING TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be
done by qualified person(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
B. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s
guidelines and safety standards such as those
published by the National Fire Protection
Association (NFPA), the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE) and the local code authorities.
When applicable, install any makeup (replacement)
air system in accordance with local building code
requirements. Visit geappliances.com for available
makeup air solutions.
C. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. Turn off breaker to adjacent rooms while working.
WARNING TO REDUCE THE RISK OF FIRE,
USE ONLY METAL DUCTWORK.
Do not attempt to repair or replace any part of your
hood unless it is specifically recommended in this
manual. All other servicing should be referred to a
qualified technician.
PROPER DISPOSAL OF YOUR APPLIANCE
Dispose of or recycle your appliance in accordance with Federal and Local Regulations. Contact your local
authorities for the environmentally safe disposal or recycling of your appliance.

49-2000707 Rev. 5 5
Controls
USING THE HOOD: Controls / Chef Connect
Chef Connect Operation Bluetooth®Connection
To pair with another device:
To start the pairing process on the hood, press and hold
the Light button for 3 seconds. The backlight for all the
icons will flash until the hood is paired with the range or
other device. If the pairing is successful, the backlights of
all buttons will flash simultaneously three times and then
turn off. The hood lights and fan default sync setting will
be activated.
It will time out after 2 minutes if the pairing is not
completed, after which the pairing sequence will need to
be restarted.
To cancel pairing:
To cancel the pairing, hold the Light button down for 3
seconds and then turn off the hood.
Default Sync Settings:
The factory default setting for the light will be the brightest.
The factory default setting for the fan sync will be OFF.
The user can change the Default Sync Settings by
pressing and holding the Med button for 3 seconds.
This will enter the Default Settings Mode. Once in
this mode, the backlights for all buttons will blink on/
off indefinitely and the fan and light will switch to the
current Default Sync Setting, so the user knows what the
current default value is. At this time, set the light and fan
to the desired default levels. Once the user is satisfied
with the selection, press and hold the Power button
for 3 seconds. This will exit this mode. At that time the
backlights will stop blinking and the state of the fan and
light will change back to their prior state before entering
the Default Settings Mode.
Chef Connect

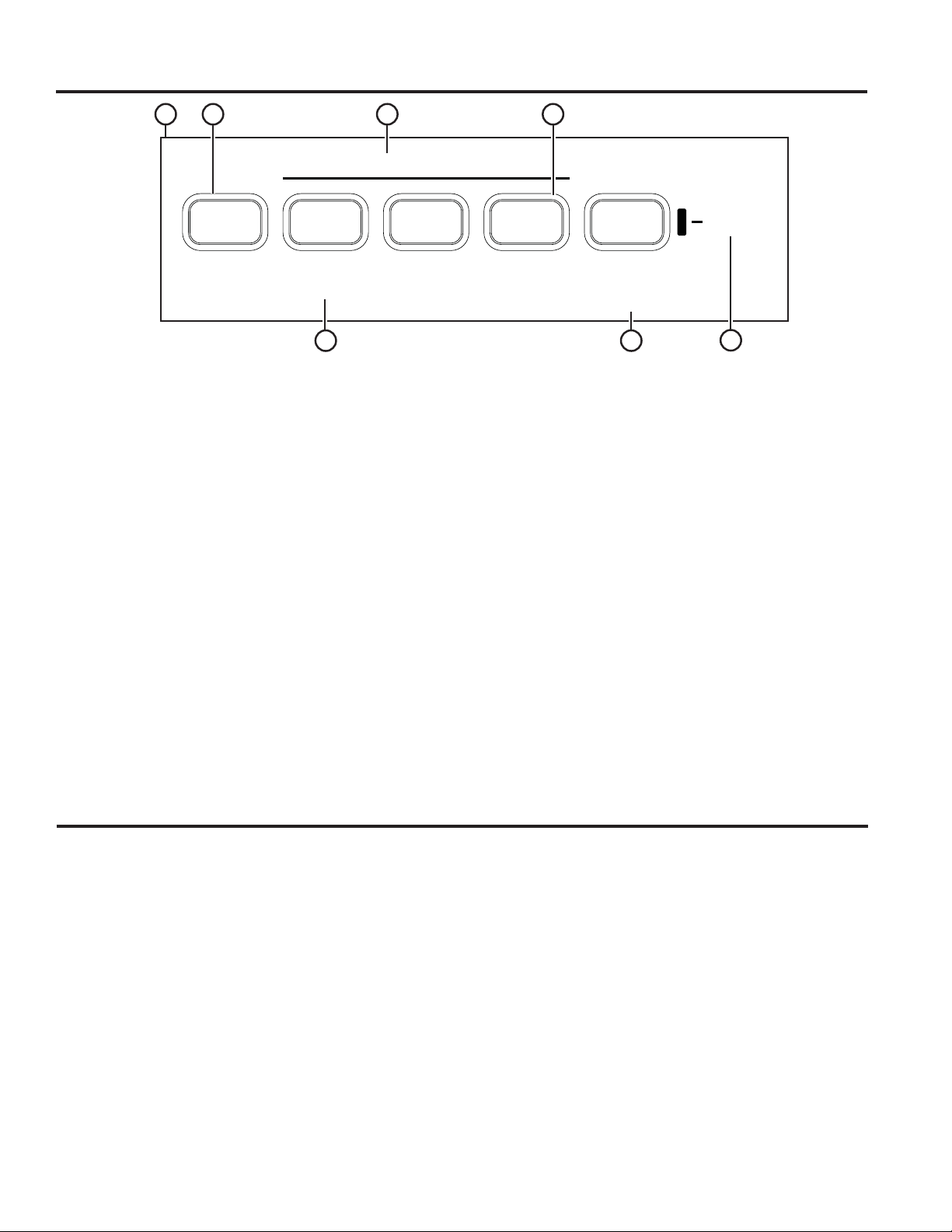

1. Rangehood Control Panel: The control panel
is located under the front edge of the canopy. The
position and function of each control button are
noted below.
2. Fan On/Off: On/Off switch for the fan. The fan
can be operated by pressing any of the fan setting
buttons. Hold Power for 3 seconds to activate
Delay Off feature, which automatically turns the fan
off after 15 minutes. Low, Med and High buttons
LEDs will rolling blink to indicate Delay Off feature is
activated.
3. Fan Settings: Speed control for fan. Fan speed is
powered by QuietBoost™ Technology. This unique
technology is designed to minimize ventilation noise
and enhance motor efficiency for a peacefully-quiet,
odor-free kitchen. Press the button Low for LOW
speed, Med for MEDIUM speed, and High for HIGH
speed. Hold down the High button for 3 seconds to
activate the Boost speed that will run for 15 minutes.
High button LED will blink on/off to indicate Boost
feature is activated.
4. Light: Off/On/Night Light switch for the LED lights.
Press the Light button to turn the lights on, again to
set the lights to night light setting, and again to turn
the lights off.
5. Chef Connect: This is a Bluetooth®pairing feature
for use with other compatible Chef Connect enabled
products on a cooktop or range. When the device is
paired, the default sync settings will be activated upon
receiving a command from the range or cooktop. To
change the default sync setting, refer to the Chef
Connect section.
To pair devices, hold down the Light button for 3
seconds. To turn it back off, hold the button down for
another 3 seconds. See the Chef Connect section for
more details.
6. IR Sensor: Remote control receiver when used
with remote control kit.
7. Wi-Fi: Hold down the Low button for 3 seconds
to initiate the Wi-Fi connection. The Wi-Fi indicator
light turns on when connected, see the Wi-Fi
Connect section for details.
2ႇ Low Med
Fan Settings
High Light
Chef Connect
To Pair
Hold 3 Sec
Boost
Hold 3 Sec
WiFi
Pairing
Delay Oႇ
Hold 3 Sec
WiFi
1
6
2 4
57
3

649-2000707 Rev. 5
Wi-Fi Connect
USING THE HOOD: Wi-Fi Connect
Connecting your Wi-Fi Connect Enabled hood (on some models)
Your GE Appliances hood is designed to provide you with two-way communication between your appliance and
smart device. By using the GE Appliances Wi-Fi Connect features, you will be able to control essential hood
operations such as fan speed, light functions, delay off and filter notification using your smartphone or tablet.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired Operation.
What you will need
Your GE Appliances hood uses your existing home Wi-Fi
network to communicate between the appliance and
your smart device. In order to setup your GE Appliances
hood, you will need to gather some information:
1. Each GE Appliances hood has a connected appliance
information label that includes an Appliance Network
Name and Password. These are the two important
details that you will need to connect to the appliance.
The label is located on the side of the unit behind the
filters.
2. Have your smart phone or tablet ready with the ability
to access the internet and download apps.
3. You will need to know the password of your home
Wi-Fi router. Have this password ready while you are
setting up your GE Appliances hood.
Connect your GE Appliances hood
1. On your smart phone or tablet visit
GEAppliances.com/connect to learn more about
connected appliance features and to download the
appropriate app.
2. Follow the app onscreen instructions to connect your
GE Appliances hood.
3. Once the process is complete, the indicator light
located on your GE Appliances hood display will stay
on solid and the app will confirm you are connected.
4. If the indicator light does not turn on or is blinking,
follow the instructions on the app to reconnect. If
issues continue please call 800.220.6899 and ask for
assistance regarding hood wireless connectivity.
To connect additional smart devices, repeat steps 1 and
2.
Note that any changes or modifications to the remote
enable device installed on this hood that are not
expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Enhanced Wi-Fi Features
Once your product is connected to Wi-Fi, you have
access to enhanced features via phone app
Delay Off Timer: This feature allows the user to adjust
delay off time from 1 minute to 15 minutes. The default
delay off time is 15 minutes.
Boost Timer: This feature allows the user to adjust the
boost time from 1 minute to 15 minutes. The default
boost time is 15 minutes
Night Light Timer: This feature allows the user to set
time for the night light to turn on and off automatically.
Grease/Charcoal Filter Notifications: This feature
sends a regular reminder to the user to clean their
grease filters, and/or to replace their charcoal filter, if the
hood is setup in recirculation mode.
Sample Label
Connected Appliance Information
FCC ID: ZKJ-WCATA005
IC: 10229A-WCATA001
MAC ID: ************
Network: ************
Password: **********

49-2000707 Rev. 5 7
Grease Drip Tray
To install:
Place and seat the drip trays into the designated hood
track. Slide them left or right until all trays are side-by-
side in place in the track.
To remove:
Carefully, use the grease tray lip to lift the tray upwards
and out. The tray will be free of the designated hood track.
To clean:
Swish the drip tray in hot soapy water and rinse in clean
water or wash it in the dishwasher. Do not use abrasive
cleaners.
NOTE: Some discoloration of the grease drip tray may
occur in the dishwasher.
CARE AND CLEANING: Filters
Filters
Baffle Grease Filter
The baffles channel grease released by foods on the cooktop into the drip trays. The baffles also help prevent
flaming foods on the cooktop from damaging the inside of the hood.
The baffles must ALWAYS be in place when the hood is in use.
To install:
Insert the top of the baffle (side without knob) into the
track behind the control panel. Push knob side into the
back, twist to lock into place.
To remove:
Pull and twist knob and slowly pull filter down. Hold with
other hand and pull filter away from the track behind the
control panel.
It is important for baffles to be placed correctly to
channel grease to the drip trays and avoid grease
accumulation in the baffles.
To clean:
Swish the filter in hot soapy water and rinse in clean
water or wash it in the dishwasher. Do not use abrasive
cleansers.
NOTE: Some discoloration of the filter may occur in the
dishwasher.
To clean hard to reach areas of the filter, use a soft
brush.
Drip Tray Replacement
Be sure the circuit breaker is off and all surfaces are cool before cleaning or servicing any part of the vent hood.
The baffle filters and drip trays are dishwasher safe and should be cleaned every month, depending on the usage of
the hood
Baffle Replacement
1
2

849-2000707 Rev. 5
Lights
To change the LED lamps, schedule a service appointment. See Consumer Support page for a list of websites and
contact information.
Surfaces
CARE AND CLEANING: Filters / Surfaces / Lights

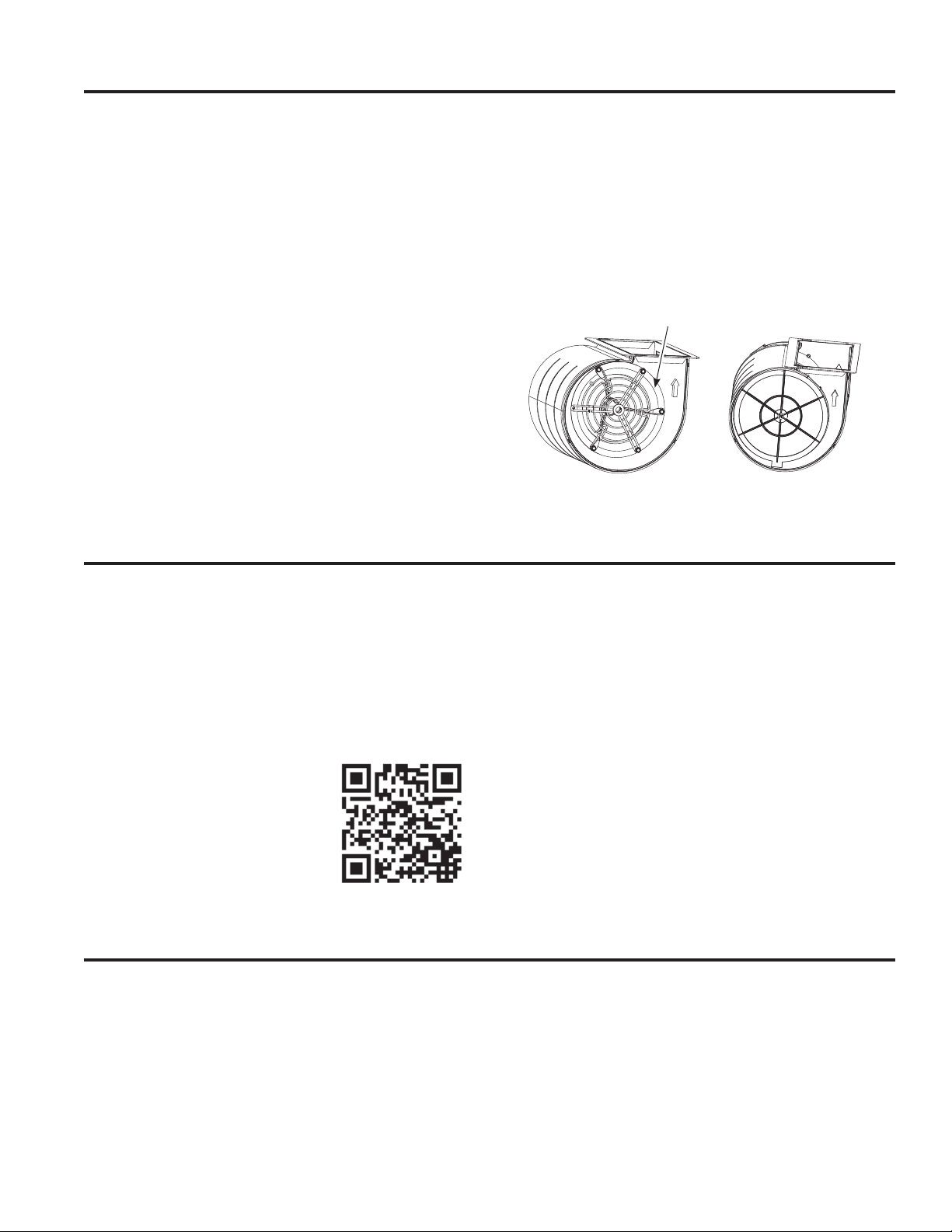

Stainless Steel Surfaces (on some models)
Do not use a steel wool pad; it will scratch the
surface.
To clean the stainless steel surface, use warm sudsy
water or a stainless steel cleaner or polish. Always wipe
the surface in the direction of the brush line. Follow
the cleaner instructions for cleaning the stainless steel
surface. Cleaners with oxalic acid such as Bar Keepers
Friend Soft Cleanser™ will
remove surface rust, tarnish, and
small blemishes. To receive a
coupon for a trial sample of Bar
Keepers Friend Soft Cleanser™
follow the link below or scan the
QR Code.
barkeepersfriend.com/ge
Use only a liquid cleanser free of grit and rub in the
direction of the brush lines with a damp soft sponge.
To inquire about purchasing stainless steel appliance
cleaner or polish, or to find the location of a dealer
nearest you, please visit geappliances.com/parts
Charcoal Filter (for recirculation installation on select models only)
NOTE: DO NOT rinse, or put charcoal filter in an
automatic dishwasher.
The charcoal filter is NOT included with the unit.
Order Charcoal Filter UXCF91. It cannot be cleaned;
it must be replaced. It is recommended that the
charcoal filter be replaced every 6 months or if it is
noticeably dirty or discolored.
To reduce the risk of fire and shock, when used in
recirculation mode, use only charcoal filter UXCF91.
To inquire about purchasing replacement charcoal filters
or to find the location of a dealer nearest you, please call
our toll-free number:
National Parts Center 800.626.2002
To Install
1. Remove the grease filters. See Filters section.
2. Install the charcoal filter mounts to either side of the
motor using three screws per side.
3. Insert the tab on the charcoal filter into the triangular
slot on the mount.
4. Clip the charcoal filter in until it is locked
5. Repeat with second filter on the other side of the
motor.
6. Reattach the metal filters. See Filters section.
To Remove
1. Remove grease filters-See Filters section
2. Unclip the charcoal filter by pressing the release clip.
3. Carefully remove charcoal filter from tab.
Filters (Cont.)
Charcoal Filter Mount

49-2000707 Rev. 5 9
If you have questions, visit GEAppliances.com, or call GE Appliances at 800.GE.CARES (800.432.2737).
Installation
Instructions
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
•IMPORTANT— Save these
instructions for local inspector’s use.
•IMPORTANT— Observe all governing
codes and ordinances.
•Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Skill level – Installation of this vent hood requires
basic mechanical and electrical skills.
• Completion time – Approximately 1 to 3 hours
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is not
covered under the Warranty.
FOR YOUR SAFETY
WARNING Before beginning the installation,
switch power off at service panel and lock the
service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag,
to the service panel.
CAUTION Due to the weight and size of
these vent hoods and to reduce the risk of personal
injury or damage to the product, TWO PEOPLE
ARE REQUIRED FOR PROPER INSTALLATION.
WARNING Disconnect all electrical power
at the main circuit breaker or fuse box before
installing.
Range Hoods
WARNING TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be
done by qualified person(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
B. Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment
manufacturer’s guidelines and safety standards
such as those published by the National Fire
Protection Association (NFPA), the American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) and the local
code authorities.
C. When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
D. Ducted fans must always be vented to the
outdoors.
E. Turn off breaker to adjacent rooms while
working.
WARNING TO REDUCE THE RISK OF FIRE,
USE ONLY METAL DUCT WORK.
OPTIONAL POWER CORD KIT
JXHC1
An optional power cord kit, model JXHC1, is
available at extra cost from your GE Appliances
supplier for installation using a standard 3-prong,
grounded wall outlet. Follow the installation
instructions packed with the kit to connect the
power cord to the range hood.

10 49-2000707 Rev. 5
Installation Preparation

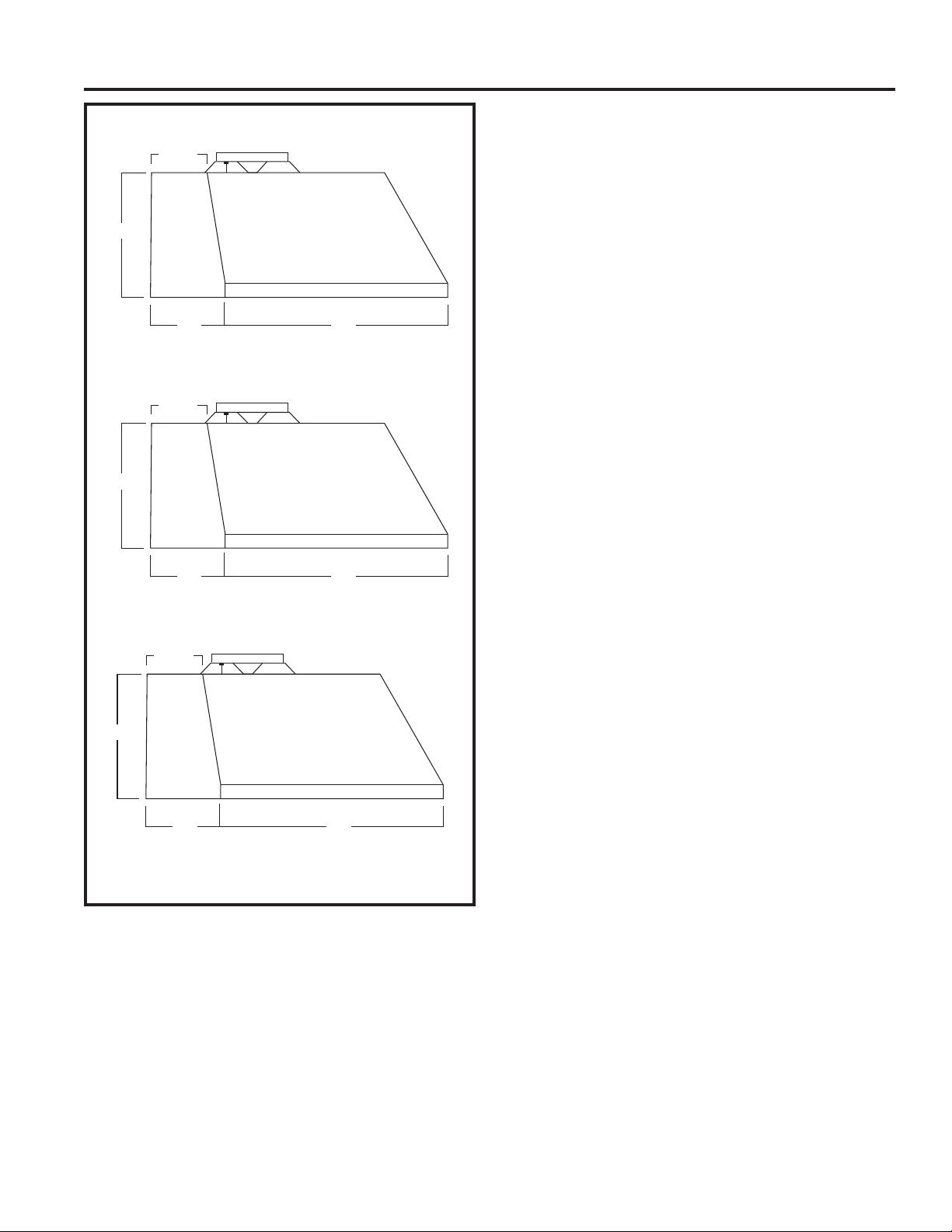

PRODUCT DIMENSIONS
30” Models
Requires a 30” opening.
36” Models
Requires a 36” opening.
48” Models
Requires a 48” opening.
INSTALLATION PREPARATION
18”
21” 30”
12-1/4”
18”
21” 36”
12-1/4”
18”
21” 48”
12-1/4”

49-2000707 Rev. 5 11
Installation Preparation
INSTALLATION PREPARATION

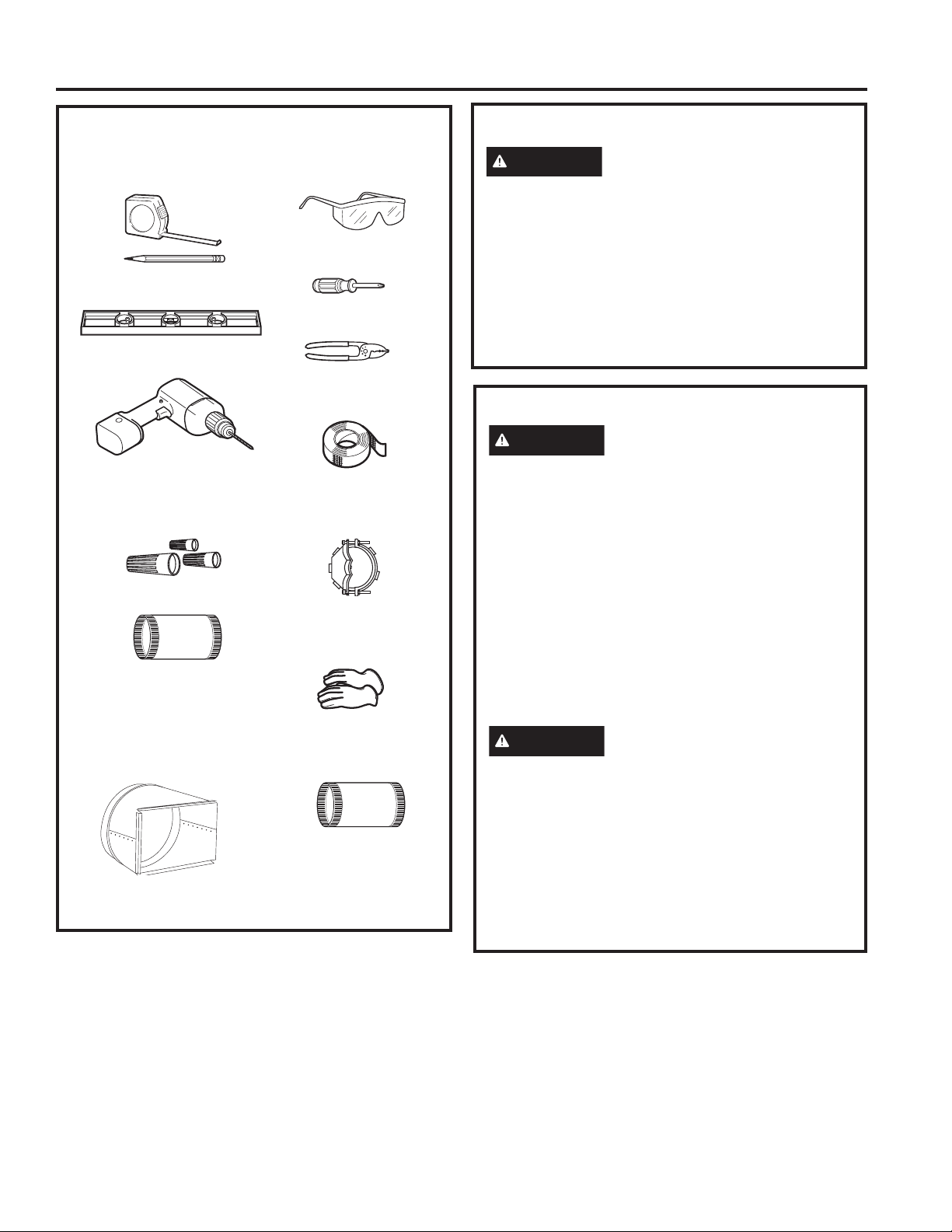

TOOLS AND MATERIALS
REQUIRED (NOT SUPPLIED)
Wire cutter/stripper
Level
Aluminized
duct tape
Safety glasses
Phillips screwdriver with
at least 6" shank
Strain relief for
junction box, 1”
diameter knockout
Electric drill with #2 Phillips
with 1/8" and 5/16" drill bits
UL listed wire nuts
Pencil and tape measure
Gloves
12" round duct
8”x12” to 12” round
duct transition
Needed for back venting only
8” round duct for 30" and 36" models
10" round duct for 48" model
PLAN THE INSTALLATION
CAUTION To reduce risk of fire and to
properly exhaust air, be sure to duct the air outside.
Do not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces, or garages.
PARTS SUPPLIED FOR INSTALLATION
Ŷ1 Hardware Package
Ŷ1 Literature Package
Ŷ1 Installation Template
PARTS NEEDED FOR INSTALLATION
Ŷ1 Strain Relief
Ŷ1 Wall or Roof Cap (for vented installation only)
ŶAll Metal Ductwork
WARNING
PERSONAL INJURY HAZARD
Because of the weight and size of the rangehood
canopy. It is recommended that 2 people are used
to install the range hood. Failure to properly lift
rangehood could result in damage to the product or
personal injury.
NOTE: Before making any cuts or holes for
installation, determine which venting method will be
used and carefully calculate all measurements.
REMOVE THE PACKAGING
CAUTION Wear gloves to protect against
sharp edges.
ŶRemove the hood body.
ŶRemove the hardware bag, literature package and
other boxed parts.
ŶRemove and properly discard the protective
plastic wrapping and other packaging materials.
ŶConsider recycling options for your appliance
packaging material.

12 49-2000707 Rev. 5
INSTALLATION PREPARATION
Installation Preparation

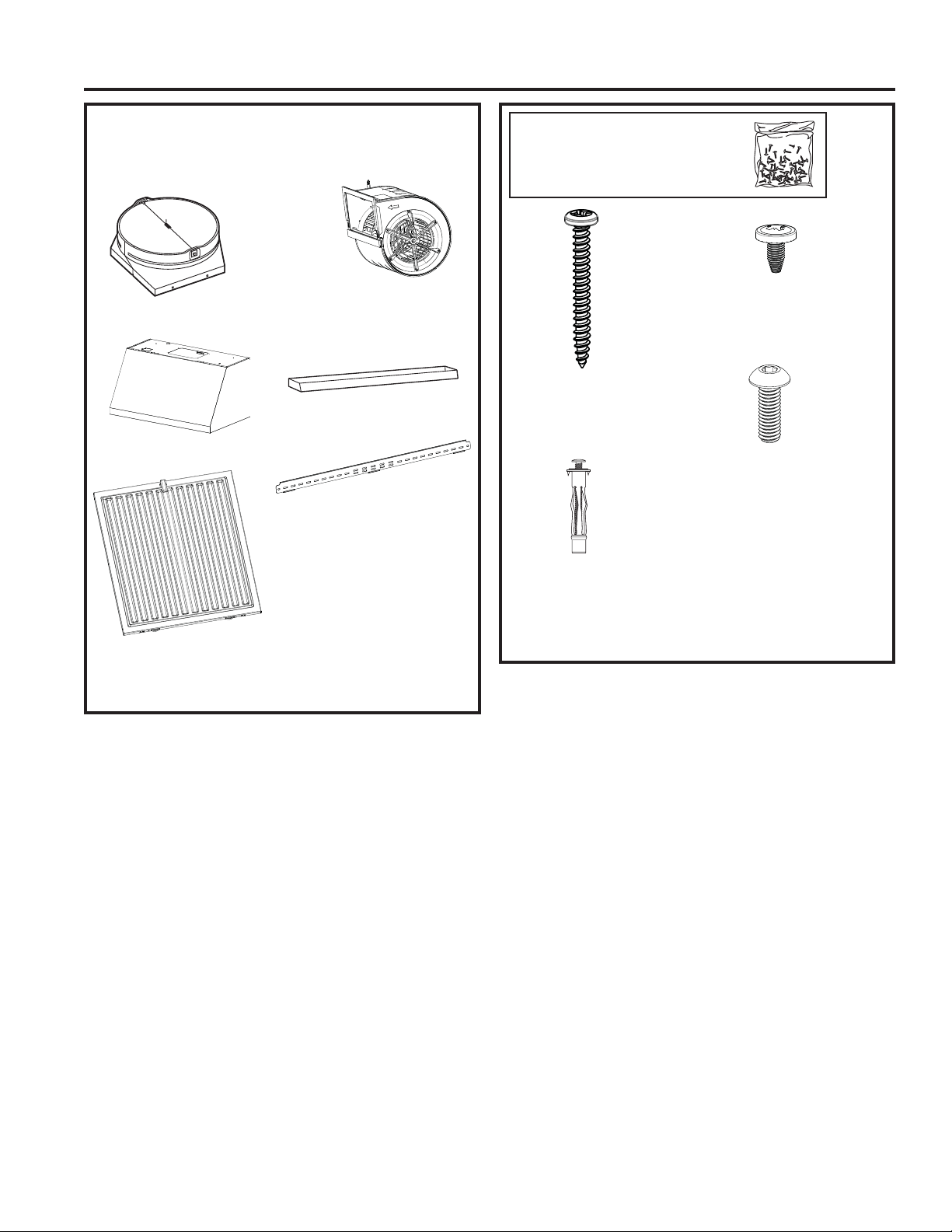

PARTS PROVIDED
Locate the parts packed with the hood.
Top Damper
Grease Drip Trays
Motor
(2 with 48” model)
Hood Body
Metal Installation Bracket
2 Baffle Filters
3 with 36” models
4 with 48" model
HARDWARE PACKAGE
Locate and check contents.
(QTY: 2) 3/16” dry wall
anchors with screws. Used
for hood bottom mounting
screw holes. Use 5/16” drill
for pilot hole.
(QTY: 4 or 8) M4 screws.
Used to mount motor
(QTY: 4) 8 x 1-3/4 AB
Screw. Used to mount the
installation bar. Use 1/8”
drill for pilot hole.
(QTY: 4) 2.9mm x 6mm
PZ screws. Used to
attach the damper
AB
C
D

49-2000707 Rev. 5 13
Installation Preparation
INSTALLATION PREPARATION

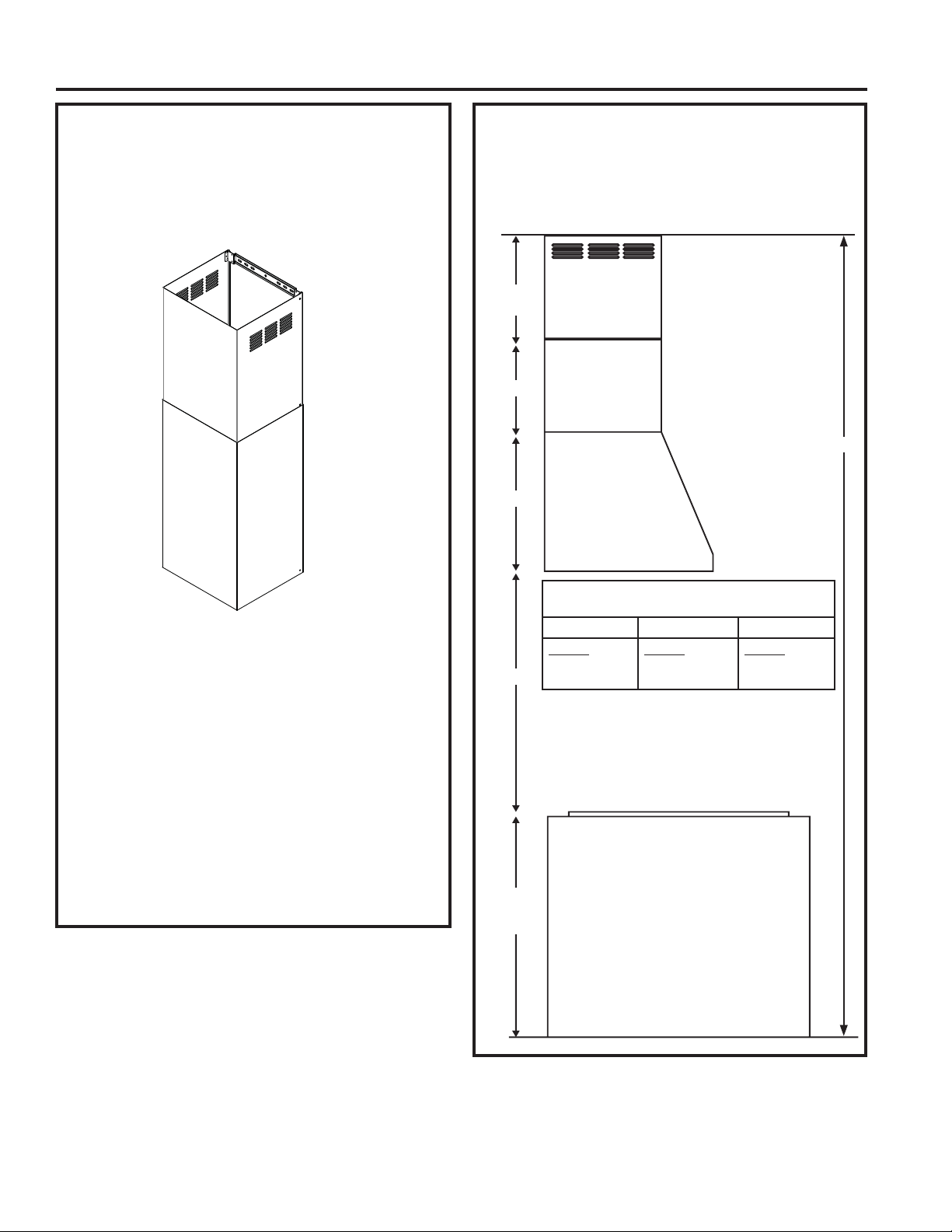

INSTALLATION DIMENSIONS
The hood duct covers can be adjusted for different
ceiling heights depending on the distance between
the bottom of the hood and the cooktop (distance
X). See Installation Height Table on the next page.
DUCT COVER REQUIREMENTS
Duct cover kits must be purchased separately.
We recommend that the vent hood and duct cover
(if used) be on site before final framing and wall
finishing. This will help to accurately locate studs,
ductwork and electrical service.
• Duct cover accessory comes with a lower and
upper duct cover and installation hardware.
• The installation hardware includes mounting
brackets to secure duct covers to the wall.
• For vented installations, recirculation holes can be
hidden by installing the upper duct cover upside
down.
• For ceiling installations up to 8' 4", use the 8'
Ceiling Duct Cover kit CX8DC9SPSS. This kit
only supports vented installation mode.
• For ceiling installations up to 11’ 4", use the 10’
High Ceiling Duct Cover kit CX10DC9SPSS.
• For higher ceiling installations up to 13’ 2", use the
12’ High Ceiling Duct Cover kit CX12DC9SPSS.
X = Distance from hood to cooktop. (Varies
depending on the installation) Required 24”
minimum over electric range or 30” minimum over
gas range. The recommended maximum is 36".
Typical Range
NOTE: 36" for typical electric range
and 38" for gas range.
Upper Duct
Cover
5" min
27" max
19-1/2”
18”
X
36”
or
38"
Lower Duct Cover
Required Min & Recommended Max Ceiling
Height Examples for 10’ Duct Cover Kit (Vented)
Electric Gas
X = 24”
Y = Min 8’ 2”
Max 9'10”
X = 30”
Y = Min 8’ 10”
Max 10’ 6”
X = 36”
Y = Min 9’ 4”
Max 11’ 0"
Y

14 49-2000707 Rev. 5
INSTALLATION PREPARATION
Installation Preparation
INSTALLATION HEIGHT TABLE
CX10DC9SPSS
High Ceiling Duct Cover up to 10 ft.
Installation over Gas
Range Installation over Electric Range
Ceiling
Height
(ft./in.)
Recirc
Installation
Height
Vented
Installation
Height
(Recirc
holes
hidden)
Recirc
Installation
Height
Vented
Installation
Height
(Recirc holes
hidden
8’ 2” 24
8’ 3” 24-25
8’ 4” 24-26
8’ 5” 24-27
8’ 6” 24-28
8’ 7” 24 24-29
8’ 8” 24-25 24-30
8’ 9” 24-26 24-31
8’ 10” 30 24-27 24-32
8’ 11” 30-31 24-28 24-33
9’ 0” 30-32 24-29 24-34
9’ 1” 30-33 24-30 24-35
9’ 2” 30-34 24-31
24-36
9’ 3” 30 30-35 24-32
9’ 4” 30-31
30-36
24-33
9’ 5” 30-32 24-34
9’ 6” 30-33 24-35
9’ 7” 30-34
24-36
9’ 8” 30-35
9’ 9”
30-36
9’ 10”
9’ 11” 25-36
10’ 0” 26-36
10’ 1” 27-36
10’ 2” 28-36
10’ 3” 25-36 29-36
10’ 4” 26-36 30-36
10’ 5” 27-36 31-36
10’ 6” 28-36 32-36
10’ 7” 31-36 29-36 33-36
10’ 8” 32-36 30-36 34-36
10’ 9” 33-36 31-36 35-36
10’ 10” 34-36 32-36 36
10’ 11” 31-36 35-36 33-36
11’ 32-36 36 34-36
11’ 1” 33-36 35-36
11’ 2” 34-36 36
11’ 3” 35-36
11’ 4” 36
CX12DC9SPSS
High Ceiling Duct Cover up to 12 ft.
Installation over Gas
Range Installation over Electric Range
Ceiling
Height
(ft./in.)
Recirc
Installation
Height
Vented
Installation
Height
(Recirc holes
hidden)
Recirc
Installation
Height
Vented
Installation
Height (Recirc
holes hidden
9’ 1”
9’ 2”
9’ 3” 24
9’ 4” 24-25
9’ 5” 24 24-26
9’ 6” 24-25 24-27
9’ 7” 24-26 24-28
9’ 8” 24-27 24-29
9’ 9” 24-28 24-30
9’ 10” 24-29 24-31
9’ 11” 30 24-30 24-32
10’ 0” 30-31 24-31 24-33
10’ 1” 30 30-32 24-32 24-34
10’ 2” 30-31 30-33 24-33 24-35
10’ 3” 30-32 30-34 24-34
24-36
10’ 4” 30-33 30-35 24-35
10’ 5” 30-34
30-36
24-36
10’ 6” 30-35
10’ 7”
30-36
10’ 8”
10’ 9”
10’ 10”
10’ 11”
11’
11’ 1”
11’ 2”
11’ 3”
11’ 4”
11’ 5”
11’ 6”
11’ 7”
11’ 8”
11’ 9” 25-36
11’ 10” 26-36
11’ 11” 27-36
12’ 28-36
12’ 1” 25-36 29-36
12’ 2” 26-36 30-36
12’ 3” 27-36 31-36
12’ 4” 28-36 32-36
12’ 5” 31-36 29-36 33-36
12’ 6” 32-36 30-36 34-36
12’ 7” 33-36 31-36 35-36
12’ 8” 34-36 32-36 36
12’ 9” 31-36 35-36 33-36
12’ 10” 32-36 36 34-36
12’ 11” 33-36 35-36
13 34-36 36
13’ 1” 35-36
13’ 2” 36
CX8DC9SPSS
Ceiling Duct Cover up to
8 ft.
Installation
over Gas
Range
Installation
over Electric
Range
Ceiling
Height
(ft./in.)
Vented
Installation
Height
Vented
Installation
Height
7’ 0” 24
7’ 1” 24-25
7’ 2” 24-26
7’ 3” 25-27
7’ 4” 26-28
7’ 5” 27-29
7’ 6” 28-30
7’ 7” 29-31
7’ 8” 30 30-32
7’ 9” 30-31 31-33
7’ 10” 30-32 32-34
7’ 11” 31-33 33-35
8’ 0” 32-34 34-36
8’ 1” 33-35 35-36
8’ 2” 34-36 36
8’ 3” 35-36
8’ 4” 36

49-2000707 Rev. 5 15
Installation Instructions

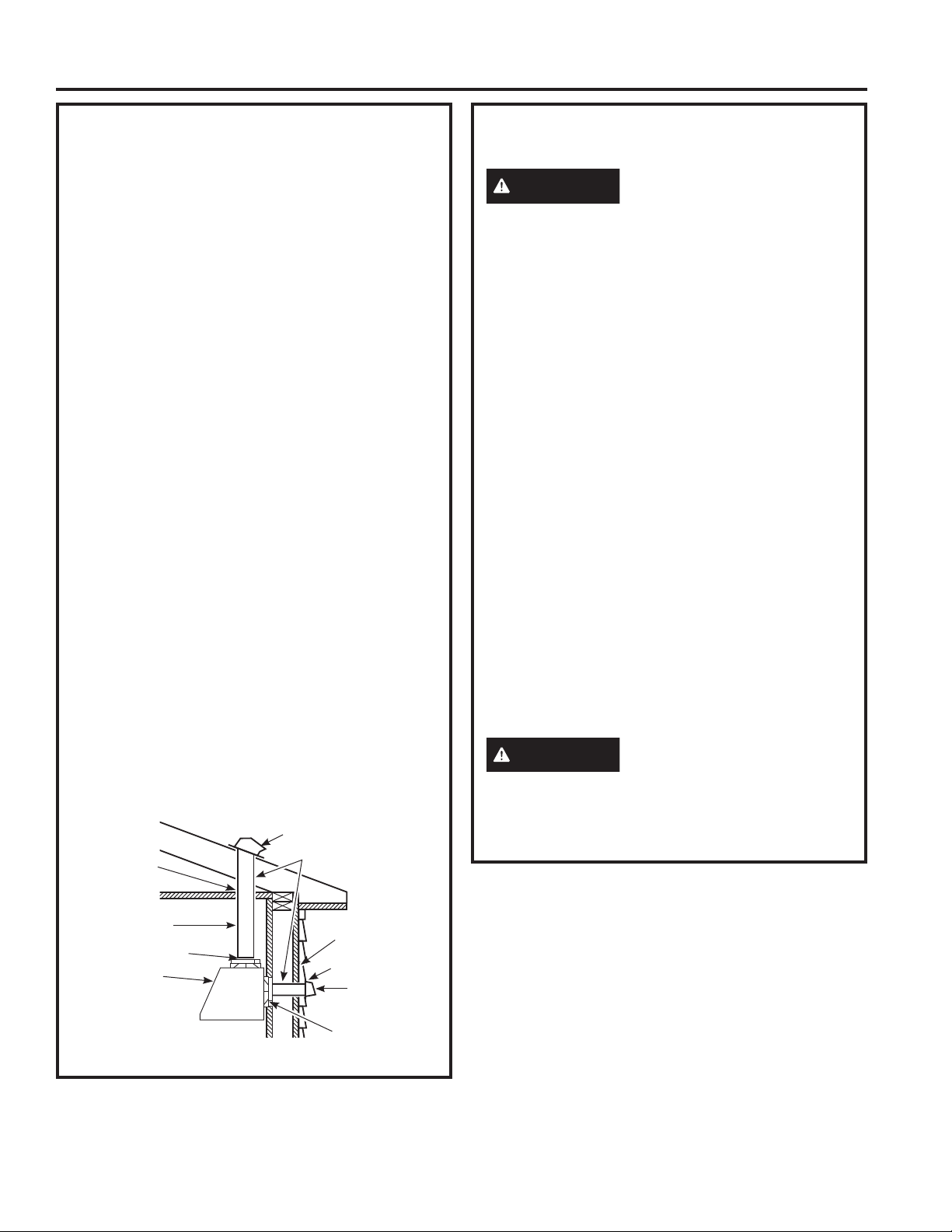

POWER SUPPLY
IMPORTANT – (Please read carefully)
WARNING
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
Remove house fuse or open circuit breaker before
beginning installation.
Do not use an extension cord or adapter plug with
this appliance. Follow National Electrical Codes or
prevailing local codes and ordinances.
Electrical supply
These vent hoods must be supplied with 120V,
60Hz, and connected to a properly grounded branch
circuit, and protected by a 15 or 20 amp circuit
breaker or time delay fuse.
ŶWiring must be 2 wire with ground.
ŶIf the electrical supply does not meet the above
requirements, call a licensed electrician before
proceeding.
ŶRoute house wiring as close to the installation
location as possible in the ceiling or wall.
ŶConnect the wiring to the house wiring in
accordance with local codes.
Grounding instructions
The grounding conductor must be connected to
a ground metal, permanent wiring system, or an
equipment-grounding terminal or lead on the hood.
WARNING The improper connection of the
equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician
or service representative if you are in doubt whether
the appliance is properly grounded.
ADVANCE PLANNING
Duct Install Planning
ŶThis hood is designed to be vented vertically
through the ceiling with an 8” round duct for 30"
and 36" models and a 10" round duct for 48"
model, or horizontally through a wall with an
8”x12” duct transition and 12” round duct.
ŶUse metal ductwork only.
ŶPlan the route for venting exhaust to the outdoors.
To maximize the ventilation performance of the
vent system:
1.Minimize the duct run length and number of
transitions and elbows.
2.Maintain a constant duct size.
3.Seal all joints with duct tape to prevent any leaks.
NOTE: Flexible vent is not recommended. Flexible
vent creates back pressure and air turbulence that
greatly reduces performance.
ŶMaximum equivalent duct length for 100 CFM: 150
foot for vent hoods.
ŶInstall a wall cap or roof cap with damper at the
exterior opening. Purchase the wall or roof cap
and any transition and length of duct needed in
advance.
ŶWhen applicable, install any makeup
(replacement) air system in accordance with
local building code requirements. 8” round duct
makeup air kit JXMUA8 can be purchased from
GEAppliances.com or 10” round duct universal
make up air kit can be purchased locally.
Vent system can terminate either through the roof
or the wall.
Roof Cap
Round Duct
Wall Cap
Add Insulation
and/or Caulk
Add tape to joint
Hood
Top Venting Setup
Add Tape to
Joint
Add Insulation
and/or Caulk
Back Venting
Setup
INSTALLATION INSTRUCTIONS

16 49-2000707 Rev. 5
Installation Preparation

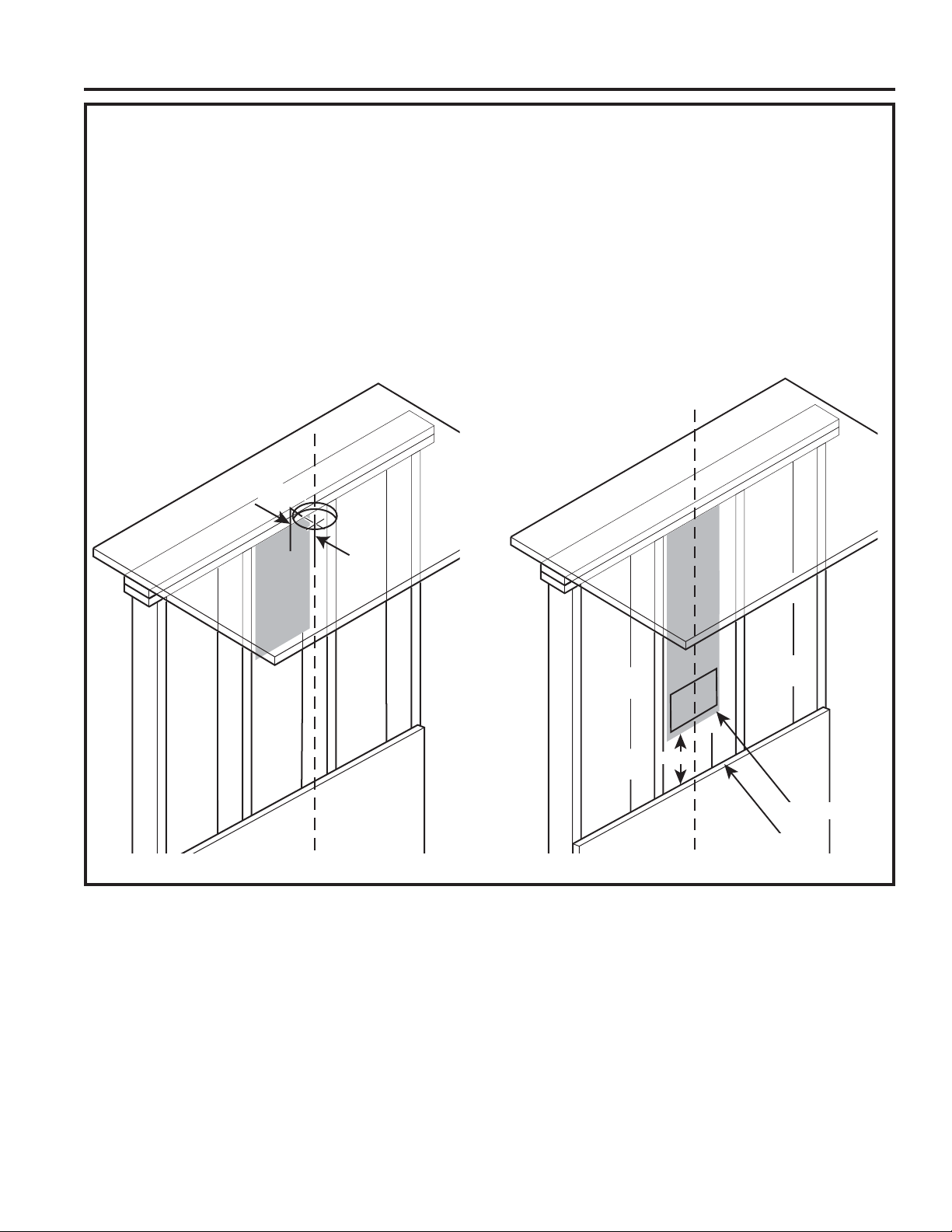

NEW CONSTRUCTION, PRE-PLANNING, OR REMODELING
NOTE: For existing instruction, skip to the next section.
FOR TOP VENTING
ŶFor ducted installation through the top, the 8”
diameter hole (for 30” or 36” model) or the 10”
diameter hole (for 48” model) for the duct in the
ceiling must be center 6-1/4” away from the finished
rear wall in the installation space.
FOR BACK VENTING
Ŷ)RUGXFWHGLQVWDOODWLRQWKURXJKWKHEDFNWKH
10-1/2"H x 13-1/4”W cut out for the duct in the wall
must be centered in the installation space, left to
right and located 3-3/4” above intended install height
from bottom of the hood.
6-1/4”
3-3/4”
10-1/2"H x 13-1/4"W
Bottom of Hood
Ŷ7KHKRRGMXQFWLRQER[NQRFNRXWLVORFDWHG´WRWKH
left from center of the hood. Ensure enough wire length is
available to make electrical connection.
INSTALLATION INSTRUCTIONS

49-2000707 Rev. 5 17
INSTALLATION INSTRUCTIONS
Installation Instructions
DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS
• This hood can be installed onto the wall or
underneath the soffit or cabinet.
• For installing the hood to soffit or cabinet, refer to
page 19 for alternate mounting method.
• A wall mounting template is included with the product
for ease of installation. Follow the instructions below
if the template is not being used.
• Measure desired distance from the bottom of the
hood to the cooking surface, 24” minimum over
electric range or 30” minimum over gas range and 36”
recommended maximum.
• Use a level to draw a horizontal line indicating the
bottom of the hood.
• Measure 16-3/4” up from the horizontal line indicating
the bottom of the hood. Draw another horizontal line
to indicate the bottom of the installation bar.
• Use a level to draw the cooktop or range centerline
location.
For Ceiling Ducting:
• If venting out the ceiling, extend the centerline
forward on the ceiling to the back wall.
- Measure 6-1/4” from back wall to mark center
point.
- Cut 8" dia. duct hole from center point on the
ceiling for 30" or 36" models.
- Cut 10" dia. duct hole from center point on the
ceiling for 48" models.
Venting Through a Soffit or Cabinet:
• Follow the same procedure for ceiling ducting to cut
the hole through the top of the soffit or cabinet.
For Ducting Through Rear Wall:
NOTE: Check to make sure back damper will not
interfere with studs, electrical or plumbing before
making cut out.
• Back damper accessory UXBDA812 must be
purchased separately for venting through the rear
wall.
• Measure 3-3/4” up along the centerline from the
horizontal line indicating bottom of the hood.
• Make a 10-1/2 x 13-1/4” cut out centered left to right
along the centerline.
House Wiring Location:
• The junction box is located inside the hood body
on the left side. See Illustrations for hood knockout
locations.
House wiring may enter the junction box from the rear
or the top of the hood on the left side.
To route house wiring through the ceiling, soffit or
cabinet:
• Cut a hole approximately 1-1/4” dia. forward on the
ceiling at a distance (X) to the left of the centerline
based on table below.
To route house wiring through the wall:
NOTE: For back venting, the house wiring must be
routed through the rear knockout so it is hidden.
• Measure 15-3/4" from the bottom of the hood and
mark location.
• Cut a hole approximately 1-1/4” dia. at the marked
location at a distance (X) to the left of the centerline
based on table below.
• Remove top or rear knockout
depending on your installation.
Centerline to Wall
FOR CEILING VENT
DUCTING
Duct Hole
Top of Hood
Installation
Bar
16-3/4”
Bottom of Hood FOR REAR WALL
DUCTING
3-3/4”
6-5/8” 10-1/2”
X
1-1/4”
X
15-3/4”
Rear View
Top View
Models "X"
30" 9-3/4"
36" & 48" 10-1/2"

18 49-2000707 Rev. 5
INSTALLATION INSTRUCTIONS
Installation Instructions
1INSTALL HOOD SUPPORT
IMPORTANT: Framing must be capable of
supporting 100 lbs for 30" and 36" models and 150
lbs for 48" models.
• Locate a minimum of 2 vertical studs for the
installation bar by tapping drywall with a hammer
or use a stud finder.
• Level the installation bar and center left to right
above the marked line. Hold bar against the wall.
• Drill 1/8” pilot holes at the 2 vertical stud locations
through holes in the installation bracket. Secure
the installation bar with supplied screws (A) as
shown above.
Drill Bottom Mounting Hole Locations:
• Hang hood on installation bar to mark anchor
locations. Mark hole locations through the back of
the hood.
• If installing to the soffit or cabinet, hold the hood
flush to the soffit or cabinet to mark screw hole
locations.
• Remove the hood and drill 5/16” clearance holes
centered at the marks you made.
2INSTALL DAMPER
IMPORTANT: Remove shipping tape from damper
and check that damper moves freely.
Install Top Damper:
• The motor mounting plate comes pre-installed in
the hood for top venting.
• Install the top damper to the hood body as shown
in Figure A using screws (B) from top of hood.
Install Back Damper:
• In case of back venting through the wall, back
damper accessory UXBDA812 must be purchased
separately.
• Remove the square knockout panel on hood body
for back venting.
• Install the back damper to the hood body as shown in
Figure B using screws provided with the accessory.
• Uninstall the motor mounting plate from top
venting position. Save the screws.
• Install the metal plate provided with the accessory
to cover the opening for top damper.
• Remove the two screw knockout holes on the
motor mounting plate as shown in Figure C.
• Install the motor
mounting plate so
that arrow is pointing
upwards and on right
side.
• Slide plate into the
metal brackets and
push in until metal clips
at the bottom engage.
• Fasten the plate
through the two screw hole knockouts as shown in
Figure C. Use the two screws you saved.
Installation Bar
Centerline of
Installation Space
16-3/4”
24” minimum over electric
range or cooktop, or
30” minimum over gas
range or cooktop, and 36”
recommended maximum. Figure A Figure B
1INSTALL HOOD SUPPORT (Cont.)
• Install wall anchors (C) by tapping the anchors
with a hammer to seat the teeth of the flanges into
the wall. This keeps anchor from rotating.
• Drive the anchor screws until the barrels crimp
against the inside of the wall.
• Remove the screws from the wall anchors before
installing the hood.
Bottom of Hood
Wall Anchor
Locations
Centerline of
Installation Space
Screw Knockouts Metal Clips
Figure C(Single motor will look different)
Metal Brackets

49-2000707 Rev. 5 19
3INSTALL HOOD ONTO WALL
• Pull house wiring through knockout at the back or
top of the hood.
• Lift the hood and place over the hooks on the
installation bar. Allow the hood to slide down into
position.
• Check to be sure the hood is level and centered.
• Tighten wall anchor screws (C) to finish hood body
installation to the wall.
• Remove cover from junction box inside the hood.
24” minimum over electric
range or cooktop, or 30”
minimum over gas range
or cooktop, and 36”
recommended maximum.
Centerline of
Installation Space
INSTALLATION INSTRUCTIONS
Installation Instructions
4(Alternate Mounting Method)
INSTALL HOOD TO SOFFIT OR
CABINET
SKIP THIS STEP IF USING WALL MOUNTING
METHOD
IMPORTANT: Soffit or cabinet framing must be
capable of supporting 100 lbs. for 30" and 36"
models and 150 lbs. for 48" models.
When necessary the hood may be installed so that
it is supported by the soffit or cabinet.
• The soffit should be constructed with 2"x4"’s.
• Use a level to draw the cooktop or range center
line.
• Continue the centerline forward on the bottom of
the soffit.
• Install horizontal wood supports between the 2”x4”,
at distance A to the left and right, as per the table
below.
“A”
Center-
line to
Center
Stud
“B”
Opening for
Ductwork for
top venting
“C”
Opening for
Ductwork for
back venting
30”
Models 8-3/4” 8-3/8” W x
11-1/4” H 10-1/2” W x
13-1/4” H
36”
Models 13-3/4”
48”
Models 17-3/4” 10-5/8” W x 11-1/4” H
B
AA
C

20 49-2000707 Rev. 5
INSTALLATION INSTRUCTIONS
Installation Instructions

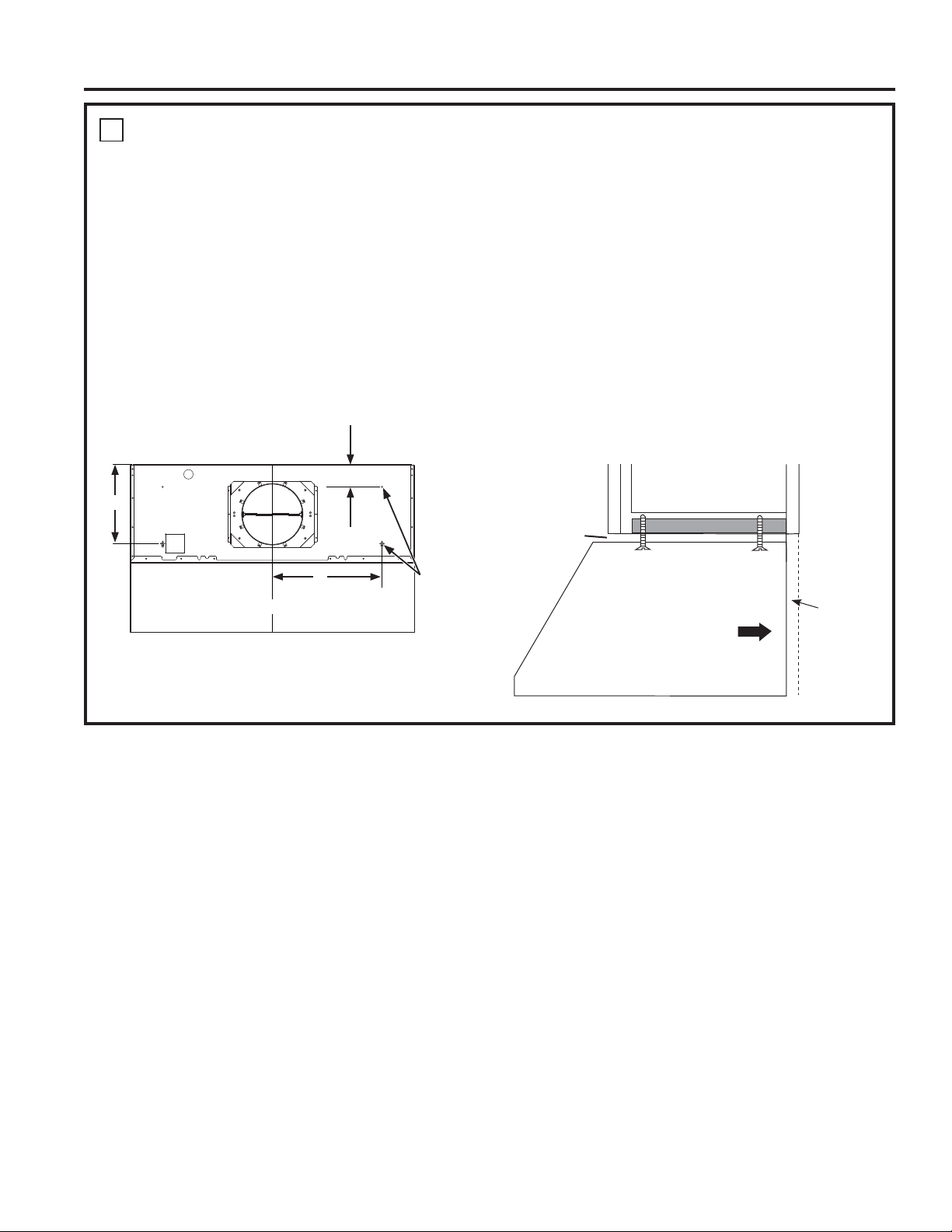

4(Alternate Mounting Method) INSTALL HOOD TO SOFFIT OR CABINET
(Cont.)
• Drill two 1/8” pilot holes at a distance of 10” from the
back wall in the horizontal wood supports. This is the
vertical distance between mounting keyholes and
back wall as shown in Figure C
• Drill two more 1/8” pilot holes at a distance of 3” from
the back wall in the horizontal wood supports. This is
the vertical distance between mounting screw holes
and back wall as shown in Figure C.
• For top venting, allow minimum opening (Dim. B) to
accommodate damper in soffit or cabinet.
• For back venting, allow minimum opening (Dim. C) to
accommodate damper in back wall.
3”
Figure C
Back Wall
10"
AKeyholes
for Soffit
or Cabinet
Mounting
• Drive mounting Screw (A) into the studs until they
protrude 1/4”. This 1/4” gap will provide clearance to
engage the keyhole slots in the top of the hood.
• The hood must also be secured to the back wall.
Follow instruction on page 18, “Drill Bottom
Mounting Hole Locations” for installation to the
back wall.
• Follow instructions on page 17 "House Wiring
Locations" for wiring setup.
• Lift hood onto mounting screws. Slide back against
the rear wall.
• Pull house wiring through the knockout at the rear or
top of the hood.
• Tighten mounting screws (A).
• Once the hood is secured to the soffit or cabinet,
drive screws (C) to secure the hood to the back wall.
1/4” Gap
Soffit or Cabinet
Back
Wall
Engage Keyhole Slots
and Push Back at Wall
