Klimaire KSIM UNITS User manual

User´s
Manual
KSIM UNITS

1
CONTENTS
Contact an authorised service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
The air conditioner is not intended for use by young children or invalids without supervision.
Young children should be supervised to ensure that they do not play with the air conditioner.
If the power cord is to be replaced, replacement work shall be performed by authorised personnel only.
Installation work must be performed in accordance with the national wiring standards by authorised
personnel only.
CAUTION
SOCIABLE REMARK
Sociable remark.................................................................................................................................2
SAFETY PRECAUTIONS
Warning ............................................................................................................................................3
Caution .............................................................................................................................................4
OPERATING INSTRUCTIONS
Parts names .....................................................................................................................................5
Operating temperature.......................................................................................................................7
Manual operation...............................................................................................................................7
Airflow direction control ....................................................................................................................8
How the air conditioner works ..........................................................................................................9
CARE AND MAINTENANCE
Care and maintenance ...................................................................................................................10
TROUBLESHOOTING TIPS
Troubleshooting tips .......................................................................................................................14
OPERATION TIPS
Operation tips ............ ....................................................................................................................12

2
SOCIABLE REMARK
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least
free of charge.
C) The manufacture will take back the old appliance for disposal at least free of
charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.
When using this air conditioner in the European countries, the follow information
must be followed:

3
SAFETY PRECAUTIONS
3
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
WARNING
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
Connect with the power
properly.
Do not modify power cord
length or share the outlet
with other appliances
Always ensure effective
earthing.
Disconnect the power if
strange sounds, smell, or
smoke comes from it.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
No earthing may cause electric
shock.
It may cause fire and electric
shock.
It may cause explosion, fire and, burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It contains contaminants and
could make you sick.
It may cause fire and electric
shock.
It may cause electric shock or fire.
This could damage your health.
No installation may cause fire
and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by switching on or off
the power.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not drink water drained
from air conditioner.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or modify unit.
!!
!!!!
!!
!!
WARNING
Use the correctly rated
breaker or fuse.
There is risk of fire or electric
shock.
!!

4
SAFETY PRECAUTIONS
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking
and installing. Sharp edges
could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Ventilate the room well
when used together
with a stove, etc.
An oxygen shortage
may occur.
Do not use this air cond-
itioner to preserve preci-
sion devices, food, pets,
plants, and art objects.
It may cause deterioration
of quality, etc.
It may cause failure of
product or fire.
Do not use for
special purposes.
Turn off the main power
switch when not using
the unit for a long time.
If water enters the
unit, turn the unit off
and disconnect the
power , contact a
qualified service
technician.
!!
!!
!!
!!
!!
!!
!!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product color or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong detergent
such as wax or thinner. Use
a soft cloth for cleaning.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy object on the
power cord and take care so that
the cord is not compressed.
Operation without filters
may cause failure.
Always insert the filters
securely. Clean filter
once every two weeks.
!!
!!
!!

5
Parts names
Outdoor unit
OPERATING INSTRUCTIONS
Indoor unit
¡£
(C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FANSPEED
TIMERON
SLEEP
ON/OFF
TIMEROFF
RESETLOCK
SETTEMPERATURE
SWING
LED
DISPLAY
TURBO
NOTE:
All the pictures in this manual
are for explanation purpose
only. Your air conditioner may
be slightly different.
The actual shape shall prevail.
1. Signal receptor
2. LCD Display window
3. Panel frame
4. Chassis
5. Front panel
6. Horizontal louver
7. Vertical louver
8. Air filter
9. Manual control button
10. Remote controller holder
11. Remote controller
12. Connecting pipe
13. Drain hose
14. Connecting cable
15. Connective pipe
16. Stop valve
Indoor unit
Outdoor unit
2
34
13
12
11
Air inlet
Air inlet(rear)
Air inlet(side)
Air outlet
15
16
14
10
LCD display window
AUTO operation display
Illuminated during Auto
operation.
OPERATION display
Illuminated when the air
conditioner is in operation.
DEFROST operation
display (For Heating & Cooling
model only):
Illuminated when the air
conditioner starts defrosting
automatically or when the
warm air control feature is
activated in heating
operation.
6
57
8
9
1
Air outlet

Special function
Air quality is the key to comfort, this air
conditioner is equipped with Ionizer.
Ionizer can generate abundant anions to fill
the room with refreshing and nature air. Your
whole family will enjoy a natural, pure and
healthy air everyday.
CLEAN AIR function
Function used after the Shut Down of
cooling operation to clean the Evaporator
and keep it as fresh for the next operation.
This function is easy to be operated as it is
accessed through the Remote Controller.
For cooling & heating models, the unit will
operate : FAN ONLY mode at Low fan
speed(13 minutes)--Heating operation
with LOW fan speed(1 minute)---FAN
ONLY operation(2 minutes)--
Stop Operation---Turn off the unit.
Note:
This function is only available under
COOL(AUTO COOL, FORCED COOL)
and DRY mode.
Before select the function, it is recomm-
ended to run the air conditioner under
Cooling operation for about half an hour.
Once the Self Clean function is activated,
all TIMER setting will be cancelled.
During Self Clean operation, when press
the SELF CLEAN button on the remote
controller again will stop the operation
and turn off the unit.
For cooling only models, the air conditioner
will operate under FAN ONLY mode at
LOW fan speed for 16 minutes, and then
stop the operation and the unit turn off.
SELF CLEAN function
Follow Me function
To activate the Follow Me feature, point the
remote control towards the unit and press the
Follow Me button. T
If the unit does not receive the
Follow Me signal during any 7 minute interval,
the unit will beep to indicate the Follow Me
mode has ended.
he remote display is actual
temperature at its location. The remote control
will send this signal to the air conditioner every
3 minutes interval until press the Follow Me
button again.
The remote control serves as a remote
thermostat allowing for the precise
temperature control at its location.
OPERATING INSTRUCTIONS
6
TIMER display
Illuminated during Timer operation.
CLEAN AIR display(optional)
Illuminated when Ionizer is activated.
TURBO operation display
Illuminated when select TURBO
function on cooling operation or
on heating operation.
DIGITAL DISPLAY
Displayed the current setting temper-
ature when the air conditioner is in
operation. When SELF CLEAN
feature is activated, it displays .
FAN SPEED display
Displayed the selected fan speed:
AUTO and three fan speed
levels: LOW( ), MED( ) and
HIGH( ).
,,
,,
This display is separated into five
zones. The zones illuminate based on
the compressor current frequency. For
example, higher frequency will
illuminate more zones.
Operation Frequency display
Ion

7

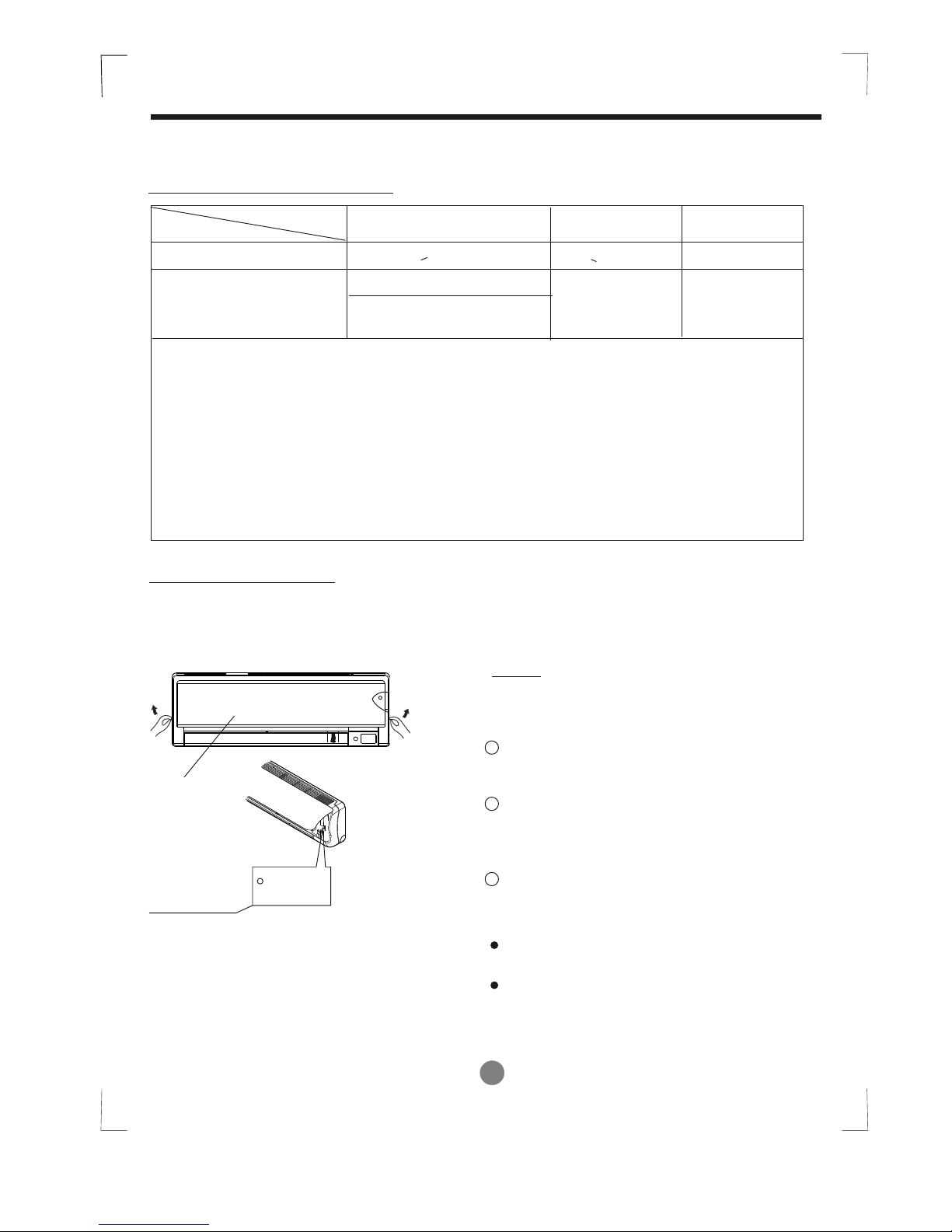

Manul operation can be used temporarily in case the remote controller is disable or maintenance
necessary.
OPERATING INSTRUCTIONS
Manual operation
NOTE: This manual does not include Remote Controller Operations, see the
<<Remote Controller Instruction>> packed with the unit for details.
Operating temperature
Mode
Cooling operation
Heating operation
Drying operation
Temperature
1. If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
2. Room relative humidity less than 80%. If the air conditioner operates in excess of this
figure, the surface of the air conditioner may attract condensation. Please sets the vertical
air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode.
3. Optimum performance will be achieved within these operating temperature.
Suggestion: For the unit adopts an Electric Heater, when the outside ambient temperature is
O
below 0 C, we strongly recommend you to keep the machine plugged in order to guarantee it
running smoothly.
Room temperature
Outdoor temperature
O
>62 F
OO
64 F 122 F
O
<86 F
OO
5F 83F OO
50 F 122 F
CAUTION:
~
~
~
OO
(5F 122 F:For the models with
low temperature cooling system)
~
O
>50 F
Auto/Cool
Manual control
button
Front panel
Grasp both sides of the panel and pull it down,
O
the panel opened upward to an angle of 15 .
Push the panel upward and then lift it up.
One press of the manual control button will
lead to the forced AUTO operation. If press
the button twice within five seconds, the unit
will operate under forced COOL operation.
Close the panel firmly to its original
position.
This button is used for testing purposes
only. You had better not choose it.
To restore the remote controller operation,
use the remote controller directly.
CAUTION:
1
3
2
NOTE: The unit must be turned off before
operating the manual control button. If the
unit is operational, continue pressing the
manual control button until the unit is off.

8
OPERATING INSTRUCTIONS

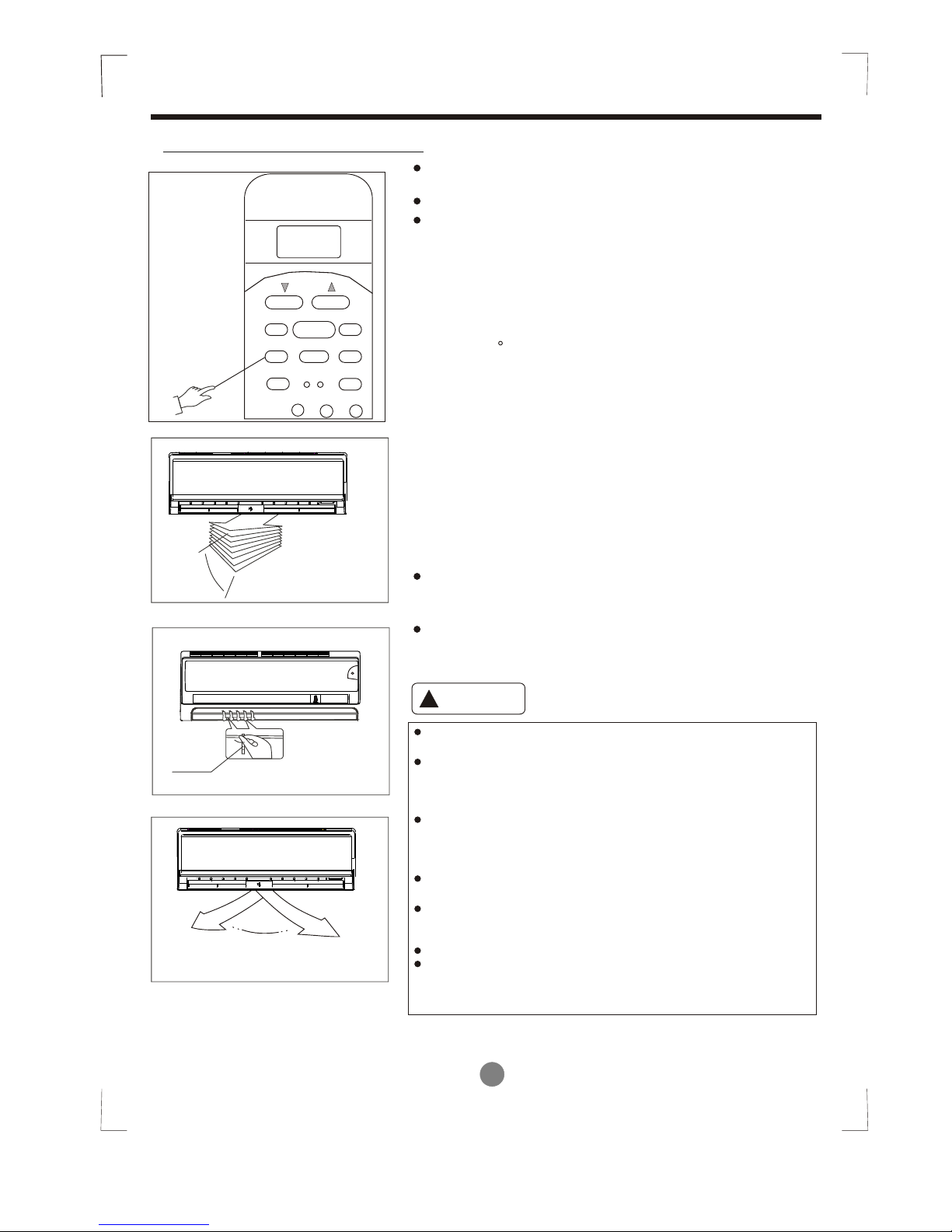

Airflow direction control
Adjust the air flow direction properly otherwise, it might
cause discomfort or cause uneven room temperatures.
Adjust the horizontal louver using the remote controller.
Adjust the vertical louver manually.
To set the vertical air flow(Up-Down) direction
Perform this function while the unit is in operation.
Keep pressing the SWING button on the remote
controller to move the louver to the desired
direction. The readjusting angle of the horizontal
louver is 6 for each press.
To set the horizontal air flow direction (left - right)
Adjust the vertical louver manually using the lever on the
left or right side of the vertical louver arm (Depending on
model). Take care not to catch fingers on the fan, horizontal
louver or to damage vertical louvers. When the air
conditioner is in operational and the horizontal louver is in
a specific position, move the lever at left (or right, depending
on model) end of the air outlet to the desired position.
To automatically swing the air flow direction (up - down)
Perform this function while the air conditioner is in operation.
Keep pressing the SWING button without releasing for more
than 2 seconds on the remote controller, the horizontal louver
will swing up and down automatically.
To stop the function, press the DIRECTION/SWING button
again.
The SWING button will be disabled when the air conditioner is not in
operation(including when the TIMER ON is set).
Do not operate the air conditioner for long periods with the air flow
direction set downward in cooling or dry mode. Otherwise, condensation
may occur on the surface of the horizontal louver causing moisture to drop
on to the floor or on furnishings.
Do not move the horizontal louver manually. Always use the SWING
button. If you move this louver manually, it may malfunction during
operation. If the louver malfunctions, stop the air conditioner once and
restart it.
When the air conditioner is started immediately after it was stopped, the
horizontal louver might not move for approximately 10 seconds.
Open angle of the horizontal louver should not be set too small, as
COOLING or HEATING performance may be impaired due to too
restricted air flow area.
Do not operate unit with horizontal louver in closed position.
When the air conditioner is connected to power (initial power), the
horizontal louver may generate a sound for 10 seconds, this is a normal
operation.
CAUTION
!
Range
Range
¡£
(C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
O
SET TEMPERATURE( F)
Vertical
louver
MODE
FAN SPEED
SWING
TIMER ON
ON/OFF
TIMER OFF
RESET LOCK
FOLLOW
ME LED
DISPLAY
ION
TURBO
ECONOMY

9
1 hour
1 hour
Set
Temperature
Cooling
O
2F
O
2F
Heating
SLEEP operation
OPERATING INSTRUCTIONS

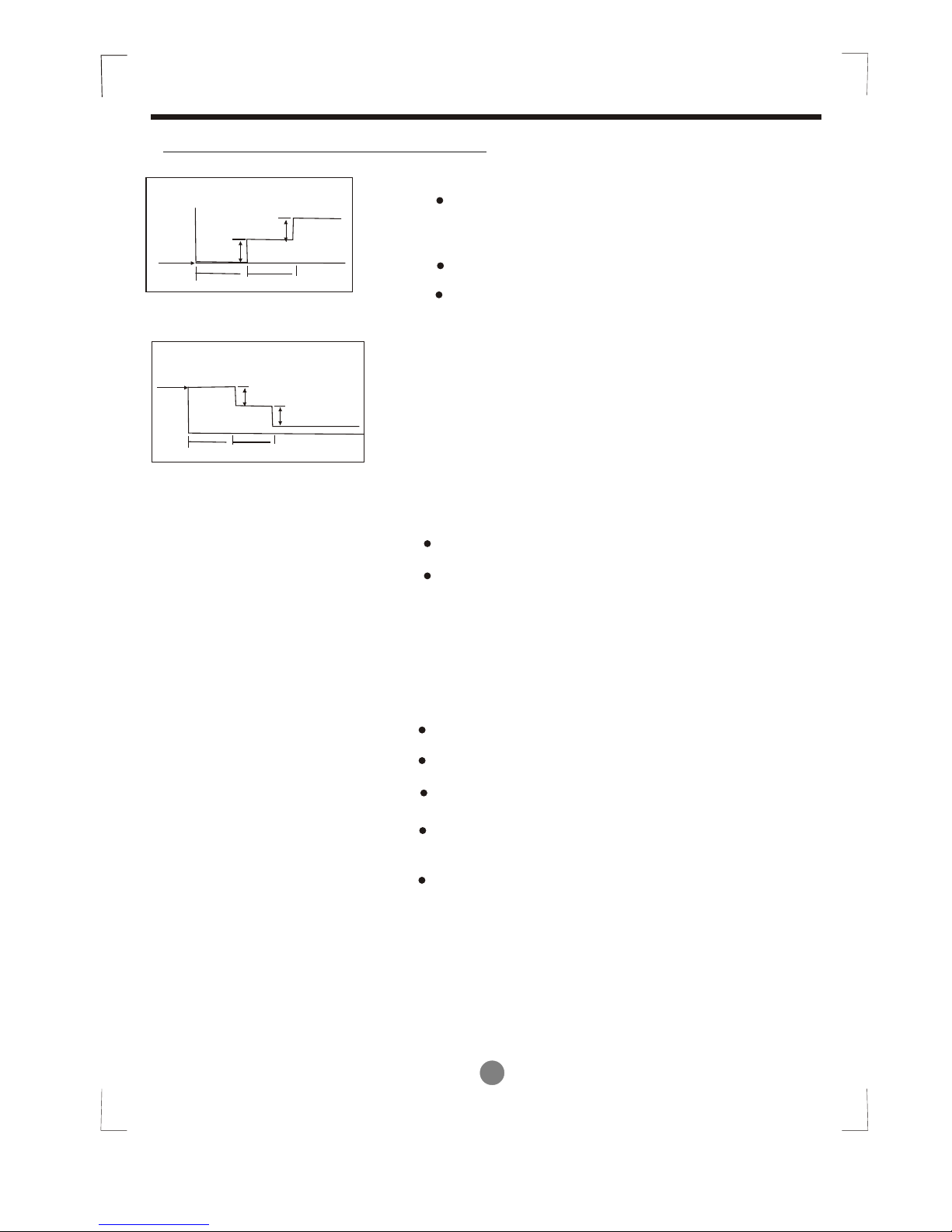

How the air conditioner works
O
2F
O
2F
1 hour 1 hour
Set
Temperature
SLEEP operation
7 hours timer off
7 hours timer off
AUTO operation
When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(cooling/heating
models only), or fan only operation depending on what
temperature you have selected and the room temperature.
The air conditioner will control room temperature
automatically round the temperature point set by you.
If the AUTO mode is uncomfortable, you can select
desired conditions manually.
SLEEP operation
When you push SLEEP button on remote controller during
cooling, heating(cooling only type without), or AUTO
operation , the air conditioner will automatically increase
O
(cooling) or decrease (heating) 2 F per hour for the first
two hours, then hold steady for the next 5 hours, after that
the unit will stop operation. The fan speed will be auto-
matically controlled. This feature can maintain the most
comfortable temperature and save more energy for you.
DRYING operation
The fan speed will be automatically controlled under dry
operation.
During the dry operation, if the room temperature is lower
O
than 50 F, the compressor stops operation and restarts
O
until the room temperature is above 54 F.
To achieve optimal performance, please note the following:
Adjust the air flow direction correctly so that it is not directed
on people.
Adjust the temperature to achieve the highest comfort level.
Do not adjust the unit to excessive temperature levels.
Close doors and windows on COOL or HEAT modes, or
performance may be reduced.
Use TIMER ON button on the remote controller to select a
time you want to start your air conditioner.
Do not put any object near air inlet or air outlet, as the efficiency
of the air conditioner may be reduced and the air conditioner
may stop running.
Clean the air filter periodically, otherwise cooling or heating
performance may be reduced.
Do not operate unit with horizontal louvre in closed position.
Optimal operation

10

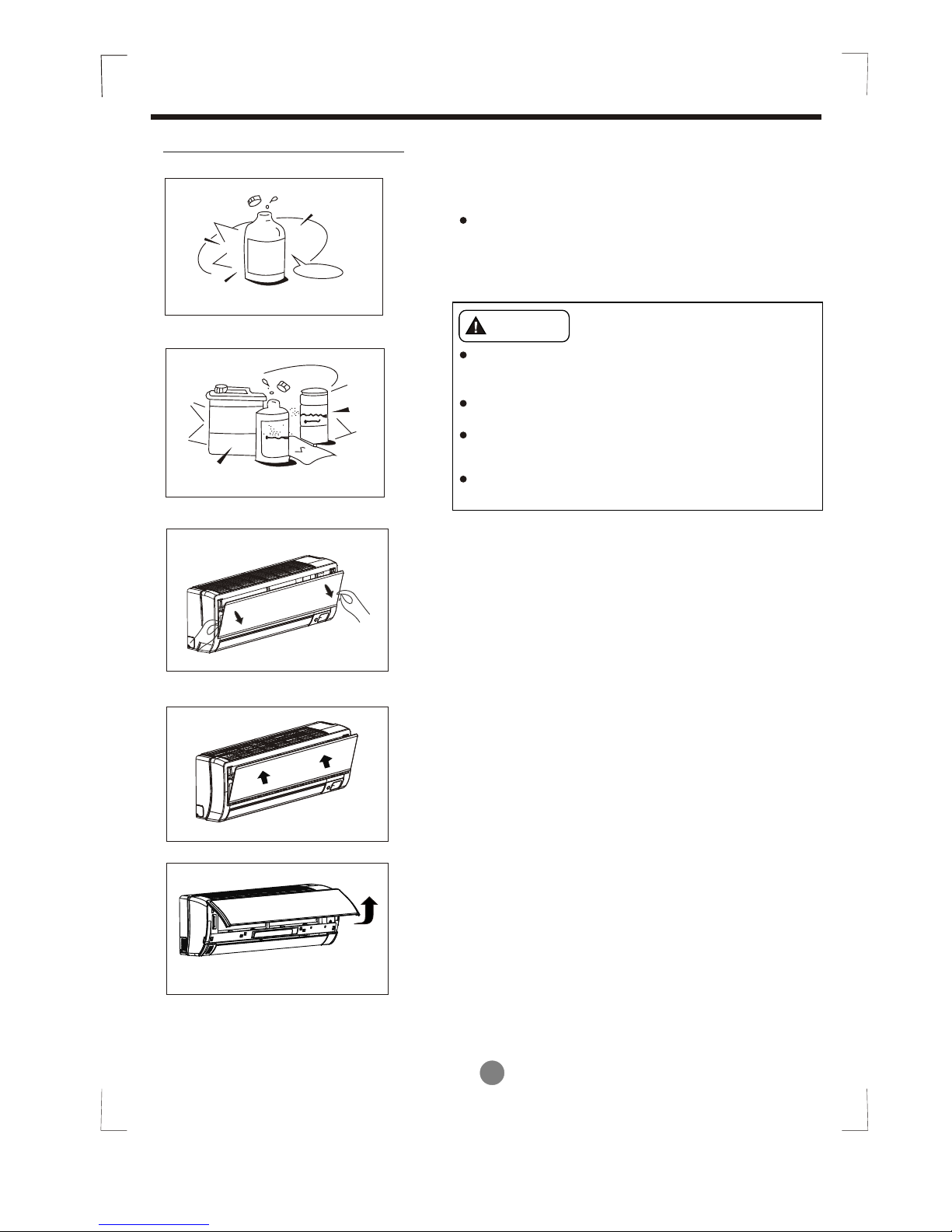

Cleaning the Grille, Case and Remote Controller
Thinner
A cloth dampened with cold water may be used
on the indoor unit if it is very dirty. Then wipe it
with a dry cloth.
Do not use a chemically treated cloth or duster to
clean the unit.
Do not use benzine, thinner, polishing powder, or
similar solvents for cleaning. These may cause
the plastic surface to crack or deform.
O
Never use water hotter than 104 F to clean the front
panel, it could cause deformation of discoloration.
CAUTIONS
No
Household
Drain
Cleaner
CARE AND MAINTENANCE
Care and maintenance
Turn the system off before cleaning. To clean, wipe
with a soft, dry cloth. Do not use bleach or abrasives.
NOTE: Supply power must be disconnectd before
cleaning the indoor unit.
NOTE: Supply power must be disconnectd before
cleaning the indoor unit.
Cleaning the air filter
The air filters behind the front panel should be checked
and cleaned once every 2 weeks or more often if
necessary. A clogged air filter will reduce cooling/heating
efficiency.
1. Grasp both sides of the panel and pull it down, the
O
panel opened upward to an angle of 15 . Push the
panel upward and then lift it up.
2. Take hold of the handle of the air filter and lift it up
slightly to take it out from the filter holder, then pull
it downwards.

11
CARE AND MAINTENANCE
Maintenance
Checks before operation
If you plan to idle the unit for a long time, perform the
following:
(1) Operate the fan for about half a day to dry the
inside of the unit.
(2) Stop the air conditioner and disconnect power.
Remove the batteries from the remote controller.
(3) The outdoor unit requires periodic maintenance
and cleaning. Do not attempt to do this yourself.
Contact your dealer or servicer.
Check that the wiring is not broken off or disconnected.
Check that the air filter is installed.
Check if the air outlet or inlet is blocked after the
air conditioner has not been used for a long time.
Do not touch the metal parts of the unit when
removing the filter. Injuries can occur when
handling sharp metal edges.
Do not use water to clean inside the air conditioner.
Exposure to water can destroy the insulation,
leading to possible electric shock.
When cleaning the unit, first make sure that the
power and circuit breaker are turned off.
Caution
4. Remove the Air Freshening Filter(Optional filter:
Silver Ion filter /Bio filter / Vitamin C filter/3M air purifier
filter) from its support frame.
Clean the air freshening filter at least once a month,
and replace it every 4-5 months.
Clean it with vacuum cleaner, then dry it in cool place.
5. Install the air freshening filter back into position.
6. Insert the upper portion of air filter back into the unit
taking care that the left and right edges line up correctly
and place filter into position.
Air freshening filter
Air filter
Filter Handle
3. Remove the AIR FILTER from the indoor unit.
Clean the AIR FILTER once two weeks.
Clean the AIR FILTER with a vacuum cleaner
or water, then dry it up in cool place.

12
OPERATION TIPS
The following events may occur during normal operation.
1. Protection of the air conditioner.
Compressor protection
The compressor can't restart for 3 minutes after it stops.
Anti-cold air (Cooling and heating models only)
The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in
one of the following three situations and the set temperature has not been reached.
A) When heating has just starting.
B) Defrosting.
C) Low temperature heating.
The indoor or outdoor fan stop running when defrosting (Cooling and heating models only).
Defrosting (Cooling and heating models only)
Frost may be generated on the outdoor unit during heat cycle when outdoor temperature is low
and humidity is high resulting in lower heating efficiency of the air conditioner.
During this condition air conditioner will stop heating operation and start defrosting automatically.
The time to defrost may vary from 4 to 10 minutes according to the outdoor temperature and
the amount of frost build up on the outdoor unit.
2. A white mist coming out from the indoor unit
A white mist may generate due to a large temperature difference between air inlet and air outlet
on COOL mode in an indoor environment that has a high relative humidity.
A white mist may generate due to moisture generated from defrosting process when the air
conditioner restarts in HEAT mode operation after defrosting.
3. Low noise of the air conditioner
You may hear a low hissing sound when the compressor is running or has just stopped running.
This sound is the sound of the refrigerant flowing or coming to a stop.
You can also hear a low "squeak" sound when the compressor is running or has just stopped
running. This is caused by heat expansion and cold contraction of the plastic parts in the unit
when the temperature is changing.
A noise may be heard due to louver restoring to its original position when power is first turned on.
4. Dust is blown out from the indoor unit.
This is a normal condition when the air conditioner has not been used for a long time or during first
use of the unit.
5. A peculiar smell comes out from the indoor unit.
This is caused by the indoor unit giving off smells permeated from building material, from furniture,
or smoke.
6. The air conditioner turns to FAN only mode from COOL or HEAT (For cooling and
heating models only) mode.
When indoor temperature reaches the temperature setting on air conditioner, the compressor will
stop automatically, and the air conditioner turns to FAN only mode. The compressor will start again
when the indoor temperature rises on COOL mode or falls on HEAT mode (For cooling and heating
models only) to the set point.

7. Dripping water may generate on the surface of the indoor unit when cooling in a high
relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to
the maximum air outlet position and select HIGH fan speed.
8. Heating mode (For cooling and heating models only)
The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit
during heating operation. When the outdoor temperature falls, heat drawn in by the air
conditioner decreases accordingly. At the same time, heat loading of the air conditioner
increases due to larger difference between indoor and outdoor temperature. If a
comfortable temperature can't be achieved by the air conditioner, we suggest you use a
supplementary heating device.
9. Auto-restart function
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the OPERATION indicator
on the indoor unit starts flashing. To restart the operation, push the ON/OFF button on the
remote controller. For the unit with Auto-restart feature, when the power restores, the unit
restarts automatically with all the previous settings preserved by the memory function.
10. Lightning or a car wireless telephone operating nearby may cause the unit to malfunction.
Disconnect the unit with power and then re-connect the unit with power again. Push the
ON/OFF button on the remote controller to restart operation.
OPERATION TIPS
13

14
TROUBLESHOOTING TIPS
Troubleshooting Tips
Stop the air conditioner immediately if one of the following faults occur. Disconnect the
power and contact the nearest customer service center.
Fuse blows frequently or circuit breaker trips frequently.
Other objects or water penetrate the air conditioner.
The remote controller won't work or works abnormally.
Other abnormal situations.
Trouble
Malfunctions
Unit does not
start
Unit not cooling
or heating
(Cooling/ heating
models only)
room very well
while air flowing
out from the air
conditioner
Cause
Power cut
Unit may have become unplugged.
Fuse may have blown.
Battery in Remote controller may
have been exhausted.
The time you have set with timer
is incorrect.
Wait for power to be restored.
Check that plug is securely in wall
receptacle.
Replace the fuse.
Replace the battery.
Wait or cancel timer setting.
Set temperature correctly. For
detailed method please refer to
"Using remote control" section.
Clean the air filter.
Close the doors or windows.
Clear obstructions away first, then
restart the unit.
Wait.
Inappropriate temperature
setting.
Air filter is blocked.
Doors or Windows are open.
Air inlet or outlet of indoor or
outdoor unit has been blocked.
Compressor 3 minutes
protection has been activated.
If the trouble has not been corrected, please contact a local dealer or the nearest customer
service center. Be sure to inform them of the detailed malfunctions and unit model.
Notes: Do not attempt to repair the unit yourself.
Always consult an authorised service provider.
What should be done?
If the following code appears on the LED window, disconnect the power and contact
the service people: E0,E1,E2,E3,E4,E5,E6,E7,E8 or P0,P1,P2,P3,P4.

KSIM UNITS
Klimaire Products Inc.
Miami, FL. 33166
Toll Free: 1-800-KLIMAIRE
www.klimaire.com
