Klimaire KSIO User manual

Before using your air conditioner, please read
this manual carefully and keep it for future reference.
Read This Manual
Keep this manual where the operator can easily
find them.Inside you will find many helpful hints
on how to use and maintain your air conditioner
properly. Just a little preventative care on your
part can save you a great deal of time and money
over the life of your air conditioner. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.
INVERTER SPLIT TYPE-
ROOM AIR CONDITIONER

CONTENTS
SAFETY PRECAUTIONS
NAMES OF PARTS
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
TROUBLE SHOOTING TIPS
Warning .....................................................................................................................................3
Caution ......................................................................................................................................4
.
Indoor unit ........... .....................................................................................................................5
outdoor unit ...............................................................................................................................5
Indication lamp...........................................................................................................................5
Special functions .......................................................................................................................6
Operating temperature................................................................................................................7
Manual operation ......................................................................................................................7
Airflow direction control ............................................................................................................8
How the air conditioner works ..................................................................................................9
Before maintenance...... ...........................................................................................................10
Cleaning the unit.......................................................................................................................10
Cleaning the air filter and air freshening filter ..........................................................................10
Replacement of the air filter and air freshening filter ...............................................................11
Preparation for extended non-operation....................................................................................11
Pre-season inspection...............................................................................................................11
Normal function of the air conditioner.......................................................................................12
Troubleshooting guide .............................................................................................................14

DISPOSAL: Do not dispose of this product as unsorted municipal waste. Collection of such waste
separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are
several possibilities:
A) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least
free of charge.
C) The manufacturer will take back the old appliance for disposal at least free of
charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when hazardous
substances leak into the ground-water and find their way into the food chain.
When using this air conditioner in the European countries, please read the following
information:
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
WARNING
Be sure to follow the instructions.
Strictly prohibited.
CAUTION This symbol indicates the possibility of injury or damage to property.
Do not extend the cable and never use
multiple plugs. A poor electrical connection,
poor insulation or voltage which is higher
than permitted can cause fire.
Do not expose your body directly to the cool
air for prolonged period.
Never poke fingers, sticks or other objects
in the air inlet and outlet vents.
Never attempt to repair, relocate, modify the
air conditioner yourself. Always contact your
service partner if it requires.
Never pull the plug out by pulling on the
cable. Hold the plug firmly and pull it out of
the plug socket, otherwise there is a risk of
damaging the cable.
Do not operate your air conditioner in a wet
room such as a bathroom or laundry room.
Remove all dirt from the power plug and
plug it firmly. Soiled plugs can cause fire
or an electric shock.
In the event of any abnormalities such
as smell of burning, immediately switch
off the device and pull the plug. Contact
your service partner.
Always switch off the device and pull the
plug before you start to clean it.
Use specified power cord.
Contact the authorized installer for
installation of this unit.
Contact an authorized service technician
for repair or maintenance of this unit.
This appliance is not intended for use by
persons(including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the air
conditioner.
WARNING

SAFETY PRECAUTIONS
Never actuate any switches with a wet
hand. It may cause an electric shock.
Never use the device for any other
purpose than the intended use. Never
place food, precision instruments, plants,
animals, paint, etc. on the unit.
Do not expose plants or animals directly
to the air flow.
Never clean the air conditioner with water.
Never use combustible cleaning agents
as these could cause a fire or deformation.
Never place any burning objects close to
the device if they could be directly affected
by the emitted air.
Never step onto the outdoor device and
never place anything on it.
Never use an unsteady or rusty base.
Never install the air conditioner in places
where combustible gas can be emitted.
Emmitted gas may collect and cause an
explosion.
Never allow the air conditioner to run for
too long with the doors or windows open,
or if the humidity is very high.
If the air conditioner is to be used in
conjunction with other heaters, the air
should be refreshed periodically, otherwise
there is a risk of lack of oxygen.
Always pull out the power plug if the unit
is not going to be used for any lengthy
period of time. Collections of dust can
cause fire.
Always switch off the air conditioner and
pull out the power plug during a storm.
Electrical parts may get damaged.
Check that the drainage line is correctly
connected. If not, water will escape.
Check that the condensation water can
run off unhindered. It may cause water
damage if the condensation water cannot
run off properly.
The air conditoner must be earthed in
accordance with the local codes.
For electrical safety purposes we
recommend that you install an earth-
leakage circuit-breaker.
If the power cord is damaged, it must be
replaced by the manufacturer, its service
agent or similary qualified persons in order
to avoid a hazard.
CAUTION

8. Connecting
9. Connecting
10. Stop valve
pipe
cable
Outdoor unit
Outdoor unit
1. Front panel
2. Air inlet
3. Air filter
4. Air outlet
5.
6.
7. Display panel
Horizontal air flow grille
Vertical air flow louver(inside)
Signal receiver
Indoor unit
Indoor unit
9
10
8
OPERATION indication lamp
This lamp illuminates when the air
conditioner is in operation.
ION in dication lamp(o ptional f unction)
This lamp illuminates when Clean
Air feature is activated.
TIMER indication la mp
Lights up during Timer operation.
DEFROST indication lamp
(Enabled on cooling & heating models only):
when the air conditioner starts
defrosting automatically or when the warm
air control feature is activated in heating
operation.
Lights up
Temperature indicator
Displays the temperature settings when the
air conditioner is operational.
Displays the malfunction code.
NAMES OF PARTS
Indication lamp
Indication lamp
NOTE:
All the pictures in this manual are for
explanation purposes only.
The
actual shape shall prevail.
The actual shape
of the indoor unit you purchased may be slight
different on front panel and display window.
Names of parts

OPERATING INSTRUCTIONS
Special functions
This air conditioner is equipped with ionizer or Plasma Dust Collector(Depending on specific
configuration of the model). With the anions generated by Ionizer, the air ci rculation of the air
conditioner fills the room with refreshing, natural and healthy air. The Plasma Dust Collector
generates a high voltage ionization zone, through which the air is converted to plasma. Inside
the air most of the dust, smoke, and poll en particles are captured by the electrostatic filter.
CLEAN AIR function(on some models)
Vert ical swi ng func tion（ ）O ptional
After the AC starts up, users can control the vertical louver swing by the remote controller.
SELF CLEAN function（ ）Optio nal
F unction used after the Shut Down of cooling operation to clean the Evapora tor
a nd keep it as fresh for the next op eration.
T he unit will oper ate as fo llowing sequenc e : FAN ONLY mo de at Lo w fan sp eed--He ating
o peration with LOW fan sp eed(ap plicable t o c oolin g & heati ng modl es only) --- FAN O NLY
o peration --Stop O peratio n---Turn off.
T his function is only available und er COOL (AUTO COOL, FORCED COOL) and DRY mode.
B efore se lect the function , it is rec ommend ed to run the air conditioner unde r Cooling
o peration for about half an hour. Once the Self Clean function is activated, all TIMER
setting w ill be can celled.
During Self Clean operation, when press the SELF CLEAN button on the remote
controlle r again will stop t he opera tion and turn off the unit automatically.
Note:
Louver Angle M emory Function(optional):
Within the scope of safety angle, it will memorize the open angle o f horizontal louver.
If it exceeds, it will memorize the boundry of safety angle. In the fo llowing circumstances,
it will return to standard angle: 1) pressing the manual switch, 2)unplug and then plug
in the machine. So we strongly suggest that the open angle of the horizontal louver should
not be set too small, in case the condensed water forms and drops from the horizontal louver.
Refrige rant Lea kage De tection
With this new technology, the dipsplay area will appear EC and the indication lamps
contin ue flashing when the outdoor unit detects refrigerant leakage.
,
,
An ti-milde w funct ion（ ）Optional
When turns off the unit on COOL, DRY, AUTO (Cool) mode, the air conditioner will continue
operating for about 7-10 minutes (depending on models) at LOW fan speed. If turns off on
HEAT mode, the unit will continue operating for about 30 seconds at LOW fan speed. This will
help to dry up the condensed water inside the evaporator, and prevent the breeding of mildew.
Under Anti-mildew operation, do not restart the air conditioner until the unit is completely off.

OPERATING INSTRUCTIONS
NOTE: This manual does not include Remote Controller Operations, se e the
<<Remote Controller Instruction>> packed with the unit for details.
Manual control button
Suspension bars
Manual control button
AU TO/CO OL
AU TO/C OOL
（ ）1
（ ）2

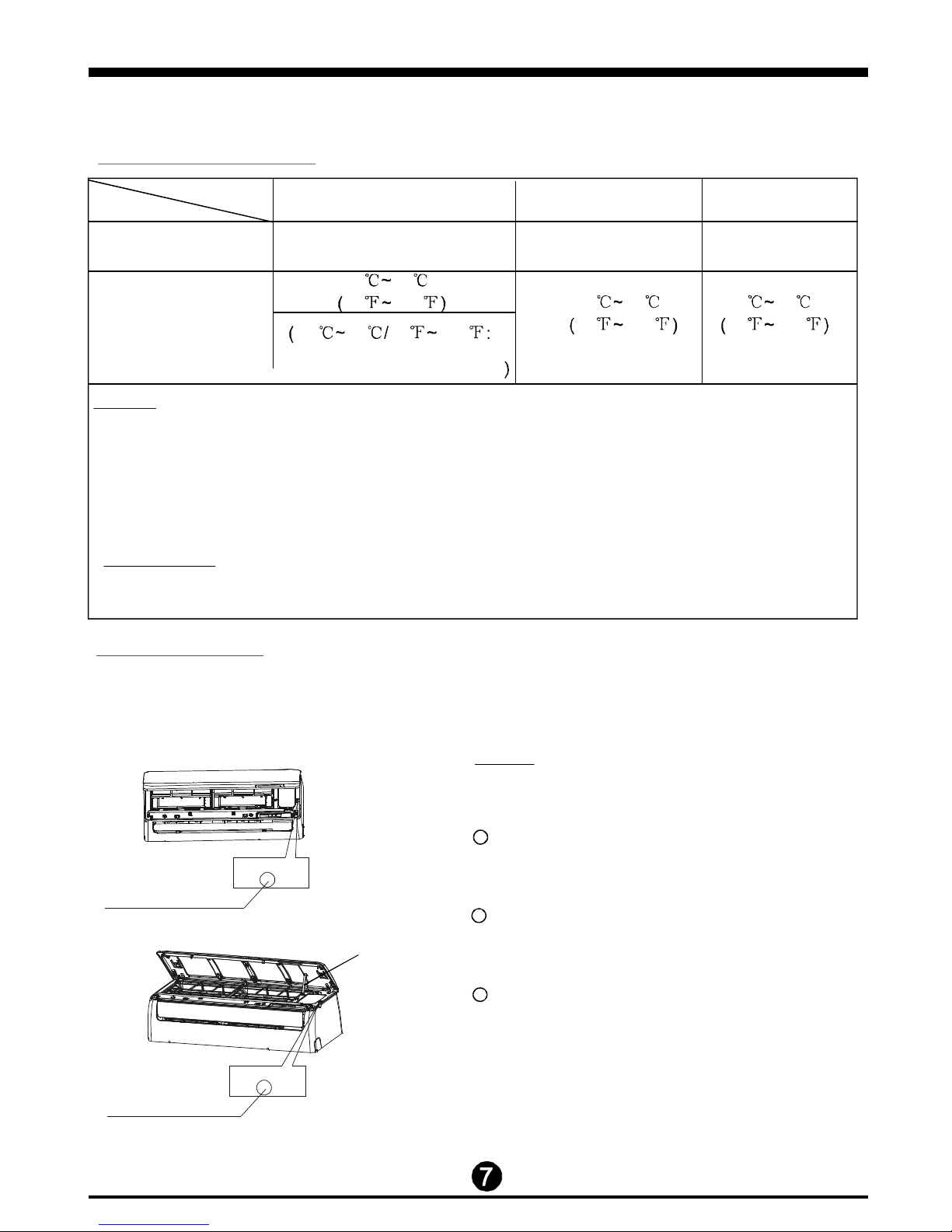

Manual operation
Operating temperature
Manual switch
Manual switch
Mode
Temperature
Room temperature
Outdoor temperature
1. Optimum performance will be achieved within these operating temperatures.If air
co nditione r is used outside of the above cond itions, ce rtain saf ety prote ction features
might come into operation and cause the unit to function abnormally.
2. If the air conditioner runs for a long time in cooling mode and th e humidity is high(over
80%) , condensed water may drip out of the unit. Please sets the vertical air flow louver t o
its maximum angle (vertically to the floor), and set HIGH fan mode.
Suggestion: For the unit adopts an Electric Heater, when the outside ambient temperature
is b elow 0 C(32 F), w e strongly recommend you to keep the machine plugged in order to
guarantee it running smoothly.
O O
NOTE:
Cooling operation Heating operation Drying operation
-15 50 5 122
For the models with low
temperature cooling system
0 50
32 122 -15 30
5 86
0 50
32 122
Open and lift the front panel up to an angle
until it remains fixed with a clicking sound.
For some models, please use suspension
bars to prop up the panel.
Close the panel firmly to its original
position.
One press of the manual control switch will
lead to the forced AUTO operation. If press
the switch twice within five seconds, the unit
will operate under forced COOL operation.
This switch is used for testing purposes
only. You ha d be tter not choose it.
To restore the remote contr oller operation,
use the remote controller directly.
CAUTION:
1
3
2
●
●
NOTE: Th e unit m ust be tu rned off before
o perating the man ual cont rol butto n. If the
u nit is ope rational , continu e pressi ng the
m anual control button until the unit is off.
17 C~32 C
(62 F~90 F)
O O
O O
0 C~30 C
(32 F~86 F)
O O
O O
10 C~3 2 C
(50 F~90 F)
O O
O O
Units are equipped with a switch to run emergency operation mode. It can be accessed by
opening the front panel. This switch is used for manual operation in case the remote controller
fails to work or maintenance necessary.

OPERATING INSTRUCTIONS
Airflow direction control
Adjust the air flow direction properly otherwise it
might cause discomfort or cause uneven room
temperatures.
Adjust the horizontal/vertical louver using the remote
controller. For some models, the vertical louver can
only be adjusted manually.
Perform this function while the unit is in operation.
Use the remote controller to adjust the air flow direction.
The vertical/horizontal louver changes 6 degree in angle
for each press, or swing up and down automatically.
Please refer to the REMOTE CONTROLLER OPERATION
MANUAL for details.
To set the horizontal/vertical air flow direction
For some models, the vertical louver can only be adjusted
manually. Move the deflector rod manually to adjust the air
flow in the direction you prefer.
:Do not put your fingers into the panel of
blower and suction side.
IMPORTANT
The high-speed fan inside may
cause danger.
Do not operate the air conditioner for long periods with
the air flow direction set downward in cooling or
dehumidifying mode. Otherwise, condensation may
occur on the surface of the horizontal louver causing
moisture to drop on to the floor or on furnishings.
When the air conditioner is started immediately after it
was stopped, the horizontal louver might not move for
approximately 10 seconds.
Open angle of the horizontal louver should not be set
too small, as COOLING or HEATING performance may
be impaired due to too restricted air flow area.
Do not move the horizontal louver manually, otherwise
the horizontal louver will be out of sync. Please cease
operating, unplug power for a few seconds,then restart
the air conditioner.
Do not operate unit with horizontal louver in closed
position.
CAUTION
,,
,,
Defle ctor rod
R ange
Range

OPERATING INSTRUCTIONS

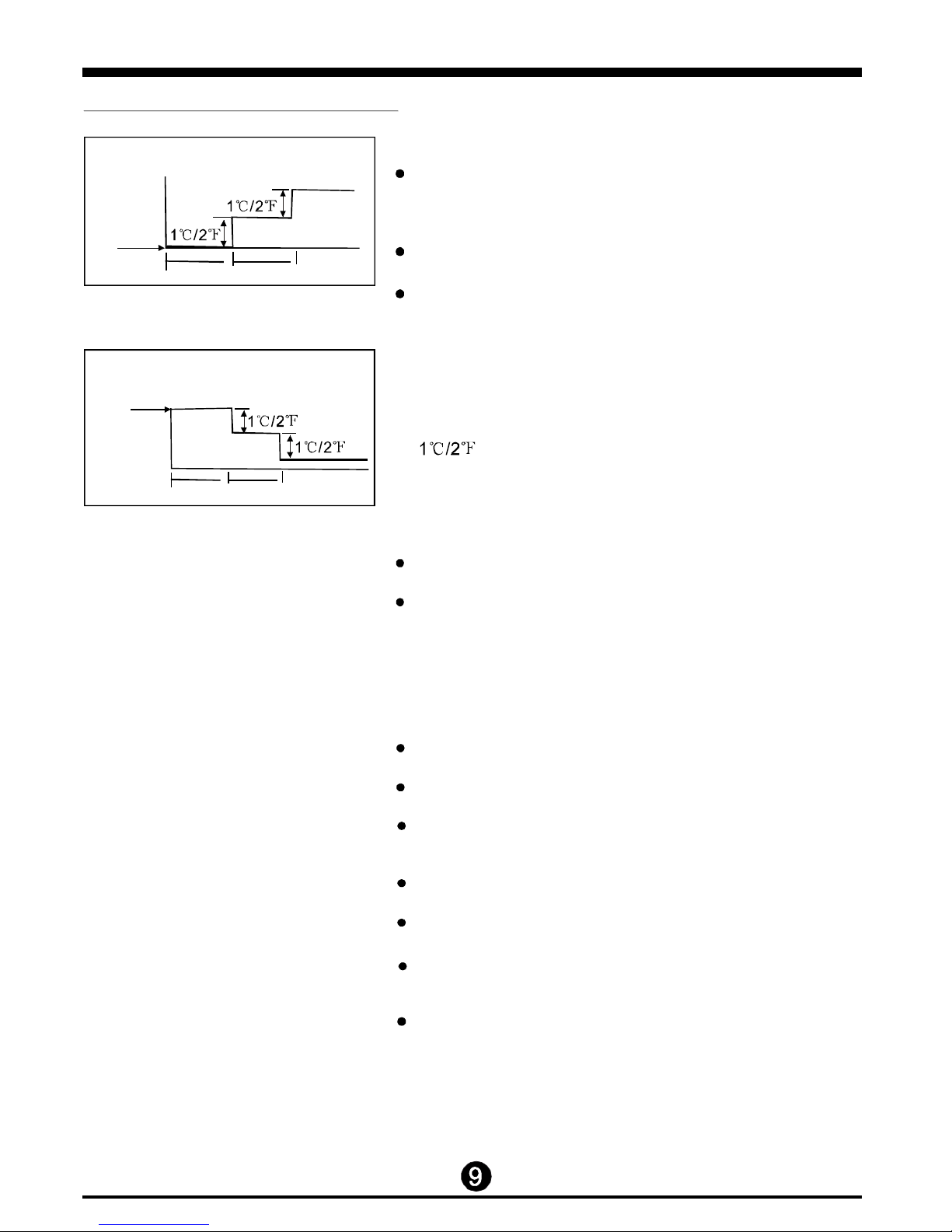

How the air conditioner works
1 hour
1 hour
Set
Temper atu re
Set
Temperature
Cooling
Heating
SLEEP operation
1 ho ur 1 hour
SLEEP operation
7 hou rs timer o ff
7 hours timer off
AUTO operation
SLEEP operation
DRYING operation
Optimal operation
When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(cooling/heating
models only), or fan only operation depending on set
temperature and the room temperature.
The air conditioner will control room temperature
automatically to the temperature point you set.
If you feel uncomfortable in the AUTO mode, you can set
your desired temperature.
When you push SLEEP button on remote controller
during cooling, heating(cooling & heating models only),
or AUTO operation , the air conditioner will
automatically increase (cooling) or decrease (heating)
per hour for the first 2 hours, then hold
steadily for the next 5 hours, after that it will switch off.
This mode saves you energy and brings you comfort
at night.
To achieve optimal performance, please note the
following:
Adjust the air flow direction correctly so that it is not
forwards people.
Adjust the temperature to achieve the highest comfort
level. Do not adjust the unit to excessive temperature
levels.
Close doors and windows on COOL or HEAT modes,
or performance may be reduced.
Use TIMER ON button on the remote controller to
select a time you want to start your air conditioner.
Do not put any object near air inlet or air outlet, as the
efficiency of the air conditioner may be reduced and
the air conditioner may stop running.
Clean the air filter periodically, otherwise cooling or
heating performance may be reduced.
Do not operate unit with horizontal louvre in closed
position.
The fan speed will be automatically controlled under
dry operation.
During the dry operation, if the room temperature is
lower than 10 C(50 F), the compressor stops operation
and restarts until the room temperature is above
12 C(54 F).
O O
O O

CARE AND MAINTENANCE
Care and Maintenance
Filter Handle
Before mainatenance
A cloth dampened with cold water may be used
on the indoor unit if it is very dirty. Then wipe it
with a dry cloth.
Do not use a chemically treated cloth or duster to
clean the unit.
Do not use benzine, thinner, polishing powder, or
similar solvents for cleaning. These may cause
the plastic surface to crack or deform.
Never use water hotter than 40 C/104 F to clean
the front panel, it could cause deformation of
discoloration.
CAUTIONS
Turn the system off before cleaning. To clean, wipe with
a soft, dry cloth. Do not use bleach or abrasives.
NOTE: Power supply must be disconnectd before
cleaning the indoor unit.
wipe the unit with a soft dry cloth only. If the unit is
very dirty, wipe it with a cloth soaked in warm water.
A clogged air filter reduces the cooling efficiency of
this unit. Please clean the filter once every 2 weeks.
1. Lift the indoor unit panel up to an angle until it
stops with a clicking sound.For some models,
please use suspension bars to prop up the panel.
2. Take hold of the handle of the air filter and lift it
up slightly to take it out from the filter holder,
then pull it downwards.
3. Remove the AIR FILTER from the indoor unit.
Clean the AIR FILTER once two weeks.
Clean the AIR FILTER with a vacuum cleaner
or water, then dry it up in cool place.
Cleaning the unit
Cleaning the air filter and air freshening filter

4. Remove the Air Freshening Filters from its supporting
frame (The solution to disassemble may differ from
each other for different filters. Refer to and ).
Clean the air freshening filter at least once a month,
and replace it every 4-5 months.
Clean it with vacuum cleaner, then dry it in cool place.
For the models with plasma, do not touch the plasma
within 10 minutes after you open the panel.
5. Install the air freshening filter back into position.
6. Insert the upper portion of air filter back into the
unit, taking care that the left and right edges line up
correctly and place filter into position.
1 2
Preparation for extended non-operation
Pre-season inspection
If you plan to idle the unit for a long time, perform
the following:
(1) Clean the indoor unit and filters.
Operate the fan for about half a day to dry the
inside of the unit.
Stop the air conditioner and disconnect power.
The outdoor unit requires periodic maintenance
and cleaning. Do not attempt to do this yourself.
Contact your dealer or service provider.
Remove the batteries from the remote controller.
Check that the wiring is not broken off or disconnected.
Clean the indoor unit and filters.
Check that the air filter is installed.
Check if the air outlet or inlet is blocked after the
air conditioner has not been used for a long time.
Do not touch the metal parts of the unit when
removing the filter. Injuries can occur when
handling sharp metal edges.
Do not use water to clean inside the air conditioner.
Exposure to water can destroy the insulation,
leading to possible electric shock.
When cleaning the unit, first make sure that the
power and circuit breaker are turned off.
Do not wash air filter with hot water at more than
40 C . Shake off moisture completely and dry
it in the shade. Do not expose it directly to the sun,
it may shrink.
/104 F
O
Caution
Replacement of air filter and air freshening filter
1. Remove the air filter.
2. Remove the air freshening filter.
3. Install a new air freshening filter.
4. Reinstall the air filter and securely close the front
panel.
CARE AND MAINTENANCE
1
2
Plasma
Air filter
Hold the two parts of Pla sma where are
marked with signal and lift it. Then you
can open th e cover of the the plasma and
remove the filter.
(4)
(2)
(3)
O

The following events may occur during normal operation.
1.
The compressor can't restart for 3-4 minutes after it stops.
The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in
one of the following three situations and the set temperature has not been reached.
A) When heating has just started.
B) Defrosting.
C) Low temperature heating.
The indoor or outdoor fan stop running when defrosting (Cooling and heating models only).
Frost may be generated on the outdoor unit during heat cycle when outdoor temperature is low
and humidity is high resulting in lower heating efficiency of the air conditioner.
During this condition air conditioner will stop heating operation and start defrosting automatically.
The time to defrost may vary from 4 to 10 minutes according to the outdoor temperature and
the amount of frost built up on the outdoor unit.
2.
A white mist may generate due to a large temperature difference between air inlet and air outlet
on COOL mode in an indoor environment that has a high relative humidity.
A white mist may generate due to moisture generated from defrosting process when the air
conditioner restarts in HEAT mode operation after defrosting.
3.
You may hear a low hissing sound when the compressor is running or has just stopped running.
It is the sound of the refrigerant flowing or coming to a stop.
You can also hear a low "squeak" sound when the compressor is running or has just stopped
running. This is caused by heat expansion and cold contraction of the plastic parts in the unit
when the temperature is changing.
A noise may be heard due to louver restoring to its original position when power is turned on.
4.
This is a normal condition when the air conditioner has not been used for a long time or during first
use of the unit.
5.
This is caused by the indoor unit giving off smells permeated from building material, from furniture,
or smoke.
Protection of the air conditioner.
Compressor protection
Anti-cold air (Cooling and heating models only)
Defrosting (Cooling and heating models only)
A white mist coming out from the indoor unit
Low noise of the air conditioner
Dust is blown out from the indoor unit.
A peculiar smell comes out from the indoor unit.
6.
When indoor temperature reaches the temperature setting on air conditioner, the compressor will
stop automatically, and the air conditioner turns to FAN only mode. The compressor will start again
when the indoor temperature rises on COOL mode or falls on HEAT mode (For cooling and heating
models only) to the set point.
The air conditioner turns to FAN only mode from COOL or HEAT (For cooling and
heating models only) mode.
Normal function of the air conditioner
TROUBLESHOOTING TIPS

TROUBLESHOOTING TIPS
8. Dripping water may generate on the surface of the indoor unit when cooling in a high
relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to
the maximum air outlet position and select HIGH fan speed.
9.
The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit
during heating operation. When the outdoor temperature falls, heat drawn in by the air
conditioner decreases accordingly. At the same time, heat loading of the air conditioner
increases due to larger difference between indoor and outdoor temperature. If a
comfortable temperature can't be achieved by the air conditioner, we suggest you use a
supplementary heating device.
10.
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the OPERATION indicator
on the indoor unit starts flashing. To restart the operation, push the ON/OFF button on the
remote controller. For the unit with Auto-restart feature, when the power restores, the unit
restarts automatically with all the previous settings preserved by the memory function.
Heating mode (For cooling and heating models only)
Auto-restart function
7. The air conditioner runs function after turning off the unit.
When turning off the unit under COOL(AUTO COOL, FORCED COOL) and DRY mode, the air
conditioner will run function for 7-10 minutes,
then stop the operation and turn
off the unit automatically.
Anti-mildew
Anti-mildew if turns off on HEAT mode, the unit will
continue operating for about 30 seconds at LOW fan speed,

TROUBLESHOOTING TIPS
Malfunctions
Unit does not
start
Unit not cooling
or heating
(Cooling/ heating
models only)
room very well
while air flowing
out from the air
cond tioneri
Cause
Power cut
Unit may have become Unplugged.
Fuse may have blown.
Battery in Remote controller may
have been exhausted.
The time you have set with timer
is incorrect.
Wait for power to be restored.
Check that plug is securely in wall
receptacle.
Replace the fuse.
Replace the battery.
Wait or cancel timer setting.
Set temperature correctly. For
detailed method please refer to
" "Using remote control section.
Clean the air filter.
Close the doors or windows.
Clear obstructions away first, then
restart the unit.
Wait.
Inappropriate temperature
setting.
Air filter is blocked.
Doors or Windows are open.
Air inlet or outlet of indoor or
outdoor unit has been blocked.
Compressor 3 minutes
protection has been activated.
If the trouble has not been corrected, please contact a local dealer or the nearest customer
service center. Be sure to inform them of the detailed malfunctions and unit model number.
Notes: Do not attempt to repair the unit yourself.
Always consult an authorized service provider.
What should be done?
Troubleshooting guide
Fuse blows frequently or circuit breaker trips
frequently .
Other objects or water fall into the air conditioner.
Terrible odors are smelled or abnormal sounds
are heard.
Trouble
OPERATION(RUN) indicator or other
indicators continue flashing.
If one of the following code appears on the
display area : E0,E1,E2,E3....., P0,P1,P2,
P3...., or F0,F1,F2,F3.......
The unit may stop operation or continue
to run in a safety condition(depending
on models). Waiting for about 10
minutes, the fault may be recovered
automatically, if not, disconnect the
power and then connect it in again. If
the problem still exists, disconnect
the power and contact the nearest
customer service center.
Stop the air conditioner immediately,
disconnect the power and contact the
nearest customer service center.

Tel: [phone] Fax [phone]
www.klimaire.com [email protected]
2190 NW 89 Place, Doral, FL 33172 - USA
The Klimaire logo is a registered Trademark of Klimaire Products inc.
Copyright 2014 Klimaire Products Inc.
The design and specifications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details.
