SERVICE MANUAL
KLIMAIRE AIRCONDITIONER
KSIM DC INVERTER MULTI TYPE
DC MULTI OUTDOOR UNITS
KSIM20912-H216
KSIM30912-H216
KSIM40912-H216

CONTENTS
1. General information of Outdoor Units.............................................................3
2 Features.............................................................................................................4
3. Dimensions........................................................................................................5
4. Wiring Diagram.................................................................................................6
5. Refrigeration Cycle Diagram............................................................................8
6. Indoor units combination.................................................................................9
7. Electronic control function............................................................................10

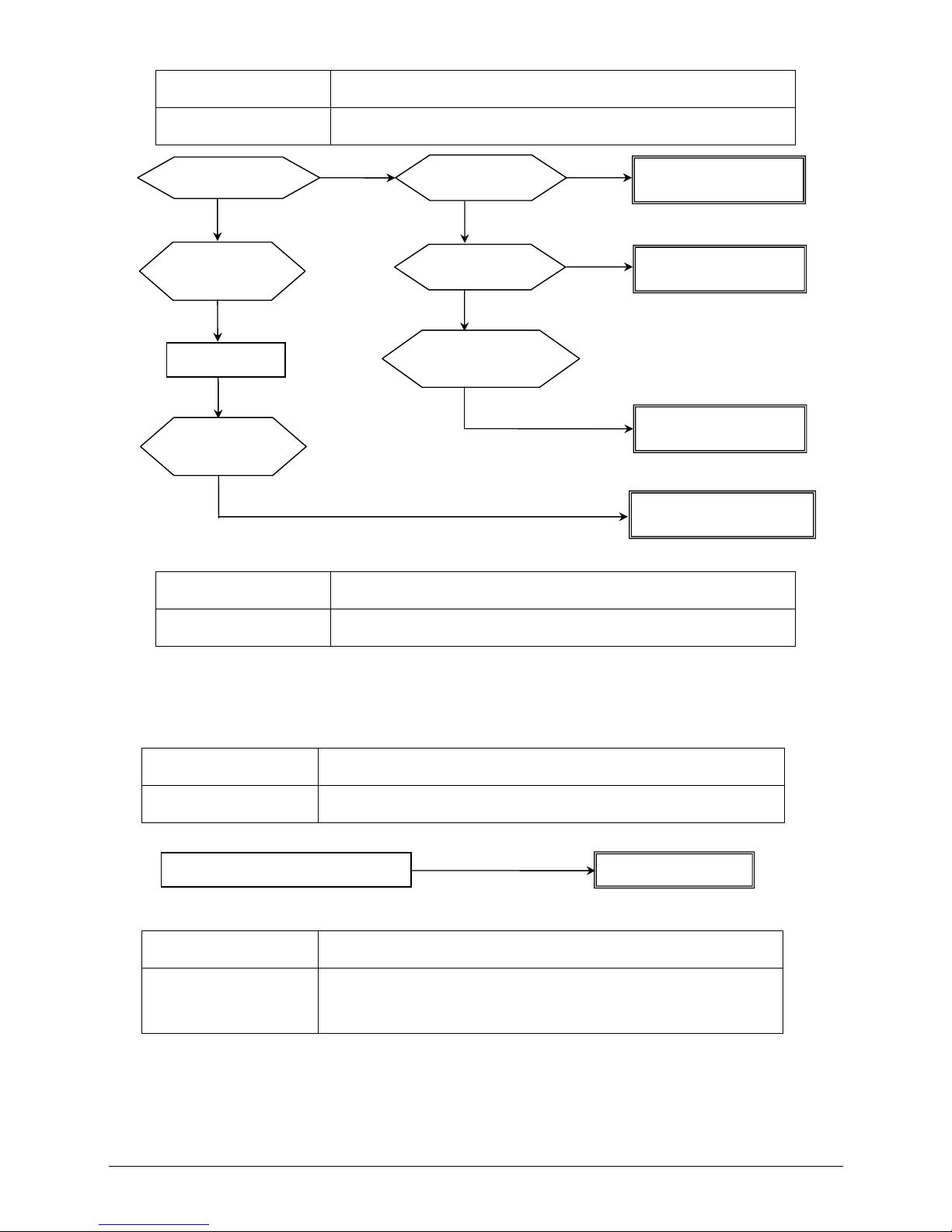

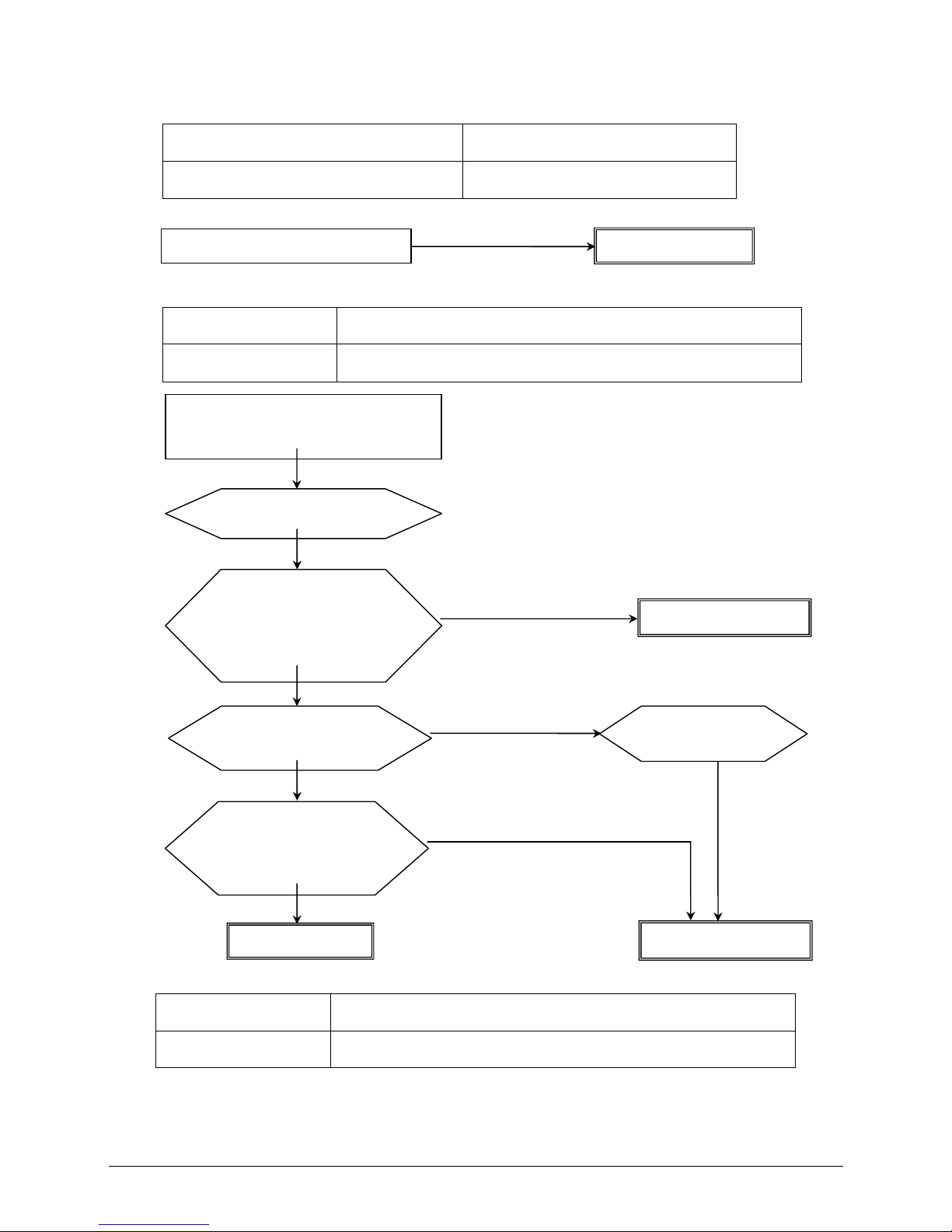

8. Troubleshooting..............................................................................................15

1. General information of Outdoor Units
Model name Dimension
(mm)
Net/Gross weight
(kg) Compressor
845x320x700 53.5/57 DA130S1C-20FZ
845x320x700 57/60.5 DA150S1C-20FZ
990x345x965 86 / 90 TNB306FPGMC-L
KSIM20912-H216
KSIM30912-H216
KSIM40912-H216

2 Features
The hydrophilic fin can improve the heating efficiency at operation mode.
It is only operated in the heating operation mode except defrosting operation.
It protects the valves and prevents water from dripping.
Outdoor unit
Power relay control
Hydrophilic aluminum fin
Anti-rust cabinet
Valve protection cover
4 way valve control
Low noise air flow system
Discharge pipe temperature protection
Compressor crankcase heater

3. Dimensions
a)
b) KSIM40912-H216
KSIM20912-H216 KSIM30912-H216

4. Wiring Diagram
4.1
4.2
KSIM20912-H216
KSIM30912-H216

4.3
KSIM40912-H216

5. Refrigeration Cycle Diagram
8.1 Refrigeration circuit drawing of inverter binary type
5.2 Refrigeration circuit drawing of inverter trinary type
8.3 Refrigeration circuit drawing of inverter quadplex type
Liquid valve A
Gas valve C
EXV C
4-way
valve
Compressor
Condenser
Axial
flow fan
EXV B
EXV A
Gas valve A
Gas valve B
Liquid valve C
Liquid valve B
Evaporator
Cross
flow fan
Indoor Unit
Capillary A
Capillary B
Capillary C
Filter A
Filter B
Filter C
Main
Capillary
Auxiliary
Capillary
Check
Valve
Exhaust
temp. sensor
Indoor pipe out
temp. sensor B
Indoor pipe out
temp. sensor A
Indoor pipe out
temp. sensor C
Outdoor Unit
Coil temp.
sensor
Indoor Unit
Cross
flow fan Evaporator
Liquid valve A
Liquid valve B
Gas valve B
Gas valve A
EXVA
EXVB
Axial
flow fan
Condenser
Compressor
4-way
valve
Auxiliary
Capillary
Capillary A
Capillary B
Exhaust
temp. sensor
Indoor pipe out
temp. sensor A
Indoor pipe out
temp. sensor B
Filter A
Filter B
Outdoor Unit
Main
Capillary
Check
Valve
Coil temp.
sensor

6. Indoor units combination
6.1 Indoor unit combination for KSIM20912-H216
6.2 Indoor unit combination for KSIM30912-H216
6.3 Indoor unit combination for KSIM40912-H216
9 9+9 9+12
12
9
12
One unit Two unit
One unit Two unit Three unit
9+9
12+12
9+12 9+9+9 9+9+12
One unit Two unit Three unit Four Unit
9
12
9+9
12+12
9+12 9+9+9 9+9+12
9+12+12 12+12+12
9+9+9+9 9+9+9+12 9+9+12+12

7. Electronic control function
7.1 Abbreviation
T1: Indoor ambient temperature
T2: Coil temperature of indoor heat exchanger middle.
T2B: Coil temperature of indoor heat exchanger outlet.
T3: Coil temperature of outdoor heat exchanger
T4: Outdoor ambient temperature
T5: Compressor discharge temperature
Ts: Setting temp.
7.2 Electric control working environment.
7.2.1 Input voltage: 230V.
7.2.2 Input power frequency:60Hz.
7.2.3 Indoor fan normal working amp. is less than 1A.
7.2.4 Outdoor fan. Normal working amp. is less than 1.5A.
7.2.5 Four-way valve normal working amp. is less than 1A.
7.2.6 Swing motor: DC12V.
7.3 Outdoor unit’s digital display tube
There is a digital display tube in outdoor PCB.
Digital display tube display function
· In standby , the LED displays “- -”
· In compressor operation, the LED display the running frequency,
· In defrosting mode, The LED displays “dF” or alternative displays between running frequency and
“dF”(each displays 2s)
· In compressor pre-heating, The LED displays “- -”
· In protection or malfunction, the LED displays error code or protection code.
7.4 Outdoor unit point check function
There is a check switch in outdoor PCB.
Push the switch SW1 to check the states of unit when the unit is running. The digital display tube will display
the follow procedure when push SW1 each time.
Display Remark
Indoor unit capacity demand code
Outdoor unit running mode code Off:0, Cooling:1, Heating:2
Amendatory capacity demand code
Outdoor unit fan motor state Off:0, Low speed:1, High speed:2
Evaporator outlet temp. for 1# indoor unit Actual data
Evaporator outlet temp. for 2# indoor unit Actual data
Evaporator outlet temp. for 3# indoor unit Actual data
Evaporator outlet temp. for 4# indoor unit Actual data
Condenser pipe temp. Actual data
Ambient temp. Actual data
Compressor discharge temp. Actual data
Inverter current Actual data
EXV open angle for 1# indoor unit Actual data divide 8

EXV open angle for 2# indoor unit Actual data divide 8
EXV open angle for 3# indoor unit Actual data divide 8
EXV open angle for 4# indoor unit Actual data divide 8
Power supply of outdoor unit AD data
18 Indoor unit number The indoor unit can communicate with outdoor unit well.
19 The last error or protection code 00 means no malfunction
frequency value Actual data
21 Ambient temp. of 1# indoor unit Actual data
22 Condenser pipe temp. of 1# indoor unit Actual data
Ambient temp. of 2# indoor unit Actual data
24 Condenser pipe temp. of 2# indoor unit Actual data
25 Ambient temp. of 3# indoor unit Actual data
Condenser pipe temp. of 3# indoor unit Actual data
27 Ambient temp. of 4# indoor unit Actual data
28 Condenser pipe temp. of 4# indoor unit Actual data
Check point over
The following items from 6.4.1 to 6.4.6 are for the explanation of the point check functions.
7.4.1 Frequency of compressor:
Display Frequency of compressor (Hz)
30 30
-- Stand by
60 60
7.4.2 Running mode:
Display Corresponding mode
0 Off
1 Cooling mode
2 Heating mode
7.4.3 Capacity demand:
Cooling mode
Capacity 2000-2
500
2000-2
500
3000-3
800
4500-5
000
5000-5
500
5500-6
100
6100-7
000
7000-7
500
7500-8
000
>7500
Correspondi
ng Code
1 2 3 4 5 6 7 8 9 >=10
Heating mode
Capacity 2000-2
500
2000-2
500
3000-3
800
4500-5
000
5500-6
100
6100-7
000
6100-7
000
7000-7
500
7500-8
000
>8000
Correspondin
g Code
1 2 3 4 5 6 7 8 9-10 >=11
Note:
The capacity is just for reference.
14
15
16
17
20
23
26
29 ----

7.4.4Number of indoor unit
Display Number of indoor unit
1 1
2 2
3 3
7.4.5 Outdoor ambient temp:
Display Corresponding temp. Display Corresponding
temp. Display Corresponding temp.
15 -7.5 50 10 80 25
16 -7 51 10.5 81 25.5
17 -6.5 52 11 82 26
18 -6 53 11.5 83 26.5
19 -5.5 53 11.5 84 27
20 -5 54 12 85 27.5
21 -4.5 55 12.5 86 28
22 -4 56 13 87 28.5
23 -3.5 57 13.5 88 29
24 -3 58 14 89 29.5
26 -2 59 14.5 90 30
27 -1.5 60 15 91 30.5
28 -1 61 15.5 92 31
29 -0.5 62 16 93 31.5
30 0 63 16.5 93 31.5
31 0.5 63 16.5 94 32
32 1 64 17 95 32.5
33 1.5 65 17.5 96 33
34 2 65 17.5 97 33.5
35 2.5 66 18 98 34
36 3 67 18.5 99 34.5
37 3.5 68 19 10. 35~40
38 4 69 19.5 11. 40~45
39 4.5 70 20 12. 45~50
40 5 71 20.5 13. 50~55
41 5.5 72 21 14. 55~60
42 6 73 21.5 15. 60~65
43 6.5 74 22 16. 65~70
44 7 75 22.5
45 7.5 75 22.5
46 8 76 23
47 8.5 77 23.5
48 9 78 24
49 9.5 79 24.5

7.4.6 Opening degree of electronic expansion valve:
Actual opening degree equals the display data divided 8
7.5 Protection
7.5.1 Three minutes delay at restart for compressor.
7.5.2 Temperature protection of compressor discharge.
When the compressor discharge temp. is getting higher, the running frequency will be limited as below rules:
----If 102 <T5<115 , decrease the frequency to the lower level every 2 minutes till to F1.
---If T5>115 for 10 seconds, the compressor will stop and restart till T5<90 .
7.5.3 Low voltage protection
VOLLIMT1
VOLTAGE
No limit
VOLLIMT2
VOLLIMT3
Off
VOLFRE2
VOLFRE1
VOLREL1
VOLREL2
VOLREL3
Model VOLLIMT1 VOLLIMT2 VOLLIMT3 VOLREL1 VOLREL2 VOLREL3 VOLFRE1 VOLFRE2
230 200 120 260 210 135 62 54
245 220 120 265 240 135 78 45
200 185 120 210 195 135 54 42
Note: if the low voltage protection occurs and not resumes within 3min, it will keep the protection always
after restart the machine.
7.5.4 Compressor current limit protection
If the compressor current exceeds the current limit value for 10 seconds, the compressor frequency will be
limited as below table.
Cooling mode:
Current frequency(Hz) Current limit value(A) Frequency limit
COOL_F10 ICOOLLMT6
COOL_F9 ICOOLLMT5
COOL_F8 ICOOLLMT4
COOL_F7 ICOOLLMT3
COOL_F6 ICOOLLMT2
COOL_F5 ICOOLLMT1
Decrease the frequecny to COOL_F4 and run at
COOL_F4 for 3 minutes.
After that,the frequency will be adjusted according to the
capacity demand and rise to the upper level every 3
minutes
(When the frequency>COOL_F4 via capacity demand).
If the current frequency is lower than COOL_F4, the frequency will not be limited.
After 10s of the compressor start, if the current>ICOOL,the AC will display the failure for 30 seconds and stop. The AC will restart 3
minutes later.
Heating mode:
Current frequency(Hz) Current limit value(A) Frequency limit
HEAT_F12 IHEATLMT8
HEAT_F11 IHEATLMT7
HEAT_F10 IHEATLMT6
HEAT_F9 IHEATLMT5
HEAT_F8 IHEATLMT4
Decrease the frequency to HEAT_F4 and run at HEAT_F4
for 3 minutes.
After that, the frequency will be adjusted according to the
capacity demand and rise to the upper level every 3
minutes
KSIM20912-H216
KSIM30912-H216
KSIM40912-H216

HEAT_F7 IHEATLMT3
HEAT_F6 IHEATLMT2
HEAT_F5 IHEATLMT1
(When the frequency>Heat_F4 via capacity demand).
If the current frequency is lower than HEAT_F4, the frequency will not be limited.
After 10s of the compressor start, if the current>IHEAT,the AC will display the failure for 30 seconds and stop. The AC will restart 3
minutes later.
7.5.5 Indoor / outdoor units communication protection
If the indoor units can not receive the feedback signal from the outdoor units for 2 minutes, the AC will stop
and display the failure.
7.5.6 High condenser coil temp. protection.
When T3>65 for 3 seconds, the compressor will stop while the indoor fan and outdoor fan will continue.
When T3<52 , the protection will release and the compressor will restart after 3 minutes.
7.5.7 Outdoor unit anti-freezing protection
When T2B<0 for 250 seconds, the indoor unit capacity demand will be zero and resume to normal when
T2B>10 .
7.5.8 Oil return
Running rules:
1. If the compressor frequency keeps lower than RECOILINFRE for 2hours,the AC will rise the frequency
to RECOILFRE for 3mins and then resume to former frequency.
Model RECOILINFRE
45
45
40
2. During the oil return process, the EXV and indoor units keep the current running mode, the frequency
will not be limited by the compressor discharge temp. and the current.
7.5.9 Compressor preheating functions
----Preheating permitting condition:
If T4(outdoor ambient temperature) 3 and newly powered on or if T4 3 and compressor has stopped
for over 3 hours, the compressor heating cable will work.
----Preheating mode:
A weak current flow through the coil of compressor from the wiring terminal of compressor, then the
compressor is heated without operation.
----Preheating release condition:
If T4 5 or the compressor starts running, preheating function will stop.
7.5.10 Compressor crankcase heater
When T4<3 and the compressor is not running,the crankcase heater will be active.
When T4 5 or the compressor starts up,the crankcase heater will stop work.
KSIM20912-H216
KSIM30912-H216
KSIM40912-H216

8. Troubleshooting
8.1 Indoor unit error code explanation:
Vertu series:
Display LED STATUS
E0 EEPROM error
E1 Communication error between indoor and outdoor unit
E2 Zero-crossing examination error
E3 Fan speed beyond control
E5 Outdoor units temp. sensor or connector of temp. sensor is defective
E6 Indoor units temp. sensor or connector of temp. sensor is defective
P0 Inverter module protection
P1 Outdoor voltage too low protection
P2 Compressor discharge temp. protection
P3 Outdoor temp. too low protection
P4 Compressor driving protection
9A series:
NO. MALFUNCTION DEF TIMER AUTO RUN DISPLAY DIGITAL
TUBE
1 EEPROM error O O O O E0
2 Indoor / outdoor units communication protection E1
3 Zero-crossing signal error O O E2
4 Indoor fan speed out of control O O E3
5 Outdoor unit temp. sensor or connector of temp. sensor is defective X O X E5
6 Indoor units temp. sensor or connector of temp. sensor is defective O O O E6
7 Outdoor fan speed out of control O E7
8 IBM malfunction or IGBT over-strong current protection X X O P0
9 Over voltage or too under voltage protection X O O P1
10 Temperature protection of compressor top. O X X P2
11 Compressor position protection O X P4
12 Inverter module protection X O P5
8.2 Outdoor unit error code explanation:
Display LED STATUS
E0 EEPROM error
E1 No 1 Indoor units pipe temp. sensor or connector of pipe temp. sensor is defective
E2 No 2 Indoor units pipe temp. sensor or connector of pipe temp. sensor is defective
E3 No 3 Indoor units pipe temp. sensor or connector of pipe temp. sensor is defective
E6 No 4 Indoor units pipe temp. sensor or connector of pipe temp. sensor is defective
E4 Outdoor temp. sensor or connector of temp. sensor is defective
E5 Compressor volt protection
E7 Communication error between outdoor IC and DSP
P0 Compressor discharge temp. protection
P1 High pressure protection (just for 36K 1x4 units.)
P2 Low pressure protection (just for 36K 1x4 units.)
P3 Compressor current protection
P4 Inverter module protection
P5 Outdoor temp. too low protection
P6 Condenser high-temperature protection
P7 Compressor driving protection
PF PFC protection (just for 36K 1x4 units.)

8.3 Trouble shooting
8.3.1 Indoor unit trouble shooting
Indoor unit display LED STATUS
E0 EEPROM error
Indoor unit display LED STATUS
E1 outdoor communication error
Indoor unit display LED STATUS
E2 Zero-crossing examination error
Circuit or software error on indoor PCB Replace indoor PCB
Disconnect the power supply, after 1 minute,
connect the power supply, turn on the unit with
remote controller
Does the unit work
normally ?
Check the wiring between
indoor and outdoor unit. Is
the connection of L, N, S and
GND good?
Is the GND connection on
outdoor PCB good?
NO
NO Reconnect and retest again
Is the LED4(red) on
outdoor PCB bright and
LED1(yellow) blinking?
Replace outdoor e-box.
Yes
Yes
The power supply for
outdoor PCB is fail. Check
the wiring on outdoor PCB
comparing with wiring plate.
Is the connection good?
No
Correct the connection.
Yes
No
Replace indoor PCB
and repower on. Is
the failure cleared?

Indoor unit display LED STATUS
E3 Fan speed beyond control
Indoor unit display LED STATUS
E5 Outdoor units temp. sensor or connector of temp. sensor is defective
Indoor unit display LED STATUS
E6 Indoor units temp. sensor or connector of temp. sensor is defective
Is the outdoor temperature
sensor connector and
connection good?
Repair the connector and
reconnect
Replace the sensor and
check if E5 display again?
NO
YES
Replace outdoor e-box
YES
Is the indoor fan motor
connector and connection
good?
Repair the connector and
reconnect
Is voltage being applied to
the fan motor?
(rang 90v-160v between
mid pin and N on CN1
NO
YES
Indoor PCB is defective.
Replace the indoor PCB.
YES
Replace the indoor fan
motor
NO
Is power supply and
connection of connectors
good?
Indoor PCB is defective. Replace
the indoor PCB.
Be sure the power supply is good
and correct the connection
NO
YES

Indoor unit display LED STATUS
P0 Inverter module protection
Indoor unit display LED STATUS
P1 Outdoor voltage protection
Is the power supply good? Be sure the power supply is
normal when using the units
NO
YES
Replace the outdoor e-box.
Revise the power and retest.
Is voltage normal?
NO
YES
Is all connection good? NO
Revise the power and retest.
YES
Is the wiring to compressor
right?
YES
Check the modular if some
components blow out or be
failure?
YES Repair or replace the modular.
YES
Is it breakdown between
P-N, P-V, P-W, N-V,N-W or
V-W of inverter moduler?
YES Replace the modular.
YES
Check the compressor.
Is the indoor temperature
and evaporator sensor
connector and connection
good?
Repair the connector and
reconnect
Replace the sensor and
check if E6 display again?
NO
YES
Replace the.indoor PCB
YES

Indoor unit display LED STATUS
P2 Compressor top protection against temperature
Indoor unit display LED STATUS
P3 Compressor current protection
The trouble shooting is same with one of outdoor unit P3 protection.
8.3.2 Outdoor unit trouble shooting
Outdoor unit display LED STATUS
E0 EEPROM error
Outdoor unit display LED STATUS
E1
No 1 Indoor units pipe temp. sensor or connector of pipe temp. sensor is
defective
Circuit or software error on indoor
Replace indoor
YES
Does compressor
operate?
Is the connection
good?
Is refrigerant
circulation
volume normal?
NO
NO
Charge refrigerant
Is abnormality
the same after
gas charging?
NO
Check refrigerant system
(such as clogging of capillary,
Reconnect and retest.
NO
YES
Is protector
normal? Replace the protector.
NO
YES
Check the outdoor
main PCB. Is there
some problem?
Replace the outdoor PCB.
YES

Outdoor unit display LED STATUS
E2
No 2 Indoor units pipe temp. sensor or connector of pipe temp. sensor is
defective
Outdoor unit display LED STATUS
E3
No 3 Indoor units pipe temp. sensor or connector of pipe temp. sensor is
defective
Is connection to connector of pipe temp. sensor good?
Check the resistance of the temp. sensor according to Annex 1
Repair connector
No
Yes
Replace the sensor
Is connection to connector of pipe temp. sensor good?
Check the resistance of the temp. sensor according to Annex 1
Repair connector
No
Yes
Replace the sensor
Is connection to connector of pipe temp. sensor good?
Check the resistance of the temp. sensor according to Annex 1
Repair connector
No
Yes
Replace the sensor
