Dear Customer,
Thank you for choosing a “KLOVER” product. We hope you will be fully
satisfied with your purchase.
Please read the warranty certificate carefully. This is found on the last
page of this User Guide. Please complete the attached warranty card in
full and send it to us within 10 days of the purchase date.
Thank you once again for choosing KLOVER products. These models
are the result of forty years of experience in the manufacture of solid-
fuel products (wood and pellets).
The manual contains a detailed description of the heating
cooker/heating stove and its operation, alongside instructions for proper
installation, basic maintenance and checks to be performed regularly. It
also contains practical advice for obtaining maximum performance from
the cooker-boiler/stove-boiler with minimum fuel consumption.
Stay warm with KLOVER!

4
DICHIARAZIONE DI
CONFORMITÀ
DECLARATION OF
CONFORMITY
In accordo con la Direttiva 89/106/CEE (Prodotti da Costruzione), il Regolamento CE n. 1935/2004 (Materiali e Oggetti destinati
a venire a contatto con prodotti alimentari), la Direttiva 2006/95/CEE (Bassa Tensione) e la Direttiva 2004/108/CEE
(Compatibilità Elettromagnetica).
Compliant with Directive 89/106/EEC (Construction Products), CE Regulation No. 1935/2004 (Materials and Articles intended to
come into contact with foodstuffs), Directive 2006/95/EEC (Low Voltage) and Directive 89/336/EEC (Electromagnetic
Compatibility).
N° di identificazione - Identification No. :
KP-01
Emesso da - Issued by :
KLOVER s.r.l.
Via A. Volta, 8
37047 San Bonifacio (VR)
Tipo di apparecchio - Type of equipment :
Solid fuel-burning cookers
Marchio commerciale -Trademark :
KLOVER
Modello o tipo - Model or type :
HEATING COOKER
Uso - Use :
Domestic heating and cooking
Costruttore - Manufacturer :
KLOVER s.r.l.
Via A. Volta, 8
37047 San Bonifacio (VR)
Ente notificato - Notified body :
NB 1881
IMQprimacontrol S.R.L.
I - 31020 Zoppè –San Vendemmiano (TV)
Via dell’Industria, 55
Le norme armonizzate o le specifiche tecniche (designazioni) che sono state applicate in accordo con le regole della buona arte
in materia di sicurezza in vigore nella CEE sono:
The following harmonised standards or technical specifications (designations) that comply with good engineering practices
concerning safety matters in force within the EEC have been applied:
Norme o altri riferimenti normative
Standards or other regulatory references
Rapporto di Prova ITT
Initial Type Test Report
EN 12815
CPD-07-011
EN 60335-1
EN 50165
EN 55014-1
EN 61000-3-2
EN 61000-3-3
EN 55014-2
In qualità di costruttore e/o rappresentante autorizzato della società all’interno della CEE, si dichiara sotto la propria
responsabilità che gli apparecchi sono conformi alle esigenze essenziali previste dalle Direttive su menzionate.
As the manufacturer’s authorised representative within the EEC, we hereby declare under our sole responsibility that the
equipment complies with the provisions of the Directives stated above.
San Bonifacio (VR), 05/10/2007
Mario Muraro
Chairman of the Board

5
HEATING COOKERS
and
HEATING STOVES
models K top –KP top
and
models TS top –TSP top
S.R.L.

6
Copyright
All rights reserved. The reproduction of any part of this manual in any form,
without the explicit written permission of KLOVER srl, is forbidden. The
content of this manual may be modified without notice. Although the
documentation contained in this manual has been carefully compiled and
checked, KLOVER srl cannot be held liable for any damages arising from the
use of the same.
Copyright © 2002 KLOVER srl
Latest revision: February 2012

7
GENERAL INDEX
Introduction…………………………….……………………………..9
Important safety instructions…………………………………………….. 9
Some precautions……………………………………………..…………..10
Conventions used in the manual……………………………….……….. 10
Technical data……………………………………….…………….....11
Hydraulic connections for the heating cooker…………………………. 11
Top view of heating cooker……………………………………………... 12
Heating cooker wall-mounted installation option……………………….13
Hydraulic connections for the heating stove…………………………… 14
Top view of heating stove…………………………………………………15
Heating stove wall-mounted installation option………………………... 16
Technical specifications………………………………………………….. 17
Heating cooker/heating stove components……………………………..19
Assembly……………………………….………………….…………. 22
Positioning………………………………………………………………… 22
External air vent……………………………………………………………23
Example of heating cooker/heating stove –boiler connection………. 24
Example of heating cooker/heating stove connection………………… 25
Connections………………………………………………………….. 26
Hydraulic connection………………………………………………………26
Electrical connection……………………………………………………… 27
Electronic control unit…………………………………………………….. 28
Control of any 3-way valves for the DHW circuit……………………….34
Control of any coupled boilers……………………………………………35
Example of electrical connection……………………………………….. 36
The flue and connection to the same ………………………….………. 38
The chimney………………………………………………………………. 40
Starting up……………………………………………………………. 41
Filling the system for the first time……………………………………… 41
Ignition………………………………………………………………………42
The oven and hob (heating cooker only)………………………………. 43
Producing domestic hot water (suitable models only)……………….. 44
Anti-freeze protection…………………………………………………….. 45
Operating principle……………………………………………………….. 45
Boiling……………………………………………………………………… 45
Maintenance………………………………………………….………. 46

8
Cleaning the boiler unit………………………………………………….. 46
Cleaning the ceramic glass………………………………… ………….. 53
Cleaning the flue…………………………………………………………. 53
Maintenance of the boiler unit……………………………… ………….. 54
The wood to be burned……...……………………………………...55
Types of wood…………………………………………………………….. 55
Troubleshooting……………………………………………………...58
Useful advice………………………………………………………….60
Notes…………….….…………………………………………………. 61
Warranty certificate…………………………………………………. 62

9
INTRODUCTION
Important safety instructions
Please read these instructions before installing and using the
product.
The installation and initial start-up of the heating
cooker/heating stove must be performed by skilled personnel
trained in the relevant safety standards. They will be
responsible for the definitive installation of the appliance and
its proper operation.
KLOVER srl shall not be held liable if these precautions are
not observed.
During installation of the appliance, all local regulations -
including those referring to national and European Standards
- must be observed.
Connect the flue gas outlet to a flue with the specifications
described in the Connections section of this User guide.
The appliance is not suitable for installation on a shared flue
system.
If the flue should catch fire, use appropriate fire extinguishing
equipment or call the fire brigade.
Connect the product to an earthed power socket. Avoid using
sockets controlled by switches or automatic timers.
Do not use damaged or worn power supply cables.
If a multiple socket is used, make sure that the total voltage of the
connected devices does not exceed the rated voltage for the
socket. Also make sure that the total voltage of all the devices
connected to the socket does not exceed the maximum permitted
level.
Do not use flammable substances to clean the appliance or its
parts.
Do not leave containers of flammable substances in the room
where the heating cooker/heating stove is installed.
Do not use the appliance as an incinerator or for any use other
than that for which it was designed.
Do not use different fuels to those recommended.
Do not use liquid fuels.

10
The appliance, and its outer surfaces in particular, become very
hot to the touch during operation; handle with caution in order to
avoid burns.
Only use original spare parts recommended by the manufacturer.
Do not make any unauthorised modification to the device.
A few precautions
Do not touch the hot components of the product (ceramic glass,
enamelled cast-iron hob, flue pipe) during normal operation.
Use the dedicated lit switch to switch the electrical panel off. Do
not disconnect the power supply cable while the heating
cooker/heating stove is running.
Keep children away from the heating cooker/heating stove when it
is running since they could get burnt by touching its hot
components.
Children and inexperienced people must not be allowed to use the
appliance.
Conventions used throughout the manual
Hazard to the operation of the heating cooker/heating stove.
General hazard for personal safety.
Hazard for people and objects due to materials at high
temperatures.
Hazard to people and objects due to electrical power.
Risk of burns due to hot liquids.

11
TECHNICAL DATA

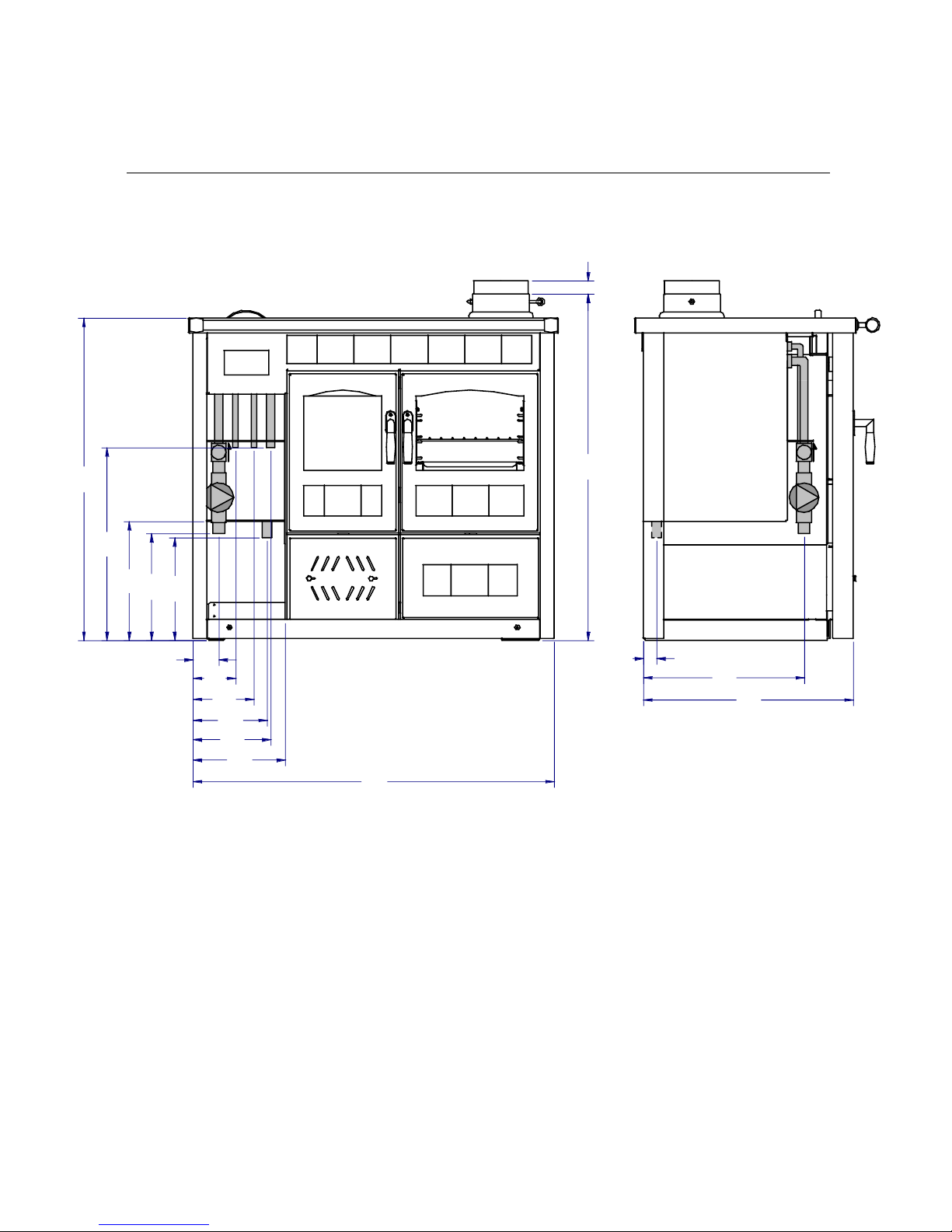

Hydraulic connections for the heating cooker
875
R
X
M
R
FC
X
285
295
330
530
70
115
165
200
210
35
435
565
940 35
250
975
Description of connections:
M= System Flow ¾” M Gas
R= System Return ¾” F Gas
F= Domestic cold water inlet (on KP models only) ½” M Gas
C= Domestic hot water outlet (on KP models only) ½” M Gas
X= Boiling discharge ¾” M Gas
Flue gas outlet diameter 150 mm M

12
Top view of heating cooker
600
665
1000
predisposizione
sulla base per
l'allacciamento
all'impianto
passando dal
pavimento
155
155
485
635
215 250 135
100 145

13
Heating cooker wall-mounted attachments option
mr fc x
40
70
95
140
190
220
250
140
200
330
975
105
875
Description of connections:
m= System Flow ¾”
r= System Return ¾”
f= Domestic cold water inlet (on KP models only) ½”
c= Domestic hot water outlet (on KP models only) ½”
x= Boiling discharge ¾”

14

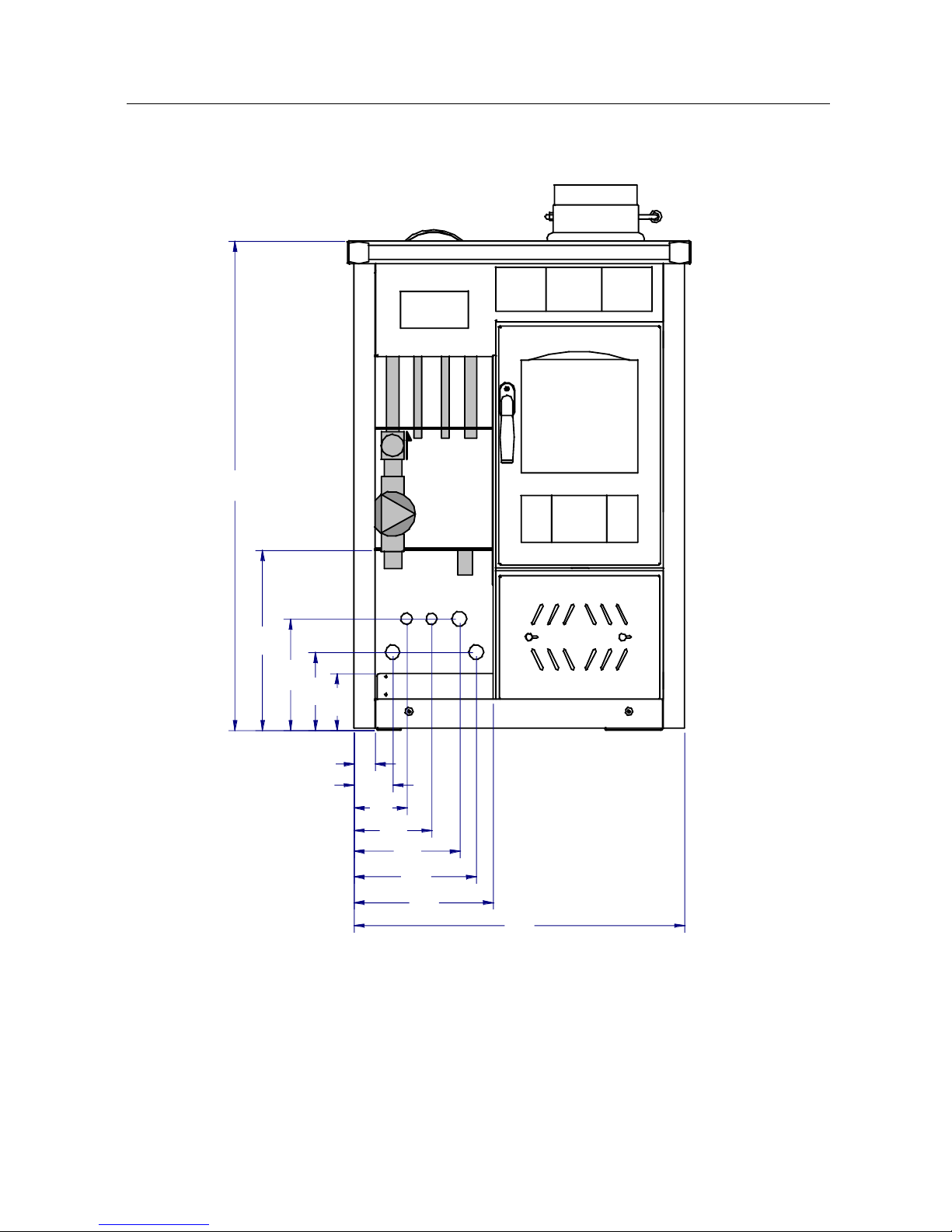

Hydraulic connections for heating stove
875
R
X
M
R
FC
X
285
295
330
530
70
115
165
200
210
595
35
435
565
250
940 35
Description of connections:
M= System Flow ¾” M Gas
R= System Return ¾” F Gas
F= Domestic cold water inlet (on TSP models only) ½” M Gas
C= Domestic hot water outlet (on TSP models only) ½” M Gas
X= Boiling discharge ¾” M Gas
Flue gas outlet diameter 150 mm M

15

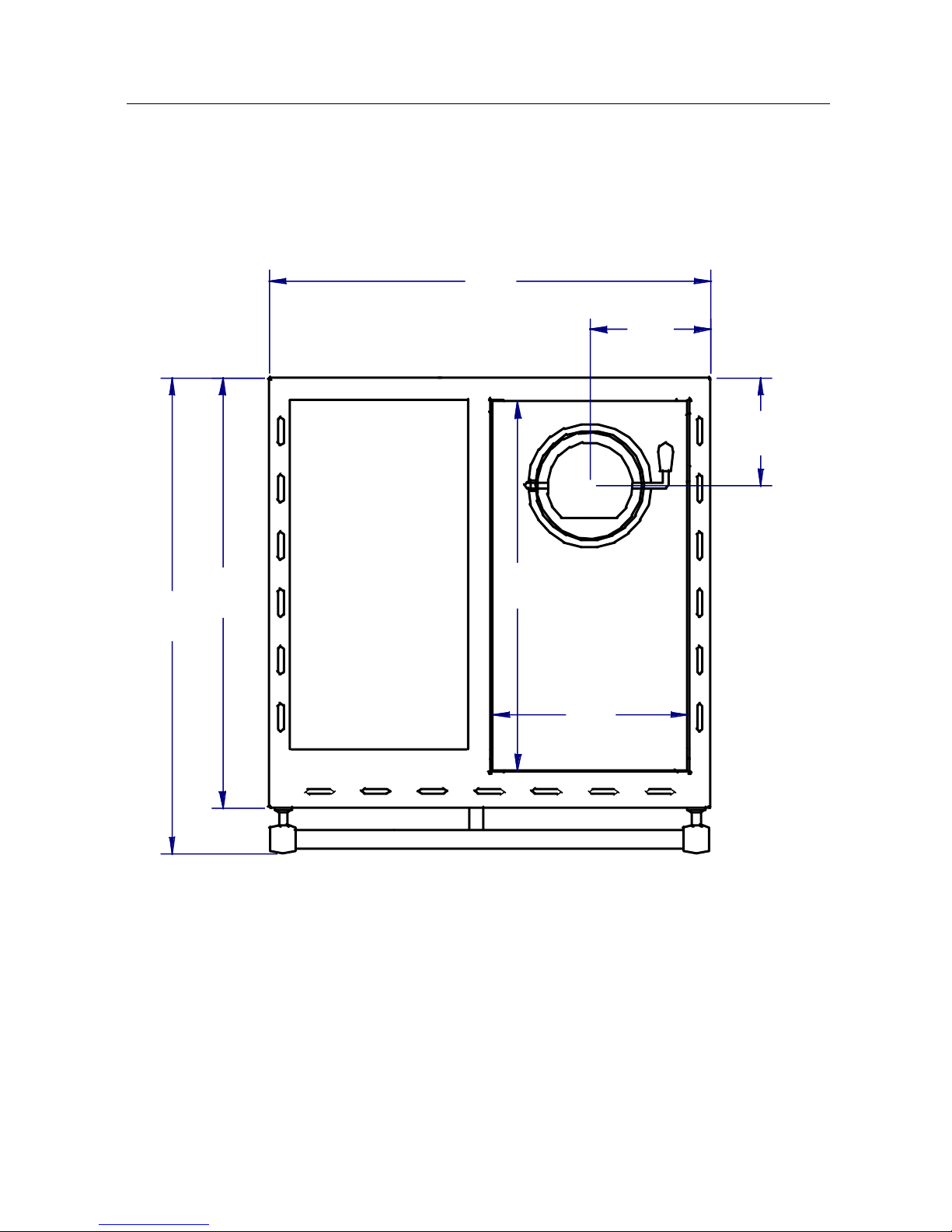

Top view of heating stove
600
665
622
275
515
170
150

16
Heating stove wall-mounted attachments option
mr
f
cx
875
40
70
95
140
190
220
250
140
200
330
595
105
Description of connections:
m= System Flow ¾”
r= System Return ¾”
f= Domestic cold water inlet (on TSP models only) ½”
c= Domestic hot water outlet (on TSP models only) ½”
x= Boiling discharge ¾”

17
Technical Specifications
Below is a table with all the main technical specifications for the
heating cookers.
TECHNICAL SPECIFICATIONS
MODEL
K top KP top
Kcal/h
HEAT OUTPUT KWatt
25.500
29,6
BOILER UNIT WATER CAPACITY lt
53
50
PRODUCTION OF HOT WATER Δt=35°C lt/min
/
12
MAXIMUM WOOD CONSUMPTION* Kg/h
5 –8
HEATABLE VOLUME m3
560
EFFICIENCY
83%
VOLUME OF COMBUSTION CHAMBER dm3
46
SIZE OF LOADING MOUTH (wxh) cm
25 x 23
SIZE OF COMBUSTION CHAMBER (wxhxd) cm
26 x 40 x 44
FLUE PIPE DIAMETER mm
150
WIDTH mm
1000
HEIGHT mm
870
DEPTH mm
600
WEIGHT Kg
245
250
*Wood consumption is subject to the quality and dryness of the wood.

18
Below is a table with all the main technical specifications for the
heating stoves.
TECHNICAL SPECIFICATIONS
MODEL
TS top TSP top
Kcal/h
HEAT OUTPUT KWatt
22.500
26,2
BOILER UNIT WATER CAPACITY lt
53
50
PRODUCTION OF HOT WATER Δt=35°C lt/min
/
12
MAXIMUM WOOD CONSUMPTION* Kg/h
5 –8
HEATABLE VOLUME m3
495
EFFICIENCY
83%
VOLUME OF COMBUSTION CHAMBER dm3
46
SIZE OF LOADING MOUTH (wxh) cm
25 x 23
SIZE OF COMBUSTION CHAMBER (wxhxd) cm
26 x 40 x 44
FLUE PIPE DIAMETER mm
150
WIDTH mm
622
HEIGHT mm
870
DEPTH mm
600
WEIGHT Kg
200
205
*Wood consumption is subject to the quality and dryness of the wood.

19
Heating cooker/heating stove components
Cover
SICURO TOP
Reservoir
SICURO TOP
with stainless steel and
magnesium anode
heat exchangers
System air vent valve
(jolly)
Electronic control unit
(see page 28)

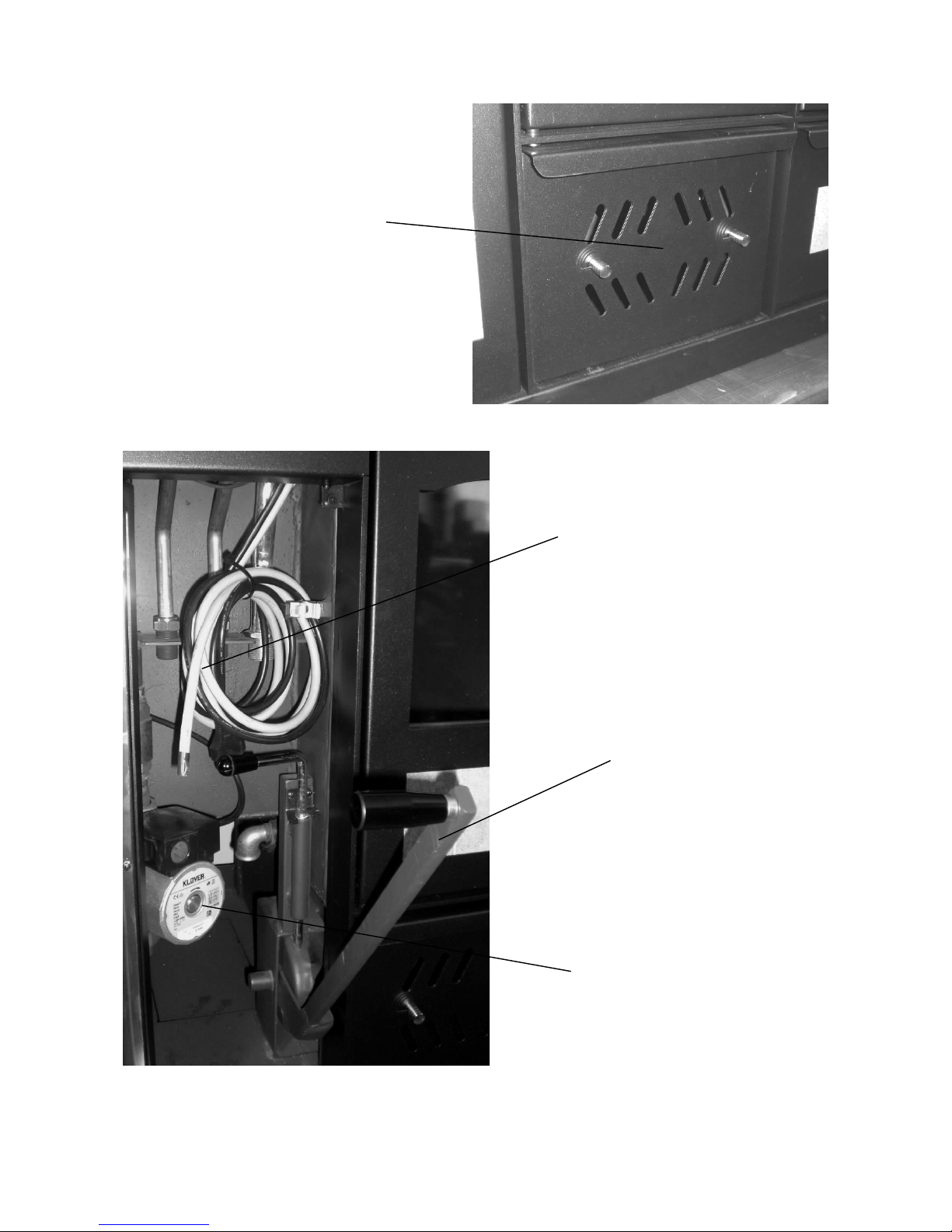

20
Ash drawer with slots for
adjusting combustion air
flow
Grille raising lever
(heating cooker only)
Heating system circulation
pump
Power supply cord
+ isolated cable for 3-way
motorised valve (if fitted)
