klover TKR 35 User manual

FIREPLACE
HEATING SYSTEM
PATENTED SYSTEM
INSTALLATION
USE AND MAINTENANCE
USEFUL ADVICE
User guide
TKR 35 fireplace heating system
EN

2

3
Dear Customer,
First of all we would like to thank you for choosing a
“KLOVER” product and we hope you will be satisfied with this product.
Read the warranty guarantee carefully, which is found on the last page of
this User guide; fill the attached warranty card in fully and send it within 10
days from the date of purchase.
We would like to thank you again for trusting KLOVER products and we
also inform you that these models are the result of forty years experience in
the field of construction of solid fuel products.
The manual contains a detailed description of the fireplace heating system
and its functioning, instructions for proper installation, basic maintenance
and control points, which must be periodically performed; furthermore it
contains practical advice which helps to obtain maximum performance from
the fireplace-boiler with minimum fuel consumption.
Enjoy the heat with KLOVER!

4
DICHIARAZIONE DI
CONFORMITÀ
DECLARATION OF
CONFORMITY
In accordo con la Direttiva 89/106/CEE (Prodotti da Costruzione), la Direttiva 2006/95/CEE (Bassa Tensione) e la Direttiva
2004/108/CEE (Compatibilità Elettromagnetica).
According to the Directive 89/106/EEC (Construction Products ), the Directive 2006/95/EEC (Low Voltage) and the Directive
89/336/EEC (Electromagnetic Compatibility).
N° di identificazione - Identification No. :
TKR-01
Emesso da - Issued by :
KLOVER s.r.l.
Via A. Volta, 8
37047 San Bonifacio (VR)
Tipo di apparecchio - Type of equipment :
Solid fuel closed fireplaces
Marchio commerciale -Trademark :
KLOVER
Modello o tipo - Model or type :
SP35 –KTP35 –XP35 –TKR35
Uso - Use
:
Domestic heating
Costruttore - Manufacturer
:
KLOVER s.r.l.
Via A. Volta, 8
37047 San Bonifacio (VR)
Ente notificato - Notified body
:
NB 1881
IMQprimacontrol S.R.L.
I - 31020 Zoppè –San Vendemmiano (TV)
Via dell’Industria, 55
Le norme armonizzate o le specifiche tecniche (designazioni) che sono state applicate in accordo con le regole della buona arte
in materia di sicurezza in vigore nella CEE sono:
The following harmonised standards or technical specifications (designations) which comply with good engineering practice in
safety matters in force within the EEC have been applied:
Norme o altri riferimenti normative
Standards or other normative documents
Rapporto di Prova ITT
Initial Type Tests Report
EN 13229
CPD-08-048
EN 60335-1
EN 50165
EN 55014-1
EN 61000-3-2
EN 61000-3-3
EN 55014-2
In qualità di costruttore e/o rappresentante autorizzato della società all‟interno della CEE, si dichiara sotto la propria
responsabilità che gli apparecchi sono conformi alle esigenze essenziali previste dalle Direttive su menzionate.
As the manufacturer’s authorised representative established within EEC, we declare under out sole responsibility that the
equipment follows the provisions of the Directives stated above.
San Bonifacio (VR), 19.09.08
Muraro Mario
Chairman of the Board

5
FIREPLACE
HEATING
SYSTEMS
mod. TKR 35
S.R.L.

6
Copyright
All rights reserved. The reproduction of any part of this manual, in any form,
without the explicit written permission of KLOVER srl is forbidden. The content of
this manual can be modified without forewarning. Although we have carefully
collected and verified the documentation contained in this manual, KLOVER srl
cannot be held liable for how you utilise it.
Copyright © 2002 KLOVER srl
Latest revision: December 2010

7
GENERAL INDEX
Introduction…………………………………………………………...9
Important safety instructions…………………………………………….. 9
Some precautions………………………………………………………….10
Conventions used in the manual…………………………………………10
Technical data…………..…………………………………………… 11
Dimensions of the fireplace heating system.…………………………... 11
Hydraulic connections...................……………………………………….12
Technical features……………………………………………..…………..13
Assembly..……………………………………………………………. 14
Positioning………..………………………………………………………...14
Air vent……………………………………………………………………... 15
Flue and connection to the same ……………………………….……… 17
Chimney……………………………………………………………………. 19
Connections………………………………………………………….. 20
Electric connections………………….…………………………………… 20
Electric control unit……………………………………………………….. 21
Control of any 3-way valve for the DHW circuit……………………….. 27
Control of any coupled boiler……………………………………………. 28
Example of electrical connection…………………………………………29
Hydraulic connection………………………………………………………31
Example of fireplace heating system –boiler connection……………..32
Example of fireplace heating system connection only…………………33
Fireplace heating system covering………...……………………. 34
Commissioning……………………………………………………… 36
Filling the system for the first time……………………………………… 36
Filling the fireplace heating system………………………………………37
Ignition……………………………………………………………………… 38
Boiling……………………………………………………………………….39
Anti-freeze protection…………………………………………………….. 39
Functioning principle……………………………………………………… 39
Maintenance………………………………………………………….. 40
Cleaning the boiler body…………………………………………………. 40
Cleaning the ceramic glass……………………………………………….41
Cleaning the flue………………………………………………………….. 42

8
Maintenance of the boiler body………………………………………….. 43
The wood to burn……...……………………………………………. 44
Wood features…………………………………………………………….. 44
Troubleshooting……………………………………………………...47
Useful advice………………………………………………………….49
Warranty certificate…………………………………………………. 50

9
INTRODUCTION
Important security instructions
Read these instructions before installing and using the product.
Fireplace heating system installation and commissioning must
be performed by skilled staff aware of the importance of
respecting the Safety Standards in force. They will be
responsible for the definitive installation of the machinery and
its consequent proper functioning.
KLOVER srl will not be held responsible if these precautions are
not respected.
During installation of the appliance all local regulations,
included those referring to National and European Standards,
must be followed.
Connect the product flue gas outlet to a flue that has the features
given in the Assembly section in this user guide.
The appliance is not suitable for the installation on a shared flue
system.
If the flue should catch fire, you must be provided with appropriate
systems for damping down the fire or call the fire service.
Connect the product to sockets with earth. Avoid using sockets
controlled by switches or automatic timers.
Do not use a damaged or worn power supply cable.
If a multiple socket is used, make sure that the total voltage of the
connected devices does not exceed that supported by the socket.
Furthermore make sure that the total voltage of all these devices
connected to the socket does not exceed the maximum level
accepted.
Do not use flammable substances to clean the appliance and its
elements.
Do not leave containers and flammable substance in the place where
the fireplace heating system is installed.
Do not use the appliance as an incinerator or in any other way
different to that for which it has been designed.
Do not use fuels different to those which are recommended
Do not use liquid fuels
The external surfaces of the appliance reach high temperatures when
it is running; operate with caution in order to avoid burns.

10
Only use original spare parts recommended by the manufacturer.
Do not perform any unauthorised modification to the appliance.
Some Precautions
Do not touch the hot components of the fireplace heating
system(ceramic glass, loading door) during normal functioning
Use the appropriate luminous button to switch the electrical panel off.
Do not disconnect the power supply cable while the fireplace heating
system is running.
Keep children away from the fireplace heating system when it is
running since they could get burned by touching its hot components.
Children and inexperienced people are not allowed to use the
appliance
Conventions used in the manual
Danger due to fireplace heating system functionality
General danger for personal safety.
Danger for people and objects due to materials at high
temperatures.
Danger for people and objects due to electric power.
Burns hazard for persons due to hot, pressurised liquids (with
temperature not exceeding that of boiling point at atmospheric
pressure).

11
TECHNICAL DATA
Dimensions of the fireplace heating system
Here below are the fundamental views of the fireplace heating system
(front view and view from above) useful to check clearance and
detailed dimensions.
573
388
870
599 526
245
620,5
87,5
997
278 150
390
161,5
78069

12

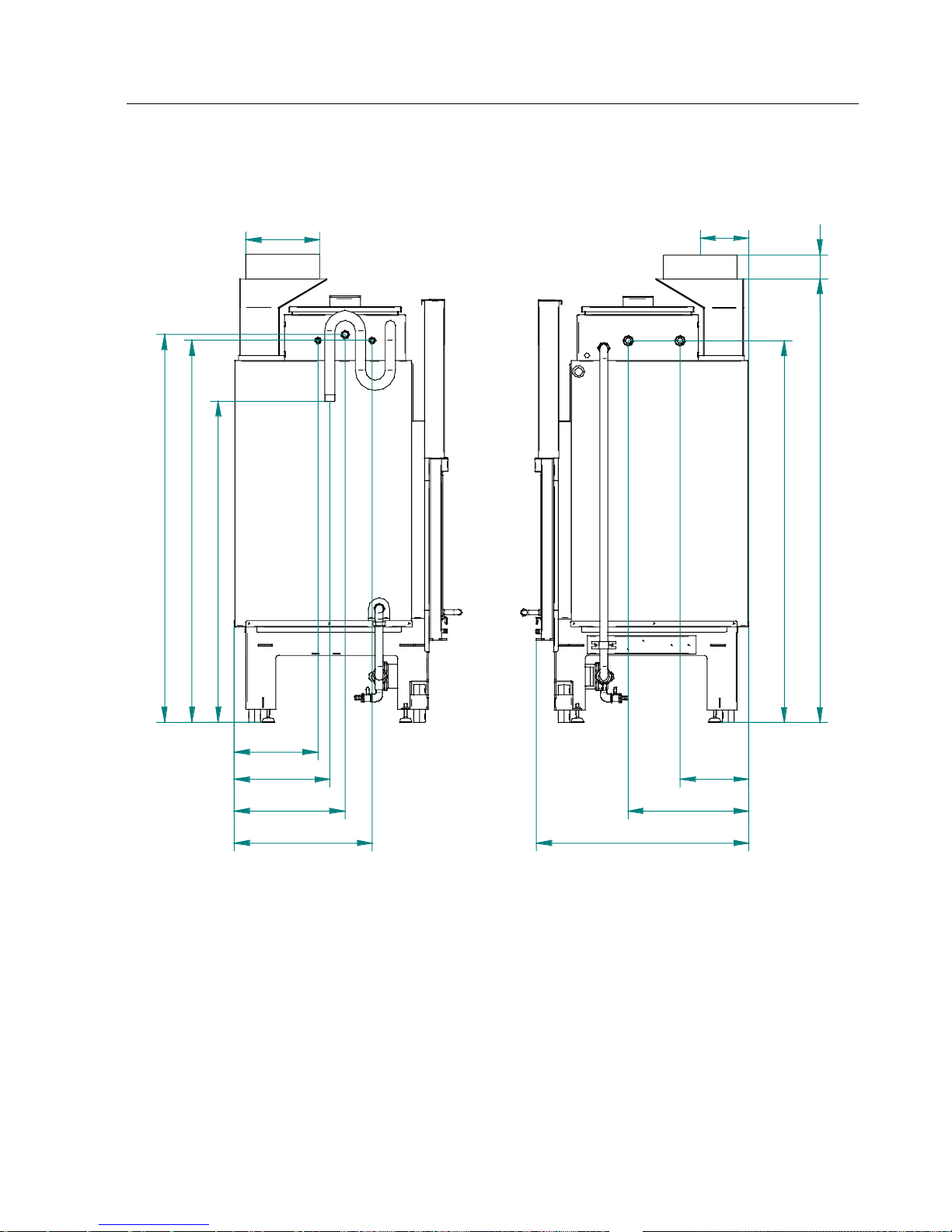

Hydraulic connections
LEFT SIDE RIGHT SIDE
R M
S
P
T
F
C
K
1473 80
1268
228
400
704
277,5
317,5
367,5
457,5
1067
1268
1288
161,5
245
M= SYSTEM FLOW 1” M GAS
R= SYSTEM RETURN 1” M GAS
S= BOILER DRAIN WITH COCK
P= CONTROL UNIT BULBS POCKET
F= DOMESTIC COLD WATER INLET (on prepared models only) 1/2" M GAS
C= DOMESTIC HOT WATER OUTLET (on prepared models only) 1/2” M GAS
K= BOILER BODY LOADING 1/2" M GAS
T= BOILING VENT VALVE 1” M GAS
FLUE EXHAUST 250mm M

13
Technical features
Nominal heat output
kW (Kcal/h)
34,5 (29.700)
Nominal heat output
kW (Kcal/h)
28,5 (24.500)
Heat output yield for heating water
kW (Kcal/h)
17 (14.600)
Heat output yield in the environment due to radiation
kW (Kcal/h)
11,5 (9.900)
Yield
%
83
Nominal capacity
Watt
88
Nominal voltage
V
220
Nominal frequency
Hz
50
Expansion vessel lt/preloading bar
6 / 1
Maximum working pressure/recommended
bar
2,5 / 1,5
CO at 13% of oxygen
%
0,24
Minimum chimney effect
Pa
11
Combustion gas flow
g/s
25,3
Flue gas outlet temperature
°C
216
Hourly consumption of wood
Kg/h
7,2
Wood loading interval
min
60
FLOW/RETURN heating hydraulic connections
Ø
1” M GAS
Boiler body capacity
litres
110
Width (exposed part)
mm
870
Height (exposed part)
mm
600
Depth
mm
710
Minimum safety distance from flammable materials
mm
180
Weight
Kg
350
The data reported above is approximate and not binding. The manufacturer reserves the faculty
to make any modifications to the product in order to improve its performance.
The given heat power can change according to the wood used.
The consumption of wood is subject to the quality and degree of dryness of the same

14
ASSEMBLY

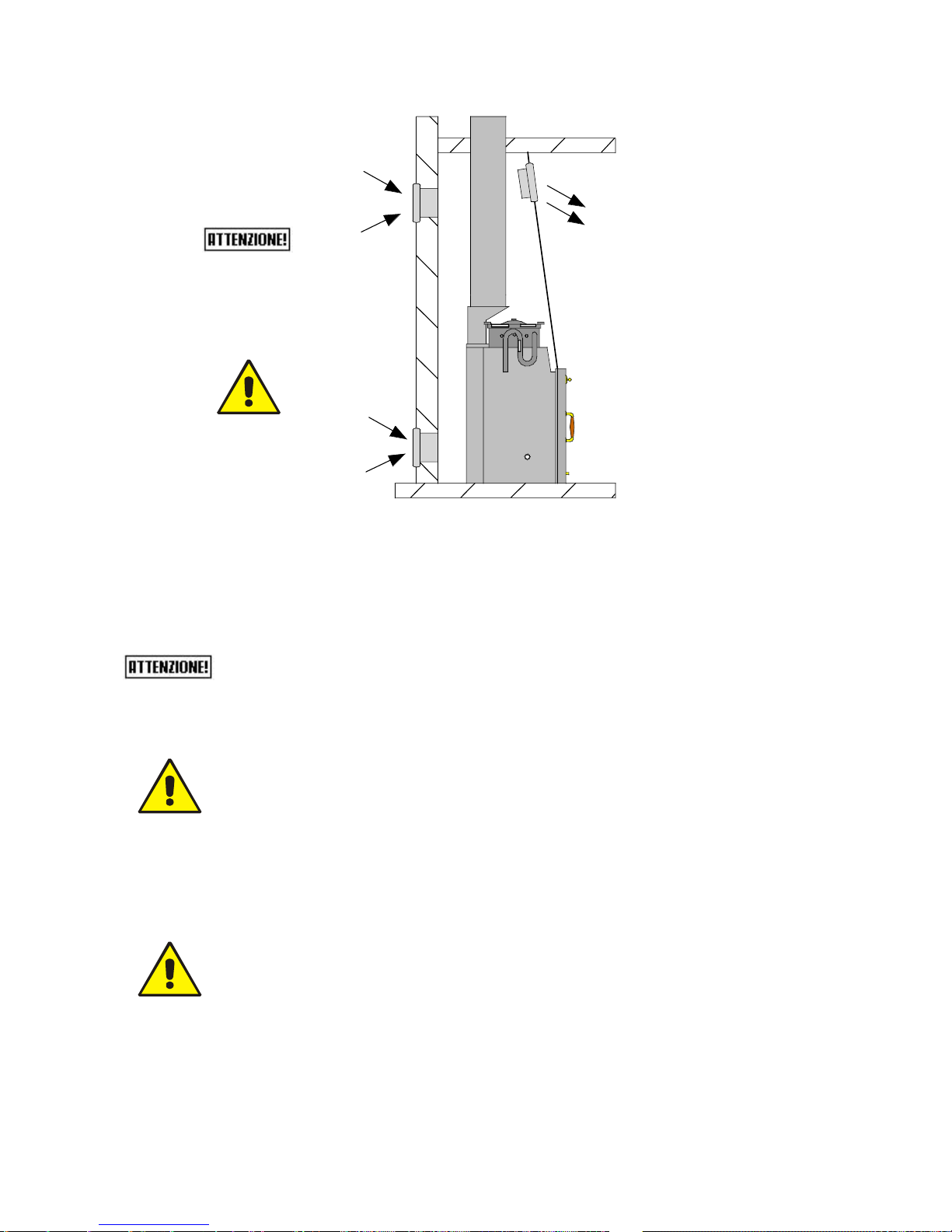

Positioning
The initial phase for the best installation of the fireplace heating
system is to determine its optimal location; regarding this the
following data needs to be taken into account:
Possibility of creating an external air vent;
Possibility of creating a straight flue and possibly coaxial at
the fireplace heating system outlet;
Possibility of creating piping necessary to discharge
boiling;
Proximity to the main liquid collector and /or the boiler if
one already exists);
Proximity or ease of connection to the water system.
Once the best location for the appliance is determined, it is
possible to position the fireplace heating system following the
indications below.
The appliance must be installed on a floor with suitable load
capacity. If the existing building does not fulfil this requirement
appropriate measures (e.g. load distribution plate) must be
taken.
The minimum safety distance from inflammable materials must
be at least 300 mm from the fireplace heating system.
Appliance installation must guarantee easy access for cleaning
the appliance itself, the gas pipes and the flue.
The air extraction devices must not be used in the same room as
the appliance, unless an adequate ventilation air supply is
envisioned.

15
Air vent
Modern houses are all equipped with hermetic fittings, which do
not allow any air to pass.
To burn one Kg of wood about 15 m3 of air is required (in
fireplaces with closed hearth) and 40 m3 in fireplaces with open
hearth.
If the combustion of the wood inside the combustion chamber is
perfect, the amount of carbon dioxide (CO2) produced will be
equal to that absorbed by a living plant via the “chlorophyll
photosynthesis” process.
The lack of oxygen leads to bad and incomplete combustion,
which only makes partial use of the wood's energy and instead
of developing carbon dioxide (CO2) causes the formation of
carbon monoxide (CO), a highly toxic substance. Consequently
it heats less and pollutes more.
This is why fireplace absolutely require an external air vent.
To realise the air vent in the wall behind the fireplace heating
system, follow the indications given below:
IMPORTANT:
Make an external air vent respecting the following minimum
passages:
Solution A: 650 cm2(Ø 30 cm)
Solution B: 390 cm2(Ø 22 cm)
It is also mandatory to create a hood aeration grid "C" with
minimum passages, 390 cm2(Ø 22 cm), without filters or
closures;

16
SFIATO
S
FC
K
T
S
T
SFIATO
FC
K
B
A
C
N.B.: It is important that the grid communicates with the external
air vent without connection via pipes.
If it is not possible to realise the air vent in the wall behind the
fireplace heating system, make the hole in a perimeter wall where the
fireplace heating system is installed.
If it not possible to realise the external air vent in the same room
where the fireplace heating system is installed, this hole can be made
in an adjoining room as long as this room communicates
permanently, by means of a transit hole (20cm minimum diameter).
The UNI 10683 Standard PROHIBITS the withdrawal of
combustion air from garages, combustible material warehouses,
or from activities where there is a fire hazard.
If there are other heating or suction appliances in the room, air
vents must guarantee an air volume necessary for the proper
functioning of all devices.
Only sealed appliances (e.g. C type gas appliances, according to
the UNI 7129 Standard) or appliances that do not cause a lower
pressure compared with the external environment can pre-exist
or be installed in the place where the fireplace heating system
must be installed.
Extractor fans can cause functioning problems to the thermo stove when
they are installed in the same room or space where the fireplace heating
system is found.

17
Flue and connection to the same
The Flue is a fundamental component for correct functioning of the
fireplace heating system. The minimum section of the flue must be that
indicated in the fireplace heating system technical features (250 mm).
Each fireplace heating system must be equipped with its own flue,
without other intakes (boilers, fireplaces, stoves, etc…). Flue
dimensions are closely related to its height, which must be measured
from the fireplace heating system flue gas outlet to the chimney base.
In order to guarantee draught, the chimney flue outlet surface must be
twice as big as the flue section. The combustion products exhaust
pipe, generated by the natural draught appliance, must respond to the
following requisites:
Combustion products sealed, waterproof and suitably isolated
and insulated in the same way as the conditions of use (cf UNI
9615);
Realised with suitable materials in order to resist to normal
mechanical stress, heat, action of the combustion products
and in the event of condensation;
Upward alignment after the vertical tract throughout the
remaining pathway with 50% minimum gradient. The sub-
horizontal alignment part must not have a length greater than
¼ of the effective height of the flue or chimney and it must not
however be longer than 2,000 mm;
Preferably circular internal section: squared and rectangular
sections must have rounded angles with radius larger than 20
mm;
Constant, free and independent internal section;
Rectangular sections with 1:5 maximum ratio between the
sides;
If the flue is installed externally it is absolutely necessary
that it is insulated in order to avoid the flue gas cooling
and the formation of condensate;
For the assembly of the flue gas pipes (which go from the
appliance to the flue inlet) elements of non-combustible
material must be used, which are suitable for resisting
combustion products and their condensation;
It is forbidden to utilise fibre cement pipes to connect the
appliances to the flue;

18
Flue pipes must not pass through places in which the
installation of combustion appliances is forbidden;
The assembly of flue pipes must be performed in a way to
guarantee the sealing against flue gas for the appliance
functioning conditions in low pressure;
The assembly of horizontal tracts is prohibited, unless
absolutely necessary;
It is forbidden to use tilted elements;
The flue gas pipe must allow the recovery of soot or be
cleanable and must have a constant section;
It is prohibited to make other air intake channels and pipes, for
plant engineering, transit inside the flue gas pipes, even if
over-dimensioned.

19
Chimney
The chimney is a device crowning the flue, used to ease dispersion of
combustion products.
It must satisfy the following requisites:
Have a useful outlet section that is not less than the double
of that of the flue on which it is inserted;
Be conformed in a way to prevent the penetration of rain
and snow into the flue;
Be built in a way that, also in the case of winds from every
direction and inclination, to ensure combustion exhaust.
The outlet height (where height means that which corresponds to the
top of the flue, independently of any chimneys) must be outside of the
so-called reflow zone in order to prevent the formation of counter-
pressures, which prevent free exhaust of the combustion products into
the atmosphere.
It is therefore necessary that the minimum heights, indicated in the
following figures, are respected:
Technical
volume
0,5 m
0,5 m
Distance > 5 m Distance < 5 m Distance> 1,85 m
Distance< 1,85 m
0,5 m over the ridge
Reflow zone
1m minimum
15°

20
CONNECTIONS
Electrical connection
The electric connection must only be performed by qualified
staff, with respect to general and local Safety Standards in
force.
Check that the power supply voltage and frequency
correspond to 220 V –50 Hz.
Appliance safety is obtained when the same is correctly
connected to an efficient earth plant.
In the electric connection to the mains power supply, envision a 6
A –Id 30 mA differential magnet circuit breaker switch with
relevant breaking load. The electric connections, including the
earth, must be made after the voltage has been removed from
the electric plant. When realising the system remember that the
cables must be placed in an unmovable and away from parts
subject to high temperatures. During the final wiring of the circuit,
only use components with a suitable electric protection rating.
KLOVER srl declines all responsibility for injury to persons,
animals or damage to objects deriving from the failure to
connect the network to the fireplace heating system earth
plant and failure to comply with the IEC Standards.
