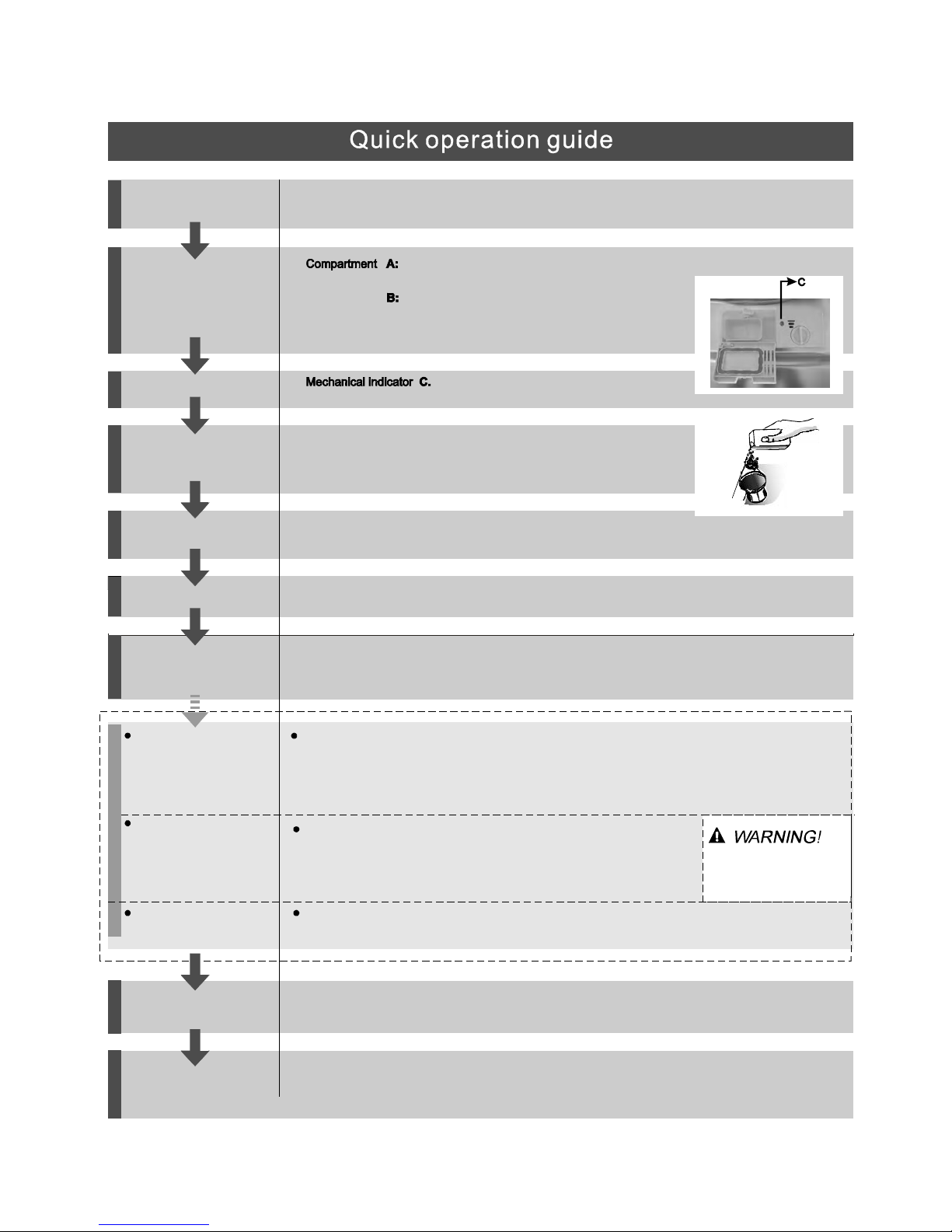

14 place settings
KD14WC

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Close the door, turn on the water tap and press the Start/Pause button. The machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, starting from the lower basket.
Changing theprogramme
Add forgottendishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme button until the selected programme lights up.
( See the section entitled Operationg instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the Power button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hot steammayescape
when the door is opened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Press the Power button to switch on the appliance, Open the door.
For detailed operating method read the corresponding content onthe instruction manual.
1. A runningcycle can only be modified ifit has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button, then press the program button for more than 3 seconds to cancel the
running programme.
3. Select a new programme.
4. Restart the dishwasher.
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little .
3.After the spray arms stop working, you can open the doorcompletely.
4.Add forgotten dishes.
5.Close the door
6.Press the Start/Pause Button, the dishwasher will run after 10 seconds.

To review the section on troubleshooting Tips
willhelp you tosolve some common problems
by yourself .
Dear Customer,
Please carefully readthismanualbefore usingthe
dishwasher, itwill help you to use and maintainthe
dishwasher properly.
Pass it on toany subsequent owner of the appliance.
Thismanualcontains sections on safety Instructions,
Operating Instructions, InstallationInstructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development andupdating of the product, may
make modifications without giving prior notice.
Keep it as arefer in the later days.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
Thisappliance is intended tobe used in household
andsimilarapplications suchas:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-byclients inhotels,motels and otherresidential
type environments;
-bedand breakfast type environments.
Dishwasher Features.................................... ...3
A Water Softener...........................................4、
Attention before or after loading the Dishwasher
Baskets..........................................................9
Filtering System.............................................13
Caring for the Dishwasher..................... .........14.
B Loading the Salt into the Softener.................5、
C Fill theRinseAid Dispenser.........................5、
D FunctionofDetergent .................................6 、

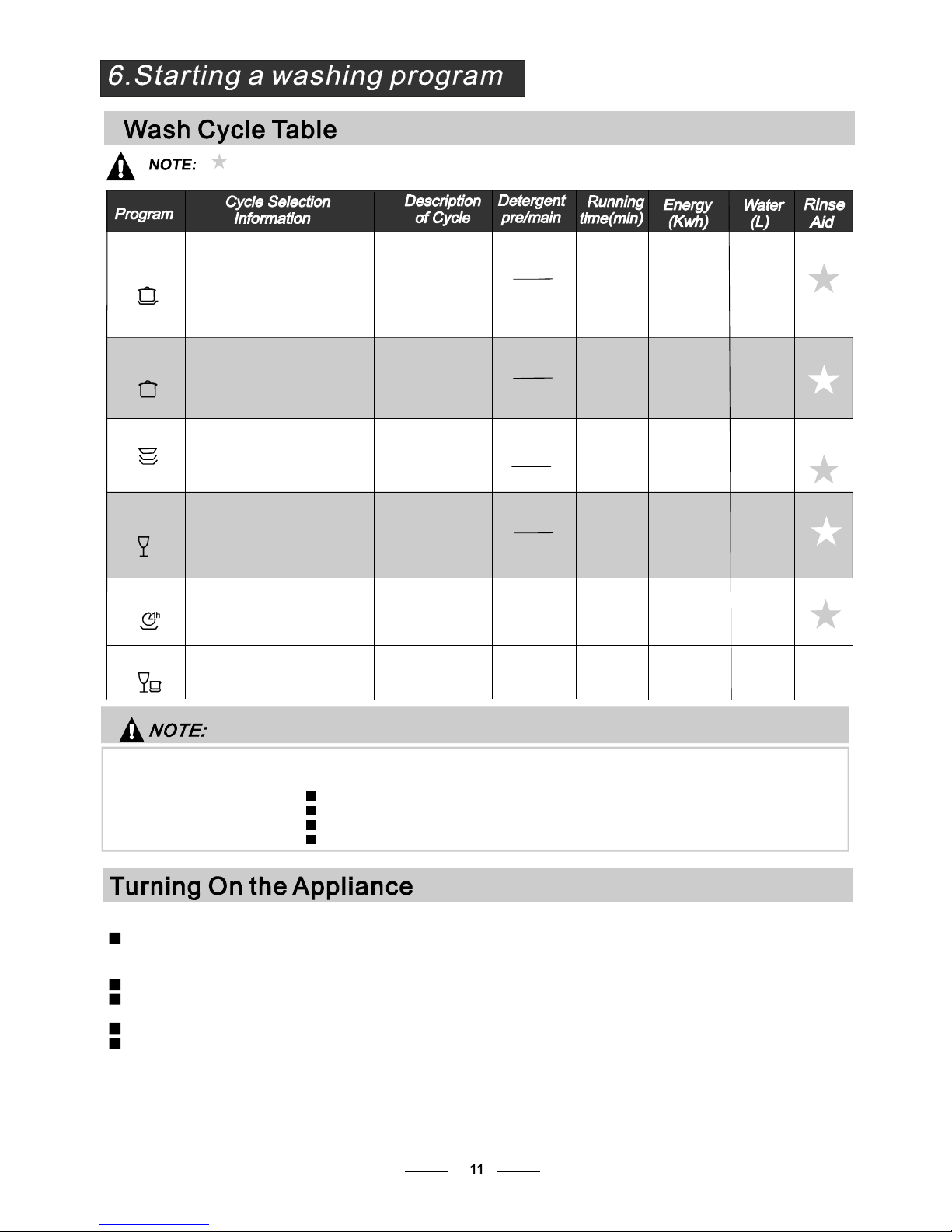

Wash CycleTable...........................................11
Turning on theAppliance................................12
Change the Programme.............. ................12....
At the Ene of the Wash Cycle...........................12
Control Panel...................................................3
The Method Loading Normal Dishware.............10
.................................. 15...Installationpreparation .............................. 16...Connectionofdrain hoses ......................... 17...Dishwasherinstallation steps
Before calling for service........................... ..... 20..
Errorcodes.................................... .............. 21...
Technical information.............................. ..... 22.. ..
About Electricity Connecting........................... 18...
Cold Water Connection.................................. 19...
Hot ............. 19WaterConnection..................... ...

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loadedin the basket
with their points down orplaced in a
horizontalposition.
)
When using your dishwasher, you should
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines witha visual heating
element.)
Ifthesupply cordisdamaged, it mustbe replaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment isempty
after completion of the wash cycle.
The applianceis to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene,e.g.paddingmaterial
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging materialcouldbedangerousfor children!
Fordisposing ofpackage and theappliance please goto arecycling centre. Therefore cut
off the powersupplycable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paperand shouldbe disposedin the
waste papercollection for recycling.
By ensuring thisproduct is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriatewaste handlingof this product.
For more detailed information about recycling of this product, please contact your local
city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.






beforeusingit for the first time.
To get the best performance from yourdishwasher,read all operating instructions
11 12

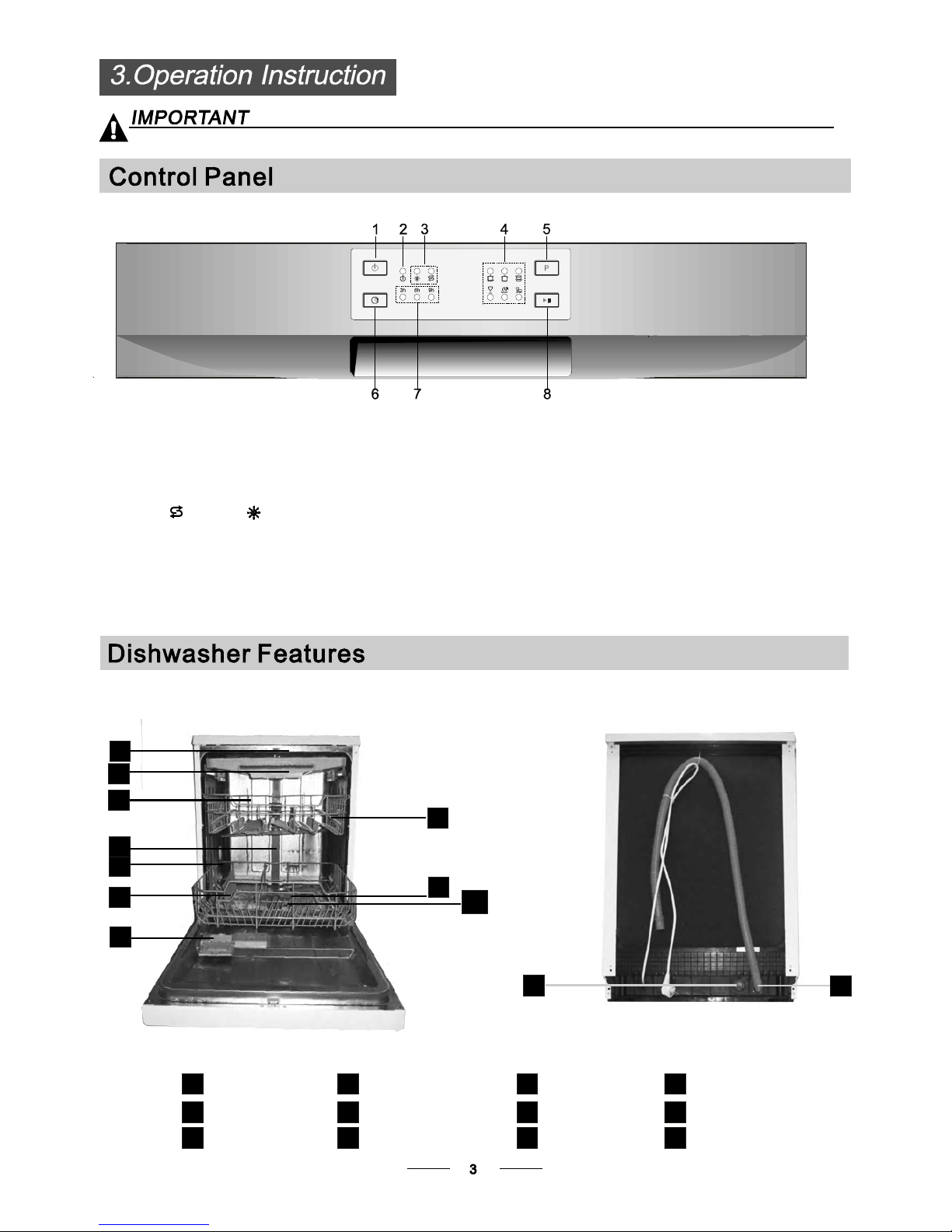

Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Salt container
Dispenser
Cupshelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upperbasket
Cutlery rack
Top spray arm
1
Innerpipe
5
6
7
8
9
10
12
11
3
24
6
8.Start /PauseButton:To start the selected
washingprogramorpausethewashingprogram
when the machine is working.
1.On/Off Button:To turnon/off the powersupply. 5.Washing Program Button : To Press thebutton to
selector appropriate Program.
7.Delayindicators: toshow thedelay time
(3h/6h/9h)
6.Delay Button :To Pressthe button to delay.
2.Power indicator: To show when thepoweron.
4.Programindicators: to show which program
you have chose;
3.Salt and rinse aid warning lights:To show
when the salt container or dispenserneed to be
refilled

The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals andsalts from the water, which wouldhave
a detrimentalor adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, theharder your wateris.
The softener should be adjusted according to the hardness of the water in your area. Your local WaterAuthority
can advise youonthehardnessofthewater inyourarea.
Adjusting Salt Consumption
The dishwasher is designed toallow for adjustment in the amount of salt consumed based on the hardness of
the water used.This is intended tooptimiseand customisethelevelo f salt consumption.
1. Switch on theappliance;
2. Press the Start/Pause button for more than 5 seconds to start thewater
softener set model within 60seconds after the appliance was
switched on;
3. Press button to select the proper set according to
your local environment, the sets will change inthe following
sequence: H1->H2->H3->H4->H5->H6;
4. Press the On/Off button or no operation for 5 seconds to end the set up model
the Start/Pause
WATER SOFTENER
Thehardness ofthe water variesfrom place to place. If hardwater is used inthe dishwasher, deposits will
form on the dishesand utensils.
The applianceis equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
Contact your local water board for information on the hardness of your water supply.
dH mmol/l
0~90~5 0~0.94 H1 0/
10-20
6-11 1.0-2.0 H2 20 60
21-30
12-17 2.1-3.0 H3 30 50
H4 40
40
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
SelectorPosition Salt consumption
(gram/cycle) Auto nomy
(cycles/1kgs)
Please follow the steps below for adjustment in salt consumption.
18-22 31-40 22-28 3.1-4.0
If your model does not have any water softener, you mayskip this section.
Clark:British degree
fH: French degree
DH: German degree
dH=1.25Clarke=1.78fH=0.178mmol/l
1
41-60
23-34 4.1-6.0 H5 50 30
H6 60 20
29-42
The manufactory setting: H4 (EN 50242)
35-55 61-98 43-69 6.1-9.8
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with water
C. Filltherinseaiddispenser
D. Fill in detergent

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves,the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (forsome Models),you can estimate when to fill
the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills ofthe salt, a soak or a rapid program should be run to remove the excessivesalt.
Always use the salt intended for use with dishwasher.
The salt container islocated beneath the lower basket and should be filled as explained
inthe following:
Attention!
Only use salt specifically designed for the use indishwashers! Every other type of
salt not specificallydesigned for theuse in adishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable forany damages caused.
Only fill withsalt just before starting one of thecomplete washingprograms.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosion.
The rinse aid isreleasedduring the final rinse to prevent water from forming droplets onyour dishes, which can
leave spots andstreaks. It also improvesdrying by allowing water toroll off the dishes. Your dishwasheris
designed to useliquid rinseaids.The rinseaiddispenser islocated inside thedoor next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume ofthe rinse aidcontaineris about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during thelast rinse, ensuring thorough rinsing, and spotand streakfree drying.
Attention!
Only usebranded rinse aidfor dishwasher. Never fill therinse aid dispenserwith anyothersubstances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Full fill the salt container with water,It is normal for a small amount of water to come out of the
saltcontainer.
AAfter the lowerbasket has been removed, unscrew and remove the cap from the salt container.
BPlace the end of thefunnel(supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C
DAfter filling the container , screw the cap tightly back clockwise.
EThe salt warning lightwill stopbeing after thesalt container hasbeenfilled withsalt.
FImmediately after filling the salt into the salt container, a washing program should be started
program Otherwise the filter system, pumpor other important parts of the machine may be damaged
bysalty water.This isoutof warranty.
(Wesuggest to use a short
).

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser,being careful not to overfill.
Replace the cap by inserting italigned with "open" arrow and turning it to the closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properlyor are show spots,adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase thedose if thereare dropsof waterorlimespotsonthe dishes after washing.
Reduce it ifthere aresticky whitish stains on your dishes ora bluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the sizeof the black dot
ontherinse aidlevel indicator changes, as illustrated below.
Full
3/4full
1/2full
1/ 4full- Should refilltoeliminate spotting
Empty
When to Refill the RinseAid Dispenser
Ifthereis no rinse-aid warning light in thecontrolpanel, you can estimatethe amount from the colour
of the optical level indicator C located next to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
the rinse aid level fall 1 / 4 full.
during the next wash. Don'tforget to replacethe cap before you closedishwasher door.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt,crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergents are suitable forthispurpose.
""
Proper Use of Detergent
Useonly detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't putpowdereddetergentintothe dispenser untilyou're ready to wash dishes.
Attention!

Amountof Detergentto Use
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Based ontheir chemicalcomposition, detergentscan besplit in two basic types:
Detergent tabletsofdifferent brandsdissolve at different speeds. For this reasonsome
detergenttablets cannot dissolve and develop their fullcleaning power during short
programs. Therefore please use long programs when usingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each washcycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is neededfor
anormalwashload. Moreheavily soiled items needmoredetergent.Alwaysaddthe
detergent justbefore starting the dishwasher, otherwise it couldgetdamp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
Detergent Dispenser
conventional, alkaline detergentswith caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thus the watersoftener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. Inthiscase please choosea program with a higher temperature.
°
Detergents
Thereare 3 sorts of detergents
1.Withphosphate andwithchlorine
2.With phosphate and without chlorine
3.Withoutphosphate and without chlorine
Always add the detergent just before starting each wash cycle.
Only use branded detergent aidfor dishwasher.
If the lid is closed: press release button.The lid will spring open.

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Theplace of main wash cycle detergent placed.
Theplace of pre-wash cycle detergent placed.
Please observe themanufacturers dosing and storage
Recommendations asstated onthedetergent packaging.
Close the lid and press untilit locks in place.
If the dishes are heavily soiled, place an additional
detergent dosein the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for thesingle programme on the last page.
Pleaseaware, that accordingtothe levelsoiling and the specific hardnessof water differencesarepossible.
Pleaseobservethemanufacturer's recommendations onthe detergent packaging.
AB

Cutlery withwooden, horn china or
mother-of-pearl handles
Plastic items that arenot heat resistant
Older cutlery with glued parts that are not
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items madefromsynthetic fibres
Some types of glasses can become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduringwashing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsofcutlery mustnot lie inside oneanother, or cover each other.
Toavoid damage to glasses, theymust not touch.
Load large itemswhich are most difficult to clean intothe lower basket.
The upper basket is designed toholdmore delicate and lighter dishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright positionare a potential hazard!
Long and/or sharp items of cutlery such as carving knivesmust be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important forgood results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwardsso that
water cannot collect in the container or a deepbase.
Consider buying utensils which are identifiedas dishwasher-proof.
Usea mild detergentthat isdescribed as'kind todishes'. If necessary, seek further
information fromthedetergent manufacturers.
Forparticular items,select a programwithaslowa temperature aspossible.
To prevent damage, do not take glass andcutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance ofbaskets and cutlerybasketsmay vary from your model.)
Scrape off any largeamounts ofleftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

The upper basket is designed to holdmore delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, aswellas plates,small bowls
andshallowpans (as long asthey are not too dirty).
Position the dishes andcookware so thatthey will
notgetmoved bythespray ofwater.
We suggest that you place large items and the most
difficultto cleanitemsareto be placedintothelower
basket: suchas pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikescan be folded down as
show in the picture right.
Adjusting the Upper Basket
The height of the upperbasket can be adjusted in order to
create more space for largeutensilsboth for the upper
/lowerbasket. The height of the upper basket can be
adjusted byplacingthewheels on differentheightofthe
rails. Long items, serving cutlery, salad servers and knives
shouldbe placed ontheshelfsothatthey donotobstruct
therotationofthesprayarms..
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutleryshouldbe placed inthecutlery rackseparately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
causebadperformance.

Starting a cycle wash
Draw out the lower and upper basket, load the dishes and push them back.
Itis commended to load the lower basket first, then the upper one (see the section entitled
Loadingthe Dishwasher ).
Pour in the detergent (seethe section entitled Salt, Detergent and RinseAid ).
Insert the plug into the socket. The power supplyis 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Close the door, press the P button to switch on the machine.
Press the program button , the wash program will be changed as follows direction:
If a program is selected, the response light will light. Then press the Start/Pause button, the
dishwasher beginsto start.
“”
“”
ower
Intensive->Normal->Eco->Glass->60 min->Rapid;
1
2
3
4
5
*EN 50242 : This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follows:
Capacity: 14 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
Pl=0.55W, Po=0.45W.
Means:need to fill rinse into the Rinse-Aid Dispenser.
()
(or )3in1
5/30g
(or )3in1
5/30g
(or )3in1
5/30g
Pre-wash
Pre-wash
Wash (65 )
Rinse
Rinse(55 )
Drying
℃
℃
Pre-wash
Wash (50 )
Rinse
Rinse(60 )
Drying
℃
℃
Wash (50 )
Rinse
Drying
Pre-wash
Rinse(60 )
℃
℃
Wash (40 )
Rinse
Rinse (45 )
℃
℃
175
170
165
35
1.25
1.04
1.5
0.55
20
16
12.5
12
Wash(62 )
Rinse (60 )
Drying
Pre-wash
℃
℃
60 11.5
1.15
5/30g
20g
Eco.
Intensive
Normal
(*EN 50242)
Rapid
60 min
For normally soiled loads,
such as , plates,glasses
andlightly soiledpans.
pots
Standard dailycyclefor
normally soiled loads, such
as pots plates glasses.、、
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
、
、
For lightly soiled loads that
do not need excellent drying
efficiency.
Ashorter washfor lightly
soiled loadsthat do not
need drying.
Glass
For lightly soiled loads,
such as glasses,
crystal and fine china.
(or )3in1
5/25g
Pre-wash
wash(40 )
Rinse
Rinse(60 )
Drying
℃
℃
115
0.93 16

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher.
Wait for afew minutesbefore unloading thedishwasher toavoidhandlingthe dishes and utensils while they
are still hot and more susceptible to breakage. Theywill also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
Power1.Switch off the dishwasher by pressing the button.
2.Turnoffthewatertap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler andthe drying will be improved.
Unloadingthedishwasher
It is normal that the dishwasher is wet inside.
Empty thelower basket first and then the upper one.This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
If you open the door , the machine will pause. The program lightwill
stop blinking and the buzzerwill mooing every minuteunless you close the door . After
you close the door ,the machine will keep on working after 10 seconds.
during awash cycle
Premise:
Acycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press the Start/Pause button , themachine will be in standby state, press the program button more than
3s then you can change the program to the desired cycle setting (see the section entitled " Starting awash
cycle. . ." ).
1
2
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working,you can open the door
completely.
2
3
Open the door a little to stop the washing.
14
5
6
Press the Start/Pause button
Press the button, the dishwasher will run
after 10 seconds.
Start/Pause
When you press the Start/Pause button to pause during washing, the running indicator will
stop blinkingand the dishwasher will mooingevery minute unless you pressthe
button to start.Start/Pause
Wash thearms in soapy and warm water and use a soft brush to
cleanthejets. Replace them afterrinsing themthoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, because the hot water may scald you.

The filter prevents larger remnants of food or other objects from getting inside thepum.
Theresidues may block thefilter, inthis casethey must be removed.

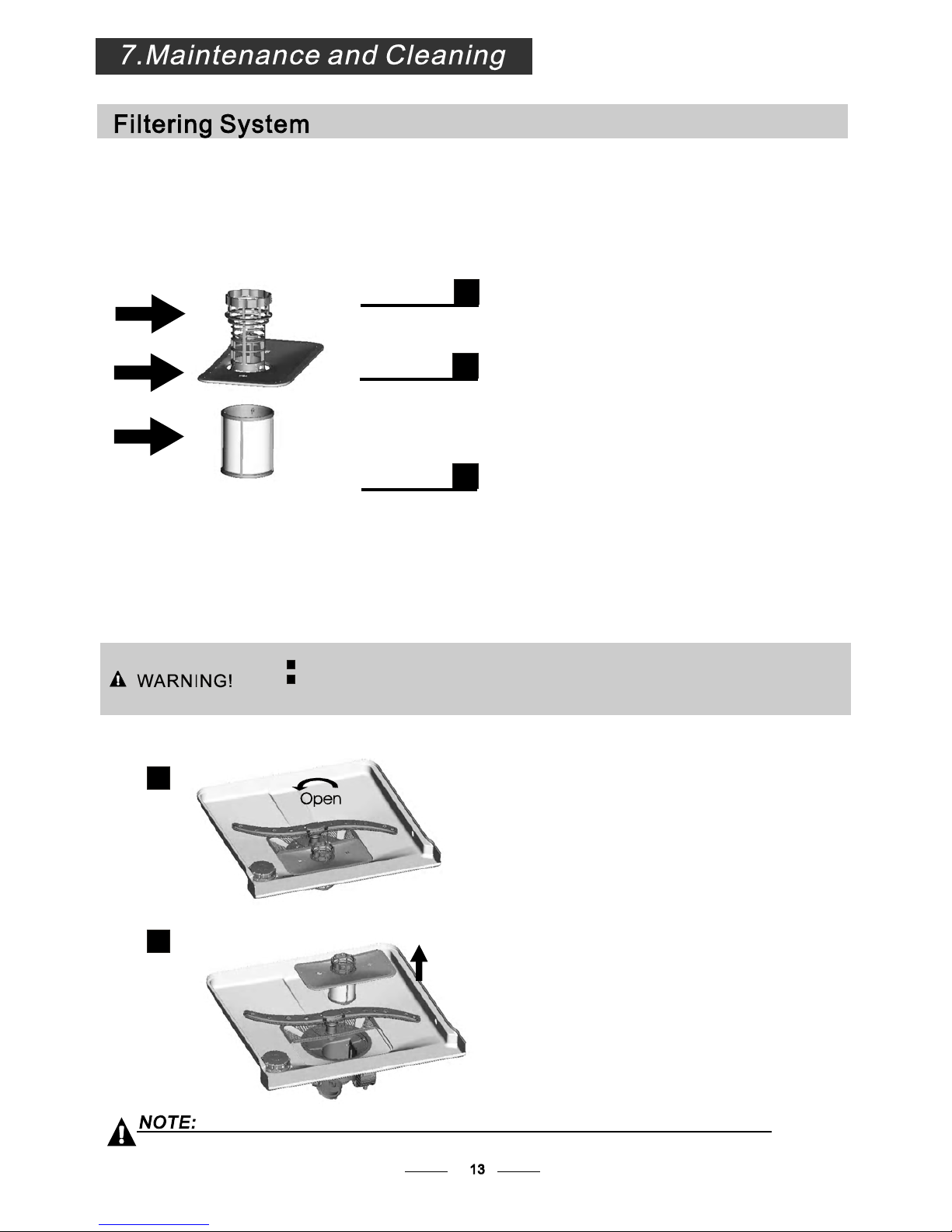

The filter system consists of a coarse filter,a flat (Main filter)
Anda microfilter(Fine filter).
Food and soil particles trapped inthisfilter arepulverizedby a
special jet on the lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that could block
the drainaretrappedin the coarse filter.To remove theitems
caught by the filter, gently squeeze the tap on thetop of this
filterandliftout.
Thisfilter holds soil and food residues inthe sumpareaand
prevents itfrom being redeposit on the dishesduring wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a good idea to
remove the larger food particles trapped in the filter aftereach wash cycleby rinsing the semicircular filterand
cup under running water. To remove the filter device, pull thecup handle in the upward direction.
removes food particles from the wash water, allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacementof the filter may reduce the performance level ofthe appliance
and damage dishes and utensils.
1
2
Step 1 Turn the filter in anti-clockwisedirection,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use agood appliance polish wax.
Never usesharp objects, scouring pads orharsh cleaners on any part of the dishwasher.
ProtectAgainst Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a sponge to soak up water in the sump.
please take frost protection measures on the dishwasher in winter.Every fter washing cycles,
please operate as follows time a
：
Cleaning the Filter
Cleaning The Door
To clean the coarsefilter and the fine filter, use acleaning brush. Reassemble the filter parts as shown in the figures
on thelast page and reinsert the entire assembly in the dishwasher, positioning it in itsseat and pressing downwards.
Whencleaning the filters, don't knock on them. Otherwise, thefilters could be
contorted and theperformance ofthe dishwashercouldbedecreased.
To clean theedge around the door, you should use only a soft warm, damp cloth.
To avoid penetrationof water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never usea spray cleaner toclean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
waterchemicalswillclogthe sprayarmjetsandbearings.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeany foodremnants and
clean thefilters underrunningwater.
Remarks:
The entirefilter assembly should be cleanedonce a week.
To remove thelower spray arm, pullout thespray armupward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwisetoremoveit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.

Itisrecommend that yourun awashcycle withthe
dishwasher emptyand then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlonger andprevent odoursfromforming
withintheappliance.
If the appliance must be moved, tryto keep it in the
verticalposition.Ifabsolutelynecessary,itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trappedin the seals.
Periodic cleaning with adamp sponge will prevent this
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberpartsofthedishwasher,
donot use solventsor abrasive cleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened withwater ana little
vinegar, or a cleaning product madespecifically for
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
After every wash, turn off the water supply to the
appliance and leave the door slightlyopen sothat
moisture and odours are not trapped inside.
After EveryWash
When not in Use for aLongTime
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power before
installingdishwasher.
Failuretodosocanresultindeathor
electrical shock.

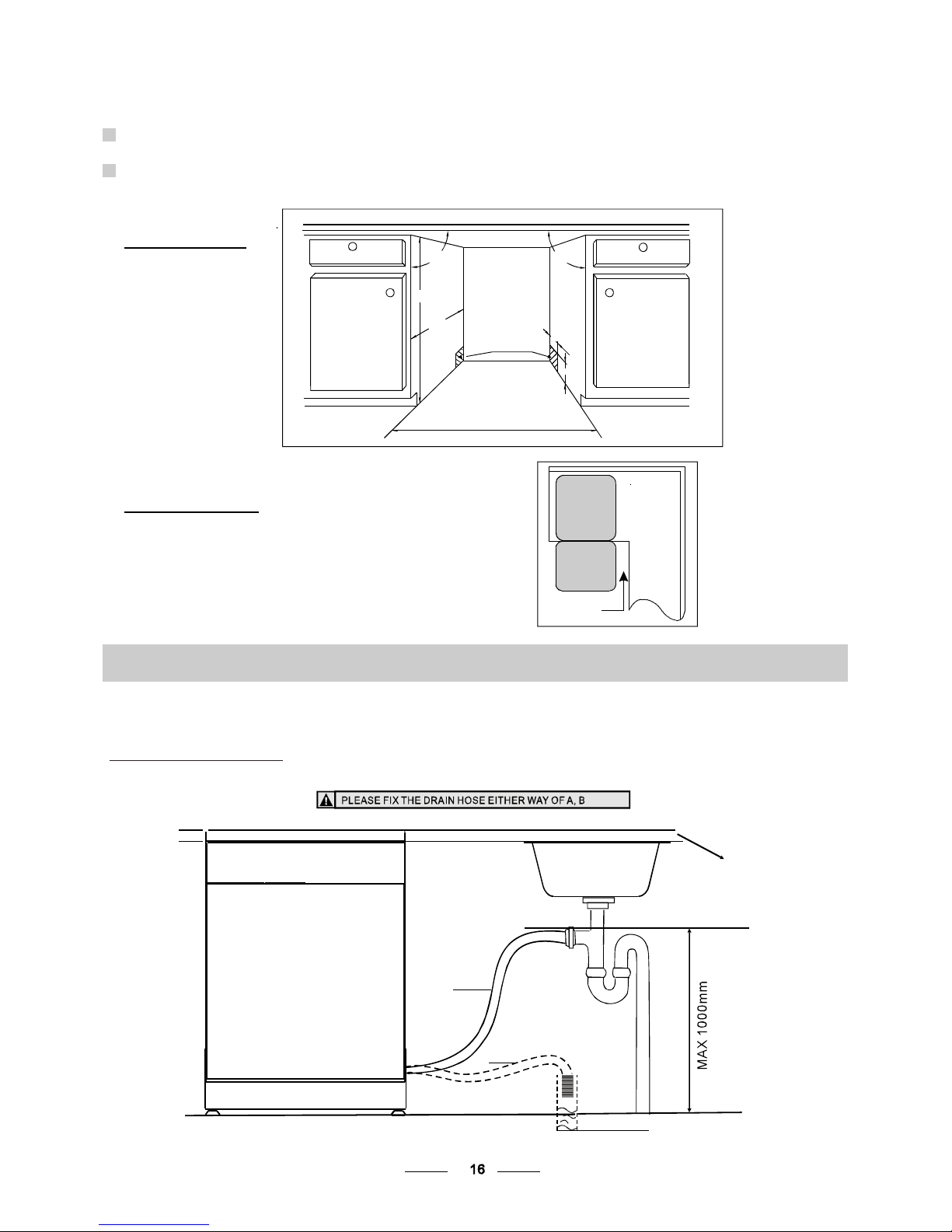

The installation position of dishwasher should be nearthe existing inlet and drain hoses and
power cord.
Onesideofthecabinetsinkshouldbechosentofacilitatetheconnectionofdrainhosesof
thedishwasher.
Installation preparation
Note: please check the accompanying installation accessories
●

Please carefully read the installation instruction.
● Illustrations of cabinetdimensionsandinstallationpositionof thedishwasher
Preparations should bemade before moving the dishwasher to the installation place.
Choose a placenear the sink to facilitatethe installation of inlet and drain hoses
(see figure 1).
If dishwasher is installed at the corner ofthecabinet, thereshouldbe some space
(illustrated in figure2) when thedoor is opened.
2
1
Minimum space when
the door is opened
【Figure2】
Cabinetdimensions
【】Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
Less than 5mm
between the top
of dishwasher and
cabinetand the
outer door aligned
tocabinet.
90 °
90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
Connection of drain hoses
●
Insert the drainhose into adrainpipe with a minimum diameter of 40mm, or letit run into the sink, making sure to
avoid bendingor crimping it.The topof the hosemust belessthan 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ40mm
B
Drain pipeconnection
【】Figure3
