Kogan CERTA CT20VRECSWB User manual

POWERPLUS 20V CORDLESS
RECIPROCATING SAW (SKIN ONLY)
CT20VRECSWB

Save all warnings and instructions for future reference. The term “power tool” refers to your
mains operated (corded) power tool or battery-operated (cordless) power tool.
Work area
•Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
•Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the
dust or fumes.
•Keep bystanders and children away while operating a power tool. Distractions can
cause you to lose control of the device.
Electrical safety
1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce the risk of electric shock.
2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of electric shock if your body is grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an
outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace
damaged cords immediately. Damaged cords increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor
use to reduce the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a Ground Fault
Circuit Interrupter (GFCI) protected supply to reduce the risk of electric shock.
SAFETY & WARNINGS

Personal safety
1. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use tool while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating power tools may result in
serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Safety equipment
such as dust mask, non-skid safety shoes, hard hat or hearing protection used for
appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch is in the off position before
connecting to a power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that
have the switch on invites accidents.
4. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
5. Remove adjusting keys or wrenches before turning the tool on. A wrench or a key
that is left attached to a rotating part of the tool may result in personal injury.
6. Do not overreach. Always keep proper footing and balance. The enables better
control of the power tool in unexpected situations.
7. Only use safety equipment that has been approved by an appropriate standards
agency. Unapproved safety equipment may not provide adequate protection. Eye
protection must be ANSI-approved and breathing protection must be NIOSH-
approved for the specific hazards in the work area.
Power tool use and care
1. Do not force the tool. Use the correct tool for your application. The correct tool will
do the job better and safer at the rate for which it is designed.
2. Do not use the tool if the switch does not turn it on or off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing the tool.
Such preventive safety measures reduce the risk of starting the tool accidentally.
4. Store idle power tools out of the reach of children and other untrained persons.
Power tools are dangerous in the hands of untrained users.
5. Maintain tools with care. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting
edges are less likely to bind and are easier to control.
7. Use only accessories that are recommended by Kogan.com for your model.
Accessories that may be suitable for one tool may become hazardous when used
on another tool.

Battery use and care
1. Ensure the switch is in the off position before inserting the battery pack. Inserting
the battery pack into power tools that have the switch on invites accidents.
2. Recharge only with the charger specified by Kogan.com. A charger that is suitable
for one type of battery pack may create a risk of fire when used with another
battery pack.
3. Use power tools only with specifically designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
4. When the battery pack is not in use, keep it away from other metal objects like
paper clips, coins, keys, nails, screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the battery terminals together
may cause burns or a fire.
5. If the appliance is misused or damaged, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, seek medical help as well. Liquid ejected from the battery may cause irritation
or burns.
6. If the battery is damaged, vapours may be emitted which can irritate the
respiratory system. Provide fresh air and seek medical help in case of inhalation.
7. Do not open the battery. Keep the battery away from sources of heat, such as fire
or continuous direct sunlight, to avoid the danger of explosion.
Reciprocating saw use and safety
•Hold the power tool by the insulated gripping surfaces, when performing an
operation where the cutting accessory or fastener may contact hidden wiring.
Cutting accessory and fasteners contacting a “live” wire may make exposed metal
parts of the power tool “live”, which can give the operator an electric shock.
•Use appropriate detectors to determine if utility lines are hidden in the work area or
call the local utility company for assistance. Contact with electric lines can lead to
fire and electric shock. Damaging a gas line can lead to an explosion. Penetrating
a water line may cause property damage or electric shock.
•Switch off the power tool immediately if the tool inserts jam. Be prepared for high
reaction torque that can cause kickback.
•Hold the machine with a firm grip. High reaction torque can briefly occur while
driving in and loosening screws.
•Secure the workpiece. A workpiece clamped with clamping devices or in a vice is
held more securely than by hand.
•Be extra careful when cutting in high or hard-to-reach locations. Avoid sawing
overhead. Be on the lookout for hidden wires and falling debris.
•Keep your workplace clean. Blends of materials are particularly dangerous. Dust
from light alloys can burn or explode.
•Always wait until the machine has come to a complete stop before placing it down.
The tool insert can jam and lead to loss of control over the power tool.

Safety instructions for the battery charger
•Before using battery or charger, read all instructions and cautionary markings on
the battery charger, battery pack and product using the battery.
•Use only the charger which accompanied your product or direct replacement. Do
not substitute any other charger. Use only the same supplier approved chargers
with your product.
•Do not disassemble or operate the charger if it has received a sharp blow, been
dropped, or otherwise damaged in any way. Incorrect reassembly may result in a
risk of electric shock, electrocution, or fire.
•Do not recharge the battery in a damp or wet environment. Do not expose the
charger to rain or snow. If the battery case is cracked or otherwise damaged, do not
insert into charger. Battery may short or fire may result.
•Charge only supplier approved rechargeable batteries. Other types of batteries
may burst and cause personal injury or damage.
•Charge battery pack in temperatures above 0ºC and below 45ºC. Store the tool
and battery pack in locations where temperatures will not exceed 49ºC. This is
important to prevent serious damage to the battery cells.
•Pull by the plug rather than the cord when disconnecting charger or when
disconnecting cords. This will reduce the risk of damage to the electric plug and
cord.
•Make sure that cord is located so that it will not be stepped on, tripped over or
otherwise subjected to damage or stress.
•Do not use an extension cord unless it is necessary. Use of improper extension cord
could result in a risk of fire, electric shock, or electrocution.
•Do not operate charger with damaged cords or plugs - have them replaced
immediately.
•Disconnect the charger from the outlet before attempting any cleaning. This will
reduce the risk of electric shock. Removing the battery pack will not reduce this risk.

Safety instructions for the battery pack
•Do not incinerate the battery pack even if it is severely damaged or is completely
worn out. The battery pack can explode in a fire. Toxic fumes and materials are
created when lithium-ion battery packs are burned.
•Do not charge or use the battery in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust. Inserting or removing the battery from the
charger may ignite the dust or fumes.
•If battery contents come into contact with the skin, immediately wash the area
with mild soap and water. If battery liquid gets into the eye, rinse water over the
open eye for 15 minutes or until irritation ceases. If medical attention is needed, the
battery electrolyte is composed of a mixture of liquid organic carbonates and
lithium salts.
•Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If
symptoms persist, seek medical attention.
•Charge the battery packs only in the charger which accompanied your product.
•Do not splash or immerse in water or other liquids. This may cause premature cell
failure.
•Do not store or use the tool and battery pack in locations where the temperature
may reach or exceed 40°C (such as outside sheds or metal buildings in summer).
•When batteries are not in tool or charger, keep them away from metal objects.
•Do not put batteries into fire or expose to high heat. They may explode.

1

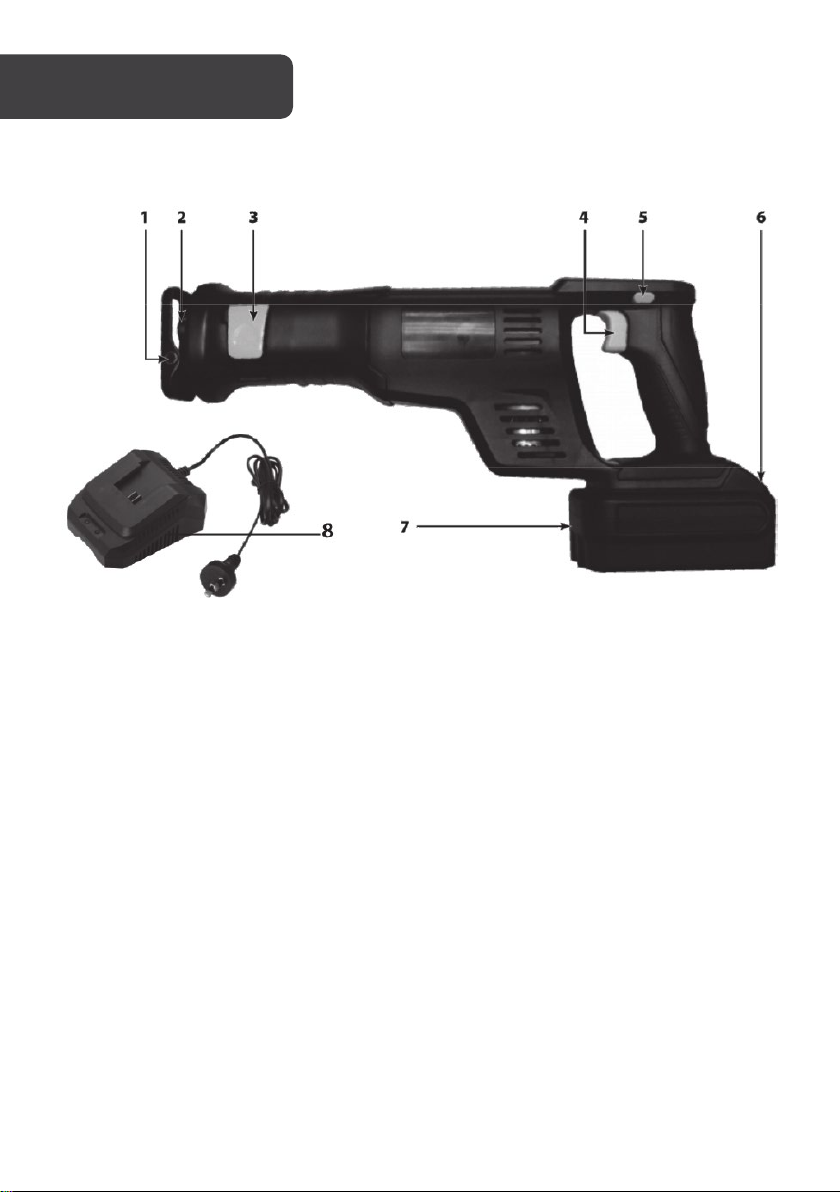

Shoe (base)
2
Blade holder
3
Blade clamp trigger
4
Switch trigger
5
Lock-off button
6
Battery release button
7
Battery pack (not included)
8
Battery charger (not included)
OVERVIEW

To prevent serious injury from accidental operation, turn the Power Switch of the tool to the
“Off” position and disconnect the battery pack from the tool before assembly or making any
adjustments to the tool.
Always wear eye protection when using this tool.
Lock-Off Button
Your saw is equipped with a lock-off button (5) which reduces the possibility of accidental
starting. The lock-off button is located on the handle above the switch trigger (4). You must
depress the lock-off button to pull the switch trigger.
The lock resets each time the trigger is released.
Variable speed-controlled switch trigger
•This tool has a variable speed switch (4) that delivers higher speed with increased
trigger pressure.
•Speed is controlled by the pressure you apply to the trigger.
•To turn your saw on, depress the lock-off button and pull the switch trigger down.
Release the switch trigger to turn your saw off.
OPERATION
Note:
You can depress the lock-off button on either the left or right side.

Blade clamp trigger
To install the blade into the saw:
1. Open blade clamp trigger to its fully open position.
2. Insert blade shank from the front, aligning the hole in the shank of the blade and
blade clamp with the pin in the saw bar.
3. Close the blade clamp trigger.
To remove the blade from the saw:
1. Open the blade clamp trigger to its fully open position.
2. Remove blade.
General cutting
Before cutting any type of material, be sure it is firmly anchored or clamped to prevent
slipping.
•Hold your saw firmly in front of and clear away from you.
•Make sure the saw blade is clear of any foreign material. Be sure the material to be
cut is held firmly. Small workpieces should be clamped in a vice or with clamps to
the workbench or table. Mark the line to cut clearly. Depress the lock-off button and
then pull the switch trigger to start the cutting action.
•Place the shoe (base) assembly (1) against the workpiece, then move the blade into
the work. Do not force the tool.
•Use only enough pressure to keep the saw cutting. Let the blade and saw do the
work. Use of excessive pressure that causes bending or twisting of the blade may
result in broken blades.
WARNING: Always remove the battery pack before inserting or removing
a blade. Failure to remove the battery pack from the saw could result in
accidental starting, causing possible serious personal injury.

Plunge cutting
Mark the cut line. Choose a convenient starting point inside the area to be cut out and place
the tip of the blade over that point. Rest the front edge of the shoe (base) assembly on the
work and hold firmly in position. Depress the lock-off button and then pull the switch trigger
to start the cutting action.
With the saw blade at full cutting speed, slowly tilt the saw downward until the tip of the
blade starts cutting. After the blade has penetrated the work, tilt the saw until the blade is
perpendicular to the work.
Metal cutting
Metals such as sheet steel, pipe, steel rods, aluminium, brass, and copper may be cut with
your saw. Be careful not to twist or bend the saw blade. Do not force the tool; cutting oil is
recommended when cutting most soft metals and steel. Cutting oil will also keep blades
cool, increase the cutting action and prolong the life of the blade.
Never use gasoline, as the normal sparking of the motor may ignite fumes. Clamp the
workpiece firmly and cut close to the clamping point to eliminate vibrations of the workpiece
being cut. When cutting conduit pipe or angle iron, clamp the workpiece in a vice if possible
and cut close to the vice. To cut thin sheet metal, “sandwich” the material between
hardboard and plywood, then clamp the layers to eliminate vibration and material tearing.

Charging battery pack (not included)
1. Remove the battery pack (7) from the handle, pressing the push lock buttons (6)
downwards to do so.
2. Check that your mains voltage is the same as that marked on the rating plate of
the battery charger. Plug the mains plug of the charger (8) into the mains socket
outlet; turn on the power the green LED will illuminate.
3. Push the battery pack onto the battery charger. The green LED will extinguish, and
the red LED will illuminate, which indicates that the battery pack is being charged.
4. When the charging period is completed after approx. 1 hour, the green LED will
illuminate, and the red LED will extinguish.
5. The temperature of the battery pack may rise slightly during the charging
operation. This is normal. If the green LED extinguishes during charging, the
temperature is either above or below the optimal charging temperature. In this
case, pull the plug of the charger and charge the battery in an environment in
which the temperature is either warmer or colder.
If the battery pack fails to become charged, please check:
•Whether there is the voltage at the socket-outlet
•Whether there is proper contact at the charging contacts on the charger
If the battery continues to fail to charge, please contact the Kogan customer support team.
To ensure that the battery pack provides long service you should take care to recharge it as
soon as you notice that the power of the power tool drops.
Never fully discharge the battery pack. This will cause the battery pack to develop a defect.

Symbols
The following symbols or initials may be used on the tool. Please see below to learn their
meaning. Proper interpretation of these symbols will allow you to operate the tool better and
safer.
Symbol
Name
Designation/explanation
V
Volts
Voltage
A
Amperes
Current
Hz
Hertz
Frequency (cycles per second)
Kg
Kilograms
Weight
Min
Minutes
Time
s
Seconds
Time
Φ
Diameter
Size of drill bits, grinding wheel etc.
n°
No load speed
Rotational speed at no load
…/min Revolutions per minute
Revolutions, strokes, surface speed, orbits etc.
per minute
0
Off position
Zero speed, zero torque.
Arrow Action in the direction of the arrow
Direct current Type or a characteristic of current
Read manual symbol Alerts user to refer to the manual
Wear eye protection Alerts user to wear eye protection
Class II construction Double insulated construction tools

To prevent serious injury or death from accidental operation, turn the Power Switch of the tool
to its “Off” position and disconnect battery pack from tool before performing any inspection,
maintenance, or cleaning procedures.
•Clean out dust and debris from vents and electrical contacts by blowing with
compressed air. Always wear safety goggles when cleaning tools with compressed
air.
•Keep tool handles clean, dry, and free of oil or grease.
•Use only mild soap and a damp cloth to clean the tool, keeping away from all
electrical contacts.
Note
Certain cleaning agents and solvents are harmful to plastics and other insulated parts.
Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated
cleaning solvents, ammonia and household detergents containing ammonia.
Tool maintenance must only be performed by qualified repair personnel. If the tool is not
working properly, do not attempt to repair it yourself. Contact the Kogan customer support
team.
Rated Voltage
20V
No load speed 0 – 2800/min
Blade stroke
7/8 inch (22mm)
Blade change Toolless
Battery pack 20V 2000mAh Li-ion
Charging time
~1 hour
Charger adapter
Input: 100-240V 50-60Hz
Output: 21V 2A
SPECIFICATIONS
CARE & MAINTENANCE

Problem
Possible Causes
Likely Solutions
Tool will not start.
•Battery pack not
installed properly.
•Battery pack not
charged.
•Check battery pack installation.
•Check battery pack charging
requirements.
Battery pack will
not charge
•Battery pack not
inserted into
charger.
•Charger not
plugged in.
•Surrounding air
temperature not
suitable.
•Battery pack too
hot or too cold.
•Insert battery pack into charger until
red LED appears.
•Plug charger into a working outlet.
Refer to “Charging the battery pack”
for more details.
•Check current at receptacle by
plugging in a lamp or other
appliance.
•Check to see if the receptacle is
connected to a light switch which
turns the power off when you turn
out the lights.
•Move charger and battery to a
surrounding air temperature of
above 4.5°C or below 40.5°C.
•The charger will not charge a
battery pack if the cell temperature
is below approximately 0°C or above
60°C.
•The battery pack should be left in
the charger and the charger will
begin to charge automatically when
the cell temperature warms up or
cools down.
TROUBLESHOOTING

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
