KOLDWAVE
Portable Air Condioners
5KK14BEA2AA00
5KK21BGA2AA00
5KK30BGA2AA00
SERVICE MANUAL

2 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Table of Contents
GENERAL DESCRIPTION..............................................................................4
General air condioning system
Portable air condioning system
SPECIFICATIONS.........................................................................................5
Exterior Dimension Diagram
Technical Specificaons
Characteriscs
CONSTRUCTION.........................................................................................9
Internal Structure
REFRIGERANT SYSTEM CONSTRUCTION...................................................12
Compressor
Compressor lubricaon
Condenser
Capillary Tube
Evaporator
Accumulator
ELECTRICAL SYSTEM.................................................................................18
Circuit Diagram
Control panel
Program Seng
Controller Board
Control Specificaons
Self-Diagnosc Codes
Compressor
Evaporator Fan Motor
Condenser Fan Motor
Capacitor
Molded Case Circuit Breaker
Magnec Contact
Thermal Relay
Temperature Thermistor
Drain Tank Switch

page 3
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
ASSEMBLY (For 5KK14BEA2AA00).................................................................32
Component parts
General Safety Informaon
Troubleshoong chart
ASSEMBLY (For 5KK21BGA2AA00)................................................................33
Component parts
General Safety Informaon
Troubleshoong chart
ASSEMBLY (For 5KK30BGA2AA00)................................................................34
Component parts
General Safety Informaon
Troubleshoong chart
DISASSEMBLY (For 5KK14BEA2AA00)............................................................38
Disassembly
Control panel removal
Electrical parts and relay board removal
Fan motor removal
DISASSEMBLY (For 5KK21BGA2AA00)...........................................................45
Disassembly
Control panel removal
Electrical parts and relay board removal
Fan motor removal
DISASSEMBLY (For 5KK30BGA2AA00)...........................................................52
Disassembly
Control panel removal
Electrical parts and relay board removal
Fan motor removal
REFRGERANT SYSTEM REPAIR.......................................................................59
Brazing
Removal of Refrigerant System Components
Charging the System with R-410A Refrigerant
Refrigerant Charging Work

4 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
GENERAL DESCRIPTION
General air condioning system
1) convenonal air condioners cool the enre enclosed environment.
2) They act as “heat exchangers”, equiring an interior unit (evaporator) to blow cool
air into the interior and an exterior unit (condenser) to exhaust exchanged heat
to the outdoors.
Portable air condioning system
1) The 5KK14BEA2AA00/5KK21BGA2AA00/5KK
30BGA2AA00 is a spot cooler which directs
cool air to parcular areas or objects.
2) The 5KK14BEA2AA00/5KK21BGA2AA00/5KK
30BGA2AA00 has the following features.
3) The innovave design of the KK14BEA2AA
00/5KK21BGA2AA00/5KK30BGA2AA00 has
resulted in one compact unit, replacing the
need for two separate units.
4) With the whole cooling system built into one
compact unit, the 5KK14BEA2AA00/5KK21BG
A2AA00/5KK30BGA2AA00 requires no piping
and can be easily transported and installed.
5) The 5KK14BEA2AA00/5KK21BGA2AA00/5KK
30BGA2AA00 is economical because it cools
only the area or objects which need to be
cooled.
Condenser
Outdoor Unit
Evaporator
Indoor Unit
Intake air
(to Evaporator)
Intake air
(to Condenser)
Filter
Filter
Exhaust Hot Air
Cooling Air

page 5
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
SPECIFICATIONS
Exterior Dimension Diagram
<5KK14BEA2AA00>
436.2 2.9
12.5
5.9
36.2
17.5 19.8
13.1
12
5.6
20

6 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
<5KK21BGA2AA00>
22.1
17.3
16.3
7.87.1
4.8 36.4 5.6 1.9
16.3
5.9
42.1
20
24.4

page 7
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
<5KK30BGA2AA00>
4.7 6.2 6.2
2.6 15.7
4.0 15.2
22.1
5 36.4
21
OD. Ø5.2
29.4
5.1
42.2

8 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Specificaons Unit 5KK14BEA2AA00 5KK21BGA2AA00 5KK30BGA2AA00
Cooling Capacity Btu/h 13,200 19,500 / 21,000 28,000 / 29,000
Power Supply
Phase Single Single Single
Volts 115 208 / 230 208 / 230
Hertz 60 60 60
Power Consumpon Was 1,300 2,300 3,300
Rated Current Amps Toshiba
11.5
LG
10.9 11.0 / 10.0 15.1 / 14.8
EER Btu/Wh 8.6 8.9 9.3
Circuit Breaker Size Amps 15 15 20
Nema Plug Type 5-15P 6-15P 6-20P
Power Cord Gauge Awg 14 14 12
Power Cord Length  10 6 10
Dimensions (W x H x D) In.(mm) 17.5 x 19.9 x 43.3
(445 x 508 x 1092)
22.0 x 24.4x 50.4
(558 x 620 x 1280)
22.1 x 29.4x 47.3
(561 x 746 x 1200)
Weight (Net / Gross) Lbs(kg) 132 / 145.5 (60 / 66) 198 / 216 (90 / 98) 216 / 234 (98 / 106)
Condensate tank Gallons(Liters) 3.17 (12) 3.17 (12) 3.17 (12)
No. of Cool Air Outlets Pcs 1 2 3
Ambient temperature
range ˚F(˚C) 64~113 (18~45) 64~113 (18~45) 64~113 (18~45)
Seng temperature
(Room cool mode) ˚F(˚C) 64~86 (18~30) 64~86 (18~30) 64~86 (18~30)
Seng temperature
(Spot cool mode) ˚F(˚C) 32~86 (0~30) 32~86 (0~30) 32~86 (0~30)
Applicaon Area (Room
cool mode) ²(m²) 377 (35) 527 (50) 743 (70)
Refrigerant
Type R-410A R-410A R-410A
oz(g) Toshiba
15.9 (451)
LG
15.5 (440) 42.3 (1200) 44.4(1250)
Design Pressure - Hi/Low Psig Toshiba
450 / 250
LG
450 / 270 450 / 250 450 / 280
Indoor Air Flow (High/
Low) CFM(CMH) 283 / 247
(480 / 420)
512 / 477
(870 / 810)
741 / 635
(1560/ 1447)
Wheels pcs 4 4 4
diameter 76mm 102mm 102mm
Hot Air Duct Diameter In.(mm) 12 (300) 16 (400) 16 (400)
Maximum Duct Length (m) 16 (5) 30 (9) 60 (18)
Safety Devices
Compressor overload protector, An-freezing thermister, Full drain tank switch,
Automec restart (Power interrupon), Compressor me delay program, High
pressure switch
Features Temperature control, Self-diagnosc funcon, Two sppeds fan, Oponal drain
pump kit, Washable filters, ˚F(˚C) display
Technical Specificaons

page 9
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Condenser
Condenser Motor
Evaporator
Cooling Air Duct
Condenser Air Outlet
Control Box
• Relay Board
• Capacitor
Drain Tank
Drain Tank Switch
Compressor
Locking Swivel Caster
Caster (Rear)
Eva Scroll
Control Panel
Evaporator Motor
CONSTRUCTION
Internal Structure
<5KK14BEA2AA00>

10 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Control Panel
Eva Scroll
Drain Tank
Drain Tank Switch
Condenser
Condenser Motor
Control Box
• Relay Board
• Capacitor
Caster (Rear)
Locking Swivel Caster
Compressor
Evaporator
Evaporator Motor
Cooling Air Duct
Condenser Air Outlet
<5KK21BGA2AA00>

page 11
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Control Panel
Eva Scroll
Condenser
Control Box
• Relay Board
• Capacitor
Caster (Rear)
Locking Swivel Caster
Compressor
Drain Tank Switch
Drain Tank
Evaporator
Eva Filter
Evaporator Motor
Cooling Air Duct
Cowl
<5KK30BGA2AA00>

12 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Flow of
Refrigerant
Condenser Air Outlet
Condenser Motor
Compressor
Accumulator
Evaporator Capillary tube
Drier
Condenser
REFRIGERANT SYSTEM CONSTRUCTION
<5KK14BEA2AA00,5KK21BGA2AA00>

page 13
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Compressor
Accumulator
Evaporator Capillary tube
Drier
Condenser
<5KK30BGA2AA00>

14 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00

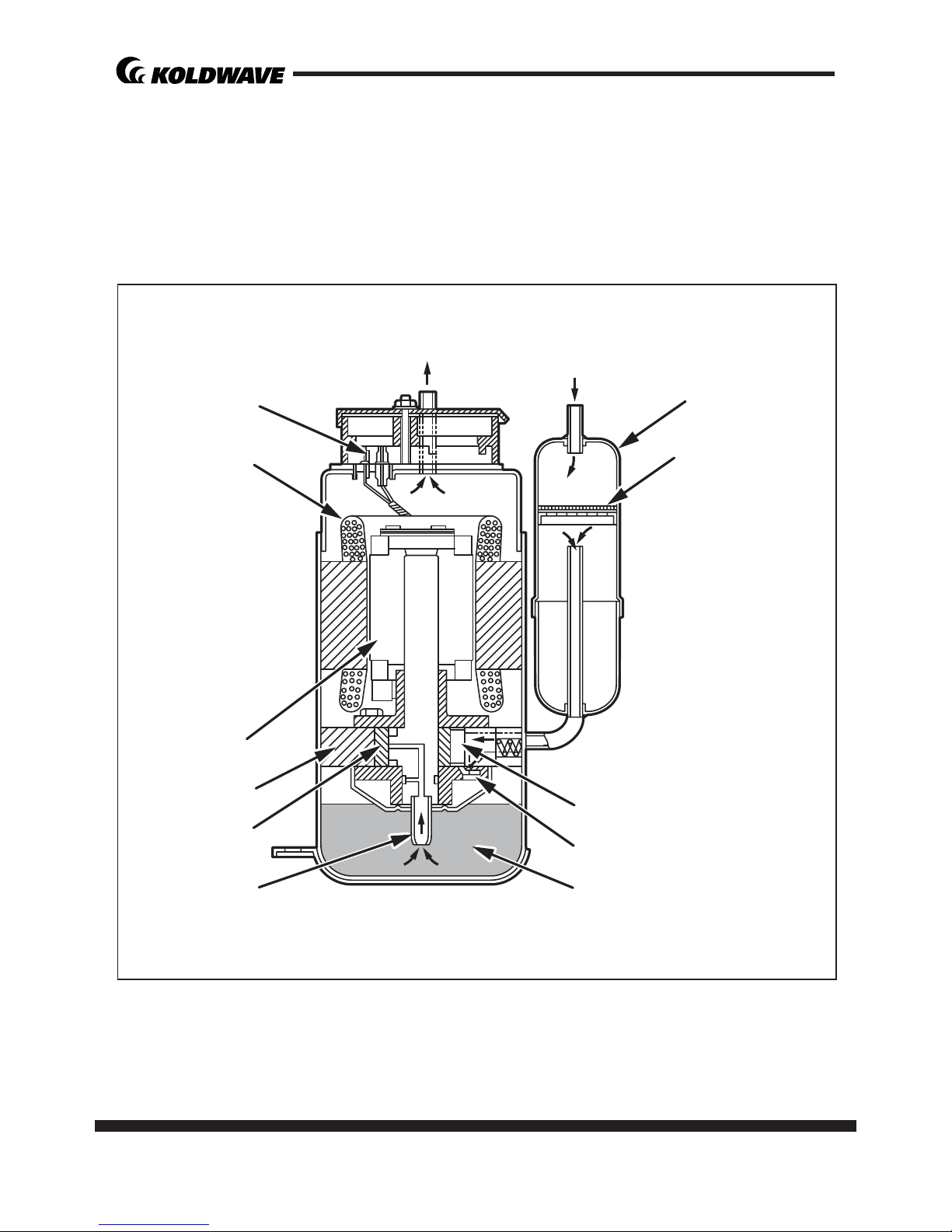

Compressor
The construcon of a rotary type compressor is divided into two mechanisms; the
drive mechanism (compressor motor), and the compression mechanism (compres-
sor). When the rotor sha of the motor (drive mechanism) turns, the roller (com-
pression mechanism) rotates to compress the refrigerant.
To Condenser
Accumulator
Strainer
From Evaporator
Blade
Discharge Valve
Oil
Lubricator
Roller
Cylinder
Rotor
Stator
Terminal

page 15
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Compressor operaon
1) Start of compression
1) The cylinder is filled with low pressure gas.
2) Since pressure in the discharge chamber
is higher than in the cylinder, the dis-
charge valve is kept closed.
2) Sucon and compression
1) The pressure in the cylinder increases
gradually.
2) Refrigerant sucon begins on the suc-
on side of the cylinder.
3) The discharge valve remains closed.
3) Discharge
1) The pressure in the cylinder exceeds that
in the discharge chamber, and the dis-
charge valve opens.
2) On the sucon side, refrigerant sucon
connues.
4) Compleon of compression
1) When compression is completed, all of
the refrigerant has been drawn from the
sucon chamber.
2) Operaon then returns to step 1)(Start
of compression) and the above process
of sucon and compression connues
repeatedly in succession.
Blade
Discharge
Valve
Roller
Blade
Discharge
Valve
Roller
Blade
Discharge
Valve
Roller
Blade
Discharge
Valve
Roller

16 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Compressor lubricaon
The lubricaon system is comprised of a
hollow sha, an oil scraper mounted at the
end face, hollow sha, a sha journal (sha
bearing), and the lubricaon groove for the
sha journal.
The lubricaon groove is wider than the oil
hole. When the sha turns, oil is scraped
upward by the oil scraper along the inside
diameter of the hollow sha. The oil is fed
through the oil hole by centrifugal force,
then supplied to the lubricaon groove for
each sha journal, lubricang the bearing.
In this lubricaon system, oil enters into
each bearing separately and returns to the
oil reservoir. This system effecvely pre-
vents bearing temperature increases, and
offers high reliability.
In addion, the specially treated sha jour-
nal keeps the bearing from being
damaged during high temperature operaon.
Condenser
1) The condenser is a heat exchanger with
Louver fins.
2) Heat is given off and absorbed by air be-
ing pulled across the condenser fins by
the axial fan. The air is then expelled
through the condenser air outlet.
Oil Feed Groove
Oil Hole Oil Scrapper
Roller
Rotor
Cylinder
Hollow Sha Eccentric Sha

page 17
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Capillary Tube
The capillary tube is a long thin tube
that ulizes line flow resistance as an
expansion valve. The length and the
inner diameter of the capillary tube
are determined according to the ca-
pacity of the refrigeraon system,
operang condions, and the amount
of refrigerant. The high pressure, high
temperature liquid refrigerant sent
from the condenser expands rapidly as
the refrigerant is sprayed out through the fixed orifice in the capillary tube. As a
result, the temperature and state of the refrigerant becomes low and mist-like, and
therefore evaporates easily.
Evaporator
The evaporator is a heat exchanger covered with slit
fins. Heat is removed from the air being pulled across
the evaporator by the centrifugal fan.
The resulng cool air is expelled through the cooling air
ducts.
Accumulator
The accumulator is mounted on the sucon gas pip-
ing between the evaporator and the compressor.
The accumulator separates the liquid refrigerant from
the gas refrigerant, allowing only the gas refrigerant to
enter the compressor. In the accumulator, sucon gas
isled into a cylindrical vessel where the speed of the
gas is decreased.
This process separates the refrigerant contained in
the gas by the force of gravity, causing the refrigerant to accumulate at the boom
of the vessel. As a result, the compressor is protected from possible damage caused
by liquid refrigerant intake.
High Temp./High Pressure
Liquid Refrigerant
Low Temp./Low Pressure
Gas and Liquid Mixture
From Evaporator
To Compressor

18 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
ELECTRICAL SYSTEM
Circuit Diagram
<5KK14BEA2AA00, 5KK21BGA2AA00>
(TH1)
(TH2)
(TH3)
DRAIN
PUMP

page 19
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
<5KK30BGA2AA00>
DRAIN
PUMP
(option)
RELAY
RELAY
POWER
1P AC 208/230V
(AC115)
POWER
1P AC 208/230V
(AC115)

20 page
Service Manual
5KK14BEA2AA00 / 5KK21BGA2AA00 / 5KK30BGA2AA00
Control panel
Before operang the unit, it is important to be familiar with the basic operaon of
the control panel.
1. POWER BUTTON
• Acvates unit when POWER BUTTON is pressed.
• Fan starts on low speed.
• If POWER BUTTON is pressed during operaon, unit stops.
2. BLOWER BUTTON
• Changes fan speed from LOW to HIGH when pressed.
3. SPOT / COOL BUTTON
• Acvates compressor and begins producing cool air 5 seconds aer
buon is pressed.
• Regulates temperature based on outlet cool air temperature.
4. ROOM / COOL BUTTON
• Acvates compressor and produces cool air 5 seconds aer buo n
is pressed.
• Regulates temperature based on inlet ambient air temperature.
1 2
5
3 4
6
87
