Instruction Manual
Falcon Eye KC-1100
Komamura Corporation

2
1．Names of Parts
⑨
⑧
⑦
④
③
①
②
⑥
⑤
⑬
字
⑫
⑪
⑩
⑲
⑱
⑰
⑯
⑮
⑭
⑳
21

3

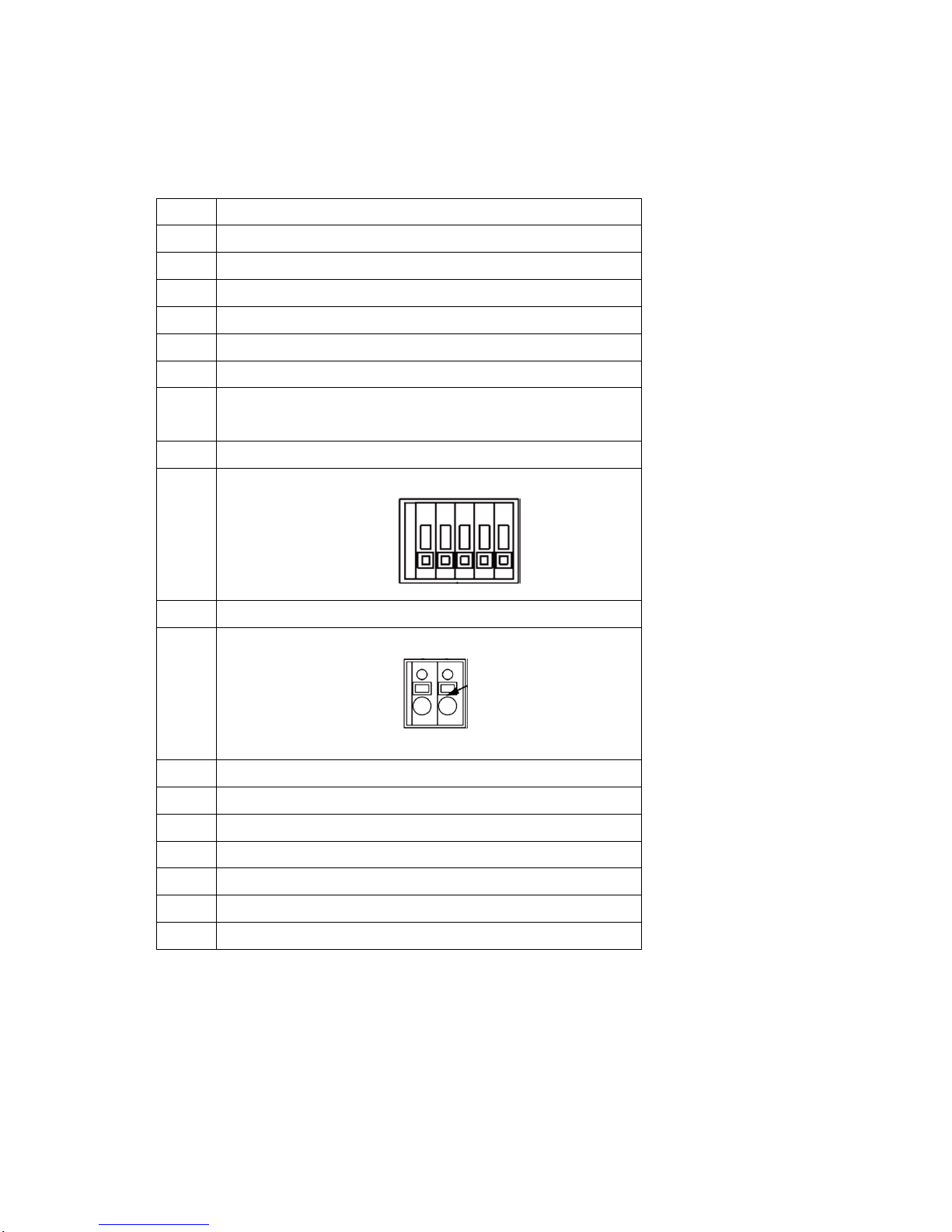

Names of parts
No.
Name
①
CS Lens Mount
②
Flange Back Adjuster
③
Locking Screw for Flange Back Adjuster
④
Auto Iris Connector
⑤
Tripod Socket
⑥
Guide Pin Socket
⑦～
⑪
Set up switch (Ref: 2. Operation)
⑫
Focus EZ Switch (Ref: 2-5 Special Menu)
⑬
RS-485 (for remote controlling day/night switch)
⑭
RS-485 Terminal Switch
⑮
DC12V Input Be aware of each polarity
－+
⑯
Power Indicator
⑰
HD-SDI Output
⑱
SD Output
⑲
Genlock IN For external sync, input VBS, BBS or VS
⑳
Genlock IN Termination Switch Usually set at HIGH.
○
21
RESET Button
12
－
+ GND

4
2．Operation
2－１ Set up menu
Set up can be made on OSD.

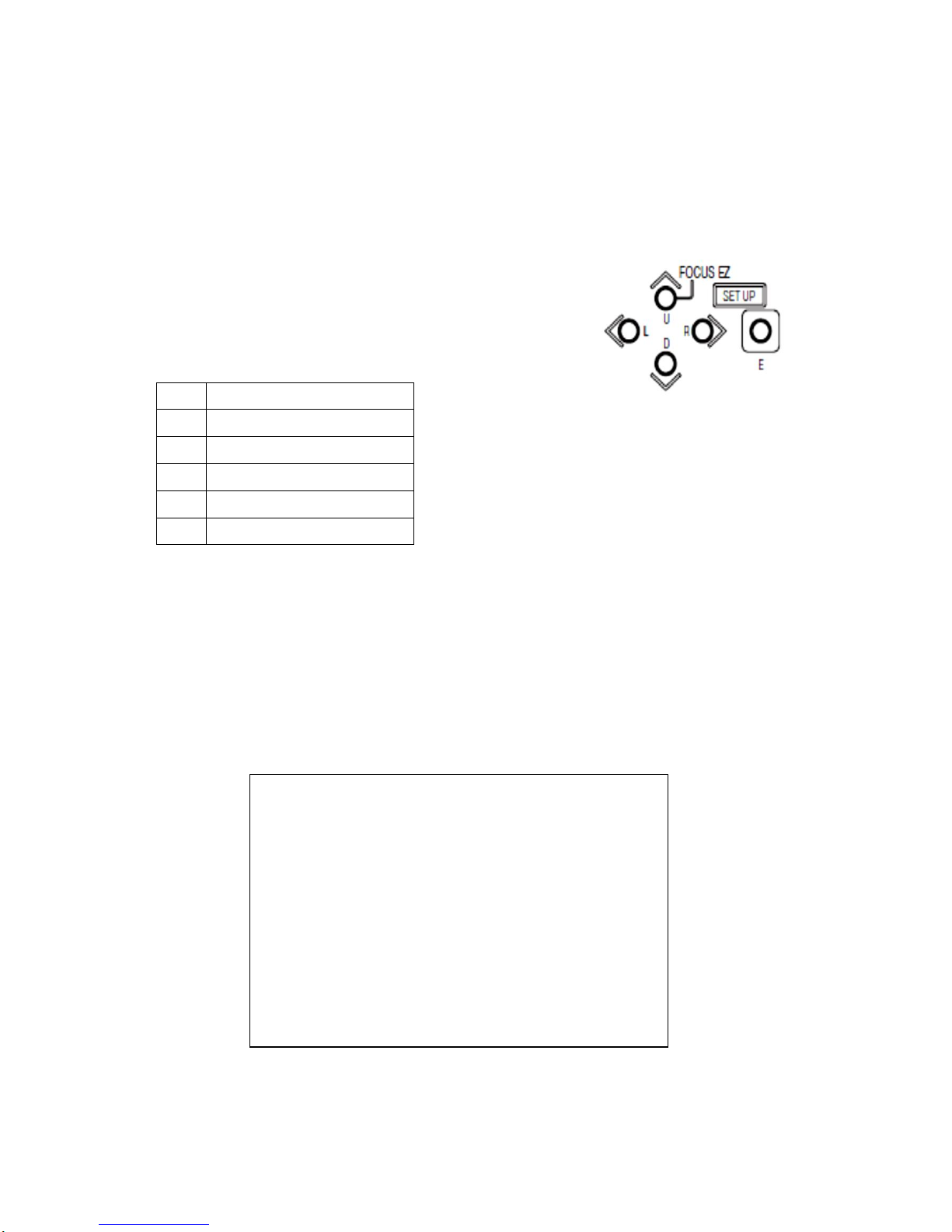

2－２ Set up buttons
Push switches are located on the camera back.
Name
U
Up Switch
D
Down Switch
L
Left Switch
R
Right Switch
E
Enter Switch
2－３ Set up mode
Set up menu is consisted Main Menu (ref. page 5) and special Menu
(ref. page 1)
2－４ Main Menu
Main Menu will appear after pushing Ebutton for more than 2 seconds. Pushing
R button will lead to the next page and L button to return.
MAIN MENU (PAGE 1/5)
SENSE UP MOVE ↓
SHUTTER x64 x1
BLC MODE OFF
ALC LEVEL L****I****H
GAIN HYP-AGC
WHITE BAL ATW1
DNR HIGH
MENU LOCK OFF ↓
EXIT CANCEL RESET

5
2－４－１、SENSE (Sensitivity) UP
（１）Setting it up something else rather than OFF or MANUAL, GAIN will be set
automatically on AGC. It can also be switchable to HYP-AGC.
①OFF
②S/N
Signal Noise priority mode
For slow motion shooting.
Max GAIN: +21dB on +15dB、HYP-AGC
③STD
Standard Value
Max. GAIN: +42dB on +36dB、HYP-AGC
④MOVE
MOVE priority mode
Max. GAIN: +78dB on +54dB、HYP-AGC
⑤MANUAL
Manual GAIN
For the required magnification, see SHUTTER on MAIN MENU
（２）After setting up the MANUAL mode, DAY/NIGHT and FLICKERLESS setting
can be made by pushing E button.
＊FLICKERLESS mode cannot be active when SENSE (Sensitivity) UP is OFF.
When FLICKERLESS setting is needed, select 1/100 on SHUTTER mode.
（３）Setting up DAY / NIGHT
①COLOR
②B/W
③AUTO
LEVEL setting Switchable to either one of the following level
DARK
MID
BRIGHT
MANUAL

6
MANUAL setting
COLOR⇒B/W
B/W⇒COLOR
④REMOTE
Switchable to DAY/NIGHT mode through the optional remote control switch.
Function: ⑬RS４８５ /DAY/NIGHT switching terminal. Short circuit on
１－２ or open on B/W COLOR.
IR TRIG. POL setting on MAIN MENU (PAGE 4/5)
RS485/DAY/NIGHT switch terminal １－２
Short Circuit
Open Circuit
IR TRIG POL..
BRAKE
COLOR
B/W
MAKE
B/W
COLOR
（４）FLICKER LESS
①OFF
②ON Select SHUTTER to 1/100
2－４－２、SHUTTER
（１）In case SENSE (Sensitivity)UP is set OFF, the following shutter speed can be
manually selected.
OFF（1/30）、 1/100、1/125、1/250、1/500、1/1,000、1/2,000、1/4,000、1/10,000、
（２）In case SENSE (Sensitivity)UP is set at S/N、STD、MOVE or MANUAL, the
following sensitivity increase ratio can be selected.
x1、x2、x4、x6、x8、x12、x16、x24、x32、x64
2－４－３、BLC MODE
For Back Light Control
（１）OFF
（２）ON
（３）SPOT
By moving the cursor by using U、D、L and R buttons、push E button on
the required position.

7
2－４－４、ALC LEVEL
Auto Level Control
2－４－５、GAIN
（１）LOW
0dB
（２）MID
18dB
（３）HIGH
36dB
（４）AGC
Auto Gain Control
（５）HYP-AGC
Hyper Auto Gain Control
Compared with AGC, it increases the sensitivity by +6dB on S/N、
+6dB on STD and+18dB on MOVE.
＊In case of SENSE Up on either S/N、STD or MOVE and DAY/NIGHT on
AUTO、the GAIN can be selected only on AGC or HYP AGC.
2－４－６、WHITE BAL
（１）ATW1
Auto Tracking White Balance (Standard mode)
（２）ATW2
Auto Tracking White Balance (for wider color temperature setting)
（３）AWC
For one push Auto White Balance Control
（４）MANUAL
For manual white balance setting by adjusting R and B GAIN
2－４－７、DNR
Digital Noise Reduction
（１）OFF
（２）LOW
（３）HIGH

8
2－４－８、MENU LOCK
（１）Locking MENU LOCK
Push E button on ON
（2）Unlocking MENU LOCK
Push the button in order of U→L→D→R→U→D→E
Start over again when mistake was made.
2－４－９、EXIT、CANCEL、RESET
（１）EXIT
（２）CANCEL
（３）RESET
2－４－１０、DETAIL
2－４－１２、CHROMA
2－４－１３、BLACK LEVEL
2－４－１４、WDR MODE
Wide Dynamic Range
（１）OFF
（２）WDR
（３）AUTO KNEE
High Light Zone Adjustment
MAIN MENU (PAGE 2/5)
DETAIL L****I****H
CHROMA L****I****H
BLACK LEVEL L****I****H
WDR MODE OFF
FOG OFF
GAMMA 0.45
COLOR MATRIX SETUP ↓
EXIT CANCEL RESET

9
（４）AUTO B STR (Auto Black Stretch)
Shadow zone adjustment
2－４－１５、FOG
（１）OFF
（２）ON
2－４－１６、GAMMA
Gamma setting
（0.45 / 0.75 / 1 ）
2－４－１7、COLOR MATRIX
The adjustment of HUE and SATURATION can be made on R、G、B、Ye、
Cy and Mg.
2－４－１８、FLIP/MIRROR
（１）NORMAL
（２）FLIP
（３）MIRROR
（４）FRIP & MIRROR
2－４－１９、ZOOM
Selection of electronic zooming ratio（x1, 2, 3, 4, 5, 6, 7, 8, 9, 10）
MAIN MENU (PAGE 3/5)
FLIP/MIRROR NORMAL
ZOOM x1
CAMERA ID OFF
RS485 ID 1
P.MASK OFF
RS485 BAUD 9600
VIDEO TEST LIVE
EXIT CANCEL RESET

10
2－４－２０、CAMERA ID
Camera ID setting
EDIT CAMERA ID
ABCDEFGHIJKLMNOPQRSTUV ①
WXYZ : () _ /＋－. 1 2 3 4 5 6 7 8 9
＋＋＋＋＋＋＋＋＋＋＋＋＋＋＋＋＋＋＋＋＋＋＋ ②
③
SPACE DELETE CLEAR ④
RETURN POSITION EXIT ⑤
①
Character selection by cursor
②
Display window
③
Skip
④
SPACE/ERASE/ERASE ALL
⑤
Display Position
After selecting ⑤Display Position, the ID is shown on the display window and
the re-positioning can be made by U, D, L, R buttons.
2－４－２１、RS-485 ID
Set up the camera ID through RS-485 from PC.
2－４－２２、Ｐ.MASK
8 different Privacy Mask can be individually set up.
（１）OFF
（２）ON
Display Window will appear by pushing the E button.
ON or OFF can be selected on each MASK.

11
The color of MASK can be chosen from gray, white or white .
Setting ON and pushing E button, positioning and size of MASK can be
selected.
For re-positioning the MASK, push E button and the cursor will stop
flashing. Then select the new position by using U, D, L and/or R buttons.
2－４－２３、RS485 BAUD
BAUD rate can be selected from 9600 / 19200 / 38400 .
You may contact the local distributor for communication protocol.
2－４－２４、VIDEO TEST
（１）LIVE
（２）GRAY SCALE
（３）COLOR BAR
（４）CROSS LINE
MAIN MENU (PAGE 4/5)
SDI FORMAT 1080I/59.94
SDTV FORMAT NTSC-J
SDTV ASPECT SIDE CUT
SDTV C. BURST ON
IR TRIG POL. MAKE
GENLOCK OFF
EXIT CANCEL RESET

12
2－４－２５、SDI FORMAT
Signal format for HD output can be selected.
2－４－２６、SDTV FORMAT
（１） NTSC-J
For Japan
PEDESTAL：0 IRE
（２） NTSC-M
For USA and other NTSC areas.
PEDESTAL：7.5 IRE
2－４－２７、SDTV ASPECT
（１） LETTER BOX
（２） SIDE CUT
（３） SQUEEZE
2－４－２８、SDTV C.BURST
（１）OFF
（２）ON
2－４－２９、IR TRIG POL
2－４－３０、GENLOCK
MAIN MENU (PAGE 5/5)
MODEL NAME SSC-9100
MAIN VERSION 0.00
FIRM VERSION 106
FPGA VERSION 601F
EXIT CANCEL RESET

13
2－４－３１、MODEL NAME & VERSION
(1) MODEL NAME
(2) MAIN VERSION
(3) FIRM VERSION
(4) FPGA VERSION
2－５、SPECIAL MENU
On PAGE 1/5 of MAIN MENU, go to EXIT and push L and R buttons
simultaneously to bring SPECIAL MENU.
2－５－１、WHITE DEFECT
Correction of incidental scratch on CMOS sensor.
Do not touch this item as WHITE DEFECT has been adjusted at the factory.
SPECIAL MENU (PAGE 1/1)
WHITE DEFECT ADJAST ↓
RETURN CANCEL EXIT

14

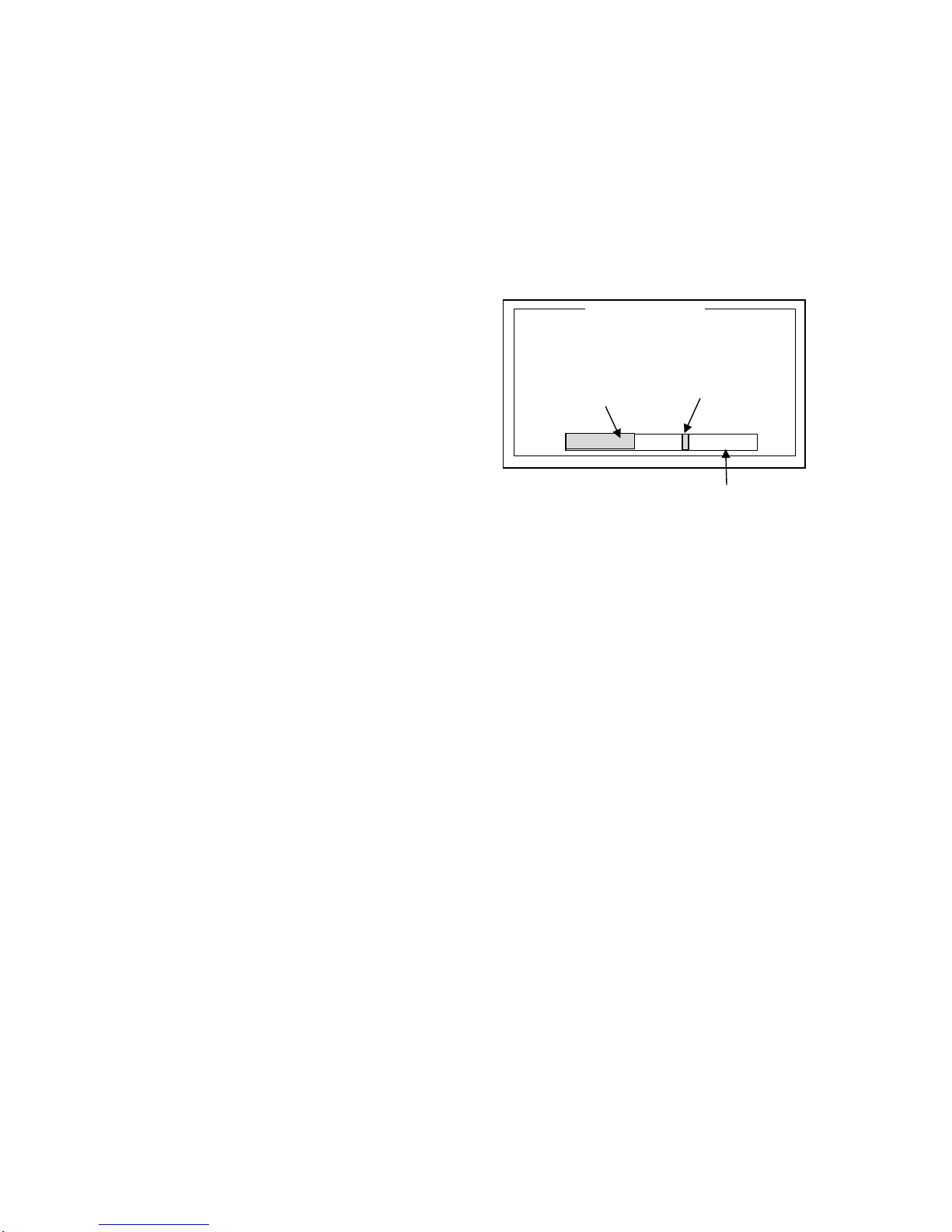

3．FOCUS EZ
This is to support focusing. The focusing status can be observed on the focus
indicator as shown below. When using auto iris lens, it will keep the iris fully
opened for easy focusing. The sensitivity will be automatically corrected.
The focus adjustment window will
appear by pushing U button more
than 2 seconds.
MENU will be activated for 60
seconds and will shut off
automatically. For another 60 second
activation, repeat pushing U button.
To get out, push D button.
Focus Indicator
Best focus point
Focusing
Status
FOCUS EZ 60S

15
4．MENU
4－１ MAIN MENU
PAGE
1/5
SENSE UP
MANUAL
Ｓ/Ｎ
STD
MOVE
OFF
DAY / NIGHT
FLICKER LESS
COLOR
B / W
AUTO
REMOTE
OFF
ON
SHUTTER
OFF, 1/100, 1/125,
1/250, 1/500,1/1,000,
1/2000,1/4000,
1/10000
x1, x2, x4, x6, x8, x12
x16, x24, x32, x64
SWITCHI LEVEL
DARK
MID
BRIGHT
MANUAL
COLOR⇒B/W
B/W⇒COLOR
BLC MODE
OFF
ON
SPOT
ALC LEVEL
L****I****H
GAIN
LOW
MID
HIGH
AGC
HYP-AGC

16
WHITE BAL.
ATW1
ATW2
AWC PUSH
MANUAL
RED GAIN
BLUE GAIN
DNR
OFF
LOW
HIGH
MENU LOCK
PAGE
2/5
DETAIL
L****I****H
CHROMA
L****I****H
BLACK LEVEL
L****I****H
WDR MODE
OFF
WDR
AUTO KNEE
AUTO B.STR
FOG
OFF
ON
GAMMA
0.45
0.75
1
COLOR MATRIX
SETUP
RED
HUE
SATURATION
GREEN
HUE
SATURATION
L****I****H
L****I****H
L****I****H
L****I****H
BLUE
HUE
SATURATION
YELLOW
HUE
SATURATION
L****I****H
L****I****H
L****I****H

17
CYAN
HUE
SATURATION
MAGENTA
HUE
SATURATION
L****I****H
L****I****H
L****I****H
L****I****H
L****I****H
PAGE
3/5
FLIP/MIRROR
NORMAL
FLIP
MIRRAR
FLIP&MIRROR
ZOOM
x1, x2, x3, x4, x5, x6,
x7, x8, x9, x10
CAMERA ID
OFF
ON
ABCD…….STV
WXYZ…….789
RS485 ID
1,2,…..207
P. MASK
OFF
ON
MASK1
MASK2
MASK3
MASK4
MASK5
MASK6
MASK7
MASK8
PRINT
OFF
ON
GRAY
WHITE
BLACK
RS485 BAUD
9600
19200
38400
VIDEO TEST
LIVE
GRAY SCALE

18
COLOR BAR
CROSS LINE
PAGE
4/5
SDI FORMAT
1080I/59.94
（1080P/30.00）
1080P/29.97
（720P/60.00）
720P/59.94
（720P/30.00）
720P/29.97
1080I/50.00
1080P/25.00
720P/50.00
720P/25.00
（）: Tentative
SDTV FORMAT
NTSC-J
NTSC-M
SDTV ASPECT
LETTER BOX
SIDE CUT
SQUEEZE
SDTV C. BURST
OFF
ON
IR TRIG POL
BRAKE
MAKE
GENLOCK
OFF
ON
L****I****H
PAGE
5/5
MODEL NAME
SSC-9100
MAIN VERSION
FIRM VERSION
FPGA VERSION
4－２ SPECIAL MENU-
PAGE
1/1
WHITE DEFECT
ADJUST
START

19
5．Specification
■Camera
Sensor
Single Panel CMOS/ RGB Bayer Array
Total Pixel
Approx.2,600,000pixels 2270(H)x1144(V)
Efficient Pixel
Approx.2,200,000pixels 1974(H)x1100(V)
Pixel Size
5.0μm(H)x5.0μm(V)
Sensor Size
2/3”
Scanning Type
Progressive
Sensitivity
F11 2000lx
Min. Lux at subject
0.005lx（1/30、50IRE、+66dB）
Horizontal Resolution
Over 900TV lines
S/N ratio
Over 50dB (γ=1、DETAIL mode OFF）
Lens Mount
CS
Lens Control
4pin DC iris control
Image Quality
Control
Sensitivity Up
OFF / AUTO(S/N, STD, MOVE)/ MANUAL
x1, x2, x4, x6, x8, x12, x16, x24, x32, x64
GAIN
AUTO：AGC / HYPER-AGC
MANUAL:LOW / MID / HIGH
Elec. Shutter
OFF, 1/100, 1/125, 1/250, 1/500, 1/1000,1/2000
1/4000, 1/10000秒
Back Light
Correction
9X5 area selection
Gamma Correction
0.45 / 0.75 / 1
Noise Reduction
OFF, LOW, HIGH
White Balance
ATW1 / ATW2 / AWC / MANUAL
Wide Dynamic
Range Mode
OFF / WDR / AUTO KNEE / AUTO BLACK
STRETCH
De Fog
OFF / ON
COLOR MATRIX
R/G/B/Ye/Cy/Mg 6 axis control
その他
DETAIL / CHROMA / BLACK LEVEL
Electronic Zoom
x1,x2,x3,x4,x5,x6,x7,x8,x9,10
Image Reversal
Mirror/Flip/Mirror Flip
Privacy Mask
8 Masks in GRAY/WHITE/BLACK
Test Pattern
Color Bar, Gray Scale、Cross Line built in
Focus Assist
FOCUS EZ with focus indicator
Operation
OSD

20
■Interface
Image Output
HD-SDI (BNC)×1
Composite Video (VBS) (BNC)×1
Sync Signal Input
External Sync Input (VBS／2 sync) BNC×1
Serial Port
RS-485
Contact Input
IR cut filter switch
Video Output
HD-SDI
1080I/59.94 、1080P/29.97 、720P/59.94 、
720P/29.97 、1080I/50.00 、1080P/25.00 、
720P/50.00、720P/25.00
Composite Video
NTSC、PAL Down Convert
Letter Box/Side Cut/Squeeze
■Others
Power Supply
DC12V ±10%
(Ripple 50mVp-p or less)
Power Consumption
6W
Operational Temp.
/Humidity Range
0～50°C /35～90%
Storage Temp.
/Humidity Range
-20～60°C/20～90%
Measurement
78.0(W)×64.0(H)×139.0(D)mm
Weight
650g
●The above specification may be changed without prior notice.
