Komax Silence A100 User manual

- This manual contains the quality warranty.
- After reading, keep it in a place that is always visible to the person using it.
- The appearance, color, and specifications of the product are subject to change without
prior notice for quality improvement
- The illustrations in this manual are intended for illustration only and may differ from the
actual appearance.
User’s Manual
Dental Aerosol Suction Extractor

22
·····················································································
Error List13
21
····························································
Disclaimer & Warranty12
19
··························································
Cleaning & Maintenance11
18
·······································································
100Type image10
17
·································································
Replacing the filters09
15
····································································
Product assembly08
14
···························································································
Usage07
12
·····························································
Optional Components06
10
····························································
Standard Components05
8
···················································································
Description04
4
·······················································
Information for Operators03
3
············································································
specifications02
2
·····················································································
Contents01
Contents

3
*components : Please refer to the page 10~13.
3,450L/min (220V) / 3,440L/min (110V)3,750L/min (230V) / 3,660L/min (120V)
Air flow
(L/min)
25.7Kpa (220V) / 25.6Kpa (110V)23.7Kpa (230V) / 25.2Kpa (120V)
Air pressure
(Kpa)
1~5 step1~9 stepSuction level
800W (220V) / 800W (110V)1251W (230V) / 1247W (120V)Out put power
40,000RPM32,000RPMMotor’s RPM
Brushless Motor TypeBrush Motor(Carbon Motor) Type
· Storage humidity : RH 20~80%
· Storage temperature : -20~80℃
· Motor operating temperature : 0~40℃
· Noise : approx. 66dB
A200, H200 : 295mm(w)*330mm(D)*845mm(H)
· Body size : A100, H100 : 295mm(w)*330mm(D)*635mm(H)
· Body weight : A100, H100 : 11kg / A200, H200 : 13.5kg
A200, H200 : 1st Medium, 2nd ULPA, 3rd Carbon, 4th Membrane
· Filters : A100, H100 : 1st Medium, 2nd ULPA, 4th Membrane
Silence H100, Silence H200 : ABS, PP, PETG
· Materials : Silence A100, Silence A200 : ABS, PP, PETG, Aluminum
· Current : 230V(5.2A) / 120V(10A)
· Voltage : Single phase AC 220V~240V, 50/60Hz
Single phase AC 110V~120V, 50/60Hz
· Power supply : Single phase AC 220V~240V, 50~60Hz
· Description : Dental aerosol vacuum suction
Specifications
1Specifications
02 Specifications

4
★)Between 5 – 30°C [41 – 86°F], the unit can be operated at a relative humidity of up to 80%.
At temperatures between 31 – 40°C [87.8 – 104°F], the humidity must decrease proportionally
in order to ensure operational readiness (e.g., at 35°C [95°F] = 65% humidity; at 40°C
[104°F] = 50% humidity). The unit may not be operated at temperatures above 40°C [104°F].
·Under over-voltage category II conditions;
·Under contamination level 2 conditions;
·At a maximum relative humidity of 80 % at 31ºC [87.8ºF], dropping in a linear manner
to 50% relative humidity at 40ºC [104ºF] ★);
·At an ambient temperature range between 5 - 40ºC [41 - 104ºF] ★);
·Up to an altitude of 2,000 m above sea level;
· Indoors;
The unit may only be operated:
1.2 Ambient Conditions
Proper use implies the extraction of dry, non-explosive dusts. Fire-promoting, easily flammable, flammable,
or explosive materials may not be extracted with the Silence Aerosol sucion device.
The extraction of liquids, smoldering, or burning materials is prohibited. Any other use is not as intended.
The manufacturer shall not be liable for any damages resulting from any such other use.
The „use as intended“ includes compliance with the operating, servicing and preventive maintenance
conditions defined by the manufacturer.
1.1 Proper Use
The Silence Aerosol suction device is are a workbench extractor used to extract dusts such as occur in laboratories, e.g.,
dental labs. It is solely intended for commercial use in laboratories and not for private, household use.
1 Application Area
Please have these operating instructions readily available for the operators.
Using these operating instructions as a starting point, instruct all operators of the unit with regard to
the area of application, the possible hazards during operation, and the proper operation of the dust
extractor.
The following information is intended to assist you, the operator, in safely working with the Silence Aerosol
suction device in your place.
03 Information for operators

5
Never extract flammable or explosive gases, vapors, dusts.
Never operate the unit without the suction hose or 3 Joint arm.
Never operate the unit without the complete filtration system (Medium filter, ULPA filter, Noise silence filter).
Units exhibiting damaged connecting lines, hoses, or other defects must be taken out of service immediately.
Regularly inspect connecting lines and hoses (e.g., the power cord) for damage (e.g., kinks, cracks, porosity)
or signs of aging.
It is necessary to wear suitable, personal protective equipment when emptying the dust bag or cleaning,
depending on the type of extracted material.
Always wear protective gear when extracting hazardous materials.
When extracting hazardous materials, always refer to the relevant safety data sheets.
Read the operating instructions of the other device and comply with the safety instructions contained
in the document.
The mains socket on the unit is only designed for the purposes specified in the operating instructions.
Connecting other devices may cause material damage.
Before connecting another device, turn off both the dust extractor and the other device.
The unit may only be operated if the information on the nameplate conforms with the specifications of
your local mains power supply.
Always unplug the unit from the wall outlet before beginning any work on the unit’s electrical components.
The Silence Aerosol suctions are an electric device and, a such, carries with it a certain inherent potential hazard.
The unit may not be taken into service until any enquired alterations to comply with regionally
specific power plug configurations have been made.
Such alterations may only be performed by a qualified electrician.
Only intended for indoor use. The unit is only designed for dry applications and may not be operated or
stored outdoors or under wet conditions.
2 Hazard and Warning Information
03 Information for operators

6
Repairs may only be performed by qualified electricians or authorized dealers. Depending on the material trapped
by the filters, protective gear may need to be worn during repairs.
4 D. Repairs
Any repairs not specifically described in these operating instructions, in particular the inspection of the suction
turbine outside the unit, may only be performed by a qualified electrician.
Only properly trained individuals may operate and service the Silence A/H. Minors and pregnant women should
never operate or repair the device. In the case of other operators, please do so only when wearing appropriate
protective devices. In particular, when using the device to collect harmful substances, be sure to wear protective
equipment.
3 Authorized Individuals
Only spare parts and accessories supplied or authorized by by Komax Co., Ltd. department
or Komax Co., Ltd. authorized service technician may be used with this product. If other
spare parts or accessories are used, this could have a detrimental effect on the safety of
the device, increase the risk of serious injury and lead to damage to the environment or
the device itself.
It is the responsibility of the operator that national regulations during operation and
regarding a repeated safety inspection of electrical equipment are complied with.
Dispose of extracted material according to local statutory regulations.
Environmentally hazardous extraction substances. Extracted substances may be a risk to
the environment.
If the dust extractor is employed to extract hazardous materials, appropriate personal
protective gear must be worn and steps must be taken to ensure that the exhaust air is
properly ventilated. Please refer to the associated safety data sheets for specific
requirements.
All required tools must be appropriately cleaned prior to use when the unit is employed
for medical purposes or in conjunction with medicinal materials.
Never extract hot materials.
Never extract liquids.
03 Information for operators

7777
• The product is subjected to mechanical impacts or is dropped.
• The product continues to be employed, despite obvious safety faults or damage;
• The product is repaired by other than an authorized facility or if any but Komax Co., Ltd. OEM
parts are employed;
• The product is altered in any way other than those alterations described in the operating
instructions;
• The product is employed for any purposes other than those cited in the operating instructions;
Komax Co., Ltd shall be absolved from all claims for damages or warranty if:
6Liability Exclusion
To conserve and protect the environment, prevent environmental pollution and improve the recycling of raw
materials, more information regarding proper disposal please apply at your local authorities.
E.3 Disposal instructions of the Unit
The unit must be disposed of by an authorized recycling operation. The selected firm must be informed of all
possibly health-hazardous residues in the unit.
E.2 Disposing of the Unit
Full dust filters must be disposed of under compliance with locally applicable regulations.
Depending on the material trapped by the filters, protective gear may need to be worn during disposal.
E.1 Disposing of Consumables
5Disposal Information
03 Information for operators
03 Information for operators

8888
※Foot pedal must be purchased
separately when ordering
Foot switch socket
Power plug socket
Circuit breaker
Indoor vantilation
※ Can change options
for external exhaust

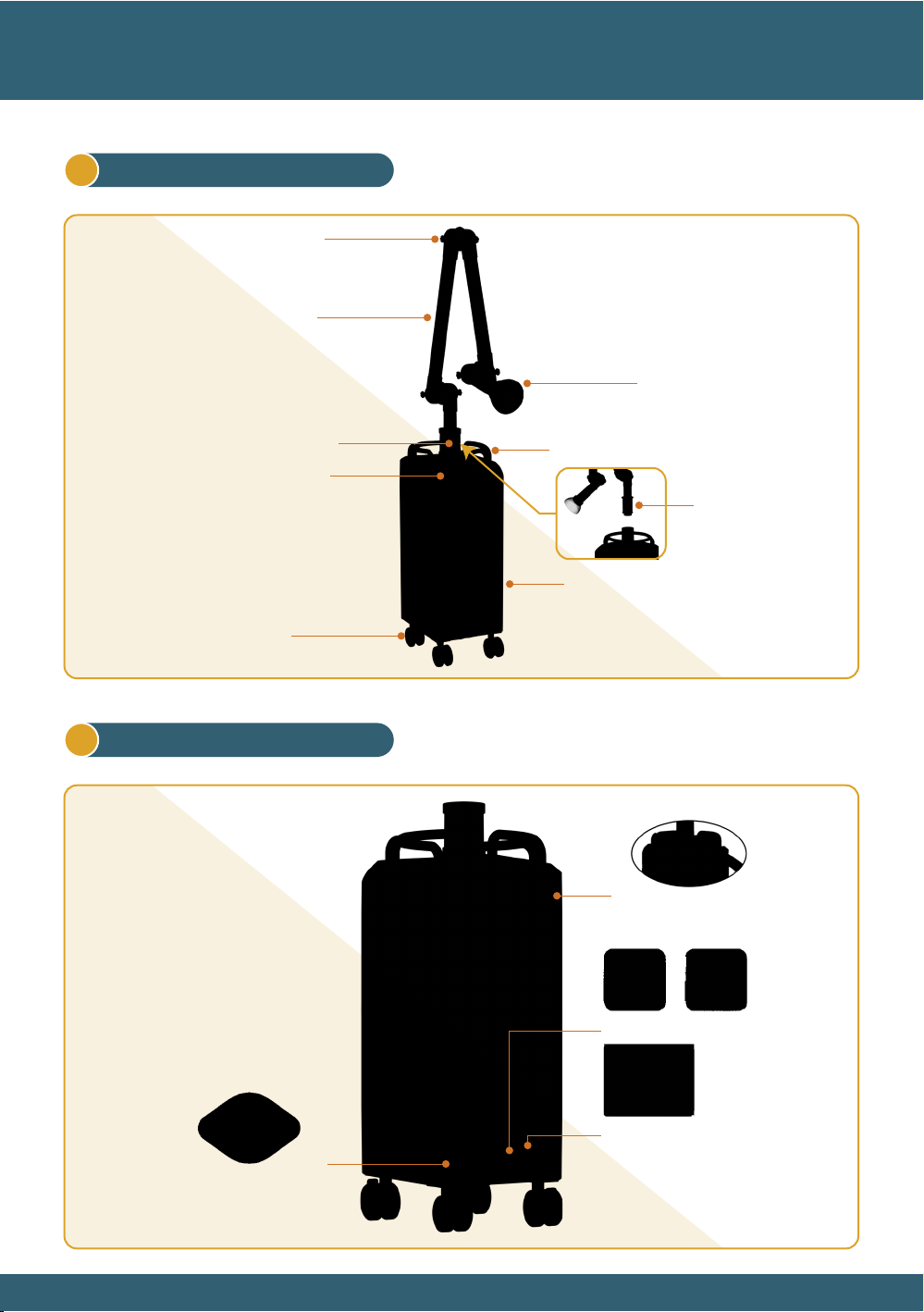

Back appearance - A type2
Medical Caster
Body
Rotaing Post
Touchpad
Main Handle
Fixed Post
Clear Hood
3 Joint Arm
Arm Screw
Front appearance - A type1
04 Product description

9999
※Foot pedal must be purchased
separately when ordering
Foot switch socket
Power plug socket
Circuit breaker
Indoor vantilation
※ Can change options
for external exhaust
Back appearance - H type2
Medical Caster
Body
Touchpad
Main Handle
Multi-joint hose
Front appearance - H type1
04 Product description

10101010
Power plug
UV LED lamp
Plasma Ionizer3-joint hose
4th Membrane filter
2nd ULPA filter [99.9995%]
1st Medium filter
Silence A type composition2
(For Brushless Motor Type, there is no 4th filter.)
※The 1st filter replacement notification informs you when to replace by measuring the pressure
in the suction part by the pneumatic sensor.
Also, the replacement cycle of the filter may vary depending on the usage.
It is recommended to replace the 2nd and 4th filters at least once a 6~12month.
Membrane filter
4th Filter
ULPA filter
[99.9995%]
2nd Filter
Medium filter
(82mm)
1st Filter

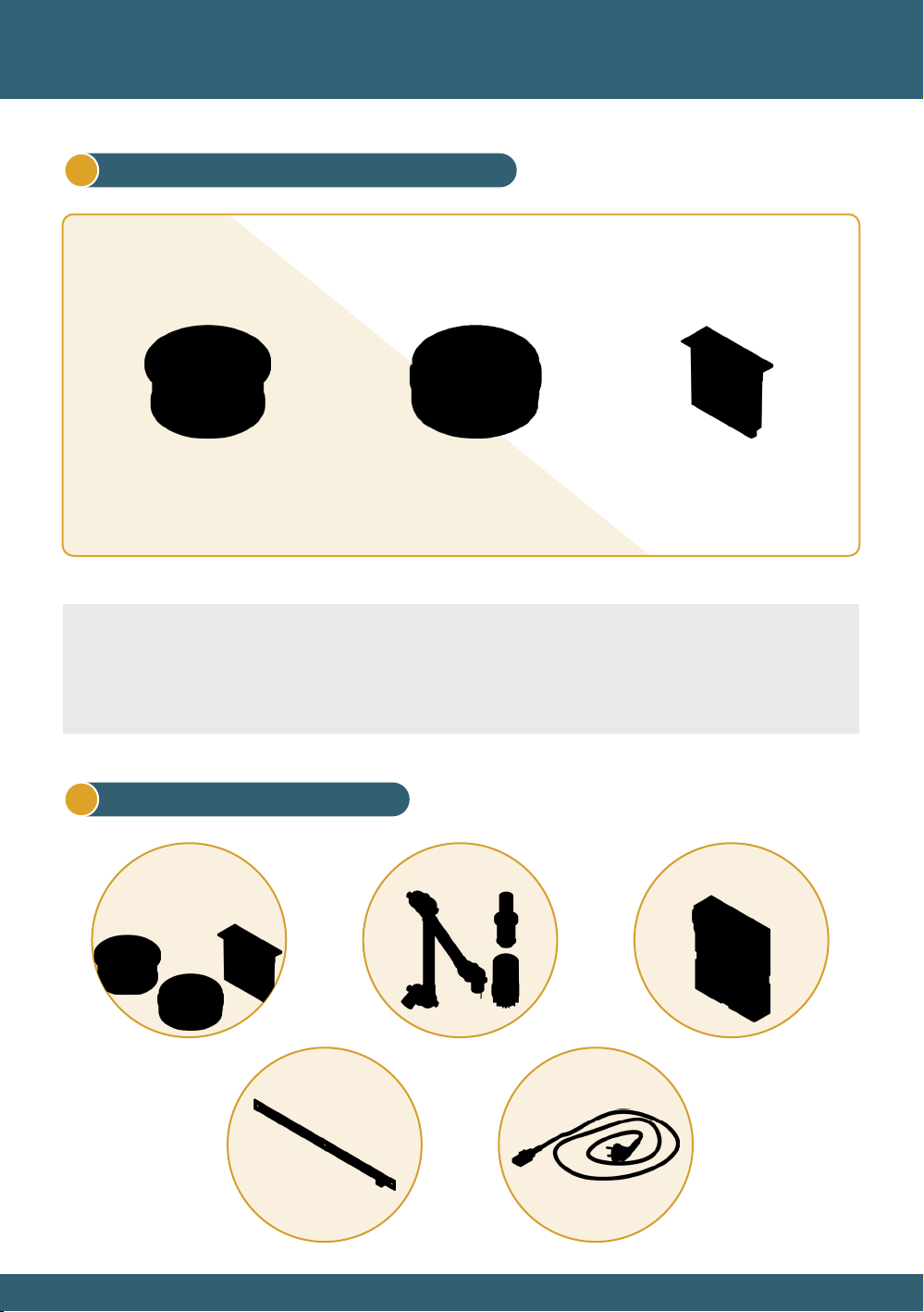

Silence-A100 & Silence-H100 Filters
1
05 Product Standard Components

11111111
2Silence H type composition
Power plug
UV LED lamp
Plasma IonizerFlexible hose
4th Membrane filter
3rd Carbon filter
2nd ULPA filter [99.9995%]
1st Medium filter(149mm)
(For Brushless Motor Type, there is no 4th filter.)
※The 1st filter replacement notification informs you when to replace by measuring the pressure
in the suction part by the pneumatic sensor.
Also, the replacement cycle of the filter may vary depending on the usage.
It is recommended to replace the 2nd, 3rd and 4th filters at least once 6~12month.
Membrane filter
4th Filter
Carbon filter
3rd Filter
ULPA filter
[99.9995%]
2nd Filter
Medium filter
(149mm)
1st Filter
Silence-A200 & Silence-H200 Filters
1
05 Product Standard Components

12121212
All accessories without ★are common accessories.
★Silence H type
Multi-joint hose
★Silence A type
3 Joint Arm
U type
L type
O type
Premium hoods
Brushless Motor
Brush Motor
Suction motor
U Cap
L Cap
O Cap
Hood caps
Hood
Membrane filter
Carbon filter
ULPA filter
[99.9995%]
Medium filter
(149mm)
Medium filter
(82mm)
Filter
Optional Components1
06 Optional Components

13

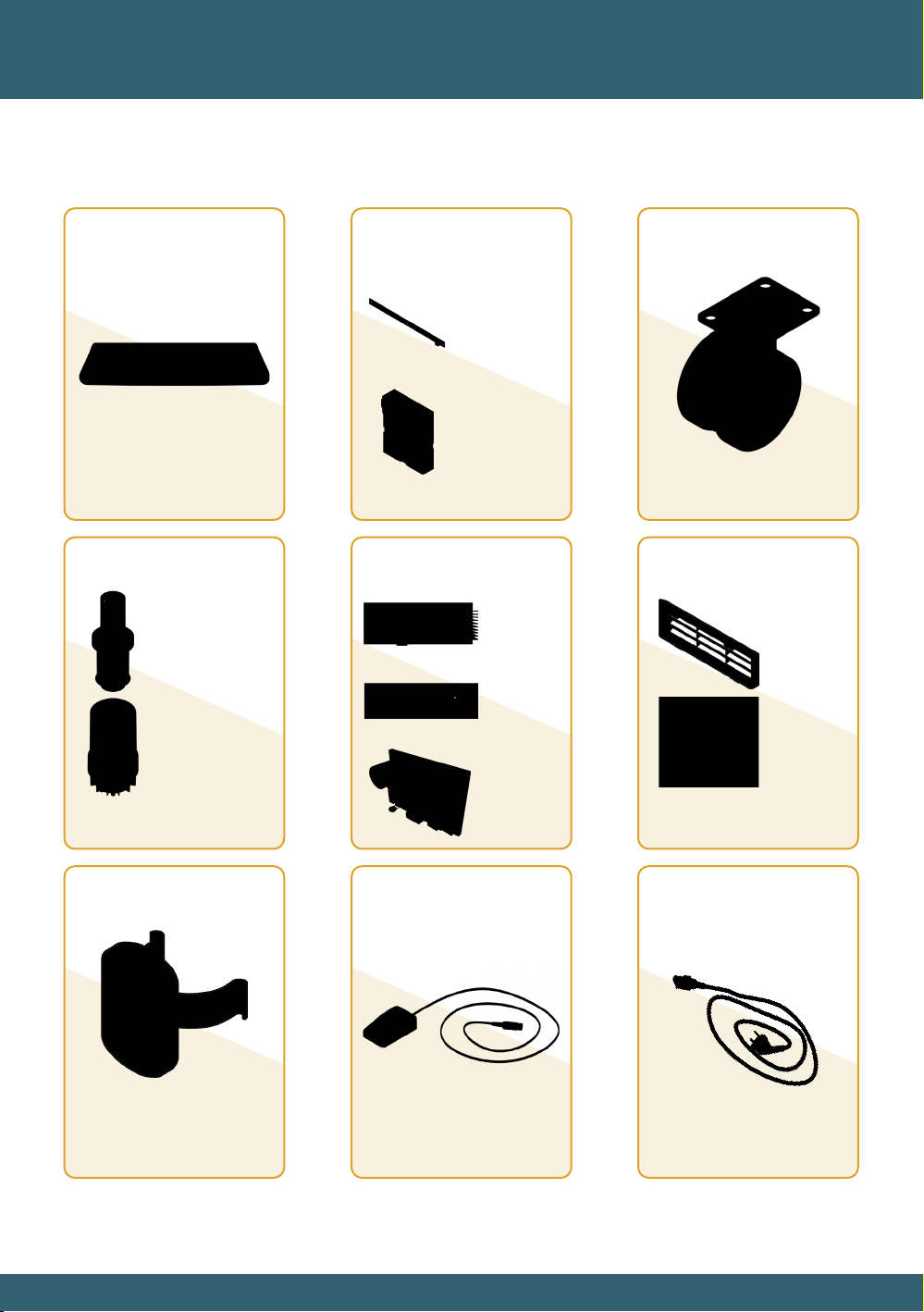

All accessories without ★are common accessories.
Power plug
Suction ON / OFF
Foot switch
※Purchase separately
when ordering
★Silence A type
Remote controller
Indoor
exhaust
Outdoor
exhaust
Exhaust Plate
Brushless
Motor PCB
Touch PCB
Main PCB
PCB
★Silence A type
Fixed post
Rotating post
Arm post
Caster with stopper
Caster
Plasma
Ionizer
UVC LED
lamp
Sterilizer
Touch display
Touchpad
06 Optional Components

14
4) Touch ①at first, next touch ②. Then starting suction.
3) Insert the plug into the outlet.
2) Put the Plug set into the Power connector
1) Connect the arm to the main body. [See page 16]
1. Use
※ This function was made for reference only to filter replacement, and the filter replacement
cycle may vary depending on the actual usage and place of use. The Filter1 turns on after
200 hours of use, and the Filter2 and Filter3 turns on after 400 hours respectively.

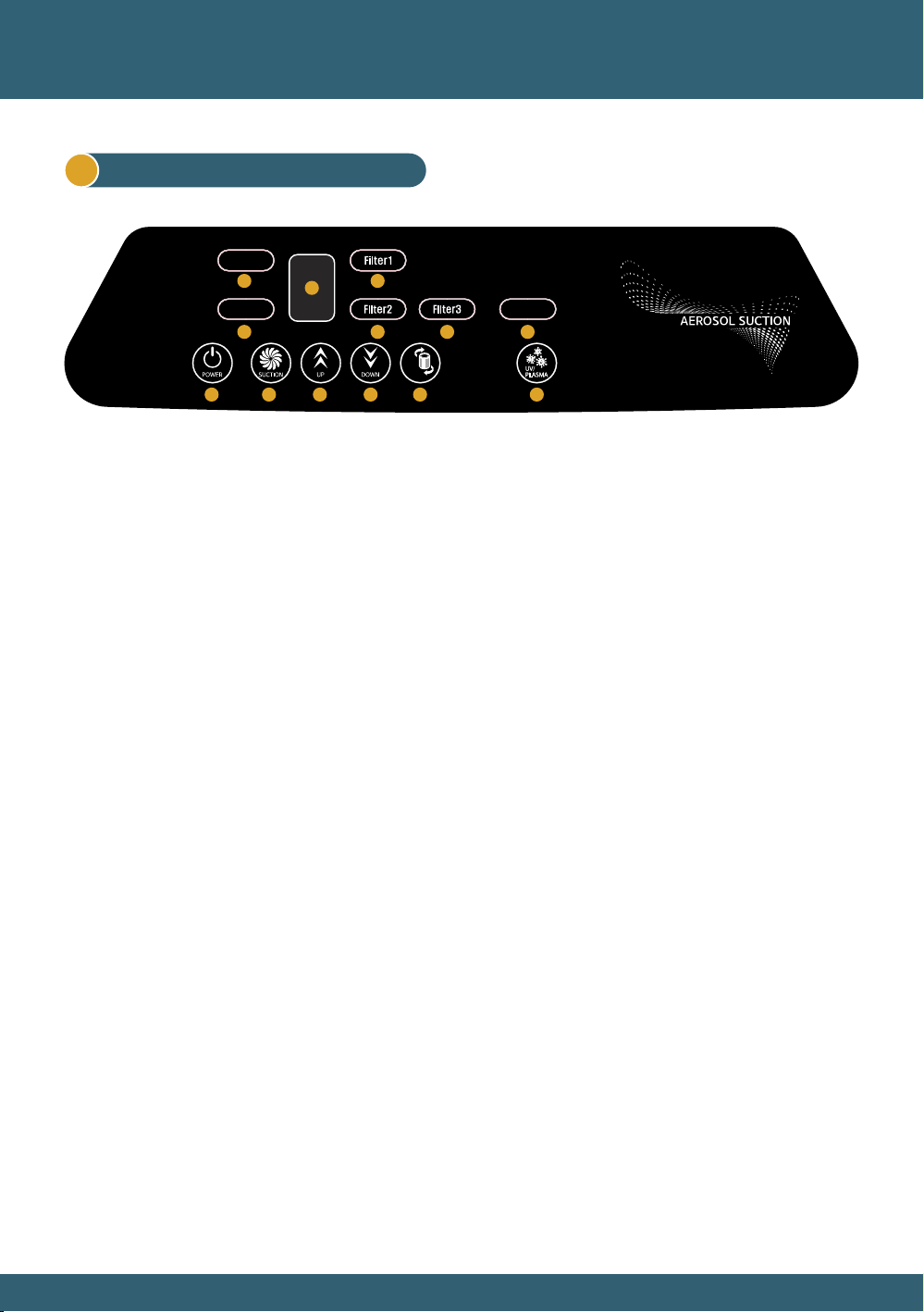

⑩⑪⑫ Filter : filter replacement notification lamp.
When Filter1 lights up, change 1st filter. When Filter2 and Filter3 are lit, replace the
2nd and 3rd filters. After replacing the filter, press the Reset button to turn off the
filter's alarm button and set the alarm again as in the beginning.
⑨Suction level display 1~9 step (For Brushless Motor Type, 1 to 5)
⑥UV&PLASMA : The operating buttons for UV and PLASMA. When it works, ⑬lamp is on.
(If you don’t want to use it, you can turn it off.)
⑤RESET : When the filter alarm lamp is on, press the reset button to turn off the alarm lamp.
④DOWN : Suction step DOWN 1~9 step (For Brushless Motor Type, 1 to 5)
③UP : Suction step UP 1~9 step (For Brushless Motor Type, 1 to 5)
②SUCTION : Suction ON/OFF . When suction works, ⑧lamp is on.
①POWER : Power ON/OFF : other buttons operate when Power ON When the power is on, the ⑦lamp lights up.
Power
Suction
RESET
Sterilizer
654321
131211
7
10
9
8
Touchpad - The Silence Extractors
1
07 Appliance usage

15
1. Loosen the hood fixing screw by turning it counterclockwise.
2. Put the Clear hood at the hole.
3. Turn clockwise the Screw to fixing.
4. Assembling the O cap & Hood post.
5. Assembling the L cap & U cap to the Hood post.
1
2
3
4
5
5
Hood Mounting Method2
2. Insert the end of the rotating post into
the fixed post on the body.
Silence Arm can be rotating 360o.
1.Insert the rotating post into the end of
the silence joint.
360 degree
rotation
1
2
Setting Silence Extraoral Suction – Silence A
1
08 Assemble

16
1. Screw the hood O cap onto the end of the Suction hose.
2. Each hood is completed by assembling the L cap and U cap
in the same way as in step 1.
Hood Mounting Method2
1. Insert the end of the Multi-joint hose into the filter cover.
Setting Silence Extraoral Suction – Silence H1
08 Assemble

17
※Assemble it in reverse order of disassembly.
※For Brushless Motor Type, there is no 4th filter.
① Disconnect the power cord
connected to the main body.
② Remove the spare parts
(arm, hose, ect.)
connected to the main body.
③ Carefully lay the body on the floor
④ Open the filter lid at the bottom.
⑤ Replace the filter.
4th filter replacement3
※Silence A100&H100 model
does not have 3rd filter.
② Remove the 2nd
filter / 3rd filter and
replace it with a new
one.
① Take out the 1st
filter using the method
described above, first.
2nd 3rd filter replacement2
④Remove the 1st filter and
replace it with a new one.
③Open the product lid by turning
it counterclockwise.
②Loosen the locking device
by lifting it up.
①Separate the hose from
the filter cover.(Silence H)
①Separate the arm from the
arm post(Silence A)
1st filter replacement1
09 Replacing the filters

18
Silence H1002
Silence A100
1
10 100Type image

19
The suction device is protected by a three device protection system.
The circuit breaker on the input part, two fuses on the main board, and a thermostat device installed
inside the motor are operated to protect the suction device safely.
Repeated operation of the device protection system is due to a faulty device (or faulty suction device).
Repair your device!
Safety Mechanism3
►Typically, the ULPA filter is replaced every one years.
Do not clean the filter directly with compressed air, brush, or water.
This can damage the filter material!
When installing the filter, be sure to install it in the correct position.
Otherwise, leakage may occur.
This ULPA filter is an U15 class filter. Therefore, it protects the human body to a high level.
The way to check if the filter cleaning is being efficient is to check the suction volume.
Repeated filter cleaning means that the fine filter is clogged and filter cleaning is not appropriate at this time.
In this case, the secondary ULPA filter needs to be replaced.
2.2 Filter replacement
Clean the outside of the device with a damp cloth.
Do not use abrasive or solvent-based cleaning or disinfectants.
2.1 Cleaning
It is not permitted to open the device in any way other than the procedure described below!
Cleaning / Maintenance
2
In order to ensure maximum suction performance, it informs you when to change the filter for the filter unit.
The following cleaning procedure is carried out.
• When the dust collection performance is insufficient (when the suction speed drops below the specified level).
• When the device is turned on.
1 Filter cleaning
11 Cleaning & Maintenance

20
5.3 Disposal instructions for each country
To preserve and protect the environment, prevent environmental pollution and improve raw material recycling.
Please contact your local competent authority for more information on proper disposal.
5.2 Disposing of the Unit
The unit must be disposed of by an authorized recycling operation.
The selected firm must be informed of all possible health hazardous residues in the unit.
5.1 Disposing of Consumables
Full dust bags and filters must be disposed of under compliance with locally applicable regulations.
Depending on the material trapped by the filters, protective gear may need to be worn during disposal.
Disposal Information5
You can check the basic product parts list and the separately purchased parts list.
Components (consumables or parts that are worn or damaged) that are not covered by the product warranty
are listed in the separately purchased parts list.
The serial number, manufacturing month and device specifications are indicated on a sticker on the back of
the device.
The device's hardware and firmware version is displayed on the touch pad each time the product boots.
Parts list4
11 Cleaning & Maintenance
