komodo KMD55LPFRIDGC User manual

55L PORTABLE FRIDGE
FREEZER COOLER
KMD55LPFRIDGC

• Read instructions in this guide before using this product. Retain this guide for future
reference. Do not skip, substitute or modify any steps or procedures in this guide, as
doing so could result in personal injury or product damage.
• Warning: Do not use your unit if any cabling is damaged or frayed or if there is any
exposed wiring. Cease use immediately and contact help.Kogan.com for support.
• Warning: Do not attempt to or continue to operate your unit if it is wet.
• When using the refrigerator in a vehicle, ensure the circuit being used is fused.
Recommended fuse size:
o DC 12V - 15A
o DC 24V - 7.5A
• Make sure the voltage is within the correct range for the socket and cable being used.
The technical data label on the side of the unit shows the voltage ranges.
• Do not place any electrical device inside the refrigerator. Doing so may damage them.
• Refrigerator
• DC Power Cord
• AC Adaptor
• Insulated cover
• User Guide
SAFETY & WARNINGS
COMPONENTS

Control Panel

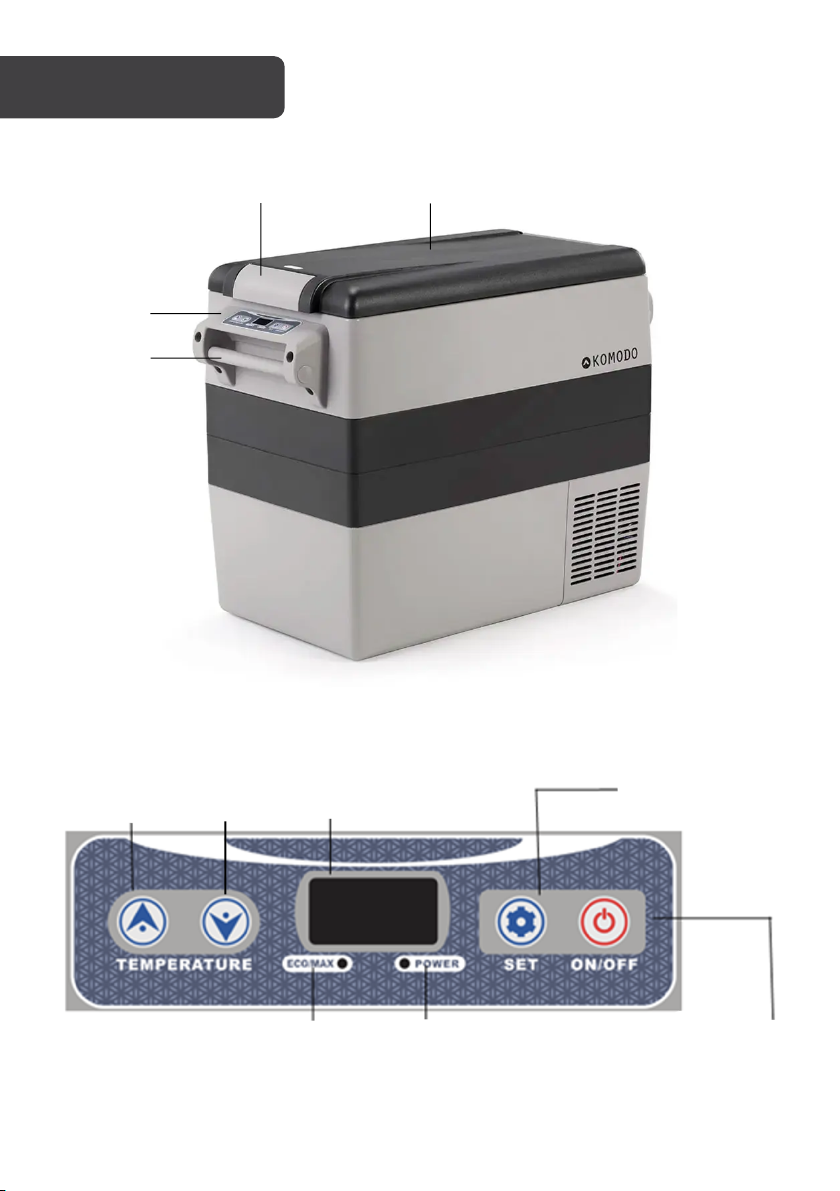

OVERVIEW
LED
display
SET button
Mode
indicator
Power
Power button
Power
button
Set button
Power
indicator
Increase
Lid
Lid latch
Control
panel
Handle
Decrease

This fridge/freezer can be powered using either DC 12V/24V power or AC 240V power.
Using DC 12V/24V Connection
1. Connect the DC power cord into the power input port on the fridge.
2. Insert the DC power cord into a 12V/24V socket (cigarette lighter).
Using AC 240V Connection
1. Connect the AC power cord into the power input port on the fridge.
2. Connect the AC power cord into a 240V electrical outlet.
Battery protection
Select Low, Med or High positions on the Battery protection switch (next to the power
input), to select different levels of battery protection. In the below table you can find the
voltages when the compressor stops running (cut-out) and when the compressor restarts
(cut-in) for each of the levels.
Battery protection
12V cut-out
12V cut-in
24V cut-out
24V cut-in
Low
10.2±0.3V
11.2±0.3V
21.6±0.3V
23.0±0.3V
Med
10.7±0.3V
11.7±0.3V
22.6±0.3V
24.0±0.3V
High
11.7±0.3V
12.7±0.3V
24.6±0.3V
26.0±0.3V
OPERATION

Turning the Fridge On/Off
• Press and hold the power button for 5 seconds to turn the fridge on. The fridge will enter
standby mode.
• The LED display on the control panel will turn on and the interior temperature is
displayed. The compressor will delay starting for 3 minutes and the Power indicator will
turn green.
• Press and hold the power button for another 5 seconds will turn the fridge off.
Temperature Setting (range: -18˚C to 10˚C)
• Press the increase button (p) or decrease (q) button to adjust the temperature.
• Press the Set button, to switches between ˚C and ˚F.
• Press the Set button to enter the economic running mode, the mode indicator will turn
green. Press the Set button again and the unit will enter the maximum running mode.
The mode indicator will turn red.
o Economic mode runs the compressor at a lower speed to save power
o maximum mode runs the compressor at a higher speed increasing power
usage
• Maximum mode is useful if the ambient temperature is over 30ºC or fast cooling is
required.
• If the power source is cut off or disconnected, the unit will switch off automatically and
once the power is restored it will automatically switch back on with the same setting.

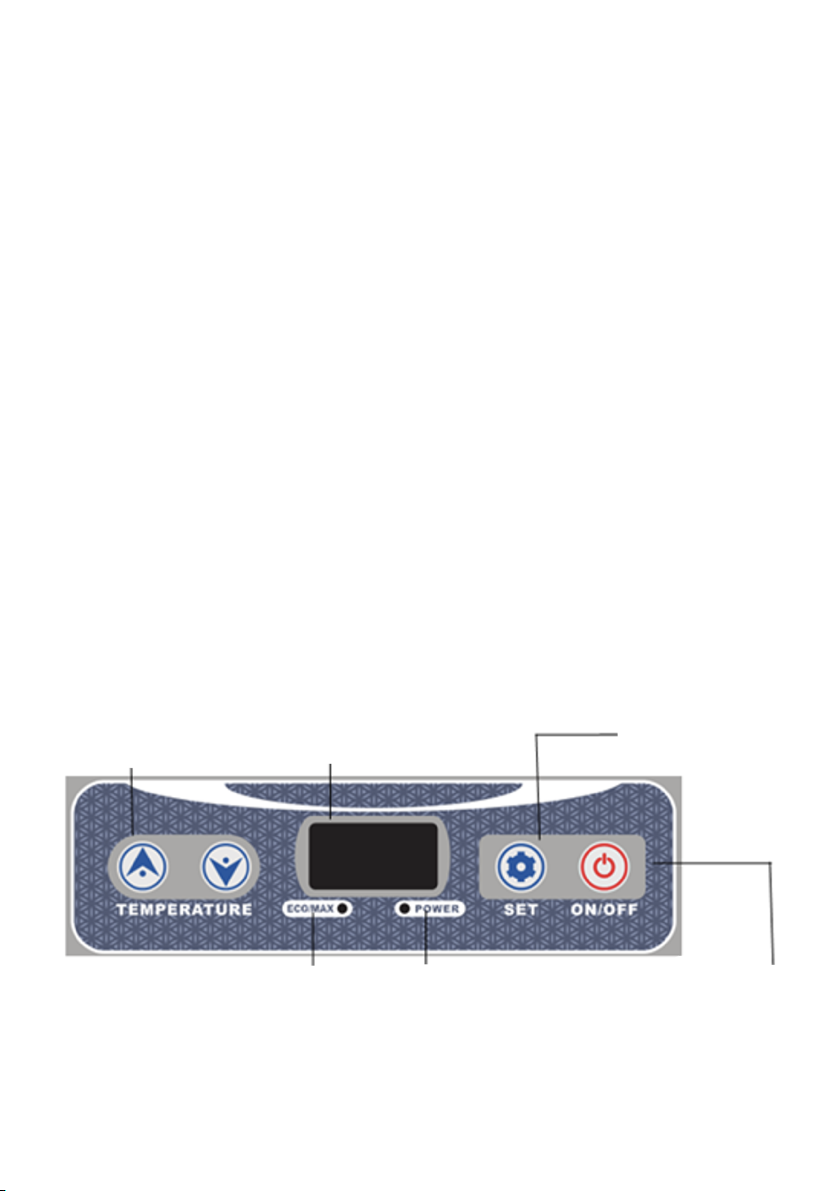

LED Display
Te m p e r a t u re control
buttons
SET button
Mode
indicator
Power
indicator
Power button
Power
button
Set button
Power
indicator

• Clean the appliance inside and out with a clean damp cloth every week. If it is dirty, use
sodium bicarbonate dissolved in lukewarm water to clean the unit.
• Never use abrasive products, detergents or soap.
• After cleaning, wipe out with a clean damp cloth and dry carefully.
• Do not store food items inside the fridge if the fridge is not in operation.
• Clean the inside and close the lid when it’s not in use.
• Never clean the unit under running water or in a dishwasher.
• Do not use sharp objects during cleaning as these can damage the unit.
CLEANING & CARE

Climatic category
T/ST/N/SN
Protective classification of electric shock resistance
III
Rated voltage DC
12/24V
Rated current for DC
4.6A/2.3A
DC fuse
15A
To t a l i n p u t p o we r
55W
Refrigerant (R134a)
42g
Capacity
55L
Te m p e r a t u re range
-18˚C ~ 10˚C
Foam vesicant
C5H10/C-Pentane
Dimensions
69 x 34.5 x 52.4cm
Weight
17.5kg
SPECIFICATIONS

Problem
Solution
The fridge is not turning on.
• Check whether the unit has been
turned on.
• Check the power supply (try a different
power source, i.e. a different vehicle or
electrical outlet).
• Check whether the plug and the socket
have a good connection.
• Check whether the fuse has been
burned out or blown.
Poor refrigeration performance.
• Check whether the unit has been
turned on.
• Check the power supply (try a different
power source, i.e. a different vehicle or
electrical outlet).
• Check whether the plug and the socket
have a good connection.
• Check whether the fuse has been
burned out or blown.
Sound of running water from inside the
unit.
This is normal and is due to the flow of
refrigerant in the unit.
Unusual noise during operation.
The refrigerator is not placed on a level
surface.
TROUBLESHOOTING

Error Codes
When the electronic control module of compressor malfunctions, the LED display will show
ER1, ER2, ER3, ER4, ER5 and compressor will stop working. After rectifying the fault, please
wait for 3 minutes before starting the operation.
When an NTC (temperature sensor) failure is detected, the LED display shows ER0 and ER9
and after rectifying the fault, the display will show the internal temperature again.
Error Code
Problems
Solution
ER0
Te m p e r a t u re s e n s o r short circuit (at
this point the compressor enters a
regular operating mode, (i.e.,) works
for 30 minutes then stops for 30
minutes).
Change the temperature sensor
line.
ER1
Input under-voltage protection
• Change the battery.
• Check the lower battery
protection switch.
ER2
DC fan over-current protection
Change the fan.
ER3
Compressor start-up problem
Interrupt power and keep it idle for
30 minutes and then restart.
ER4
The rotational speed of the
compressor is abnormal
Change the main controller.
ER5
The temperature of the control
module is abnormal
Move the fridge in a cool place,
cool the module then restart.
ER9
Te m p e r a t u re s e n s o r o p e n c i r c u i t ( a t
this point the compressor enters a
regular operating mode, works for 30
minutes then stops for 30 minutes.)
• Tighten the temperature sensor
line.
• Change the temperature sensor
line.
Disposal
This marking indicates that this appliance should not be disposed with other
house-hold wastes. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources.

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
