Konka KUD43WT808AN User manual

Please read this manual carefully before TV operation.
Retain it for future reference.
LED TV
KUD43WT808AN
KUD50WT808AN
KUD55WT808AN
KUD65WT808AN

High Voltage
Do not open
Risk of electronic shock, do not open.Do not
attempt to service this product yourself as
opening or removing covers may expose you
to dangerous voltage or other hazards. Refer
all servicing to qualified service personnel.
CAUTION
Important Safety Instructions and Maintenance
Important Safety Instructions
If the following problems occur:
Turn off the TV set and unplug the AC power
cord immediately if any of the following
problems occur. Ask your dealer or service
centre to have it checked by qualified service
personnel.
When:
- AC power cord is damaged.
- Poor fitting of AC power outlet.
- TV set is damaged by being dropped, hit or
having something thrown at it.
- Any liquid or solid object falls through
openings in the cabinet.
The screen and cabinet get warm when the
TV is in use. This is not a malfunction.In case
of smoke, strange noise or strange smell
from the unit:
Turn off the power switch immediately;
Disconnect the power plug from the power
outlet;
Contact your dealer or service
centre. Never attempt to make
repairs yourself
because this could
be dangerous.
·
·
·
Do not overload wall outlets, extension cords or adaptors beyond their capacity,
this can result in fire or electrical shock.Power-supply cords should be
routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at plug
end, adaptors and the point where they exit from the appliance. The mains
plug is used as the disconnect device. It shall remain readily accessible and
should not be obstructed during intended use. Make sure to plug the power
cord in until it is firmly inserted. When removing the power cord, make sure to hold the power
plug when pulling the plug from the outlet, do not pull the plug out by the wire. NEVER touch the
plug or power cord with wet hands. To disconnect the apparatus from the mains power, the plug
must be pulled out from the mains socket, therefore make sure the mains plug is always easily
accessible.
To reduce the risk of fire or
electric shock, do not expose
this product to rain or moisture.
The apparatus shall not be
exposed to dripping or splashing and
no objects filled with liquids, such as vases,
shall be placed on the apparatus.
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short-circuit
parts that could result in a fire or electric
shock. Never spill liquid of any kind on the
set. Use special caution in households where
children are present. The apparatus is not
suitable for children under 3-year to operate.
1
To avoid the fire, no naked flame source, such as lighted candles, should be placed
on the apparatus.
Do not push or scratch the front filter, or place any objects on top of the TV set. The image may
be uneven or the screen may be damaged.

Important Safety Instructions and Maintenance
Important Safety Instructions
2
An outside antenna
system should not
be located in the
vicinity of overhead
power lines or other
electric light or power
circuits, or where it can
fall into such power
lines or circuits. When installing an outside
antenna system, extreme care should be
taken to keep from touching such power
lines or circuits as contact with them might
be fatal Ensuring the television is not
overhanging the edge of the supporting
furniture.
.
When not in use
If you will not be using the TV set for several
days, the TV set should be disconnected from
the AC mains for environmental and safety
reasons. As the TV set is not disconnected from
the AC power when the TV is turned off at the
standby switch, pull the plug from the AC power
outlet to disconnect the TV completely. However,
some TV sets may have features that require the
TV set to be left in standby to function correctly.
In the case of lightning, unplug the TV set from
the outlet immediately. Never touch the antenna
wire during lightning.
Do not pull the plug out by the wire; Never
touch the plug with wet hands.
Excessive from earphones and
headphones can cause hearing loss.
volume
Installation
The ventilation should not be impeded by covering the ventilation
opening with items, such as newspapers, tablecloths, curtains, etc.
At least 10 cm space should be left around the apparatus for sufficient
ventilation.
The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat. Place the apparatus in
such a position that the screen
is not exposed to direct sunlight. It is best to have soft indirect
lighting while watching and avoid
and reflection from the screen as these may cause eye fatigue.
Keep the TV set away from any equipment emitting
electromagnetic radiation.
completely dark environments
Do not place the set on an unstable cart, stand, table or shelf. The
set may fall, causing serious personal injury as well as damage to
the product. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus. An
appliance and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
Do not place this apparatus near water, for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or
a swimming pool; and the like;

solvent thinner
Important Safety Instructions and Maintenance
3
Installation
Move
When the TV being moved in from cold place, it needs some right time for dew
inside unit evaporating fully before turn on the unit;
To prevent injury, this apparatus must be securely attached to the floor/wall in
accordance with the installation instructions.
LED Screen
Although the LED screen is made with high precision technology and 99.99% or more of the
pixels are effective, black dots may appear or bright points of light (red, blue or green) may
appear constantly on the LED screen. This is a structural property of the LED screen and is not
a malfunction.If the surface of the LED panel cracks, do not touch it until you have unplugged
the AC power cord. Otherwise electric shock may result. Do not throw anything at the TV set.
The LED panel may break from the impact and cause serious injury.
Precautions When Displaying a Still Image
A still image may cause permanent damage to the TV screen.
Do not display still images and partially still images on the LED panel for more than 2 hours as it
can cause screen image retention. This image retention is also known as "screen burn". To
avoid such image retention, reduce the degree of brightness and contrast of the screen when
displaying a still image.
Watching the LED TV in 4:3 format for a long period of time may leave traces of borders
displayed on the left, right and centre of the screen caused by the difference of light emission on
the screen. Playing a DVD or a game console may cause a similar effect to the screen.
Damages caused by the above effect are not covered by the Warranty.
Displaying still images from Video games and PC for longer than a certain period of time may
produce partial after-images. To prevent this effect, reduce the 'brightness' and 'contrast' when
displaying still images.
Cleaning
Cleaning and handling the screen surface
and cabinet. Disconnect the unit from the AC
outlet before cleaning. To remove dust, wipe
gently with a soft, lint free cloth. If required
use a slightly damp cloth.
MAINS PLUG
Wipe the mains plug with a dry cloth at
regular intervals. Moisture and dust may lead
to fire or electrical shock.
Use care not to subject the TV's surfaces to detergent. (A liquid inside
the TV could lead to product failure, fire or electrical shock.)
Use care not to subject surfaces to bug repellent, solvent, thinner, or
other volatile substances as this may deteriorate the surface and finish
of the cabinet.

Important Information
4
Table of Contents
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous
due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions
such as:
• Using cabinets or stands recommended by the manufacturer os the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge os the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the television to a suitable support.
• Not standing the televisions on cloth or other materials placed between the television and
supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its
controls.
• Keep small accessories out of reach of children so they are not mistakenly swallowed.
5
6
6
7
8
11
11
12
13
14
14
15
16
16
16
16
17
22
23
28
29
34
49
Accessories
Introduction
-------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------
Features-------------------------------------------------------------------------------------------------------------------
Specifications-------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------
--------------------------------------------------------------------------------------------------
Overview of front panel(Only for 43"/50"/55" model)-----------------------------------------------------------

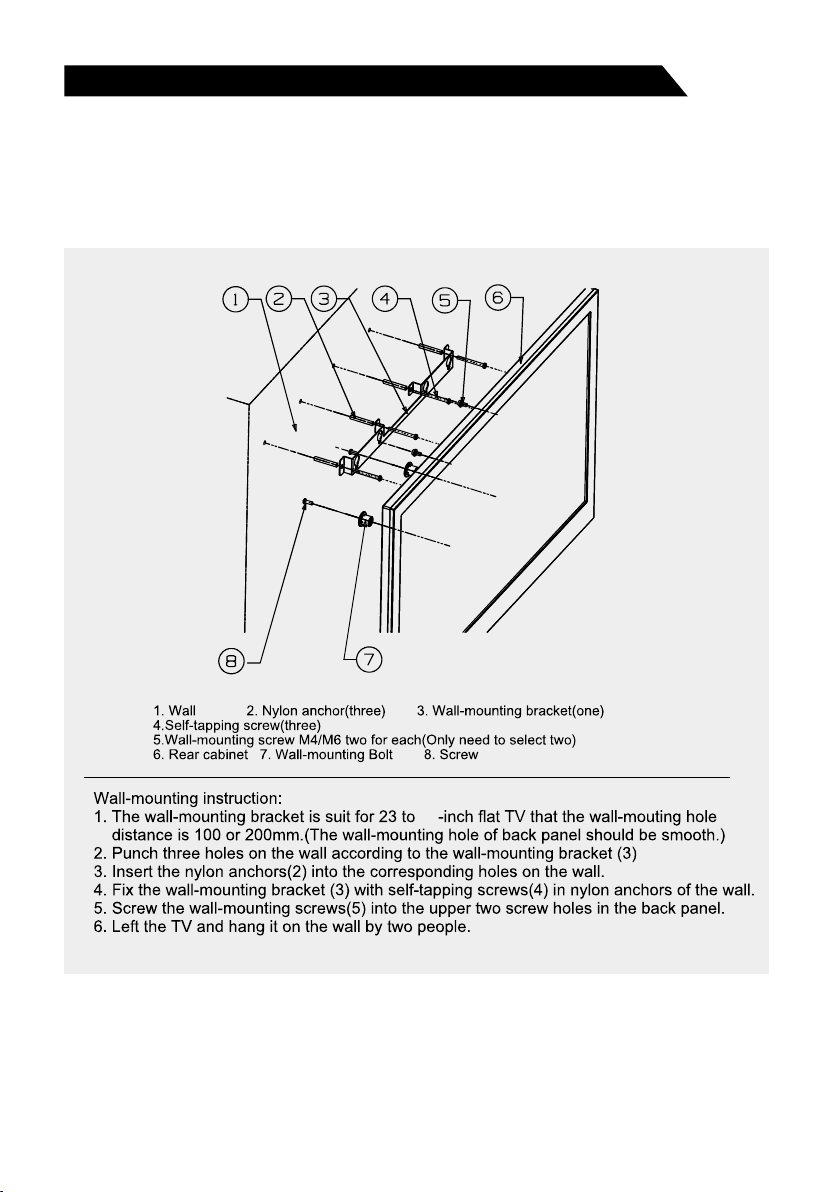

Stand and wall-mounting instructions (optional)
General Description
Overview of front panel(Only for 65" model)---------------------------------------------------------------------
Overview of back panel------------------------------------------------------------------------------------------------
Installing Batteries in the Remote Control-------------------------------------------------------------------------
Registering Magic Remote Control----------------------------------------------------------------------------------
Overview of remote control--------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------
Antenna connection-----------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------
External Connection
Basic operation
Turning the TV on and off----------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------
----------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------
Getting Started with webOS TV
How to Operate TV
Enjoy Live TV
ENJOYING CONTENT STORE
CONNECTING EXTERNAL DEVICES
SETTINGS
TROUBLESHOOTING

5
Accessories
Please make sure the following items are included with your . If any items are missing,
contact your dealer.
LED TV
Remote Control
Owner’s
Instructions

6
Introduction
Features
 TV adopts 43"/50"/55"/65" TFT LED display screen
Zero X radiation complies to green environment protection requirement
Connect to computer directly to realize TV/monitor combo.
Support USB
16:9 wide screen
Auto tuning and fine tuning
Support HDMI
Programmable sleep timer
Wide range voltage input
No-signal automatic power off









Input terminals used for external equipment connection
1x AV Input
2x USB Input
1x Earphone Output
1x RF Input
1x DVB-S2 Input
3x HDMI Input
1x Network Input
1x SPDIF

7
Introduction
Specifications
9.6Kg
9.45Kg
1111.24x237x713.3mm
1111.2x83x647.4mm
KUD43WT808AN
11.95Kg
11.79Kg
1226.8X266X777mm
1226.8X88X712.8mm
NOTES:
• Design and specifications are subject to change without notice.
• Weight and Dimension shown are approximate.
≥8 X2W
110-240V~, 50/60Hz
<1W
0 C-40 C
o o
43” Diagonal(max.)
100W
3840X2160
PAL/NTSC
55” Diagonal(max.)
150W
65” Diagonal(max.)
220W
1446×269×898.8mm
1446×75.5×830.8mm
16.93kg
16.8kg
50” Diagonal(max.)
140W
6.72kg
6.59kg
972.9 88.1 574.2mm× ×
972.9 253 621mm× ×
KUD50WT808AN KUD55WT808AN KUD65WT808AN
Analog: PAL: DK I BG
SECAM: DK BG
Digital: DVB-T/T2/C/S
DVBS/S2
Analog:Antenna:
48.25MHz~863.25MHz
Digital:
DVB-T/T2/C: 174~862MHz
DVBS/S2: 950MHZ-2150MHZ

8

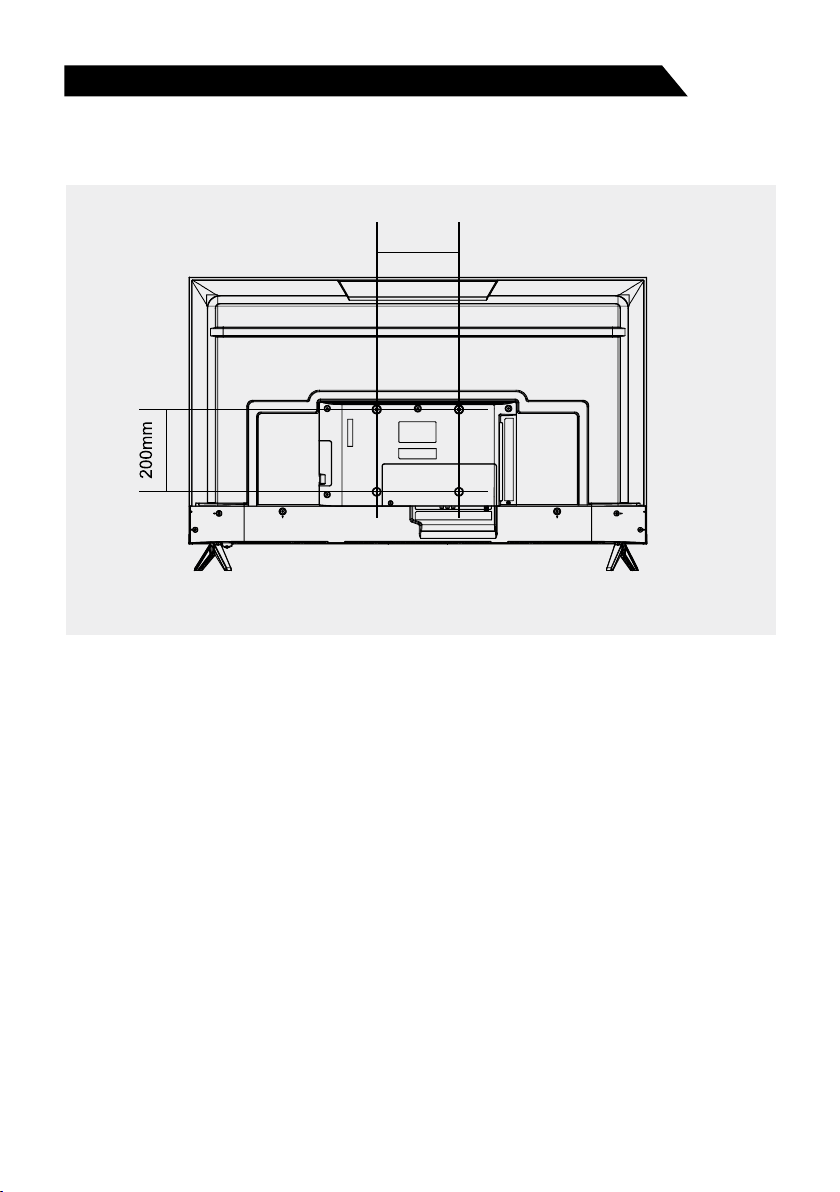

How to assemble the stand
- Before attaching/detaching the stand, make sure to turn off the TV.
Lay the TV face down on a soft cloth or a towel to prevent scratches.
-
Assembling instruction:
If you need to remove or assemble the stand please read the following instructions.
- To disconnect the stand from the TV, perform the above steps in reverse order.
Step2: Align the Base against the corresponding screw holes on the bottom of the TV.
Insert and tighten the screws to attach the Base to the TV.
Step1: Before performing work, spread cushioning over the base area to lay the LED TV on.
Put the television on the table.
Note: The illustrations and on-screen displays in this manual take as an example,
they are for explanation purposes and may vary slightly from actual product.
KUD55WT808AN
Stand and wall-mounting instructions (optional)

Stand and wall-mounting instructions (optional)
49
9
Wall mounting instructions(optional):
Your LED TV is able to accommodate wall mounting with the use of a wall mount bracket (not
supplied with LED TV, please contact your local hardware store) and the mounting holes on the
back of the unit. We recommend removing the TV stand prior to wall mounting the TV. Please
see previous page for instructions on removing the stand.
Mounting instruction: (Only for 43" model)
Note: The illustrations and on-screen displays in this manual take as an example,
they are for explanation purposes and may vary slightly from actual product.
KUD55WT808AN

Stand and wall-mounting instructions (optional)
10
Mounting instruction: (Only for 50"/55"/65" model)
1. Fasten mounting screws and sleeves together into the 4 screw holes on the rear cover
2. Fasten wall mounting bracket with screws on the wall
3. Left the TV and hang it on the wall
Note:
1. Please mount your TV on the strength of the wall for withstanding the TV’s weight.
2. Be careful not to scratch panel and TV cabinet when your fasten the screws on the TV.
The illustrations and on-screen displays in this manual take as an example,
they are for explanation purposes and may vary slightly from actual product.
KUD55WT808AN
200mm

General Description
Overview of front panel(Only for 43"/50"/55" model)
11
The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
The key instructions are subject to below.
Power off Inputs Volume up Volume down Channel Up Channel Down
Power off
Corresponding to the “POWER” button of remote.
Inputs
Volume up
Volume down
Channel Up
Channel Down
Corresponding to the “ ” button of remote.
Corresponding to the “ +” button of remote.
Corresponding to the “ -” button of remote.
Corresponding to the “ ” button of remote.
Corresponding to the “ ” button of remote.
POWER(power on / key function)
Remote Control Sensor
Display/Hide key icons: Press the Multifunction Button once to display the icons shown
above. The icons will be hidden after 5 seconds of inactivity. Long press the key 3 seconds,
the TV will enter standby mode.
Short press the button, move the loop to the right, select the icon.
: Long press the key to achieve the function of the selected icon.
Icon selection:
Icon function selection
Multifunction Button

General Description
Overview of front panel (Only for 65" model)
12
The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
The key instructions are subject to below.
Power off Inputs Volume up Volume down Channel Up Channel Down
Power off
Corresponding to the “POWER” button of remote.
Inputs
Volume up
Volume down
Channel Up
Channel Down
Corresponding to the “ ” button of remote.
Corresponding to the “ +” button of remote.
Corresponding to the “ -” button of remote.
Corresponding to the “ ” button of remote.
Corresponding to the “ ” button of remote.
POWER(power on / key function)
Remote Control Sensor
Display/Hide key icons: Press the Multifunction Button once to display the icons shown
above. The icons will be hidden after 5 seconds of inactivity. Long press the key 3 seconds,
the TV will enter standby mode.
Short press the button, move the loop to the right, select the icon.
: Long press the key to achieve the function of the selected icon.
Icon selection:
Icon function selection
Multifunction Button

General Description
Overview of back panel
You can connect the TV with video devices such as DVD/VCD player, VCR and video camera to
enjoy the high quality picture.
Note:
The product and illustrations in this user's manual are only for explanation purposes and
may vary depending on model.
All three HDMI ports are version 2.0 and support 4K x 2K @60Hz.
13
DVD player
Headphone
USB
USB
Camcorder
PC (HDMI-output)
Blu-ray disc player
DVD player
USB 1
5V 500mA
HDM I 2
(ARC)
HDM I 1
SPDIF RL AUDIOVIDEO
AV IN
USB 2
5V 5 00mA
HDMI 3 DVB-S2 ANTENNA

General Description
Installing Batteries in the Remote Control
Installing Batteries
3Closed the cover.
1Open the battery
compartment cover on the
back side.
2Insert two 1.5V size
batteries in correct polarity.
Don´t mix old or used
batteries with new ones.
AA
Point the remote towards the remote control
sensor of the and use it
within 8 meters.
TV
Put the used batteries into the recycling bin
since they can negatively affect the
environment.
NOTES:
• One loading of batteries will last for 1 year under normal use.
• If you do not intend to use the remote controller for a long period of time, remove them
to avoid damage due to leskage.
• Do not use old and new batteries together.
• The batteries (battery pack or batteries installed) shall not exposed to excessive heat
such as sunshine, fire or the like.
Registering Magic Remote Control
1How to register the Magic Remote Control
To use the Magic Remote, first pair it with your TV.
1. Put batteries into the Magic Remote and turn the TV on.
2. Point the Magic Remote at your TV and press the on the remore control.
* If the TV fails to register the Magic Remote, try again after turning the TV off and back on.
2How to deregister the Magic Remote Control
Press the ( ) and ( ) buttons at the same time, for five seconds, to unpair the
Magic Remote with your TV.
*Press and hold the button for more than 5 seconds to disconnect and re-register and Magic
Remote at the same time.
BACK HOME
14

General Description
Overview of Remote Control
Turns the TV on or off.
You can turn your set-top box on or off by adding
the set-top box to the universal remote control for your TV.
Enters numbers.
Accesses the saved channels list.
Displays more remote control functions.
Edits QUICK ACCESS.
- QUICK ACCESS is a feature that allows you to enter a specified
app or Live TV directly by pressing and holding the number buttons.
SAP(Secondary Audio Program) Feature can also be
enabled by pressing the button.
Adjusts the volume level.
Mutes all sounds.
Accesses the [Accessibility] menu.
Scrolls through the saved channels.
Network connection is required to
use the voice recognition function.
Check for recommended content. (Some recommended services
may not be available in some countries.)
Speak while pressing and holding the
button to use the voice recognition feature.
Accesses the Home menu.
Shows the previous history.
Accesses the Quick Settings.
Press the center of the Wheel button to
select a menu. You can change channels by using the
wheel button.
Press the up, down, left or right
button to scroll the menu. If you press buttons whils
the pointer is in use, the pointer will disappear from the screen
and Magic Remote will operate like a general remote control.
To display the pointer on the screen again, shake Magic Remote
to the left and right.
Returns to the previous screen.
Displays the program event according to time scheduler.
Connects to the Video Streaming Service.
Changes the input source.
These access special functions in some menus.
Controls media contents.
 

















** To use the button, press and hold for more than 1 second.
Some buttons and services may not be provided depending upon models or regions.
15

Basic Operation
Turning the On and OffTV
How to turn the TV on or off
1. Insert the power cord plug into a polarized AC outlet.
2. If TV is in standby mode, press button on
the remote control or button on the back panel of
LED TV.
3. Normal picture will be displayed on the screen after 10
seconds. If no signal input, “No Signal” will be displayed on the screen.
4. If temporary POWER off is required, press POWER button on the remote control or button
on the back panel.
5. If you want to completely switch off the power for this unit, unplug the power cord plug for this
unit.
6. After switching off the unit, you should wait at least 5 seconds before switching on again.
POWER
Status indication lamp
Red: In standby mode.
Green: In power on mode.
Auto power-off
1. If there is no signal, the TV will automatically enter standby mode after 15 minutes.
Memory before turning TV off
The picture and sound settings and preset channels will be memorized at the point when the
TV is turned off. When the TV is started up again it will work accordingly with these settings.
External Connection
Antenna connection
Antenna input impedance of this unit is 75ohm. / 75ohm coaxial cable can be connected
to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder cable, you need to
use the 300ohm/75ohm converter to connect the antenna cable to the antenna jack. For details
Please refer to the following drawing.
VHF UHF
75ohm coaxial cable
Antenna cable
Antennas with 300 flat twins LeadsAntennas with 75 Round Leads
Use a 75ohm - 300ohm converter
300ohm coaxial cable
Antenna feeder
16

You can open the Home screen by pressing the button on your remote control.
You can combine frequently used apps on a single screen and use whichever you want
at any time.
1.Launch Search.
To see the details, click the Enjoying Content Store Content Search in User Guide.
2.Move to the Home Dashboard.
You can select or control a device (mobile, external device, Home IoT Devices, etc.)
connected to the TV.
For more information, see Connecting External Devices Using Home Dashboard in
User Guide.
3.Move to the TV input you used recently.
4.Move to the recently used app.
Long-press the button on the remote control or focus on the Recents.
You can run or close a recently used app in the list provided in the Preview area at the top.
5.You can run, move, and delete the apps installed on your TV.
Focus on each App area. It provides the Preview at the top.
You can check or run useful features of each app and recommended content on the
Preview without entering into the app.
Some apps may not provide the Preview.
The home screen will be displayed automatically when the TV is turned on. If you don’t
want the home screen to be displayed, set Home Auto Launch of → → General→
Home Settings as Off.
The availability of and access to Contents and Services in device are subject to change
at any time without prior notice.
Getting Started with webOS TV
Home Tutorial
Using the Home Feature of the webOS TV
17

18
You can view a list of all apps installed on your TV, change their positions, or delete them.
1.Select the app you want to edit, and press and hold the Wheel (OK) button on the remote
control.
This will activate the app edit mode.
Or you can select the Edit mode button at the right corner of the Home list to enter the
App Edit mode.
2.To move the app to your desired position, go to the position and press the Wheel (OK)
button.
To delete an app, select the App Delete icon above the app.
You can move and delete as many apps as you wish before exiting the edit mode.
You can also move apps with the / buttons on your remote control.
3.After the editing is done, press the Close at the top right to exit the App Edit mode.
The default TV app cannot be edited.
1.You can automatically arrange the app list in the order of most frequently used based
on your accumulated app usage pattern.
2.You can add your favourite video service programme to the list.
This feature is available only when the network is connected.
Some models may not be supported.
1.Connect the broadcast antenna to the TV.
You can also connect a piece of equipment that can receive broadcasting such as a
set-top box instead of the antenna.
Launch → Connection → Device Connection Settings Universal
Control Settings
2.Start the → → Programmes Programme Tuning (Programme
Tuning & Settings) Auto Tuning.
Finds and adds only programmes being broadcast.
To solve a problem related to this function, refer to the Troubleshooting section of
User Guide.
Manage webOS TV Home
Live TV Preparation
Getting Started with webOS TV
Manage Home

19
Connecting to the Network
Setting a Wired Network
Setting a Wireless Network
If you configure settings for the network, you can use various services such as online
contents and applications.
1.Connect the LAN port of the TV and the router using a LAN cable.
The router should be connected to the Internet beforehand.
If the router supports DHCP, the TV is automatically connected to the network when
you connect the TV to the network with a LAN cable.
If the Network Is Not Automatically Connected
2.Press the button on the remote control.
3.Select →Connection → Network Connection Settings
Wired Connection (Ethernet).
To see the details, click the Settings Connection Network Connection Settings in
User Guide
1.Turn on the power of the router connected to the Internet.
2.Press the Settings button on the remote control.
3.Select All Settings icon Connection Network Connection Settings Wi-Fi Connection.
4.When the network search is complete, the list of networks available for connection
is shown.
5.Select a network to connect.
If your wireless LAN router is password protected, enter the password configured for the
router.
To see the details, click the Settings Connection Network Connection Settings in
User Guide.
Getting Started with webOS TV
Connecting to the Network
