KOTLIE AC-513K User manual

INSTRUCTION MANUAL
Please read this Instruction Manual and the safety
instructions before operating the appliance!
Model: AC-513K

Content
Thank your for your purchase!
This coffee Capsule machine is manufactured with the greatest care. If
you look it after properly it will reward you with many years of good
service. Before using your new machine, please read this operating
manual carefully, paying particular attention to the safety precautions.
Safety precautions
Notes on this operating manual
Unpacking
Starting up
Overview of machine parts and controls
Before using for the first time
Filling/refilling the water tank
Flushing out the machine/internal piping
Capsule type can be used
Energy saving mode
Decalcification
Coffee flow setting
Factory reset
Clean the coffee machine
Matters needing attention
Troubleshooting
Technical data
2

Safety Precautions
Please take time to read these safety precautions carefully before
connecting your machine to the power supply. It is essential to follow
them and the operating instructions.
– First read this entire operating manual.
– Danger of electric shock! Never immerse the machine in water or any
other liquid.
– Connect only to a properly grounded power point.
– To make sure that the machine is switched off, remove the plug from
the power point.
– Always pull out the power plug before:
* Relocating the machine.
* Cleaning or maintenance.
* Long periods of disuse.
– Never clamp or run the power cable over sharp corners or edges.
– Danger of electric shock! Damaged power cables may only be
replaced at the customer service centre.
– Danger of electric shock! Never touch the power plug/socket/cable
or the machine with damp or wet hands. Never unplug by pulling out
the power cable; always remove the plug.
– If you need an extension cable, make sure it is suitable for your
machine (3-pole grounded, 1.5 mm2 conductor cross-section), and
lay the cable to avoid tripping.
– Danger of scalding! Never move the machine during operation!
– Do not use the machine in case of:
* Faulty operation.
* Damaged power cable.
* After falling or other damage.
* In such cases immediately have the machine checked and repaired if
necessary at the customer service centre.
– The machine location must meet the following requirements:
* Choose a dry, stable and level support surface not immediately under-
neath the power point. at least 60 cm away from the washbasin and
taps.
*Never place on flammable/fusible surfaces or equipment.
* Never place the machine or power cable on or nearer than 50 cm to
hot surfaces or open flames.
* Never cover the machine during operation.
– Keep children away from the machine during operation.
3

– Only use the machine in dry rooms.
– Danger of tripping! Do not let the power cable hang down.
– This machine is only intended for household use.
– Pull out the power plug and allow the machine to cool down com-
pletely before cleaning and or Maintenance.
– To prevent damage, never use replacement parts or accessories not
recommended by the manufacturer
- This appliance can be used by children aged from 8 years and above
if they have been given supervision or instruction concerning use of
the appliance in a safe way and if they understand the hazards
involved. Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised. Keep the appli-
ance and its cord out of reach of children aged less than 8 years.
- Appliances can be used by persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.Children shall not
play with the appliance.
- This appliance is not intended for use by persons (including children)
with reduced physical,sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsi-
ble for their safety.Children should be supervised to ensure that they
do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufac-
turer, its service agent or similarly qualified persons in order to avoid
a hazard.
Important Tips
- Never operate the machine without water
- Always make sure there is water in water tank not less than mini-
mum level.
- Danger of burning! Never touch very hot parts of the machine (e.g.
brew unit during operations).
- Danger of scalding! Do not touch the steam or water jets.
- Danger of scalding! Do not move the operating lever when the
machine is still under pressure making Coffee .
- The appliance must not be immersed
- Caution! There is potential injury from misuse.
- Heating element surface is subject to residual heat after use.
- Coffee-maker shall not be placed in a cabinet when in use
- Cleaning and user maintenance shall not be made by children with-
out supervision
4

- This appliance is intended to be used in household and similar
applications such as:
*Staff kitchen areas in shops, offices and other working environments;
*Farm houses;
*By clients in hotels, motels and other residential type environments;
* Bed and breakfast type environments.
Notes on This Operating Manual
This operating manual cannot cover all possible circumstances. For
further information or in case of problems not adequately covered in
this operating manual, please contact the service and sales centre.
Please keep this operating manual safe and pass it on to the next user.
Unpacking
−Remove your espresso Capsule coffee machine from its packaging.
−After unpacking, please check that the following parts are included:
1. Water tank
2. Coffee machine
3. Manual
4. Guarantee Card
5. Three coffee capsule adapters (one in the machine)
6. Coffee spoon
7. Air pump
Note:
−Check that your home power supply voltage is the same as marked
on the machine rating plate
−Destroy all the plastic bags to prevent danger to children!
Tip:
Keep the packaging for transporting the machine (e.g. for removals,
servicing, etc.)
Note:
You may find a little water remaining in the machine. In order to ensure
that this machine works perfectly, it was tested with water before
leaving the factory.
- DANGER OF FROST
5

Starting up
Caution: Improper handling of electrical equipment is dangerous and
can be lethal. Please pay attention to the safety precautions in this
manual, in particular the following:
• Danger of scalding: beware of hot water!
• Do not operate the machine with an empty water tank or water is less
than MINIMUM level.
• Do not open the handle when the machine is brewing.
• Always pull out the power plug before cleaning the machine.
• Only use the machine in a dry room.
• Thoroughly rinse out the water tank with fresh water before using for
the first time. Clean the Capsule coffee machine using a damp cloth
only.
Overview of Machine Parts and Controls
No. Name
A
B
C
D
E
F
G
Handle
Buttons
Water tank cover
Water tank
Brewing Basket
Drip tray cover
Drip tray
A
B
C
D
E
F
G
6

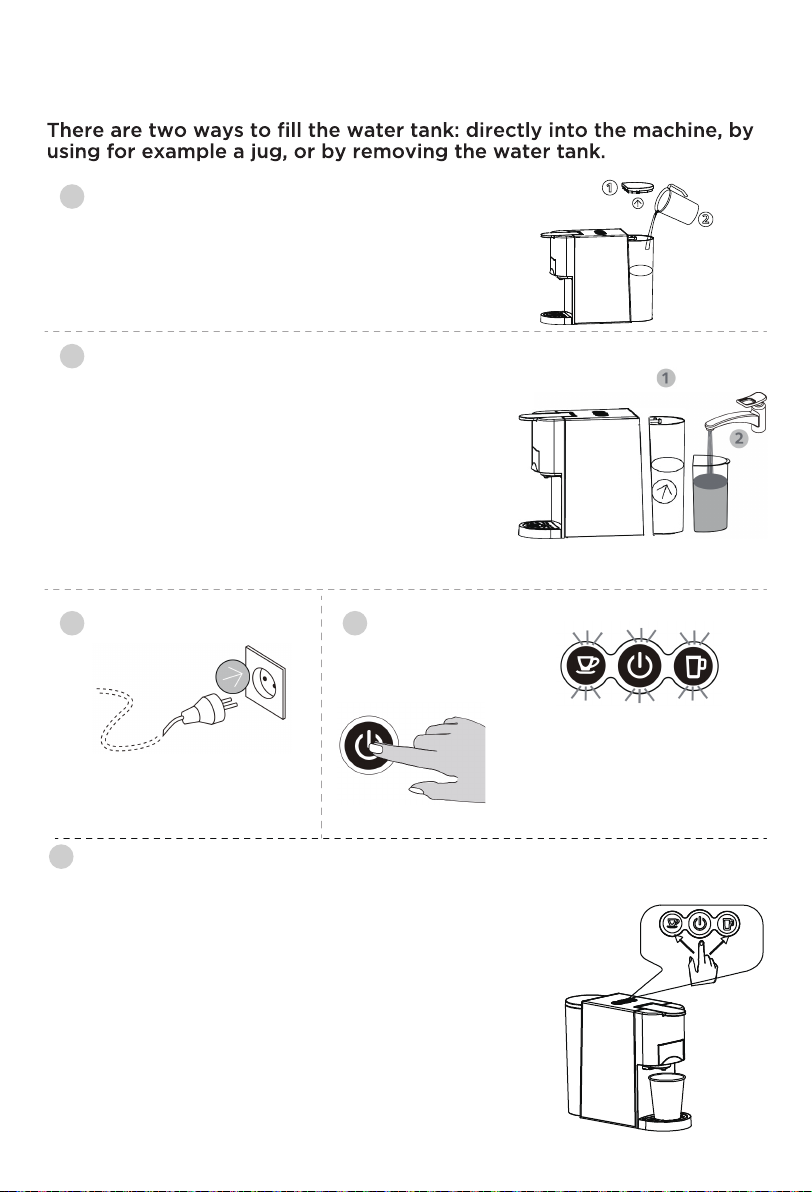

Filling by removing the water tank
–Hold the water grip at tilting angle as shown in
directionto remove the watertank from the
machine.
- Fill thetank up toFill thetank up tothe “MAX”
mark with cold fresh water (themaximum capaci-
ty is 0.6 litre).
–Slidethe water tank slowly on water tank base,
when the water tank outlet is inserted intheinlet
receptacle,pushing firmly on thewater grip as
shown in direction tolock the water tank .
Press thelungo coffeebutton, wait forthe appliance to complete the flushout.
–Before pressing thebutton, make sure that:
–the handleis closed without capsule inside.
–the water tank is full.
–the water tank is firmly inplace, otherwise water may
leak
–alarge bowl ( 250ml size or above) is placed under the
dispenser.
press the lungo coffee button tostart flush out.
–Open the handlewhen the flush out process stopped
automatically.
–Empty the cup.
–Flush out cycle is finished.
Before using for the first time or after long pauses (e.g. holidays) the
machine must be flushed out. This short procedure can flush out and
cleans the internal piping thoroughly.
1
3
5
4
2
Filling without removing the tank
– raise the water tank cover
– Fill the tank with cold fresh water
– the maximum capacity is 0.6 litre
– low down the tank cover
Connect the power supply
Press the s
witch button
The lights at buttons
become steady when the
machineis heated up
heating up timeis 45
seconds approximately
7

Tips: The machine has different adaptor for different capsules,
details referto below
For Nespresso Capsule
For K-Cup Capsule
ForCoffeePowder
8

1
3
4
2
For Nespresso capsules
- Open the handle
- Pull out the brewing basket for
Nespresso capsules.
- Press the brewing basket cover lid
- Insert a capsule to the brewing basket.
- Push in the brewing basket with capsule.
- Close the handle.
- Place a cup and press the power key
- All the buttons start to flash. After 20 seconds, the flashing stops to finish its
warm-up process.
- Press cup key to select your brewing amount (small cup or large cup).
- Cup key starts to flash and prepare to brew.(the brewing time for small cup is
about 25s and the large cup is 47s)
- Lift the handle and pull out the capsule adapter,
throwing the used capsules into the designated
container.
Tips:
1. When the power is turned on for the first time, it
needs 20 seconds flashing for preheating before
brewing starts,but for the second use, preheating is
not needed.
2. Because the brewing temperature is too high, size of
the capsule adapters may change a little and resulting
in excessive dripping time. This is a normal phenome-
non,Please use the drip tray to collect and wait for
cooling.
9

- Place a cup and press the power key
- All the buttons start to flash. After 20 seconds, the flashing stops to finish its
warm-up process.
- Press cup key to select your brewing amount (small cup or large cup).
- Cup key starts to flash and prepare to brew.(the brewing time for small cup is
about 25s and the large cup is 47s)
- Lift the handle and pull out the capsule adapter,
throwing the used capsules into the designated
container.
Tips:
1. When the power is turned on for the first time, it
needs 20 seconds flashing for preheating before
brewing starts,but for the second use, preheating is
not needed.
2. Because the brewing temperature is too high, size of
the capsule adapters may change a little and resulting
in excessive dripping time. This is a normal phenome-
non,Please use the drip tray to collect and wait for
cooling.
1
3
4
2

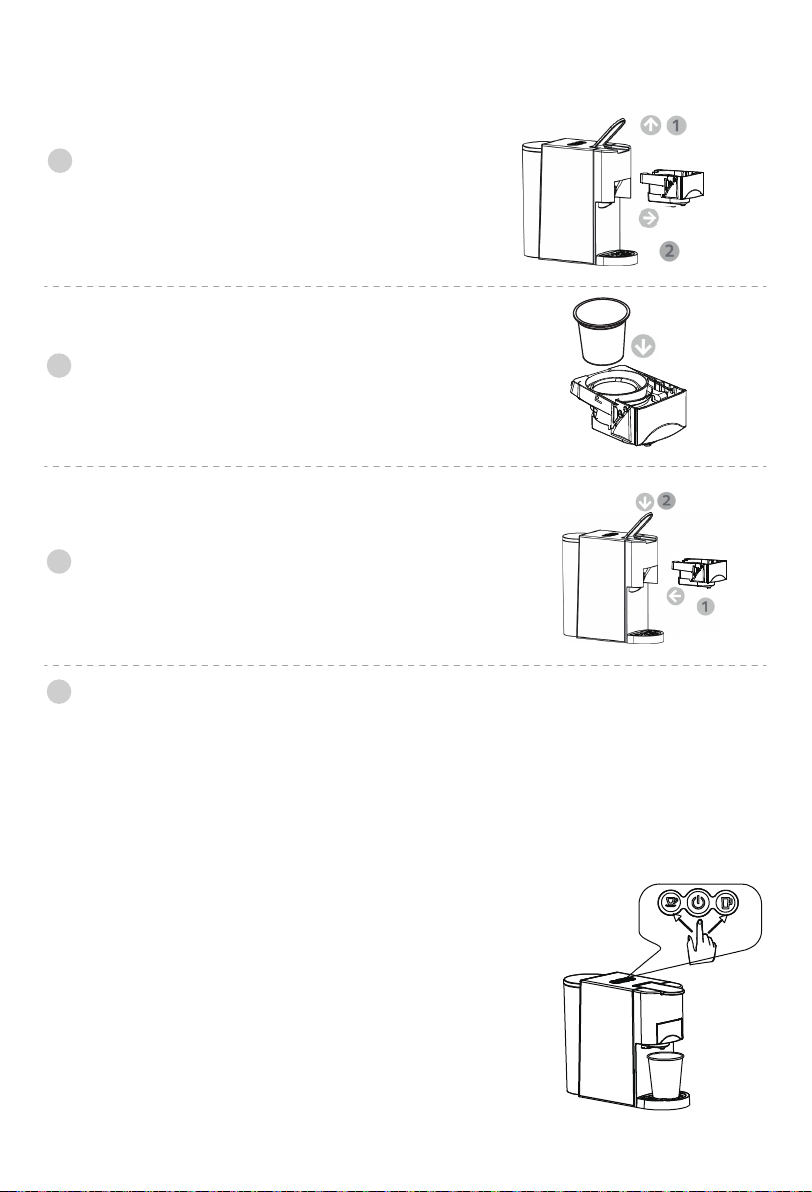

For Dolce-Gusto Capsules
- Open the handle
- Pull out the brewing basket for
K_Cup capsules
- Insert a capsule to the brewing basket.
- Push in the brewing basket with capsule.
- Close the handle.
10

- Place a cup and press the power key
- All the buttons start to flash. After 20 seconds, the flashing stops to finish its
warm-up process.
- Press cup key to select your brewing amount (small cup or large cup).
- Cup key starts to flash and prepare to brew.(the brewing time for small cup is
about 25s and the large cup is 47s)
- Lift the handle and pull out the capsule adapter,
throwing the used capsules into the designated
container.
Tips:
1. When the power is turned on for the first time, it
needs 20 seconds flashing for preheating before
brewing starts,but for the second use, preheating is
not needed.
2. Because the brewing temperature is too high, size of
the capsule adapters may change a little and resulting
in excessive dripping time. This is a normal phenome-
non,Please use the drip tray to collect and wait for
cooling.
1
3
4
2
For Coffee Powder
- Open the handle
- Pull out the brewing basket for
coffee powder.
Coffee powder Press down the
coffee powder
- Push in the brewing basket with coffee
powder.
- Close the handle.
Note: The coffee powder needs tobe fully
filled, flat pressed and tightly pressed,
otherwise it will affect the good taste
and result inlong dripping time.
11

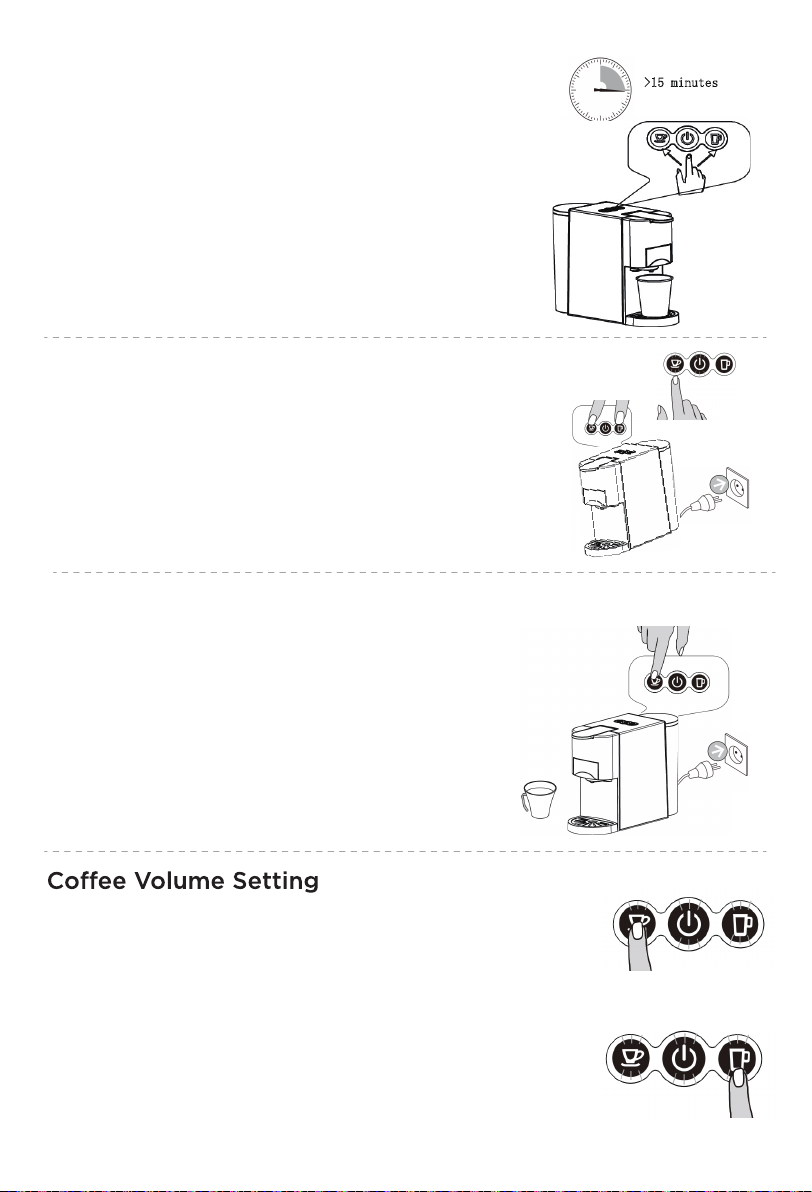

Standby Mode
>15 minutes
Big Cup volume setting
1. Put coffee cup under the coffee outlet
2. The machineis innormal working condition. Keep pressing the
big cup button, the release thebutton till youget the coffee
you want(Min:15S,Max：90S)
Factory Default setting: Standby Mode
Time:15 mins
It means the machine will be turned off after 15
inactive mins, and all the indicators lights will be
off.
To press the switch button to cancel the stand-
by mode again if the machine is in Standby
mode
Standby mode setting
Keep pressing both the small cup button and big
cup button, meanwhile insert the plug to the
socket .Switch button light will be on
Press small cup button, Small cup button light off,
Standby mode canceled.
Press small cup button, small cup button light on,
standby mode activated

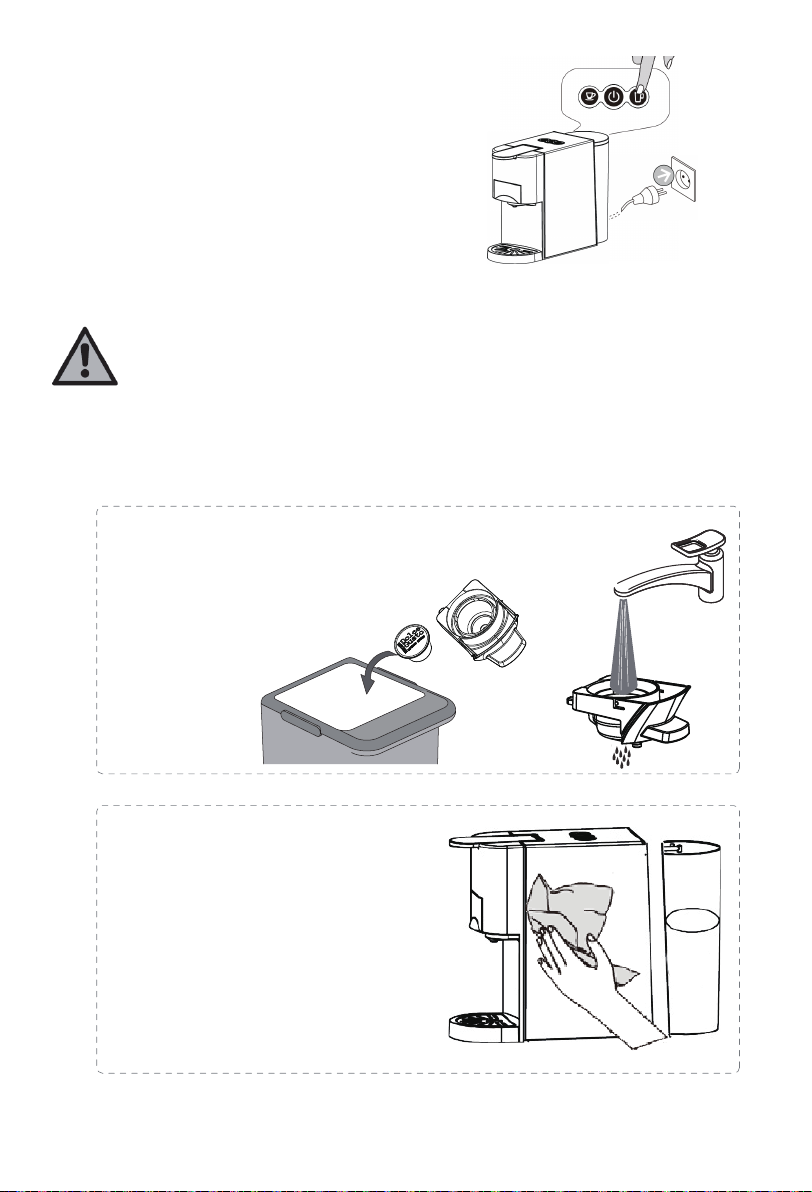

Clean mode function
Small Cup volume setting
1. Put coffee cup under the coffee outlet
2. The machineis innormal working condition. Keep pressing
the small cup button, then releasethe buttontill you get the
coffeeyou want(Min:15S,Max:90S)
1. Put a cup in front of the machine
2. Put some detergent into the water tank
3. Press the small cup and connect the power at
the same time
4. The switch button and small cup button are
lighted, then press the small cup button
Start to clean, working time is 120S. Press
the small cup button again to stop.
12

Cleaning
Risk of fatal electrical
shock and fire. Never immerse the appliance or part of it in
water. / Be sure to unplug the
machine before cleaning. / Do not use any strong cleaning agent or
solvent cleaner. / Do not use sharp objects,brushes
or sharp abrasives./ Do not place inadishwasher.
Brewing cup cleaning
-Take out the used coffee capsule/pod
Holistic cleaning
Dry with a freshand clean towel,
cloth or paper and reassemble all
parts.Cleanthe coffee outlet and
insidethe machine regularly with a
damp cloth.
Factory Default Setting
Press the big cup button, and mean-
while insert the plug to the socket.
The Indicator light of buttons will
Flash twice. It means the machine
Come back to factory default setting
13

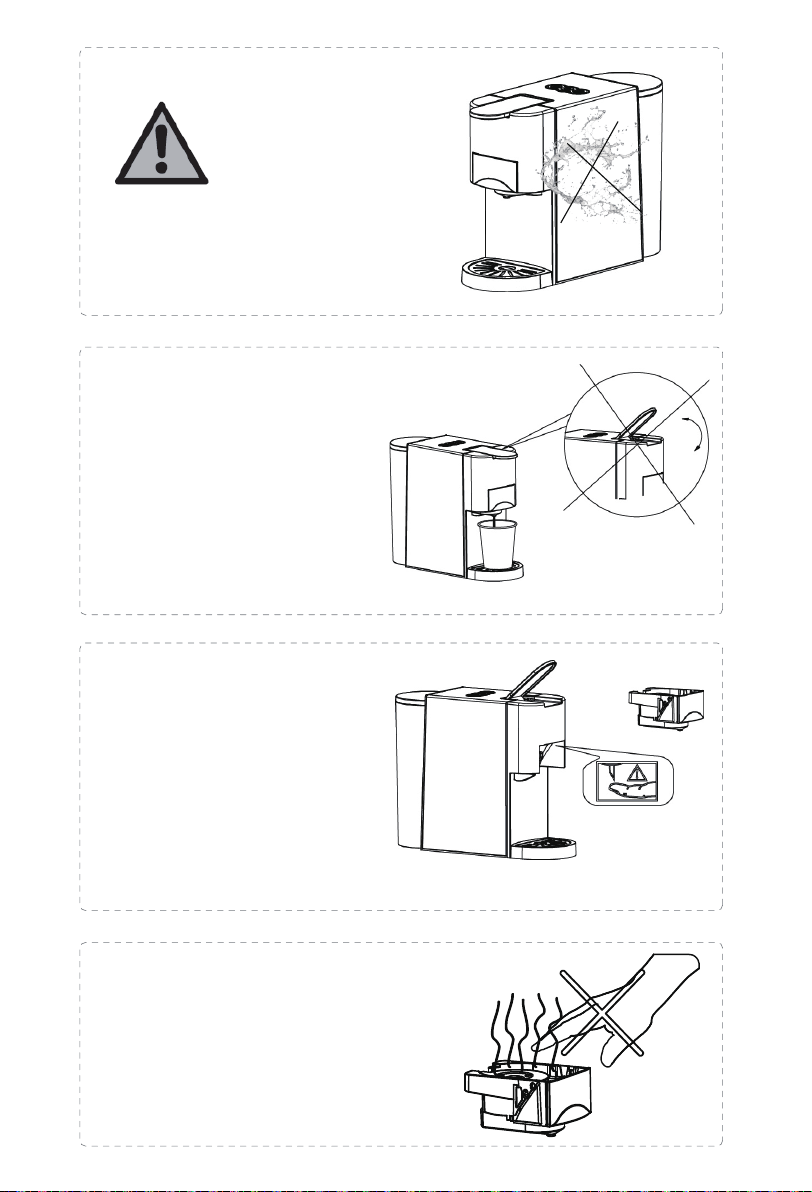

Prohibit to open the handle
when brewing
Prohibit to pull water to the
machine
Warningtips
Adaptor is still very hot after brewing
Be careful the HOT!
There is sharp needle upper
the capsule Adaptor.
Prohibit to put the hand
orFinger to any part near the
needle.
After theadaptor is
removed.
14

Energysaving mode
The machineenters energy saving model automatically once the
machine is idlefor15 minutes, the back light of two buttons and power
indicator will off.
To quiteenergy saving mode, pleasepress power button , appliance will
start to warming up withlights blinking, when the buttons are lit steadily,
the machineis ready tobrew coffee.
Decalcification /Maintenance
Drinking water varies according to region. The limeparticles in hard
drinking water are deposited as residues inthemachine and can block
the piping and causedamage. Toprevent this,besure todecalcify the
machine at the very least aftermaking 300to400 cups of coffeeor,in
any caseif theoutput falls significantly or, after one or two months.
Decalcification must be done correctly toprevent damage. So it is
essential tofollowthese instructions.
Important:
– Never clean the machine with vinegar. This causes damage and
makes your coffee taste bad.
– Damage caused by incorrect decalcification or failure to decalcify is
not covered by the guarantee.
– Caution: beware of hot water!
1. Recommendations: purchase commercially available decalcifier
(decalcifying liquid), diluted according to the manufacturer‘s instruc-
tions; pour the mixture in the water tank.
2. Make sure there is without capsule inside the machine.
3. Place a large bowl under the dispensing head to collect the decalcifi-
cation diluted and lime residues
4. Fill the water tank with water to maximum level mixed with decalci-
fying solution, make sure the solution is dissolved completely.
5. Press the lungo button to run decalcifying water as you brew coffee
normally, repeat for several times to run out the entire tank water.
6. Repeat the process to run another tanks of water mixed with decal-
cifying solution.
7. Repeat the process to Flush out the intern circuit with a tank of fresh
water (without the decalcifying solution) to clean the internal circuit
completely.
15

1. Remove the watertank and insert the
hose into the water inlet at the bottom
of the water tank
2. Inject a small amount of water intothe
hose.
3. Push thepump down to allow water to
enterthe coffee machine and force the
air out of thepipetomake thepipe
clear.
Before using for the first time or after long pauses (e.g. holidays) the
machine may be difficult to pump water, this short procedure can help
pump to self priming by using the pipe to fill water into the circuit
manually prior to turn on the machine for first refill.
16

No coffee is brewed.
The coffee is not hot
enough.
Water on table
Handle can not close
Caractéristiques
N.W./G.W.: 2.5/3.4 kg appr.
Pump Pressure: Max. 19 Bars
Water Tank Capacity: 0.8L
Size: 110mm(W)* 270mm(L) *250mm(H)
ProtectionClass: I
Correct Disposal of this product
This marking indicates that this product should not bedisposed with
other household wastes throughout the EU. To prevent possibleharm to
the environment or human healthfrom uncontrolled wastedisposal,
recycle it responsibly topromote the sustainable reuse of material
resources. To return your used device, please use the return and collec-
tionsystems orcontact the retailer where the product was purchased.
They can take this product for environmental safe recycling
PROBLEM CAUSE SOLUTION
Fill water in the water tank.
Preheat cup / mug.
- Descale.
- For cold machine, brewing a cup of water to
warm up the circuit.
- Check if the valve on water tank is stuck.
-empty the drip tray.
- Push the brewing basket into correct position
Design orexecution changes are reserved inthe interest of technical
progress.
The water tank is empty.
- the Cold cups / mugs.
- Scale build-up in machine.
- Cold machine.
- Water tank is leaking.
- drip tray is full of water.
- the brewing basket is
not placed well
17

After-sales service
Hope you are satisfied with the KOTLIE multi-capsule coffee machine!
KOTLIE team is committed to providing customers with high-quality,
high-stability coffee machines. We have spent countless efforts to design
and manufacture products, and strive to achieve the ultimate product. In
mass production and packaging, it is inevitable to have a few defective
products. Meanwhile,there are inevitably individual products being dam-
aged in the long tiring transportation.It is normal for any product and any
brand.
If you unfortunately received defected products with missing accessories,
broken water tank, broken body, leaking desktop, abnormal brewing,
serious drip problems, etc. please be patient, and don’t get angry . Please
contact us in your first time with attached pictures and videos , then we
will help you solve it or send replacement in the priority.
So just contact us and wait for a satisfactory solution at your rest! Thank
you for your attention and patience!
Sincerely
KOTLIE Tech
18

19

Business Name: SC ENIF PEGASUS SRL
Business Address: Bucuresti sector 2. Strada RADOVANU Nr.7
Bloc 42. scara 1. Etaj 5 Ap29
Zip Code: 02283
Contact Person: Pmeria
Tel/Fax: [phone]
E-mail: [email protected]
Business Name: ERMENEGILDO SMART LIMITED
Business Address: 6 PROSPECT WAY ROYAL OAK INDUSTRIAL ESTATE
DAVENTRY NORTHAMPTONSHIRE UNITED KINGDOM NN11 8PL
Contact Person: Mihai Lambert
Tel/Fax: [phone]
E-mail: [email protected]
C
REP
Company: Shenzhen Wuhao Electronic Intelligent Technology Co., Ltd
Address: 308, 3/F, Building C, No.663 Bulong Road, Dafapu Community, Bantian Street,
Longgang Dist, Shenzhen
After-Service E-mail: [email protected]
3178230
MADE IN CHINA
