Koukaam 9060(A) User manual

1

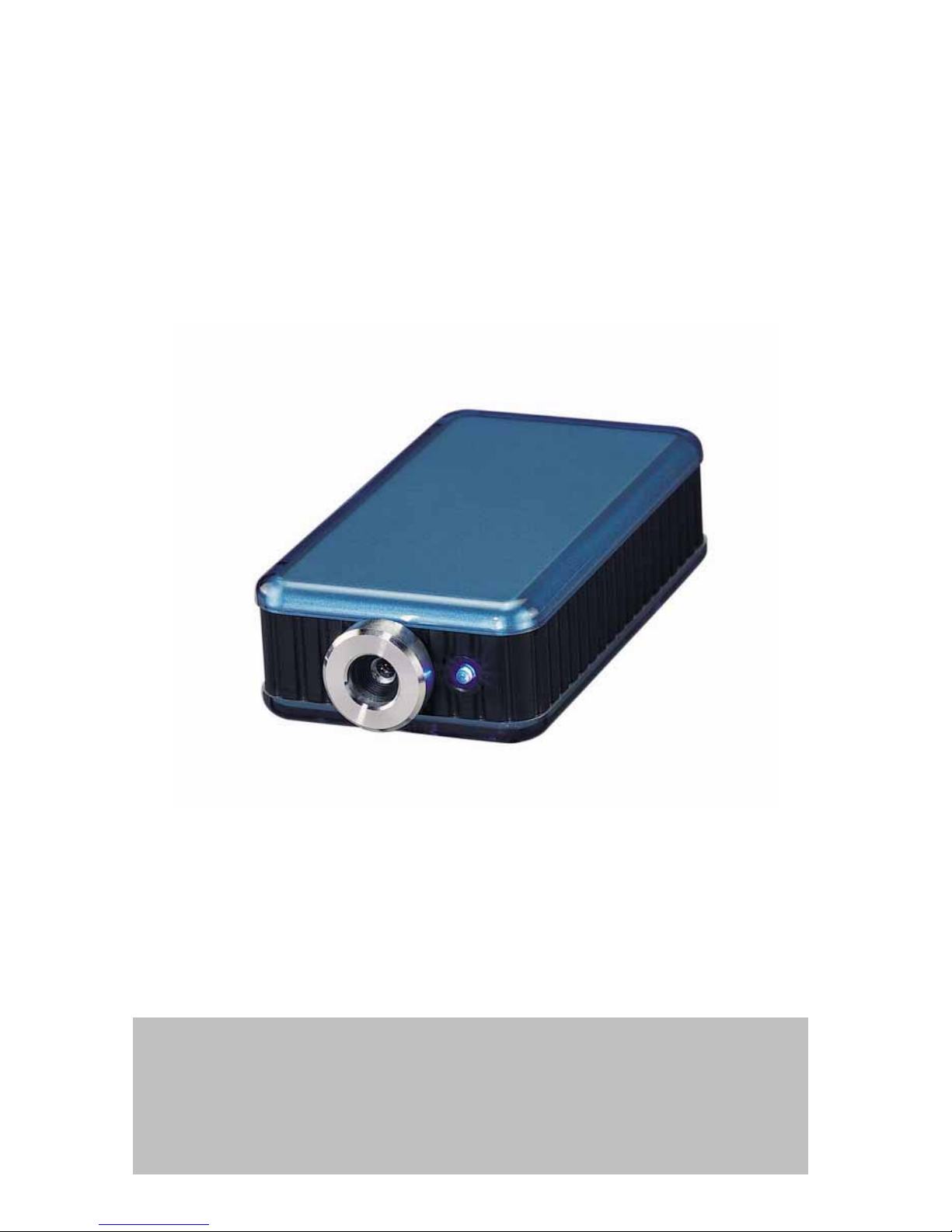

IP Kamera 9060(A)
User Guide
IP Kamera 9060(A)
Manual version: xx.xx
Date: 2005.6

2
Caution:
Any changes or modifications not approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Note:
This equipment has been tested and found to comply with the limits for FCC and CE. These
limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in commercial environment.
Important Notice:
1.IP Kamera 9060(A) is for indoor use. Note that the CMOS lens can be damaged permanently
if the camera lens is exposed directly to sunlight. (We will not hold any responsibility if
CMOS lens is damaged by sunlight)
2. IP Kamera 9060(A) is not water proof. Therefore we will not hold any damage
responsibility if the camera is used under raining condition.
3. Be sure to use the DC adapter that is provided by your dealer. We will not hold any
responsibly if wrong DC adapter is in use.
4.Be caution in handling IP Kamera 9060(A) for physical shocks may occur serious
damage.
5.If IP Kamera 9060(A) does not operate properly, please contact your local dealer for after sale
service. In all cases, you are prohibited to disassemble the product. If so, We does not hold
any responsibility for mal-function nor service warranty.

3
Table of Contents
1. PRODUCT OVERVIEW.........................................................................................................4
FEATURES ......................................................................................................................................
2. PHYSICAL DESCRIPTION...................................................................................................5
BOX CONTENT .................................................................................................................................
SYSTEM REQUIRNMENT ..................................................................................................................
3. INTERFACE DESCRIPTION……………………………………………………………6
FRONT PANEL………………………………………………………………………………
REAR PANEL………………………………………………………………………………..
4. INSTALLATION…………………………………………………………………………..7
BEFORE INSTALLITION ....................................................................................................................
HARDWARE INSTALLATION ............................................................................................................
SOFTWARE INSTALLATION..............................................................................................................
5. INITALIZATION......................................................................................................................8
SET UP ON ETHERNET ......................................................................................................................

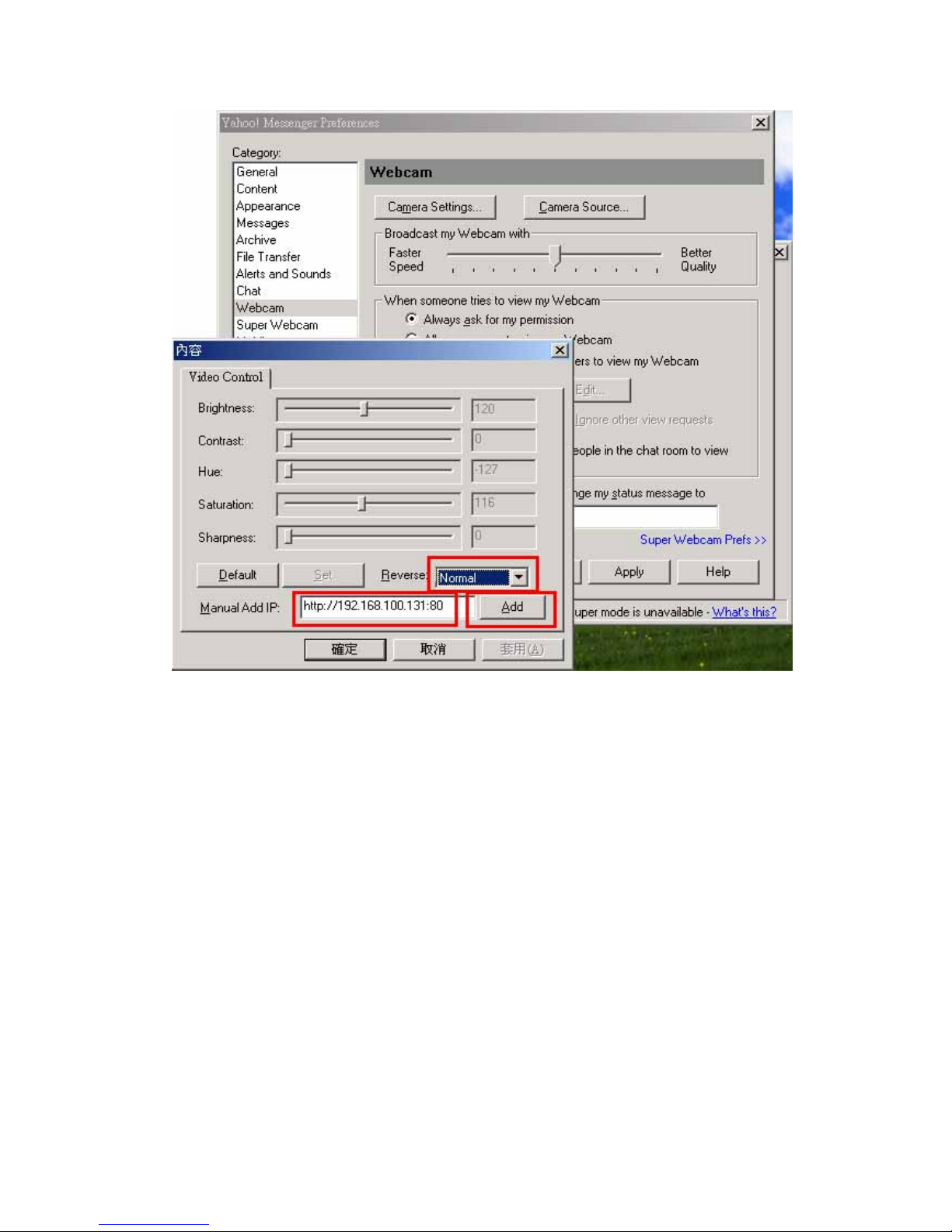

WORK WITH YAHOO/MSN MESSAGER.............................................................................................
6. WEBPAGE FUNCTIONS………………………………………………………………13
LOGIN SETTING................................................................................................................................

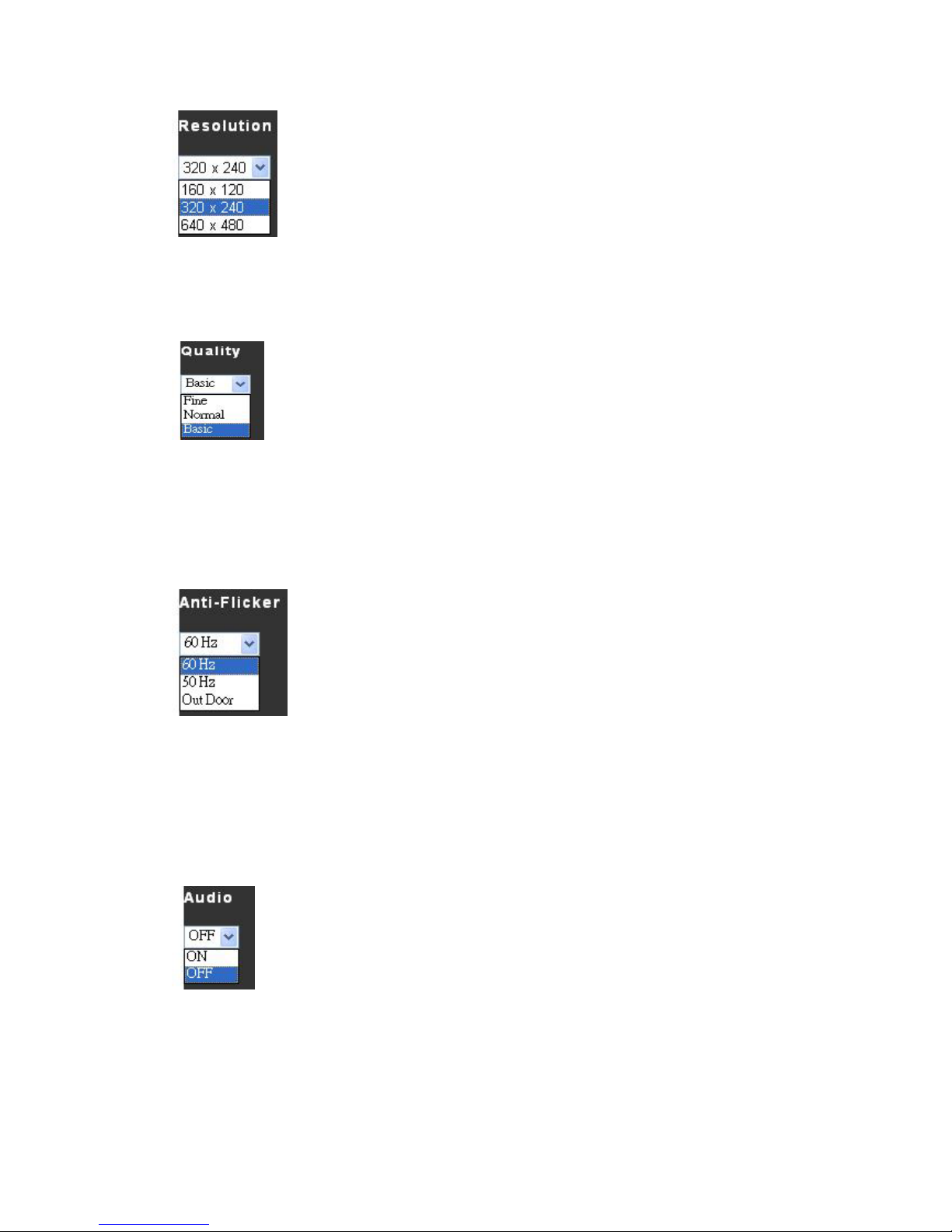

LIVEVIEW SETTING..........................................................................................................................
ADVANCED SETTING .......................................................................................................................

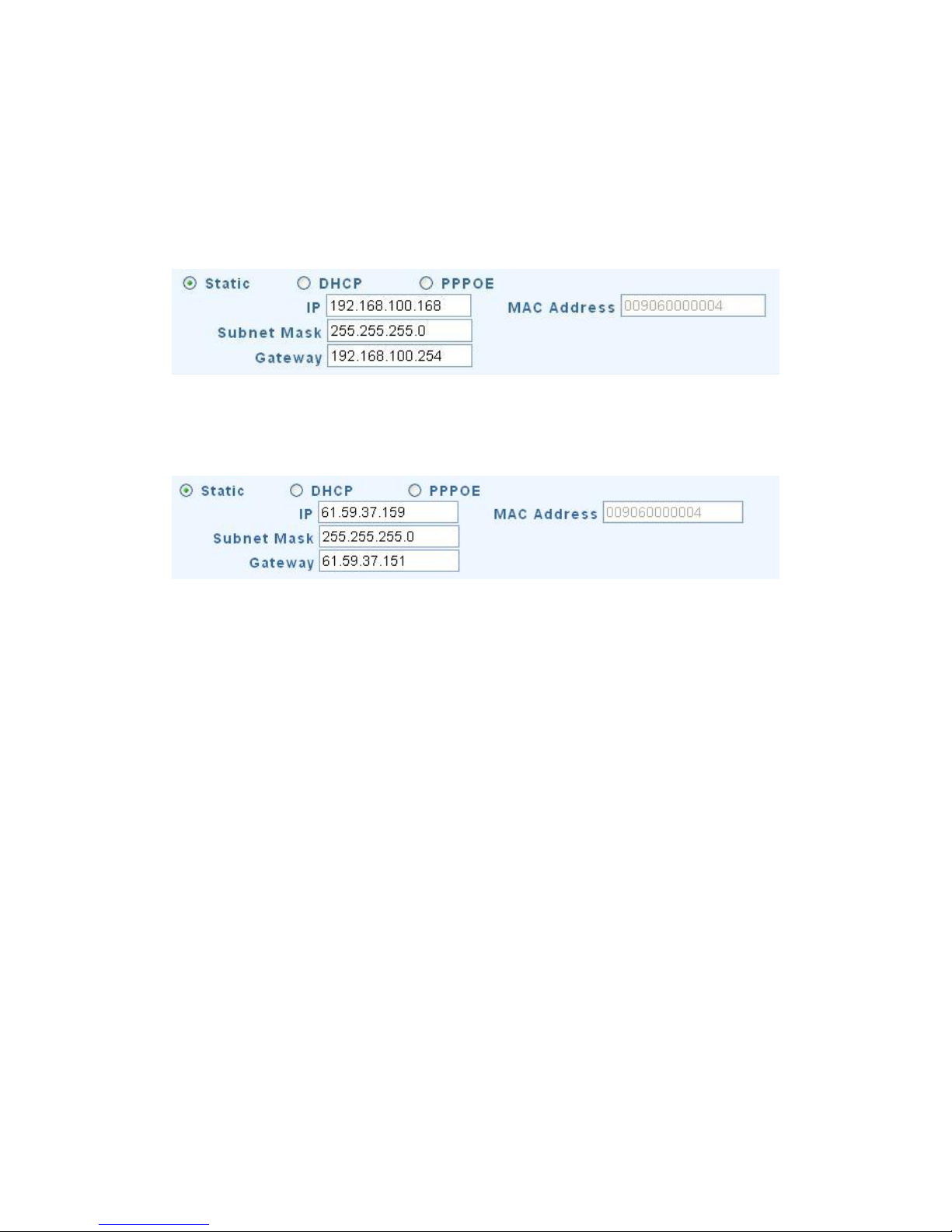

NETWORK SETTING .........................................................................................................................

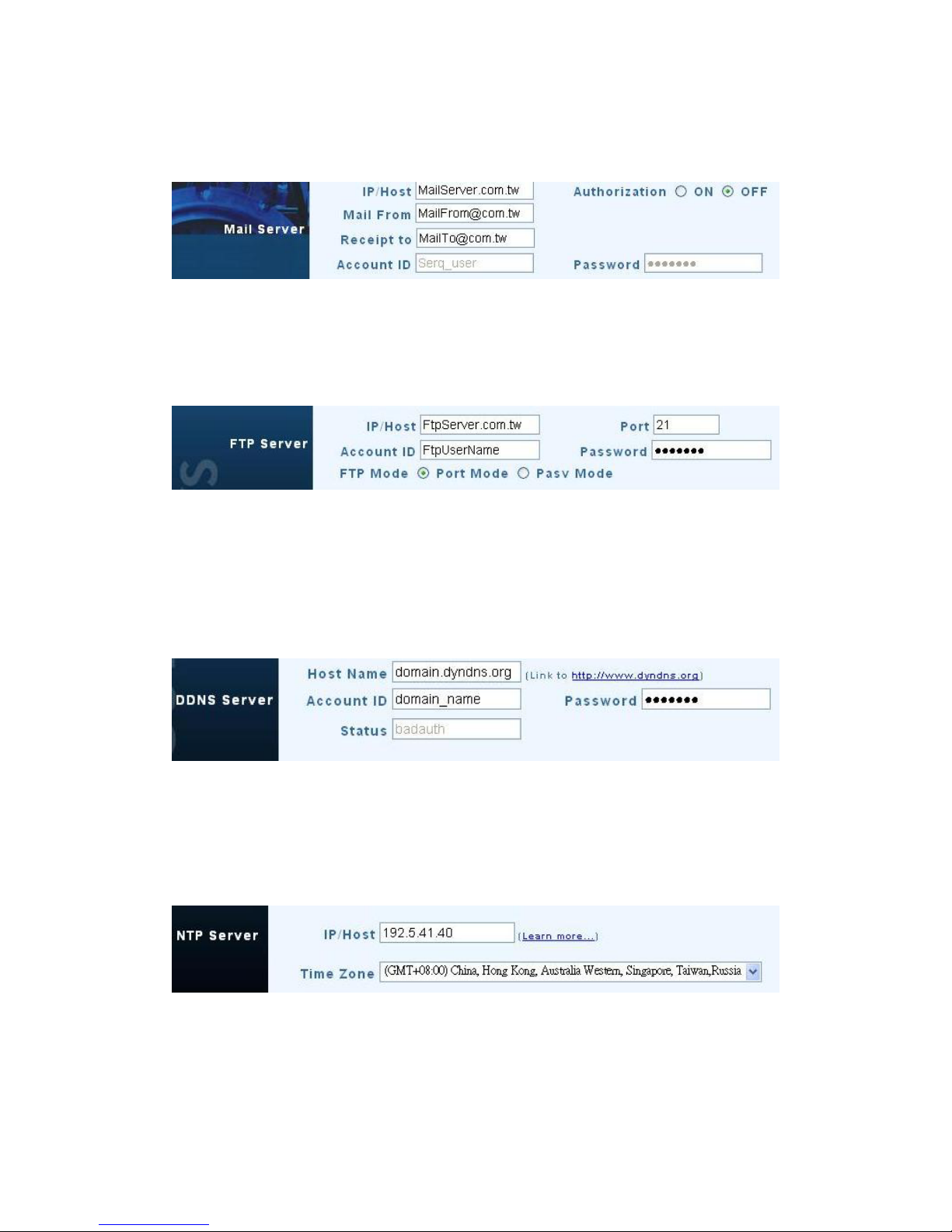

SERVER SETTING .............................................................................................................................
ADMINISTRATION SETTING .............................................................................................................
EVENT TRIGGER SETTING................................................................................................................
UPDATE SETTING.............................................................................................................................
7. FAQ……………………………………………………………………………………….23

4
1. Product Overview
Use latest high sensitivity Sensor, 9060A Plus only need little light for clear video which can be use for
lower light source like monitor the road at night ..
IP Kamera 9060(A) is an IP camera that has a embed web server. This camera can put up live image on-line
and make immediately remote accessible through standard web browsers. By simply plugging 9060(A) into
Internet IP Kamera 9060(A), Users can observe from any where in the world.
FEATURES
1. Embedded Web Server -No needs PC for camera.
2. 10/100Mbps Fast Ethernet Network Access (RJ45 Jack).
3. High sensitivity Sensor for low illumination .
4. Resolution -True 640x480, 320x240, 160x120,
5. Support Network Protocol - HTTP, TCP/IP, DDNS, DHCP, and PPPoE.
6. Popular Browser by Internet – Internet Explore
7. Quality & Color Setup : Brightness, Contrast, Hue, Saturation and Sharpness

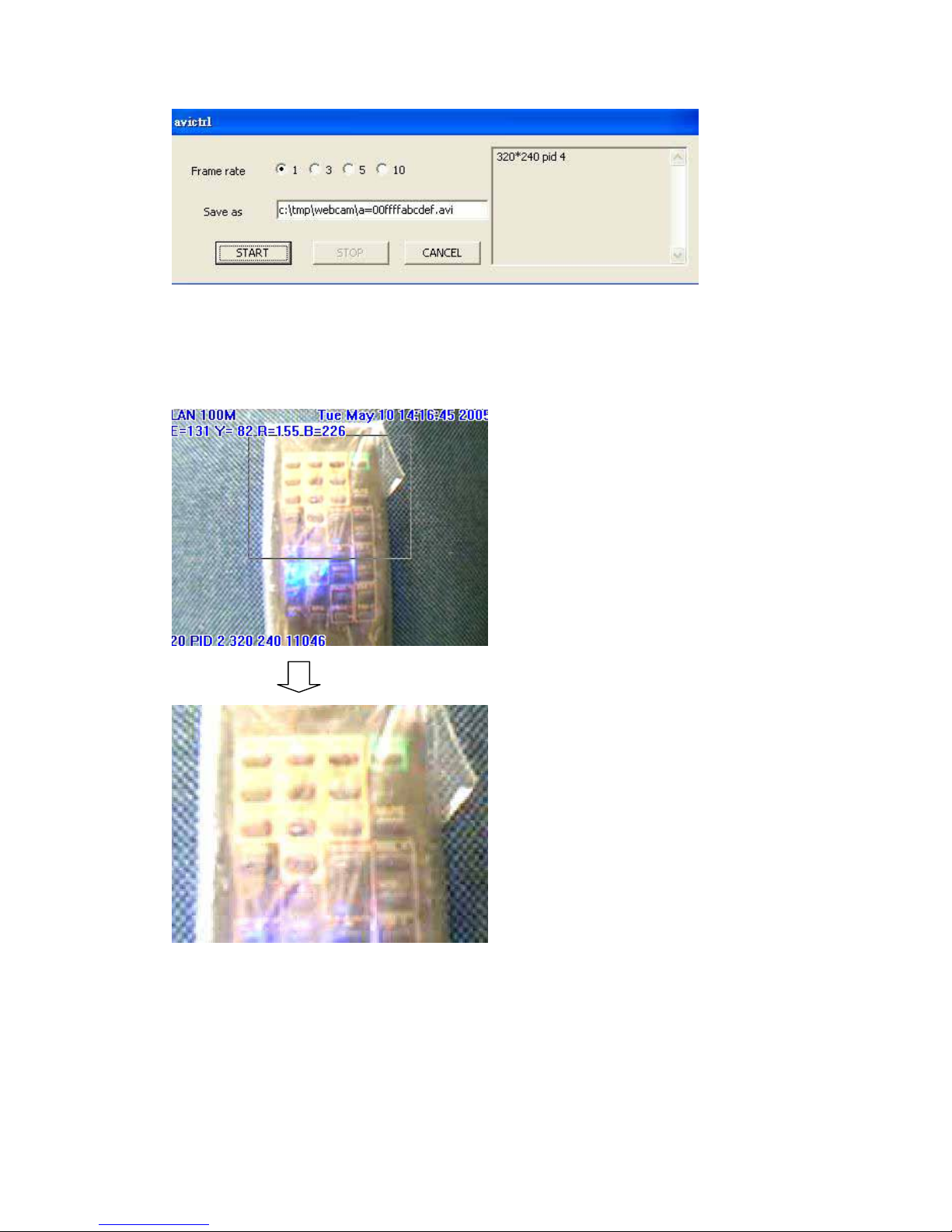

8. Video Capture - Save as Pictures ( .JPG ) / Movie ( . AVI ) and Snapshot as pictures.
9. Motion detection :
Detect appointed area – support detect 2 position.
E-Mail the Detected Images to preset e-Mail address.
Send the Detected Images to preset FTP server.
10. Wide Sensitivity Level setting (99 degree) .
11. Reset all setting to default.

5
2.Physical Description
BOX CONTENT
IP Kamera package content：
 1 x IP Kamera 9060(A)
1 x RJ 45 internet line
 1 xTansformer,110~240.
 1 x CD
 1 x Quick Installation Guide
System Requirement
 Intel Pentium Ⅲand above or relevant AMD CPU
 Any system can use IE ( Internet Explore) like Windows 98 / SE / 2000 / ME / XP,
 64MB memory or above.
 VGA Card：support Hi - Colors and above and direct draw
 Suggest Internet Hub
 Ethernet network
 Internet : one set of IP provided by your ISP

6
3. Interface Description
Front Panel :
1. Power indicator ( LED )
2. Lens ( CMOS )
Rear Panel :
1. Reset ON / OFF
( Left - OFF & Right –ON )
2. DC Power - 5V , 110~240
3. Microphone In
4. RJ 45(Cat5 Network)
Notice
* Please use Microphone fro Audio In
* Reset ON/OFFF : please turn to ON for 5 seconds and then turn back to OFF to finish reset :
OFFON ( Wait for 5 Second ) OFF.

7
4. Installation
Before installation:
Before using IP Kamera 9000A, check as follows.
 Confirm your package content
 A computer connects with LAN
 Electricity 110 ~ 240 V
Hardware installation
1. Plug in RJ 45 line to connect 9060(A) with HUB
2. Connect the HUB into your modem.
3. Connect 9060(A) power.
4. Turn you computer on

8
Software installation
Please follow the steps below to install the software.
1. Click IPEDIT in driver of CD and safe in the desktop.
2. Install IP KAMVID 107 in the driver part of CD; choose setup language and the install shield Wizard will
help finish the program.
5. Initialization
Set up on Ethernet
Step1:Click “ipEdit.exe” .
Note: Please affirm the power of 9060(A) had been turn on
and the Ethernet connection of RJ45 is correct.
Step 2: The program will searching all 9060(A) in the same local Ethernet , and display the result in the
window.
Step 3: Click the one you want to set, it will be covered by dark stripe, its name, IP will be displayed below.

9
The IP address of IP camera 9060 should in the same subnet with your PC , subnet mask, default gateway
mast same as 9060 also. For example, the IP address of 9060 is 192.168.10.9, so your computer needs to add
an IP address looks like 192.168.10.XXX to get connection to 9060.
User can change its name (please use numbers or letter) or IP (please set in the same subnet as your PC) in the
text windows. Then click Submit after setting finish. After about 20 seconds, the new setting will work. Click
Update, the new setting of equipment will display in text window.
Note: * The default static dynamic IP address of IP 9060(A) is 192.168.0.100. If can not get in the webpage
by IP 9060 static dynamic address, please set the segment of IP 9060(A) with your PC.
* You can get your PC network information – IP Addres, Subnet Mask and Default Gateway by step: start
execute key “cmd” in dialog  key “ipconfig” in MS-DOS mode

10
IP 9060(A) Default static dynamic IP Address is 192.168.0.100.the last digit of IP address (default is
100) can be any number between 1~254, but can not be same as your PC.
If using in any PC, just use HUB and type the 192.168.0.100 in Browser or use “ipedit.exe “ then you can get
in the webpage.
* Same SEGMENT : The first 3 number of IP address is same - XXX.XXX.XXX.abc. The part of
XXX is same. Fro Example : IP address is 192.168.1.100 , then another IP address 192.168.1.123 is the IP
in same segment .
Step 4: Double click the picture in the window of IPEdit or type the IP address in the IE browser, you can
open the web page of IP9060. If you can not open the web page of IP9060, be sure that you have set the
same segment of your PC and IP 9060(A) installed IE 6.0 with SP1 or later version.
NOTE:
1. After 9060(A) had been installed on your PC, it will be registered in DirectX automatically. Therefore, it
can be used as local camera by any software that supported DirectX , such as MSN, Amcap, Media
encoder, Yahoo Messenger as long as you not change the directory path of 9060’s driver.
2. For those software that only supported old VFM driver, such as Vidcap and netmeeting, please click
install VFM device, then you can get the captured images from 9060(A) (you should be the
administrator at the first install process)
3. For those not totally compatible with VFM, such as QQ and POPO, you should click remove device
button first, then click install VFM device, then you can get the captured images from 9060(A).
4. Note : if stay for long time as in web page , you would be unable setting and see message “ Cookie time
out “ , please go to IE to change setting: “ Tools “ “ Internet operations ” , please click “ Delete
Cookies “ and “Delete files “ in “ Temporary Internet file “.
