Kozumi WUB1900RM User manual

2
802.11b/g/n USB Adapter
WUB1900RM
User’s Manual

3
Table of Contents
1. Introduction .................................................................................................................4
1.1 Package Contents ................................................................................................. 4
1.2 Features ................................................................................................................4
2. Installation...................................................................................................................5
3. Configuring the Adapter ............................................................................................ 11
4. Wireless Utility ........................................................................................................17
4.1 Wireless Information............................................................................................ 17
4.2 AP List.................................................................................................................18
4.3 Profile Settings.....................................................................................................19
4.4 Configuring Encryption ........................................................................................ 21
4.5 Ad-hoc and Peer-to-Peer Wireless Networks ...................................................... 27
4.6 Wi-Fi Protected Setup (WPS)..............................................................................30
4.7 SoftAP…………………………...............................................................................30
4.7 About................................................................................................................... 38
Appendix A – Features.................................................................................................. 39
Appendix B – Information.............................................................................................. 40
Technical Support ......................................................................................................... 41

4
1. Introduction
Congratulations on your purchase of the Wireless N USB Adapter. Its high bandwidth
combined with extended wireless coverage delivers fast and reliable connection for all
of your networking applications when used with other Wireless N products.
A full range of security features such as WEP, WPA-PSK, and WPA2-PSK provide the
highest level of wireless network security. The bundled Wireless Utility allows you to set
up the adapter with an easy-to-use user interface. Best of all the Wireless N USB
Adapter works with 802.11g and 802.11b network devices ensuring compatibility with
your existing wireless products.
1.1 Package Contents
Before you begin the installation, please check the items of your package. The package
should include the following items:
•WUB1900RM Wireless N USB Adapter
•USB Cable
•Quick Installation Guide
•Installation CD (Driver/Utility/Manual)
1.2 Features
•Industry’s highest wireless data rate with IEEE 802.11n draft specification 2.0
•64-bit/128-bit WEP encryption, Pre-shared Key (PSK), and Wi-Fi Protected
Access (WPA2 and WPA) support provide full protection for your wireless
connection
•Higher data rate increases the reliability and stability of wireless connections
•Great for environments with higher wireless data traffic requirements
•Fully backward-compatible with 802.11b/g devices
•Works best with other Wireless N products

5
2. Installation
This section provides instructions on how to install the WUB1900RM Wireless N USB
Adapter. The driver is installed along with the utility.
Step 1 Insert the USB adapter into an available USB port and turn on your computer.

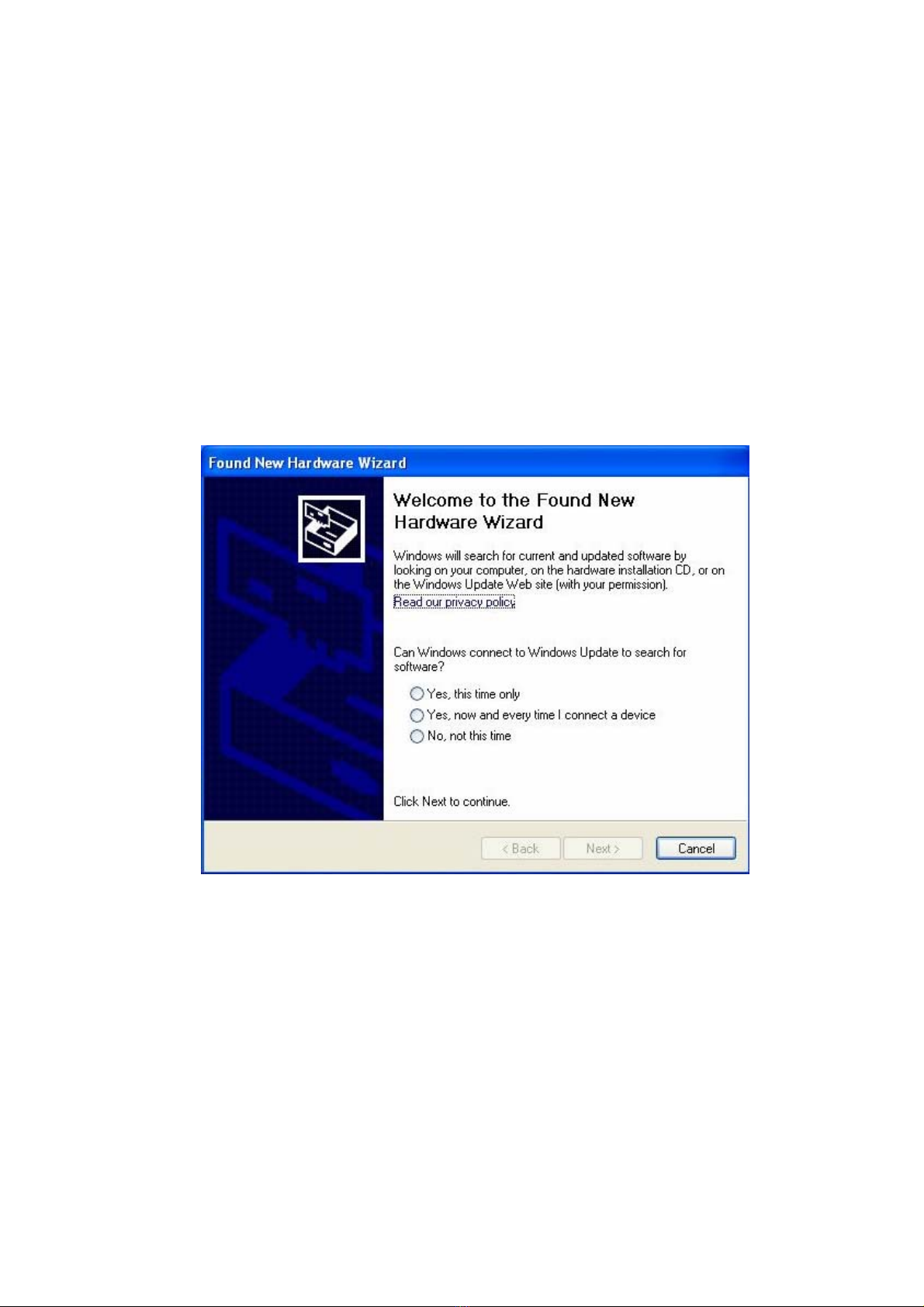

Step 2 After turning on the computer, Windows will launch the Found New Hardware
Wizard. The Found New Hardware Wizard appears differently depending on your
operating system. Click Cancel to quit the wizard and insert the Installation CD into your
CD drive.

6
Step 3 The Autorun screen will pop up. Select Install Utility and Driver from the menu.

7
Note: If the Autorun screen doesn’t appear automatically, or if you get a blank white
screen, go to Start, Run, and type D:\Utility\Setup.exe (where D is the letter of your
CD drive) and click OK.

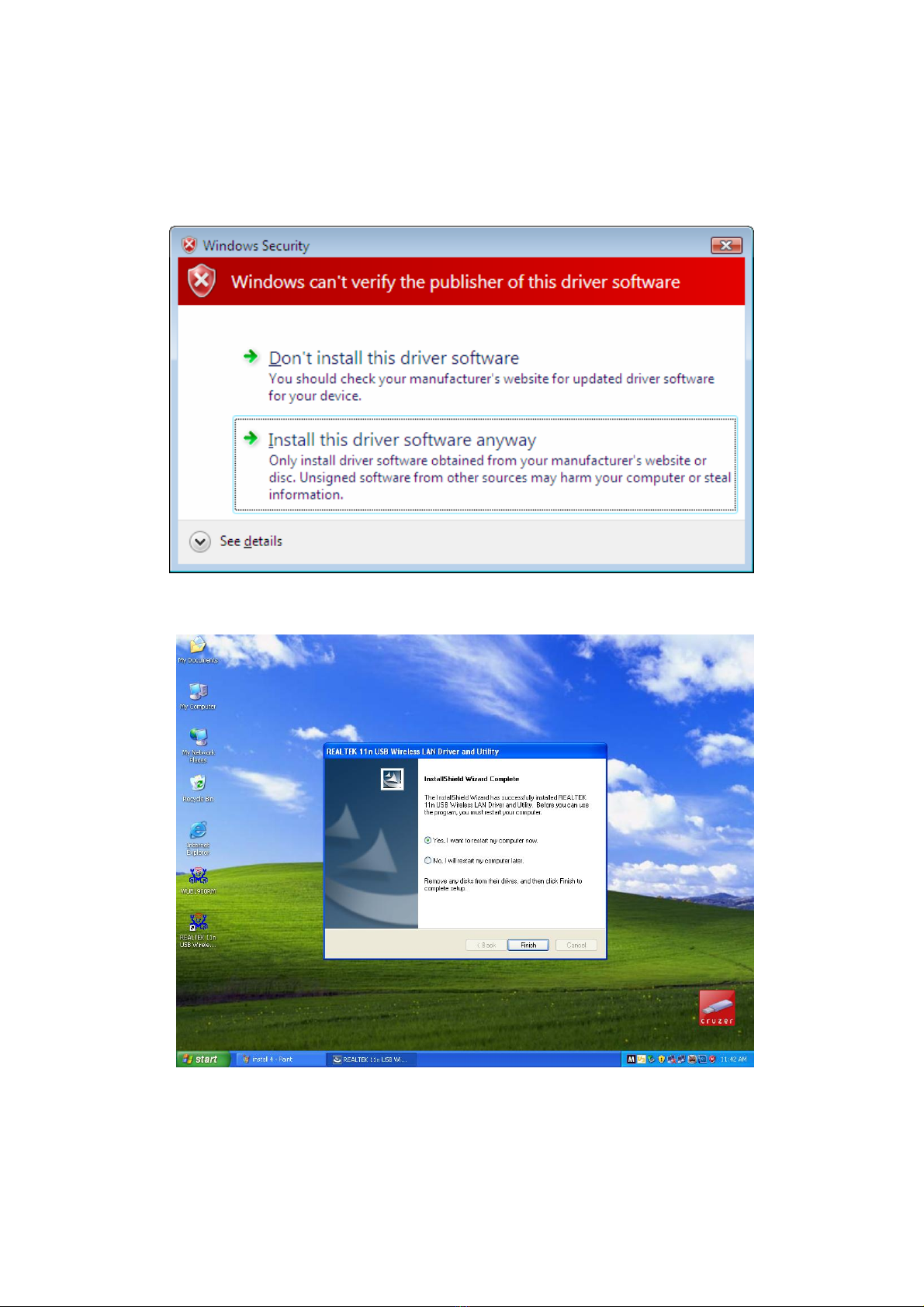

Windows Vista users: At this point, you may get a warning message like the one
below. Make sure that you click Allow to continue with the installation.

8

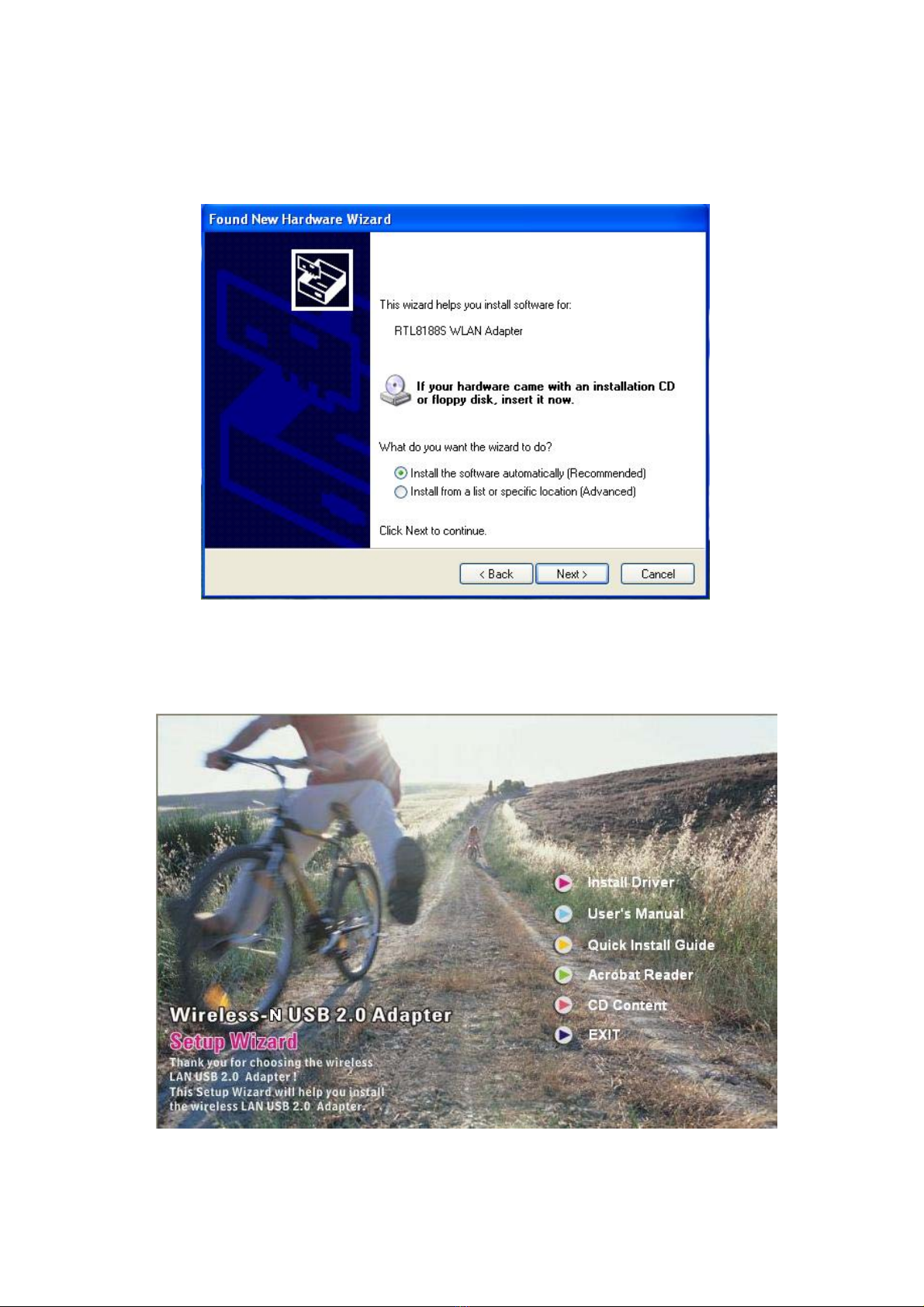

Step 4 Click Next at the welcome screen.
Step 5 Click Install to begin install.

9
Step 6 Click Continue Anyway at the Windows Logo Screen. (For Windows 2000, click
Yes at the Digital Signature Not Found prompt).

10
For Windows Vista, click the Install this driver software anyway button when the
security warning appears.
Step 7 Click Finish.

11
3. Configuring the Adapter
This section describes how to connect your wireless adapter to a wireless network.
Note to Windows XP Users:
You must disable the Wireless Zero Configuration Utility in order to use the bundled
Wireless Utility. Please follow the steps below to disable XP’s wireless utility. Windows
Vista users can skip the following instructions and go to Step 1
Double-click on the Wireless Network Connection Icon in the system tray and then
click on Properties or Advanced.
When the new wireless network connection properties window appears, go to the
Wireless Networks tab, uncheck the “Use Windows to configure my wireless
network settings” check box and click OK.

12
Step 1 To open the utility, double click on the Wireless Monitor icon in the system tray
at the bottom right-hand corner of your screen.

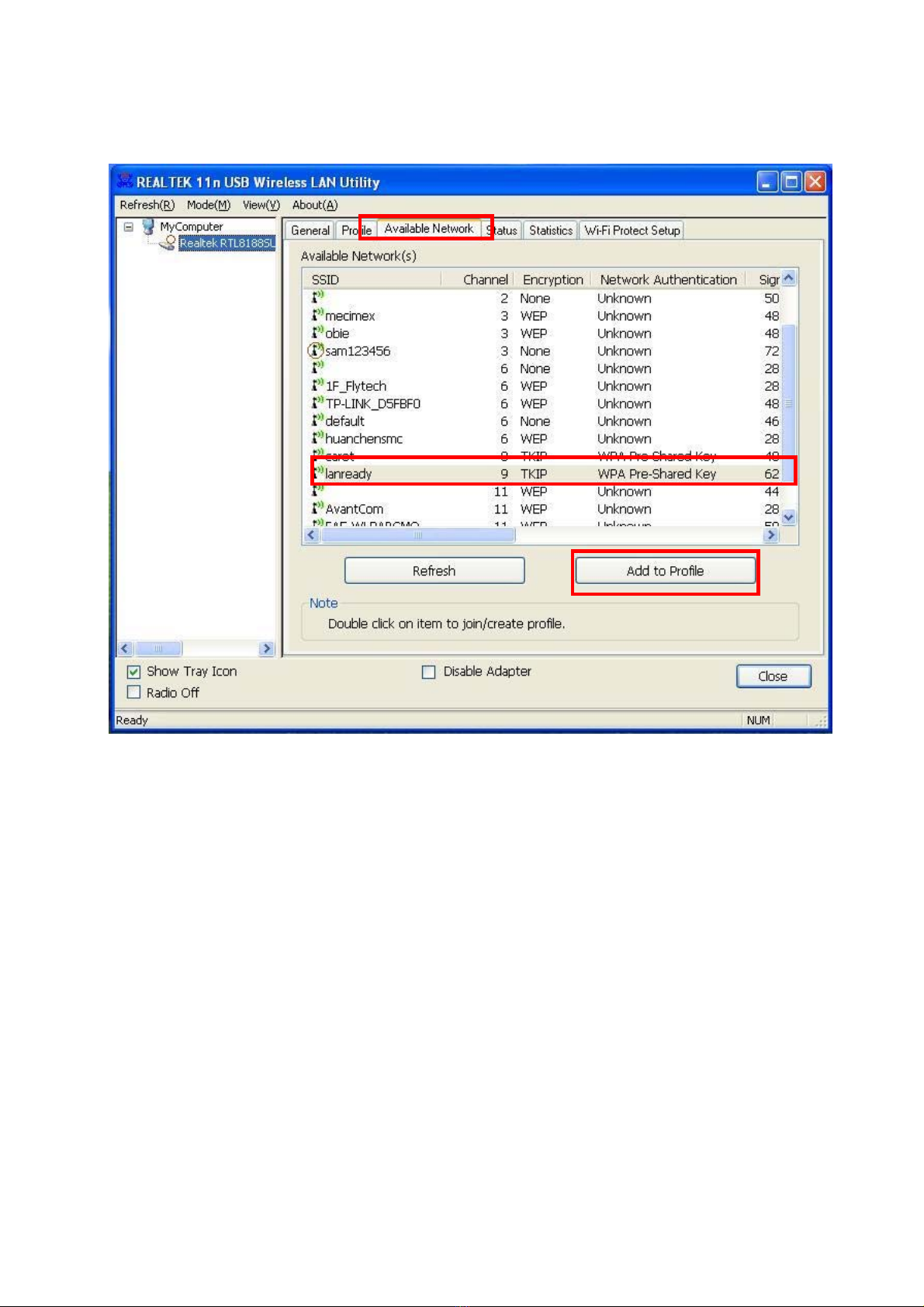

Step 2 Go to the Available Network tab, select the SSID (Network Name) of the
wireless network you wish to connect to, and double click Add to Profile.

13

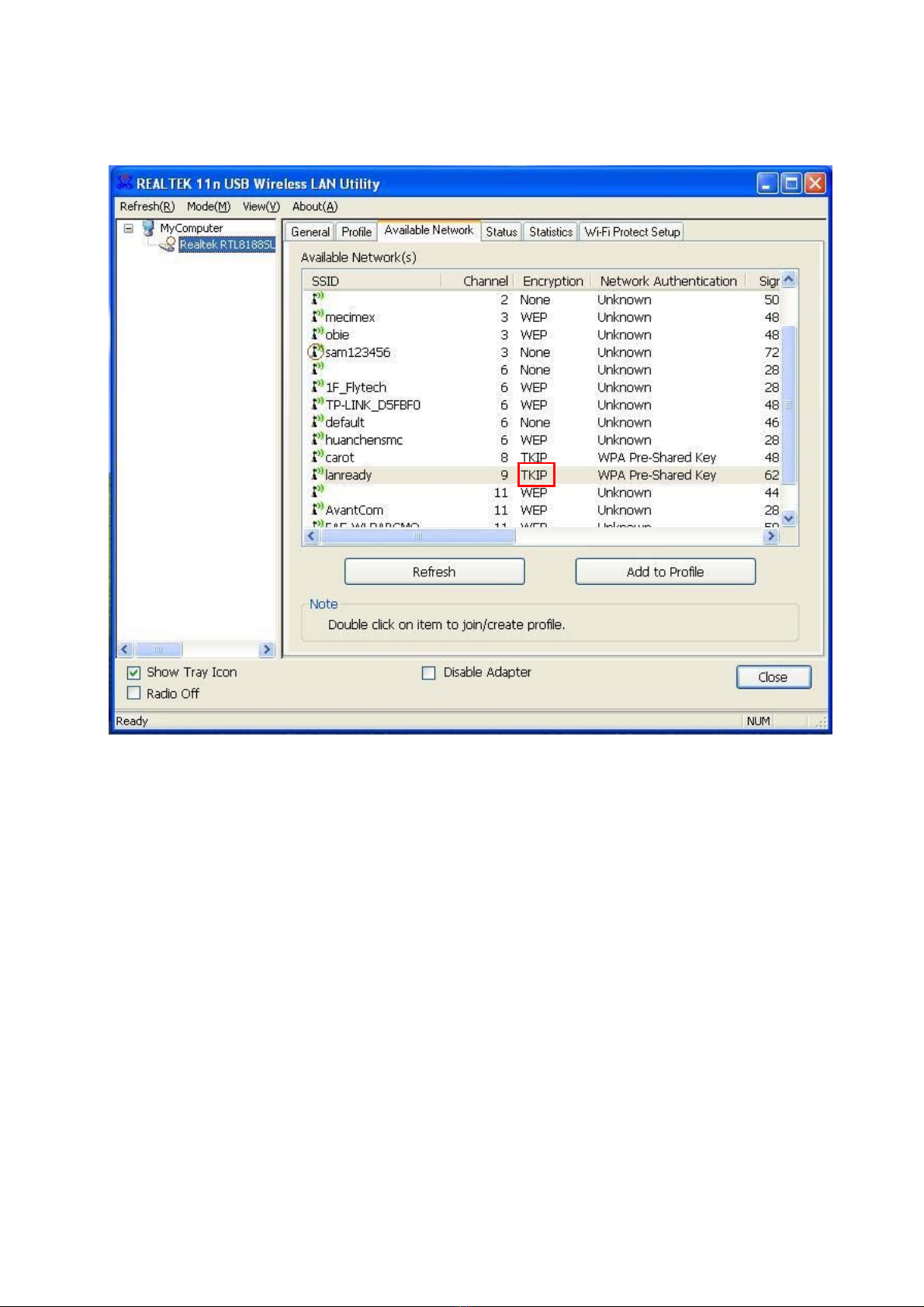

If the network you are attempting to connect to is configured for encryption, you will see
an orange lock icon next to the network.

14
When you click on it and click connect, a box will pop up requesting the wireless
encryption key for the router. Enter the encryption key into the box and click OK.

15

16

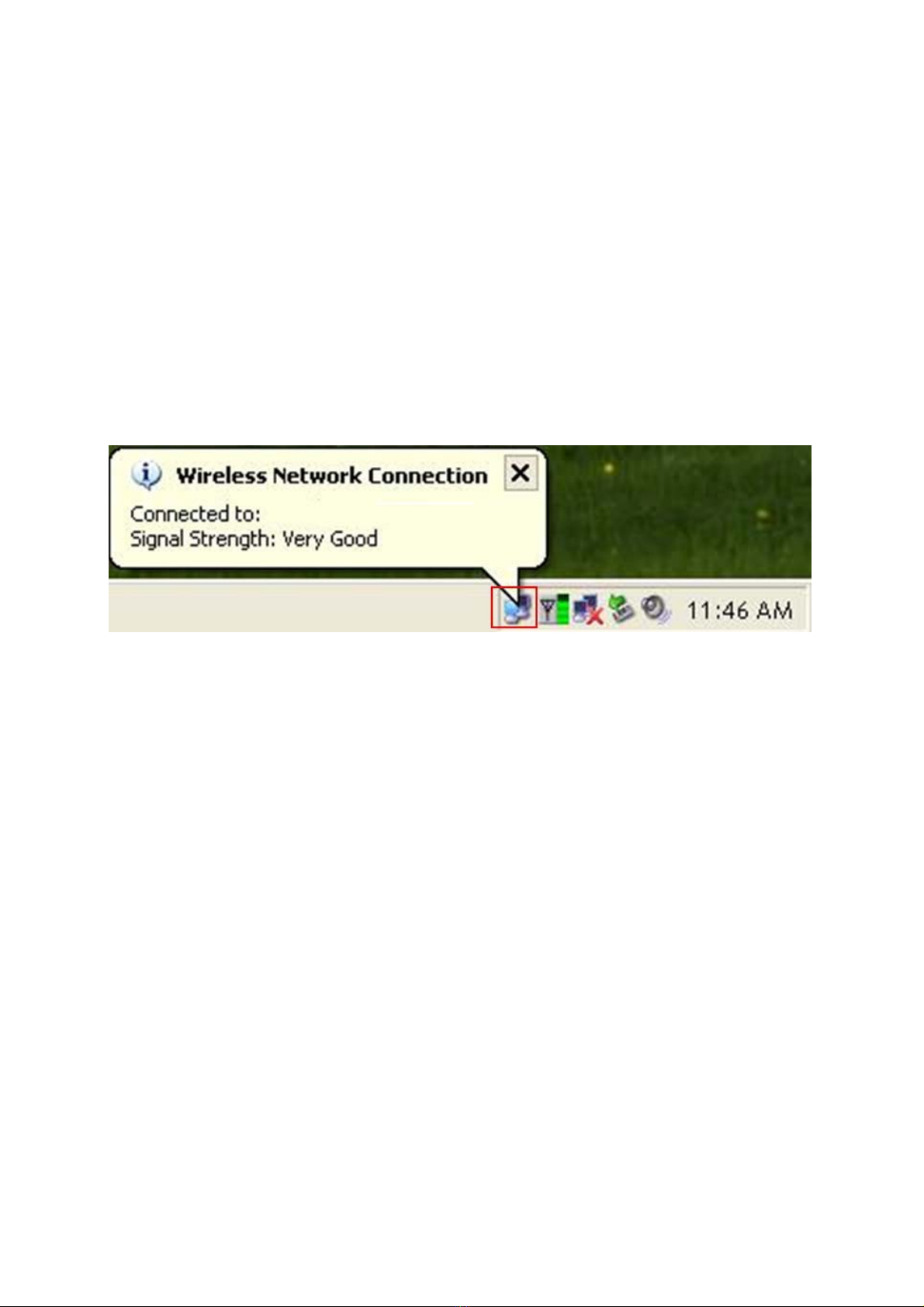

Step 3 You should now be connected. You should see “Status” in the top, middle
, and SSID, signal Strength, Link Quality.
.
Troubleshooting: If you are experiencing problems with the connection (unable to
connect, low signal strength, slow connection speed, not working, unstable wireless
connection) you will want to tune your router’s signal by changing channels on the
router.
You do not need to change the channel on the card, it will automatically pick up the new
channel after you reboot. The only channel that you need to change is the router’s
channel.
Your router has 11 different channels to choose from. Start with channel 1 and work
your way up. Each time you change the channel on the router, make sure that you
restart the wireless computer before trying to connect again. Keep going through the
channels until you find one that gives you a stable connection.
For instructions on changing channels, refer to the documentation that came with your
router.

17
4. Wireless Utility
This section describes the various functions of the Wireless Monitor that you can
configure, including the settings of wireless encryption.

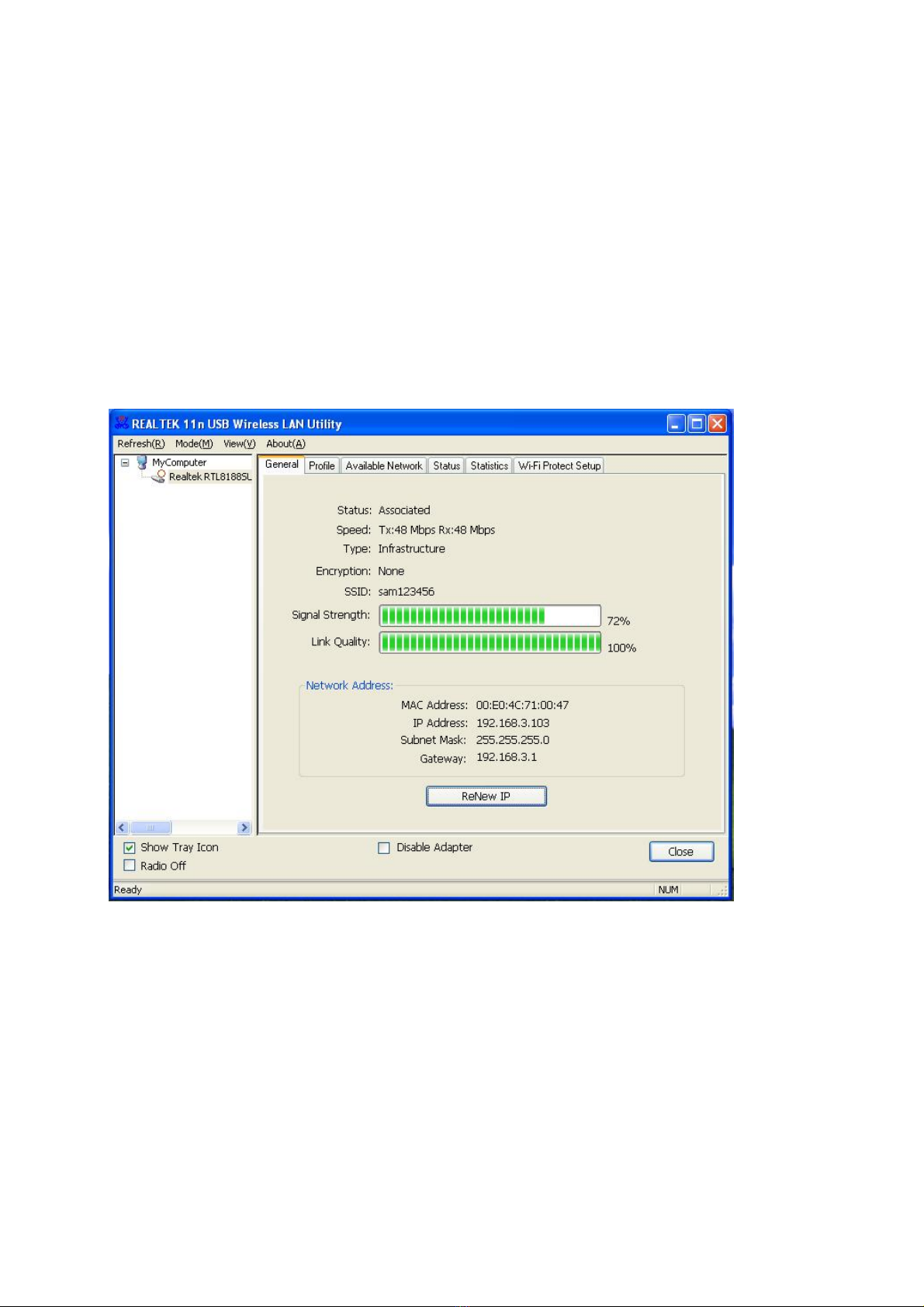

4.1 General
The General box, you with the status of the current connection, including status, speed,
type, encryption, network name (SSID), signal, link quality, and Network Address (MAC
Address, IP Address, Subnet Mask, Gateway).

18
4.2 Profile Settings
This section provides instructions on using the Profile section of the wireless monitor.
The Available Profile(s) box lists the different profiles you’ve created for the
different networks that you use. Profiles are automatically created and added to this list
when you connect to new networks. You can also manually add profiles.
To modify an existing profile, select that profile from the Available Profile(s) box and
click on Edit.
To create a new profile, click on Add.

19
The Profile box will appear allowing you to specify the settings for your new profile or
change settings for your existing profile.
Once you are finished entering the settings, click OK to save the changes.

20

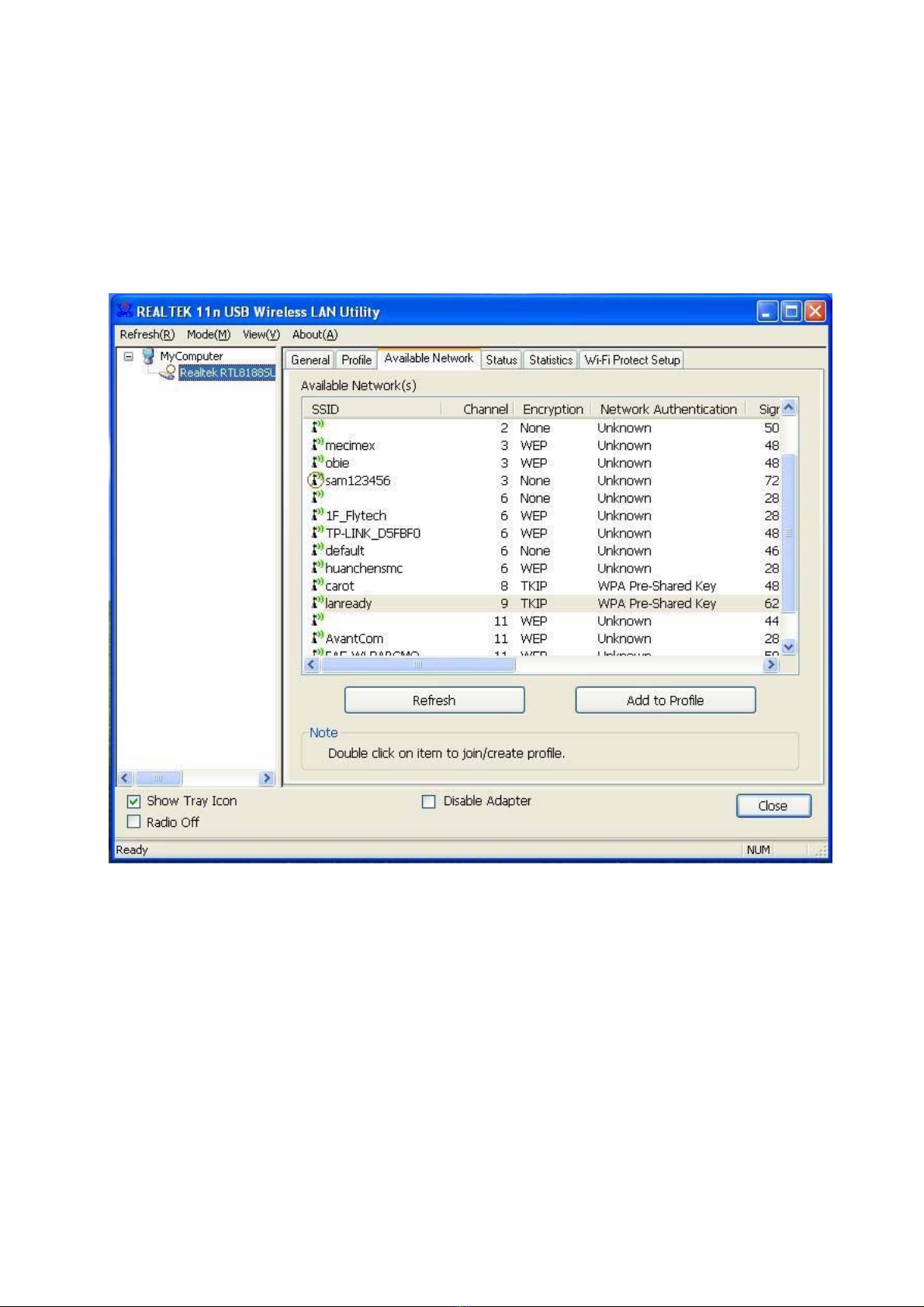

4.3 Available Network
The Available Network tab displays all the available wireless networks detected by the
Wireless Adapter.
Simply select the wireless network you wish to connect to and double click.
If you have created multiple profiles, you can choice the SSID. Then click Add to
profile to enable that profile.

21
4.4 Configuring Encryption
This section describes the different types of encryption available and how to configure
them. In most cases, encryption will be automatically configured and all that will need to
be entered is the key, as described in Section 3 Step 2. The only time you will need to
manually configure the encryption settings is if you are creating a custom profile.
Click on Profile then Add.
The profile settings box will appear. This is where you will change your encryption
settings. As you can see you have some different options to choose from.
