Kraftmeister KR7665000 Service manual

Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Operating Instructions and Parts Manual
Description
Parts wash in large enclosed cabinet, with highly protection from solvent splash & odor.
Pneumatic washing gun suitable for rapid cleaning.
Flourescent lighting system for bright view.
External air fan brings excellent ventilation.
Washing pressure: 70-120 PSI
Washing recirculate flux: 0.8 Liter/min.
Working area: 29*22*17.8 inch.
Solvent capacity: 4-9 L.
Air requirement: 70-120 PSI@5CFM
Size: 783*594*697mm
Kraftmeister Table Top Parts Washer
Cabinet
KR7665000

2
EPW 160
Operating Instructions and Parts Manual
ENCLOSED PARTS WASHER EPW 160
General Safety Information
.
1. KEEP PARTS WASHER ON APPROPRIATE HEIGHT OF THE WORKBENCH. Control the working bench
horizontal deviation less than 2 degree angle.
2. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents.
3. KEEP CHILDRENAWAY. All visitors should be kept safe distance from work area.
4. USE RIGHT TOOL. Don’t force Parts Washer or attachment to do a job for which it was not designed.
5. DO NOT USE ORGANIC CLEANING SOLVENT. (EXCEPTcustomized parts washer).
6. USE PROTECTIVE GLOVES. Do not usebroken gloves.
7. DISCONNECT PARTS WASHERbefore servicing;
When changing accessories.

3
EPW 160
Operating Instructions and Parts Manual
ENCLOSED PARTS WASHER EPW 160
Assembly
1. Open cabinet cover; get 4 support legs, 1 cleaning tank, and 1 accessory bag out.
2. Dump cabinet, connect 4 support legs with cabinet using 8 M8*16 Screws and Flat Washers.
3. Assemble 4 Leg Reinforces with legs using 8 M8*16 Screws and Flat Washers.
4. Load cleaning tank into sliding chute.
5. Connect φ12 suction pipe with adaptor on side of the cleaning tank.
φ12 Suction Pipe Adaptor

4
EPW 160
Operating Instructions and Parts Manual
ENCLOSED PARTS WASHER EPW 160

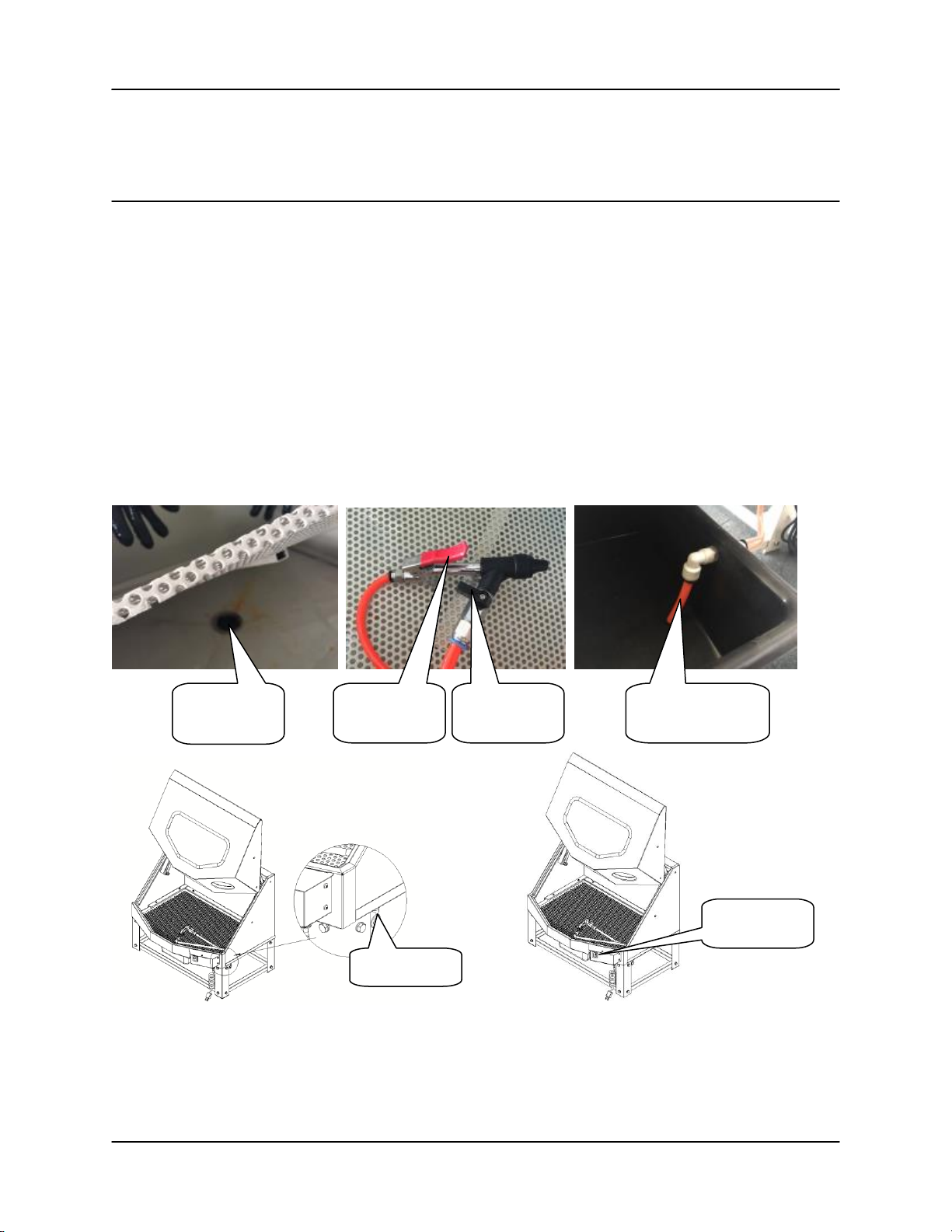

Operation Notice
1. Before operation, add minimum 4L solvent into the tank. The maximum solvent capacity is 9liters.
You could pull the tank out to look for the water level indicator. It should be 20mm higher than the suction mouth.
2. Connect the air compressor φ8 hose with the quick fitting at the bottom of the cabinet.
3. Turn on the light when plug parts washer into an electric power supply and air compressor. Adjust
appropriate air pressure based on the parts type you are washing.
4. Put parts into the machine and close the door, using cleaning gun to wash and change the black switch to dry
with air.
5. Open the door to get parts out when finished and turn down the light.
6. Replace solvent when needed.
Solvent Hose: connect with cleaning gun and tank
Air Inlet: connect with air compressor
Light Button
Cleaning Switch: Press cleaning gun switch to clean
parts with water/solvent.
Air On/Off Switch:Turn on the black switch for air
drying.
Filter Screen: filtering residue from the solvent
Filter
Screen
Cleaning
Switch
Air On/Off
Switch
Solvent Hose
Air Inlet
Power
switch

5
EPW 160
Operating Instructions and Parts Manual
ENCLOSED PARTS WASHER EPW 160
Maintenance
NOTE: Disconnect power and air before the maintenance.
Cleaning: Please clean the Filter Screen then to assemble it back. Finally, put Web back on it.
Wiring Diagram

6
EPW 160
Operating Instructions and Parts Manual
ENCLOSED PARTS WASHER EPW 160
Troubleshooting Chart
Symptom (s)
Possible Causes(s)
Corrective Action(s)
Cleaning gun only work with air, no
solvent anymore.
1. Cleaning switch is OFF
2. Inadequate solvent
3. Absorption pipe is blocked
1. Turn it on
2. Add more solvent into the tank.
3. Check and clean the absorption
pipe.
Light doesn’t work but fan still works
1. light is broken
1. Replace a new one
Fan doesn’t work but light still works
1. Fan is broken
2. Pull out waterproof plug and
replace a new fan

7
EPW 160
Operating Instructions and Parts Manual
ENCLOSED PARTS WASHER EPW 160
Explosive View

8
EPW 160
Operating Instructions and Parts Manual
ENCLOSED PARTS WASHER EPW 160
Parts
Part No.
Description
Qty.
1
Tank
1
2
Web
1
3
Filter Screen
1
4
Demist Fan
1
5
LED Light
1
6
Hoop for light
2
7
Front Connecting Rod
2
8
Cabinet Cover
1
9
Gloves
1 pair
10
Gloves Hoop
2
11
Back Connecting Rod
2
12
Cabinet
1
13
Fan Cover
1
14
Cleaning Gun
1
15
Support Leg
4
16
Long Leg Reinforces
2
17
Short Leg Reinforces
2
