USER MANUAL
MODEL:
Yarden 6-ID (SPK-I651T-KI)
2-Way In-Wall Speaker
P/N: 2900-300355 Rev 1

Yarden 6-ID –Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Recycling Kramer Products 3
3Overview 4
3.1 Defining the Yarden 6-ID 5
4Installing the Yarden 6-ID 7
4.1 Choosing the Best Location 7
4.2 Cutting the Wall 7
4.3 Installing the Speaker Wires 8
4.4 Mount onto the Wall 10
4.5 Setting up an Array Installation 10
5Technical Specifications 13
Figures
Figure 1: Yarden 6-ID 5
Figure 2: Yarden 6-ID Stereo Mode 6
Figure 3: Yarden 6-ID Cut-out Template 8
Figure 4: Adjust Tap Selector 9
Figure 5: Tighten the Mounting Tabs 10

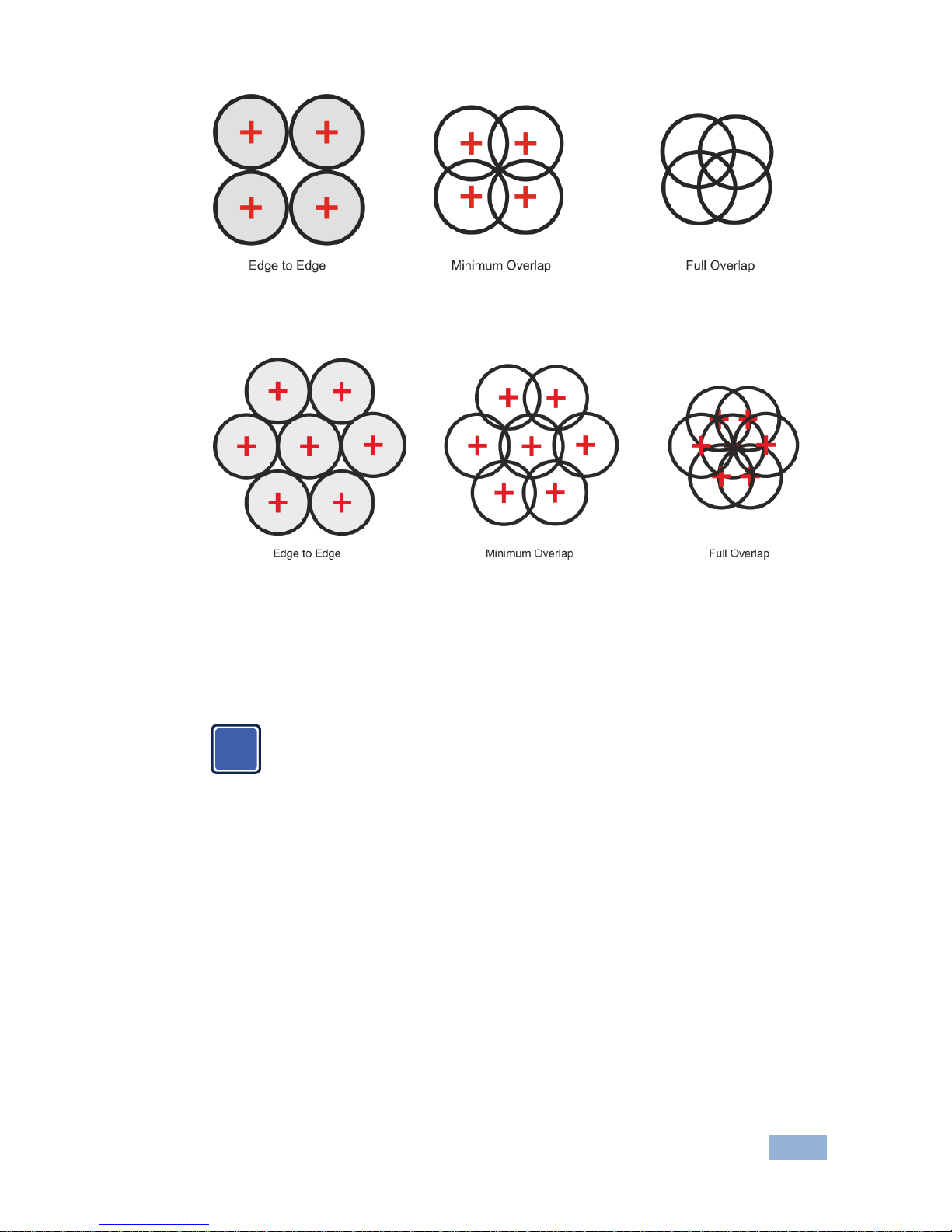

Figure 6: Square Layout 11
Figure 7: Hexagonal Layout 11
Figure 8: Square Layout Parallel Wiring 12

Yarden 6-ID - Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Products.
Congratulations on purchasing your Kramer Yarden 6-ID 2-Way In-Wall Speaker,
which is ideal for:
Conference rooms
Boardrooms and classrooms
Multimedia systems

2
Yarden 6-ID - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check if
firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer Speaker away from moisture, excessive sunlight and
dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
Do not open the housing of the speaker; doing so may reduce the
quality of the sound.
i
!
i

Yarden 6-ID - Getting Started
3
2.2 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4
Yarden 6-ID - Overview
3 Overview
The Yarden 6-ID is a high performance in-wall speaker that features:
A Mono/Stereo selector switch
A Music/Speech selector switch to toggle between Music mode (full range)
to Speech mode (cuts low frequencies and clears up speech frequencies to
enhance intelligibility)
A double looping Kevlar driver with two pivoting titanium tweeters and two
transformers, letting you use the speaker in the mono or stereo mode
A multi tap power transformer for selecting 8Ω (bypassing the transformer)
or 70V/100V power settings that are suitable for an array installation

Yarden 6-ID - Overview
5
3.1 Defining the Yarden 6-ID
This section defines the Yarden 6-ID:

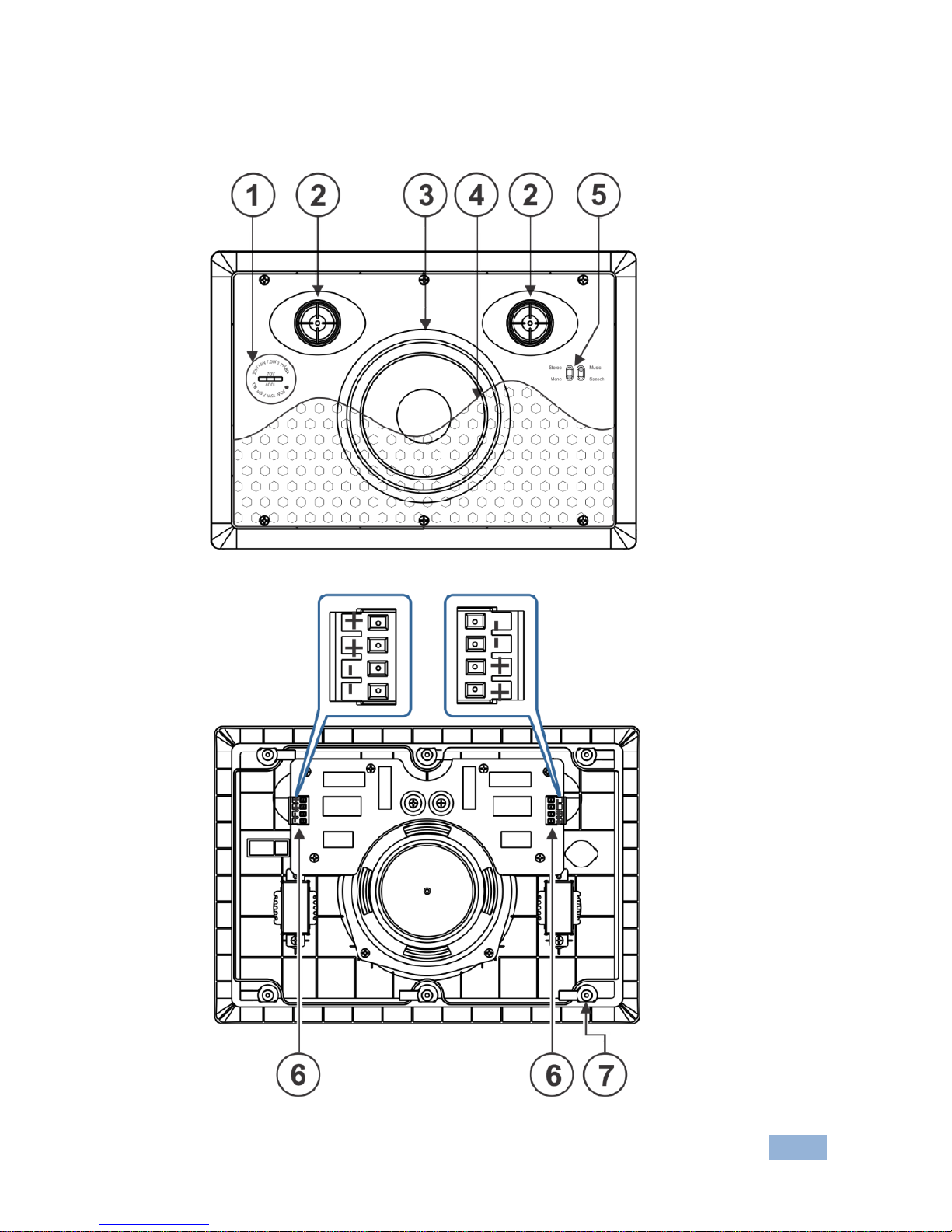

Figure 1: Yarden 6-ID

6
Yarden 6-ID - Overview
#
Feature
Function
1
Tap Selector
Adjust each speaker to the appropriate tap setting:
For 70V: 3.7W, 7.5W, 15W or 30W
For 100V: 7.5W, 15W or 30W
Or select 8(to bypass the transformer when connecting
directly to an amplifier without using the 70/100V array
option), see Figure 4
2
Tweeters
2 pivoting tweeters, reproduce the higher frequency sounds
3
Woofer Driver
Reproduces low frequencies
4
Speaker Grille
Protects the internal components of the speaker from
foreign objects.
5
Selector Switches
Stereo/Mono to select the stereo or mono option
Music/Speech to select the music or speech option
6
Left (L) and Right (R)
Terminal Block
Connectors
Use the left and right terminal blocks to setup a stereo
speaker (see Figure 2)
Note that you can use any one of the two terminal block
connecters for a “Mono” setup (once the selector switch is
set to Mono): one +, - pair for the input (see Figure 8)
7
Mounting Tab (6)
For installing the speaker in the wall.
Figure 2 shows the Yarden 6-ID setup in stereo mode:
Figure 2: Yarden 6-ID Stereo Mode

Yarden 6-ID - Installing the Yarden 6-ID
7
4 Installing the Yarden 6-ID
This section explains how to:
Choose the best location for your speakers (see Section 4.1)
Cut the wall (see Section 4.2)
Install the speaker wires (see Section 4.3)
Mount onto the wall (see Section 4.4)
Setup an array installation (see Section 4.5)
4.1 Choosing the Best Location
Before installing the speaker make sure that:
The desired location is free of obstructions, such as electrical piping, AC
ducts or water lines, and so on
There is enough space behind the mounting surface for the speakers
The rear side of the speaker is not blocked by wall studs or other objects
4.2 Cutting the Wall
To cut the wall, do the following:
1. Mark the location of the opening, using the template measurements.
2. Cut out the opening according to the template.
Initially, you can cut a smaller area inside the marked area just to be sure that the
space behind the speakers is clear
