Kramer YARDEN 6-OD User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
Yarden 6-OD (SPK-W641-KI)
On-Wall Stereo Speaker
P/N: 2900-300354 Rev 1

This page is intentionally left blank

Yarden 6-OD –Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Recycling Kramer Products 3
3Overview 4
3.1 Defining the Yarden 6-OD 4
4Installing the Yarden 6-OD 6
4.1 Choosing the Best Location 6
4.2 Installing the Speaker Wires 6
4.3 Installing the Mounting Bracket 8
4.4 Setting up an Array Installation 9
4.5 Connecting the Yarden 6-OD 11
5Technical Specifications 12
Figures
Figure 1: Yarden 6-OD 4
Figure 2: Yarden 6-OD Stereo Setup 5
Figure 3: Adjust Tap Selector 7
Figure 4: Yarden 6-OD with Bracket Connected 8
Figure 5: Square Layout 9
Figure 6: Hexagonal Layout 9
Figure 7: Square Layout Parallel Wiring 10
Figure 8: Yarden 6-OD Installed 11

Yarden 6-OD - Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Products.
Congratulations on purchasing your Kramer Yarden 6-OD On-Wall Stereo
Speaker, which is ideal for:
Conference rooms
Boardrooms and classrooms
Multimedia systems

2
Yarden 6-OD - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check if
firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer Speaker away from moisture, excessive sunlight and
dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
Do not open the housing of the speaker; doing so may reduce the
quality of the sound.
i
!
i

Yarden 6-OD - Getting Started
3
2.2 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4
Yarden 6-OD - Overview
3 Overview
The Yarden 6-OD is a high performance on-wall speaker that can be mounted on
the wall vertically or horizontally. The mounting bracket is made of painted steel that
can be attached to the speaker, letting you rotate it to the left or right.
The Yarden 6-OD speaker features:
A MONO/STEREO selector switch
Two pivoting titanium tweeters and two transformers, letting you use the
speaker in the mono or stereo mode
A multi-tap power transformer for selecting 8Ω (bypassing the transformer)
or 70V/100V power settings that are suitable for an array installation
3.1 Defining the Yarden 6-OD
This section defines the Yarden 6-OD:
Figure 1: Yarden 6-OD

Yarden 6-OD - Overview
5
#
Feature
Function
1
Bracket Knobs (2)
Use two knobs to fasten the bracket to the speaker
2
Tweeters
2 pivoting tweeters, reproduce the higher frequency sounds
3
Speaker Grille
Protects the internal components of the speaker from
foreign objects.
Do not remove from the speakers
4
Woofer Driver
Reproduces low frequencies
5
Bracket
Use to mount the speaker onto the wall
6
Mounting keyhole
opening
For hanging the brackets on the wall
7
Tap Selector
Adjust each speaker to the appropriate tap setting:
For 70V: 1.25W, 2.5W, 5W, 10W or 20W
For 100V: 2.5W, 5W, 10W or 20W
Or select 8(to bypass the transformer when connecting
directly to an amplifier without using the 70/100V array
option), see Figure 3
8
MONO/STEREO
Selector Switch
Select the mono or stereo option
9
Left (L) and Right (R)
Terminal Block
Connectors
Use the left and right terminal blocks to setup a stereo
speaker (see Figure 2)
Note that the Left terminal block connecter is also used for a
“Mono” setup (once the selector switch is set to MONO).
One +, - pair for the input (see Section 4.4)

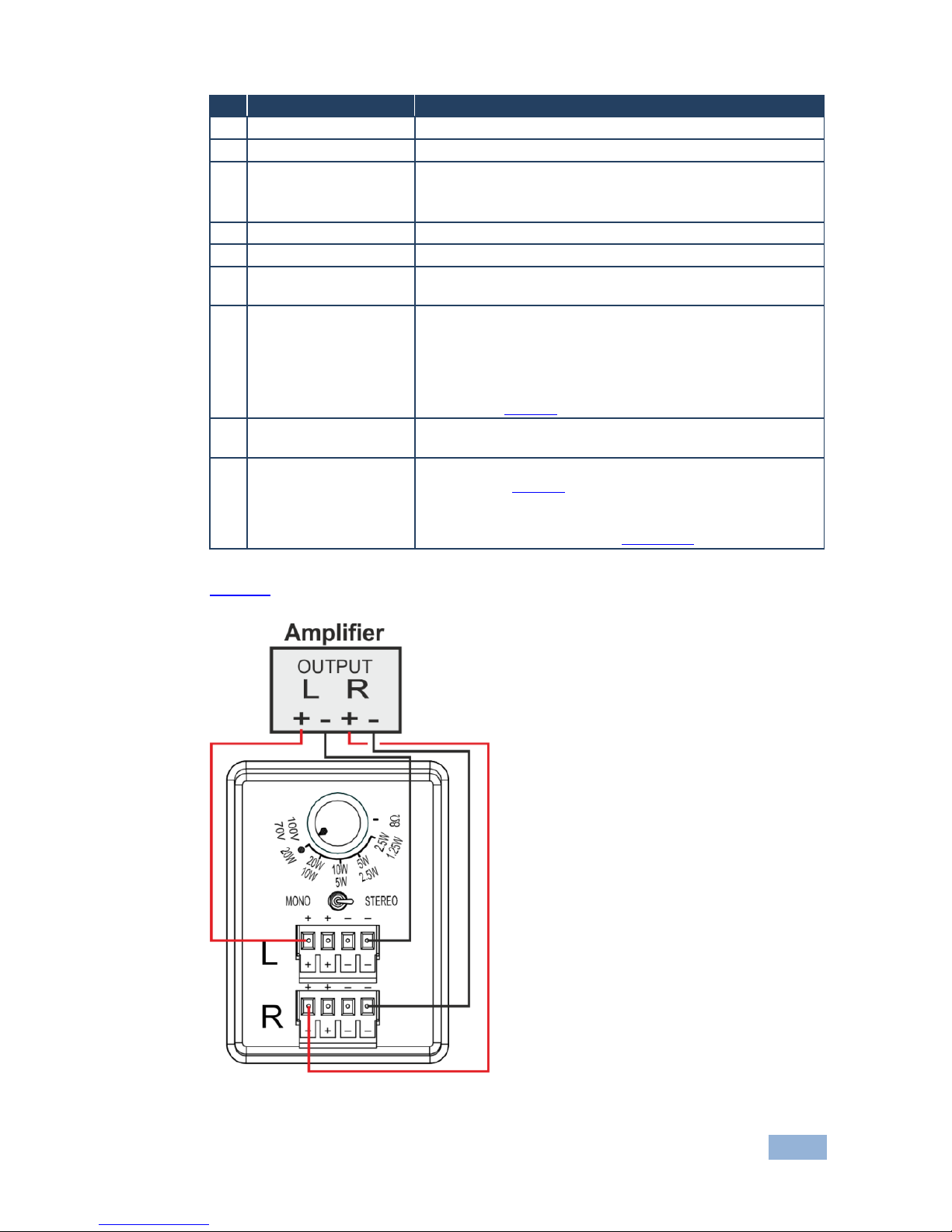

Figure 2 shows the Yarden 6-OD in a stereo setup:
Figure 2: Yarden 6-OD Stereo Setup

6
Yarden 6-OD - Installing the Yarden 6-OD
4 Installing the Yarden 6-OD
This section explains how to:
Choose the best location for your speakers (see Section 4.1)
Install the speaker wires (see Section 4.2)
Install the mounting brackets (see Section 4.3)
Setup an array installation (see Section 4.4)
Connect the Yarden 6-OD (see Section 4.5)
4.1 Choosing the Best Location
Before installing the speaker:
Experiment by placing the speakers in different locations before finally
deciding on the most suitable location
Be sure that the wall type is appropriate for the mounting brackets, that is,
either solid wood, bricks, concrete, hollow building blocks, or wood studs
Check that the mounting location is free of obstructions, such as electrical
piping, AC ducts or water lines, and so on

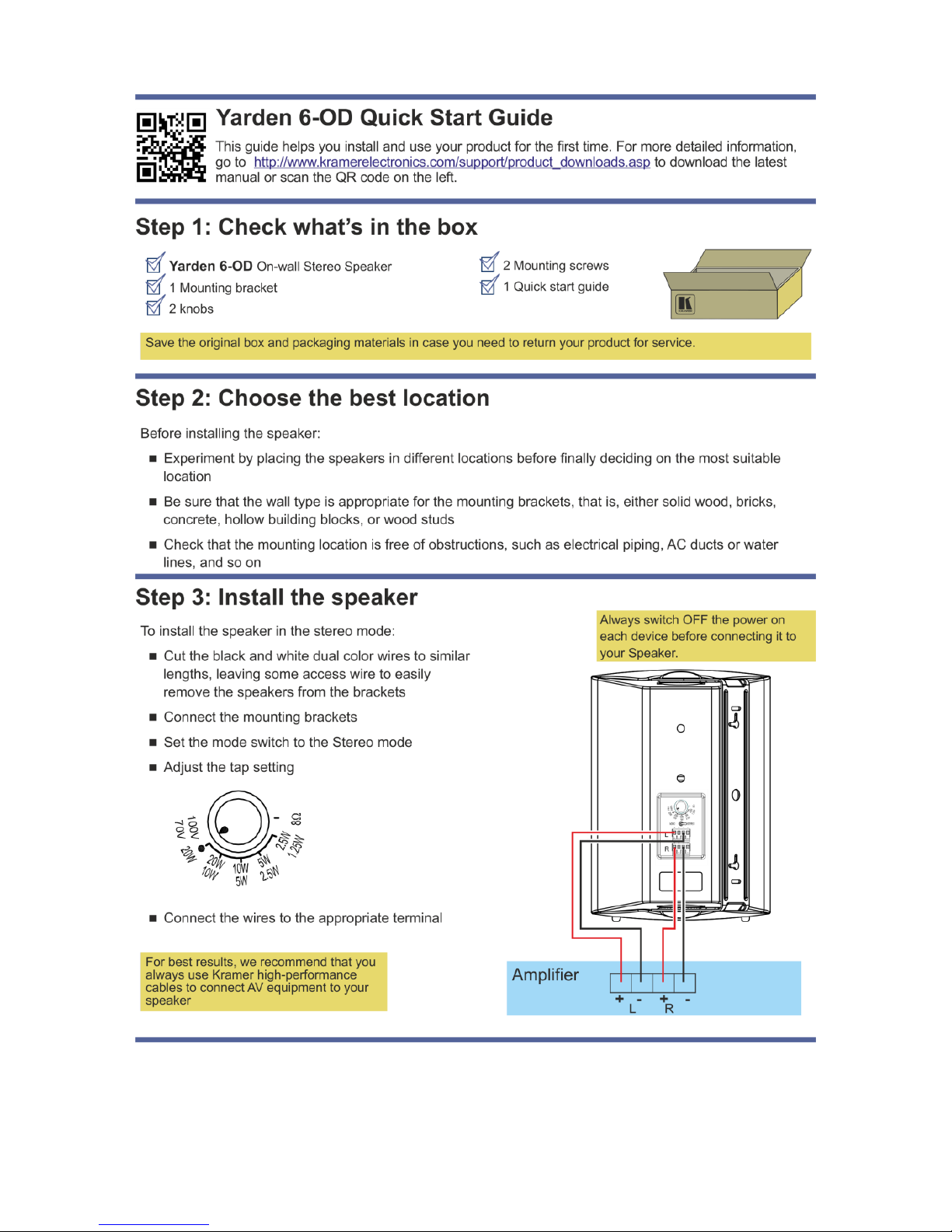

4.2 Installing the Speaker Wires
To install the speaker, do the following:
1. Prepare the wires for the speaker:
Cut the wires to similar lengths
For achieving high quality sound
Measure the length from each speaker to the receiver, and cut the
wires accordingly, adding some access wire length to let you easily
remove the speakers from the bracket without having to disconnect the
input wires
2. Strip the ends of the wires to expose a length of approximately 3/8 inch.

Yarden 6-OD - Installing the Yarden 6-OD
7
3. Pass the speaker wires through the round hole in the mounting bracket (see
Section 4.3).
4. Adjust appropriate tap setting (see Figure 3).
Set the tap according to the power requirements of the speaker based on its location in the
room (for example, a speaker located in a remote corner may require additional power)
Figure 3: Adjust Tap Selector
Stereo Setup (see Figure 2)
Mono Setup (see Figure 7)
5.
Set the selector switch to STEREO.
Set the selector switch to MONO.
6.
On the L terminal block, connect one
of the + and –terminal block pairs on
the rear panel (see Figure 1) by
connecting the wire from the:
Negative left terminal on the
receiver into the negative
terminal block of the speaker
Positive left terminal on the
receiver into the positive
terminal block of the speaker
On the L terminal block, connect one
of the + and –terminal block pairs on
the rear panel (see Figure 1) by
connecting the wire from the:
Negative terminal on the
receiver into the negative
terminal block of the speaker
Positive terminal on the
receiver into the positive
terminal block of the speaker
7.
On the R terminal block, connect
one of the + and –terminal block
pairs on the rear panel by
connecting the wire from the:
Negative right terminal on the
receiver into the negative
terminal block of the speaker
Positive right terminal on the
receiver into the positive
terminal block of the speaker

8
Yarden 6-OD - Installing the Yarden 6-OD
4.3 Installing the Mounting Bracket
To install the mounting bracket, do the following:
1. Mark the location of the mounting holes on the wall.
2. Screw the mounting screws onto the wall at the location that you want to
mount the speaker.
If the location is backed by wall studs, you can use the wood screws
provided. If the location is backed by a gypsum board, use wall anchors (not
included in the package).
3. Slide the speaker into the mounting bracket.
4. Align the bracket screw holes (upper and lower) to those on the speaker and
screw a knob to each of the holes to secure the speaker to the bracket (see
Figure 4).

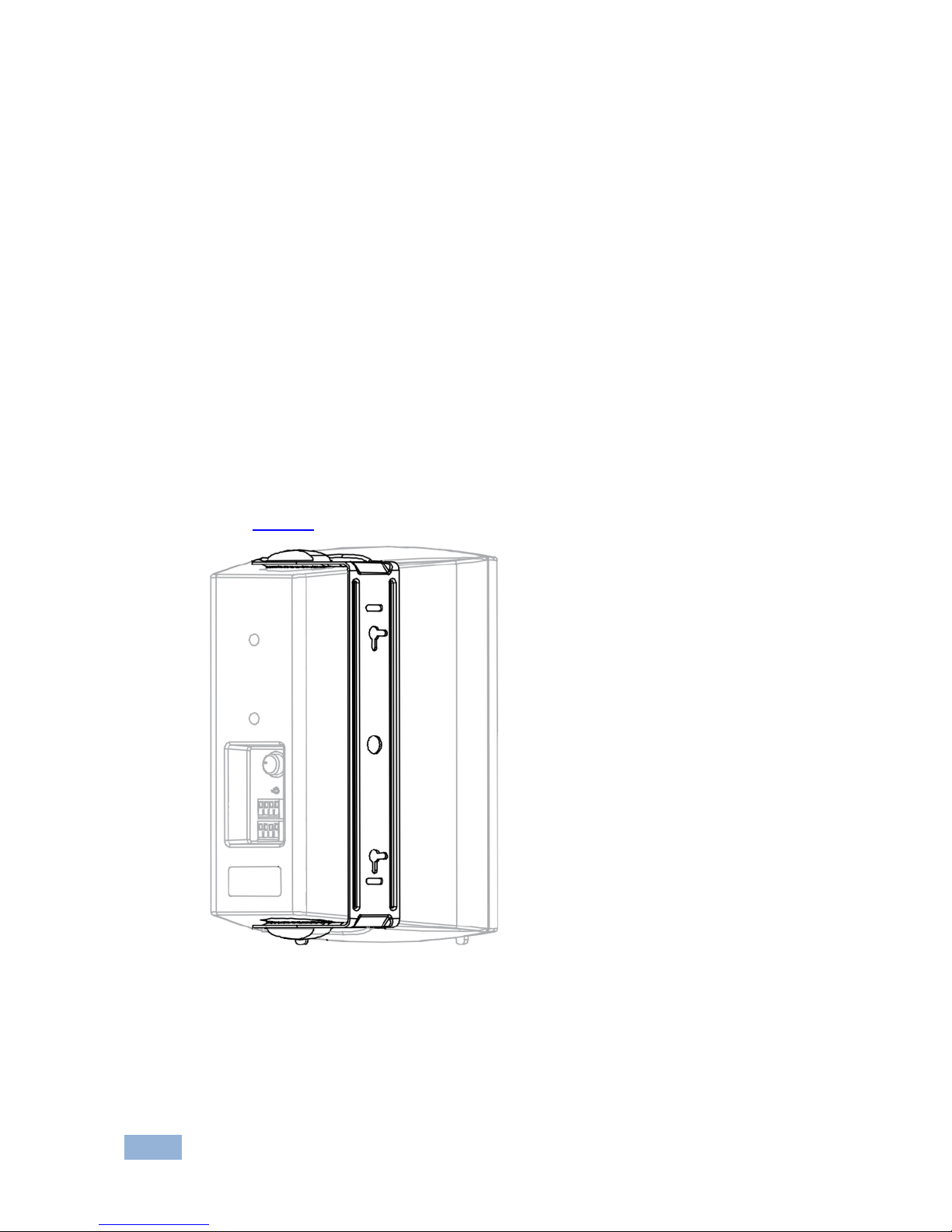

Figure 4: Yarden 6-OD with Bracket Connected
5. Slide the mounting bracket over the mounting screws so that the mounting
bracket is secured to the surface.
6. You can slightly loosen the knobs on a speaker to adjust its direction.

Yarden 6-OD - Installing the Yarden 6-OD
9
4.4 Setting up an Array Installation
When installing Yarden 6-OD in an array installation layout you need to define the
distance between speakers as well as the layout pattern (square or hexagonal).
The distance between speakers is set according to the uniformity of the coverage
desired and the budget.
The coverage angle of the speaker determines the coverage area and the number
of speakers required in the array installation. Two patterns are usually used for
array installations, square (see Figure 5) or hexagonal (see Figure 6), depending
on the shape of the installation area. The speakers are positioned according to
their coverage area.

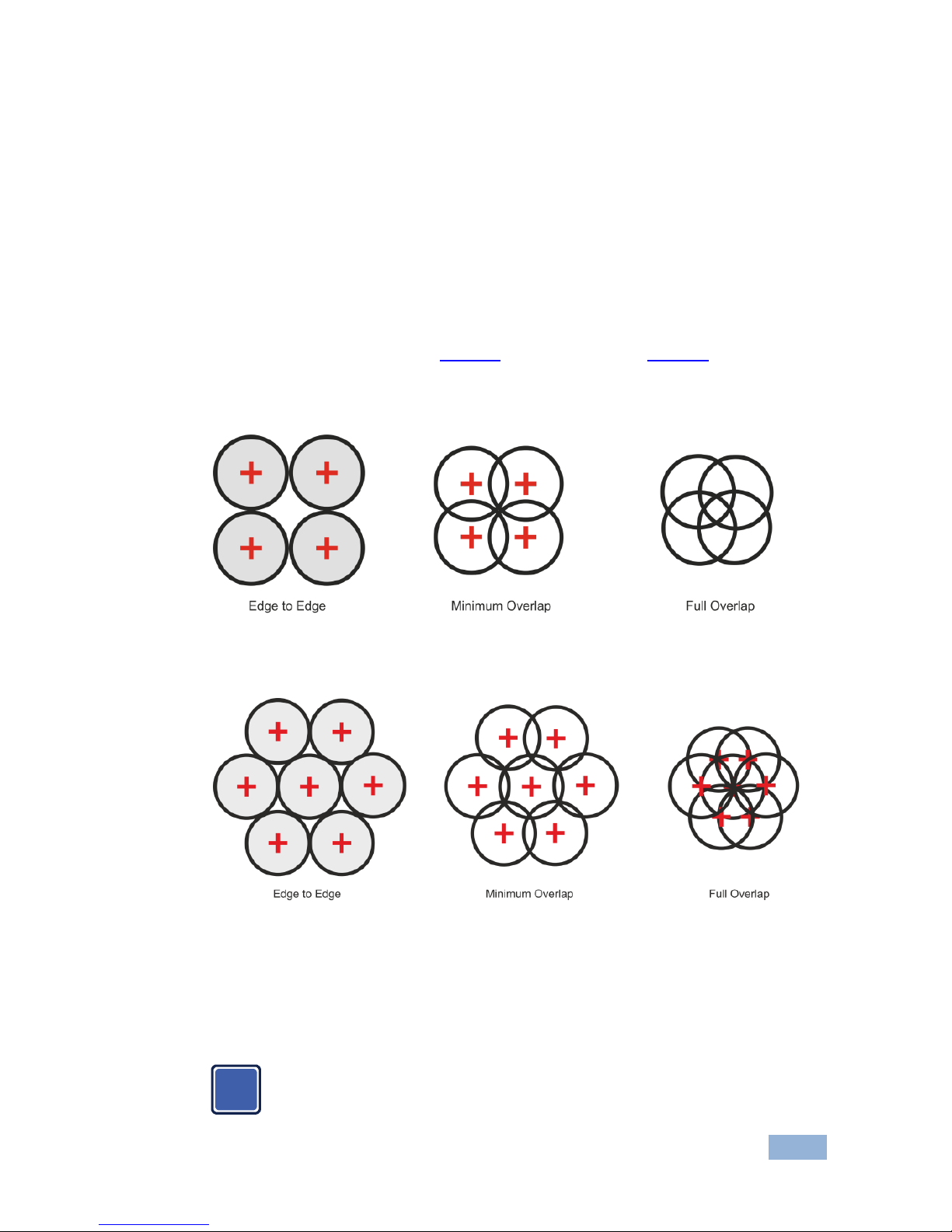

Figure 5: Square Layout
Figure 6: Hexagonal Layout
You can set the power on each speaker to get the desired power level in different
installation areas.
We recommend that you set the Mode switch to MONO for an array
installation.
i

10
Yarden 6-OD - Installing the Yarden 6-OD

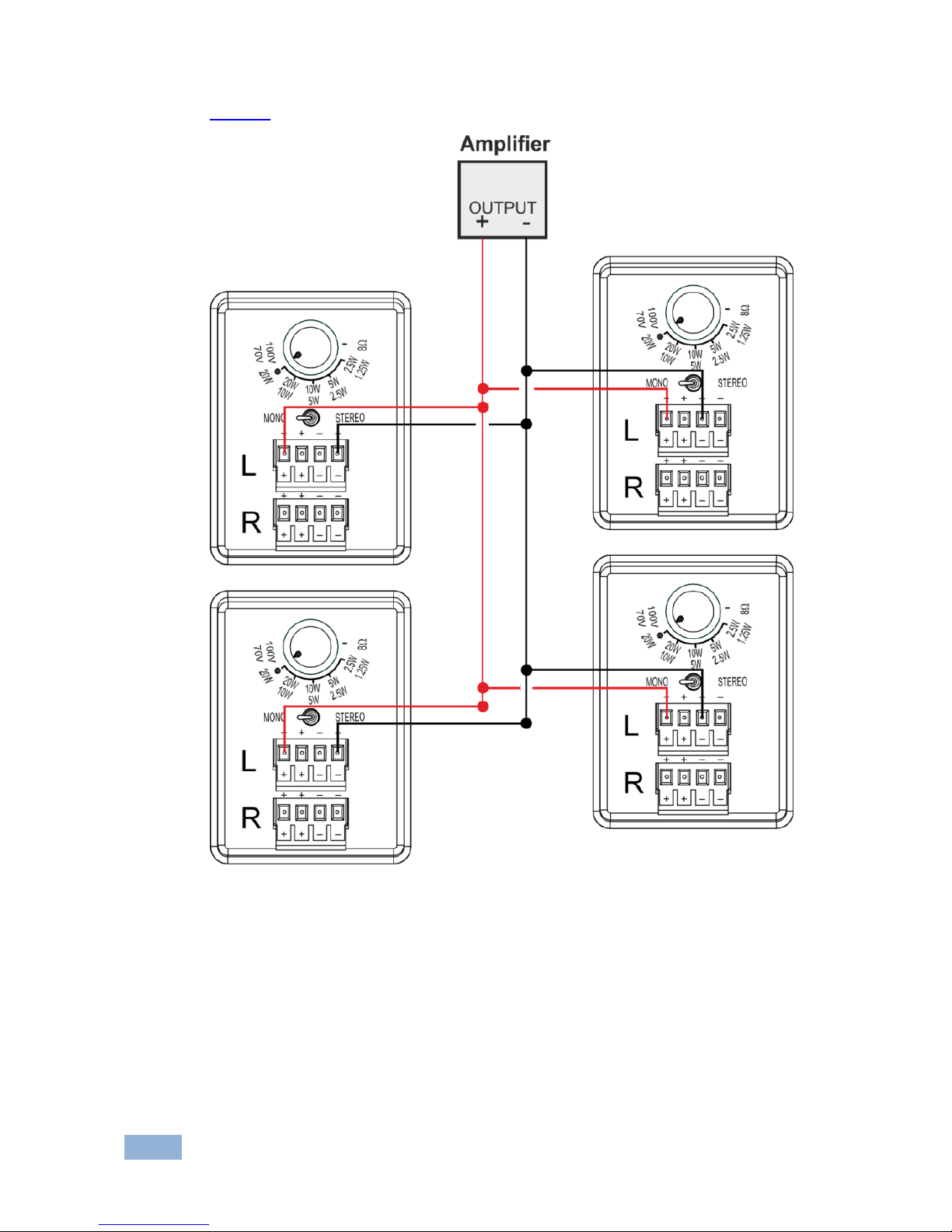

Figure 7 shows an example of parallel wiring in a square array installation:
Figure 7: Square Layout Parallel Wiring

Yarden 6-OD - Installing the Yarden 6-OD
11
4.5 Connecting the Yarden 6-OD

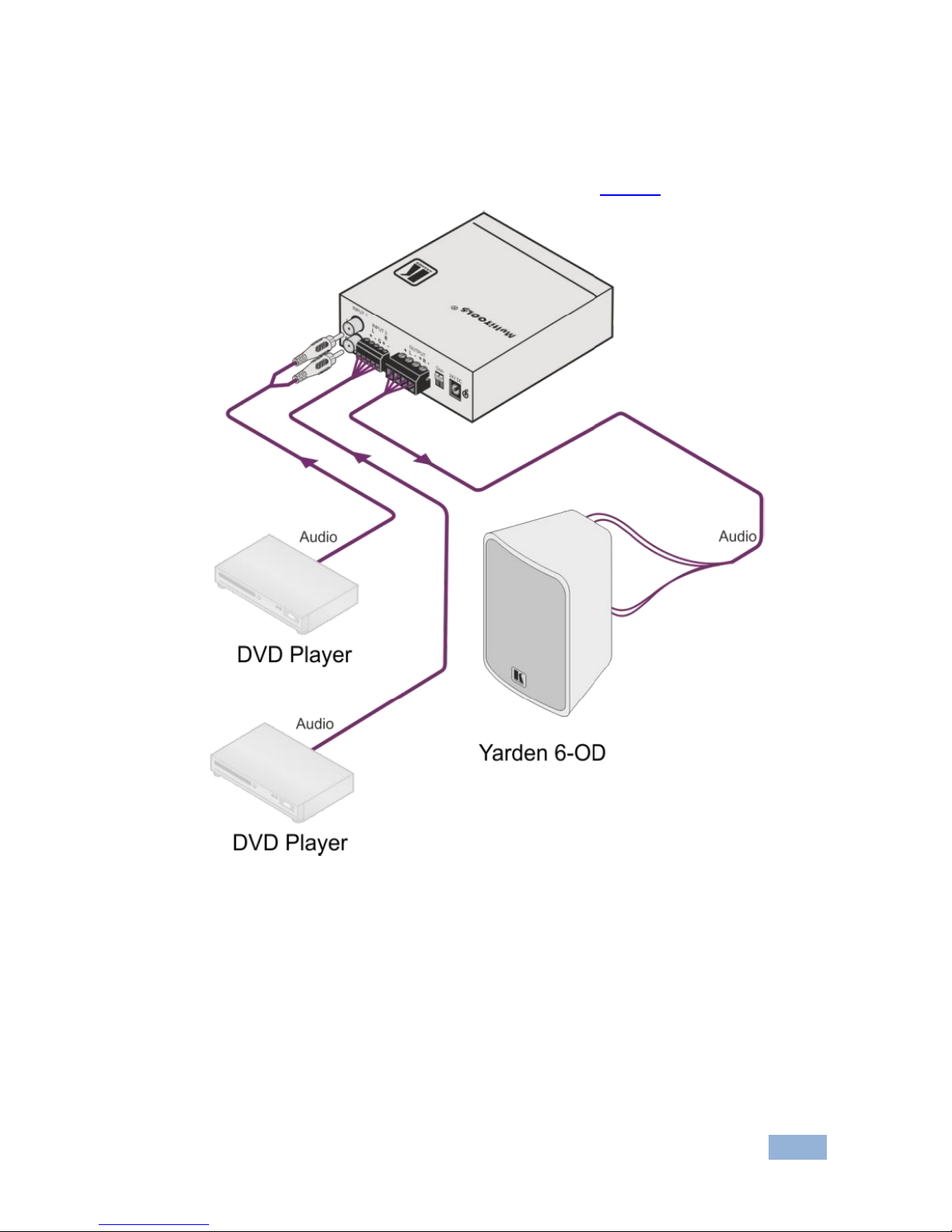

You can connect the Yarden 6-OD speaker to an amplifier, for example the
Kramer 907xl Power Amplifier/Mixer, as illustrated in Figure 8:
Figure 8: Yarden 6-OD Installed

12
Yarden 6-OD - Technical Specifications
5 Technical Specifications
Audio and Power
DESCRIPTION:
2-way on wall stereo speaker
FREQUENCY RESPONSE:
65Hz to 20kHz @ -10dB
80Hz to 20kHz @ ±3dB
WOOFER:
6.5” (166mm) Kevlar(R) with rubber surround
TWEETER:
2 x 0.8” (20mm) pivoting titanium dome
IMPEDANCE:
8(transformer tap in off position)
TRANSFORMER TAPS:
70V –20W / 10W / 5W / 2.5W / 1.25W / Off (Lo-Z)
100V –20W / 10W / 5W / 2.5W / Off (Lo-Z)
SENSITIVITY:
84dB SPL, 1W@1m
MAX SPL:
Continuous: 99dB
Peak: 102dB
POWER HANDLING
30W x 2 RMS
80W x 2 continuous program
CROSSOVER FREQUENCY:
2.6kHz
DIRECTIVITY FACTOR (Q):
5.3, averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI)
7.4dB averaged 1kHz to 10kHz
INPUT CONNECTORS:
Terminal blocks
Shipping and Installation
MATERIALS:
Frame, aluminum grill, steel brackets; ABS cabinet
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
WEIGHT PER SINGLE SPEAKER
2.85kg (6.28lbs) approx.
WEIGHT WITH MOUNTING KIT:
3kg (6.61lbs) approx.
SHIPPING WEIGHT:
3.7kg (8.16lbs) approx.
DIMENSIONS:
21.5 cm x 19.4 cm x 30.1 cm (8.5” x 7.6” x 11.9”),
W, D, H.
DIMENSIONS WITH MOUNTING
BRACKETS
21.5cm x 22.5cm x 30.1cm (8.5” x 8.9” x 11.9”), W,
D, H.
INSTALLATION CLEARANCE:
Front panel to wall (with mounting bracket): 22.7cm
(8.9”)
Back panel to wall (with mounting bracket): 3.8cm
(1.5”)
ACCESSORIES:
mounting bracket (including 2 knobs and 2
mounting screws)
COLORS:
Available in white and black
Specifications are within a 10% tolerance and are subject to change without notice at
http://www.kramerelectronics.com

For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com
E-mail: [e-mail]
P/N:
2900-300354
Rev:
1
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
