Krowne GWD-24 Service manual

FRONT DOOR GLASSWASHER
LOW TEMPERATURE
INSTALLATION AND OPERATION
INSTRUCTION MANUAL
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: [phone] • Fax: [phone]
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
MODEL GWD-24
Rev. 12/2011
No. GWD-1.00
Printed in the USA
SERIAL NO.

COPYRIGHT © 2011 All Rights Reserved. Printed in the USA.
For future reference, record your dishwasher information in the box below.
Model Number__________________________ Serial Number______________________
Voltage___________________ Hertz__________________ Phase_________________
Service Agent __________________________________ Tel:______________________
Parts Distributor ________________________________ Tel:______________________
ATTENTION:
The model no., serial no., voltage, Hz and phase are needed to identify your machine and to
answer questions.
The machine data plate is located on the lower front panel.
Please have this information ready if you call for service assistance.
SERVICE CONTACT INFORMATION
Krowne Metal Corporation
100 Haul Road
Wayne, NJ 07470
Toll-Free: [phone]
Phone: [phone]
Fax: [phone]
Email: ser[email protected]
SERVICE INFORMATION

Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: [phone] • Fax: [phone]
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
WARRANTY REGISTRATION FORM
MODEL NO.: ______________ SERIAL NO.: ______________ INSTALL DATE: _______
NAME OF ESTABLISHMENT: ________________________ PHONE NO.: ______________
ADDRESS: _____________________ CITY/STATE: _______________ ZIP: __________
DEALER NAME: ________________________ CITY/STATE: ___________________
INSTALLATION COMPANY: __________________________________________________
ADDRESS: ______________________________________________________________
PHONE NO.: _____________________________________________________________
CONTACT: ______________________________________________________________
PLEASE FAX TO [phone] TO
COMPLETE REGISTRATION
YOU CAN ALSO REGISTER YOUR WARRANTY ONLINE
AT WWW.KROWNE.COM/WARRANTY-GW

4Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
Limited Warranty
LIMITED WARRANTY
Krowne Metal Corporation, (herein referred to as "The Company"), 100 Haul Road, Wayne, New Jersey 07470 warrants machines, and parts, as set
out below.
Warranty of Machines: The Company warrants all new machines of its manufacture bearing the name "Krowne Metal Corporation" to be free
from defects in material and workmanship for a period of one (1) year after the date of installation or fteen (15) months after the date of shipment
by The Company, whichever occurs rst. [See below for special provisions relating to glasswashers.] The registration card must be submitted by fax
or online with The Company within ten (10) days after installation. If the registration is not submitted to The Company within such period, the war-
ranty will expire after one year from the date of shipment.
The Company will not assume any responsibility for extra costs for installation in any area where there are jurisdictional problems with local trades
or unions.
If a defect in workmanship or material is found to exist within the warranty period, The Company, at its election, will either repair or replace the
defective machine or accept return of the machine for full credit; provided; however, as to glasswashers, The Company's obligation with respect to
labor associated with any repairs shall end (a) 120 days after shipment, or (b) 90 days after installation, whichever occurs rst. In the event that The
Company elects to repair, the labor and work to be performed in connection with the warranty shall be done during regular working hours by The
Company's authorized service technician. Defective parts become the property of The Company. Use of replacement parts not authorized by The
Company will relieve The Company of all further liability in connection with its warranty. In no event will The Company's warranty obligation exceed
The Company's charge for the machine. The following are not covered by The Company's warranty:
a. Lighting of gas pilots or burners.
b. Cleaning of gas lines.
c. Replacement of fuses or resetting of overload breakers.
d. Adjustment of thermostats.
e. Adjustment of clutches.
f. Opening or closing of utility supply valves or switching of electrical supply current.
g. Cleaning of valves, strainers, screens, nozzles, or spray pipes.
h. Performance of regular maintenance and cleaning as outlined in operator’s guide.
i. Damages resulting from water conditions, accidents, alterations, improper use, abuse, tampering,
improper installation, or failure to follow maintenance and operation procedures.
j. Wear on Pulper cutter blocks, pulse vanes, and auger brush.
Examples of the defects not covered by warranty include, but are not limited to: (1) Damage to the exterior or interior nish as a result of the
above, (2) Use with utility service other than that designated on the rating plate, (3) Improper connection to utility service, (4) Inadequate or
excessive water pressure, (5) Corrosion from chemicals dispensed in excess of recommended concentrations, (6) Failure of electrical
components due to connection of chemical dispensing equipment installed by others, (7) Leaks or damage resulting from such leaks caused
by the installer, including those at machine table connections or by connection of chemical dispensing equipment installed by others,
(8) Failure to comply with local building codes, (9) Damage caused by labor dispute.
Warranty of Parts: The Company warrants all new machine parts produced or authorized by The Company to be free from defects in material and
workmanship for a period of 90 days from date of invoice. If any defect in material and workmanship is found to exist within the warranty period. The
Company will replace the defective part without charge.
DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY. THE COMPANY'S WARRANTY IS ONLY TO THE EXTENT REFLECTED ABOVE.
THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED, TO ANY WARRANTY OF
MERCHANTABILITY, OR FITNESS OF PURPOSE. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
THE REMEDIES SET OUT ABOVE ARE THE EXCLUSIVE REMEDIES FOR ANY DEFECTS FOUND TO EXIST IN THE COMPANY'S DISHWASHING
MACHINES AND THE COMPANY'S PARTS, AND ALL OTHER REMEDIES ARE EXCLUDED, INCLUDING ANY LIABILITY FOR INCIDENTALS OR
CONSEQUENTIAL DAMAGES.
The Company does not authorize any other person, including persons who deal in The Company's dishwashing machines
to change this warranty or create any other obligation in connection with The Company's Dishwashing Machines.

5
Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
TABLE OF CONTENTS
Receiving 6
Installation 7
Electrical Connections 7
Water Connection 8
Drain Connection 9
Initial Start-up 10
Chemical Dispensing Pumps 11
Operation 14
Normal Wash Mode 14
Drain Mode 15
Cleaning and Maintenance 16
Cleaning 16
De-liming 19
Maintenance 20
Troubleshooting 21
Service Replacement Parts 23
Electrical Schematics 46
Timer Charts 47
Table of Contents

6Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
NOTE:
The installation of your glasswasher must be performed by qualied service personnel who will
observe all applicable safety, electrical, plumbing, and health codes. Problems due to improper
installation are not covered by the Warranty.
1. Inspect the outside of the glasswasher carton for signs of damage.
2. Remove the carton and inspect the glasswasher for damage.
3. Check for any accessories that may have shipped with your glasswasher.
4. Turn to the front of this manual for the instructions to validate your machine warranty online or by fax.
5. Move the glasswasher near its permanent location.
6. Compare the installation site utility connections with the glasswasher utility connections and make
sure they are the same.
7. The installation should provide storage space for the glasswasher chemical supply containers.
Containers must be placed on the oor and as close to the machine as possible.
8. Place the glasswasher in its permanent location.
9. Level the glasswasher front-to-back and side-to-side.
The machine has 4 adjustable feet for leveling unless equipped with optional casters.
Installation
Receiving
CAUTION:
Be careful when lifting and moving the glasswasher to prevent damage to the machine.

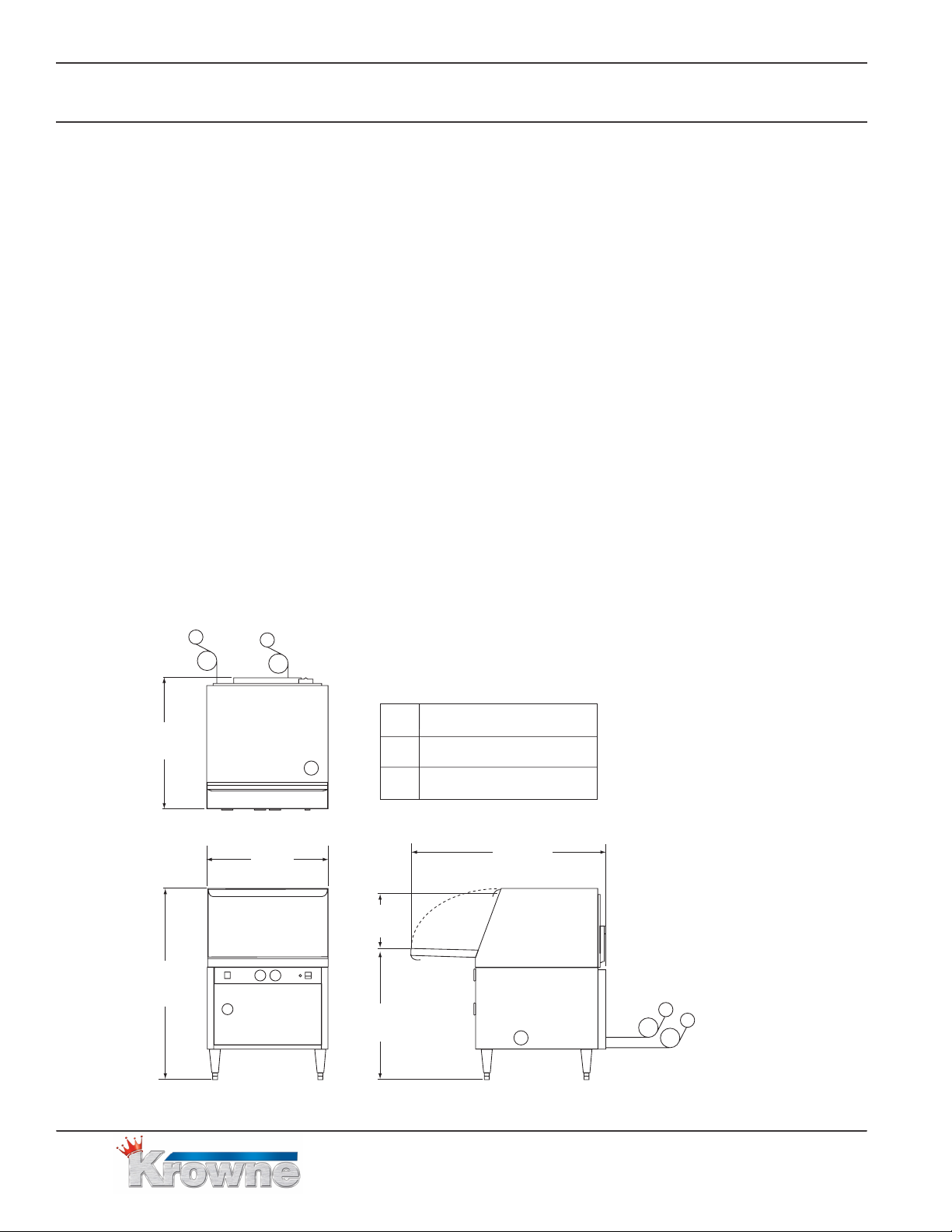

26"
[660]
38"
[965]
38-3/4"
[984]
11" [280]
clearance
26-1/2"
[673]
24"
[610]
3
1
2
3
1
2
1 Electrical Connection
2 Water Connection
3 Drain Connection
Note: The GWD-24 has a exible power cord and plug for 115VAC/60/1 operation.

7
Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
Installation
Electrical Connection
ATTENTION
A qualified electrician must connect the main incoming power to the glasswasher in accordance
with all local codes and regulations or in the absence of local codes in accordance with the
National Electrical Code.

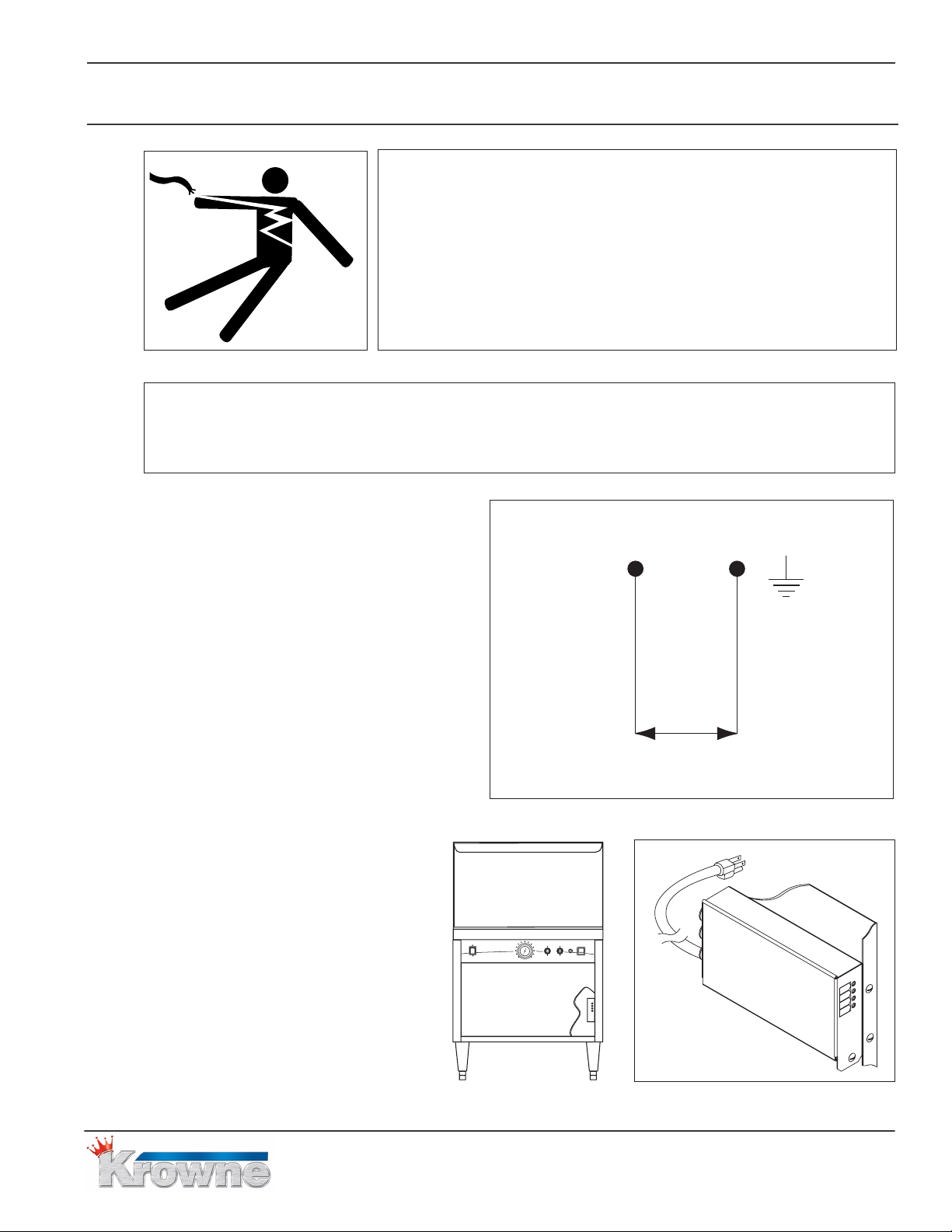

1. Glasswasher is equipped with a 4
ft. power cord and plug.
2. The power cord is prewired at the
junction box located on the front
right side of the machine behind
the lower front access panel.
3. This model requires a
115VAC,15A receptacle.
L1 L2
115VAC
15A
4 ft. power cord w/plug supplied
DET
SANI
PRIME START
TEMPERATURE
ON
I
O
POWER
OFF / DRAIN
R/A
The power cord is prewired to the junction box located at the lower
right-side of the machine behind the lower front access panel.
WARNING:
Electrocution or serious injury may result when working on an energized
circuit.
Disconnect power at the main breaker or service disconnect
switch before working on the circuit.
Lock-out and tag the breaker to indicate that work is being performed on
the circuit.

8Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
1. The unit has a 7 ft./1.8 m exible hot water ll hose with a 3/4"
female garden hose connector.
2. A 1/2" or larger main incoming supply line should be installed to the glasswasher.
3. A 1/2" or larger shut-off valve should be installed in the main water supply as close to the
glasswasher as possible for service.
4. The machine has a built-in ow control. The incoming hot water supply pressure must be between
25-95 psi/173-655 kPa.
5. The hot water supply must provide a minimum of 140°F/60°C, measured at the glasswasher.
Installation
ATTENTION
Plumbing connections must comply with national, local plumbing and sanitary codes.
IMPORTANT
Make sure that the exible water supply and drain hoses are not kinked.
Water Connection

9
Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
Installation
1. This unit has a 6ft. 5/8" I.D. drain hose. The maximum drain height connection must not
exceed 3 ft.[.09 m] above the nished oor.
2. The drain hose is located at the rear of the glasswasher.
3. The drain hose is secured to the rear of the machine by a clamp to maintain a goose-neck
bend in the drain hose.
DO NOT REMOVE THE DRAIN HOSE RETAINING CLAMP.
DO NOT KINK, STRETCH OR LENGTHEN THE DRAIN HOSE.
4. Install the drain hose to a "WYE" drain tting. Connection to a "TEE" tting will prevent the
glasswasher from draining completely.
5. The maximum drain ow is 15 US gpm/12.5 Imp gpm/57 Lpm.
6. Make sure the drain hose does not kink. Kinks will prevent the glasswasher
from draining completely, and the glasswasher will overow out the front door.
ATTENTION
Do not connect the drain hose to a disposer. The glasswasher will not drain correctly.

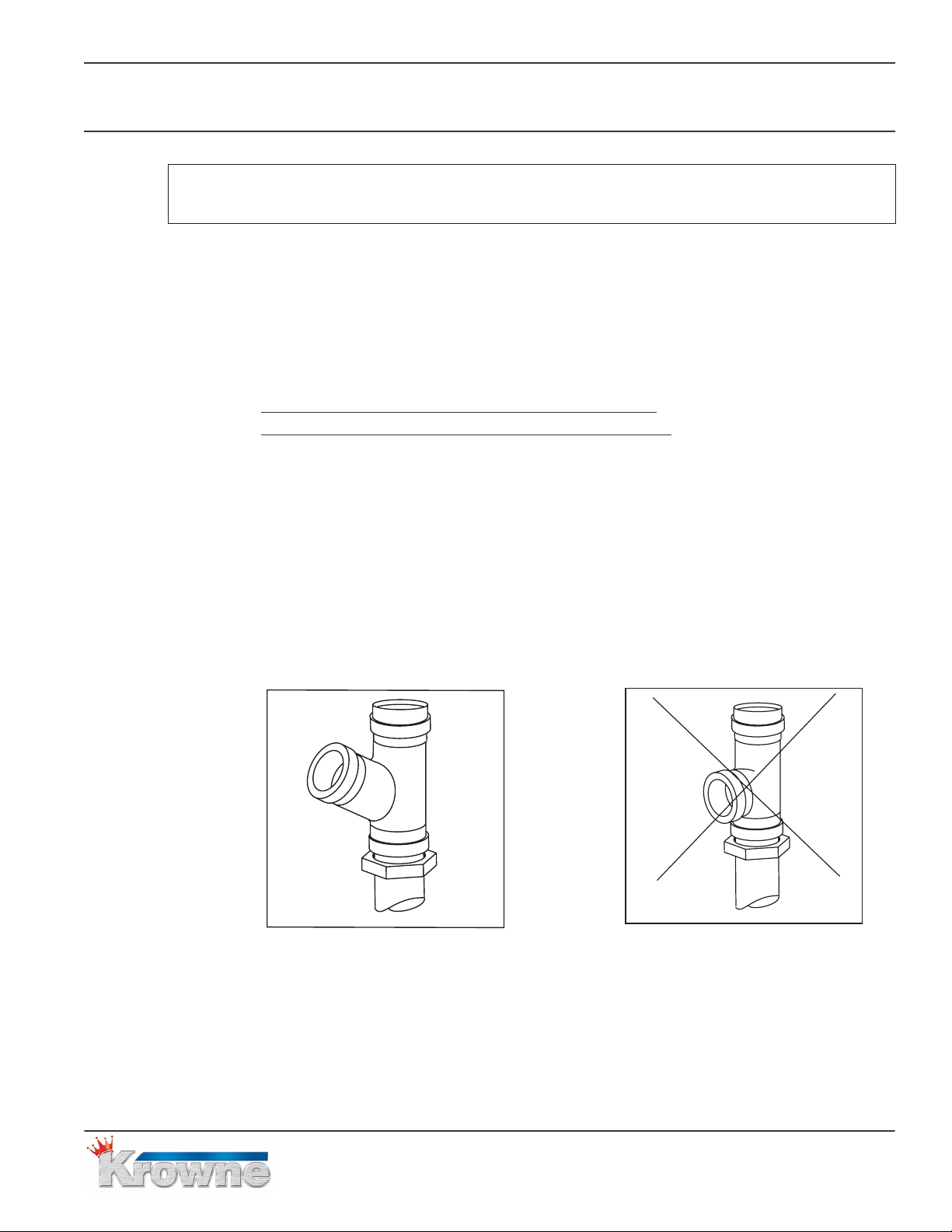

The glasswasher flexible drain hose
must be connected to a WYE fitting.
Do not connect the glasswasher
flexible drain hose to a TEE fitting.
Drain Connection

10 Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
Make sure the scrap screen and spray arm are in place.
Initial Start-up
Check List
1. Make sure the glasswasher is permanently located.
2. Make sure all utility connections are complete.
3. Make sure the exible drain hose and the hot water ll hose are not kinked.
4. Remove any protective lm from glasswasher.
5. Check the interior for foreign material.
6. Remove the scrap screen and check the sump for foreign material.
7. Make sure the chemical supply containers are full and that the chemical pick-up tubes
are installed in the proper containers.
8. Make sure the scrap screen is in place.
9. Make sure the spray arm is in place and that it spins freely.
10. Close the glasswasher door.
11. Turn hot water supply on and check for leaks in the main water supply piping connected
to the glasswasher.

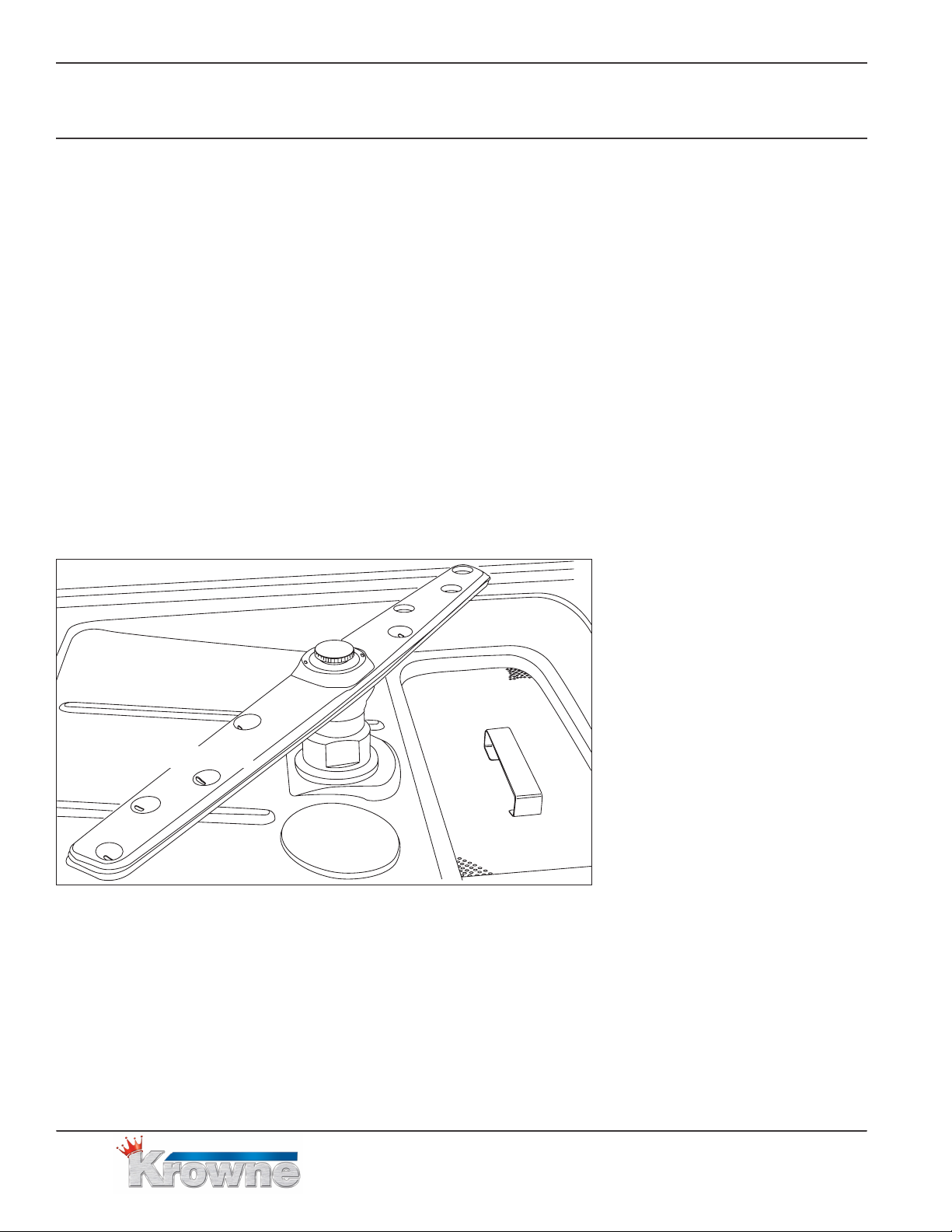

Scrap
Screen
Spray Arm

11
Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
Initial Start-up
Chemical Dispensing Pumps
ATTENTION
5.25% sodium hypochlorite (chlorine bleach) must be used as a sanitizing agent to provide a minimum
concentration of 50 ppm in the nal rinse. The 50 ppm concentration must be checked using chlorine
test strips to make sure the proper concentration is maintained
1. Glasswasher is equipped with built-in detergent, rinse-aid, and sanitizer dispensing pumps.
(See the illustration above).
2. The pumps are located on a center bracket behind the lower-front access panel.
3. The pick-up tubes are marked with colored labels that identify the type of chemical used:
RED = Detergent (Non-chlorinated)
BLUE = Rinse-Aid (Consult chemical supplier)
WHITE = Sanitizer (5.25% Sodium hypochlorite
(chlorine bleach) solution.
The chemicals enter the wash tank compartment through a tting on the right rear of the wash
compartment.
4. The detergent supply should be a non-chlorinated liquid detergent, the chemical supplier will
determine an appropriate rinse agent. Your chemical supplier must adjust the dispensers for the
supplied product.
5. Place the chemical supply containers as close to the glasswasher as possible.
6. Do not elevate the chemical containers above the nished oor.
Detergent Rinse-aid Sanitizer
Wash Thermo
Chemical Injection Point
Chemical Pick-up Tubes

12 Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
Chemical Dispensing Pumps
Initial Start-up
1. There are two chemical dispenser prime push buttons on the glasswasher. The rst is labeled
DET and SAN on the front control panel; the second is labeled R/A.
DET = Detergent
SAN = Sanitizer
R/A = Rinse-aid
2. Make sure the chemical containers are full and the correct pick-up tubes are in their containers.
3. Turn the glasswasher power switch ON. The switch will illuminate and the glasswasher will ll
with water.
4. Open the glasswasher door, then push and hold the rst prime push button UP to the
DET position until detergent enters the wash tank compartment.
Release the PRIME push button.
5. Push and hold the prime push button DOWN to the SAN position until sanitizer
is observed entering the wash tank compartment. Release the Prime push button.
6. Push and hold the second prime push button UP to the R/A position until rinse-aid
is observed entering the wash tank compartment. Release the Prime push button.
7. Run three empty cycles to remove chemicals in the wash tank.
8. Priming is complete.
Priming the Chemical Dispensing Pumps
R/ADET
SAN
PRIME START
TEMPERATURE
ON
I
O
POWER
OFF / DRAIN
0
20
40 60
80
100
120
140
160
180
200
220
100
80
60
40
20
Rinse-aid
Prime Switch
Detergent and Sanitizer
Prime Switch

13
Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
NOTE:
The chemical dispensing pump speeds are not set at the factory and variations in the
type of chemicals supplied by the chemical supplier always require that the supplier
make nal adjustments for the products supplied.
1. Adjustment screws are provided for the dispensing pumps and for the wash tank ll.
They are located on the right-side of the glasswasher behind the lower front access panel.
2. Make sure the chemical containers are full and the
pick-up tubes are in the proper containers.
3. Turn the glasswasher power switch ON.
The switch will illuminate and the glasswasher
will ll with water.
4. The chemical supplier should run a normal glasswasher
cycle and test detergent and rinse-aid concentrations
according to the chemical supplier's instructions.
CAUTION:
Excessive pressure to the potentiometers when adjusting can result
in bent or broken adjusting screws.
5. Each dispensing pump has a clearly marked
adjustment screw. Turn the screw CW to increase
the time of the dispensing pump and CCW to
reduce the dispensing pump time.
6. The Fill adjustment screw will provide a small
change in the tank water level. If a large adjustment
is needed, then check the incoming water pressure
making sure the ll hose is not kinked. If the above items
are okay then the size of the incoming water supply
should be evaluated.
7. Detergent, rinse-aid and sanitizer are used.
5.25% sodium hypochlorite (chlorine beach) must be used
as a sanitizing agent to provide a minimum concentration
of 50 ppm in the final rinse. The 50 ppm concentration must
be checked using chlorine test strips to make sure that the
proper concentration is maintained.
Initial Start-up
Chemical Dispensing Pumps
Turning the chemical dispenser
adjusting Screws increase or
decrease the chemical dispensed.
Proper Water Level in the Wash Tank.
Chemical Dispensing Pump Speed and Tank Fill Adjustments

14 Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
1. Push the POWER switch up to the ON position. The switch illuminates and water enters the wash
compartment.
2. Check the temperature gauge to ensure that it indicates a minimum of 140°F/60°C.
3. Prescrap and load wares into the appropriate dish rack. Do not overload dish rack. Load wares in
a peg rack; load silverware in a single layer in a at-bottom dish rack. Overloading dish rack will
result in poor washing results.
4. Open glasswasher door and slide dish rack into the machine. Load 1 dish rack per wash cycle.
5. Close the glasswasher door. Press and hold START button for 1 second.
The cycle light illuminates and the wash cycle begins.
6. Check the temperature gauge during the nal rinse cycle to ensure the nal rinse temperature
indicates a minimum of 140°F/60°C during the nal rinse.
7. The green in-cycle light goes out completing the cycle. The nal rinse water
is held for the next wash cycle.
8. Open the glasswasher door and remove the dish rack of clean wares.
9. Repeat steps 2-8 for additional cycles.
NOTE:
Opening the door stops the cycle. When the glasswasher door is closed the cycle automatically restarts
from the beginning of the cycle.
Operation
GWD-24 Control Panel
R/ADET
SAN
PRIME START
TEMPERATURE
ON
I
O
POWER
OFF / DRAIN
0
20
40 60
80
100
120
140
160
180
200
220
100
80
60
40
20
Rinse-aid
Prime Switch
Detergent and Sanitizer
Prime Switch
Power ON
OFF/Drain Switch
Temperature
Gauge
In-cycle
Light
Cycle
Start Switch
Operation
Normal Wash Mode

15
Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
Operation
Operation
1. Push the glasswasher POWER switch up to the ON position.
2. The POWER switch illuminates and the machine lls with water.
3. Press and hold the green START button for 1 second.
4. Release the START switch.
5. The glasswasher starts and the green cycle light illuminates.
6. Check the temperature gauge to conrm that it displays the correct incoming hot water
temperature. This may take several minutes for the wash tank to reach temperature.
7. When the glasswasher stops, push the POWER switch down to the OFF/DRAIN position.
8. After a 4 second pause, the green cycle light will illuminate, the machine will drain, ll with water;
and perform 3 short cycles and then drain completely.
9. The green cycle light goes out when the machine has drained completely.
Drain Mode

16 Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
The best preventative maintenance is keeping the glasswasher as clean as possible
during regular use. A regular cleaning schedule will increase the life of the glasswasher
and ensure the best washing results.
CAUTION:
Damage to the unit or improper operation may occur if components are not
ushed and cleaned on a regularly scheduled basis.
After Each Meal Period or Every 8 hours of Operation
1. Remove the scrap screen and ush with clean water. Be sure to backush the screen.
2. Inspect the sump and pump intake screen and clean as required.
3. Reassemble the machine and return to normal operation.
Daily-End of the Day
1. Push the POWER switch to the OFF/DRAIN position and close the door to drain the tank.
The green in-cycle light will illuminate indicating the machine is in the drain cycle.
2. After the green in-cycle light goes out, open the door and remove the lower spray arm.
3. Backush the spray arm with clean water to remove any debris from the spray nozzles.
Do not strike the spray arm against solid objects
Cleaning
Cleaning
Nozzles
Bearing

17
Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
4. Remove and clean the scrap screen by rinsing with clean water. Be sure to backush the screen.
Do not strike the screen on hard surfaces.
5. Inspect the sump and remove any foreign material.
6. Clean the pump intake screen. The pump intake screen is not removable.
7. Reinstall the scrap screen.
Cleaning
Sump
Pump Intake
Screen
continued on next page
Cleaning

18 Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
Daily-End of the Day (continued)
Cleaning
Cleaning
8. Using a small paperclip, clean the nozzles in the upper rinse piping.
The rinse piping is not removable.
9. Wipe the exterior of the glasswasher clean using a soft cloth and mild detergent.
10. Leave the glasswasher door open overnight to allow the inside to dry.

19
Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
De-liming
De-liming
Minerals accumulate on the interior surfaces of the glasswasher. The removal of lime deposits is called
de-liming and the glasswasher should be de-limed regularly. Inspect the machine interior for lime
deposits. If de-liming is required, a de-liming agent should be used in accordance with the chemical
supplier's instructions.
DANGER:
Death or serious injury may result when de-liming solution is mixed with sodium hypochlorite
sanitizing agent. Mixing may cause hazardous gases to form. De-liming solution and other acids
must never be mixed with chlorine, iodine, bromine, or fluorine.
CAUTION:
Skin contact with de-liming solutions can cause severe irritation and possible chemical burns.
Always wear eye protection, rubber gloves and protective clothing when handling chemicals.
Follow the steps below to de-lime the glasswasher. Close the door.
1. Open the glasswasher door and remove any dish racks.
2. Turn the power switch on the glasswasher to the ON position.
3. Remove the detergent, sanitizer and rinse-aid chemical supply tubing from their chemical supply
containers.
4. Place the tubing in a container of hot water.
5. Press and hold the prime switch UP in the DET position for 2 minutes to ush the detergent from
the supply tubing. Release the switch.
6. Press and hold the prime switch DOWN in the SAN position for 4 minutes to ush the sanitizer
from the supply tubing. Release the switch.
7. Press and hold the prime switch UP in the R/A position for 4 minutes to ush the
rinse-aid from the supply tubing. Release the switch.
8. Turn the glasswasher power switch to OFF/DRAIN to drain the wash tank. The green in-cyle light
will go out when complete. Turn the power switch to ON to rell the machine. Repeat 3 more
times to completely ush any chemicals from the machine.
9. Open the door and carefully add the de-liming chemical to the wash tank in accordance with the
chemical supplier's instructions. Be careful to avoid splashing.
10. Close the door and press the START button to begin a wash cycle.
11. The green in-cyle light will illuminate and the machine will complete an automatic cycle.
12. Turn the glasswasher power switch to OFF/DRAIN to drain the wash tank. The green
in-cyle light will go out when complete (90 seconds). Turn the power switch to ON to rell the
machine.
13. Run 3 more empty wash cycles to completely ush any chemicals from the machine.
14. Check the de-liming results and if scale is still present repeat steps 8-13.
15. Return chemical supply tubing to their containers and prime the chemical lines.
16. Return the glasswasher to normal operation.

20 Krowne Metal Corporation |100 Haul Road |Wayne, NJ 07470
Phone: [phone] |Fax: [phone] |www.krowne.com
Maintenance
Maintenance Schedule
Daily Maintenance
1. Make sure that the water supply is on and that the drain is not clogged.
2. Check the temperature gauge and ensure it is operating.
3. Make sure that dish racks are in good condition.
4. Check the chemical containers and rell as required.
5. Follow the cleaning procedures given above.
Weekly Maintenance
1. Perform Steps 1-5 in the Daily Maintenance.
2. Inspect water lines for leaks.
3. Check for water leaks underneath the glasswasher.
4. Make sure the exible water ll and drain hoses are not kinked.
5. Make sure that the glasswasher is level.
6. Clean accumulated lime deposits from the wash tank heating element.
7. Inspect the scrap screen and replace it if damaged.
8. Check the spray arm and replace or repair if damaged.
Monthly Maintenance
1. Perform the Daily and Weekly Maintenance listed above.
2. Clean the chemical dispenser pick-up tubing by ushing with hot water.
To clean the pick-up tubing:
1. Remove the pick-up tubes from their containers.
2. Place each tube in a separate container of hot water.
3. Press and hold the PRIME button up in the DET position until water ows into the wash tank
compartment.
4. Press and hold the PRIME button down in the SAN position for 3 minutes.
5. Press and hold the PRIME button up in the R/A position for 3 minutes.
6. Return the pick-up tubes to their containers.
7. Run 3 empty glasswasher cycles to ush any chemicals from the glasswasher
wash compartment.
Follow the maintenance schedules below to keep the glasswasher operating most efciently.
