KTC RT-68WC Mounting instructions

RT-68WC

2
Contents
Brief introduction…………………………2
Important safety instructions……………3
Installing your new appliance…………….5

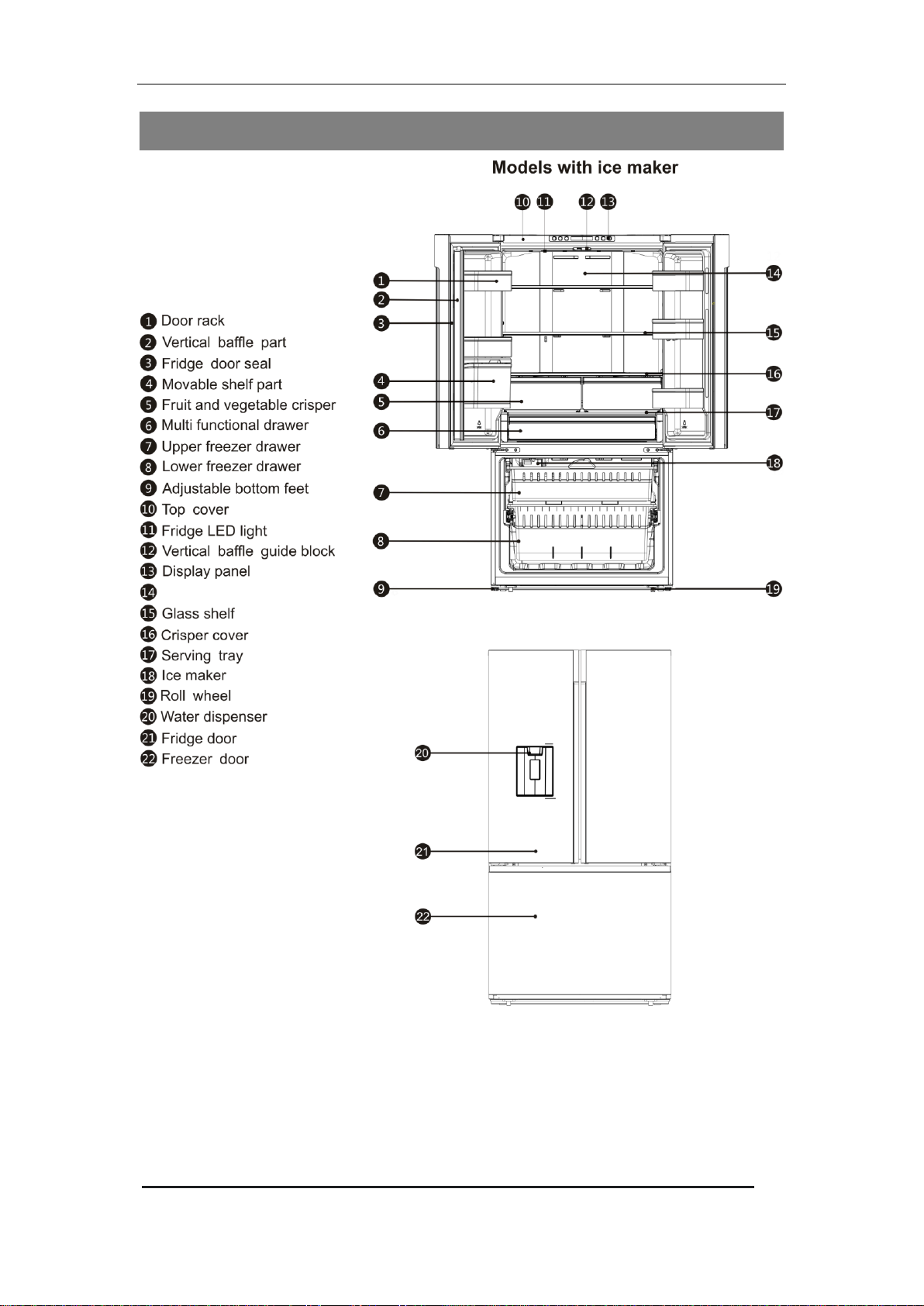

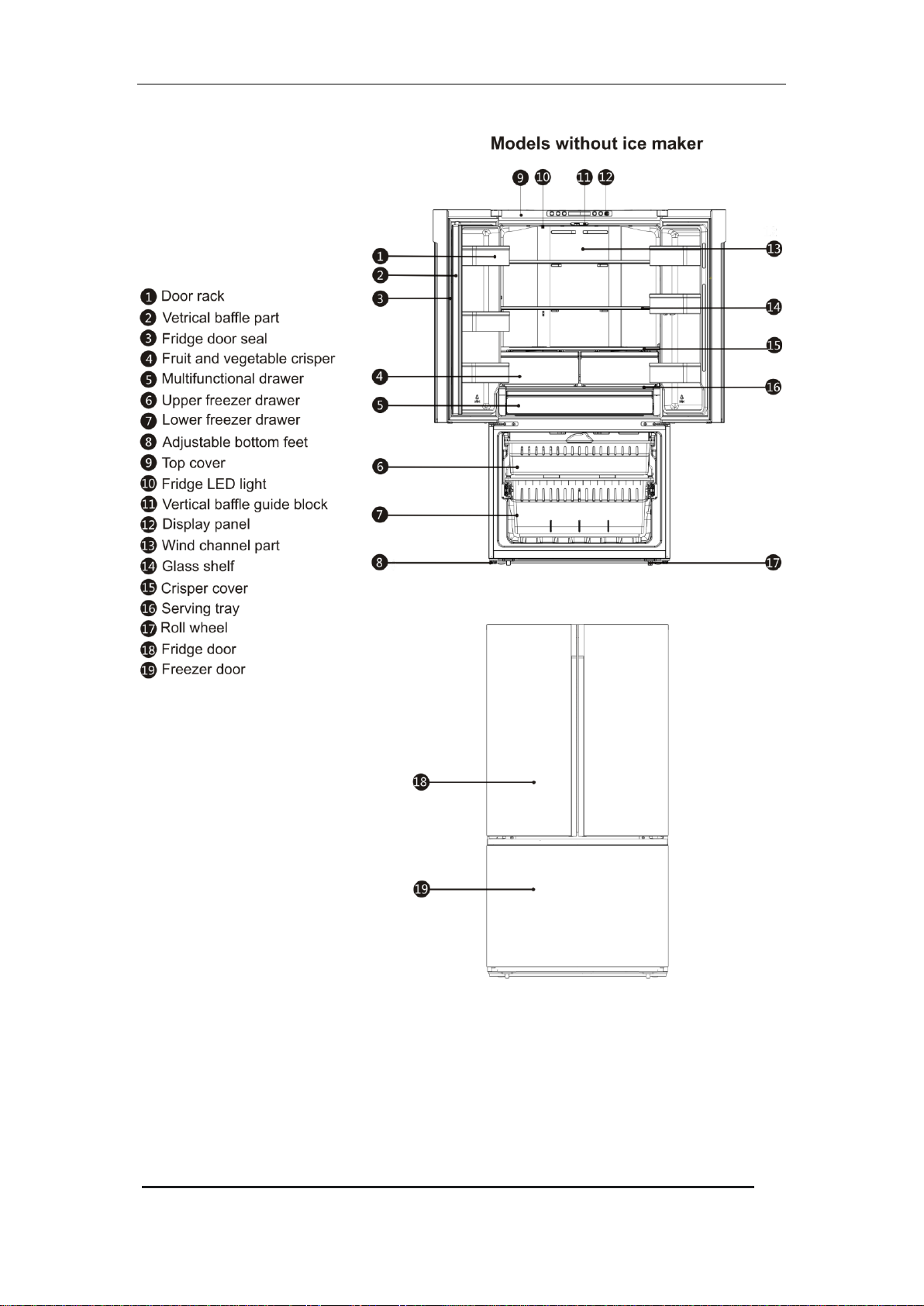

Description of the appliance…………….13
Display controls…………………………..15
Using your appliance…………………… 17
Cleaning and care………………………19
Helpful hints and tips……………………21
Troubleshooting…………………………22
Disposal of the appliance………………24
Brief Introduction
Thank you for your choosing Hisense. We
are sure you will find your new refrigerator
a pleasure to use. Before you use the
appliance, we recommend that you read
through these instructions carefully, which
provides details about its usage and
functions.
Please ensure that everyone using this
appliance is familiar with its operations
and safety features. It is important that you
install the appliance correctly and pay
careful attention to the safety instructions.
We recommend that you keep this user’s
manual with the appliance for future
reference.
This appliance is intended to be used in
households and similar applications such
as:
-Staff kitchen-areas in shops, offices and
other working environments;
-Clients in hotels, motels and other
residential types of environment;
-Bed and breakfast type of environments;
-Catering and similar non-retail
applications.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have supervision or been given
instruction concerning use of the
appliance. Children should be supervised
to ensure that they do not play with the
appliance.
Do not store explosive substances such
as aerosol cans with a flammable
propellant in this appliance.
WARNING —Connect to potable water
supply only.
WARNING —Do not use mechanical
devices or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
WARNING —Do not damage the
refrigerant circuit.
WARNING —Do not use electrical
appliances inside the food storage
compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
WARNING —When disposing of the
appliance do so only at an authorized
waste disposal center. Do not expose to
flame.
WARNING—The instructions include the
following wording regarding the use of
extension cords: Do not use an extension
cord.
WARNING—If the supply cord is damaged,
it must be replaced by the manufacturer,
its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING—Keep ventilation openings, in
the appliance enclosure or in the built-in
structure, clear of obstruction.

3
Important Safety Instructions
General safety and daily use
It is important to use your
appliance safely. We
recommend that you follow the guidelines
below.
Store any food in accordance with the
storage instructions from the
manufacturer.
Don't try to repair the appliance yourself.
It is dangerous to alter the specifications
or modify this product in any way. Any
damage to the power cord may cause a
short circuit, fire or electric shock.
Don’t place too much food directly
against the air outlet on the rear wall of
both the refrigerator and freezer
compartment, as it affects sufficient air
circulation.
Don’t place hot items near the plastic
components of this appliance.
Frozen food must not be refrozen once it
has been thawed out.
Don’t store bottled or canned drinks
(especially carbonated drinks) in the
freezer compartment. Bottles and cans
may explode.
Use caution consuming popsicles or ice
cubes straight from the freezer as this can
cause freezer burn to the mouth and lips.
Safety for children and infirm persons
Keep all packaging away from children
to avoid risk of suffocation.
Protect children from being scalded by
touching the compressor at the rear
bottom of appliance
Don’t place items on top of the appliance
as this could cause injury should they fall
off.
Never allow children to play with the
appliance by hanging or standing over or
on the doors, racks, shelves and drawers
etc.
Electrical Safety
To avoid the risks that are
always present when using an
electric appliance, we recommend that
you pay attention to the instructions about
electricity below.
Unpack and check through the appliance.
Should any damage be evident, don’t plug
in the appliance but contact the shop
immediately from which you purchased it.
Keep all packing materials in this case.
We recommend that you wait for 4 hours
before connecting the appliance to allow
the refrigerant to flow back into the
compressor.
The appliance must be applied with
single phase alternating current of
115V/60Hz. If the voltage fluctuates
exceeding the upper limit, A.C. automatic
voltage regulator of more than 350W
should be applied to the refrigerator for
safety use.
The power plug must be accessible
when the appliance is installed.
This appliance must be grounded.
This appliance is fitted with a plug, in
accordance with local standard. The plug
should be suitable for use in all houses
fitted with sockets in accordance with
current specifications.
If the fitted plug is not suitable for your
socket outlets, it should be cut off and
carefully disposed of. To avoid a possible
shock hazard, do not insert the discarded
plug into a socket. If in doubt contact a
qualified, registered electrician.
Do not use extension cords or multiple
sockets which could cause overloading of
wiring circuits and could cause fire.Always
plug your appliance into its own individual
electrical socket which has a voltage
rating that matched the rating plate.

4
Make sure that the plug is not squashed
or damaged. Otherwise, it may cause
short circuit, electric shock or overheat
and even cause a fire.
Do not insert the power plug if the socket
is loose, there is a risk of electric shock or
fire.
Switch off the appliance and disconnect
it from the main power before you clean or
move it.
Never unplug the appliance by pulling on
the electrical cord. Always grip the plug
firmly and pull straight out from the socket
to prevent damaging the power cord.
Do not operate the appliance without the
cover of interior lighting.
Any electrical component must be
replaced or repaired by a qualified
electrician or authorized service engineer.
Only genuine replacement parts should be
used.
WARNING: Do not use electrical
appliances such as ice cream makers
inside the food storage compartments of
the appliance unless they are approved by
the manufacturer.
To avoid eye injury, do not look direct
into the LED light located in the
refrigerator compartment. If it is not
functioning correctly, consult a qualified,
registered electrician or replace it in
accordance with the “cleaning and care”
chapter.
Refrigerant
The refrigerant isobutene (R600a) is
contained within the refrigerant circuit of
the appliance. During transportation and
installation of the appliance, ensure that
none of the components of the refrigerant
circuit becomes damaged.
The refrigerant (R600a) is flammable.
Caution: Risk of Fire
Don't store products which
contain flammable propellants
(e.g. spray cans) or explosive substances
in the appliances.
Should the refrigerant circuit be
damaged:
Avoid open flames (candles, lamps etc.)
and sources of ignition.
Thoroughly ventilate the room in which
the appliance is situated.
Do not use extension cords or
ungrounded (two prong) adapters.
For appliances with TYPE Y
ATTACHMENT, the instructions shall
contain the substance of the following.
If the SUPPLY CORD is damaged, it
must be replaced by the manufacturer, its
service agent or similarly qualified person
in order to avoid a hazard.
DANGER: Risk of child entrapment.
Before you throw away your old appliance:
Take off the doors
Leave the shelves in place so that
children may not easily climb inside.

5
Installing Your New Appliance
Before using the appliance for the first
time, you should be informed of the
following tips.
Warning!
For proper installation, this refrigerator
must be placed on a level surface of hard
material that is the same height as the rest
of the flooring. This surface should be
strong enough to support a fully loaded
refrigerator.
The rollers, which are not castors, should
be only used for forward or backward
movement. Moving the refrigerator
sideways may damage your floor and the
rollers.
Ventilation of appliance
In order to improve efficiency of
the cooling system and save
energy, it is necessary to maintain good
ventilation around the appliance for the
dissipation of heat. For this reason,
sufficient clear space should be available
around the refrigerator.
Suggestion:
It is advisable for there to be at least
75mm (3’’) of clearance from the back of
the fridge to the wall, at least 100mm (4’’)
of clearance from its top, at least 100mm
(4’’) from its side to the wall and a clear
space in front to allow the doors to open
125°. As shown in following diagrams.
Note:
This appliance performs well within the
climate class from N to T shown in the
table below. It may not work properly if left
at a temperature above or below the
indicated range for a long period.
Climate class
Ambient temperature
SN
+50℉to +90℉
N
+61℉to +90℉
ST
+61℉to +100℉
T
+61℉to +109℉
Stand your appliance in a dry place to
avoid high moisture.
Keep the appliance out of direct sunlight,
rain or frost. Stand the appliance away
from heat sources such as stoves, fires or
heaters.
Leveling of appliance
For sufficient leveling and air circulating
in the lower rear section of the appliance,
the bottom feet may need to be adjusted.
You can adjust them manually by hand or
by using a suitable tool.
To allow the doors to self-close, tilt the
top backwards by 10~15mm.

6
Door Removal
In case your home access door is too
narrow for the refrigerator to pass through,
remove the refrigerator doors and drawers.
If you do not need to remove the appliance
doors, proceed to ‘Installing Water Lines’
on page 8.If you need to remove the doors,
continue below.
Tools you will need (Not provided):
Allen Wrench (4mm)
Wrench (8mm)
Philips Screwdriver
Disassembling the fridge door
Some models may be slightly different
from pictures. If some parts shown in the
picture cannot be found in your appliance,
please ignore the relevant description.
1. With the door closed, remove the 3
screws holding the top cover (A) with
Philips (+) screwdriver, and then remove
the top cover with the entire-harness
attached.
2. Take out connectors and the water
coupler from the installation clip. Remove
the two wire connectors (press the top of
the connector (B) and separate it from the
other one) on the left side door .To remove
the water coupler from the hinge, twist and
pull the clips from the coupler then remove
the water line (C) while pressing the
movable part (D) of the water line coupler.
3. Remove the 3 screws (B) fixed on the

7
hinges with a wrench (8mm) and 1 ground
screws (C) attached to the hinge with
Philips (+) screwdriver. Remove the upper
left and right door hinges (D).
4. Use your both hands to open the door
more than 90°.Lift it up and take it off.
5. Remove the 4 hex head bolts hinges (E)
with an Allen wrench (4 mm).Remove the
lower left and right door hinges (F).
Re-attaching the fridge doors
To reattach the fridge doors after you have
moved the appliance to its final location,
assemble the parts in reverse order.
1. To prevent water leaks, the water line
should be fully inserted into the center of
the coupler until the guide lines are
coincided exactly with the head of the
movable part.
Note：
Arrow on the water line coupler should
point to the direction of the door.
2. Make sure the clips are properly
connected to the coupler.
Caution!
In case the fridge doors can’t be
self-closed, please make sure the door
opened more than 90°when you remove
or re-attaching the fridge doors.
Disassembling the freezer door
1. Pull out the freezer door and the upper
freezer drawer (A) to the final position.
Then take out the ice box (B) by lifting it up
in the direction of the arrow.
2. Take out the upper freezer drawer (A)
by lifting it up from the rail system.

8
3. Remove the lower freezer drawer (C) by
lifting it up.
4. Remove the 4 screws attached to the
supporting frame (D).
5. Pull out the freezer door and lift it up in
the direction of the arrow.
Re-assembling the freezer door
To reattach the drawer after you moved
the appliance to its final location,
assemble the parts in reverse order.
Installing the water lines and filter (Only
applicable for models with ice maker)
A water dispenser with a filter is one of the
helpful features on your new appliance. To
help promote better health, the water filter
removes unwanted particles from your
water. However, it does not sterilize or
destroy microorganisms. You may need to
purchase a water purifying system to do
that.
In order for the ice maker to operate
properly, a water line is required.
-the maximum inlet water pressure is
689KPa;
-the minimum inlet water pressure is
207KPa.
Warning:
The water connection must be made by a
qualified plumber. Operation outside the
water pressure range may cause
malfunction, severe and damaging water
leaks.
Under normal conditions, a 200cc (5.75
oz.) cup can be filled in about 10 seconds.
If the refrigerator is installed in an area
with low water pressure (below 30 psi),
you can install a booster pump to
compensate for the low pressure.
Connecting the water supply
You will need the following tools and parts
(not included):
You need to purchase several items to
complete this connection. You may find
these items sold as a kit at your local
hardware store.

9
CAUTIONS:
Make sure that you:
Use the tubing that came with your
refrigerator and the water supply
installation kit. Do not use old tubing.
Connect to the cold-water pipe. If you
connect to the hot water pipe, the purifier
may malfunction.
Connect with the drinkable water only.
Do not contaminate the water pipes
during installation.
1. Shut off the main water supply.
2. Using a 1/4" drill bit, drill a hole into the
cold water line, then install the saddle-type
shutoff valve.
3. Connect the water line installation kit
(not included) to the shutoff valve.
4. Turn the main water supply back on,
then turn on the shutoff valve and flush out
the tubing until the water runs clear.
Note:
The initial dark discoloration of water is
normal.
5. Turn off the shutoff valve.
Connecting the water supply to filter
inlet
You need to purchase several items to
complete this connection. You may find
these items sold as a kit at your local
hardware store.
You can use plastic tubing, copper tubing,
or stainless steel tubing as the water line
installation kit.
PLASTIC
TUBING
COPPER
TUBING
STAINLESS
STEEL
TUBING
1/4" plastic
tubing
→molded
end (bulb)
1/4" copper
tubing
1/4" copper
tubing
1/4”
compression
nut (1)
1/4"
compression
nut (1)
1/4"
compression
nut (1)
Ferrule (2)

10
1 Connect the water supply line to the
compression fitting (assembled with a 1/4"
tube, included in refrigerator).
If you are using copper tubing, slip the
compression nut (not supplied) and ferrule
(not supplied) on the copper tubing (not
supplied).
If you are using plastic tubing, insert the
molded end (bulb) of the plastic tubing into
the compression fitting.
Important: Do not use without the molded
end (bulb) of the plastic tubing.
If you are using stainless steel tubing,
slip the compression nut on the copper
tubing (not supplied).
2 Tighten the compression nut onto the
compression fitting. Do not over-tighten
the compression nut.
3. Connecting the 1/4" tube (assembled
with compression nut and compression
fitting) to water filter inlet, following these
steps below.
1) Take two clips out, then pull out two
stoppers of the water filter.
2) Fully insert the 1/4" tube into the inlet of
the water filter.
3) Insert a clip in the proper position as the
figure shown below and confirm that the
clip holds the 1/4" tube firmly.
Connecting the water filter outlet to
refrigerator
A connector, two clips and a water line
(1/4") are provided with refrigerator for
installation.

11
1. Fully insert one head of the water line
(1/4") into the outlet of water filter.
2. Insert a clip in the proper position as the
figure shown below and confirm that the
clip holds the water line (1/4") firmly.
Note：
In order to fix the water filter at the proper
position and avoid over bending the water
line (1/4"), you should determine the
distance from the shutoff valve to the filter
mounting location previously. Then cut the
water line (1/4") as required length.
3. After connecting the water line (1/4"),
please turn on the shutoff valve to flush
the filter for 5 minutes before use.
Note:
The initial dark discoloration of water is
normal.
4. Connect the water line (1/4") with
refrigerator by a connector.
1) Fully insert the other head of the water
line (1/4") into the connector.
2) Fully insert the water line of the
refrigerator (at the right of the compressor
room) into the connector.
3) Insert two clips in the install pack as
shown below, and then confirm that each
clip holds the water line firmly.
Note：
The water line must be fully inserted into
the center of the connector to prevent
water leaking.
Fixing the water filter
To fix the water filter, follow these steps
below.
1. Determine the location to mount the
water filter.
Note:
The water filter should be mounted on
the wall where it is convenient to be
replaced.
Do not mount the filter onto the
refrigerator! Coolant pipes might be
pierced!
2. Determine the distance from the shutoff
valve to the filter mounting location, and
the distance from the filter mounting
location to the refrigerator.
3. To avoid over bending the water line,
cut the water line (1/4") as required length
according to the determined distance
previously.
4. Mount the filter holder onto the wall by
using a screwdriver and attach the water
filter.
Warning!
The water filter must be held upright as
shown in the figure. It is critical to connect
the water line tube into the filter inlet and

12
outlet correctly.
The water line (1/4") length should be
less than 5m. If the water line is too long
(>5m), the ice and cold water content may
be affected due to insufficient water
pressure.
5. After connecting the water supply, water
filter, and the refrigerator, water
connecting system layout shows below.
Note:
It is recommended to employ a qualified
person to install the water system.
If you have to repair or disassemble the
water line, cut off the ends of water line
(1/4") to make sure you get a snug,
leak-free connection.
Warning!
After turning on the shutoff valve, make
sure that there is no leakage at all
connection points of the water lines.
If there is a leakage, turn off the shutoff
valve immediately and tighten the
connector or make the water lines fully
inserted into the connector.
Flush one gallon of water (approximately
five minutes) through the filter before
drinking or using the water from your
refrigerator.
--To flush, press a large glass or cup
against the water dispenser lever. Fill the
glass, then empty it into the kitchen sink.
--Repeat until you dispense about one
gallon of water.
The first time you use the water
dispenser, you may hear the sound of
water pushing air out of the water
dispenser. This is normal.
After powering on the refrigerator, let the
ice maker make ice for one to two days,
then throw out the first one or two buckets
of ice to make sure that all impurities have
been removed from the water lines.
Do not pull hard on the water lines, it may
damage the water system.
The water line should not be pressed by
heavy things and should not bend too
much.

13
Note！
Due to unceasing modification of our products, your refrigerator may be slightly different
from this instruction manual, but its functions and using methods remain the same.
To get the best energy efficiency of this product, please place all shelves, drawers and
baskets on their original position as per the illustration above.
Description of the Appliance
Cold air vent

14
Note！
Due to unceasing modification of our products, your refrigerator may be slightly different
from this instruction manual, but its functions and using methods remain the same.
To get the best energy efficiency of this product, please place all shelves, drawers and
baskets on their original position as the illustration above.

15
Display Controls
Your product has one control panel which is installed on the top cover, it may be different
depending on the model. Use your appliance according to the following control guidelines.
Models with ice maker
Models without ice maker
When the appliance is powered on for the
first time, the backlighting of the icons on
the display panel will light up immediately.
If no buttons have been touched or the
doors are closed, the backlighting will turn
off after 60seconds.
The control panel consists of two areas
about temperature, and one area about
different modes.
Caution!
When you set a temperature, you set an
average temperature for the whole
refrigerator cabinet. Temperatures inside
each compartment may vary from the
temperatures displayed on the panel,
depending on how much food you store
and where you place it. High or low room
temperature may also affect the actual
temperature inside the appliance.
Ice Control (Only applicable for models
with ice maker)
This button controls the ice
maker. You can touch the "Ice
On/Off" button to control the ice maker.
When the "Ice On/Off" function light is on,
the ice maker is working. If you want to
lock the ice maker, please touch the "Ice
On/Off" button again until the button light
is off.
Fridge Temperature Control
Press the Fridge button to turn on
the refrigerator temperature
control, then press and hold the Fridge
button to select a temperature setting. If
you have set the temperature type to
Fahrenheit, the temperature settings cycle
from 47°F to 35°F in one degree
increments.
If you have set the temperature type to
Celsius, the temperature settings cycle
from 2°C to 8°C in one degree increments.
Super Cool
If you want to increase the
cooling accelerator to cool
products in Fridge, please touch this
button. The super cool icon “”will be
illuminated, and the fridge temperature
setting displays at 35°F .
Super cool automatically switches off after
3 hours, and the refrigerator temperature
setting will revert back to the previous
setting.
When super cool function is on, you can
touch the "Super Cool" button again to
switch it off. The fridge will not retain the
Super Cool function when powered off.
Freezer Temperature Control
Press the Freezer button to turn
on the freezer temperature
control, then press and hold the Freezer

16
button to select a temperature setting. If
you have set the temperature type to
Fahrenheit, the temperature settings cycle
from 6°F to -12°F in one degree
increments.
If you have set the temperature type to
Celsius, the temperature settings cycle
from -14°C and -24°C in one degree
increments.
Super Freeze
If you want to increase the
freezing accelerator in Freezer,
please touch this button, the super freeze
icon “”will be illuminated, the fridge
temperature setting displays -12℉.
Super Freeze can quickly lower the
temperature and freeze your food faster
than usual. This can retain more of the
vitamins and nutrients in fresh food and
keep your food longer.
The super freeze mode allows you to
freeze items inside with maximum speed.
We recommend that you let the appliance
operate for 6 hours first. Super Freeze
automatically switches off after 52 hours,
and the freezer temperature setting will
revert back to the previous setting.
When the Super Freeze function is on, you
can touch the “Super Freeze”button
again to switch off. If power cutoff happens
while super freeze is activated, the super
freeze will not be reactivated after power
resupplied.
Note:
If you want to exchange the "℉" to "℃",
please press and hold the "Super Cool"
and "Energy Saving”buttons for 3
seconds.
Water Filter (Only applicable for models
with ice maker)
In general, you should change the
water filter every 6 months to ensure
the highest possible water quality.
After the refrigerator has dispensed about
300 gallons of water, the filter icon will
blink, reminding you to replace the water
filter.
First of all, you need to purchase a new
water filer. You can purchase the new filter
through the Hisense after-sales service
system. Before that, please check that the
new filter is the same filter type that came
with your fridge and can be correctly used
in your refrigerator.
After you change a new water filter, push
and hold the "Ice On/Off" and "Super
Freeze" buttons for 3 seconds to make the
blinking stop. When you replace the water
filter, some water may leak from the filter
and lines. Please let the water flow in a
pan and wipe up any leakage that may
have occurred.
Energy Saving
You can touch this button to turn
Energy Saving mode on and off.
When you turn Energy Saving on, the
Energy Saving icon “”lights up.
The temperature of the fridge is
automatically switched to 42℉and the
freezer to 2℉.If Energy Saving is off, the
icon “”will go off and the temperature
setting will revert back to the previous
setting.
Note:
The control panel will light up when the
fridge door is open, or you touch any
button.
The light will go off without touching any
buttons or the doors have been closed
over one minute.

17
When the refrigerator is powered on, all
the icons of the control panel will light up
for 3 seconds, and a buzzer sounds. And
the temperature setting reverts back to the
previous setting.
Power on/off (Only applicable for
models without ice maker)
You can switch on or switch off
your appliance by pressing this
button.
Alarm
When fridge or freezer door has been
opened for over 2 minutes, door alarm will
sound. In case of door alarm, buzzer will
sound 3 times every 1 minute and will stop
alarming automatically after 8 minutes.
To save energy, please avoid keeping the
door open for a long time when using the
appliance. The door alarm can also be
cleared by closing the door.
Using your Appliance
This section tells you how to use most of the useful features. We recommend that you
read through them carefully before using the appliance. It may be different depending on
the model
1. Using your refrigerator compartment
The refrigerator compartment is suitable
for storage of vegetables and fruit. Food
inside should be packed to store in order
to avoid losing moisture or flavor
permeating into other foods.
Caution!
Never close the refrigerator door while the
shelves, crisper and/or telescopic slides
are extended. It may damage both them
and the refrigerator.
Glass shelves and Door racks
The refrigerator compartment is provided
with several glass shelves and several
different door racks, which are suitable for
the storage of eggs, canned liquid, bottled
drinks and packed food. They can be
placed a different heights according to
your need. But do not place too many
heavy things in racks. Before you lift up
the door shelf vertically, please take the
food out.
Note:
All the door racks and shelves can be
taken out to be cleaned.
When you remove the shelves, gently pull
them forward until the shelf comes clear of
the shelf guides.
When you return the shelves, make sure
there is no obstacle behind and gently
push the shelf back into the position.
Drawers
These are suitable for storage of fruits and
vegetables. And it can be taken out to be
cleaned.
To take them out, open the door to the final
location first. Then pull out the drawer and
tilt up the front of the crisper after moving
slightly in the direction.
2. Using the dispenser to get cold water
(Only applicable for models with water
dispenser)
The water dispenser is located on the left
fridge door. Move your cup down the
dispenser lever in the suggested position
and press it.

18
Note:
Don't push the dispenser lever forward
without cup, it may cause the water leak
from the dispenser.
Do not immediately removing your cup or
glass from the dispenser after dispensing
water you need. You should wait for 2 or 3
seconds to prevent spills.
Do not pull the lever out, it could damage
or break the lever’s spring.
Dispenser does not work when door is
not closed.
Take water frequently or largely or you
first use this function, the water may not
cold enough. Please wait for some time to
ensure the appropriate temperature.
3. Using the freezer compartment
The freezer compartment is provided with
an upper drawer, a lower drawer and a ice
box (optional). To remove all of them, refer
to page 7 for disassembly instruction.
Automatic Icemaker (Only applicable
for models with ice maker)
Automatic Ice maker can make ice
automatic。
Note:
When the ice maker dumps ice into the
ice box, any sounds you hear are part of
normal operation.
If you do not dispense ice for a long
periods of time, Ice may clump in the Ice
box. If this occurs, please remove all the
ice and empty the box
If you are going on a long vacation or
business trip and won’t be using the water
dispenser or ice maker part for period of
time, please close the water supply to
prevent leaks.
The ice made by the ice maker first
batches cannot be used for eating or
drinking cause it is unhealthiness.
Cannot store liquid cans in ice box, it
may cause burst.
Warning!
Do not allow your children to hang off the
dispenser or touch the ice maker. This
could cause injury.
the filtering of the In
through the filter.
Water clouding phenomenon
All water provided to the refrigerator flows
process, the pressure
of the water that has flowed out of the filter
is increased, and the water becomes
saturated with oxygen and nitrogen. When
this water flows out into the air, the
pressure plummets and the oxygen and
nitrogen get supersaturated, which results
in gas bubbles. The water may temporarily
look misty or cloudy due to these oxygen
bubbles. After a few seconds, the water
will look clear.

19
Cleaning and care
For hygienic reasons the appliance
(including exterior and interior accessories)
should be cleaned regularly at least every
two months.
Caution!
The appliance must not be connected to
the mains during cleaning. Danger of
electrical shock! Before cleaning switch
the appliance off and remove the plug
from the mains socket.
Exterior cleaning
To maintain good appearance of your
appliance, you should clean it regularly.
Spray water onto the cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of moisture to
the surface.
Clean the doors, handles and cabinet
surfaces with a mild detergent and then
wiped dry with a soft cloth.
Caution!
Don’t use sharp objects as they are likely
to scratch the surface.
Don’t use Thinner, Car detergent, Clorox,
ethereal oil, abrasive cleansers or
organic solvent such as Benzene for
cleaning. They may damage the surface
of the appliance and may cause fire.
Interior cleaning
You should clean the appliance interior
regularly. It will be easier to clean when
food stocks are low. Wipe the inside of the
fridge freezer with a weak solution of
bicarbonate of soda, and then rinse with
warm water using a wrung-out sponge or
cloth. Wipe completely dry before
replacing the shelves and baskets.
Thoroughly dry all surfaces and removable
parts before putting them back into place.
Although this appliance automatically
defrosts, a layer of frost may occur on the
freezer compartment’s interior walls if
the freezer door is opened frequently or
kept open too long. If the frost is too thick,
choose a time when the freezer is nearly
empty and proceed as follow:
1. Remove existing food and accessories
baskets, unplug the appliance from the
mains power and leave the doors open.
Ventilate the room thoroughly to
accelerate the process.
2. When defrosting is completed, clean
your freezer as described above.
Warning!
Do not use sharp objects to remove frost
from the freezer compartment. Only after
the interior is completely dry should the
appliance be switched back on and
plugged back into the mains socket.

20
Door seals cleaning
Take care to keep door seals clean. Sticky
food and drinks can cause seals to stick to
the cabinet and tear when you open the
door. Wash seal with a mild detergent and
warm water. Rinse and dry it thoroughly
after cleaning.
Caution!
Only after the door seals are completely
dry should the appliance be powered on.
Replacing the LED light
Warning: The LED light must be replaced
by a competent person. If the LED light is
damaged, follow the steps below:
1. Unplug the refrigerator from the
electrical outlet.
2. Locate the LED light on the inside of
the refrigerator.
3. Remove the light cover. Insert a tool
(tweezers or a screwdriver) along the side
opening of the LED light cover. Pop open
the side over the cover, grasp the exposed
side and gently pull towards you to remove
the item and expose the LED light.
4. Replace the new LED light.
5. Replace the light cover.
