SET‑UP 3

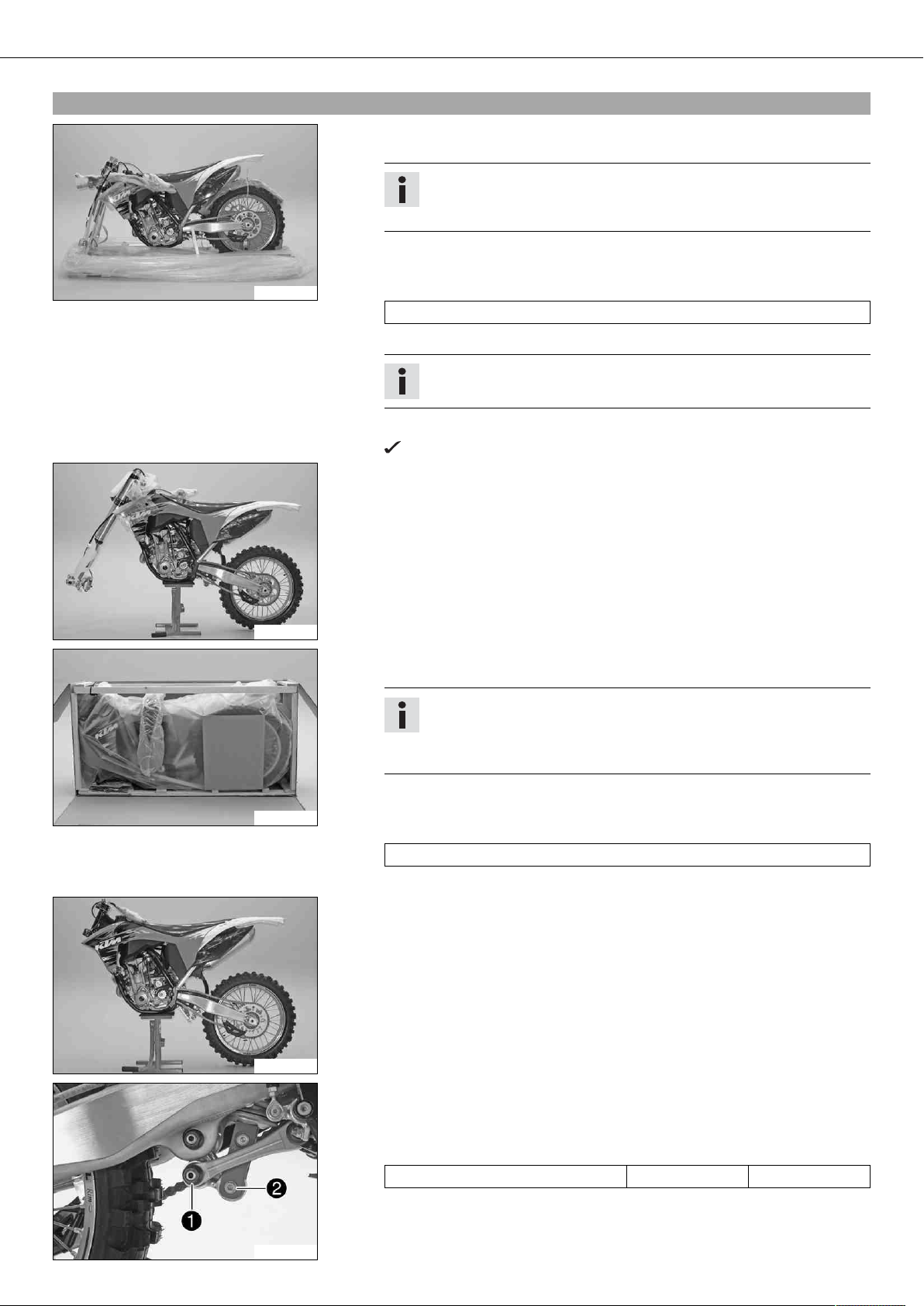

2.1Unpacking and setting up the vehicle
101009-01
Packaging 2
–Remove the box and the plastic packaging.
Info
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of delivery
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (54829055000)
–Carefully loosen and remove the tensioning belt over the link fork.
Info
An assistant prevents the motorcycle from falling over.
–Carefully loosen and remove the tensioning belts around the lower triple clamp.
The vehicle is released at the front.
101010-01
–Together with an assistant, take the vehicle off of the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
101012-01
Package 12
–Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of delivery
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (54829055000)
–Together with an assistant, take the vehicle off of the palette.
101013-01
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
101014-10
–Remove the cardboard from around the shock absorber.
–Position the angle lever and linkage lever.
–Mount and tighten screw cap .
Guideline
Nut, frame to linkage lever M14x1.5 80 Nm (59 lbf ft)
–Mount and tighten screw .

SET‑UP 4
Guideline
Screw, bottom shock
absorber
M10 60 Nm
(44.3 lbf ft)
Loctite®243™
B00534-10

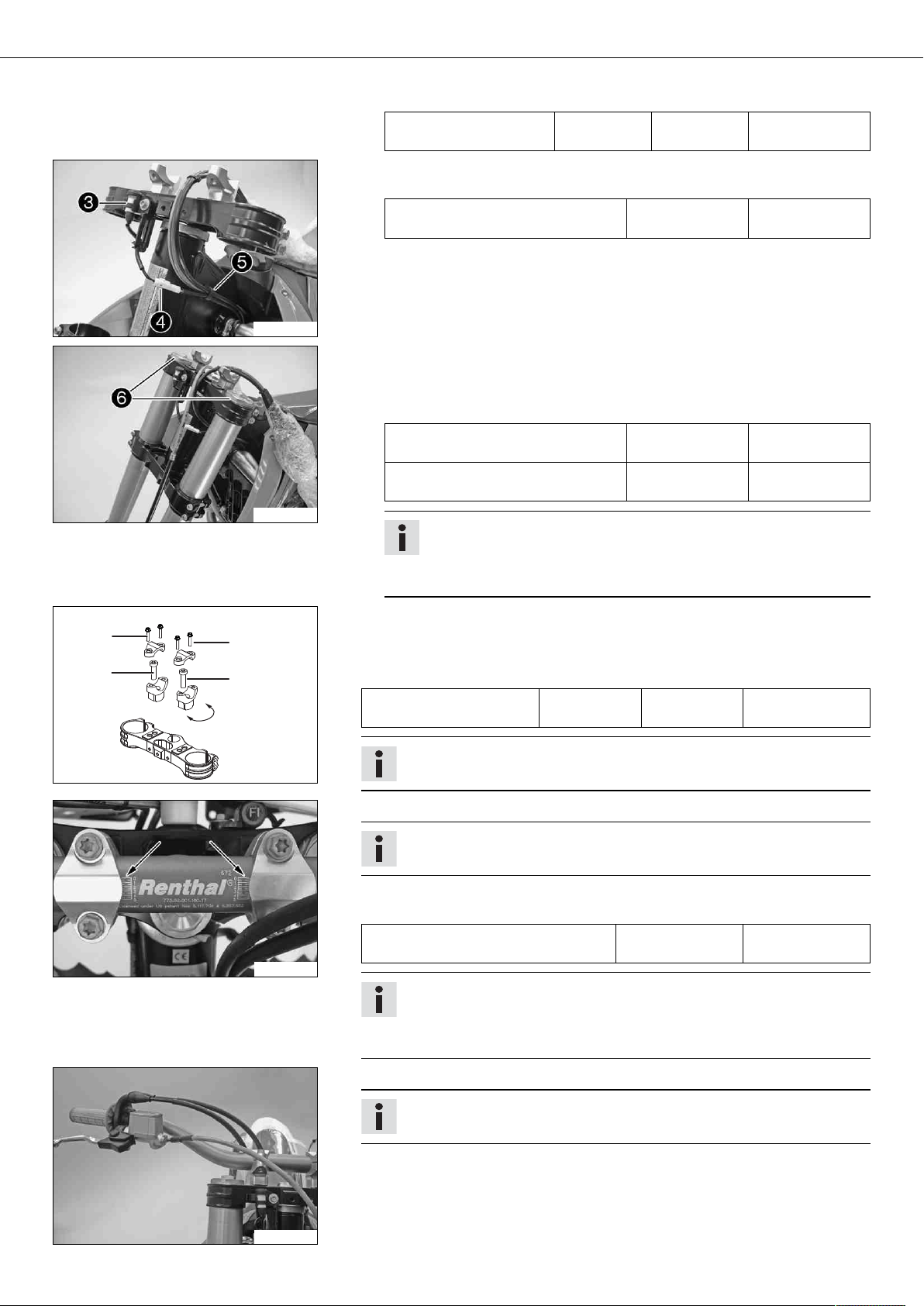

–Position FI warning lamp with holder . Mount and tighten the screw.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
–Plug connector into the wiring harness.
–Mount cable holder on the frame.
B00535-10
–Route the clutch line with the clutch master cylinder toward the front between
the upper and lower triple clamps.
–Position the fork legs and tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp M8 12 Nm
(8.9 lbf ft)
Info
The upper milled groove in the fork leg must be flush with the top edge
of the upper triple clamp.
Position bleeder screws toward the front.
0
0
88
0
0
77
0
0
88
77
B00375-11
–Remove screws . Remove the handlebar clamp.
–Remove screws . Remove the handlebar support.
–Place the handlebar support in the required position. Mount and tighten screws .
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite®243™
Info
Position the left and right handlebar supports evenly.
101020-10
–Position the handlebar.
Info
Make sure cables and wiring are positioned correctly.
–Position the handlebar clamps. Mount and tighten the screws.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
The markings on the handlebar should be at the center of the handlebar
clamps.
Keep the gap widths equal when tightening.
101017-01
–Position the controls on the right half of the handlebar.
Info
The routing of the cables can be seen in the figure.

SET‑UP 5
101018-01
–Position the controls on the left half of the handlebar.
Info
The figure shows how to route the clutch line and wiring harness.
–Install the front fender. ( p. 6)
–Install the front wheel. ( p. 6)
–Correctly mount the fuel tank breather.
101021-01
–Secure the handlebar cushion with two cable binders.
–Install the start number plate. ( p. 6)
101019-01
–Mount the footrests with the springs and bolts. Secure the bolts using the washers
and pins.
Plier for footrest spring (58429083000)
–Unpack and mount the KTM PowerParts included in the delivery (optional).
Info
Read the accompanying KTM PowerParts installation instructions.
–Apply the label included in the delivery (optional).
–Refuel. ( p. 7)
–Position all controls exactly on the handlebar. Tighten all screws.
–Print out the current PDI form found on KTM DEALER.NET and perform the delivery
inspection.

WORK 6
3.1Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
–Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
B00304-11
–Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
–Change the wheel bearing.
–Clean and grease the shaft seal rings and contact surface of the spacers.
Long-life grease ( p. 11)
–Insert the spacers.
B00302-11
–Lift the front wheel into the fork, position it, and insert the wheel spindle.
–Mount and tighten screw .
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
–Activate the hand brake lever multiple times until the brake linings are in contact
with the brake disc.
–Remove the motorcycle from the lift stand.
–Pull the front brake and compress the fork powerfully a few times.
The fork legs straighten.
–Tighten screws .
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
3.2Installing the front fender
B00307-10
–Ensure that the spacers are mounted in the fender.
–Position the front fender. Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Info
Make sure the holding lugs engage in the start number plate.
3.3Installing the start number plate
B00308-11
–Position the start number plate. Mount and tighten screw .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Info
Make sure that the holding lugs engage in the fender.
–Position the brake line and clamp. Mount and tighten screw .

WORK 7
3.4Removing the seat
B00317-10
–Remove screw .
–Lift up the seat at the rear, pull it back and then remove it from above.
3.5Mounting the seat
B00318-01
–Hook in the front of the seat at the collar bushing of the fuel tank, lower it at the
rear and simultaneously it push forward.
–Make sure that the seat is correctly locked in.
–Mount and tighten the screw of the seat fixation.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
3.6Opening the filler cap
B00277-10
–Press release button , turn the filler cap counterclockwise and lift it free.
3.7Closing the filler cap
B00278-10
–Replace the filler cap and turn clockwise until the release button locks in place.
Info
Run the fuel tank breather hose without kinks.
3.8Refueling
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Avoid contact of the fuel with skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse imme-
diately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed,
contact a doctor immediately. Change clothing that has come into contact with fuel.

WORK 8
Note
Material damage Premature clogging of the fuel filter.
–In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with
the fuel system.
–Only refuel with clean fuel that meets the specified standards.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to get into the ground water, the ground, or the sewage system.
–Switch off the engine.
–Open the filler cap. ( p. 7)
AA
400382-10
–Fill the fuel tank with fuel up to measurement .
Guideline
Measurement of 35 mm (1.38 in)
Total fuel tank
capacity, approx.
7.5 l
(1.98 US gal)
Super unleaded (ROZ 95 / RON 95 /
PON 91) ( p. 10)
–Close the filler cap. ( p. 7)

TECHNICAL DATA - CHASSIS TIGHTENING TORQUES 9
Spoke nipple, front wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) –
Spoke nipple, rear wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) –
Remaining nuts, chassis M6 15 Nm (11.1 lbf ft) –
Remaining screws, chassis M6 10 Nm (7.4 lbf ft) –
Screw, ball joint of push rod on foot
brake cylinder
M6 10 Nm (7.4 lbf ft) Loctite®243™
Screw, front brake disc M6 14 Nm (10.3 lbf ft) Loctite®243™
Screw, rear brake disc M6 14 Nm (10.3 lbf ft) Loctite®243™
Nut, foot brake lever stop M8 20 Nm (14.8 lbf ft) –
Nut, rear sprocket screw M8 35 Nm (25.8 lbf ft) Loctite®2701
Nut, rim lock M8 10 Nm (7.4 lbf ft) –
Remaining nuts, chassis M8 30 Nm (22.1 lbf ft) –
Remaining screws, chassis M8 25 Nm (18.4 lbf ft) –
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft) –
Screw, engine brace M8 33 Nm (24.3 lbf ft) –
Screw, fork stub M8 15 Nm (11.1 lbf ft) –
Screw, front brake caliper M8 25 Nm (18.4 lbf ft) Loctite®243™
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft) –
Screw, subframe M8 35 Nm (25.8 lbf ft) Loctite®2701
Screw, top steering stem M8 17 Nm (12.5 lbf ft) Loctite®243™
Screw, top triple clamp M8 17 Nm (12.5 lbf ft) –
Engine carrying screw M10 60 Nm (44.3 lbf ft) –
Remaining nuts, chassis M10 50 Nm (36.9 lbf ft) –
Remaining screws, chassis M10 45 Nm (33.2 lbf ft) –
Screw, bottom shock absorber M10 60 Nm (44.3 lbf ft) Loctite®243™
Screw, handlebar support M10 40 Nm (29.5 lbf ft) Loctite®243™
Screw, top shock absorber M10 60 Nm (44.3 lbf ft) Loctite®243™
Nut, seat fixing M12x1 20 Nm (14.8 lbf ft) –
Nut, frame to linkage lever M14x1.5 80 Nm (59 lbf ft) –
Nut, linkage lever on swingarm M14x1.5 80 Nm (59 lbf ft) –
Nut, linkage lever to angle lever M14x1.5 80 Nm (59 lbf ft) –
Nut, swingarm pivot M16x1.5 100 Nm (73.8 lbf ft) –
Nut, rear wheel spindle M20x1.5 80 Nm (59 lbf ft) –
Screw, top steering head M20x1.5 10 Nm (7.4 lbf ft) –
Screw-in nozzles, cooling system M20x1.5 12 Nm (8.9 lbf ft) Loctite®243™
Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft) –

SUBSTANCES 10
Super unleaded (ROZ 95 / RON 95 / PON 91)
According to
–DIN EN 228 (ROZ 95 / RON 95 / PON 91)

AUXILIARY SUBSTANCES 11
Long-life grease
Guideline
–KTM recommends Motorex®products.
Supplier
Motorex®
–Bike Grease 2000

*3211676en*
3211676en
KTM-Sportmotorcycle AG
5230 Mattighofen/Austria
http://www.ktm.com
08/2010
Photo: Mitterbauer
