SETUP INSTRUCTIONS 2015
690 SMC R EU
Art. no. 3213316en

INTRODUCTION 1
INTRODUCTION
The work described in these setup instructions must be performed before the vehicle is delivered to the customer.
Read the setup instructions in their entirety before beginning work.
Print out the current PDI form found on the KTM Dealer.net.
These setup instructions were written to correspond to the latest state of this series. We reserve the right to make changes in the inter-
est of technical advancement without at the same time updating this manual.
We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop are not specified here.
It is assumed that the work will be performed by a fully trained mechanic.
All specifications are non-binding. KTM Sportmotorcycle GmbH specifically reserves the right to modify or delete technical specifica-
tions, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt
these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery
options, deviations from illustrations and descriptions, misprints, and other errors. The models portrayed partly contain special equip-
ment that does not belong to the regular scope of supply.
© 2015 KTM Sportmotorcycle GmbH, Mattighofen Austria
All rights reserved
Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright
owner.
ISO 9001(12 100 6061)
According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead
to the maximum possible quality of the products.
Issued by: TÜV Management Service
KTM Sportmotorcycle GmbH
5230 Mattighofen, Austria

1 MEANS OF REPRESENTATION 2
1.1 Symbols used
The meaning of specific symbols is described below.
Indicates an expected reaction (e.g. of a work step or a function).
Indicates an unexpected reaction (e.g. of a work step or a function).
Indicates a page reference (more information is provided on the specified page).
Indicates information with more details or tips.
Indicates the result of a testing step.
Denotes a voltage measurement.
Denotes a current measurement.
Denotes a resistance measurement.
1.2 Formats used
The typographical formats used in this document are explained below.
Proprietary name Identifies a proprietary name.
Name®Identifies a protected name.
Brand™ Identifies a trademark.
Underlined terms Refer to technical details of the vehicle or indicate technical terms, which are explained
in the glossary.

2 SETUP 3

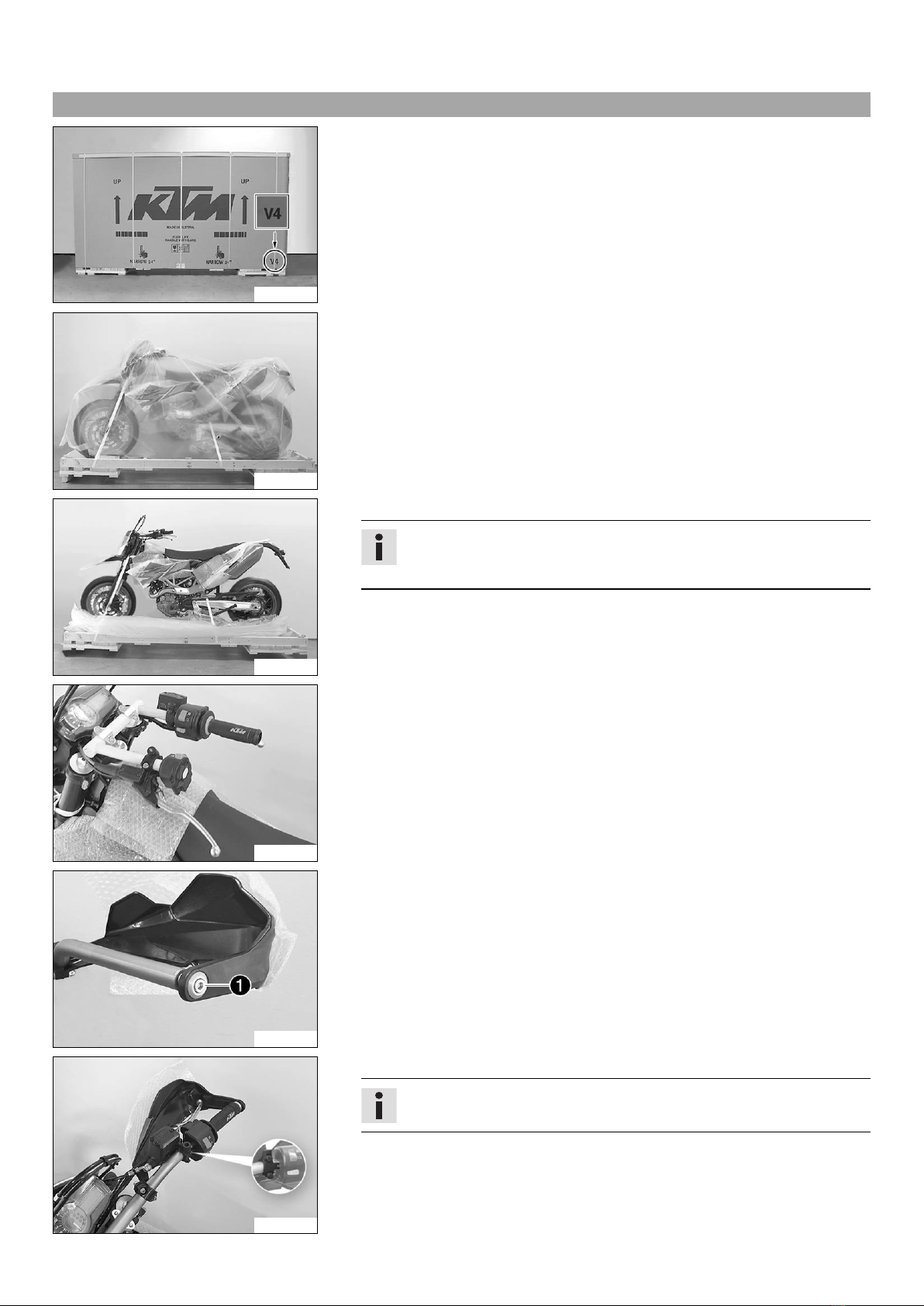

2.1 Unpacking and setting up the vehicle
S00791-10
–Remove straps and box.
S00809-10
–Remove the adhesive tape in the upper area of the motorcycle.
S00810-10
–Roll down the film at the sides.
Info
To avoid damaging the motorcycle during unpacking, leave the other films
on the vehicle until you have finished work on the vehicle.
–Remove the separate enclosure and unpack it. Check the separate enclosure for
completeness.
–Check the vehicle for transport damage.
S00794-10
–Remove the controls from the transport holder.
–Remove the screws and handlebar clamps.
–Remove the transport holder.
S00795-10
–Remove screw of the right hand guard.
S00796-10
–Position the controls on the right half of the handlebar.
Info
The figure shows how to route the cable and lines.
–Mount the screws.

2 SETUP 4
S00797-10
–Position the handlebar.
–Position the handlebar clamps. Mount the four screws and tighten evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
The marking of the handlebar scale are located centrally between the han-
dlebar clamps.
Markings face backwards.
S00798-10
–Position the controls on the left half of the handlebar.
–Mount the screws.
S00799-10
–Position all controls in their exact positions on the handlebar.
–Tighten screws and .
Guideline
Screw, throttle grip M5 3.5 Nm
(2.58 lbf ft)
Screw, brake assembly M6 5 Nm (3.7 lbf ft)
–Check the throttle grip for smooth operation.
–Mount and tighten the screw of the right hand guard.
–Tighten screws and .
Guideline
Screw, combination switch, left M5 3.5 Nm
(2.58 lbf ft)
Screw, clutch assembly M6 5 Nm (3.7 lbf ft)
K00062-01
–Mount and tighten the rear mirror adapter and rear mirror on both sides.
100308-01
–Mount the footrests with springs and pins. Secure the pins using washers and cot-
ter pins.
Pliers for footrest spring (58429083000)
–Remove the protective plastic.
–Carefully loosen and remove the tensioning belt over the link fork.
Info
An assistant prevents the motorcycle from falling over.
–Carefully loosen and remove the tensioning belts around the lower triple clamp.
The vehicle is released at the front.
–Together with an assistant, take the vehicle off the pallet.

2 SETUP 5
S00801-10
–Recharge the battery. ( p. 7)
–Install the battery. ( p. 8)
–Plug in connector on the starter relay.
S00802-10
–Remove the rear fairing. ( p. 10)
–4 markings are found on the underside of the rear fairing. At these location,
drill holes to the specified diameter in three stages.
Guideline
Hole diameter for grab handles 14.5 mm (0.571 in)
S00803-10
–Remove screws .
–Fit the rear fairing. ( p. 10)
201901-10
–Mount the reflector.
Operation as a 2-seater
–Mount rear footrest bracket. ( p. 10)
Operation as a 1-seater (only if requested by customer)
Warning
Forfeiture of homologation and insurance cover The vehicle is
homologated as 2-seater. If the heel protector is fitted instead of the
footrest bracket, the vehicle no longer conforms to the homologation and
must not be operated in this form without alterations to the registration
papers.
–Set up and operate the vehicle as a 2-seater or have changes made
to the registration papers.
–Mount heel protector. ( p. 11)
–Refuel. ( p. 11)
–Print out the current PDI form found on the KTM Dealer.net and perform the pre-
delivery inspection.
–Set kilometers or miles. ( p. 12)

3 WORK 6

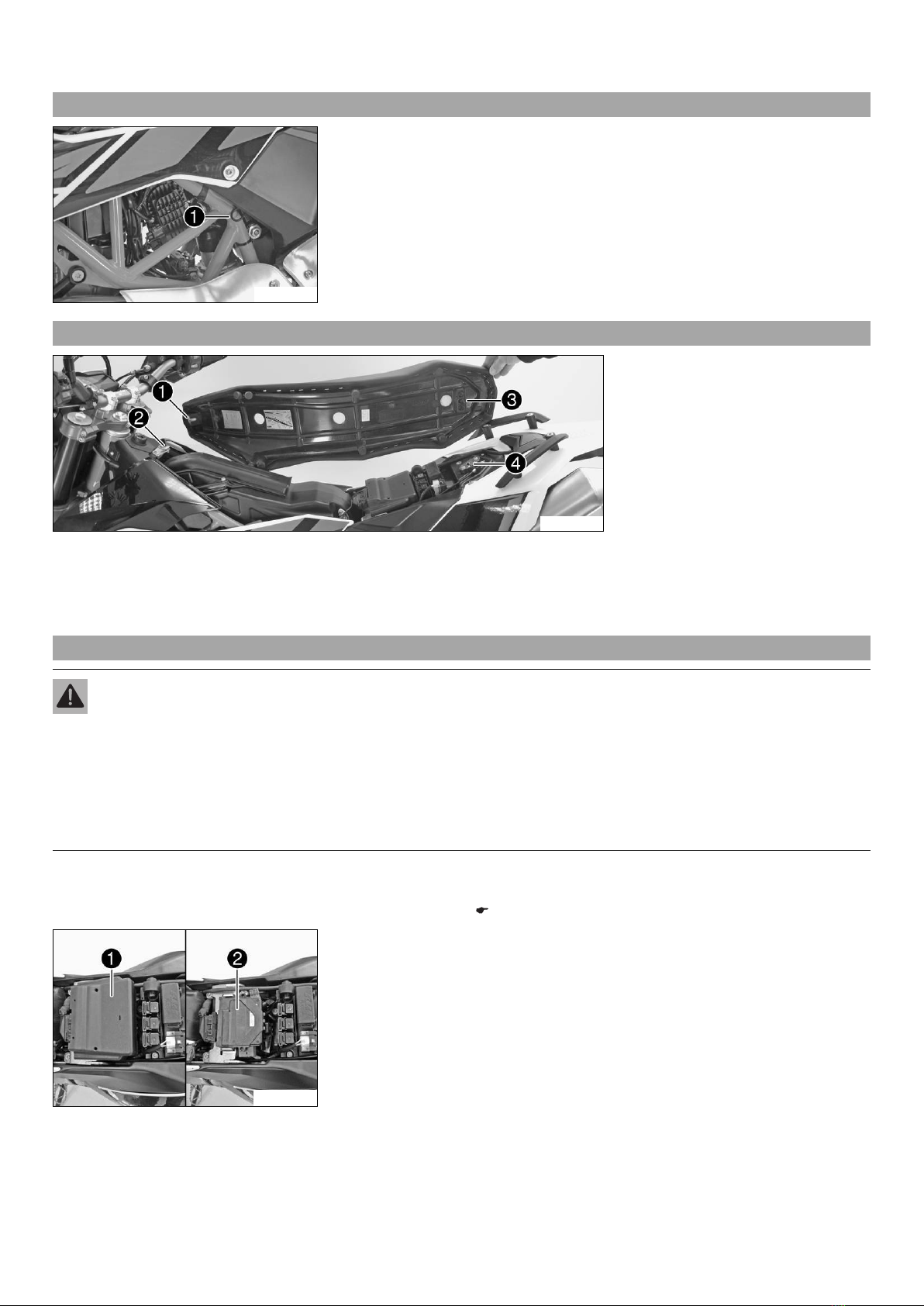

3.1 Removing the seat
101977-10
–Pull on strap and raise the rear of the seat at the same time.
–Pull back the seat and lift it off.
3.2 Mounting the seat
101988-10
–Hook slot of the seat onto screw , press the rear downward and at the same time push it forward.
–Push locking pin into lock housing and push the back of the seat down until the locking pin locks in place with an audible
click.
–Finally, check that the seat is correctly mounted.
3.3 Removing the battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
–In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Preparatory work
–Switch off all power consumers and switch off the engine.
–Remove the seat. ( p. 6)
B01974-10
Main work
–Remove battery cover .
–Pull the engine electronics control unit off of the holder and set it to one side.

3 WORK 7
S00622-10
–Disconnect negative cable of the battery.
–Take off the positive pole cover .
S00620-10
–Disconnect ABS connection cable and positive cable from the battery.
S00621-10
–Remove screws .
–Pull retaining bracket of the battery forward and remove it.
–Remove the battery.
Info
Never operate the motorcycle with a discharged battery or without a battery.
In both cases, electrical components and safety devices can be damaged.
The vehicle is therefore no longer roadworthy.
3.4 Recharging the battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
–In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Warning
Environmental hazard The battery contains elements that are harmful to the environment.
–Do not dispose of batteries with the household waste. Dispose of a defective battery in an environmentally friendly manner.
Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries.
Warning
Environmental hazard Hazardous substances cause environmental damage.
–Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Even when there is no load on the battery, it still loses power steadily.
The charging level and the method of charging are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the battery's service life.
If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves. This
reduces the battery capacity.
If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the
battery.
The battery is maintenance-free, which means that the acid level does not need to be checked.

3 WORK 8
Preparatory work
–Switch off all power consumers and switch off the engine.
–Remove the seat. ( p. 6)
–Remove the battery. ( p. 6)

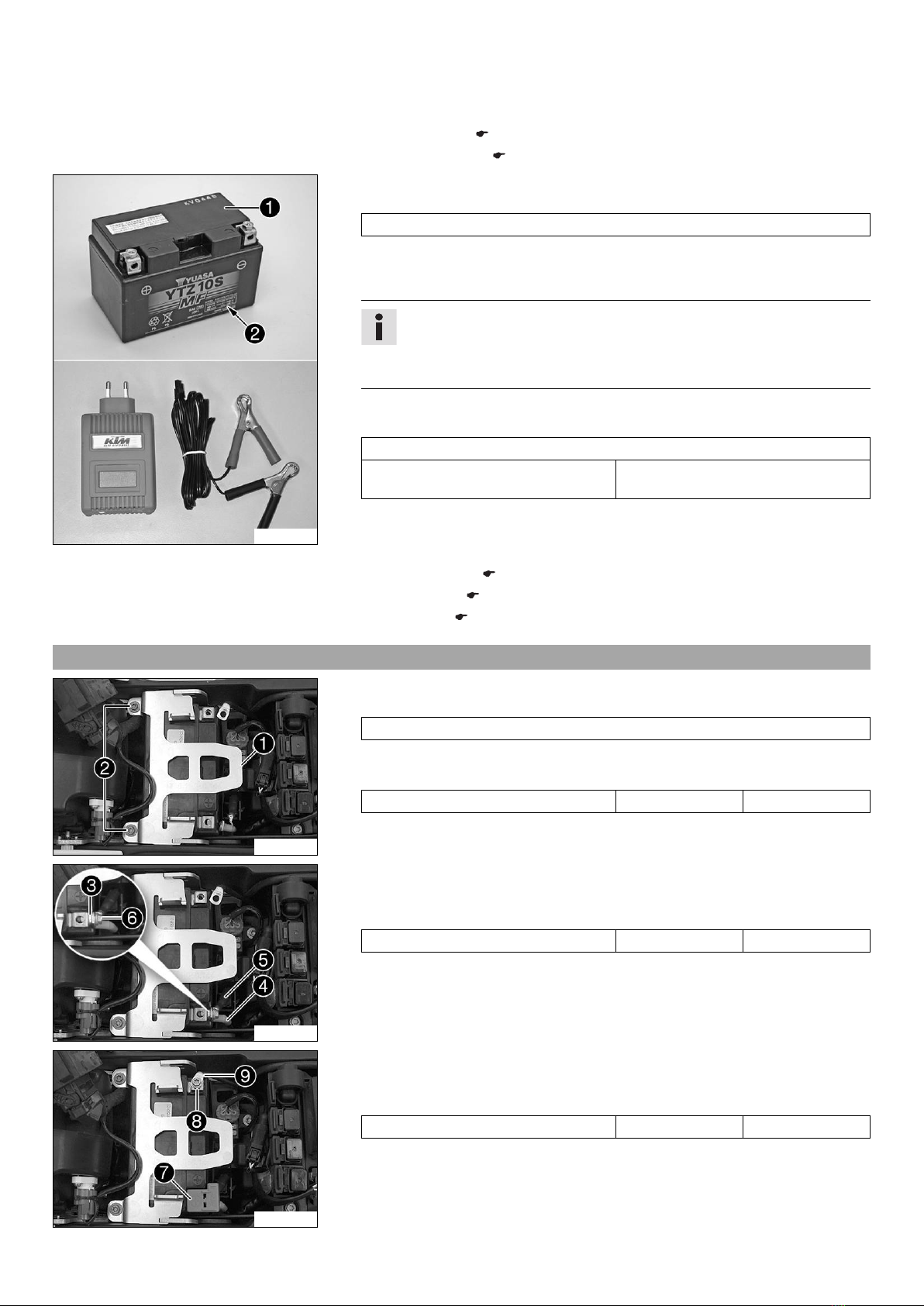

100151-10
Main work
–Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (58429074000)
You can also use the battery charger to test rest potential and start potential of the
battery, and to test the alternator. With this device, you cannot overcharge the bat-
tery.
Info
Never remove lid .
Charge the battery with a maximum of 10% of the capacity specified on the
battery housing .
–Switch off the battery charger after charging and disconnect from the battery.
Guideline
The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use
3 months
Finishing work
–Install the battery. ( p. 8)
–Mount the seat. ( p. 6)
–Set the clock. ( p. 12)
3.5 Installing the battery
S00621-11
Main work
–Insert the battery into the battery compartment with the terminals facing rearward.
Battery (YTZ10S)
–Position retaining bracket and mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
S00623-10
–Position washer , positive cable , and ABS connection cable .
–Mount and tighten screw .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

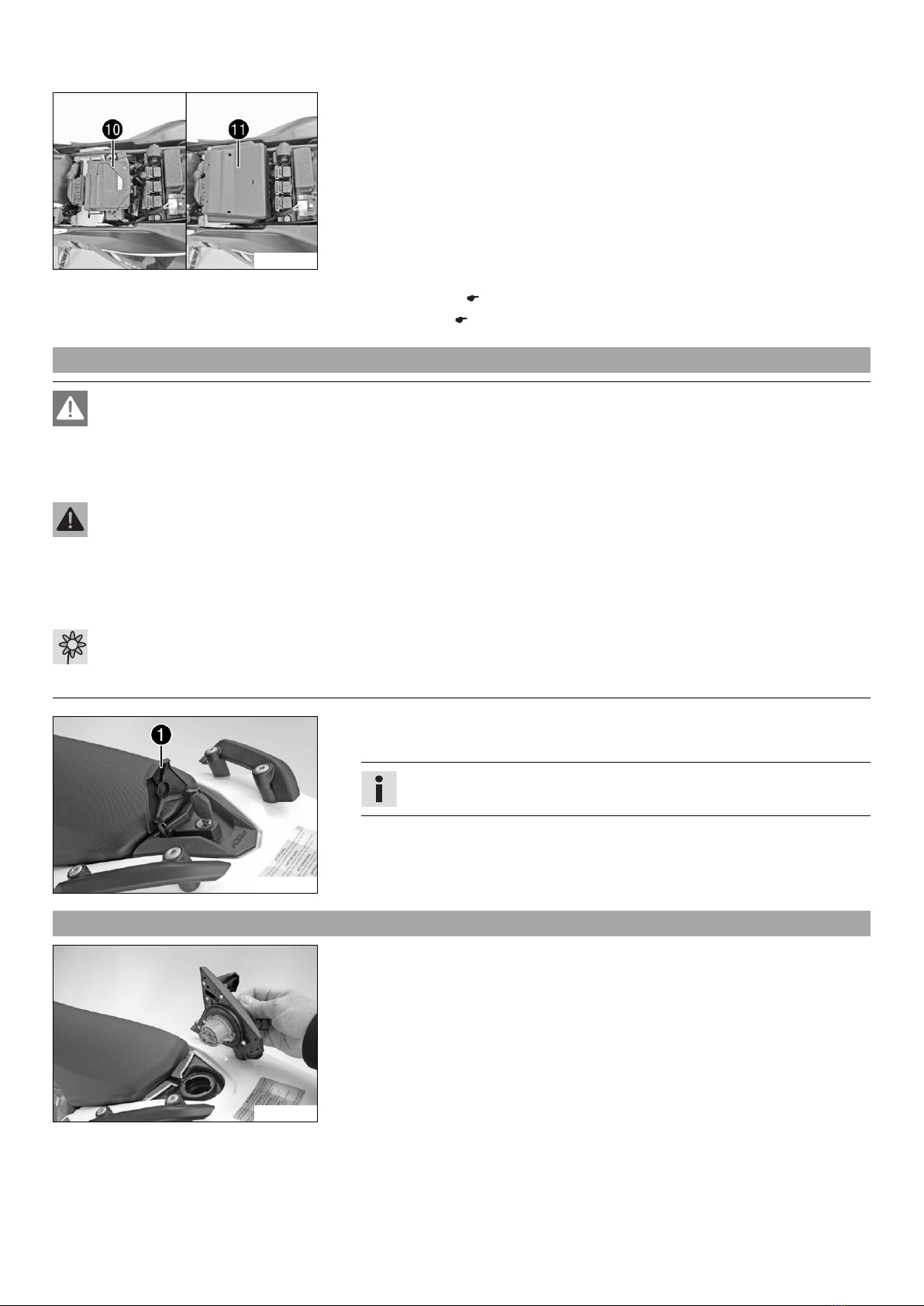

S00622-11
–Position positive terminal cover .
–Position washer and negative cable and mount and tighten the screw.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
