Kuppersberg WIS 46106 Installation and maintenance instructions

TECHNICAL PASSPORT
ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ
WIS 46106/
WIS 56128/
WIS 60129/
WS 50106/
WS 60100
WASHING MACHINES
СТИРАЛЬНЫЕ МАШИНЫ

2
TECHNICAL PASSPORT ENGLISH
Washing Machines
SAFETY PRECAUTIONS (PLEASE BE SURE TO FOLLOW).....................................................3
DESCRIPTION OF WASHING MACHINE.........................................................................................6
INSTALL WASHING MACHINE.............................................................................................................8
PRECAUTIONS FOR USE........................................................................................................................11
USAGE INSTRUCTION FOR DETERGENT CASE.........................................................................12
INSTRUCTIONS FOR WASHING MACHINES ...............................................................................13
NAMES AND FUNCTIONS OF CONTROL PANEL.......................................................................14
NORMAL USAGE..........................................................................................................................................16
HOW TO USE THE WOOL PROGRAM................................................................................................16
HOW TO USE THE START DELAY COURSE....................................................................................16
COURSE CHOOSING GUID....................................................................................................................17
CARE AND MAINTENANCE....................................................................................................................18
VARIOUS FUNCTIONS .............................................................................................................................19
VASHING TIPS..............................................................................................................................................19
NO TROUBLE CONDITIONS..................................................................................................................20
TROUBLE SHOOTING GUIDE...............................................................................................................21
LIST OF SPECIFICATION PARAMETERS........................................................................................22
CONTENTS

3
ENGLISH TECHNICAL PASSPORT
Washing Machines
SAFETY PRECAUTIONS
(PLEASE BE SURE TO
FOLLOW)
To prevent our products from
harming or damaging the safety and
property of the users or other people,
the description of safety precautions
that must be followed.
Caution: serious injury or
death may happen if you do against the
identifi cation.
Notice: slight injury or product
damage may take place if you do against
the identifi cation.
Caution
Electric Shock Hazard
Don’t insert/pull out power plug
with wet hands;
Keep power plug clean, and don’t
remove dust with wet cloth;
Don’t use the equipment when it
is damaged and when its components
are scattered or lost;
Don’t connect step-up
transformer to power plug;
Please don’t randomly dismantle
or transform the equipment except the
repair technicians.
The above misoperation behaviors
are likely to incur electric shock or fi re.
Electric Shock Hazard
The power lines are connected
by Y and must be changed by the
professionals if damaged or contact
with the after-sales service hotline of
our company;
Please don’t drag the power lines
strongly when the plug is detached;
Don’t use the equipment when
the power plug connection is excessively
loose;
Please use 220 V~, over 1
OAthree-core power socket alone, and
don’t use a wiring board to electrify;
The socket must be earthed
reliably;
Make sure that the power plug is
insertec Into the bottom.
The above misoperation behaviors
are likely to incur electric shock, short
circuit or fi re.
Fire Danger
Don’t use the machine on a
carpet, and the ground shall be fl at and
secure;
Please use low foam non-
phosphate detergent in favor of rinsing
cleaner and good for environment;
For the places with many pets
or injurious insects, please note the
safe state of machine to prevent the
damages of the power lines and water
pipes.

4
TECHNICAL PASSPORT ENGLISH
Washing Machines
The above misoperation behaviors
are likely to incur electric shock, short
circuit or electric leakage.
Fire Danger
Please don’t put the machine at
below 0°C,don’t be exposed outdoors or
used in the place with heavy moisture;
After using, please drain the water
insideclean in order not to freeze.
The above misoperation behaviors
are likely to incur fi re.
Fire Danger
Don’t let washing machines
contact with or approach heat source
and open fi re (such as mosquito-
repellent incense, candle,cigarette,
electric hair drier etc);
When a washing machine gives
abnormal noise and scorched fl avor is
sent out, please immediately stop using,
cut the supply of water and electricity
and contact with our company’s after-
sales maintenance department
The above misoperation behaviors
are likely to incur fi re or electric leakage.
Explosion Danger
Don’t wash or dehydrate the
clothes stained with fl ammable
diluent, benzene, gasoline, dry cleaning
detergent solution, edible oil and fats
etc;
The oil spots in the clothes
stained with oil composition cannot be
completely eliminated after washing,
which may react chemically leading to
fi re.
The above misoperation behaviors
are likely to incur fi re or explosion.
Explosion Danger
Don’t put the infl ammable,
explosive and volatile substancesor
the clothes stained with the above
substances in the washing machine or
approach it;
Don’t mix the chlorine bleach
with ammoniac or acidic materials(such
as vinegar or rust remover), as different
chemical substances can generate
poisonous gas endangering life;
Don’t operate the washing
machine when gas leaks;
Don’t use the machine near a
biogas digester or in explosivegas or
liquid environments.

5
ENGLISH TECHNICAL PASSPORT
Washing Machines
The above misoperation behaviors
are likely to incur explosion.
Fire Danger
Don’t spray water on the washing
machine during washing;
Please pull out the power plug
after use, maintenance and cleaning;
It is prohibited to use after the
washing machine is soaked in fl ood;
Please fasten the drainage
pipebefore use, and confi rm that the
sewer is not blocked by foreign matters.
Don’t approach if there is water under
the washing machine;
Don’t put wet clothes on the
control panel.
The above misoperation behaviors
are likely to incur fi re, short circuit or
electric leakage.
High Temperature Danger
The glass door will be very hot
when washing at a high temperature,
so please don’t touch the door during
the use,particularly the elderly and
children;
The temperature of the sewage
discharged from high temperature
washing is very high, don’t approach or
contact;
If it is needed to open the door
during the high temperature washing,
do it after the hot water is discharged;
Don’t approach the machine
(drying model applicable) during and
after drying;
Don’t stretch your hand under the
machine during the operation for the
purpose of avoiding injury in vibration
Don’t touch the clothes inside
with hands before the dewatering drum
doesn’t completely stop rotating;
The children and the mentally
handicapped use the machine with the
collaboration of their guardians.
The above misoperation behaviors
are likely to incur scald or harm.
Caution
Don’t let children contact or
approach washing machines;
Don’t climb or lay heavy objects
on the washing machine;
The dismantled wrappages shall
be scrapped timely so that children will
not contact or eat mistakenly;

6
TECHNICAL PASSPORT ENGLISH
Washing Machines
When the washing machine
is not used, please close the door to
prevent children from hiding inside;
Make sure that the laying of
water pipes and electric wires has no
danger to stumble people;
The handling method of scrap
machines
Pull out the power plug ;
Cut off the power lines and
drop them with power plug;
Damage the door lock of the
washing machine to avoid
the asphyxia of children
owing to being locked in the machine.
The above misoperation behaviors
are likely to incur fi re or explosion.
NOTE
Damage Danger
The washing machine is mainly
used for washing clothes rather than for
other purposes;
Moving or carrying the machine
needs at least 2 people;
Don’t forcibly buckle, bind or put
heavy objects on the power lines;
Don’t heat or wash the ductile
and easily shrinking clothes such as
cotton ramie, delicate textiles etc at 9
0°C;
Please make sure that all articles
(such as coins, pins, hooks and other
hard objects) in the pockets of clothes
are emptied before washing;
Don’t use the machine in the
plane or on the ship.
The above misoperation behaviors
are likely to incur personnel injuries or
clothes damages
Damage Danger
Don’t wash curtain or waterproof
clothes (such as raincoat,shower curtain
and sleeping bag etc);
Only the machine washable
clothes can be washed. If you have
doubts, please follow the washing guide
identifi cation on the clothes;
Don’t wash the tablecloth or
washings without edges etc. If they
require washing, please put them in the
net bag to wash.
The above misoperation behaviors
are likely to incur clothes damages.
DESCRIPTION OF
WASHING MACHINE
The machine has excellent
quality and performance, and is your
good household helper! Every washing
machine is, before leaving the factory,
carefully and thoroughly detected to
ensure their functions are complete and
they are in the best operational state;
Please read the Manual carefully
before using the product and keep it for
future needs;
The graphics in the description
are schematic diagrams of products,
whic may by inconsistent with the
model you buy. Please subject to the
actual model!

7
ENGLISH TECHNICAL PASSPORT
Washing Machines

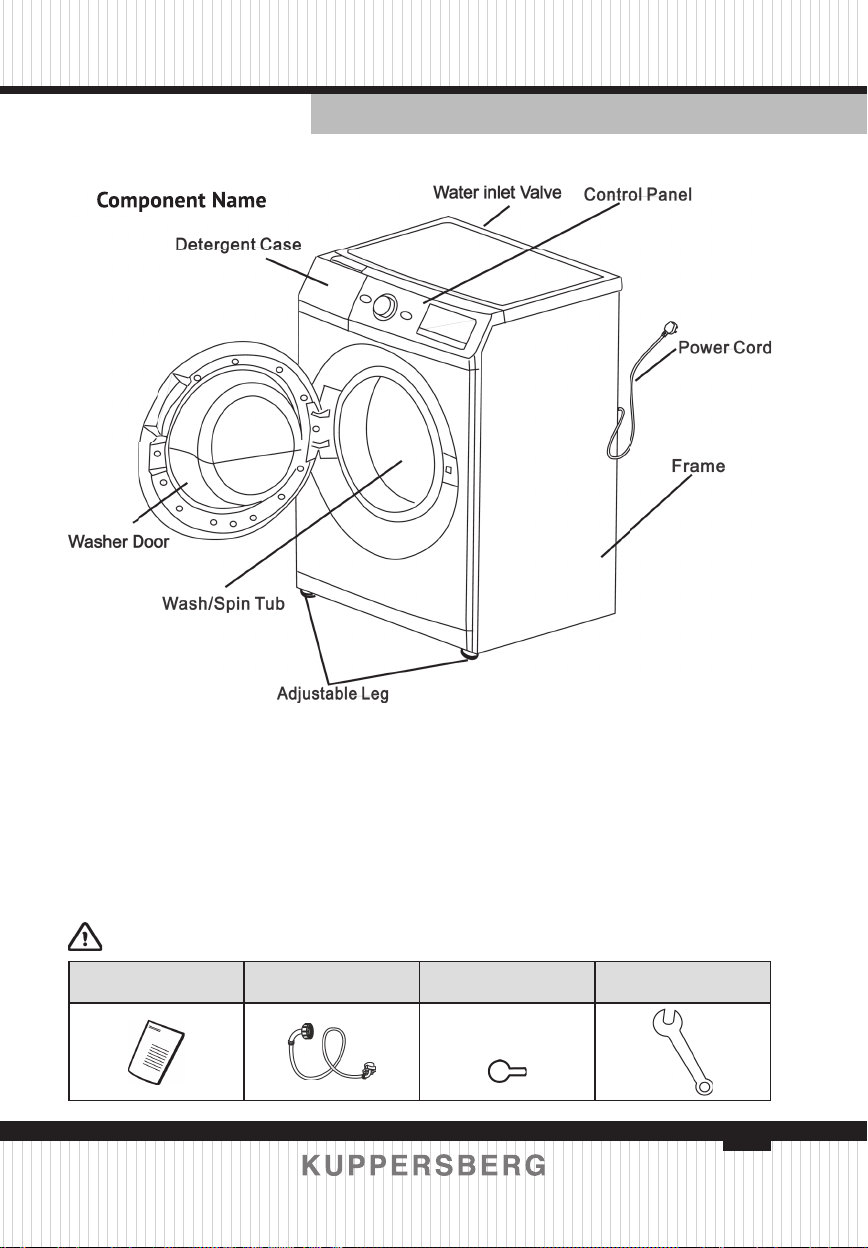

COMPONENT NAME AND ACCESSORIES OF WASHING MACHINE
Component Name
Component Name
ACCESSORIES
Instruction
manual Water Supply Hose Lid
(4Piece) Spanner
Unpacking the washing machine
Unpacking your washing machine and check if is there any damage during the
transportation.Also make sure that all the items(as shown below) in the attached
bag are received. If there is any damage to the washing machine during the
transportation,or any item is missing or damaged,please contact the local dealer
immediately.
If your washing machine is not double inlet, you do not have the hot inlet hose.

8
TECHNICAL PASSPORT ENGLISH
Washing Machines
INSTALL WASHING
MACHINE
Remove transit bolts Before using
this washing machine, transit bolts
must be removed from the backside of
this machine. Please take the following
steps to remove the bolts:
1. Loosen the four transit bolts with a
spanner
2. Take each bolt head and pull it
through the wide part of the hole.
Repeat for each bolt.
3. Fill the holes with the supplied
plastic covers.
4. Keep the transit bolts properly for
futher use.
Adjust the machine horizontally
There will be strong shock,noise,and
disfunction In operation if the washing
machine is not steadily installed. Please
adjust the front adjustable Leg.Methods
are as follows:
1. Check whether the washer is on a
level surface using a plumb line as
shown in the Beside fi gure.
The washer is on level ground
fl oor if the Frame line of washer is
parallel with the plumb line.
2. Adjust the Adjustable Leg of washer
if necessary to make the washer
level as shown in the Beside fi gure.
3. Put your hands on the washer
diagonally, press and shake the
washer slightly to make sure that
the washer is steady.

9
ENGLISH TECHNICAL PASSPORT
Washing Machines
WARNING
When the four feet are in close
contact with the fl oor, the washing
machine must be completely level and
secure. When the washing machine is
level, make the feet as low as possible.
Improper levelness adjustment
will result in the washing machine’s big
noise, vibration, displacement, etc.
There is a vent at bottom of the
washing machine (do not block it). Place
the washing machine on a solid, fl at
and skidproof fl oor. To avoid injuries, do
not place the washing machine on soft
blanket, wooden fl oor, platform or rack.
Connect the inlet hose
1. Connect the inlet hose to tap and
fasten it anticlockwise.
2. Connect the other end of the inlet
hose to the inlet valve at the backside
of the washing machine and fasten
the hose tightly clockwise.when
there is a inlet at the back of the
machine,it must be connected to a
cold water supply. If there are two
inlet valve,one is connected to a
cold water supply and the other is
connected to a hot water supply.
Follow the indication of the picture
below to complete the connection.
NOTE
If there is any leakage with hose
after the connection, then repeat the
steps to connect inlet hose.
Do not bend the hose.
Check for inlet hose connection
carefully before using the washer each
time.
Connect the drain hose
The drain hose shall be placed at
a height of 65-100cm above the fl oor,
otherwise,it can cause poor drainage.
You can use the supplied drain
hose support bracket to loop the drain

10
TECHNICAL PASSPORT ENGLISH
Washing Machines
hose down into the wall,standpipe or
laundry tub.
Take care to ensure all hose
connections are tight.
NOTE
The end of the drain hose cannot
be immersed in water for the washer to
work properly.
Connect the power
As the maximum current through
the unit is 10A when you are using its
heating function, please make sure the
power supply system (current, power
voltage and wire) at your home can
meet the normal loading requirements
of the electrical appliances.
Please connect the power to a
socket which is correctly installed and
properly earthed.
Make sure the power voltage
at your plate is same to that in the
machine’s rated voltage.
Power plug must match the
socket.
Do not use multi-purpose plug or
socket as extension cord.
Do not connect and pull out plug
with wet hands.
When pulling out the plug, hold
the plug tightlly and then pull it out. Do
not pull power cord forcibly.
If power cord is damaged or has
any sign of being broken, special power
cord must be selected or purchased
from its manufacturer or service center
for replacement.
WARNING
1. This machine must be earthed
properly. If there is any short circuit,
earthing can reduce the danger of
electrical shock.
2. Washing machine shall be operated
in a circuit separate from other

11
ENGLISH TECHNICAL PASSPORT
Washing Machines
electrical appliances. Otherwise,
power protector may be tripped or
fuse may be burned out.
PRECAUTIONS FOR USE
Range
Your washing machine is
household;
Your washing machine only can
wash the fabrics suitable for machine
wash;
Your washing machine only can
be connected with cold tap water.Please
choose the commercially available
household low foam detergent and
clothes tendering agent only suitable
for machine wash;
For the clothes with steel wire,
the wire will pop up during washing.
To protect your washing machine and
clothes, please don’t wash that kind of
clothes in the washing machine;
The supply of water and
electricity shall be interrupted after the
washing;
The operating environment
conditions of the washing machines are
as follows:
The ambient air temperature
is 0 - 40°C;
The relative humidity of air is
below 95% (at 25°C);
Keep your pets away from the
washing machine;
Don’t let children or the
elderly use the machine if nobody looks
after them;
The machine must be
installed and used in the rooms with
fl oor drains;
Don’t wash your carpets;
The power line of the machine
is Y connection mode. The plug of the
power line must be inserted into the
three-core socket with grounding wire,
making sure that your three- core socket
is grounded in a correct and reliable
way.
Cleaning and Maintenance
Notice
Be cautious of electric shock
hazard!
Please be sure to pull out the
power plug or cut off power before you
start maintenance;
Don’t use chemical solvent to
prevent explosion.
Clean the box and control panel
Wipe with a wet soft towel;
Don’t use detergents with
lapping compounds;
Please immediately eliminate
the residual detergent after washing;
Don’t spray or rinse the machine
with water.
Clean the drum
Open the door of the washing
machine to keep it dry;
Rust: please remove it timely
with chloride-free detergents.
Don’t use a steel wire ball to
remove.

12
TECHNICAL PASSPORT ENGLISH
Washing Machines
USAGE INSTRUCTION FOR DETERGENT CASE
Liquid detergent
and Bleach
Use low bubble liquid
synthetic detergents.
For the concentrated liquid
detergents, diluted It double
times with water, then pour into
ithe case
Softener
Put into the case before washing, it
will be poured into the tub automatically
at the last round of rinse.
For the concentrated detergents, use
corresponding proportion of water to
dilute it, then pour it into the case.
No exceed to the full mark line.
Powder synthetic
detergents
For the undissolved
detergents, for example: powder
state soap, dissolve it in advance,
then pour into the case.
High bubble Washer powder or
detergent is forbidden.
Use the detergent in accordance
with the instruction by its manufacturer.
Excessive detergents will cause
too much bubble and affect the rinse,
also create function faults.
Choose suitable detergents in
accordance with the type and color of
clothes, the water temperature and the
stain.
Dispose an easily get frozen
washer
If the washer is exposed to
temperature below 0°C, certain
precaution should be taken.
1. Turn off the tap.
2. Unscrew the inlet hose.
3. Unhook the drain hose from the rear
support and position the end of this
hose and that of the inlet hose in a
bowl. Run the spin programme.
4. Disconnect the washer.
5. Screw the inlet hose and reposition
the drain hose.
NOTE
1. When the washing machine is
reused, make sure the ambient
temperature is above 0°C.
2. If yourwashing machine is located
in the room where it can get frozen
easily, please drain the remaining
water inside drain hose and inlet
hose thoroughly.
3. Please contact a technician if your
washer is frozen.
Routine Maintenance
NOTE
Notice: Beware of scalding danger!
Proceed after the hot water in
the machine cools for the avoidance of
scald;
The tap shall be turned off!
Clean draining pump (once every six
months suggested)

13
ENGLISH TECHNICAL PASSPORT
Washing Machines
Unscrew the fi lter
and pay attention
to the remaining
water, taking out
any foreign material
from the drain pump
fi lter;
Open the fi lter
cover with tools
such as coins
according to the
direction of the
graphic;
Reinstall
Clean the fi lter screen in the
inlet (once every six months
suggested)
Turn off the tap,
remove the inlet
hose from the tap,
and scrub the fi lter
screen with a small
brush;
Screw off the
inlet hose from the
back of the machine,
pull out the fi lter
screen with nipper
pliers, and mount
again after cleaning;
Connect the
inlet hose again,
turn on the tap and
check to make sure
no water leakage.
INSTRUCTIONS FOR
WASHING MACHINES
Preparations before Washing
Sort clothes
Don’t exceed the rated washing
capacity of the selected program;
Take out all foreign matters in
the clothes such as clips, coins etc to
prevent damaging the clothes and the
machine;
Tie a knot, close the fasteners,
zip and sew the opening. For the
smallarticles (handkerchiefs, gloves
and socks etc), easily wrapped and
worn clothes, please put them in the
fi lter screen for washing. The weight of
the clothes in the fi lter screen cannot
be more than 400 g, and they shall be
washed together with those that are
not put in the fi lter screen.
Don’t wash them independently;
The big and small clothes are put
in proper proportion;
When the door is closed, don’t
place the clothes between the door and
the sealing ring.
Put clothes in classifi cation
Classify the clothes according
to the washing information provided
by the manufacturer such as washing
label, type, color and stipulated washing
temperature etc.

14
TECHNICAL PASSPORT ENGLISH
Washing Machines
NAMES AND FUNCTIONS OF CONTROL PANEL
POWER ON/OFF
button
Press this button to turn
on/off the power.
When washing has
fi nished, the power will be
turned off automatically.
START DELAY
button
То set start delay
function. Adjust the time
needed from process star
to end.
+QUICK button
Choose to quick wash by
this button.
It is not available for
some programs.
RINSE button
Choose to add times of
rinse.
lt is not available for
some programs.
START/PAUSE button
Press this button to start
the operation.
Press this button to
pause the operation, and
press it again to continue
the rest program.
PROGRAM knob
Choose proper
program according to
the clothes type and
situation.

15
ENGLISH TECHNICAL PASSPORT
Washing Machines
TEMP button
Choose different water
temperature for different clothes and
situation.
Different water temperature
range is for different program. The
temperature cannot be adjusted for
some programs.
SPIN SPEED button
Choose different spin
speed according to demand.
The spin speed range is
limited for some programs.
Display window
When the power is on, the window will display preset time/
washing time/spinning time and spinning speed and so on.
The window will display the left time during operation. For
example: left time is2h 20m.
The window will display the left time during operation. For
When there is error, the window will display error code. For
example: no water entering in.

16
TECHNICAL PASSPORT ENGLISH
Washing Machines
NORMAL USAGE
1. Preparation:
Load the laundry into the washer.
Close the washer door.
Put the detergent and softener
into the Detergent Case.
Connect the Drain Hose. Connect
the Water Supply Hose to the faucet and
turn the faucet on. Plug the Power Cord
into a socket-outlet.
2. Press the POWER button to turn the
power on.
3. Twist the PROGRAM knob and
choose the program your need.
4. Select the COURSE according to the
use need.
5. Press the START/PAUSE button,
the washer will start the washing
operation.
6. At the end of operation, the buzzer
will sound.
HOW TO USE THE WOOL
PROGRAM
For washing delicate and woolen
clothes. They shall be washed as
required in the labels.
1. Preparation:
Load the laundry into the washer.
Close the washer door.
Put the detergent and softener
into the Detergent Case.
Connect the Drain Hose. Connect
the Water Supply Hose to the Water
Tap and turn the Water Tap on. Plug the
Power Cord into a socket-outlet.
2. Press the POWER button to turn the
power on.
3. Twist the PROGRAM knob to select
the WOOL program.
4. Press the START/PAUSE button,
the washer will start the washing
operation.
5. At the end of operation, the buzzer
will sound.
NOTE
Take out the clothes in time
when program ends, and hung to dry
the clothes, in case the clothes become
distortion.
No wash preset.
Water temperature should not
exceed 40°C to prevent distortion.
Wash the white or bright-colored
clothes separately from the dark-
colored clothes.
Use special detergent for wool to
relieve damage of clothes, and improve
the wash effect.
HOW TO USE THE START
DELAY COURSE
The preset time means that when
the washing is fi nished.
1. Preparation:
Load the laundry into the washer.
Close the washer door.
Put the detergent and softener
into the Detergent Case.
Connect the Drain Hose. Connect
the Water Supply Hose to the faucet and
turn the faucet on. Plug the Power Cord
into a socket-outlet.
2. Press the POWER button to turn the
power on.
3. Twist the PROGRAM knob to select
the desired program course.

17
ENGLISH TECHNICAL PASSPORT
Washing Machines
4. Select the COURSE according to the use need.
5. Touch the START DELAY button to set the fi nishing time of washing.
6. Press the START/PAUSE button, the washer will startSTART DELAYcourse.
7. At the end of operation, the buzzer will sound.
NOTE
START DELAY function could not be used for WOOL and Feathercourse.
To change the preset time, please press POWER ON/OFF button, restart from
step 2.
To cancel the preset, press POWER ON/OFF to shut off the electrical power.
To check the preset procedure, press START DELAY button, the washer will
show you the current preset setting for 5 seconds.
The actual ending time maybe different from the preset time as the different
of water pressure, drainage, type of clothes, water temperatures, etc.
One minute after preset is started, only the START DELAY light will be on.
COURSE CHOOSING QUID
PROGRAM
WATER
TEMPERATURE
(E)
SPINING SPEED (rpm) TOTAL
TIME
(min.)
WIS 46106/
WIS 56128 /
WS 50106
WIS 60129/
WS 60100
Cotton 30 700 800 approx.74 min.
Synthetics 40 700 800 approx.64 min.
Wool - 500 approx.57 min.
Gentle 40 500 approx.67 min.
Soft 30 700 800 approx.69 min.
Strong 50 700 800 approx. 89 min.
High Temp 95 700 800 approx.69 min.
Mix Wash 30 700 800 approx.69 min.
EcoWash 15' 20 700 800 approx. 15 min.
EcoWash 30' 20 700 800 approx.30 min.
EcoWash 45' 20 700 800 approx.45 min.
Night 40 500 approx.69 min.
Soak 30 700 800 approx. 89 min.
Spin - 700 800 approx. 9 min.
Rinse+Spin - 700 800 approx. 22 min.
Drum Clean 95 700 800 approx.132min.

18
TECHNICAL PASSPORT ENGLISH
Washing Machines
NOTES
1. Washing time changes in different
water pressure, drain situation,
clothes texture, weight, temperature,
etc.
2. The needed washing time displayed
during operation could be different
from the actual time needed.
3. As the quantity of clothes and
detergents type are different, rinse
result may be not ideal if the spin
speed is slow. In this case, add the
rinse times.
4. Parameter in the above chart will be
different as the machine types are
different.
5. When you select program cotton ,
temperature 60“C and spin speed
500rpm, the washing time will
increase automatically.
CARE AND MAINTENANCE
Washing machine should be kept
in good maintenance during long time
of use. Good using habit could extend
its service life.
Pull out the plug when in
maintenance, in case of electricity
danger.
Washer body
Wipe the machine body with
soft clean cloth. Dip the cloth into
detergents or liquid soap and then
clean the machine body when there is
heavy dirt on it.
Do not pour water directly on the
machine.
Do not clean the machine body
with scouring powder,diluents,gasoline,
alcohol, and other chemical things.
Sealing washer of the door
Wipe the dirt and fabric scrap away
by towel every time after use. If there
are things like pin in the groove of the
sealing washer, make sure to fetch them
out.
Clean methods of the detergent
case
Clean the detergent case
regularly in case that detergent
remained in the case get mildew.
Pull out while lift the case to
carry it out, clean it by water and restore
it.
Clean the water inlet Valve
(Suggest clean it every 6
months)
1. Detach the Water Supply Hose from
the Water Inlet.
2. Take out the metal fi lter from the
water inlet valve.
3. Clean the metal fi lter of Water Inlet
with a toothbrush etc,then assemble
the metal fi lter in the valve.
4. Connect the Water Supply Hose.
5. The lint must not to be allowed to
accumulate around the washing
machine (not applicable for
appliances intended to be vented to
the exterior of the building).

19
ENGLISH TECHNICAL PASSPORT
Washing Machines
When the washer be frozen
1. Wrap the faucet and Water Supply
Hose joint by hot towel.
2. Dismount the Water Supply Hose
and soak it into about 50°C hot
water.
3. Pour into the tub about 2-3 liter 50’C
hot water.
4. Link the Water Supply Hose, open the
faucet and start the machine, check
weather the Water Supply Hose and
Drain Hose is clogged.
VARIOUS FUNCTIONS
CHILD LOCK FUNCTION
Child lock can be set to prevent
children from misoperatlon during
washer running.
The door will be locked with child
lock set.
Method of setting:
Press POWER button, and press
START DELAY button for 4 seconds to
set the function. Repeat the operation
to unlock.
HOWTO DRAIN REMAINING
WATER
After the function is set, the washer
will open the drain valve to drain the
remaining water out about 9 minutes
after washing fi nishes, to avoid freezing.
Method of setting:
Press POWER button, and press SPIN
SPEED button till a buzzer.Repeat the
operation to delete.
HOW TO DELETE THE END
BUZZER
After setting of this function, the
washer will not have end buzzer after
washing fi nishes.
Method of setting:
Press POWER button, and press
+QUICK till a buzzer. Repeat the
operation to delete.
VASHING TIPS
Check whether there is anything
in the pockets (for example: coin, pin,
clip, paper, etc).
Zips shall be zipped close and
buttons or hooks shall be fi xed. The
loose band or ribbon shall be bound
together.
Do not wash colored clothes
together.

20
TECHNICAL PASSPORT ENGLISH
Washing Machines
Follow the washing guide printed on the clothes’ mark or the symbol types
of care label by the manufacturer.
Before fi rst washing, use a white towel dipped in detergents to rub an
uneasily discovered place of the clothes for a moment, check whether there is color
on the white towel, if the color fades, be careful in washing the clothes.
If a part of clothes is too dirty, use a towel or soft brush dipped in detergents
to rub the dirty part slightly in a same direction, then put the clothes into machine.
The machine may shock heavily in spin when there is only few clothes or
single big and heavy dress, add 2-3 pieces of clothes into the tub to relieve shock.
NO TROUBLE CONDITIONS
SITUATION REASON
The washer door can
not be opened.
The washer is in operation
Set by the child lock
There is clothes caught between the seal ring and the door.
Peculiar smell. Some components are made by rubber, so there may be smell of rubber.
Little water in wash
and spin Drum washing machine need only little water to wash clothes.
No water infl ow.
Whether the faucet is open.
Whether the Water Supply Hose be frozen.
Whether the Water Supply Hose or the metal fi lter in water inlet be blocked.
Infl ow of water
during operation.
Water will be supplied automatically when the water level decline.
Add clothes during operation.
Drainage water in
during washing. Whether there is too much detergents, or detergents with too much bubble.
Remaining time
changes
If the washing clothes is in uneven distributed, water will be added to
balance it.
The displayed remaining time is calculated on the basis of 15 liter/minute
water intake. As the water pressure will change, actual time will be prolonged
or shortened accordingly.
If clothes are biased in spin, the spin time will be prolonged to correct the
biasing.
Abnormal sound in
spin process.
Check if power cord contact the machine body.
Check if the fi xing (bolts) has been removed.
Check if there are any barrettes or metal articles inside.
Program stops when
power off
If power off,the program stops and will not continue when power on,please
press the POWER ON/OFF button and re-set the program.
