Kuppersbusch IWT 1459.1W User manual

132980980
Instructions for Use
Gebruiksaanwijzing
Notice d’utilisation
Important: Read these instructions carefully and then store them in a safe place.
Belangrijk: Beslist lezen en bewaren.
Important: Lisez soigneusement cette notice et gardez-la.
Integrated Washer-Dryer
Integreerbare was- droogmachine
Lavante-séchante intégrable
Modell: IWT 1459.1W

2
Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
The warning triangle and/or the key words
(Warning!, Caution!) emphasize information
that is particularly important for your safety or
correct functioning of the appliance.
The information marked with this symbol
provides additional instructions and practical
tips on the use of the appliance.
Tips and information about economical and
ecological use of the machine are marked
with this symbol.
Should any problems arise, this booklet provides
instructions on how to solve them by yourself; see
section “Something not working?”.
If this information is not sufficient, please contact our
nearest SERVICE CENTRE.
Printed on recycled paper.
People who think ecologically, act accordingly…
Technical data
Height x Width x Depth 82 x 60 x 54.5 cm
Depth with door opened 95 cm
Height adjustment ±13 mm approx.
Net weight 78,5 kg approx.
Load (depending on programme) 5 kg max.
Use domestic
Drum speed during washing max. 55 rpm
Drum speed during spinning 1400 / 900 / 700 / 500 rpm
Water pressure 0.05-0.8 MPa
This appliance complies with the following EC directives:
73/23/EEC of 19.2.1973 “Low voltage directive”, including directive 93 / 68 / EEC;
89/336/EEC of 3.5.1989 “Electromagnetic Compatibility Directive”.

Select the desired wash programme 14
Select the spin speed or NO SPIN option 14
Select the required option(s) 14
Select the DELAY START option 15
Start the programme 15
Cancelling a programme 15
Altering an option or a running programme 15
Opening the door after the programme has started 15
At the end of the programme 15
Automatic washing and drying (NON-
STOP programme) 16
Programme charts 17-19
Wash programmes 17
Special programmes 18
Drying 19
Consumption data for drying 20
Cleaning and maintenance 21
After each wash 21
Periodical cleaning 21
Bodywork 21
Detergent dispenser drawer 21
Drain filter 21
Water inlet filter 21
Emergency emptying out 22
Frost precautions 22
Something not working? 23
Troubleshooting 23
Unsatisfactory washing results 25
Service 26
Instructions for installation and electrical
connection 27
Safety instructions for the installer 27
Dimensions of the appliance 27
Front view and side view 27
Rear view 27
Installation 28
Unpacking 28
Positioning 28
Levelling 29
Water inlet 29
Water drainage 29
Electrical connection 30
Permanent connection 30
Bulding-in 30
Preparation and assembly of the door 30
Safety instructions 4
Discarding 5
Tips for environmental protection 5
Main features of your washer-dryer 6
Description of the appliance 6
Control panel 7
Mains-on light 7
ON/OFF button 7
Programme Option buttons 7
PREWASH 7
SPIN SPEED 7
QUICK 7
RINSE HOLD 7
RINSE PLUS 8
DRYING TIME button 8
DELAY START button 8
Display 8
START/PAUSE button 8
Programme progress display 9
Programme selector dial 9
Detergent dispenser drawer 10
Before the first wash 10
Preparing the wash cycle 11
Sorting out and preparing the laundry 11
Weight of laundry 11
Types of fabric and care labels 11
Detergents and additives 12
Which detergent and additive? 12
How much detergent? 12
Liquid detergent 12
Adding a water softener 12
Information on water hardness 12
Preparing the drying cycle 12
Load 12
Garments not suitable for drying 12
Drying symbols on garment labels 13
Duration of the drying cycle 13
Modification of the drying time 13
Fibre residue 13
Additional drying 13
How to dry 13
Drying only 13
How to wash 14
Load the laundry 14
Add detergent and additive 14
Switch the machine on 14
ENGLISH
3
Contents

Safety instructions
4
The safety of KÜPPERSBUSCH appliances
complies with the industry standards and with legal
requirements on the safety of appliances. However,
as manufacturers, we feel it is our duty to provide the
following safety notes.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Unplug the appliance before carrying out any
cleaning or maintenance operations.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• Never spray the machine with a jet of water.
Danger of electric shock!
• During high temperature wash programmes the
door glass may get hot. Do not touch it!
• Let the water cool down before carrying out
emergency emptying or before opening the door in
an emergency.
Positioning, connection, starting up
• Follow the instructions for positioning and
connection.
• Carry out a first wash without laundry (COTTONS
95°C, with half the amount of detergent) in order to
remove any manufacturing residue from the tub
and the drum.
• Should the machine be purchased in winter, when
temperatures can be below 0°, leave the appliance
for 24 hours at ambient temperature before starting
it.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, they should be carefully supervised and
not be allowed to play with the appliance - there is
a risk that they could become trapped inside.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.

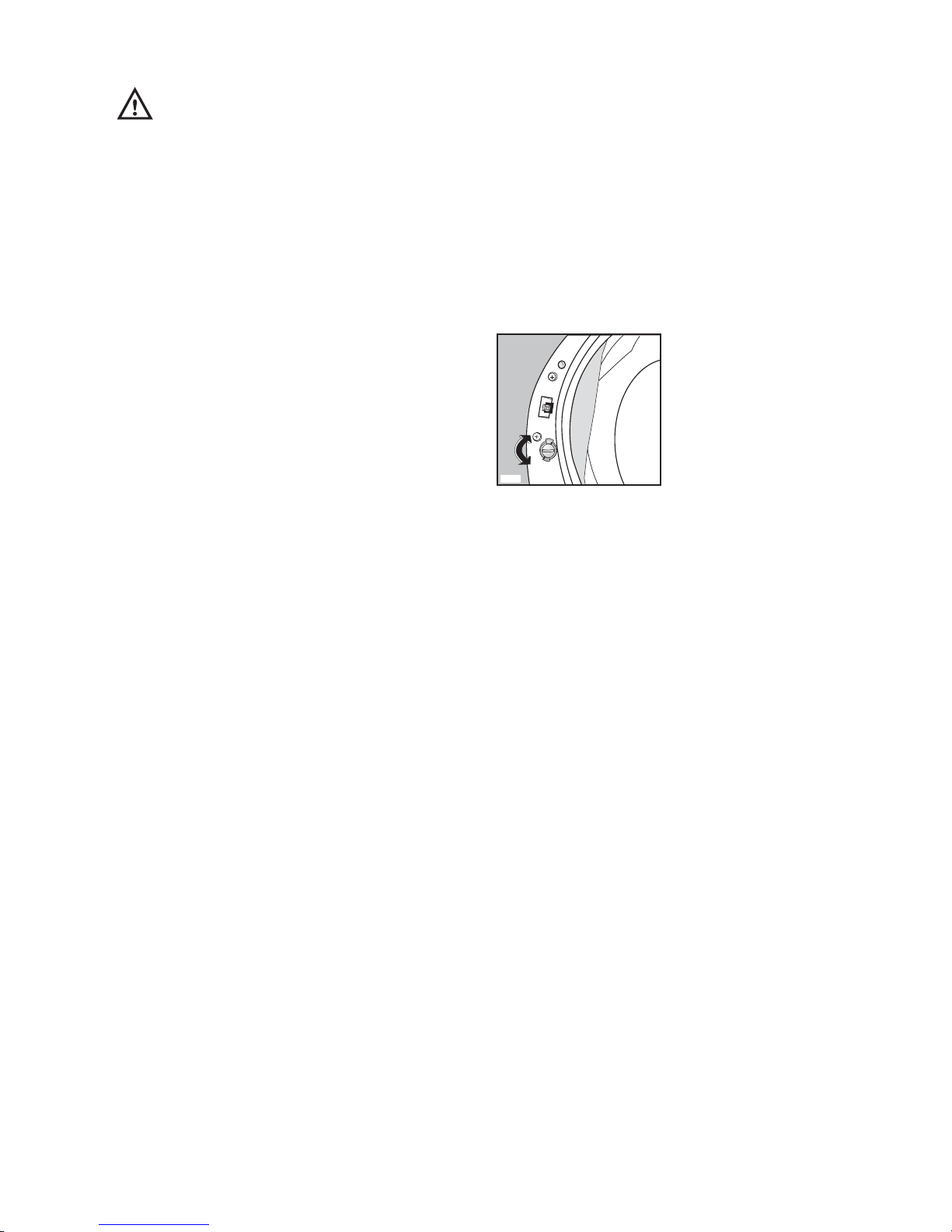

• Make sure that children or pets do not climb into the
drum. To avoid this the machine incorporates a
special feature. To activate this device, rotate the
button (without pressing it) inside the door
clockwise until the groove is horizontal. If necessary
use a coin.
To disable this device and restore the possibility of
closing the door, rotate the button anti-clockwise
until the groove is vertical.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
Proper use
• This appliance is designed for domestic use only. If
the machine is used for any other purposes or is
not used correctly, the manufacturer accepts no
responsibility for any possible damage that might
occur.
• For safety reasons, the appliance must not be
modified.
• Use only detergents suitable for washing machines
and follow the manufacturer’s instructions.
• Garments which have been in contact with
flammable solvents should not be machine
washed.
• Do not use your machine for dry cleaning.
• Dyes and bleaching agents may only be used if
specifically permitted by the manufacturer of these
products. We cannot be held responsible for any
damage.
• Always unplug the appliance and turn off the water
tap after use.
P1131

ENGLISH
5
Discarding
Tips for environmental protection
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• Use the energy saving programme when washing
normally soiled garments.
• The machine works more economically if it is fully
loaded (for both washing and drying cycles).
• When small loads are washed, use only half to two
thirds of the recommended amount of detergent.
• The machine will consume less energy if the
laundry is adequately spun before being dried.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• If the water has a medium or high degree of
hardness (starting from degree of hardness II, see
“Detergents and additives”) water softeners must
be added.
The amount of detergent can then be adjusted to
degree of hardness I (= soft).
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing
of them properly in appropriate collection
containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.

Front view
Description of the appliance
• Programme and temperature setting using the
programme selector.
•Energy saving programme for normally soiled
cotton items.
•Speed for the final spin can be reduced to 900 -
700 or 500 rpm.
•RINSE HOLD can be added: the laundry is left
immersed in the final rinse water to avoid the
formation of creases.
•The possibility of selecting all the other options
offered by this machine gives you truly “customised
washing”.
•Delay timer: programme start can be delayed from
30 min - 60 min - 90 min, 2 hours and then by 1
hour up to max. 23 hours (e.g. to times with a more
economical power rate).
•Programme progress display showing the
programme steps selected and the programme
phase which is running.
• Because of its gentle washing action, the special
wool cycle washes your garments with extreme
care, without felting them.
•The drying programmes will enable you to have
dry and soft laundry in a short time.
•3-compartment drawer for detergent and fabric
softener.
•Unbalance detection device: secure position and
silent operation of the appliance.
Main features of your washer-dryer
6
Detergent drawer
Control panel
Door
Drain filter
Adjustable feet
1400
900
700
500
95°60°
E60°
E40°
60°
40°
40°
30°
60°
40°
30°
40°
40°
30°
40°
30°

ENGLISH
7
Control panel
1 Mains-on light
This light comes on when the ON/OFF button is
pressed, and goes out when it is pressed again.
2 ON/OFF button
Press this button to switch the machine on. Press it
again to switch the machine off.
Programme Option buttons
Depending on the programme, different functions can
be combined. These must be selected after choosing
the desired programme and before depressing the
START/PAUSE button.
When these buttons are pressed, the corresponding
pilot lights come on. When they are pressed again, the
pilot lights go out.
If an incorrect option is selected, the pilot lights flash
for about 2 seconds and the message Err is displayed.
An acoustic signal rings.
3 PREWASH
The machine performs a prewash cycle at 30°C max.
The prewash cycle ends with a short spin in
programmes for Cotton and Synthetics , and
with emptying of the water only for Delicates .
This option is not available with the wool /
Handwash .
For use when washing heavily soiled laundry.
4 SPIN SPEED
Press this button to reduce the maximum speed of
the final speed proposed by the machine for the
selected programme or to select NO SPIN option .
The maximum spin speed for cotton is 1400 rpm, for
synthetics, Wool/Handwash 900 rpm and for delicates
700 rpm.
Select NO SPIN option for extremely delicate
items (curtains, for example).
The machine performs additional rinses for cottons
and synthetics.
5 QUICK
By pressing this button the washing time is reduced.
For use when washing lightly soiled laundry.
This option is not available with the wool
/handwash , economy cottons
programmes “E” and 60°C .
6 RINSE HOLD
When this button is pressed, the last rinse water is
not emptied out, to prevent the fabrics from creasing.
When the programme has finished, the pilot lights
and are on. The light of the START/PAUSE
button goes off to indicate that the water must be
emptied out.
To empty out water there are 2 possibilities:
• Select programme (draining): and depress the
START/PAUSE button
The water is emptied out without spinning.
12 3456789101112 13
1400
900
700
500
95° 60°
E60°
E40°
60°
40°
40°
30°
60°
40°
30°
40°
40°
30°
40°
30°

8
• Select programme (spin) or (delicate spin).
Select the spin speed by means of the relevant
button and then depress the START/PAUSE
button . The water is emptied out and the
laundry is spun at the selected spin speed.
Attention! Before selecting programme , or
the selector dial has to be
positioned on O(cancelling).
The RINSE HOLD option cannot be selected for the
automatic WASHING & DRYING programme.
7 RINSE PLUS
Can be used with all programmes except the
Wool/Handwash programme. The machine will add
2 rinses for cottons and 1 rinse for synthetics and
delicates.
This option is recommended for people who are
allergic to detergents and in areas where the water is
very soft.
8 DRYING TIME button
By depressing this button you can select the desired
drying time according to the fabrics (cotton or
synthetics) you have to dry.
To select the drying time you have to push the button
until the drying time you want appears in the display.
For COTTON and SYNTHETICS you can select a
drying time from 10 minutes to 2 hours and 10
minutes (2.10).
Selecting WASHING & DRYING programme the
drying time is displayed for 3 seconds, then the
duration of the selected programme reappears.
9 DELAY START button
The wash programme can be delayed from 30 min -
60 min - 90 min, 2 hours and then by 1 hour up to a
maximum of 23 hours by means of this button.
Selecting the delayed start
• Select the programme and the required options.
• Select the delay start.
• Depress START/PAUSE button : the machine
starts its countdown.
The programme will start after the selected delay has
expired. The DELAY START cannot be used with
and programmes.
Cancelling the delayed start
• Depress START/PAUSE button .
• Depress DELAY START button until «0’» is
displayed.
• Depress START/PAUSE button again.
10Display
The display shows the following information:
• if the programme selector dial is on the RESET O
position, three flashing dashes appear immediately
after pressing the ON/OFF button to indicate that
the machine is ready to receive instructions for the
required wash programme;
•Duration of the selected wash programme,
calculated automatically on the basis of the
maximum recommended load for each type of fabric.
•Selected drying time (max. 2 hours and 10 minutes
for cotton and synthetics).
After the programme has started, the time
remaining is updated every minute.
• When the programme has finished, a flashing
zero is displayed;
•Delayed start, programmed using the special
button.
The selected delay (23 hours max.) is indicated in
the display. The countdown is updated every hour
and when remain the last 2 hours each 30
minutes.
•Incorrect option selection. If an option which is
not compatible with the set wash programme is
selected, the message Err is displayed for 2
seconds.
•Alarm code indicating a fault in the machine
operation (see pages 23-25).
11START/PAUSE button
This button has two functions:
•Start:
After having selected the required programme, press
this button to start the machine; the corresponding
pilot light stops flashing.
If you have selected the delayed start, the machine
begins its countdown. The duration of the
programme or the delay appears on the display.

ENGLISH
13Programme selector dial
The programme selector determines the type of
washing cycle (e.g. water level, drum movement,
number of rinses), the washing temperature and
enables the required drying programme to be selected
according to the type of laundry.
The selector is divided into 5 sectors:
• Cotton
• Synthetics / Shoes programme
• Delicates / Baby programme
• Wool / Handwash
• Special programmes and
• RESET programme O.
The selector dial can be turned either clockwise or
anticlockwise.
Position E60° - E40 corresponds to the
ENERGY SAVING programme.
●Position corresponds to COLD WASH. To be
used for extremely delicate items.
●= DRYING●O= Reset programme
E
95° 60°
E60°
E40°
60°
40°
40°
30°
60°
40°
30°
40°
40°
30°
40°
30°
9
•Pause
To interrupt a programme which is running, depress
the START/PAUSE button : the corresponding
pilot light starts start to flash.
To restart the programme from the point at which it
was interrupted, press the START/PAUSE button
again.
Important!
By depressing simultaneously START/PAUSE
and buttons the acoustic signal which
sounds when selecting a programme or an option, in
case of an incorrect selection and at the end of the
cycle is suppressed.
12Programme progress display
By selecting the wash programme, the pilot lights
corresponding to the various phases making up the
programme come on.
After the machine has started, only the running
phase pilot light stays on. When the programme has
finished, the END pilot light comes on.
PREWASH
WASH
RINSES
RINSE HOLD
DRAIN
SPIN
DRYING
END
Programme information
COTTON 60°
This programme reduces the washing time. It is
recommended for lightly soiled cottons items, which
have been worn for short time.
COTTON 40°
Special programme suitable for washing casual
garments as jeans pants, jeans shirts, t-shirt of
special technical fabrics.
Max load: Kg 3
Shoes 40°
With this programme it is possible to wash one pair
of sport shoes depending on their size. The shoes
would be gently washed and spun at the washing
temperature of 40°C.
Important! You will find two bags in the drum. Put
only one shoe in each bag. It is possible to wash two
shoes together if they are small.
Note! Don't wash your sport shoes together with
laundry.

10
Compartment for prewash or soak detergent.
The detergent is added at the beginning of the
wash programme.
Compartment for powder or liquid detergent
used for main wash.
It is emptied at the beginning of the wash cycle.
Compartment for liquid additives (fabric
softener, starch).
It is emptied at the last rinse.
The quantity of additive product must not
exceed the «MAX» mark in the drawer.
Detergent dispenser drawer
Before your first wash, we recommend that you run a
cotton cycle at 95°C, without any laundry in the
machine, to remove any manufacturing residue from
the drum and tub.
Before the first wash
Pour 1/2 a measure of detergent into the dispenser
drawer and start the machine.
BABY CYCLE 40°
With this programme it is possible to wash at 40°C
very delicate garments e.g. shirts, clothing, baby
jumpers, saloppettes etc.
WOOL / HANDWASH /
Washing programmes for machine washable wool
as well as for hand washable woollens and
delicate fabrics with the “hand washing” care symbol
.
RINSES
With this programme it is possible to rinse and spin
garments which have been washed by hand.
The machine performs 3 rinses, followed by a final
spin at maximum speed.
The spin speed can be reduced by depressing Spin
button .
The final spin is foreseen only for cotton items as in
the spin programme.
DRAIN
For draining out the water of the last rinse in
programmes with the Rinse Hold option.
First turn the programme selector dial to “O” position,
then select the Drain programme and depress
the Start Pause button.
SPIN
Separate long spin for cotton items at the max.
speed proposed by the machine (1400 rpm).
You can reduce the speed, if needed, by means of
the corresponding button to adapt it to the laundry to
be spun.
DELICATE SPIN
Separate short spin for synthetic, delicate, wool and
handwashed items.
The max.spin speed is di 700 r.p.m.
You can reduce the speed, if needed, by means of
the corresponding button to adapt it to the laundry to
be spun.

Types of fabric and care labels
The labels on garments help you to select the most
suitable wash programme. The laundry should be
sorted out according to the type of fabric and the
instructions indicated on care labels.
Temperatures indicated on labels are always
maximum temperatures.
Cotton
Linen and cottons marked with this symbol can be
washed at high temperatures.
Cotton
Linen and cottons marked with this symbol are
colourfast and can be washed at 60°C.
Cotton
Garments marked with these symbols have delicate
colours, therefore the washing temperature must not
exceed these values.
Synthetics
Mixed and synthetic fabrics marked with these
symbols require a gentle wash programme and they
must therefore be washed using the specific
programme.
Delicates
Microfibres, synthetics or curtains marked with these
symbols require a very gentle treatment.
The DELICATES programme is suitable for this type
of fabric.
Woollens and particularly delicate items
Fabrics such as wool, wool mix or silk marked with
this symbol are particularly sensitive to machine
washing.
The WOOLLENS programme is suitable for this type
of fabric.
The wool wash cycle of this machine has been
approved by Woolmark for the washing of machine
washable Woolmark products provided that the
garments are washed according to the instructions
on the garment label and those issued by the
manufacturer of this washing machine. M9605.
If the label has the symbol (do not wash),
garments must not be machine washed!
30
40
30
40
60
40
30
40
60
95
Sorting out and preparing the laundry
• Sort out the laundry according to type of fabrics and
care labels (see “Types of fabric and care labels”).
• Empty pockets.
• Remove any metal parts (safety pins, clips, etc.).
• To prevent the laundry from getting damaged and
forming bundles, it is advisable to close zips, button up
pillowcases and quilt covers and tie up loose straps
such as those of aprons.
• Turn double faced items inside out (sleeping bags,
anoraks, etc.)
• Turn coloured knitted fabrics, woollens and fabrics with
trim inside out.
• Wash small and delicate items (baby socks, tights)
inside a laundry net or in a pillow case closed with a
zip, or in larger socks.
• Treat curtains with special care. Remove all metal or
plastic hooks or put them in a net or a bag. We decline
any responsibility in case of damage.
• Whites and coloureds must be washed separately:
white items can loose their whiteness.
• New coloured fabrics often have excess dyes; it is
advisable to wash them separately for the first time.
• Wash small and large items together; this improves the
washing result and the laundry is better distributed
during spinning.
• Shake out garments before putting them into the
machine.
• Insert each garment separately.
Weight of laundry
ENGLISH
Preparing the wash cycle
11
Sort of laundry Approximate
dry weights
1200 g
300-600 g
700 g
500 g
100 g
200 g
100 g
200 g
200 g
200-250 g
200-300 g
250 g
Bathrobes
Work shirts
Quilt covers
Sheets
Blouses
Hand towels
Tea towels
Shirts
Pillowcases
Night-gowns/Pyjamas
Tablecloths
Underwear

Adding a water softener
(descaling product)
A water softener must be added when water has a
medium-high degree of hardness (from degree of
hardness II). Follow the manufacturer’s instructions.
The quantity of detergent can then always be
adjusted to degree of hardness I (= soft). Information
on water hardness can be obtained from your local
water supply authority.
Information on water hardness
Which detergent and additive?
Use only detergents and additives for washing
machines. Follow the manufacturer’s instructions.
How much detergent?
The quantity depends on:
• the load:
if the manufacturer does not provide any
indications on the amount of detergent for small
loads, use about one third less than the suggested
amount for half loads and half the amount for very
small loads;
• the degree of soil:
use a small amount of detergent for lightly soiled
garments. Judge the amount according to the
detergent manufacturer’s instructions and size of
the load;
• the water hardness:
the harder the water, the more detergent required.
Instructions according to water hardness are given
on the detergent pack.
Liquid detergent
Liquid detergent can be poured directly into the main
wash compartment of the dispenser drawer
immediately before starting the programme, or a
special dispenser can be used that is placed directly
in the drum. Measure the detergent according to the
manufacturer’s instructions.
Detergents and additives
12
Degree of
hardness French degrees °TH
0-15
16-25
26-37
more than 37
I - soft
II - medium
III - hard
IV - very hard
0-7
7-14
14-21
more than 21
German
degrees °dH
As a dryer, the machine works on the condensation
principle.
Therefore, the water tap must be open and the
drain hose must drain water into a sink or into
the drain pipe, even during the drying cycle.
Load
Warning:
Loads of washed laundry exceeding these values
must be divided before being dried, otherwise
poor results will be obtained.
Preparing the drying cycle
max. load
(dry weight)
2.5 kg
1.5 kg
Linen and cottons
Synthetics
Sort of laundry
Garments not suitable for drying
• Particularly delicate items such as synthetic
curtains, woollen and silk, garments with metal
inserts, nylon stockings, bulky garments such as
anoraks, bedcovers, quilts, sleeping bags and
duvets must not be machine dried.
• Garments padded with foam-rubber or materials
similar to foam-rubber must not be machine dried;
they represent a fire hazard.
• Also, fabrics containing residues of setting lotions
or hair sprays, nail solvents or similar solutions
must not be machine dried in order to avoid the
formation of harmful vapours.

ENGLISH
13
Attention!
Never tumble dry items that have been in contact
with chemicals such as dry cleaning fluid. These
are of a volatile nature and could cause an
explosion. Dry only fabrics washed in water.
Drying symbols on garment labels
Always look at the garment label to check whether
garments can be machine dried.
The following symbols refer to drying:
Machine drying is usually possible
Normal drying (normal temperature)
Gentle drying (reduced temperature)
Do not machine dry
Duration of the drying cycle
The drying time can vary according to
• the final spin speed;
• the required degree of drying (extra dry, only for
cottons, store dry or iron dry);
• the type of laundry;
• the size of load.
The usual drying times are indicated in the
programme chart. As you become more familiar with
the appliance, you will discover the drying times that
best suit your needs according to the various type of
fabric. It is a good idea to make a note of these
times.
Fibre residue
After drying fluffy fabrics, such as new towels, it is
advisable to perform the gentle rinse cycle to be
sure that any residue that may remain in
the tub is completely removed and does not stick to
garments dried afterwards.
After each drying cycle the filter should be
checked and cleaned.
Additional drying
Should the laundry still be too wet at the end of the
programme, set another short drying cycle.
Warning! To prevent the formation of creases or
shrinking of fabrics, avoid excessive drying.
How to dry
Drying only
Warning! Do not exceed the maximum laundry
loads:
- 2.5 kg for linen and cottons
- 1.5 kg for synthetics.
The water tap must be open and the drain hose must
be positioned in the sink or connected to the drain
pipe.
• Depress the ON/OFF button to switch the
machine on.
• Select the drying programme (for cotton or
synthetics).
• Depress the DRYING TIME button until the
time you want appears in the
display.
• Press the START/PAUSE button to start the
programme.
• At the end of the cycle, turn the programme
selector dial to RESET Oand press the ON/OFF
button again to switch the appliance off.
• Remove the laundry.

Select the desired wash programme
• Turn the programme selector dial to the desired
position: the lights corresponding to the different
phases making up the selected programme light
on.
The display shows the duration of the programmes in
hours and minutes.
Select the spin speed or NO SPIN option
• To select the desired spin speed or NO SPIN
option , press the SPIN SPEED button : the
corresponding light comes on.
Select the required option(s)
1400
900
700
500
95° 60°
E60°
E40°
60°
40°
40°
30°
60°
40°
30°
40°
40°
30°
40°
30°
14
How to wash
Load the laundry
• Open the door.
• Place the laundry in the drum, one item at a time.
Distribute laundry as evenly as possible. Close the
door.
Add detergent and additive
• Pull the drawer out till it stops.
• Pour the main wash detergent into compartment .
If you wish to perform a prewash, pour detergent
into compartment too.
• Pour the fabric softener into compartment
without exceeding the “MAX” mark.
• Close the drawer, pushing it fully in.
Switch the machine on
• To switch the machine on, press the ON/OFF
button : if the programme selector dial is on the
RESET Oposition, three flashing dashes will be
displayed. If the programme selector dial is
positioned on the previous wash programme, a
flashing zero is displayed.
0

ENGLISH
Altering an option or a running
programme
It is possible to change any option before the
programme carries it out.
Before you make any change, you must pause the
washing machine by pressing the START/PAUSE
button .
Changing a running programme is possible only by
resetting it. Turn theprogramme selector dial to O
and then to the new programme position. The
washing water in the tub will not emptied out.
Start the new programme by pressing the
START/PAUSE button .
Opening the door after the programme
has started
First set the machine to PAUSE by pressing the
START/PAUSE button.
If the door does not open, this means that the
machine is already heating, that the water level is
above the bottom edge of the door or that the drum
is turning.
If you cannot open the door but you need to open it
you have to switch the machine off by depressing the
ON/OFF button . After about 3 minutes the door
can be opened (pay attention to the water level and
temperature!). To restart the programme depress
ON/OFF button again after closing the door.
At the end of the programme
The machine stops automatically and a flashing zero
is displayed. The pilot light of the START button
goes off and he END pilot light illuminates.
• Release of the lock is indicated by an audible signal.
• If the RINSE HOLD option has been selected,
the door is locked, the corresponding pilot light on
the programme progress display stays on to
indicate that the water must be emptied out before
opening the door. A flashing zero is displayed.
To drain or spin, see paragraphe 6 on pages 7-8.
At the end of the programme: turn the programme
selector dial to RESET O.
Switch the machine off by pressing the ON/OFF
button . The mains-on light goes off.
Remove the laundry from the drum.
Check that the drum is empty so as to avoid a
subsequent wash being damaged by any forgotten
items.
Close the water tap.
Leave the door open to prevent the formation of
mildew and unpleasant smells.
Select the DELAY START option
• To delay starting of a programme, press the
DELAY START button before starting the
machine. The figures corresponding to the
selected delay will be displayed for about 3
seconds, after which the duration of the selected
programme will appear on the display.
When the START/PAUSE button is pressed, the
selected delay will again appear on the display and
the machine starts its countdown.
During this period it is possible to load other laundry.
To do this:
• press START/PAUSE button
• open the door and load the
laundry
• close the door and press START/PAUSE again
Start the programme
• To start the selected programme, press the
START/PAUSE button ; the corresponding light
stops flashing.
The pilot light corresponding to the wash phase
which is running is on.
If you have selected the delayed start the machine
starts its countdown.
Cancelling a programme
To cancel a programme which is running, turn the
programme selector dial to the RESET Oposition:
three flashing dashes will be displayed. Now you can
select another programme.
15

Automatic washing
and drying
(NON-STOP programme)
Warning! For NON-STOP programmes, it is also
essential not to exceed the maximum load sizes of
2.5 kg for cotton and 1.5 kg for synthetics.
• Load the laundry.
• Add detergent and additive.
Do not use a dosing device/ball when carrying
out a washing and drying programme.
• Switch the machine on by depressing the ON/OFF
button.
• Select the wash programme.
• Select eventually the required options by means of
the relevant buttons. If possible, do not select a
spin speed lower than that proposed by the
appliance to avoid a too long drying time so saving
energy. By automatic washing and drying it is not
possible to select a spin speed lower than 900
r.p.m. for cottons and 700 r.p.m. for synthetics.
• Select the drying time.
• Start the programme by depressing the
START/PAUSE button.
• At the end of the programme, turn the selector dial
to RESET Oand press the ON/OFF button again
to switch the machine off.
• Remove the laundry.
16

ENGLISH
Programme chart
ECONOMY
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on
the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It
corresponds to the highest temperature for each wash programme.
**In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the
E60° wash programme for cotton.
WASH PROGRAMMES
Programme
Fabrics Additional Functions Max. load Energy
kWh Water
lt
Consumptions*
E60°**
Cotton and linen, for example normally
to lightly soiled sheets and household
linen
Jeans
(see page 10)
Non-fast coloured cotton and linen
items, shirts, blouses, underwear
PREWASH
RINSE HOLD
RINSE PLUS
SPIN
/
5 kg 0.85 49
5 kg
3 kg
5 kg
1.1
0.45
0.9
49
58
49
2 kg 0.85 41
5 kg 1.9 52
60°
40°
Fast coloured cotton and linen items,
shirts, blouses, underwear, towels
PREWASH
RINSE HOLD
RINSE PLUS
SPIN
/
PREWASH
RINSE HOLD
RINSE PLUS
SPIN
/
PREWASH
RINSE HOLD
SPIN
/
60°
E 40°
Fast and non-fast coloured cotton and
linen items, shirts, blouses, underwear
5 kg 1.2 49
PREWASH
RINSE HOLD
RINSE PLUS
SPIN
/
60 - 40°- 30°
Fast coloured synthetic fabrics, non-
shrink shirts, underwear, blouses
PREWASH
QUICK
RINSE HOLD
RINSE PLUS
SPIN
/
2 kg 0.5 60
40°
Shoes
(see page 10)
PREWASH
QUICK
RINSE HOLD
RINSE PLUS
SPIN
/
2 kg 0.45 38
30°-40°
Lightly soiled synthetics, shirts, blouses
Non-fast coloured synthetics, mixed
fabrics
PREWASH
QUICK
RINSE HOLD
RINSE PLUS
SPIN
/
2 kg 0.45 38
40°
Lightly soiled garments, shirts, blouses
and garments for children
PREWASH
QUICK
RINSE HOLD
RINSE PLUS
SPIN
/
Cotton and linen, for example normally
soiled work garments, sheets, household
linen, underwear, towels
95° PREWASH
QUICK
RINSE HOLD
RINSE PLUS
SPIN
/

18
Programme chart
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on
the quantity and type of laundry, on the inlet water temperature and on the ambient temperature.
Special programmes
Programme
Type of laundry Programme
phases Additional functions Max. load
Consumption*
Energy
kWh Water
lt.
2 kg 0.3 58
1 kg 0.4 58
30° - 40°
30° - 40°
- COLD
Delicate fabrics, for
example curtains
Wool, wool mix, silk,
items with “ hand wash”
label
PREWASH
QUICK
RINSE HOLD
RINSE PLUS
CENTRIFUGA /
RINSE HOLD
SPIN/
5 kg 0.1 40
This programme can
be used for rinsing
hand washed cotton
garments
RINSE HOLD
RINSE PLUS
SPIN
/
Rinses
5 kg -/
For emptying out the
last rinse water in
programmes with the
option
Drain The water is
emptied out
5 kg --
Separate spin for
cotton items
Spin Long spin
2 kg --
Separate spin for
synthetic, delicate
and wool items
Short spin Short spin
--
Cancelation
Reset
O
For cancelling the
wash programme
which is running
SPIN
RINSE HOLD
SPIN
/

Cotton and linen
(bathrobes, bath
towels, etc.)
Cotton and linen
(towels, T-shirts,
bathrobes)
Synthetics and
mixed fabrics
(jumpers, blouses,
underwear,
household linen)
Cotton and linen
(sheets, tablecloths,
shirts, etc.)
Synthetics and
mixed fabrics (shirts,
blouses, household
linen)
ENGLISH
Programme chart
19
(*) The STORE DRY drying programme for cotton is the reference programme for the Energy Label data, in
compliance with EEC standard 92/75.
Drying
Degree of
drying
2.5 kg
1 kg
2. 5 kg
1 kg
1.5 kg
1 kg
2.5 kg
1 kg
1.5 kg
1 kg
1400
1400
1400
1400
900
900
1400
1400
900
900
Extra dry
Ideal for
towelling
materials
Store dry (*)
Suitable for
items to put
away without
ironing
Iron dry
Suitable for
ironing
Type of fabric Max. load Spin speed
105 - 115
50 - 60
95-105
40-50
100-110
55-65
65-75
30-35
70-80
40-45
Drying time
mins

Consumption data for drying
20
The values shown in the chart have been obtained in laboratory tests. They may vary when the appliance is
used at home, but they can be used as indicative values.
Degree of
drying
2.5 kg
2.25 kg
2.25 kg
1.5 kg
1.5 kg
34
33
25
31
22
Cotton
Extra dry
Cotton
Store dry
Cotton
Iron dry
Synthetics
Store dry
Synthetics
Iron dry
1400
1400
1400
900
900
Spin speed Max load Water
litres
1.9
1.7
1.2
1.25
0.9
105-115
95-1055
65-75
100-110
70-80
Energy
kWh Duration
minutes
