Kusam-meco TE-02 User manual

Handheld Thermal Imaging Camera
Model - TE-02
®®
AN ISO 9001:2008 COMPANY
Regd Office : G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400015. India.
Sales Direct : 022-24156638, Tel. : [phone] Fax : [phone]
Email : kusam_mec[email protected] Website : www.kusamelectrical.com
All Specifications are subject to change without prior notice.
Preliminary Data
Handheld Thermal Imaging Camera is widely used in the Medical,
Archaeological, Electrical Panel Analyzing & so on.
GENERAL SPECIFICAIONS :
— Display : 2.4” color Screen.
— Resolution of Thermal Image : 3600 (60 X 60)
— Resolution of Visual Image : 0.3 mega pixels
— FOV/Shortest focal length : 20° X 20° / 0.5m
— Thermal Sensitivity : 0.15°C
— Measuring Mode : Infrared focal plane measuring
temperature.
— Temperature Range : -20°C ~ 300°C (-4°F ~ 572°F)
— Measuring Accuracy : ±2% or ±2°C (±2% or ±4°F)
— Wavelength Range : 8 ~ 14mm
— Image Frequency : 6Hz
— Emissivity : Adjustable 0.1-1.0 .
— Focus Mode : Fixed
— Palette : Iron red, rainbow, rainbow high contrast,
Gray scale (white glow) & Gray scale (black glow).
— Image Storage : SD card (4GB)
— Vision Option : 25% step infrared to visional to
infrared & visional image.
— File Formate : bmp.
— Auto Power Off : 12 minutes.
— Battery Type : AA battery x 4.
— Operating Temperature : -5°C ~ ±40°C
— Storage Temperature : -20°C ~ ±50°C
— Humidity : 10%RH ~ 80%RH.
— CE (EN61326-1:2006)
— Dimension : 212(L) X 95(W) X 62(H)mm.
— Weight : 320g.
®®
AN ISO 9001:2008 COMPANY
D:\Chhaya\My Documents\Chhaya\backup\catlogs\NEW CAT\Thermal Imaging Camera\TE-02.cdr
Thermal Imager
at the price of
Infrared
Thermometer

®®
AN ISO 9001:2008 COMPANY
MODEL - TE-02
OPERATION MANUAL
THERMAL IMAGING CAMERA
G 17, Bharat Industrial Estate, T. J. Road,
Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct : [phone]
Tel. : [phone]
Fax : [phone]
Email : [email protected]
[email protected]
Website : www.kusamelectrical.com
®

TE
TE
12

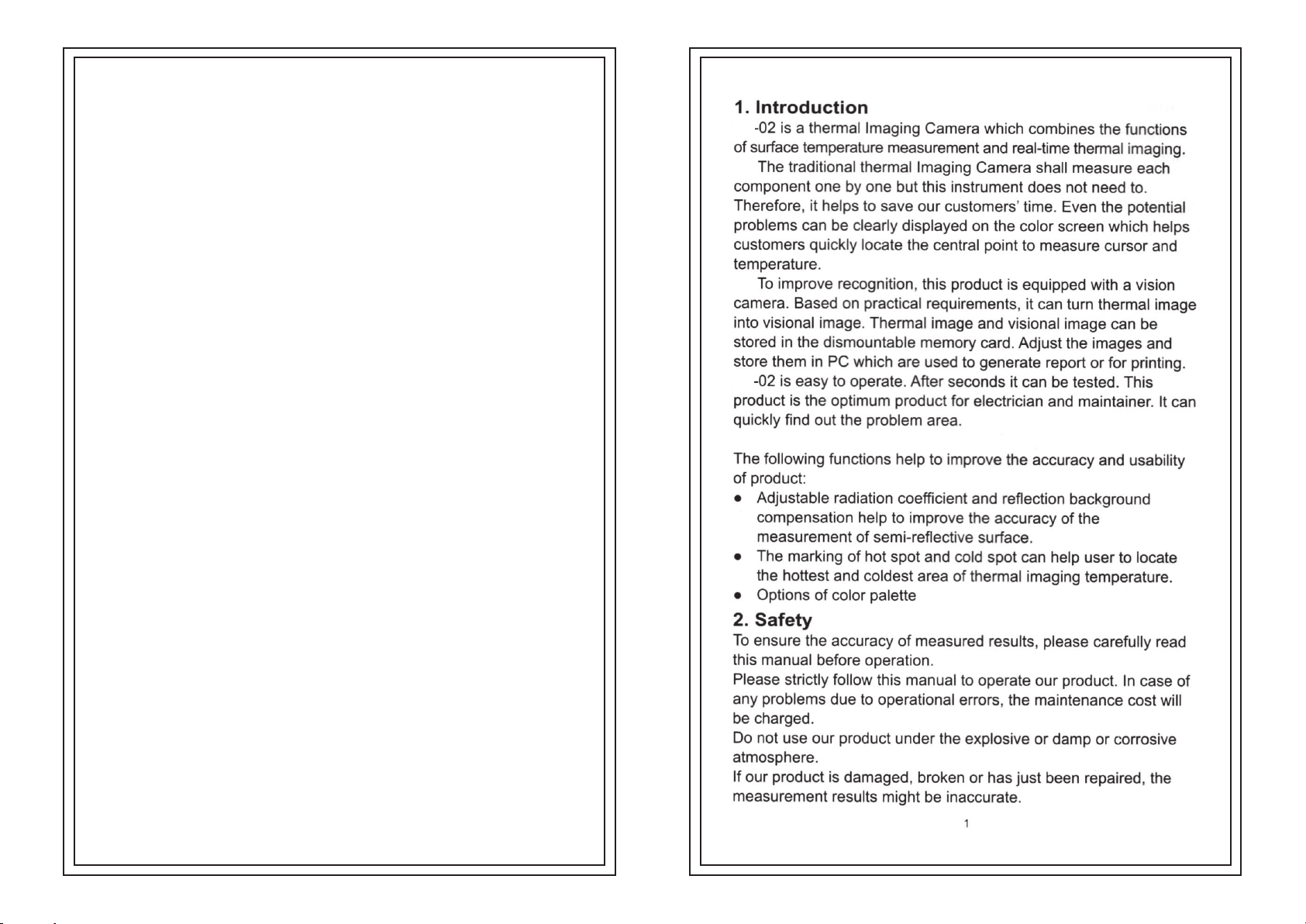

WARRANTY
Each “KUSAM-MECO” product is warranted to be free from defects in material and
workmanship under normal use & service. The warranty period is one year (12
months) and begins from the date of despatch of goods. In case any defect occurs in
functioning of the instrument, under proper use, within the warranty period, the same
will be rectified by us free of charges, provided the to and fro freight charges are borne
by you.
This warranty extends only to the original buyer or end-user customer of a “KUSAM-
MECO” authorized dealer.
This warranty does not apply for damaged Ic’s, fuses, burnt PCB's, disposable
batteries, carrying case, test leads, or to any product which in “KUSAM-MECO’s”
opinion, has been misused, altered, neglected, contaminated or damaged by
accident or abnormal conditions of operation or handling.
“KUSAM-MECO” authorized dealer shall extend this warranty on new and unused
products to end-user customers only but have no authority to extend a greater or
different warranty on behalf of “KUSAM-MECO”.
“KUSAM-MECO’s” warranty obligation is limited, at option, free of charge repair, or
replacement of a defective product which is returned to a “KUSAM-MECO”
authorized service center within the warranty period.
THIS WARRANTY IS BUYER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. “KUSAM-MECO” SHALL NOT BE LIABLE FOR
ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR
LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE
WHATSOEVER.
All transaction are subject to Mumbai Jurisdiction.
