1. Determine the overall length you need the assembled
fixture to be.
2. Adjust the fixture height: To extend the length by releasing
the cord E or to shorten the cord E by pressing F , then
release F to lock and fasten the wire.
Installation for 41756
This item is ETL listed and suitable only for indoor
dry locations.
1.Before assembling lighting fixtures, make sure you have
electrical wiring experience or have your fixture installed by
a qualified licensed electrician.
2.Prepare everything in a clear area.
3.Put on gloves all the time during this installation.
4.Take out fixture and glass from box.
5.Read instructions carefully before you assemble.
START FROM HERE
-1-
-1-

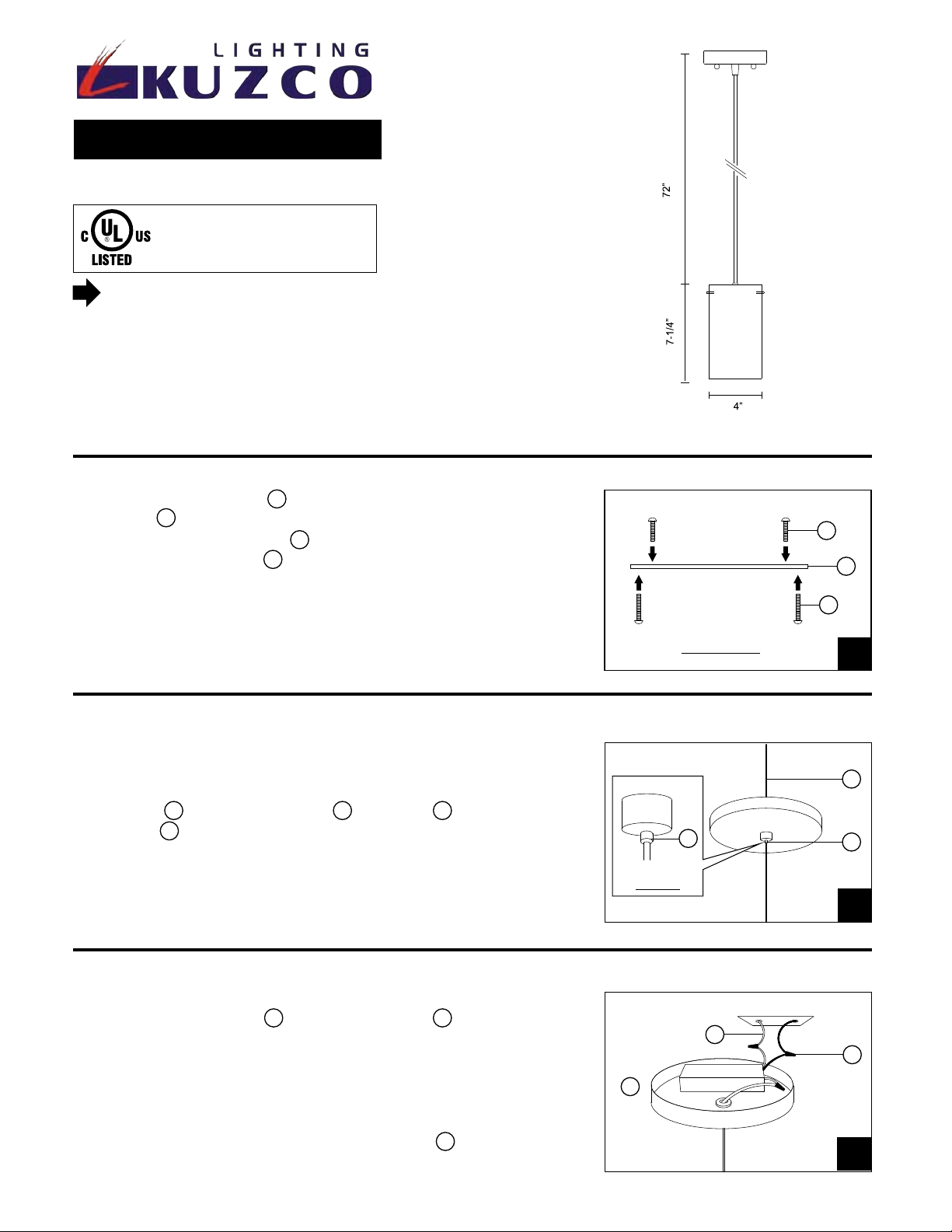

1. Take out the hanging bar A for mounting by threading two
screws B .
2. Then mount the hanging bar A carefully to the junction box
by using the two screws C provided.
1. Turn off the power at the electrical panel.
2. Connect the power cords I by using the marettes G
and connecting the white wire to neutral wire in the supply
circuit. Connect the clear wire to the hot wire in the supply
circut.
3. Connect the ground wire from the fixture to the ground
wire in the supply circuit.
4. Wrap excess cord together and put in canopy cover H .
B
A
F R O N T V I E W
C
1
2
F
E
F
D E T A I L
41301
This item is UL & ULC listed and
suitable only for indoor dry locations.
3
3
I
H
G
Amber: 41301A / Blue: 41301B
White: 41301W / Red: 41301R

1. Screw in light bulb K completely into the socket J .
1. To install glass shade N , hold the glass shade N with
one hand and screw the three screws O with the other
hand.
2. Fixture can now be lamped accordingly.
-2-
1. Carefully to tread on both ball knobs D and screws B to
secure ceiling canopy G to the ceiling .
4
D
G
B
5
6
K
J
N
O

Hanging Bar X 1
Long Screws X 4
Marettes X 2
Glass X 1
Clear SVT Cable X 1
Installation Parts List
A
B
G
Canopy X 1 + Aircraft Cable X 1 + Metal X 1
HE
N
Nuts X 2
I
C
F
+
+
-2-
Amber: 41301A / Blue: 41301B
White: 41301W / Red: 41301R
Pins X 3
O
