kuzco lighting EG64810 User manual

START FROM HERE
• Make sure POWER is COMPLETELY OFF
• Have your fixture installed by a qualified licensed electrician
• Prepare everything in a clear area
• Wear gloves at all time during this installation
• Read instructions carefully before you start assembly
• Keep this installation sheet for future reference
Technical Support: 1-855-855-8926
Please Note:
• This Kuzco LED fixture comes with pre-wired LED module(s)
• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary
contact with the module could cause permanent damage
• 12V input with Outdoor Rated Low Voltage Transformer (Transformer supplied by
others)
• Non-Dimming
• For typical ground stake mounting
• Luminaires shall not be installed within 10 feet of pool, spa or fountain
2a.
INSTALLATION SHEET
EG64810
LED Exterior Garden
Ground Stake Mounting
19054 28th Avenue Surrey, BC Canada V3Z 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W: kuzcolighting.com
20210427

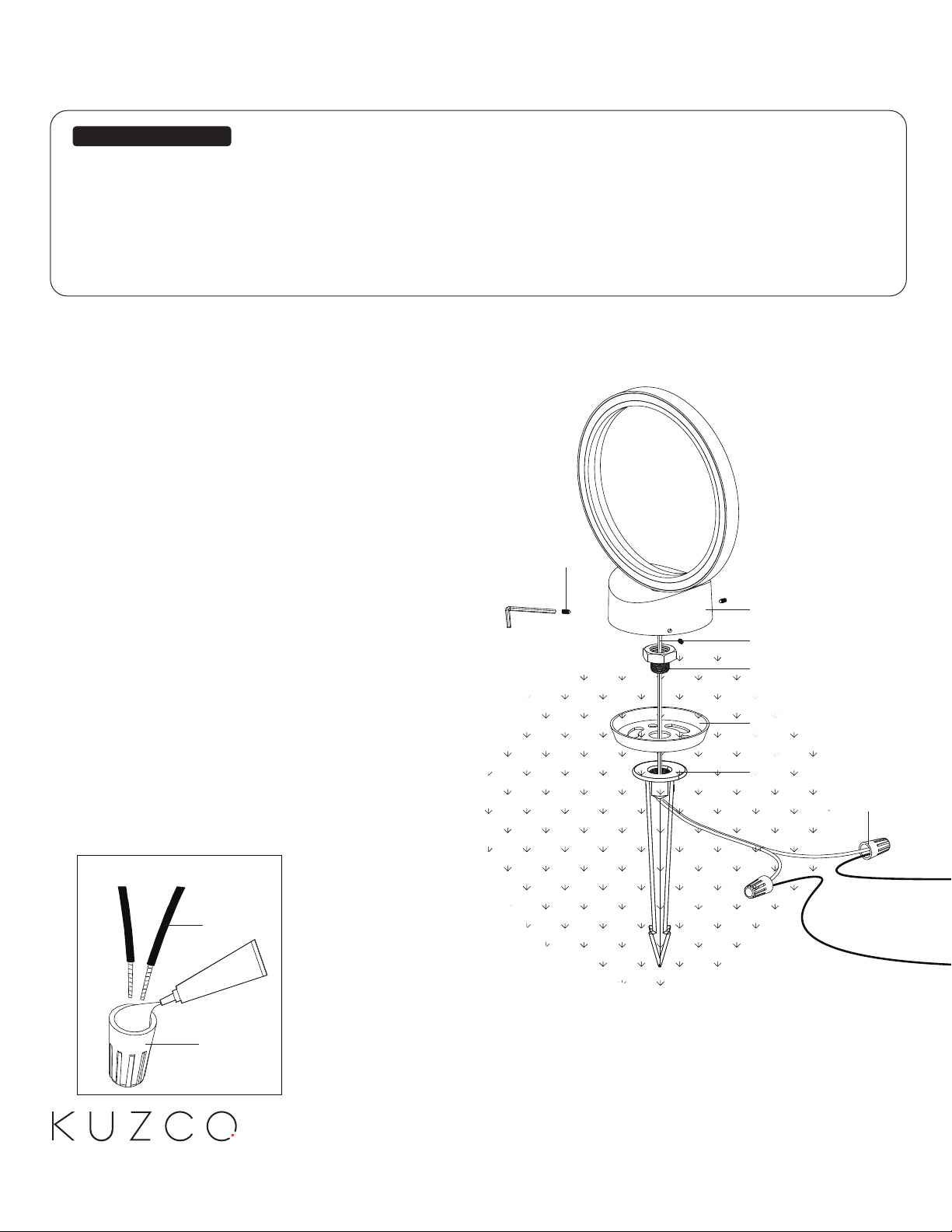

3a.
1a.
1d.
1f.
2b.
1b.
2a.
Illustration 1
silicone sealant
1b.
1. Remove fixture from its original package
2. Run fixture wire (1b) from the canopy (1a) through the
mounting hole on top of the ground stake (3a)
3. Run transformer wire (provided by others) to location of
intended install
Note: the low voltage wires are intended for shallow
burial - less than 6 inches
4. Align fixture thread (1d) (Note: fixture thread (1d) is 1/2-14
NPT) with hole on mounting base (1f) and secure to ground
stake (3a) by threading clockwise until it fits snuggly. Secure
mounting base (1f) to fixture (1a) with set screws (2b) and allen
key
5. Fill outdoor rated wire nuts (2a) with silicone sealant (not
provided). Cut and strip fixture wires (1b) and connect to
transformer wire using outdoor rated wire nuts (2a) provided
(Illustration 1)
Note: for multiple low-voltage garden light installation
daisy-chain low voltage wire to each fixture from 12V
transformer
6. Place stake (3a) in desired position and insert into ground until
the flange of stake is flush with ground

START FROM HERE
• Make sure POWER is COMPLETELY OFF
• Have your fixture installed by a qualified licensed electrician
• Prepare everything in a clear area
• Wear gloves at all time during this installation
• Read instructions carefully before you start assembly
• Keep this installation sheet for future reference
Technical Support: 1-855-855-8926
Please Note:
• This Kuzco LED fixture comes with pre-wired LED module(s)
• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary
contact with the module could cause permanent damage
• 12V input with Outdoor Rated Low Voltage Transformer (Transformer supplied by
others)
• Non-Dimming
• Hardscape Mounting
• Luminaires shall not be installed within 10 feet of pool, spa or fountain
1f.
1a.
1f.
1b.
2b.
2a.
2a.
1b.
Illustration 1 Illustration 2
silicone sealant
INSTALLATION SHEET
Hardscape Mounting
EG64810
LED Exterior Garden
19054 28th Avenue Surrey, BC Canada V3Z 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W: kuzcolighting.com
20210427
1. Remove fixture from its original package
2. Drill holes on the hardwood and secure mounting base (1f)
with screws (not provided) (Illustration 2)
3. Run wire (1b) from the canopy (1a) and through the mounting
hole on top of the ground
4. Fill outdoor rated wire nuts (2a) with silicone sealant (not
provided). Cut and strip fixture wires (1b) and connect to
transformer wire using outdoor rated wire nuts (2a) provided
(Illustration 1)
Note: for multiple low-voltage garden light installation
daisy-chain low voltage wire to each fixture from 12V
transformer
5. Secure canopy (1a) to mounting base (1f) with set screw (2b)
and allen key provided
