KV2 Audio ESD Series User manual

User Guide
ESD Series
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
· ESD5 · ESD25 · ESD6 · ESD36 · ESD10 · ESD12 · ESD15

ESD Series · Contents
Contents
ESD5 3
Overview 3
Installation, Drawings 4
Frequency characteristics 5
Specications 6
ESD25 7
Overview 7
Installation, Drawings 8
Frequency characteristics 9
Specications 10
ESD6 11
Overview 11
Installation, Drawings 12
Frequency characteristics 13
Specications 14
ESD36 15
Overview 15
Installation, Drawings 16
Frequency characteristics 17
Specications 18
ESD10 19
Overview 19
Installation, Drawings 20
Frequency characteristics 21
Specications 22
ESD12 23
Overview 23
Installation, Drawings 24
Frequency characteristics 25
Specications 26
ESD15 27
Overview 27
Installation, Drawings 28
Frequency characteristics 29
Specications 30
Accessories 31 - 33
Warranty · Service 34
Notes 35 - 37
ESD Series · Contents

ESD5 · Overview
Introduction
The ESD5 is a very high quality 2-way full-range compact low prole passive loudspeaker with performance that
dees its size. Delivering exceptional clarity for speech and program reproduction, the ESD5 is perfect for discreet
installations and audio visual presentations where sound quality is paramount, but aesthetic dimensions are of equal
importance. The ESD5's high impedance capability means that up to sixteen units can be run from a single suitable
quality stereo amplier, to provide a high delity background program throughout a venue.
A built-in switchable voice eq circuit is included.
Application
Specically designed as a super- discreet passive
loudspeaker for reproduction of recorded music and speech
• Suitable in xed installations as a full range speaker or as
a system with accompanying subwoofers
• Excellent peripheral reinforcement for main KV2 systems
• Fill-in speaker
• Monitoring
• Ceiling or under balcony mounting
ESD5 - part number KVV 987 340
The Ultimate Compact Passive System
Connection
The ESD5 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in parallel
to allow the "daisy chaining" of additional ESD5's.
ESD5 · Overview
3

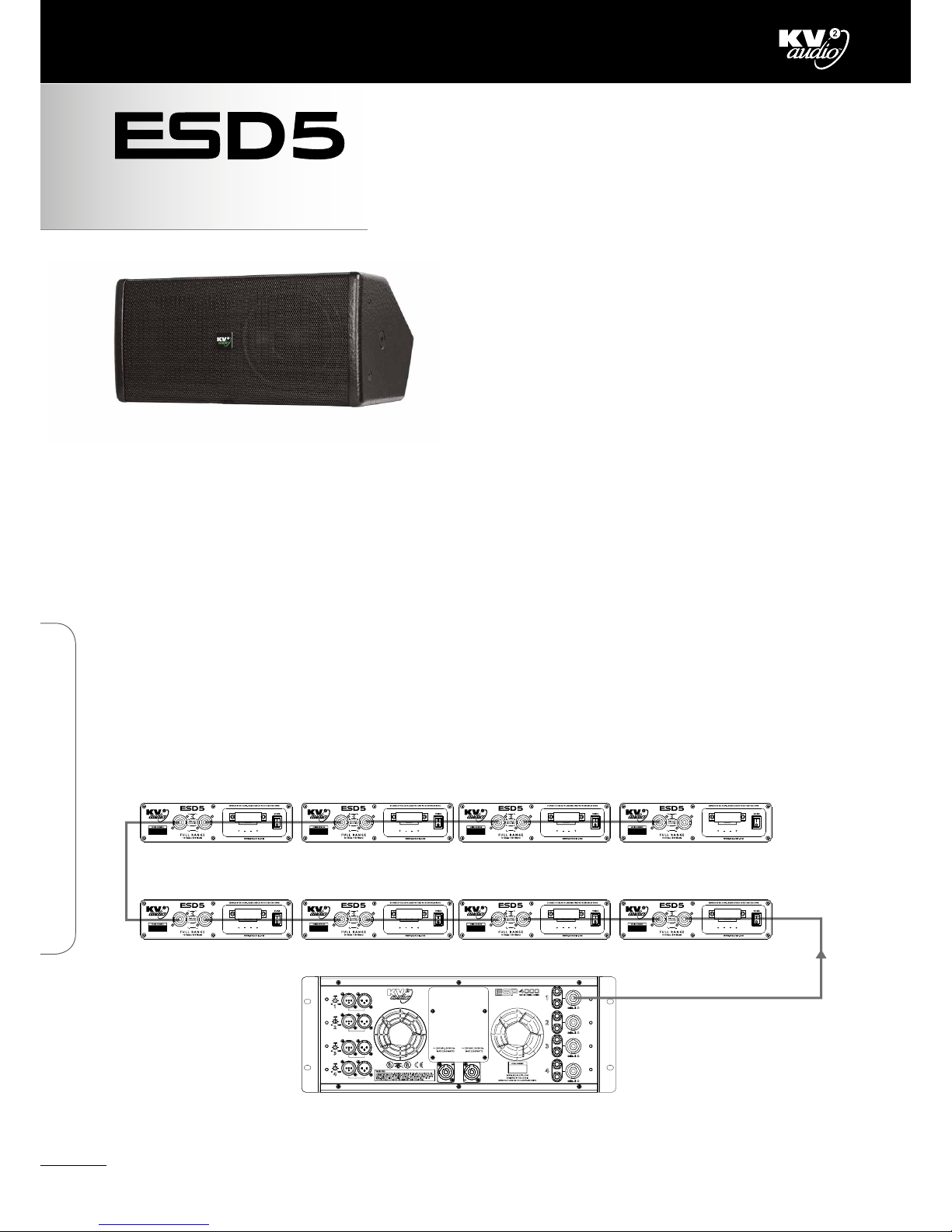

PARALLEL CONNECTION OF THE ESD5 (16Ω) - TOTAL IMPEDANCE 2Ω

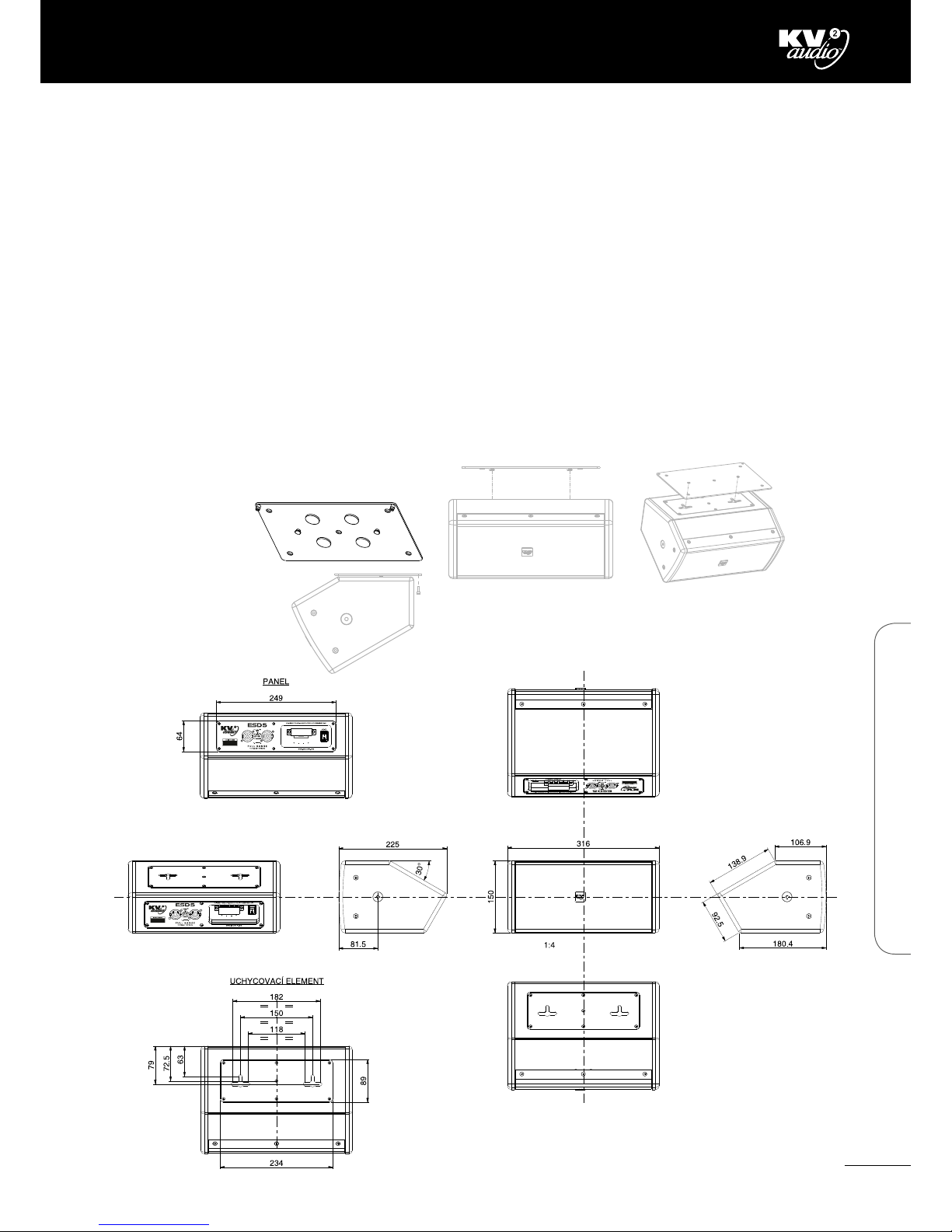

ESD5 · Installation · Drawings
Installation
The ESD5 is supplied with a single "ESD5 Wall Bracket", 2 locking screws with spacers and one 3 mm Allen key. Each
ESD5 is quipped with two oval mounting apertures designed for easy vertical or horizontal attachment to the ESD5
Wall Bracket.
To enable xing to a ceiling or alternatively to the wall, measure out the center point of the ESD5 Wall bracket. There
are two extra holes on the Wall Bracket, designed to accept locking screws - this side belongs on the rear side of the
ESD5 cabinet.
Fix the Wall bracket using one center countersunk screw. Rotate the Wall bracket around the central screw and set the
correct angle of the bracket.
Fix the Wall Bracket using the remaining four countersunk screws. Position the ESD5 on to the Wall Bracket‘s pin heads
and x it sliding the cabinet down. When mounting the ESD5 on the ceiling, slide the cabinet backward and x/secure
it using two locking screws and tighten using the supplied Allen key.

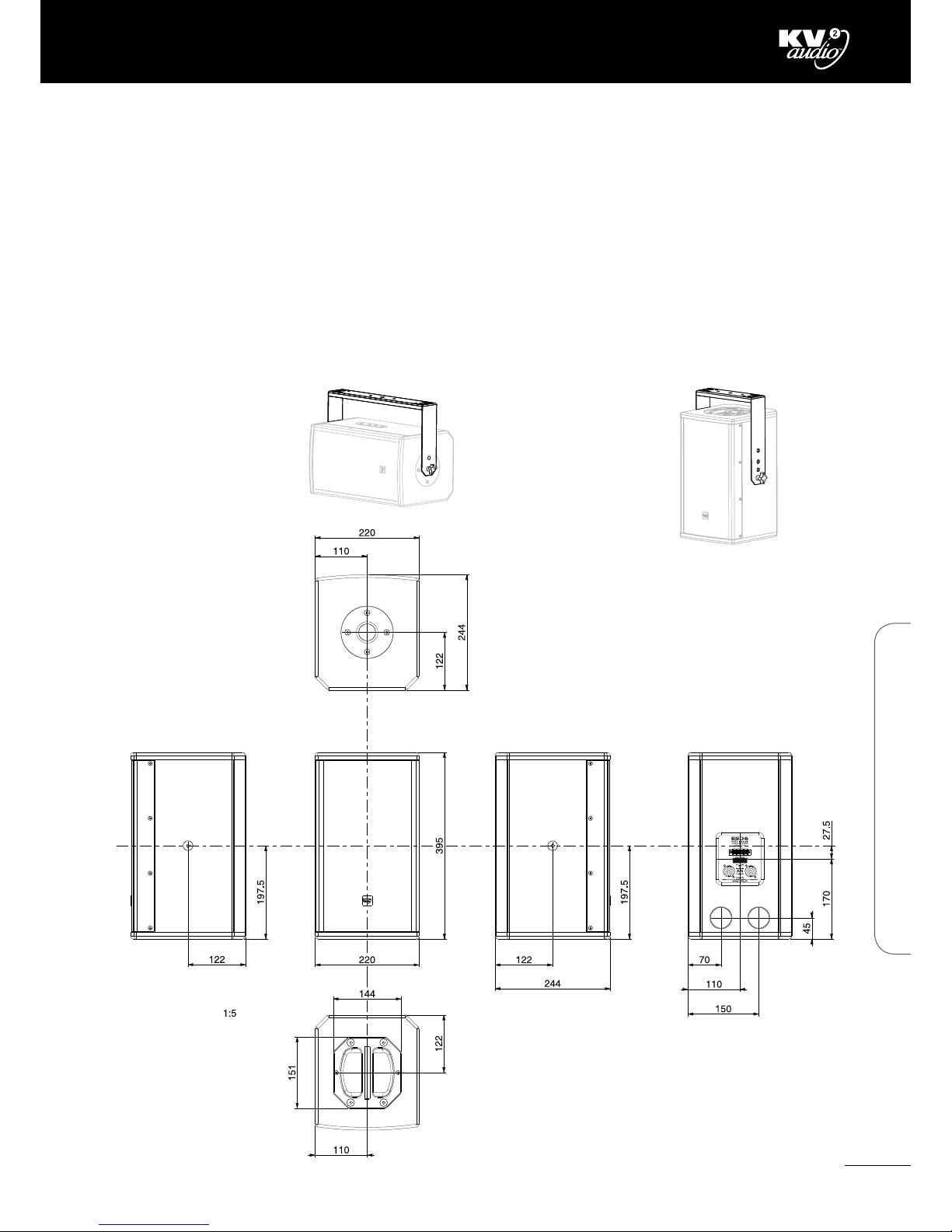

Drawings
part name:
ESD5 BRACKET
part number:
KVV 987 340
4
ESD5 · Installation · Drawings

ESD5 · Frequency characteristics
Frequency response
500Hz - 2kHz
Horizontal Polarplots
125Hz - 250Hz 4kHz - 16kHz
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
125Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
Vertical Polarplots
ESD5 · Frequency characteristics
5

ESD5 · Specications
Specications
System Acoustic Perfomance
Max SPL Long-term 112dB
Max SPL Peak 115dB
-3dB Response 130Hz to 22kHz
-10dB Response 74Hz to 28kHz
Recommended Power 100W
Sensitivity 89dB
Impedance 16Ω
Crossover Point 3.0kHz
High Frequency Section
Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical 90° x 90°
Throat Exit Diameter / Diaphragm Size 1" / 1.3"
Diaphragm Material Titanium
Magnet Type Ferrite
Protection RMS Limiter
Low Frequency Section
Acoustic Design Closed box
Woofer Size / Voice Coil Diameter 5" / 1.75"
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Ferrite
Protection RMS Limiter
Speaker Input
Speaker Input 2x Neutrik Speakon®, Terminal Block
Cabinet
Cabinet Material Baltic birch
Color "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height 150 mm (5.9")
Width 316 mm (12.4")
Depth 224.7 mm (8.84")
Weight 7 kg (15.4lbs)
6
ESD5 · Specications

ESD25 · Overview
Introduction
The ESD25 is a very high quality, 2-way full-range compact low prole passive loudspeaker with enhanced lower bass
extension. Its opposing driver design assists with pattern control of the low mid frequencies, reducing reections in
reverberant spaces and improving intelligibility. Delivering exceptional clarity for speech and program reproduction,
the ESD25 is ideal for under balcony or front stage ll applications in theaters and performing arts spaces where
transparent supplementation of the main system is required. As with the already widely acclaimed ESD5, the ESD25
is shaped to t discreetly into these applications and comes with its own integral bracket for quick installation.
A built-in switchable voice eq circuit is included.
Application
Specically designed as a super- discreet passive
loudspeaker for reproduction of recorded speech and music
• Suitable in xed installations as a full range speaker or as
a system with accompanying subwoofers
• Excellent peripheral reinforcement for main KV2 systems
• Fill-in speaker
• Monitoring
• Ceiling or under balcony mounting
ESD25 - part number KVV 987 368
2-Way Full-Range Compact Low Prole Passive Loudspeaker
Connection
The ESD25 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in
parallel to allow the "daisy chaining" of additional ESD25's.
ESD25 · Overview
7
PARALLEL CONNECTION OF THE ESD25 (8Ω) - TOTAL IMPEDANCE 2Ω

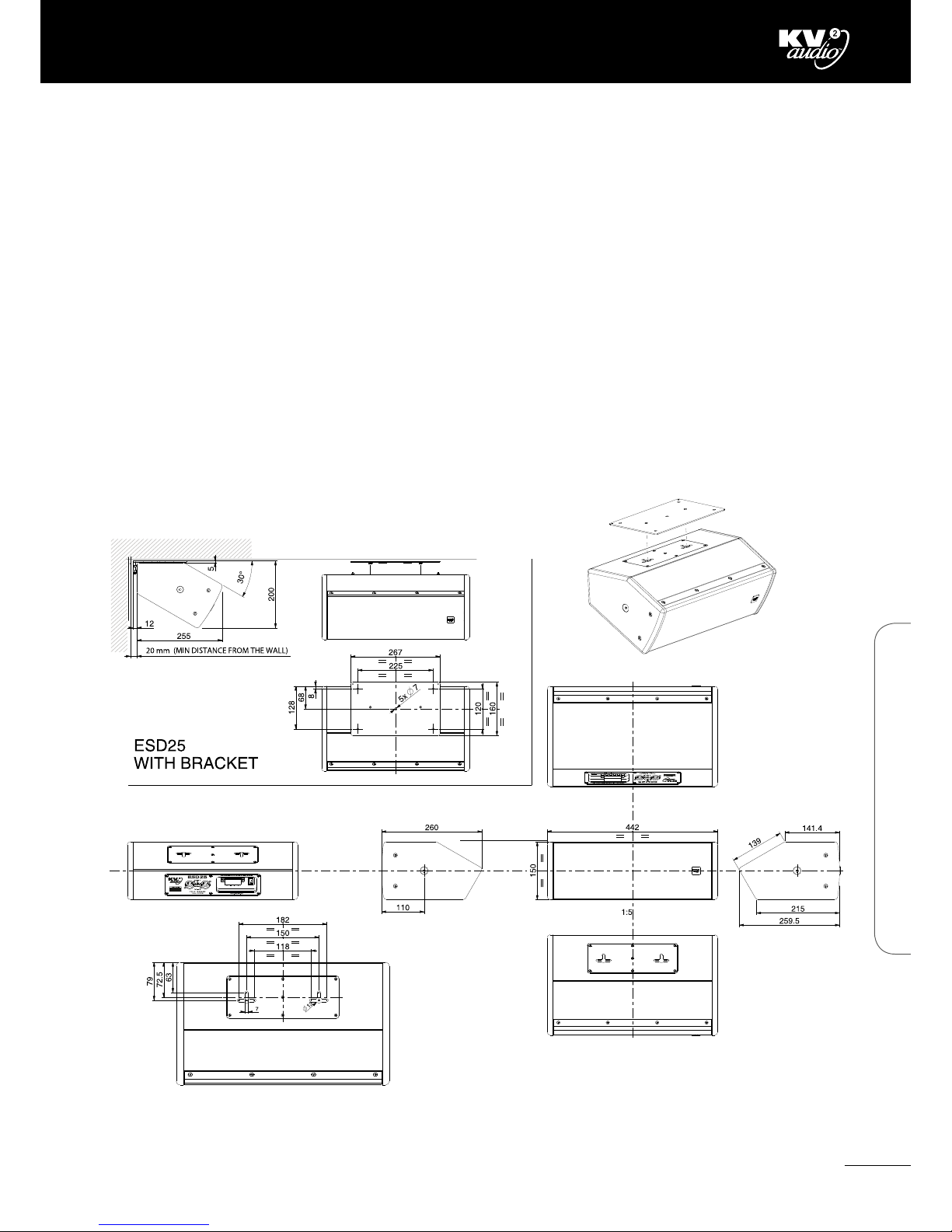

ESD25 · Installation · Drawings
Installation
The ESD25 is supplied with a single "ESD25 Wall Bracket", 2 locking screws with spacers and one 3 mm Allen key. Each
ESD25 is equipped with two oval mounting apertures designed for easy vertical or horizontal attachment to the
ESD25 Wall Bracket.
To enable xing to a ceiling or alternatively to the wall, measure out the center point of the ESD25 Wall bracket. There
are two extra holes on the Wall Bracket, designed to accept locking screws - this side belongs on the rear side of the
ESD25 cabinet.
Fix the Wall bracket using one center countersunk screw. Rotate the Wall bracket around the central screw and set the
correct angle of the bracket.
Fix the Wall Bracket using the remaining four countersunk screws. Position the ESD25 on to the Wall Bracket‘s pin
heads and x it sliding the cabinet down. When mounting the ESD25 on the ceiling, slide the cabinet backward and
x/secure it using two locking screws and tighten using the supplied Allen key.
Drawings
8
ESD25 · Installation · Drawings

ESD25 · Frequency characteristics
Frequency response
500Hz - 2kHz
Horizontal Polarplots
125Hz - 250Hz 4kHz - 16kHz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
125Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
Vertical Polarplots
125Hz
250Hz
125Hz
250Hz
ESD25 · Frequency characteristics
9

ESD25 · Specications
Specications
System Acoustic Perfomance
Max SPL Long-term 118dB
Max SPL Peak 121dB
-3dB Response 120Hz to 22kHz
-10dB Response 72Hz to 28kHz
Recommended Power 200W
Sensitivity 92dB
Impedance 8Ω
Crossover Point 3.0kHz
High Frequency Section
Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical 90° x 90°
Throat Exit Diameter / Diaphragm Size 1" / 1.3"
Diaphragm Material Titanium
Magnet Type Ferrite
Protection RMS Limiter
Low Frequency Section
Acoustic Design Closed box
Number of drivers 2
Woofer Size / Voice Coil Diameter 5" / 1.75"
Diaphragm Material Epoxy Reinforced Cellulose
Protection RMS Limiter
Speaker Input
Speaker Input 2x Neutrik Speakon®, Terminal Block
Cabinet
Cabinet Material Baltic birch
Color "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height 150 mm (5.9")
Width 442 mm (17.4")
Depth 260 mm (10.24")
Weight 9.6 kg (21.2lbs)
10
ESD25 · Specications

ESD6 · Overview
Introduction
The ESD6 is a high quality 2-way full-range compact passive loudspeaker with output that dees its size. Delivering
amazing clarity for speech and program reproduction, the ESD6 is perfect for discreet installations and audio visual
presentations where sound quality is paramount but size also matters. The ESD6's high impedance capability means
that up to sixteen units can be run from a single suitable quality stereo amplier to provide a high delity background
program throughout a venue.
Application
Specically designed as a passive loudspeaker
for reproduction of recorded music in small areas
• Suitable in Fixed installations as full range stand-alone or
with subwoofers
• Excellent peripheral reinforcement for main KV2 systems
• Portable PA for Multi-Media applications
• Compact oor monitoring solutions
• Domestic and Professional studio monitoring
ESD6 - part number KVV 987 206
Connection
The loudspeaker system is connected to an amplier using Speacon (NL4) connectors or the terminal board.
The connectors are interconnected in parallel to connect more loudspeaker systems.
The Ultimate Compact Passive System
ESD6 · Overview
11

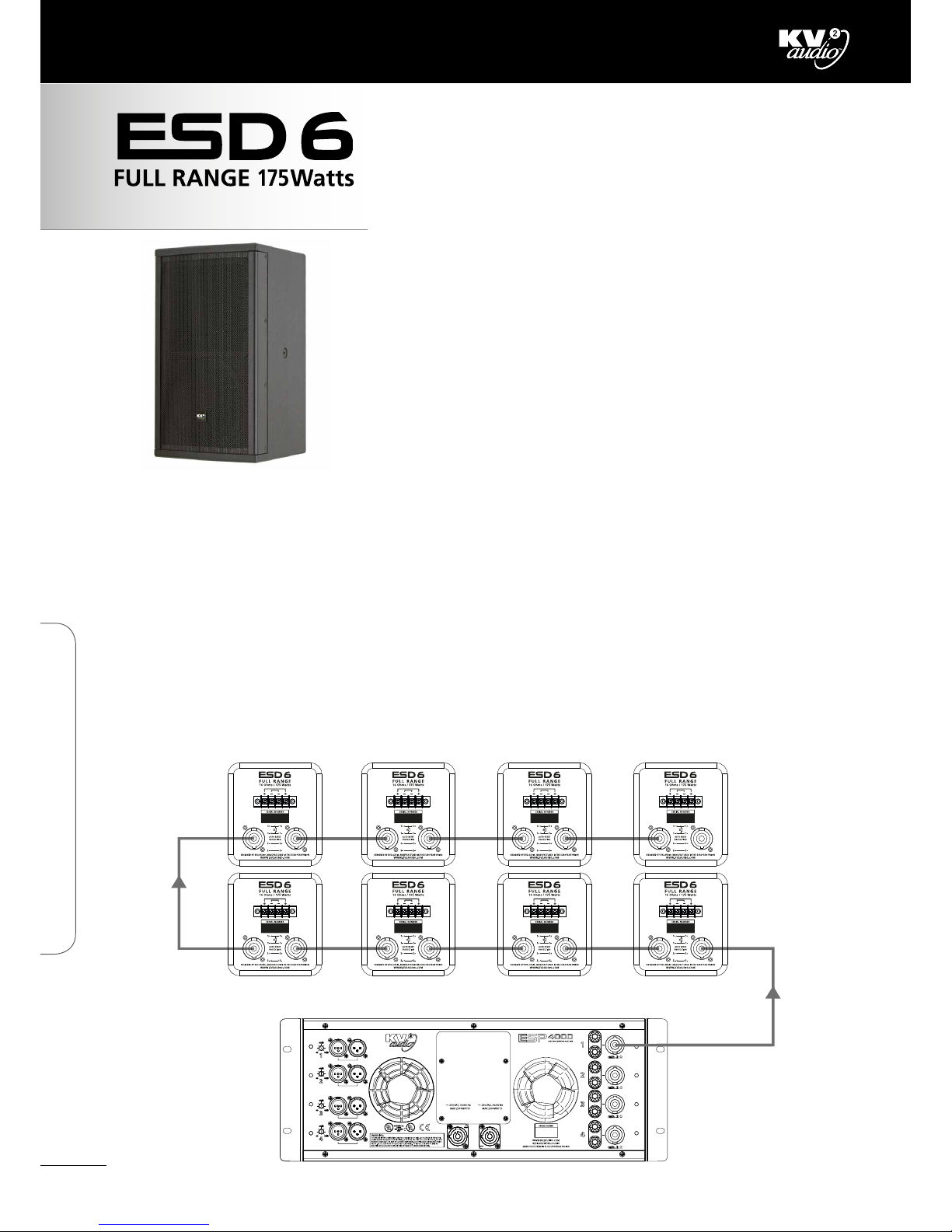

PARALLEL CONNECTION OF THE ESD6 (16Ω) - TOTAL IMPEDANCE 2Ω

ESD6 · Installation · Drawings
Installation
Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically
using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with
horizontal bracket) for horizontal xing and to a mounting post with a diameter of 35 mm using a support ange.
The ESD6 also features a 35 mm speaker pole mount adapter housed at the bottom of the cabinet for use with
conventional speaker stands and poles.
Drawings
part name: part name:
ESD6 "U" HORIZONTAL BRACKET EX6, ESD6 "U" VERTICAL BRACKET
part number: part number:
KVV 987 222 KVV 987 148
12
ESD6 · Installation · Drawings

ESD6 · Frequency characteristics
Frequency response
500Hz - 2kHz
Horizontal Polarplots
Vertical Polarplots
73Hz - 250Hz 4kHz - 16kHz
73Hz
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz
73Hz
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
ESD6 · Frequency characteristics
13

ESD6 · Specications
Specications
System Acoustic Perfomance
Max SPL Long-term 117dB
Max SPL Peak 120dB
-3dB Response 68Hz to 20kHz
-10dB Response 51Hz to 28kHz
Recommended Power 175W
Sensitivity 92dB
Impedance 16Ω
Crossover Point 2.0kHz
High Frequency Section
Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical 100° x 100°
Throat Exit Diameter / Diaphragm Size 1" / 1.75"
Diaphragm Material Titanium
Magnet Type Neodymium
Protection RMS Limiter
Low Frequency Section
Acoustic Design Front Loaded, Bass Reex
Woofer Size / Voice Coil Diameter 6" / 1.75"
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium
Protection RMS Limiter
Speaker Input
Speaker Input 2x Neutrik Speakon®, Terminal Block
Cabinet
Cabinet Material Baltic birch
Handles 1
Pole Mount 35 mm
Color "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height 390 mm (15.35")
Width 220 mm (8.66")
Depth 240 mm (9.45")
Weight 9.5 kg (20.9lbs)
14
ESD6 · Specications

ESD36 · Overview
Introduction
One of the more unique loudspeakers oered by KV2 Audio the ESD36 is a passive, full-range 3-way speaker system
for speech and music reproduction. The ESD36 features a 6" driver dedicated to high quality mid-range reproduction
and a further two low frequency 6" drivers for enhanced bass extension. Alongside the same compression driver as
featured in the popular EX6, the ESD36 oers comparable performance to many 12" cabinets with an enhanced vocal
performance from this 3-way design.
Application
Specically designed as a passive loudspeaker
for reproduction of recorded music in small areas
• Suitable in Fixed installations as full range stand-alone or
with subwoofers
• Multi-purpose xed installations
• Domestic and Professional studio monitoring
ESD36 - part number KVV 987 224
Connection
The ESD36 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in parallel
to allow the "daisy chaining" of additional ESD36's.
The Ultimate Passive Compact 3-way
ESD36 · Overview
15
PARALLEL CONNECTION OF THE ESD36 (8Ω) - TOTAL IMPEDANCE 2Ω

Drawings
part name: part name:
ESD36 "U" HORIZONTAL BRACKET ESD36 "U" VERTICAL BRACKET
part number: part number:
KVV 987 244 KVV 987 243
ESD36 · Installation · Drawings
Installation
Installations should be carried out using KV2 Audio's horizontal or vertical U brackets. They are mounted vertically
using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with
horizontal bracket) for horizontal xing and to a mounting post with a diameter of 35 mm using a support ange.
The ESD36 also features a 35 mm speaker pole mount adapter housed at the bottom of the cabinet for use with
conventional speaker stands and poles.
16
ESD36 · Installation · Drawings

ESD36 · Frequency characteristics
Frequency response
500Hz - 2kHz
Horizontal Polarplots
Vertical Polarplots
73Hz - 250Hz 4kHz - 16kHz
73Hz
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz
73Hz
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
ESD36 · Frequency characteristics
17

ESD36 · Specications
Specications
System Acoustic Perfomance
Max SPL Long-term 122dB
Max SPL Peak 125dB
-3dB Response 65Hz to 25kHz
-10dB Response 57Hz to 30kHz
Recommended Power 350W
Sensitivity 94dB
Impedance 8Ω
Crossover Point 600Hz, 2.5kHz
High Frequency Section
Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical 100° x 100°
Throat Exit Diameter / Diaphragm Size 1" / 1.75"
Diaphragm Material Nitride Titanium
Magnet Type Neodymium
Protection RMS Limiter
Mid Range Section
Acoustic Design Low Inductance Lightweight
Woofer Size / Voice Coil Diameter 6" / 1.75"
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium
Protection RMS Limiter
Low Frequency Section
Acoustic Design Front Loaded, Bass Reex
Woofer Size / Voice Coil Diameter 2 x 6" / 1.75"
Magnet Type Neodymium
Diaphragm Material Epoxy Reinforced Cellulose
Protection RMS Limiter
Speaker Input
Speaker Input 2x Neutrik Speakon®, Terminal Block
Cabinet
Cabinet Material Baltic birch
Handles 1
Pole Mount 35 mm
Color "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height 730.5 mm (28.76")
Width 220 mm (8.66")
Depth 244 mm (9.60")
Weight 17.6 kg (38.8lbs)
18
ESD36 · Specications

ESD10 · Overview
Introduction
The ESD10 is a compact passive 2-way, high output, full-range loudspeaker incorporating a 10" trans-coil woofer
and a wide dispersion rotatable horn. The ESD10 provides a smooth hi delity response and delivers sound quality
and level that is superior to many larger competing products. Ideal as a main system speaker or as an ll-in for larger
systems. The ESD10 is an all round aordable passive solution that simply exudes quality.
Application
Specically designed as a passive loudspeaker for high
quality, high output portable music playback and live
performance in small areas
• Full range stand-alone solution or scalable to larger
systems with subwoofers
• Large conference and small to medium performance
venues
• Multi-purpose xed installations
• Personal monitoring
• In-ll for larger main KV2 Audio systems or third party
systems
ESD10 - part number KVV 987 207
Connection
The ESD10 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in parallel
to allow the "daisy chaining" of additional ESD10's.
The Ultimate Compact Passive System
ESD10 · Overview
19
PARALLEL CONNECTION OF THE ESD10 (4Ω) - TOTAL IMPEDANCE 2Ω

ESD10 · Installation · Drawings
Drawings
part name: part name:
EX10, ESD10 "U" HORIZONTAL BRACKET EX10, ESD10 "U" VERTICAL BRACKET
part number: part number:
KVV 987 036 KVV 987 033
Installation
Installations should be carried out using KV2 Audio's horizontal or vertical U brackets. They are mounted vertically
using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with
horizontal bracket) for horizontal xing and to a mounting post with a diameter of 35 mm using a support ange.
The ESD10 also features a 35 mm speaker pole mount adapter housed at the bottom of the cabinet for use with
conventional speaker stands and poles.
20
ESD10 · Installation · Drawings
