979-2 Miter Trim Saw System
Uncrating Supplement
Published:
979-2 Uncrating Supplement
05/28/2019

997-2_Uncrate_V1
Proprietary Notice
This Manual is confidential and contains proprietary information and intellectual
property of KVAL Inc., and is to be used solely by Customer as an operating manual
for KVAL Inc. machines. Neither this Manual nor any of the information contained
herein may be reproduced or disclosed under any circumstances without the express
written permission of KVAL Inc. For authorization to copy this information, please
call Kval Customer Support at [phone] or fax [phone]. Outside the
U.S. and Canada, call [phone].
The 979-2 is a trademark of Kval Incorporated.
Kval Incorporated. All rights reserved.
All other products are trademarks or registered trademarks of their respective holders,
all rights reserved. Reference to these products is not intended to imply affiliation with
or sponsorship of Kval Incorporated.
Contacting KVAL
Customer Service: For further information about this manual or other Kval Incorpo-
rated products, contact the Customer Support Department
• Mailing address:
Customer Support Department
Kval Incorporated
825 Petaluma Boulevard South
Petaluma, CA 94952
• Phone and Fax:
In the U.S and Canada, call [phone] or fax [phone]
Outside the U.S. and Canada, call [phone] or fax [phone]
•Business hours:
Technical Support:
6:00 AM to 4:00 PM Pacific Standard Time, Monday through Thursday
6:30 AM to 1:30 PM Pacific Standard Time, Friday
Parts & Service Sales:
6:30 AM to 4:00 PM Pacific Standard Time, Monday through Thursday
6:30 AM to 1:30 PM Pacific Standard Time, Friday
(Other sales related inquiries: http://www.kvalinc.com)
• Email: [email protected]

979-2 Uncrating and Collar Placement
Important: Forklifts should be rated at 10,000 lbs minimum.
Important: Avoid damaged cables and air lines, keep them safe when moving the
machines
Important: Avoid tip-over, ensure back section is moved away form the
front section.
Page 1 997-2_Uncrate_V1

-
1. Move the machine as close to the area it will be stationed before removing
the crate
2. Remove all lags from Operator ’ s Station, Boxes, and Electrical Panels.
3. Attach leveling bolts to corners of the machine.
4. Slide pads under machine to match the bolts
5. Move the equipment off the skid and carefully place aside. (See the forklift
Placement on next page.
Note: (Pay attention to all cables)
Uncrating
•After Machine Line is stable, Remove all painted set collars from the shafts.
Just about every shaft on the machine has set collars to secure the movable
assembly mounted to the shafts.
•Take off any tape securing the various buttons, switches and knobs.
•Leave a clear shot from the bolt holes in the foot pads to your shop floor. Now,
make sure the machine won’t rock back and forth.
•Once the machine has been proved, anchor it to the floor so that it won’t move
across the floor during operation.
•KVAL recommends a ½ RED HEAD, TRUE BOLT ANCHOR in each of the
foot pads. When drilling the concrete for the anchor bolts use a 1/2 bit.
Tips
Page 2 997-2_Uncrate_V1

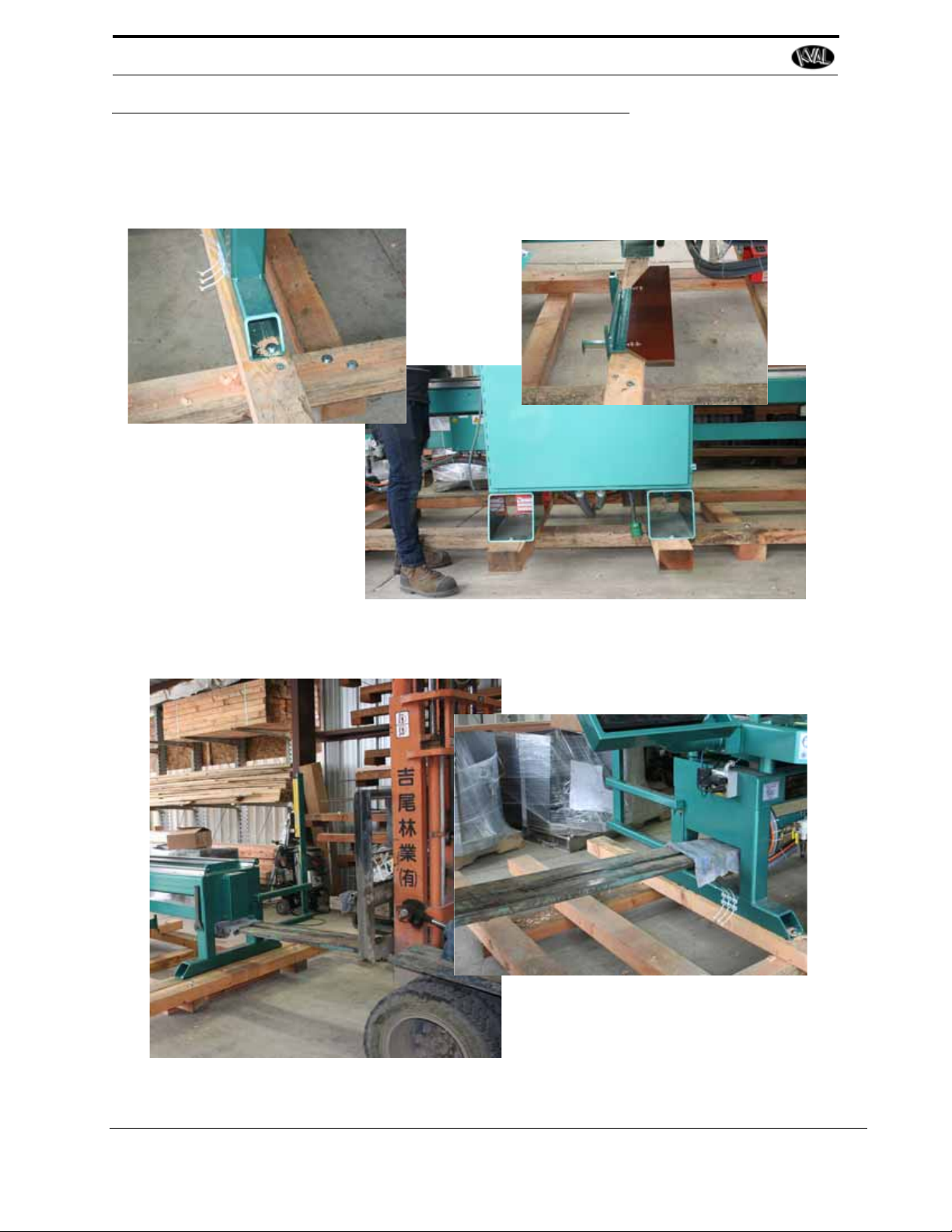

Suggested Method of Un-Crating
Suggested Method of Un-Crating
Un-Bolt all Legs and Assemblies
Forklift on Each End
Page 3 997-2_Uncrate_V1

Overview Collar Application
Overview Collar Application
Collars
Move Head to
within an inch of
second head
Plate to hold
Swivel on Fixed
Head
Plate to hold
Swivel on Head
Collar on each
side of bearing on
ball screw bar
After Head is
moved, add bar to
hold Head
How to Move Head
Remove
Tool
Page 4 997-2_Uncrate_V1

Overview Collar Application
Bar Under the Head
Secure Both Heads Rotary Movement
Page 5 997-2_Uncrate_V1

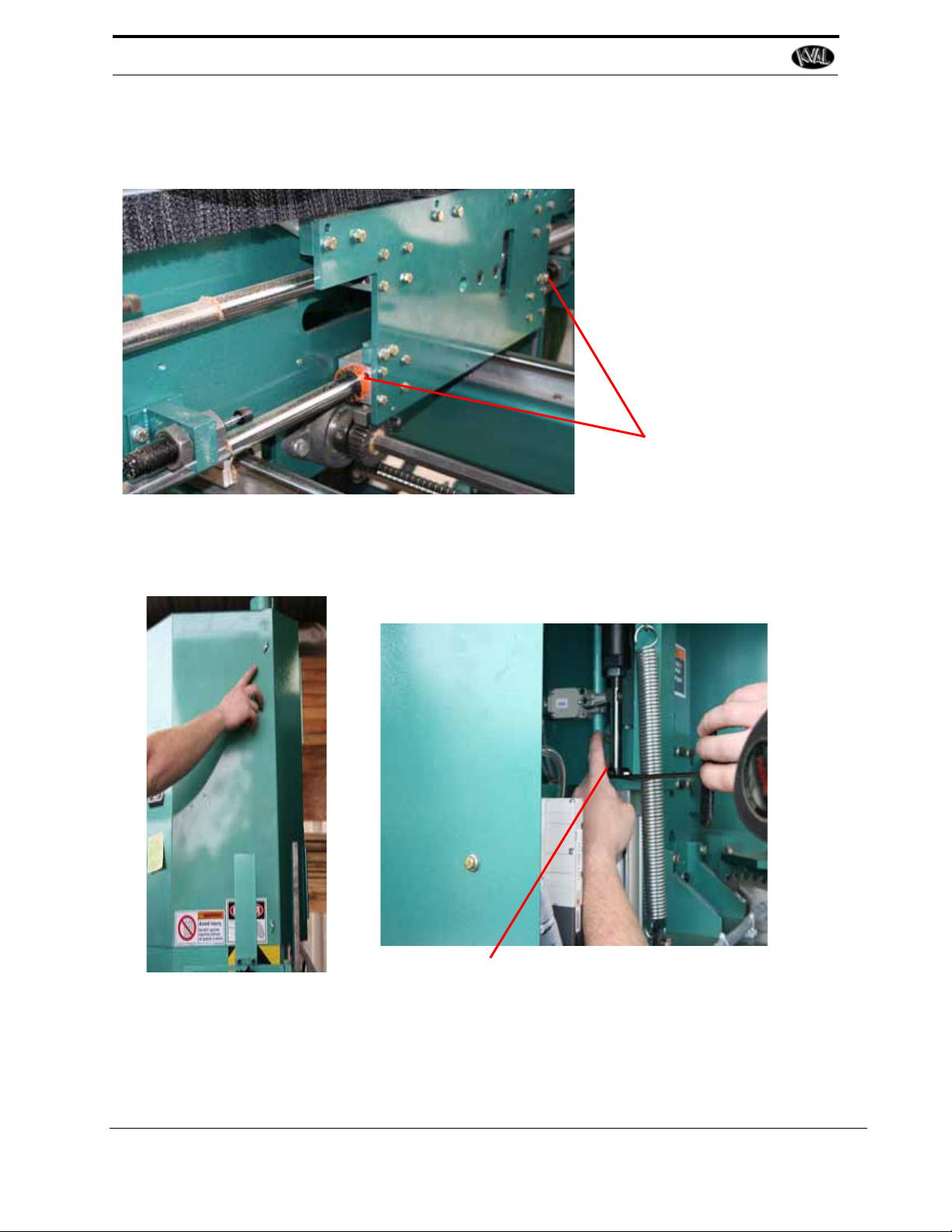

Overview Collar Application
Secure Both Heads Forward Movement
Collars both Sides
Both Heads
Secure Both Heads Vertical Movement
Collars both Sides
Both Heads
Page 6 997-2_Uncrate_V1

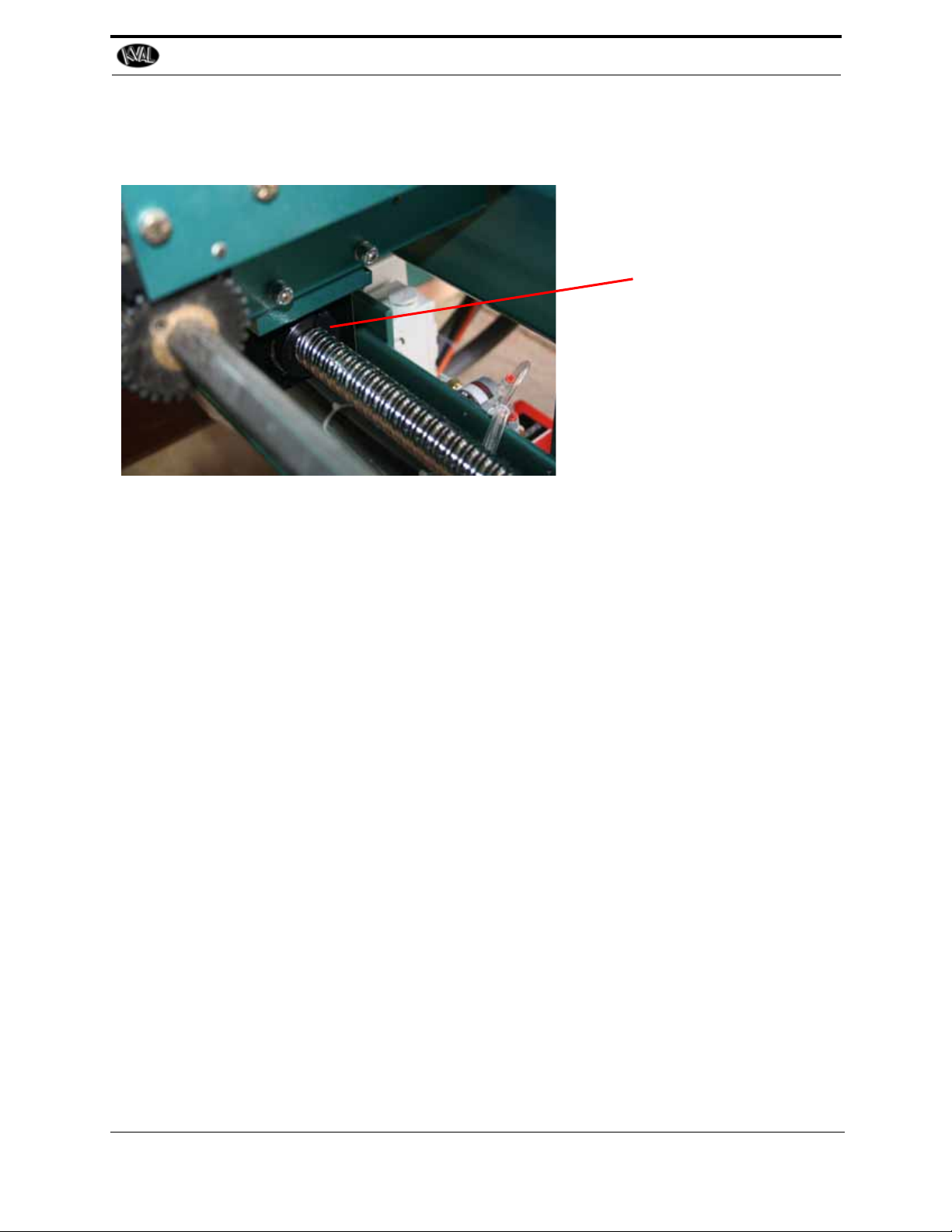

Overview Collar Application
Secure Ball Screw
Collars both Sides Of
Bearing
Page 7 997-2_Uncrate_V1
