4 Appendices
In this section you will find technical information about the Kvaser Hybrid
2xCAN/LIN and its connectors.
4.1 Definitions of LED states and colors
The Kvaser Hybrid 2xCAN/LIN has three types of LEDs; Power, Traffic and Info.
These are dual colored as shown in Table 2. A device with multiple channels has
one Traffic LED for each channel. When the device has more than one channel a
space and digit is added on the label, CH 1, CH 2 etc. The red Traffic LEDs are
also used to indicate errors by using all red Traffic LEDs simultaneously.
LED Label Color
Power PWR Green/Yellow
Traffic CH Yellow/Red
Info INFO Green/Yellow
Table 2: The different type of LEDs.
The following definitions is used to describe the state of an LED:
Off The LED is off and no light is emitted.
Flash The LED is lit up for a very short time. A single flash may be hard to see
and a continuous set of flashes will look the same as On.
Slow Blink The LED is repeatedly turned On and Off. The On and Off phase is
equal in time.
Fast Blink The LED is repeatedly turned On and Off but with a higher frequency
than Slow Blink. The On and Off time is still equal.
On The LED is constantly emitting light.
Slow Waver This is a variant of Slow Blink but instead of being Off, a second color
is On. This is only possible with a dual colored LED.
Fast Waver The LED is alternating between two colors as in Slow Waver but
using a higher frequency.
Running This means that all LEDs are lit, one at the time, in sequence with every
color available i.e. “Power green->Power yellow->Traffic 1 yellow->Traffic 1
red->Traffic 2 yellow->Traffic 2 red->. . . ”
As an example, "Slow Waver (Green/Yellow)" means that the LED is slowly blinking
by alternating between green and yellow.

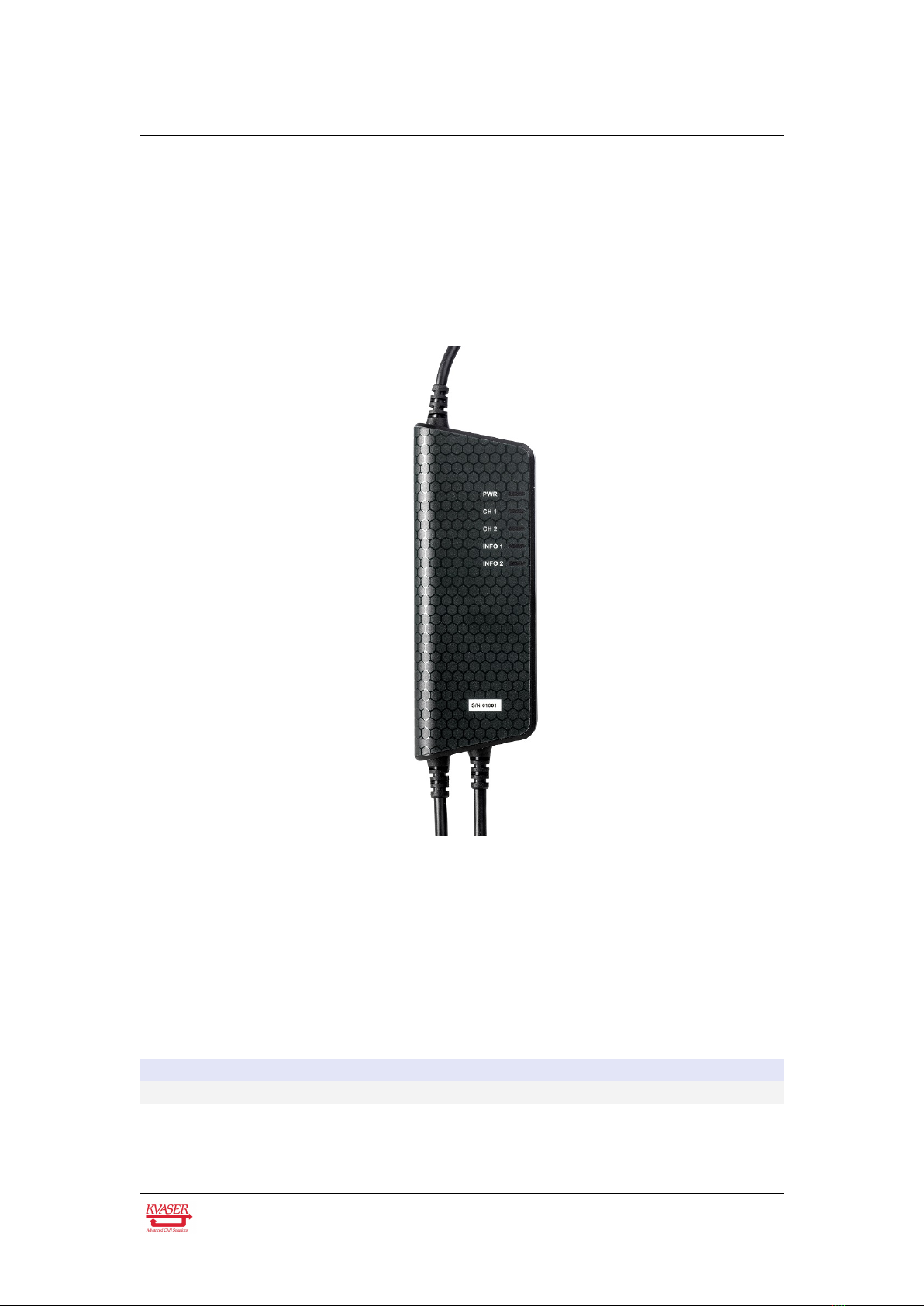

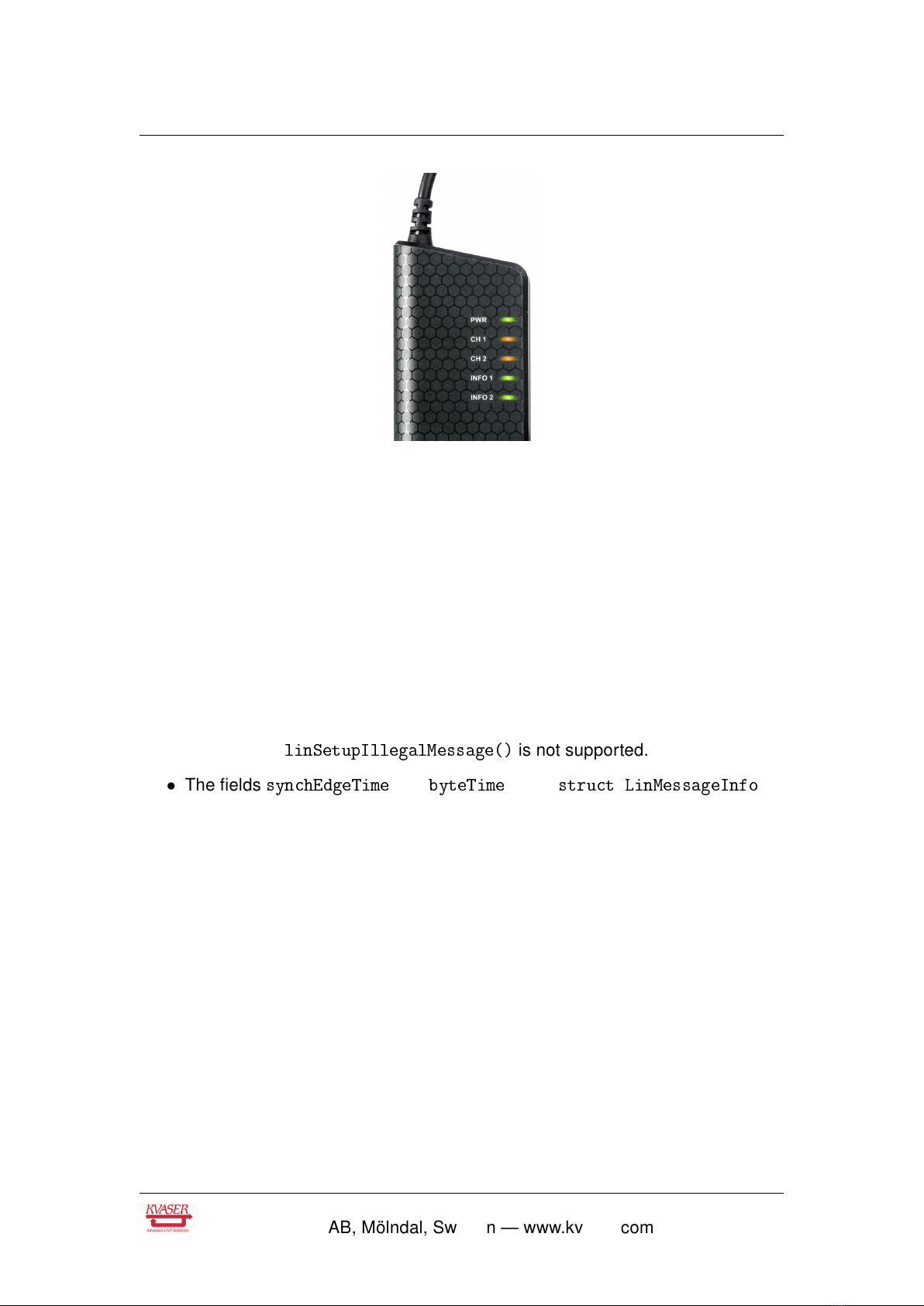

The Kvaser Hybrid 2xCAN/LIN has five LEDs as shown in Figure 4 on Page 9.
Their functions are shown in Table 3 on Page 11.
