KXD LIGHT KXD-X4 User manual

Color your stage. Light up your world!
www.kxdlight.com
1
KXD-X4
4*10W MINI LED BEAM LIGHT
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

Color your stage. Light up your world!
www.kxdlight.com
2
Thank you for your patronage. We are confident that our excellent
products and service can satisfy you. For your own safety, please read
this user manual carefully before installing the device.
In order to install, operate, and maintain the lighting safety correctly. We
suggest that the installation and operation should be done by the
verified technician and follow the instruction strictly.
ACAUTION!
Keep this device away from rain and moisture!
CAUTION!
Unplug mains lead before opening the housing.
Every person involved with the installation, operation and maintenance
of this device has to:
-be qualified
-follow carefully the instructions of this manual
1. INTRODUCTION
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:
1. One XLR power cable
2. One user manual
3. One pcs omega

Color your stage. Light up your world!
www.kxdlight.com
3
Please check carefully that there is no damage caused by transportation.
Should there be any, please consult your dealer and don’t install this
device.
2 Mounting and installation
2.1 Cautions: for added protection mount the fixtures in areas outside
walking paths ,seating areas, or in areas were the fixture might be
reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the
installation area can hold a minimum point load of 10 times the device’s
weight.
Fixture installation must always be secured with a secondary safety
attachment ,such as an appropriate safety cable.
Never stand directly below the device when mounting ,removing ,or
servicing the fixture, from a ceiling,or set on a flat level surface (see
illustration below).Be sure this fixture is kept at least 0.5m (1.5ft) away
from any flammable (decoration etc.)
Always use and install the supplied safety cable as a safe cable as safety
measure to prevent accidental damage and /or injury in the event the
clamp fails.
2.2 Mounting points:
Overhead mounting requires extensive experience , including amongst
others calculating working load limits, a fine knowledge of the

Color your stage. Light up your world!
www.kxdlight.com
4
installation material being used ,and periodic safety inspection of all
installation material and the fixture. If you lack these qualifications ,
Do not attempt the installation yourself ,improper installation can result
in bodily injury.
Be sure to complete all rigging and installation procedures before
connecting the main power cord to the appropriate wall outlet.

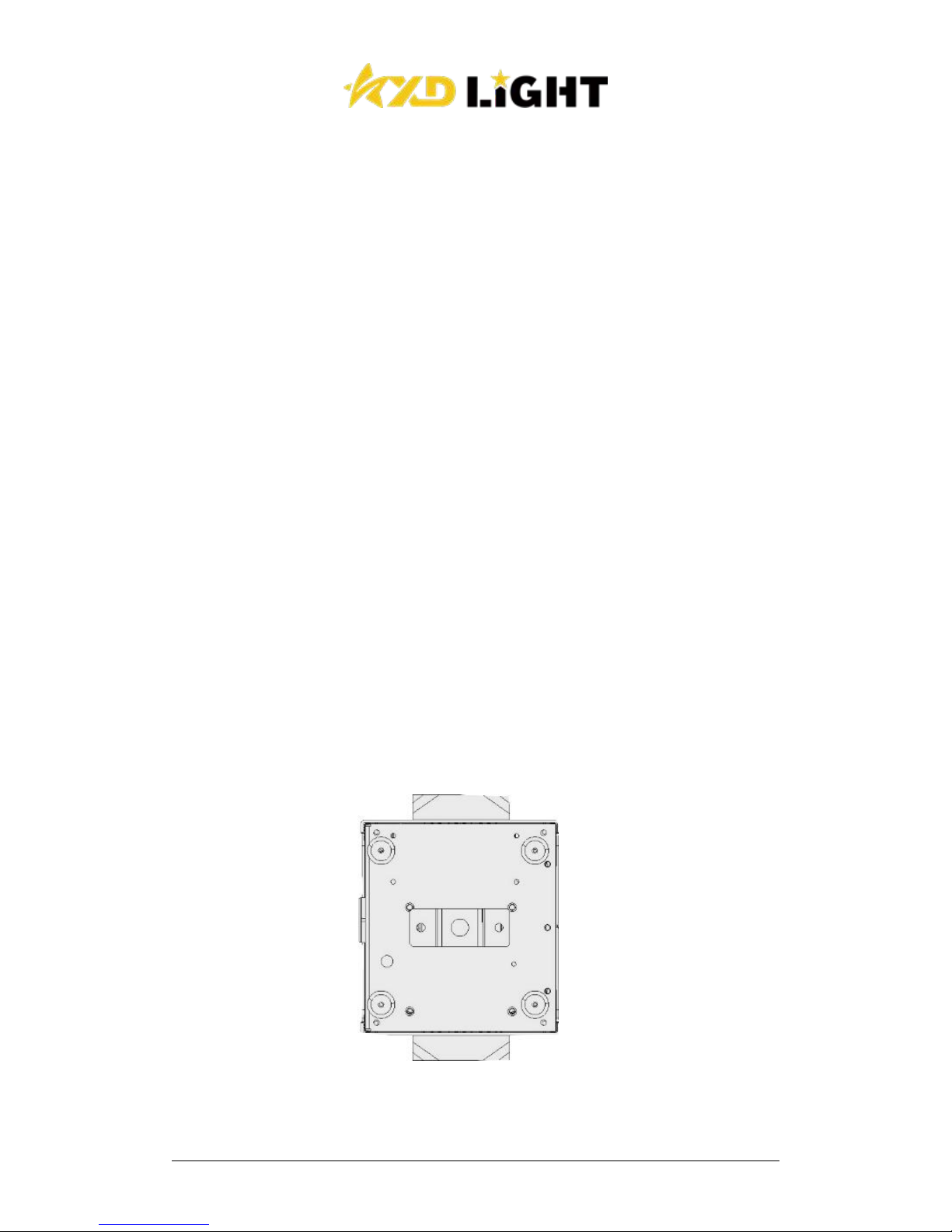

2.3 Clamp mounting :
The LED moving head provides a unique mounting bracket assembly that
integrates the bottom of the base, the included ‘omega bracket’ and the
safety cable rigging point in one unit (see the illustration below).When
mounting this fixture to truss be sure to sere to secure an appropriately
rated clamp to the included omega bracket using a M10 screw fitted
through the center hole of the ‘omega bracket’.As an added safety
measure be sure to attached at least one properly rated safety cable to
the fixture using on of the safety cable rigging point integrated in the
base assembly.

Color your stage. Light up your world!
www.kxdlight.com
5

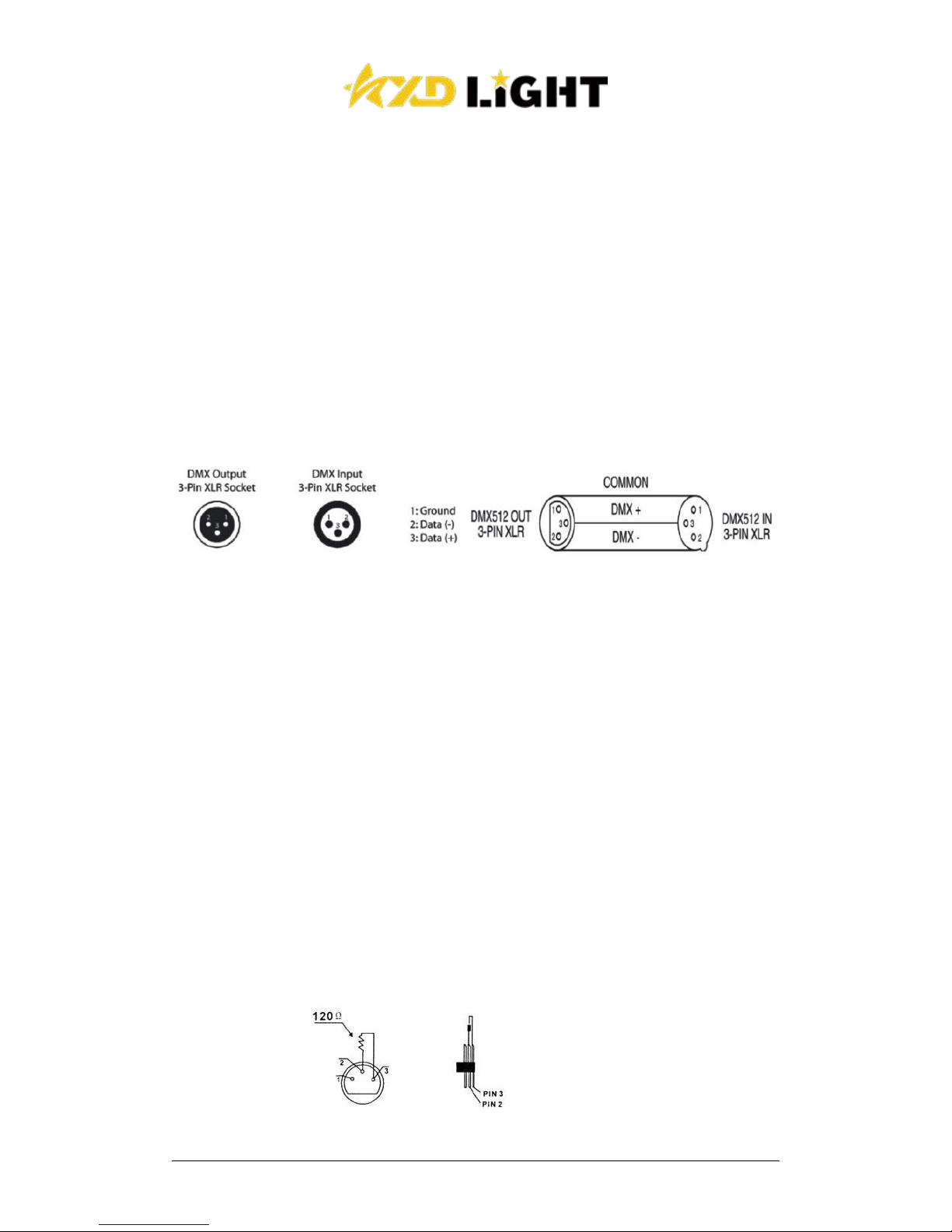

2.4 DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your
controller and the other side to the male 3-pin XLR input of the moving
head. You can chain multiple Moving head together through serial
linking. The cable needed should be two core, screened cable with XLR
input and output connectors. Please refer to the diagram below.
2.4 DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in
an electrically noisy environment, such as in a discotheque, it is
recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 resistor connected between
pins 2 and 3,which is then plugged into the output XLR socket of the last
fixture in the chain. Please see illustrations below.

Color your stage. Light up your world!
www.kxdlight.com
6
3 TECHNICAL PARAMETERS
POWER SUPPLIE
Input power:AC100-240V 50/60 Hz
Power consumption :55W
LED:4 pcs 10 W White LED
DMX channel:4/16channels
Movement: Pan/Tilt: X axis 540 degree, Y axis 190 degree
Control mode:DMX512/Master-Slave/Auto run/sound
Display: LED display
Color wheel: 3 color + open ,rainbow -flow effect
8 internal program , sound mode can control by DMX 512
WEIGHT&SIZE
G.W: 5KG
Packing size :34*26*28cm

Color your stage. Light up your world!
www.kxdlight.com
7
4 :MENU FUNCTION
1 Addr
DMX Address
001-512
2 ChMd
DMX Mode
.=CH4
.=CH16
3 SPMd
Speed Mode
.=High
.=Low
4 SLMd
Run Mode
.=Master
.=Slave
5 SHMd
Internal Program
.=001
.=002
.=003
.=004
.=005
.=006
.=007
.=008
6 Soun
Sound Control
.=OFF
.=ON
7 PAN
X Reverse
.=OFF
.=ON
8 TIL
Y Reverse
.=OFF
.=ON
9 dISP
Display Reverse
.=OFF
.=ON
10 rFAC
Reset Default
.=OFF
.=ON
11 Ad t
Home Position
Setting
Delt
Clear all Home
Position(3s)
P(PAN)
.=0-120
t(TILT)
.=0-120
C(Color)
.=0-120
F(Effect motor)
.=0-120
12 rST
Reset Motor

Color your stage. Light up your world!
www.kxdlight.com
8
5:Function Mode
5.1 DMX address setting
With this function, you can adjust the desired DMX-address via the
Control Board.
Select via the encoder.
Press the encoder, adjust the DMX address by turning the encoder.
Press the encoder to confirm.
Press the Mode/Esc-button in order return to the main menu.
Set DMX address
Display the DMX 512 value of each channel
With this function you can display the DMX 512 value of each channel.
The display automatically
shows the channel with a value changing.
5.2 DMX Mode
The LED moving head have 4CH and 16CH
5.3 Run Mode
In the【Run】mode，you can chose【Master】mode and【Slave】mode.
5.4:Speed mode
With this function, you can run the speed between high speed and slow
speed .
5.5:Auto Play
With this function, you can run the 8 Inside program with master mode.

Color your stage. Light up your world!
www.kxdlight.com
9
5.6 sound
[Music control]With this function, you can run sound-controlled.
5.7Pan Reverse
With this function you can reverse the Pan-movement.
5.8 Tilt Reverse
With this function you can reverse the Tilt -movement.
5.9 Display Reverse
With this function you can reverse the display-movement.
5.10:Reset Default
With this function, you can select restore factory set for ON or OFF, the
default is OFF.
5.11:Home Position Setting
With this function,you can Clear PAN and TILT to Home Position after 3s.
5.12:Reset Motor
With this function, you can reset the device via the Control Board.You
can select the different reset function by turning the encoder.

Color your stage. Light up your world!
www.kxdlight.com
10
6: DMX CHANNELS
6.1 4 channel definition table
Channel
DMX Value
Function
1
000 - 255
X
2
000 - 255
Y
3
000-007
Empty
008-047
Auto Play 1
048-087
Auto Play 2
088-127
Auto Play 3
128-167
Auto Play 4
168-207
Auto Play 5
208-247
Auto Play 6
248-255
Color Gobo Sound Control
4
000-007
Empty
008-032
X/Y auto run 1
033-058
X/Y auto run 2
059-084
X/Y auto run 3
085-110
X/Y auto run 4
111-136
X/Y auto run 5
137-162
X/Y auto run 6
163-188
X/Y auto run 7
189-214
X/Y auto run 8
215-240
X/Y auto run 9
241-255
X/Y Sound Control

Color your stage. Light up your world!
www.kxdlight.com
11
6.2 16 channel definition table
Channel
DMX Value
Function
1
000 - 255
X
2
000-255
X-Fine
3
000 - 255
Y
4
000-255
Y-Fine
5
000 - 255
XY SPEED
6
000-255
Dimmer(0-100%)
7
000-004
Shutter closed
005-250
Strobe effect slow to fast
251-255
Shutter open
8
000-255
LED1 Dimmer(0-100%)
9
000-255
LED2 Dimmer(0-100%)
10
000-255
LED3 Dimmer(0-100%)
11
000-255
LED4 Dimmer(0-100%)
12
000-017
Open(White)
018-034
White/Red
035-052
Red
053-069
Red/Yellow
070-087
Yellow
088-104
Yellow/Blue
105-122
Blue
123-139
Blue/White
140-195
Backward rotation from fast to slow
196-199
Stop
200-255
Forward rotation from slow to fast
13
000-133
Effect Lens linear(0~90°)
134-194
Backward rotation from fast to slow
195-255
Forward rotation from slow to fast
14
000-007
Empty
008-047
Auto Play 1
048-087
Auto Play 2
088-127
Auto Play 3
128-167
Auto Play 4
168-207
Auto Play 5
208-247
Auto Play 6
248-255
Color Gobo Sound Control
15
000-007
Empty

Color your stage. Light up your world!
www.kxdlight.com
12
008-032
X/Y auto run 1
033-058
X/Y auto run 2
059-084
X/Y auto run 3
085-110
X/Y auto run 4
111-136
X/Y auto run 5
137-162
X/Y auto run 6
163-188
X/Y auto run 7
189-214
X/Y auto run 8
215-240
X/Y auto run 9
241-255
X/Y Sound Control
16
250-255
RESET(10S)
This manual is subject to change without prior notice.
