INSTRUCTIONS FOR SAFE HANDLING
1. Make sure that the tool is only connected to the
voltage marked on the name plate.
2. Never use the tool if its cover or any bolts are missing.
If the cover or bolts have been removed, replace
them prior to use. Maintain all parts in good working
order.
3. Always secure tools when working in elevated
positions.
4. Never touch the blade, drill bit, grinding wheel or other
moving parts during use.
5. Never start a tool when its rotating component is in
contact with the workpiece.
6. Never lay a tool down before its moving parts have
come to a complete stop.
7. ACCESSORIES: The use of accessories or
attachments other than those recommended in these
instructions might present a hazard.
8. REPLACEMENT PARTS: When servicing use only
identical replacement parts.
THANK YOU FOR BUYING OUR PRODUCT.
To ensure your safety and satisfaction, carefully read through
this OWNER’S MANUAL before using the product.
General Power Tool Safety Warnings
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in elec-
Save all warnings and instructions for future reference.
The term ″power tool″ in the warnings refers to your mains-operat-
ed (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark ar-
eas invite accidents.
b) Do not operate power tools in explosive atmospheres,
dust. Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools.
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use. Use of a cord suit-
able for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location isunavoid-
able, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
.lootehtgniyrracropugnikcip,kcapyrettabro/dna
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites ac-
cidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewel-
lery. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust ex-
traction and collection facilities, ensure these are con-
nected and properly used. Use of dust collectioncan
reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the
battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or bind-
ing of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
g) Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.

b) Do not reach underneath the workpiece. The guard cannot
protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the
workpiece. Less than a full tooth of the blade teeth should
be visible below the workpiece.
d) Never hold piece being cut in your hands or across your
leg. Secure the workpiece to a stable platform. It is
important to support the work properly to minimize body
exposure, blade binding, or loss of control.
e) Hold the power tool by insulated gripping surfaces only,
when performing an operation where the cutting tool
may contact hidden wiring or its own cord. Contact with a
"live" wire will also make exposed metal parts of the power
tool "live" and could give the operator an electric shock.
f) When ripping, always use a rip fence or straight edge
guide. This improves the accuracy of cut and reduces the
chance of blade binding.
g) Always to use only blade diameter(s) in accordance with
the markings.
h) Never use damaged or incorrect blade washers or bolt.
The blade washers and bolt were specially designed for your
saw, for optimum performance and safety of operation.
i) Do not use any abrasive wheels for this saw.
j) With provided blade, users can use it to cut wood and
plastic materials. Please note to avoid overheating the
blade tips and avoid melting the plastic.
k) Dust collection system
A dust extraction outlet has been supplied with the tool.
Connect it to user’s dust collector.When used correctly it can
help remove dust, chips and cutting debris away from the
cutting area.
Kickback causes and related warnings
– kickback is a sudden reaction to a pinched, bound or
misaligned saw blade, causing an uncontrolled saw to lift up
and out of the workpiece toward the operator;
– when the blade is pinched or bound tightly by the kerf
closing down, the blade stalls and the motor reaction drives
the unit rapidly back toward the operator;
– if the blade becomes twisted or misaligned in the cut, the
teeth at the back edge of the blade can dig into the top
surface of the wood causing the blade to climb out of the
kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating
procedures or conditions and can be avoided by taking proper
precautions as given below.
a) Maintain a firm grip with both hands on the saw and
position your arms to resist kickback forces. Position
your body to either side of the blade, but not in line with
the blade. Kickback could cause the saw to jump
backwards, but kickback forces can be controlled by the
operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for
any reason, release the trigger and hold the saw
motionless in the material until the blade comes to a
complete stop. Never attempt to remove the saw from
the work or pull the saw backward while the blade is in
Cutting procedures
DANGER: Keep hands away from cutting area and
the blade. Keep your second hand on auxiliary
handle, or motor housing. If both hands are holding
the saw, they cannot be cut by the blade.
a)
5
SPECIFIC SAFETY RULES FOR CIRCULAR
SAW
motion or kickback may occur. Investigate and take corrective
actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw
blade in the kerf and check that saw teeth are not
engaged into the material. If saw blade is binding, it may
walk up or kickback from the workpiece as the saw is
restarted.
d) Support large panels to minimise the risk of blade
pinching and kickback. Large panels tend to sag under
their own weight. Supports must be placed under the panel
on both sides, near the line of cut and near the edge of the
panel.
e) Do not use dull or damaged blades. Unsharpened or
improperly set blades produce narrow kerf causing
excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be
tight and secure before making cut. If blade adjustment
shifts while cutting, it may cause binding and kickback.
g) Use extra caution when sawing into existing walls or
other blind areas. The protruding blade may cut objects
that can cause kickback.
Lower guard function
a) Check lower guard for proper closing before each use.
Do not operate the saw if lower guard does not move
freely and close instantly. Never clamp or tie the lower
guard into the open position. If saw is accidentally
dropped, lower guard may be bent. Raise the lower guard
with the retracting handle and make sure it moves freely and
does not touch the blade or any other part, in all angles and
depths of cut.
b) Check the operation of the lower guard spring. If the
guard and the spring are not operating properly, they
must be serviced before use. Lower guard may operate
sluggishly due to damaged parts, gummy deposits, or a
build-up of debris.
c) Lower guard may be retracted manually only for special
cuts such as "plunge cuts" and "compound cuts". Raise
lower guard by retracting handle and as soon as blade
enters the material, the lower guard must be released. For
all other sawing, the lower guard should operate
automatically.
d) Always observe that the lower guard is covering the
blade before placing saw down on bench or floor. An
unprotected, coasting blade will cause the saw to walk
backwards, cutting whatever is in its path. Be aware of the
time it takes for the blade to stop after switch is released.

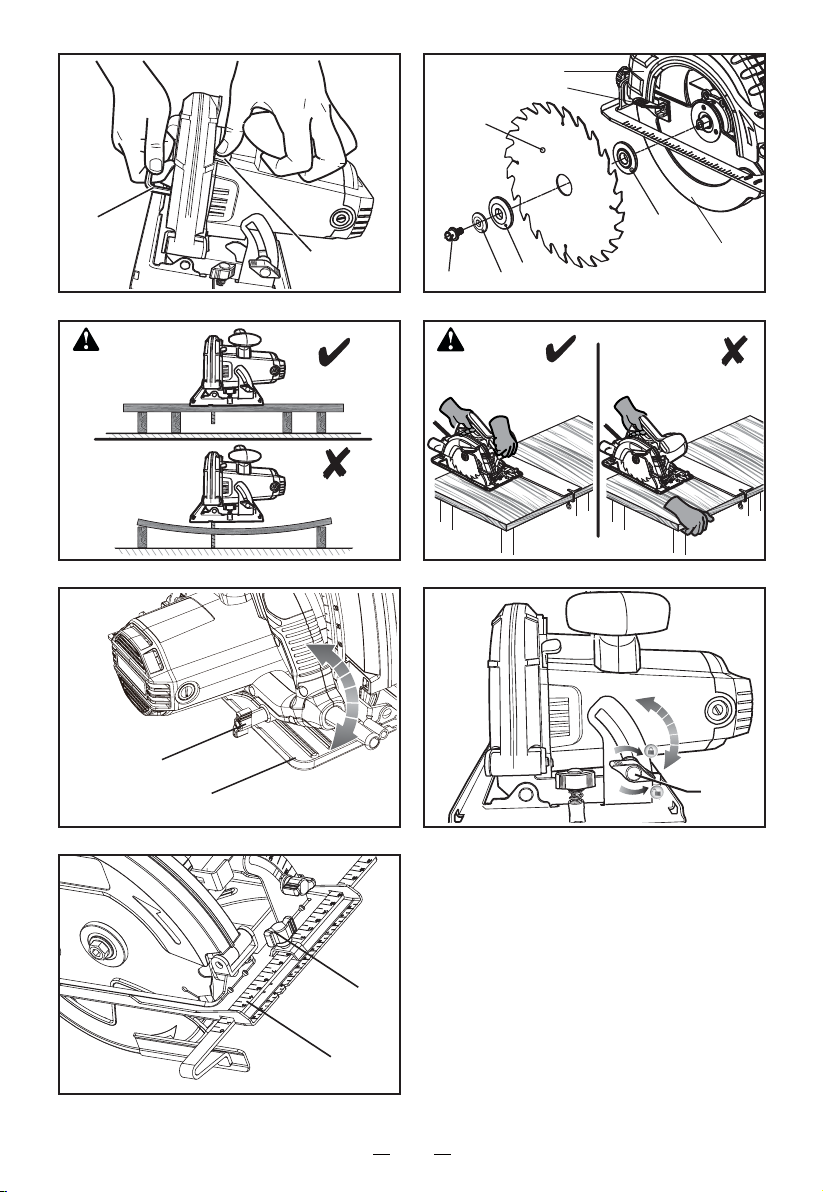

1. Dust extraction outlet
2. Blade guard retracting lever
3. Lower guard
4. Bevel angle locking knob
5. Upper guard
6. Front handle
7. Rear handle
8. Trigger switch
9. Safety button
10. Cutting depth locking knob
11. Spindle lock
12. Hex wrench
13. Parallel guide fence
14. Blade
15. Hex bolt
16. Outer flange
17. Inner flange
18. Parallel guide fence locking knob
19. Base plate
20. Washer
1. While pressing the spindle lock (11), turn the hex bolt (15)
with hex wrench (12) until the gear shaft locks.
2. Loosen the hex. head bolt by turning the wrench
counterclockwise while the spindle is locked.
3. Remove the hex head bolt, washer (20) and the outer flange
(16).
4. Retract the lower guard (3) back with the blade guard
retracting lever (2) as far as possible toward the upper guard
(5).
5. Attach the saw blade (14) against the inner flange (17) on
the gear shaft and then attach the outer flange and the hex
bolt with washer (20).
6. Press the spindle lock lever again, and tighten the hex head
bolt by turning clockwise while the spindle is locked.
WARNING! Do not use any abrasive wheels
ATTACHING AND REMOVING THE SAW BLADE
(Fig.2, 3)
• BE SURE TO DISCONNECT THE TOOL FROM THE
POWER SUPPLY BEFORE ATTACHING AND
REMOVING THE SAW BLADE.
• BE SURE THAT THE TEETH OF THE SAW BLADE
ARE POINTING UPWARD AT THE FRONT OF THE
TOOL. (The logo and specs printed on the blade should
be visible from the outside) the blade by hand.
Check for damage to the tool, parts and accessories which may
have occurred during transportation. Take some time to read this
manual carefully and understand all the content prior to
assembly and operation.
Sawing and mitre cutting all types of wood.
Do not use for cutting metal or masonry.
Always operate on a flat surface. Check and ensure the working
surface is flat and sturdy before operation. (Fig. 4)
Always operate with both hands. Using one single hand during
operation is dangerous and not allowed. (Fig. 5)
CAUTION
Always ensure that the tool is switched off and
unplugged from the mains supply before assembly.
Voltage:
Power input:
No load speed:
Blade diameter:
Blade arbor:
Blade teeth:
Max. cutting depth
at 90°:
at 45°:
Net weight:
220-240V〜・50/60Hz
1500W
6000min-1
Ø185mm
Ø20mm
24T
64mm
48mm
3.9kg
WARNING!
WARNING!
6
SPECIFICATIONS
DESCRIPITION
INTENDED USE
Parallel guide fence, Hex wrench
STANDARD ACCESSORIES
ATTACHING
1. While pressing the spindle lock lever, turn the hex. head bolt
with hex. wrench until the gear shaft locks.
2. Loosen the hex bolt by turning the wrench counterclockwise
while the spindle is locked.
3. Remove the hex. head bolt and the outer flange.
4. Retract the lower guard back with the lower guard lever as
far as possible toward the safety guard.
5. Remove the saw blade. Attach the outer flange and the hex.
head bolt on the spindle to avoid missing.
REMOVING
ASSEMBLY
OPERATION
- Check that the lower blade guard (3) fully retracts when the
blade guard retracting lever (2) is moved towards the front of
the upper guard (5).
- Check that the lower blade guard returns completely to cover
the blade in rest position.
- Cut at a speed suited to the work piece. (Work slowly when
work piece is hard.
- Inspect the saw blade frequently and replace or sharpen if dull,
to avoid overloading the motor.
- To minimize dust, an extraction system can be attached to the
extraction port.
BEFORE USING THE TOOL

1. Connect the plug to the power supply.
2. To start the tool, squeeze the trigger switch (8) while the
safety button (9) is depressed. To stop the tool, release the
trigger switch.
1. To adjust the cutting depth, loosen the cutting depth locking
knob (10).
2. Slide the base plate (19) to the desired depth and secure the
depth adjustment lever.
3. The cutting depth can be determined by measuring the
distance between the blade protrusion and the base plate.
1. The cutting angle can be adjusted to any desired angle
between 0° and 45°.
2. Loosen the bevel angle locking knob (4) which is positioned at
the front of the saw and move the base plate to the desired
angle according to the bevel scale.
3. After adjusting the desired angle, be sure to retighten the
bevel angle locking knob firmly.
NOTE
Before engaging the on/off switch, check the saw blade to see if
it is fitted properly and runs smoothly, and the blade clamp
screw is well tightened.
SWITCHING ON AND OFF
ADJUSTING THE CUTTING DEPTH (Fig. 6)
ADJUSTING THE CUTTING ANGLE (Fig. 7)
7
PARALLEL GUIDE (Fig. 8)
Parallel guide fence (13) is available for operating the saw without
drawing guide lines on the work piece.
TO INSTALL:
1. Unplug the saw.
2. Insert arm of the parallel guide through the two slots on the base
plate.
3. Adjust parallel guide to the desired width and set in place with
the parallel guide fence locking knob (18).
The parallel guide can be attached on either the right or left side of
the base plate.
CAUTION! The parallel guide should only touch the work piece
slightly and should not be forced.
MAINTENANCE
After use, check the tool to make sure that it is in top condition.
It is recommended that you take this tool to an Authorized Service
Center for a thorough cleaning and lubrication at least once a year.
DO NOT MAKE ANY ADJUSTMENTS WHILE THE MOTOR
IS IN MOTION.
ALWAYS DISCONNECT THE POWER CORD FROM THE
RECEPTACLE BEFORE CHANGING REMOVABLE OR
EXPENDABLE PARTS (BLADE, BIT, SANDING PAPER
ETC.), LUBRICATING OR WORKING ON THE UNIT.
WARNING!
To ensure safety and reliability, all repairs should be
performed by an AUTHORIZED SERVICE CENTER or
other QUALIFIED SERVICE ORGANIZATION.
SAVE THESE INSTRUCTIONS FOR FUTURE REFER-
ENCE.
