Kystar Kommander F2 User manual

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
Media server
Kommander F2
Instruction
Service Hotline：[phone]
Official website：www.kystar.com.cn
Kystar WeChat public account
Beijing Kystar Technology Co., Ltd

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
Statement
Thank you for using kystar products.
The copyright of this manual belongs to our company. Without the written
permission of this company, it is strictly forbidden to copy, transfer, distribute and store
any content of this document in any form. The company reserves the right to modify and
improve any product features described in this document without prior notice.
This product may come with related control software, which is for your use only,
and the ownership of the software is owned by the company. You can make copies, but
only for personal use. If you use this software for other purposes, especially for
commercial purposes, please contact us. The company reserves the right to pursue legal
responsibility for infringement.
Please read this manual carefully before use. Improper operation may cause
damage to the product. This product is a live product. Please pay attention to the safety
of electricity. If you do not follow the instructions in this manual and take improper
operations, the company will not bear any responsibility for property damage and
personal injury. If this article conflicts with local laws and regulations, the local laws
and regulations shall prevail.
Version Information
Version: v4.1
Release Date: February 2020

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
Safety instructions
Power supply
The normal working power of this equipment is 100 ~ 220V AC,
please make sure to use this product within this voltage range.
High voltage
This device contains high voltage components.
Non-professionals do not disassemble
This equipment is not equipped with maintenance accessories for
users to repair and use by themselves, please do not open the
case for operation by yourself. Disassembly by yourself may
cause irreparable damage to the equipment. If repair is required,
please contact the after-sales personnel.
Ensure good grounding
In order to protect the personal safety of the user, before use,
please ensure that the power cable is well grounded.
Keep away from strong magnetic fields, engines and
transformers
In order to ensure the normal use of the equipment, please keep
away from strong magnetic fields, engines and transformers.
Pay attention to moisture
Keep the use environment dry. If the device is wet accidentally,
do not connect it to the power supply. Dry the device before
using it.
Keep away from explosives
Don’t use this product in a flammable or explosive environment.

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
Directory
1、Foreword..............................................................................................................1
2、Product introduction.............................................................................................2
3、F2 hardware debugging........................................................................................1
3.1、F2 connection settings.............................................................................1
3.1.1、DVI-Monitor..................................................................................1
3.1.2、DP Output ......................................................................................1
3.1.3、SDI/DVI Input (optional)...............................................................1

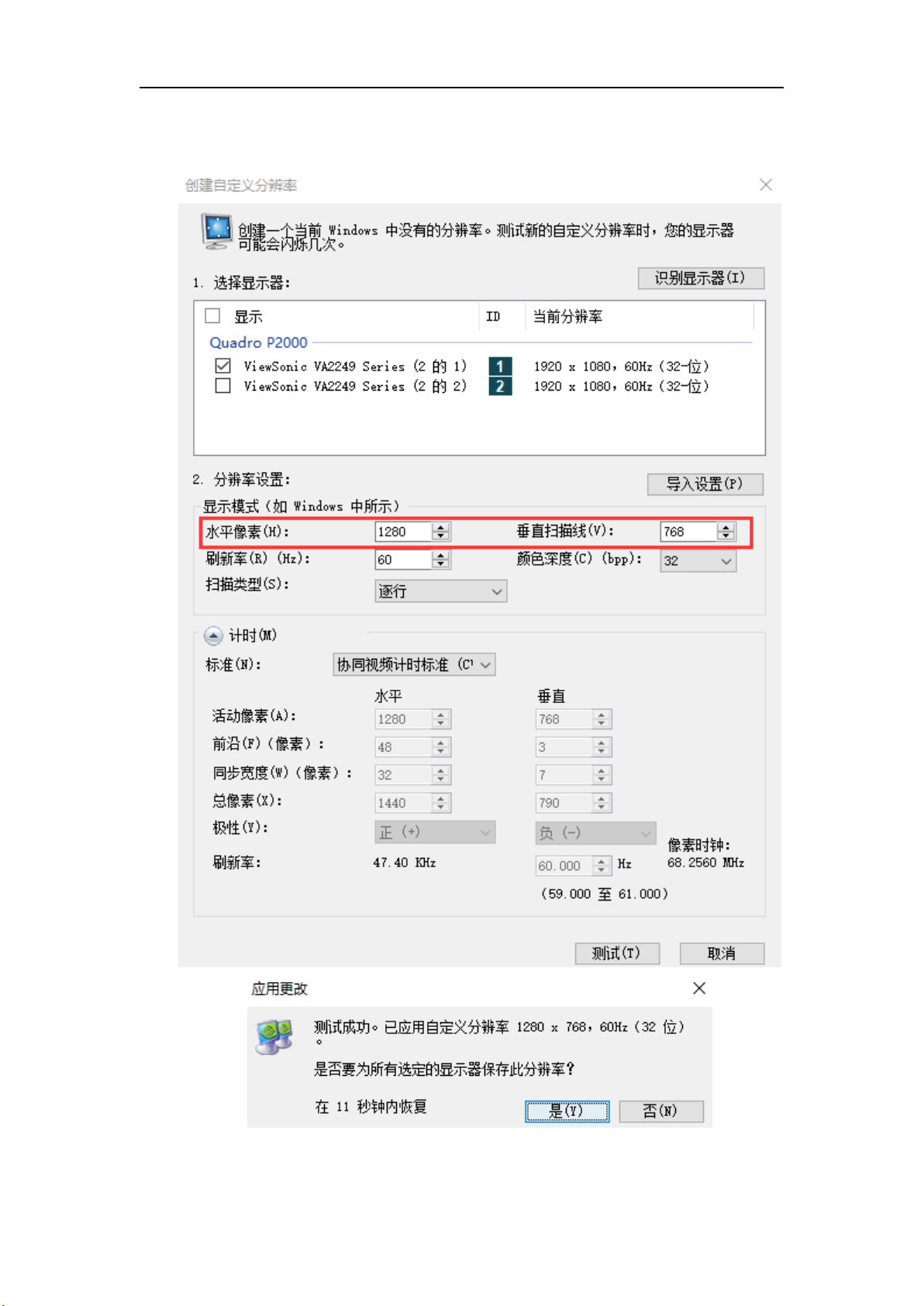

3.2、F2 Custom resolution...............................................................................1
3.3、F2 Graphics card splicing........................................................................6
3.4、F2 EDID locking ...................................................................................11
4、F2 Interface introduction....................................................................................15
4.1、Menu Bar...............................................................................................15
4.1.1 File menu ........................................................................................16
4.1.2 Canvas menu...................................................................................16
4.1.3 Resource menu................................................................................17
4.1.4 Window menu.................................................................................17
4.1.5 Setting menu ...................................................................................17
4.1.6 Lock screen.....................................................................................18
4.1.7 Help.................................................................................................19
4.2、Media Library........................................................................................19
4.2.1 Media Resource Management.........................................................20
4.2.2 Small tools ......................................................................................20
4.2.3 Playlist.............................................................................................20
4.2.4 Effects library..................................................................................21
4.3、Broadcast control area ...........................................................................22
4.3.1 Screen management........................................................................23
4.3.2 Canvas editing.................................................................................23
4.3.3 Playback status................................................................................23
4.3.4 Black screen....................................................................................24
4.3.5 Material settings on canvas.............................................................24
4.4、Parameter setting bar .............................................................................25
4.4.1 Level adjustment.............................................................................26

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
4.4.2 Continuation progress.....................................................................26
4.4.3 Play mode and end mode ..............................................................27
4.4.4 File transparent channel..................................................................27
4.4.5 Enable Y / C stretch........................................................................27
4.4.6 Crop.................................................................................................27
4.4.7 Effect settings..................................................................................27
4.4.8 Time clipping..................................................................................28
4.4.9 Cover...............................................................................................28
4.4.10 Keying...........................................................................................28
4.4.11 Other special effects......................................................................29
4.5、Playback progress..................................................................................29
4.6、Play plan area.........................................................................................30
4.6.1 Plan grouping..................................................................................30
4.6.2 Plan .................................................................................................30
4.6.3 Master KV.......................................................................................30
4.7、Output area ............................................................................................32
4.8、Update....................................................................................................33
5、Engineering editing process...............................................................................34
5.1、Switch computer display mode..............................................................34
5.2、Run the software....................................................................................34
5.3、New Construction..................................................................................34
5.4、Add material..........................................................................................35
5.5、Perform screen management configuration...........................................35
5.5.1 Add display port..............................................................................36
5.5.2 New and edit screens ......................................................................36
5.6 Canvas editing and output ........................................................................37
6、Material support.................................................................................................37
6.1、Local media ...........................................................................................37
6.1.1 Media introduction..........................................................................37
6.1.2 Media operations.............................................................................38
6.2、playlist ...................................................................................................38
6.2.1 List introduction..............................................................................38
6.2.2 List add............................................................................................38
6.3 Subtitle......................................................................................................39
6.3.1 Subtitle introduction........................................................................39

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
6.3.2 Subtitles added................................................................................39
6.4、Office file...............................................................................................40
6.4.1 office add ........................................................................................40
6.4.2 office support ..................................................................................40
6.5、Acquisition equipment...........................................................................40
6.6、Internet media........................................................................................41
6.7、Screenshot..............................................................................................42
6.8、Website..................................................................................................42
6.8.1 Website Introduction.......................................................................42
6.8.2 Website add.....................................................................................42
6.8.3 Interface size...................................................................................42
6.9、small tools..............................................................................................42
6.9.1 Subtitle............................................................................................42
6.9.2 Digital clock....................................................................................42
6.9.3 Analog clock...................................................................................43
6.9.4 Form................................................................................................43
6.9.5 Timing.............................................................................................43
6.9.6 Countdown......................................................................................43
6.9.7 Weather...........................................................................................43
6.9.8 Lottery.............................................................................................44
6.10、NDI collection .....................................................................................45
7、Other functions...................................................................................................46
7.1、Software system settings .......................................................................46
7.2、Engineering Packaging..........................................................................48
7.3、Update software online..........................................................................49
7.4、Master-slave linkage..............................................................................50
7.5、Picture optimization...............................................................................52
7.6、Automatic save and restore....................................................................53
7.7、Use of pre-edited and live layouts.........................................................53
7.8、Cloud Control........................................................................................53
7.9、Active / standby connection ..................................................................53
7.9.1 Configuration before use.................................................................54
7.9.2 Description of standby mode..........................................................55
7.9.3 Master control.................................................................................56
7.9.4 KiR and splicer ...............................................................................56

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
7.10 Timed task ..............................................................................................57
7.11 The main display is more online.............................................................57
7.12 Correction and fusion .............................................................................59
7.13 MIDI control...........................................................................................60
8、Q & A.................................................................................................................62
8.1、T1 how to achieve playback loop playback plan...................................62
8.2、T1 How to edit the canvas output and how to cut off the audio after
selecting a black screen ..........................................................................................62
8.3、How to implement the materials in the new plan after the previous plan
is switched?.............................................................................................................63
8.4、How to achieve ultra-long screen output with fewer display ports.......63
8.5、How to achieve special-shaped screen output with fewer display ports64
8.6、How to edit the plan without affecting the performance?.....................65
8.7、Can it meet the user's requirements for saving 2 different interface
layouts?...................................................................................................................66
8.8、Why is the page turning pen sometimes invalid?..................................66
8.9、What is the reason for the corresponding error of the screen content on
the external output large screen?............................................................................66
8.10、There are several kinds of anomalous signs in the material. What do
they mean?..............................................................................................................67
8.11、Why does the IP address and name turn red in the secondary
management?..........................................................................................................67
8.12、What is the reason why the slave does not implement the synchronous
control command? ..................................................................................................68
8.13、What to do if the PPT output is abnormal? .........................................68
8.14、The dongle prompts abnormally and the software cannot be used
anymore, what should I do?....................................................................................69
8.15 Why sometimes the output screen is abnormal from the pre-edit..........69
8.16 Effective time after media time trimming, playback mode, and end mode
modification?..........................................................................................................70

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
1
1、Foreword
With the rapid development of the LED industry, LED displays are used in a
variety of places. The dot pitch of LEDs is getting smaller and smaller, the size is getting
bigger, the display effect is getting better, and the display requirements are becoming
more and more complicated.
In recent years, the demand for display screens is also increasing. 1. Stadiums:
Nowadays, LED display screens have gradually replaced traditional lighting and CRT
backward display screens as the main means of game information display and game live
broadcast. LED displays have become a must-have game facility in modern stadiums. 2.
Outdoor advertising: In addition to the single large indoor and outdoor LED displays
used as advertising media, cluster LED display advertising systems and train LED
advertising display release systems have also been adopted and are being widely
promoted. 3. Stage rental: indoor and outdoor stage backgrounds, concerts, large events,
large opera houses, theaters, hotels, auditoriums, multifunctional halls, lecture halls,
conference rooms, high-end entertainment venues, disco bars, night clubs, karaoke
rooms, etc. ... these are inextricably linked to the stage LED display. 4. Exhibition: As
one of the important services provided by the company's corporate exhibition organizer,
the LED display large screen provides customers with their own brand culture and
product use. There are also studios and monitoring rooms. Today, LED display screens
also play a very important role in radio and television studios and security monitoring
rooms.
The display effect of LED screens is also getting higher and higher. The point-to-point
display is deeply rooted in people ’s hearts. The point-to-point display has higher and
higher requirements for the resolution of servers and video materials. Then it requires
the configuration of the server and the player of the video material to support super-
resolution output and playback.
The number of LED screens is increasing. From the original single-screen display to
multi-screen display, multi-screen playback management of LED screens has always
been a difficult point. Many players on the market support single-player playback, but
they are unified for multiple screens. There are very few playback control managements,
and there is an urgent need for software and hardware that integrates control and
playback in the market

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
2
2、Product introduction
F2 server is an integrated broadcast control server specially designed for
multimedia areas such as multimedia exhibition halls, banquet halls, and rental
performances. The product has powerful functions, flexible and convenient operation,
high stability and high cost performance.
The F2 server can not only complete the large screen point-to-point display, but
also can realize a variety of special-shaped screen displays, with the program
arrangement function of professional dance performances
The product has the following characteristics:
-large screen point-to-point display

160
playback performance


eative
display
large screens
-planned pre-editing broadcast control, which can edit the pre-plan without
affecting the output
lay port, special-shaped
display, WYSIWYG in any layout
be arbitrarily combined


e video and audio output separately (optional)
-editing
of the project on site


media playback
while rendering the atmosphere
tiple layouts
Wireless control of cloud control system, not limited to control room control
convenient functions

commands support remote command control under UDP protocol
-time monitoring operation status
Support linkage control with splicer and console to achieve scene switching

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
3
Panel description
Serial number
Function Description
①
Full color LCD performance monitor
②
Switch button
③
USB3.0 interface
Port specifications
Input port (optional)
Types
Quantity
Specification
SDI
2
Maximum support 1080P @ 60Hz (optional)
DVI
2
1.3 standard, maximum support 1920 ×1080 @ 60Hz (optional)
Audio
1
Microphone input

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
4
Output port
Types
Quantity
Specification
DP
4
Maximum support 3840 ×2160 @ 60Hz
DVI-Monitor
1
Supports 1920 ×1080 @ 60Hz
Audio
3
Cannon audio output with internal isolation
Control port
Types
Quantity
Specification
RJ-45
1
1000M
USB
6
USB3.0×6

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
1
3、F2 Hardware debugging
3.1、F2 Connection settings
3.1.1、DVI-Monitor
The unique 4 + 1 channel output of the F2 server breaks the restriction that traditional
servers must be left all the way to monitor. F2 has a separate DVI monitor port and is bound to
the main display by default.
Note: When the output is not connected to DVI-monitor, other DP output ports are not the
main display. You need to select a screen as the main display in the display settings.
3.1.2、DP Output
F2 has 4 DPs, which can all be used for output. It can be connected with the back-end
splicer, supports multiple modes of vertical splicing, horizontal splicing, and field splicing,
supports custom resolution, and can be arbitrarily selected according to demand.
3.1.3、SDI/DVI Input (optional)
F2 has two sets of SDI / DVI capture card inputs, supporting simultaneous capture of two DVI,
two SDI, or one DVI and one SDI (one DVI and one SDI cannot be in the same group).
Supports camera, notebook, broadcasting system and other external equipment signal acquisition.
3.2、F2 Custom resolution
F2 custom resolution steps are as follows：
1．Right click on the desktop to enter the NVIDIA control panel

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
2
2. Select Change Resolution in the NVIDIA Control Panel and click the Customize button
3.Enter the custom instruction box and click to create a custom resolution

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
3
4. Enter the Create Custom Resolution Instruction box and choose to enter a custom
resolution. After customizing the resolution setting, click Test to bring up the application change
prompt box. Select Yes to complete the custom resolution operation.

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
4
5. After the operation is completed, you can see the custom resolution that you just set
appears in the custom prompt box. After you confirm, you can see that the custom resolution
that you set also appears in the change resolution.

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
5
6.Delete custom resolution: Enter the custom prompt box, select the custom resolution you
want to delete, click X, enter the edit custom resolution, and then select delete

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
6
3.3、F2 Graphics card splicing
F2 graphics card splicing steps are as follows：
1．Right click on the desktop to enter the NVIDIA control panel
2. Click on set mosaic mode in NVIDIA control panel, then make new
configuration

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
7
3. Set the number and layout of spliced screens
4. Select the display device to be spliced

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
8
5. Arrange the display (whichever is actual)

Beijing Kystar Technology Co., Ltd.
www.kystar.com.cn
9
6. Click Apply, the prompt box selects Yes (the main display will be disconnected after
clicking the Apply operation, resulting in a black screen, the screen can be operated blindly if
you do not see the screen, left button + Enter to select Yes, then win + p switches to extended
mode)
7. Prompt that the mosaic mode is enabled, go to the end of the next step
