L3harris Opensky xg-25m User manual

Quick Guide

14221-1510-1010

Rev. B, June 2020

OpenSky® XG-25M

Mobile Radios

Radio Controls – User Interface

Change Operating Mode

1. Scroll through the menu until “App Mode” appears in the

bottom line of the display.

2. Use the Menu Navigation Control to choose an available

mode. Press MENU and confirm (Y/N) with the Menu

Navigation Control and press MENU again.

Preset button C can be programmed to reboot the radio into a

particular application mode.

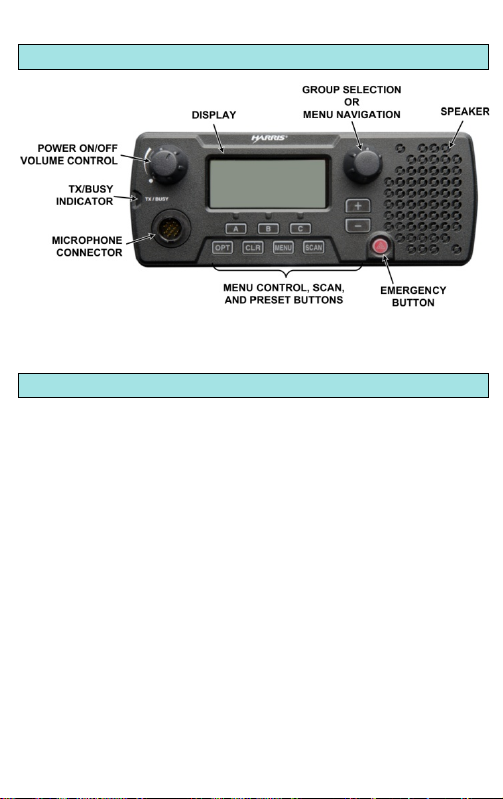

Radio Controls

Power On/Off

Volume

Control

Twist clockwise to power on radio and

increase volume.

Twist counter-

clockwise to decrease

volume and power off radio.

Microphone

Connector

Connect hand-held, hands-free speaker-

mic, or headset.

Emergency

Button

Pre-

programmed to declare an

emergency.

Group

Selection

Navigation

Knob

While in the dwell display, scrolls

through available talk groups.

Scrolls through selections within the

active menu

(available talk groups,

pre-

programmed speed dial numbers,

canned alert messages, etc.).

Scrolls through top-level menu.

OPT

CLR

Scrolls through selections within the

active menu (available talk groups,

pre-programmed speed dial numbers,

canned alert messages, etc.).

MENU Button

Activate current selection.

CLR Used with the Emergency button to

clear an emergency.

SCAN Toggles the Scan Mode ON/OFF.

Pre-Set

Buttons

A/B/C

These buttons are used to store and

recall user-selectable parameters.

Preset button C can be configured via

programming to reboot the radio into a

particular application mode.

Radio Display and Status Icons

Steady – Radio is data registered.

Steady – Received Signal Strength Indicator

(RSSI).

Steady – Stealth mode is enabled (all tones and

display backlight disabled; voice is still heard).

Steady - Radio is transmitting or receiving a

manual or OTAR (Network) encrypted call.

Steady - Indicates Voice Scan mode is Normal or

Fixed; not displayed when Voice Scan mode is No

Scan.

Steady - Indicates Selective Call mode.

Flashing – Bluetooth

enabled, but no accessory

connected.

Steady – Radio is connected to a Bluetooth

accessory.

Alert Tones

Call Queued

1 low tone/2 high tones. Call queued for

processing.

Call Denied

3 short tones. Radio is out of coverage area or

requested voice group is active.

Grant (or

Go-Ahead)

Single short beep. Resources have become

available for a call request placed in the queue (if

enabled) upon channel access.

Call

Removed

Single long low-pitched tone. Notifies the user

that access to the channel has been lost.

Selective

Alert

4 short tones. Played once to indicate a selective

alert has been received.

Emergency

Alert

3 long beeps. Sounds when an emergency alert

is declared.

Emergency

Cleared

Single long low-

pitched tone. Sounds when an

emergency is cleared.

Selective

Call

Ringing tone. Repeated every 4 seconds until the

call is accepted or rejected by the radio being

called, or until the network drops the call if

unanswered after one minute.

Out-of-

Range

Configurable. Typical: 3 brief tones that repeat

every 15 seconds when the radio does not have

consistent sync.

Roam

2 short tones: 1 high–pitched and 1 low-pitched.

Sounds when the radio transitions from one radio

base station site to a

nother while transmitting

voice.

Priority

Bump

Single medium tone. Current received call

preempted by higher priority call.

Site Found

3 short high pitched tones. Sounds when selected

Site is found or using Site Lock menu.

Site Not

Found

3 short high pitched tones. Sounds when selected

Site is not found using Site Lock menu.
