Thank you for purchasing the Audiovox CommanderMT XM®Satellite Radio
System. You are one step closer to experiencing the latest innovation in XM®
Satellite Radio. XM®Satellite Radio will revolutionize your vehicle or in-home
entertainment.
XM®features over 170 digital channels — The most commercial-free music,
over 30 channels of news, sports, talk and entertainment, over 20 dedicated
channels of XM®Instant Traffic & Weather, and the deepest play-list in the
industry with access to over 2 million titles!
XM®Satellite Radio service gives you the power to choose what you want to
hear - wherever and whenever you want it. XM®is America’s #1 Satellite Radio
provider with over 4 million customers.
Your Audiovox CommanderMT XM®Satellite Radio System consists of acces-
sory Vehicle Kit components required for your specific installation needs.
Required subscription for service sold separately.
Installation costs and other fees and taxes may apply, including a one-time
activation fee. All fees and programming subject to change. College sports
games subject to availability. Subscriptions subject to Customer Agreement
included with the XM Welcome Kit and available at www.xmradio.com. Only
available in the 48 contiguous United States.
© 2007 XM®Satellite Radio Inc. XM®is a trademark of XM®Satellite Radio. All
rights reserved. All other trademarks are the property of their respective
owners.
CongratulationsCongratulations
CongratulationsCongratulations
Congratulations
Congratulations

4
FCC InformationFCC Information
FCC InformationFCC Information
FCC Information
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful in
terference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. How
ever, there is no guarantee that interference will not occur in a particular instal
lation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
The user is cautioned that changes or modifications not expressly approved by XM®
Satellite Radio, Inc. can void the user’s authority to operate this device.
Please note that the cables and antenna wire that has been supplied with your
car installation kit are supplied with permanently attached ferrite beads. It is the
responsibility of the user to use the cable and antenna wire with the ferrite
beads.
By adhering to these warnings and safety considerations, stated in the manual and
by XM®, accidents.
FCC Information

5
Cautions and WarningsCautions and Warnings
Cautions and WarningsCautions and Warnings
Cautions and Warnings
1. Do not install the CommanderMT Display Controller in a position
that hinders your view through the windshield, or obstructs viewing
of the dashboard indicators and displays.
2. Do not install the Display Controller where it may obstruct the
operation or deployment of safety devices, such as airbags, etc.
3. Do not allow operation of the unit to detract from safe driving prac-
tices; remember that you are responsible as the vehicle operator
to adhere to all safe driving and traffic regulations.
4. By adhering to these warnings and safety considerations, serious
accidents and/or personal injury can be avoided.
Cautions and Warnings

6

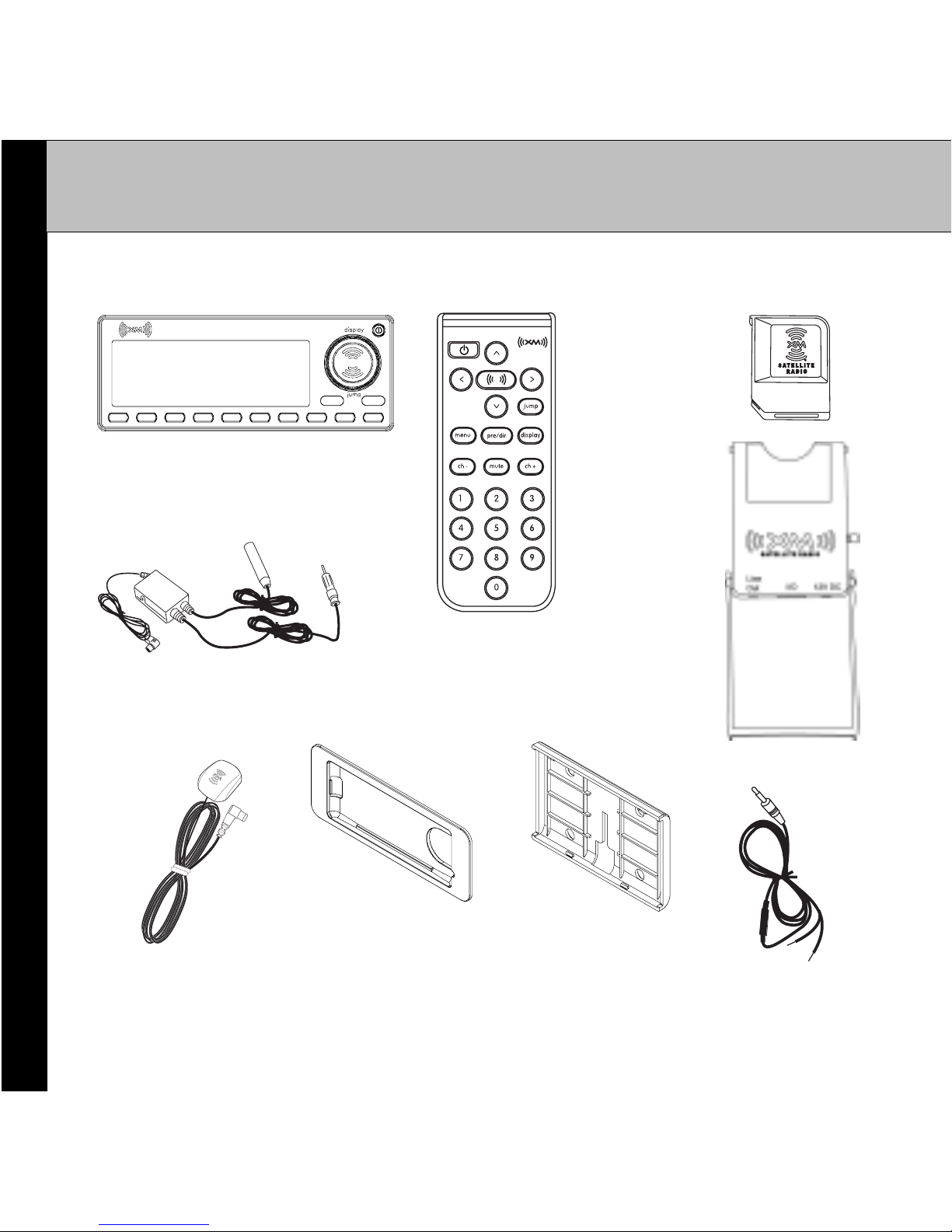

CommanderMT Receiver Components
CommanderCommander
CommanderCommander
Commander
MTReceiverKitComponentsMTReceiverKitComponents
MTReceiverKitComponentsMTReceiverKitComponents
MTReceiverKitComponents
12 Vdc
PowerCable
CommanderMT
Display Controller
Remote Control
XM
Mini-Tuner
FM Direct Adapter
XM Car
Antenna
DINOpening
Trim Bezel Snap-On
Mounting
Plate
Interconnect
Cradle
0
p/d
menu
987654321
^
^

7
Installation/Wiring PrecautionsInstallation/Wiring Precautions
Installation/Wiring PrecautionsInstallation/Wiring Precautions
Installation/Wiring Precautions
1. To prevent a short-circuit, be sure to turn off the ignition and remove
the negative (-) battery cable prior to installation. Connect power
wires last.
2. Do not install the CommanderMT Display Controller in loca-
tions exposed to direct sunlight, or in areas subject to extreme
temperatures, or damage could occur.
3. Incorrect installation may cause damage to the system. Mount
the system components using the suggested methods recom-
mended in this manual.
4. Be careful not to crimp or twist the vehicle wiring.
5. Use only the 12 Volt DC Power Cable supplied. Use of an alternative
power source could damage the CommanderMT System compo-
nents or vehicle wiring.
6. Locate the CommanderMT Display Controller in an area of the
vehicle where it will not obstruct the driver’s operation of the vehicle
and where it will not pose a risk to driver or passengers in the event
of an emergency stop.
Installation/Wiring Precautjions

8
Setting Up and Installing YSetting Up and Installing Y
Setting Up and Installing YSetting Up and Installing Y
Setting Up and Installing Your Kitour Kit
our Kitour Kit
our Kit
NOTE: The XM®signal can be received and processed virtually
anywhere as long as there are no obvious satellite signal
obstructions such as nearby buildings, high terrain, parking
garages or tunnels.
1. Cabling Interconnections
You can begin to enjoy XM®Satellite Radio as soon as the
CommanderMT System Vehicle Kit installation is complete. Set
up yourAudiovox CommanderMT System using the following
installation instructions, or enlist the help of a professional
installer:
WARNING:Professional installation is recommended. Failure to
properly follow all installation instructions may result
in personal injury or damage to your CommanderMT
System components, your vehicle, or your vehicle
Audio/Video (A/V) system.
Cabling Interconnections

9
Cabling Interconnections

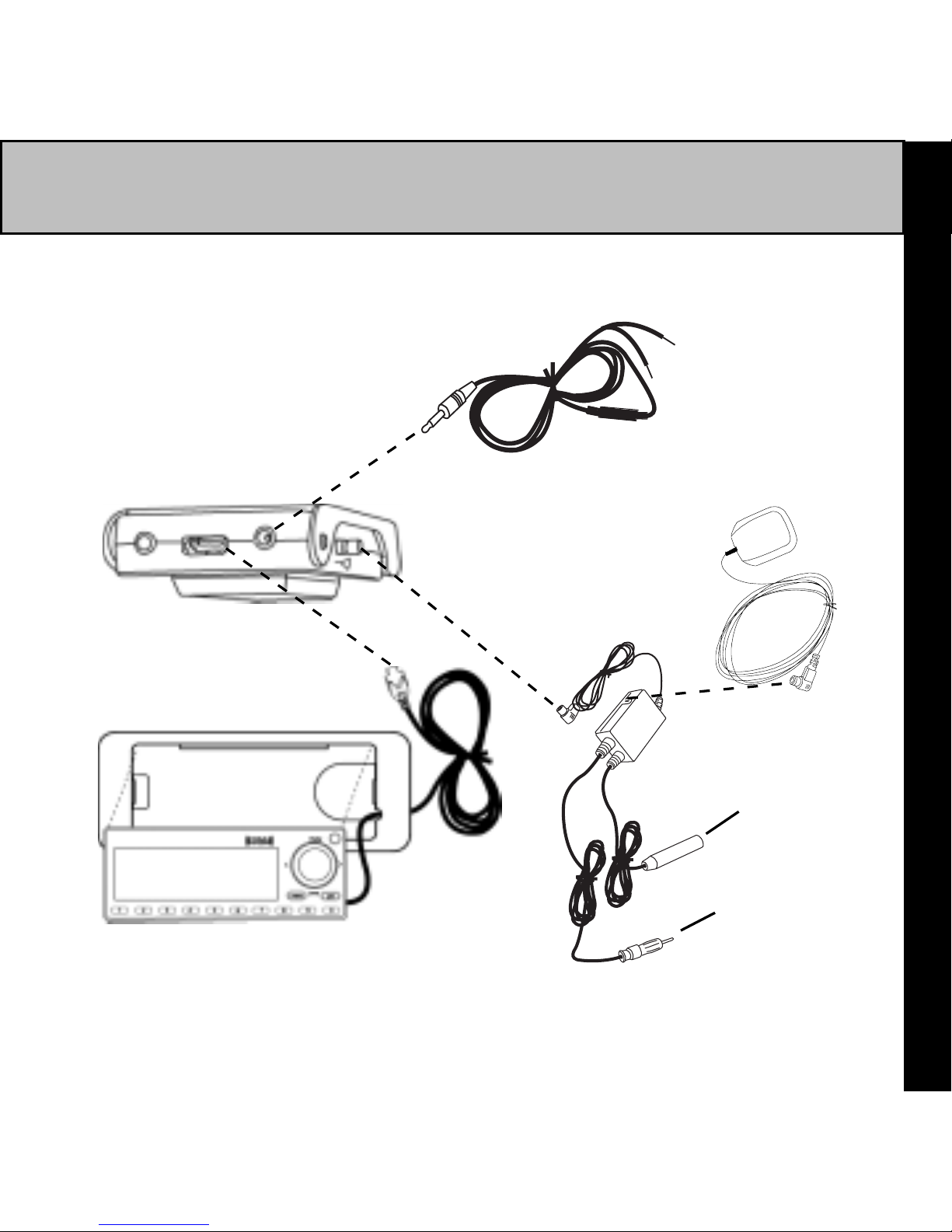

Interconnect DiagramInterconnect Diagram
Interconnect DiagramInterconnect Diagram
Interconnect Diagram
CommanderMT
Display Controller
DIN Opening
Trim Bezel
Interconnect
Cradle with XM
Mini-Tuner
Power Cable
with 2A
In-line Fuse
FMDirectAdapter
XMAntenna
ToFMAntenna
To FM Radio

10
2 . Important!
It is very important to make your power connection to a source that
only supplies 12V when the vehicle key is in the accessory or ignition
ON position. A connection to a 12V source that is always on,
regardless of the key position, can lead to a battery drain if the
CommanderMT System is left on when you leave your vehicle.
Ignition Switch Accessory/On-Off Positions
3. Antenna Installation
Where to locate
•Best reception is achieved with the antenna mounted on a flat
portion of a metal vehicle roof with at least 12” x 12” of surface area
and a minimum of 6” from a window or sunroof.
•If the vehicle has roof racks or skid ribs, it may be necessary to
mount the antenna off-center.
•If the venicle roof does not provide sufficient metal surface area,
then the antenna can be mounted on the metal trunk lid. It is
recommended that it be mounted at least several inches from the
rear window to ensure adequate clearance.
ACCESSORY
POSITION NOACCESSORY
POSITION
Important/Antenna Installation

11
Caution: 1. Do not install the antenna inside the vehicle passen-
ger compartment. Mounting the antenna in the passen-
ger compartment either on the from dashboard, or on
the rear window deck area will cause reception issues
and must be avoided.
2. Mounting the antenna on a non-metalic surface will
also result in severe degradation in reception.
•If an appropriate antenna mounting location cannot be identified,
contact your local retailer installation department for additional
guidance.
Cable routing
•Once you have mounted the antenna in the correct location, plan
how to route the cable from this location to the receiver
Inteconnect Cradle, avoiding blocked passages and any obstruc-
tions that could kink, crimp, twist or chafe the cable. If the cable
will come into contact with a rough metal opening, use a rubber
grommet to prevent damage.
•For antenna mounting locations at the front or middle of the roof,
the cable can be routed down along the door jamb and into the
car. In some cars, the cable may be brought into the vehicle
through the grommet in the door jamb which carries the power
window and power door lock wires. If the cable does not fit easily
through this grommet, do not try to force it through. Instead, route
the cable under the weather seal near the bottom of the door.
Antenna Installation

12
•For antenna mounting locations at the rear of the roof, the antenna
cable can be routed into the vehicle through the trunk. Always
route the cable under the weather seal near the lowest part of the
trunk to reduce possible water leaks.
•Use pre-existing wiring channels created by the vehicle manufac-
turer whenever possible.
Tools required
•The antenna contains a powerful magnet that will secure it to a
metal roof under normal driving conditions. No additional tools
should be necessary to mount the antenna.
Antenna Mounting Methods
Antenna Installation

13
4. CommanderMT Display Controller Installation
Be sure to locate your Display Controller below the top of the dash
in your vehicle to keep the unit within easy reach while driving.
Choosing a lower location in your installation should also make it
easier to manage the cables and achieve a more desirable appear-
ance when the installation is completed. See illustration below and
be sure to locate your Display Controller within the outlined shaded
areas.
Display Controller Installation

14
The CommanderMT Display Controller can be installed using
the DIN opening trim bezel or a snap-on mounting plate as
shown below. The trim bezel permits in-dash or center console
mounting, while the mounting plate can be used with optional
custom brackets, such as swivel or vent mounts.
a. Using the DIN Opening Trim Bezel
Preferred location
Your CommanderMT Receiver Kit includes a DIN opening trim
bezel for mounting the display controller into an existing dash-
board or console opening.
Display Controller Installation
Usingthe DINOpening
TrimBezel

15

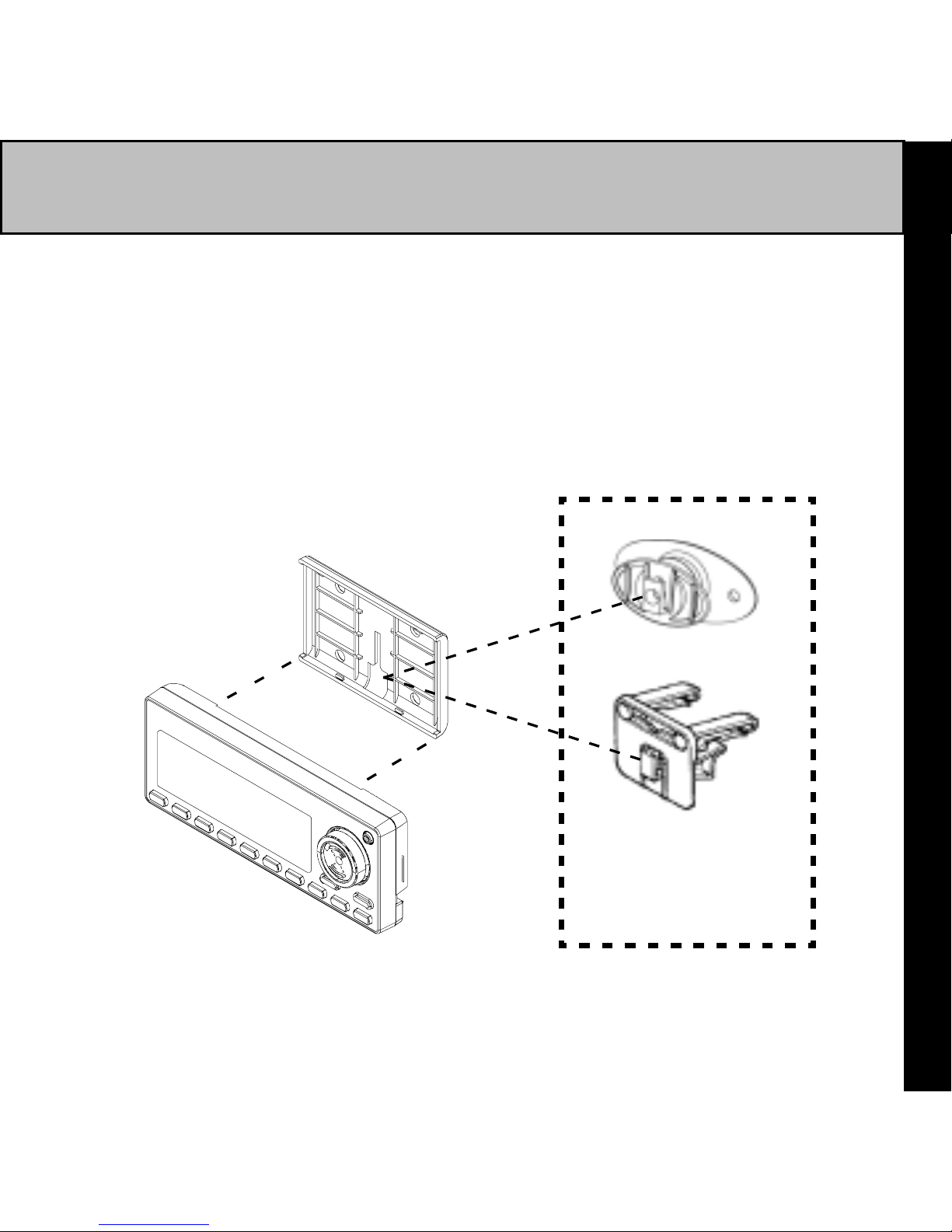

b. Using the Snap-On Mounting Plate
To attach the CommanderMT cradle to optional mounting devices
that are readily available at retail, attach the snap-on mounting
plate to the rear of the CommanderMT Display Controller as shown
below.
Examples of Optional
Aftermarket Mounting
Alternatives
Display Controller Installation

16
5. Connection Options
The CommanderMTSystem provides an audio output signal in
two ways:

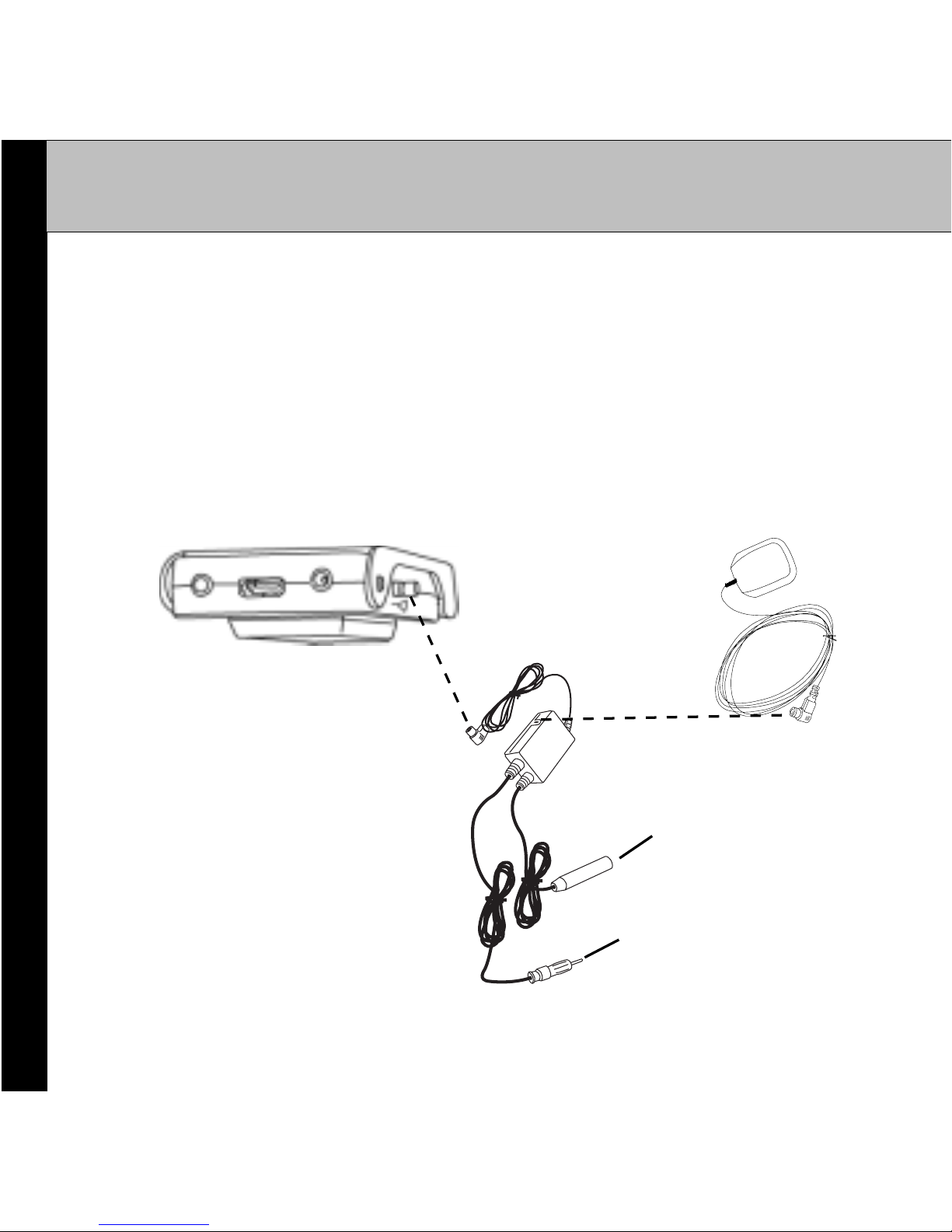

a. FM Direct Wiring - The FM direct adapter supplies a hard-
wired FM output, provided the FM Frequency option of the XM
Mini-Tuner is turned on and tuned to an unused FM frequency.
Interconnect
Cradle with XM
Mini-Tuner
FMDirectAdapter
XMAntenna
ToFMAntenna
To FM Radio
Connection Options

17
b. Low-Level Audio Output - For vehicle radio head units with
auxiliary audio inputs, the audio signal can be routed through
an optional audio cable (Part No. SAT-RCA) and applied to the
auxiliary inputs of a radio or entertainment system. In this case,
tolisten to the audio. the System Receiver FM modulator option
must be disabled (FM Frequency Off), as indicated in the
CommanderMT System User Guide.
Connection Options
ROTATE DIAL TO SELECT
Off
FM frequency
Optional Audio
Cable SAT-RCA
Interconnect Cradle with XM
Mini-Tuner
To Vehicle Radio
Low Level Audio
Inputs

18
6. Cable Routing and Component Installation
Once you have established power connections, Display
Controller and antenna placement, and audio connection, route
all cables to the location where you will mount the Interconnect
Cradle. When you have plugged the power and antenna jacks
into the cradle, re-use the cable twist ties that were provided
with the power and car antenna cables and always be sure to
gather, bundle, twist-tie, and secure any excess cable remain-
ing after determining the best location for your satellite radio
installation.

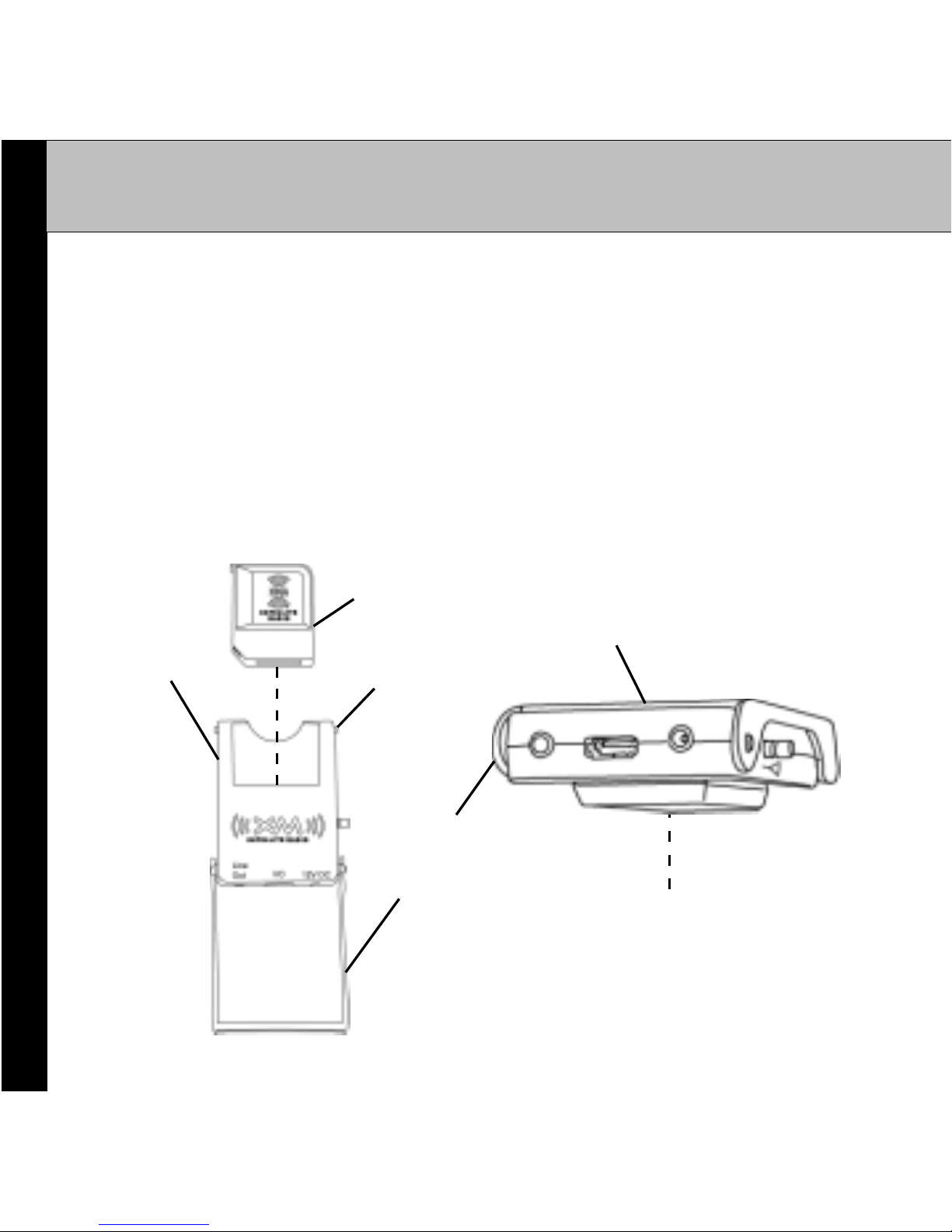

Cable Routing and Component Installation
XMMINI-TUNER
CRADLE
PLASTIC
RETAINING
COVER
COVER
LOCKING
TABS
ATTACHVELCRO
PADORDOUBLE-
SIDEDTAPEHERE
CRADLEWITHCOVER
INPLACE

19
a. Installing the Cradle and Interconnecting Cables - Locate the
Interconnect Cradle in a readily accessible location, such as the
glove compartment, console compartment, or under the
dashboard, so that the XM Mini-Tuner can be removed or
replaced. Note also that the cradle must be situated close
enough to comply with the CommanderMT Display Controller
cable and Power Cable lengths (6’).
b. Installing the Mini-Tuner - Install the XM Mini-Tuner in the
cradle by inserting the tuner into the cradle slot until the
cradle and tuner connectors mate together. You will feel the
tuner connector click into place. Fold the plastic retainer cover
over the cradle and press down until the cradle tabs lock into
the the cover side holes. The XM Mini-Tuner is now secured in
place in the cradle.
Good installation practices should be observed when mounting
any component to avoid vibration, movement or rattling after
installation. When routing cables, avoid blocked passages and
any obstructions that could kink, crimp, twist, or chafe the
cables. Components should be secured in place using
methods such as Velcro, double-sided foam tape, etc.
Cable Routing and Component Installation

20
Warranty
AUDIOVOXELECTRONICSCORPORATION(theCompany) warrantsto
the original retail purchaser of this product that should, under normal use
and conditions, be proven defective in material or workmanship within 12
months from the date of original purchase, such defect(s) will be repaired
or replaced with new or reconditioned product (at the Company's option)
without charge for parts and repair labor.
To obtain repair or replacement within the terms of this warranty, the
product is to be delivered with proof of warranty coverage (e.g. dated bill
of sale), specification of defect(s), transportation prepaid, to an approved
warranty station or the Company at the address shown below.
This Warranty does not extend to the elimination of externally generated
static or noise, to costs incurred for installation, removal or reinstallation
of the product, or to damage to speakers, accessories, or electrical
systems. Warranty does not apply to malfunction of satellite transmis-
sions, repeater signals or audio systems or to damage caused by poor
installation of included components such as magnetic roof mount an-
tenna, disiplay control unit or receiver docking station.
ThisWarrantydoesnotapplytoanyproductintheopinionoftheCompany
that has been damaged through alteration, improper installation, mis-
handling, misuse, neglect, accident, or by rimoval or defacement of the
factory serial number number/bar code label(s). THE EXTENT OF THE
12MONTHLIMITEDWARRANTY
FM Satellite Radio
XMRVRFM002
