La Crosse Technology WS-7394U User manual

WS-7394U
Wireless 433 MHz
Wireless Weather Station
Instruction Manual

2
TABLE OF CONTENTS
Topic Page
Inventory of Contents/ Additional Equipment 3
About WWVB 3
Quick Set Up Guide 4
Detailed Set Up Guide
Battery Installation 5
Start Up Sequence 6
Explanation of LCD Information 7
Function Key Layout 8
Program Mode
Overview of Programming Sequence 8
LCD Contrast Setting 8
Time Zone Setting 9
DST ON/OFF Setting 9
Radio-controlled Time ON/OFF Setting 9-10
12/24-hour Time Mode Setting 10
Setting the Time/Date Manually 10-11
Temperature Measuring Units (ºF/ºC) 12
Air Pressure Measuring Units (inHg/hPa) 12
Relative Pressure Setting 12
Forecast Sensitivity Setting 13
Features and Operation
Minimum/Maximum Temperature/Humidity 14
Multiple Remote Temperature Sensors 15-16
Comfort Icon 16
Weather Forecast and Pressure Trend Indicators 16
Weather Icons 16-17
Weather Tendency Arrows 17
Barometric Air Pressure Reading 17
Air Pressure History Bar Chart 17-18
Mounting 19-20
Maintenance and Care 20
Troubleshooting Guide 21
Specifications 22
Warranty Information 23-24

3
INVENTORY OF CONTENTS
1. WS-7394U—indoor weather station
2. TX6U—remote temperature sensor
3. Instruction manual and warranty card
ADDITIONAL EQUIPMENT (not
included)
1. Five fresh AA 1.5V alkaline batteries.
2. One wall-mounting screw (optional)
ABOUT WWVB (radio-controlled time)
The NIST (National Institute of Standards and Technology—Time and
Frequency Division) radio station, WWVB, is located in Ft. Collins, Colorado
and transmits the exact time signal continuously throughout the United States at
60 kHz. The signal can be received up to 2,000 miles away through the internal
antenna in the indoor weather station. However, due to the nature of the Earth’s
Ionosphere, reception is very limited during daylight hours. The indoor weather
station will search for a signal every night when reception is best. The WWVB
radio station derives its signal from the NIST Atomic clock in Boulder,
Colorado. A team of atomic physicists continually measure every second of
every day to an accuracy of ten billionths of a second a day. These physicists
have created an international standard, measuring a second as 9,192,631,770
vibrations of a Cesium 133 atom in a vacuum. For more information about
WWVB please see the NIST website at
http://www.boulder.nist.gov/timefreq/stations/wwvb.htm

4
QUICK SET-UP GUIDE
Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries.
1. Have the indoor weather station and remote temperature sensor 3
to 5 apart.
2. Batteries should be out of both units for 15 minutes.
3. Place the batteries into the remote temperature sensor first then
into the indoor weather station.
(All remote temperature sensors must be started before the indoor
weather station)
4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.
In this time the indoor weather station and remote temperature sensor will start
to talk to each other and the indoor weather station will show both the indoor
temperature and humidity and the outdoor temperature. If the indoor weather
station does not display all values after the 15 minutes please retry the set up as
stated above. After all values are displayed for 15 minutes you can place your
remote temperature sensor outdoors and set your time.
The remote temperature sensor should be placed in a dry, shaded area. The
remote temperature sensor has a range of 80 feet. Any walls that the signal will
have to pass through will reduce distance. An outdoor wall or window will have
20 to 30 feet of resistance and an interior wall will have 10 to 20 feet of
resistance. Your distance plus resistance should not exceed 300 ft. in a straight
line.
NOTE: Fog and mist will not harm your remote temperature sensor but direct
rain must be avoided.
To complete the set up of your indoor weather station after the 15
minutes have passed please follow the steps in the Detailed Set Up
Guide.
Note: The remote temperature sensor transmits a signal every 3 minutes; after
the batteries have been installed, the indoor weather station will search for the
signal for a duration of 5 minutes. If there is no temperature reading in the
OUTDOOR LCD after 5 minutes, make sure the units are within range of each
other, or repeat the battery installation procedure.

5
DETAILED SET-UP GUIDE
I. Battery Installation
Batteries will fit tightly. To avoid start-up problems, make sure that the
batteries do not spring free. Also be sure to insert alkaline batteries into the
remote temperature sensor first, then the indoor weather station. Initial set
up should be done with the remote temperature sensor and indoor weather
station in the same room. The units should be permanently mounted only
after the signal reception has been verified.
A. Remote Temperature Sensor
1. Remove the mounting bracket. The bracket
snaps on and off easily.
2. Remove the battery cover, by sliding the cover
down.
3. Observing the correct polarity install 2 AA
batteries. The batteries will fit tightly (to avoid
start-up problems make sure they do not spring
free).
4. 4. Replace the battery cover by sliding
upwards. Be sure battery cover is on securely.
B. Indoor Weather Station
1. Remove the battery
cover (the cover has
white writing on it).
2. Observe the correct
polarity, and install
two Alkaline AA
batteries.
3. Do not press any
buttons for at least
ten minutes. If a
button is pressed
before the indoor
weather station has
received information
from the TX4U
sensor, no data will
be received from that
sensor until reset.
4. Replace the battery
cover.
Battery
Cover

6
II. Start Up Sequence
A. Initial Start
1. Immediately after the batteries have been installed the LCD will
completely light up for a brief moment.
2. All information will then appear in normal mode, with “12:00” as
the default time and “WE.1” as the default date (2004 as the year).
3. The indoor temperature and humidity, and barometric air pressure
(as 29.91 inHg relative RH) will also be displayed.
4. There is a “satellite” icon that appears in the bottom portion of the
LCD, to the left of the outdoor temperature— this icon informs the
user that the indoor weather station is looking for signals from the
remote temperature sensor. Within five minutes the remote
temperature should be displayed—if not, remove batteries from all
units and repeat battery installation, the remote temperature sensor
first, then the indoor weather station.
B. WWVB Reception
1. Once the batteries are installed in the indoor weather station it will
automatically search for the WWVB signal. If it receives a good
signal (which is unlikely during daylight hours in most locations),
the WWVB reception indicator (looks like a tower icon) will flash.
The indoor weather station requires five full minutes of good
reception to successfully capture the signal and set to the correct
hour, minute, second, month, day and year. If the signal reception
is not successful within ten minutes, the signal search will be
cancelled and will automatically resume every two hours until the
signal is successfully captured.
2. The signal is sent from Ft. Collins, Colorado only and is similar to
an AM radio signal. Atmospheric interferences such as storms,
sunspots, and even sunlight will cause the signal to not travel as
far.
3. To maximize reception, place the indoor weather station in a
window facing Colorado, at least six feet from any electrical
source (computers, televisions, refrigerators, etc.). Do not move
the indoor weather station while it is searching for the signal.
4. The time and date can be manually set. Once the signal is captured,
it will override any time and date set to the time zone selected.
5. Once the time and date are set, the indoor weather station will
conduct a search every night at midnight and correct to the
accurate time and date (Daylight Saving Time is automatic). If the
signal has been received in the past 24 hours, the reception
indicator will be displayed.

7
III. Explanation of LCD Information
A. The below picture highlights the LCD features.
B. There are many different modes the indoor weather station can be set
to. The LCD shown is the normal operating mode, and your actual data
shown will be different based on your local settings and conditions.
Radio-controlled time
WWVB Reception
Indicator
Date Display
Comfort Icon
Indoor Temperature
Humidity Display
Air Pressure Trend
Indicator
Forecast Icon
Barometric Air
Pressure
12-hour Air
Pressure History
Outdoor Temperature
Display
Remote Sensor Number
(
U
p
to 3 Total
)

8
IV. Function Key Layout
A. The below picture shows the four function keys used in programming
and operation of your indoor weather station
V. Program Mode
The program mode is laid out in a manner that allows you to program each
function separately, or you can follow the instructions entirely to program the
indoor weather center. Complete programming is usually done for the initial
set-up, and will require you to skip step 1,2 and 3 of each programming section.
The programming mode can be exited at any time by either pressing the “CH”
button, or waiting for the 15-second time-out to take effect.
A. Overview of programming mode sequence
1. LCD Contrast 2. Time Zone 3. DST ON/OFF
4. Radio-controlled
Time ON/OFF 5. 12/24-hour time mode 6. Hour
7. Minute 8. Year 9. Month
10. Date 11. °F/°C 12. inHg/hPa
13. Relative pressure
setting 14. Forecast sensitivity
B. LCD Contrast Setting
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “OUT/+” button
to select the desired LCD contrast
setting.
4. Press and release the “SET” button to confirm the LCD contrast
setting and continue to the Time Zone setting.

9
C. Time Zone Setting
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button
once more to advance to the Time Zone
setting.
4. A number will flash to the left of the letter “h” at the top of the
display just below the time display.
5. Press and release the “OUT+” button to select the desired time
zone.
6. Press and release the “SET” button to confirm the Time Zone
setting and continue to the DST ON/OFF setting.
D. DST ON/OFF Setting
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button
twice more to advance to the DST
ON/OFF setting.

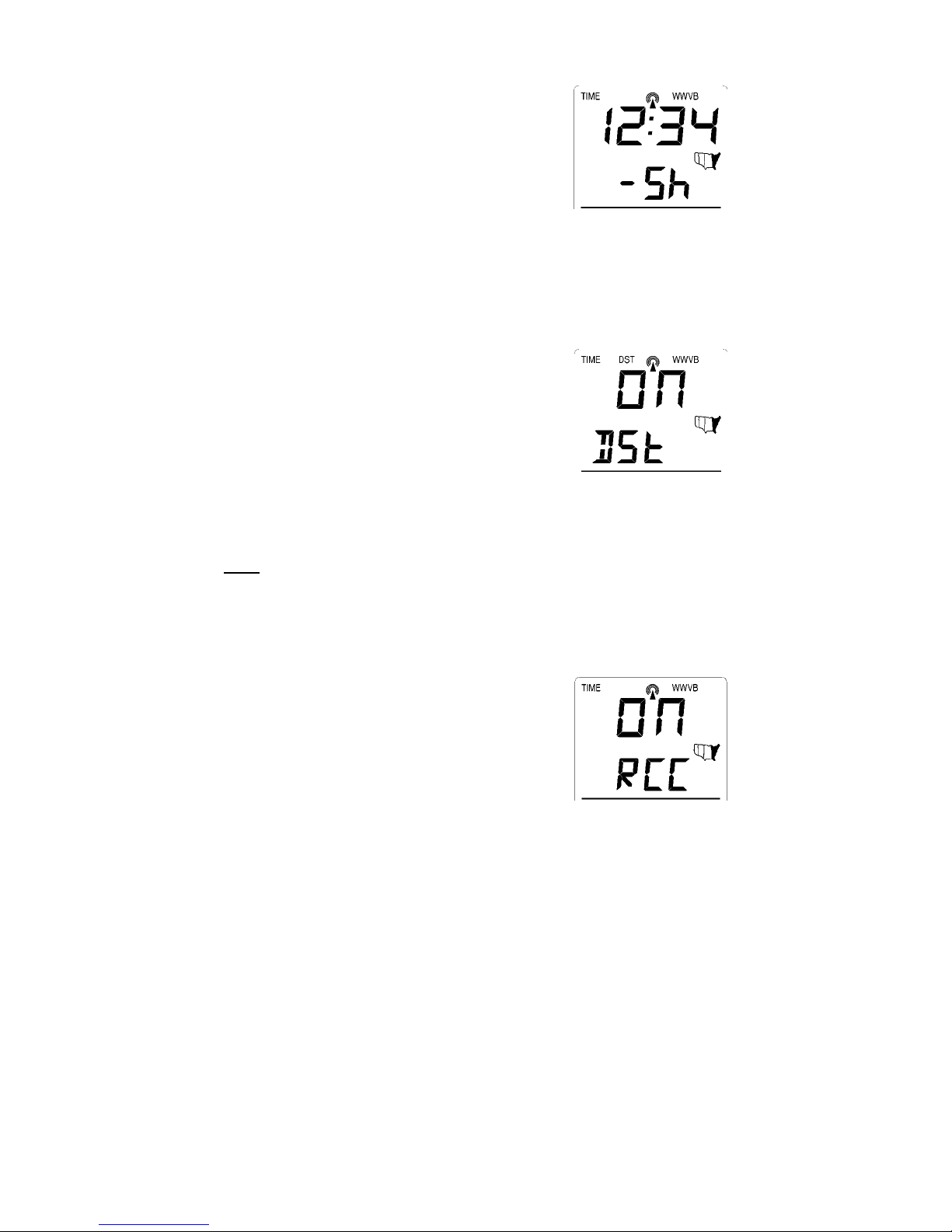

4. “DST” will appear above the indoor temperature/humidity display
and “ON” or “OFF” will flash above that.
5. Press and release the “OUT/+” button to select DST ON/OFF.
Note: Some locations (Arizona and parts of Indiana) do not follow Daylight
Saving Time.
6. Press and release the “SET” button to confirm the DST ON/OFF
setting and continue to the Radio-controlled Time ON/OFF setting.
E. Radio-controlled Time ON/OFF Setting
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button
three more times to advance to the
Radio-controlled time ON/OFF setting.
4. “RCC” will appear above the indoor temperature/humidity display
and “ON” or “OFF” will flash above that.
5. Press and release the “OUT/+” button to select Radio-controlled
time ON/OFF setting.

10
6. Press and release the “SET” button to confirm the Radio-
controlled time ON/OFF setting and continue to the 12/24-hour
Time Mode setting.
F. 12/24-hour Time Mode
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button four
more times to advance to the 12/24-
hour time mode setting.
4. “12h” or “24h” will flash above the indoor temperature/humidity
display.
5. Press and release the “OUT/+” button to select 12 or 24-hour time
mode.
Note: In 12h mode “PM” will appear to the left of the time during PM hours.
If the time is not within the PM hours nothing will be displayed. Be sure to set
the time to the correct AM/PM time to ensure automatic reception.
6. Press and release the “SET” button to confirm the 12/24-hour time
mode setting and continue to the Hour setting
G. Setting The Hour Manually
The WWVB signal will override any manual set time and date information. The
time will be based on the time zone selected.
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button five
more times to advance to the Manual
Hour setting.
4. The hour will begin to flash at the top of the display.
5. Press and release the “OUT/+” button to select the desired hour.
6. Press and release the “SET” button to confirm the hour setting and
continue to the Minute setting.
H. Setting The Minutes Manually
1. Press and hold the “SET” button for five seconds.
2. “lcd” will appear at the top of the display and a number will flash
next to it.
3. Press and release the “SET” button six more times to advance to
the Manual Minutes setting.

11
4. The minutes will begin to flash at the top of the display.
5. Press and release the “OUT/+” button to select the desired
minutes.
6. Press and release the “SET” button to confirm the minutes and
continue to the Year setting.
I. Setting The Year Manually
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button
seven more times to advance to the
Manual Year setting.
4. The year will begin to flash below the time display.
5. Press and release the “OUT/+” button to select the desired year.
6. Press and release the “SET” button to confirm the year and
continue to the Month setting.
J. Setting The Month Manually
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button
eight more times to advance to the
Manual Month setting.
4. The Month will begin to flash below the time display.
5. Press and release the “OUT/+” button to select the desired month.
6. Press and release the “SET” button to confirm the month and
continue to the Date setting.
K. Setting The Date Manually
1. Press and hold the “SET” button for five seconds.
2. “lcd” will appear at the top of the display and a number will flash
next to it.
3. Press and release the “SET” button nine more times to advance to
the Manual Date setting.
4. The date will begin to flash below the time display.
5. Press and release the “OUT/+” button to select the desired date.
6. Press and release the “SET” button to confirm the date and
continue to the Temperature Measuring Units setting.

12

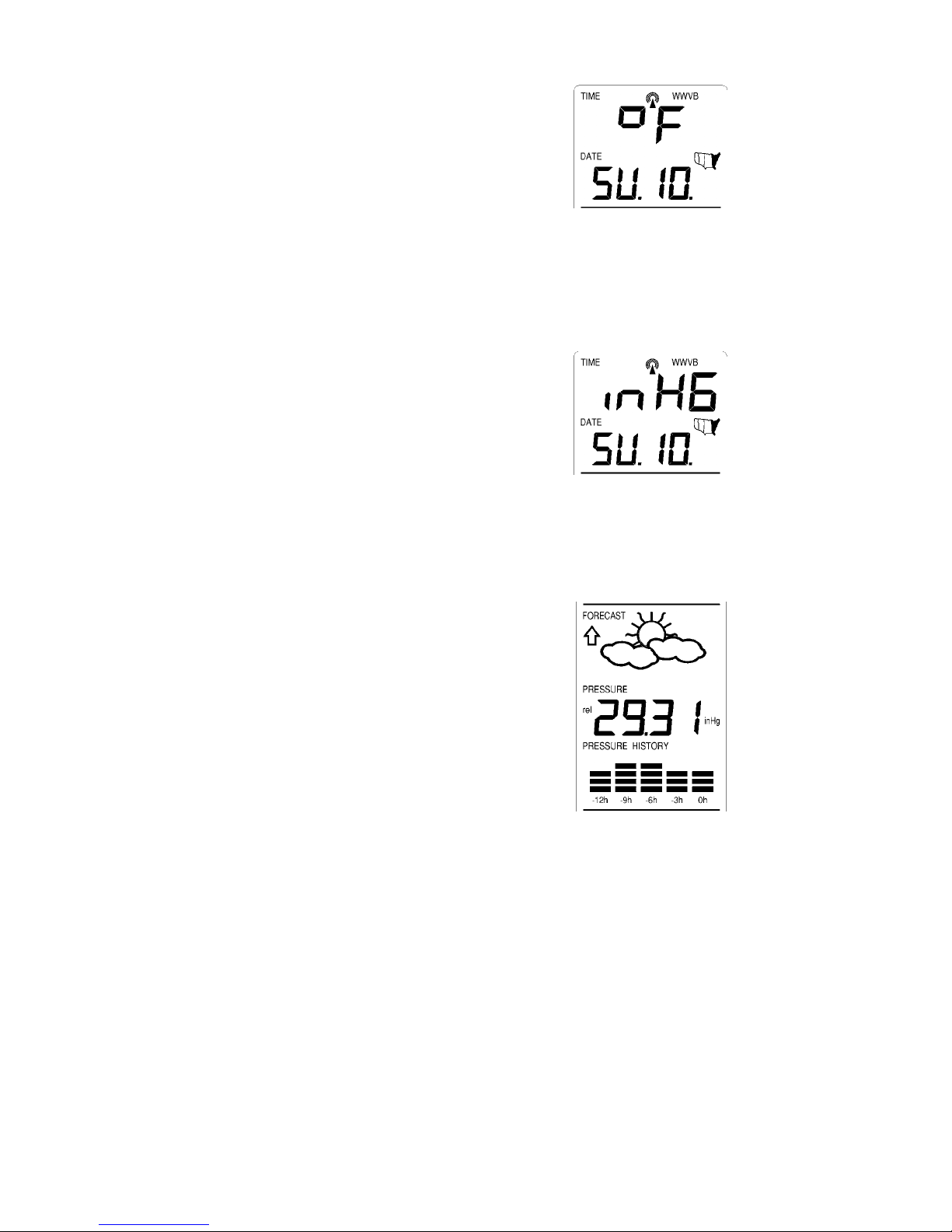

L. Temperature Measuring Units Selection (°F or °C)
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button ten
more times to advance to the
Temperature Measuring Units setting.
4. °F or °C will flash at the top of the display.
5. Press and release the “OUT/+” button to select the desired
temperature-measuring unit.
6. Press and release the “SET” button to confirm the temperature-
measuring unit and continue to the Air Pressure Measuring Units
setting.
M. Air Pressure Measuring Units Selection (inHg/hPa)
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button
eleven more times to advance to the Air
Pressure Measuring Units setting.
4. inHg or hPa will flash at the top of the display.
5. Press and release the “OUT/+” button to select the desired air
pressure-measuring unit.
6. Press and release the “SET” button to confirm the air pressure-
measuring unit and continue to the Relative Pressure setting.
N. Relative Pressure Setting
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button
twelve more times to advance to the
Relative Pressure setting.
4. The barometric air pressure will flash in
the middle of the display, just below the
forecast icon
5. Press and release the “OUT/+” or “IN”
button to select the desired air pressure-
measuring unit.
6. Press and release the “SET” button to confirm the relative pressure
setting and continue to the Forecast Sensitivity setting.

13
O. Forecast Sensitivity Setting
1. Press and hold the “SET” button for
five seconds.
2. “lcd” will appear at the top of the
display and a number will flash next to
it.
3. Press and release the “SET” button
thirteen more times to advance to the
Forecast sensitivity setting.
4. The two air pressure tendency arrows
will begin flashing on either side of the
forecast icon and a flashing number will
appear under the forecast icon.
5. Press and release the “OUT/+” button
to select the desired forecast sensitivity setting.
Note: Barometric air pressure is usually reported as “relative air
pressure”. This reading is based on the combination of absolute air
pressure and altitude. In general, an increase in altitude will result in a
decrease in air pressure. Relative air pressure will make readings in
nearby locations relative to each other to allow for proper forecasting.
The absolute air pressure reading in the Weather Center cannot be
calibrated, only the relative air pressure.
6. Press and release the “SET” button to confirm the forecast
sensitivity setting.
THE MANUAL SETTING IS NOW COMPLETED

14
FEATURES AND OPERATIONS
A. Minimum and Maximum Temperature and Humidity
1. Indoor Minimum and Maximum Temperature and Humidity
The indoor weather station automatically stores the minimum and
maximum indoor temperature and humidity. The minimum and
maximum values are updated automatically when a new minimum
or maximum is recorded, or until manually reset.
a. From the normal display mode, press and release the “IN” key
once to view the indoor maximum temperature and humidity
(“MAX” will be displayed above the indoor temperature and
humidity).
b. Press and release the “IN” key again to view the indoor
minimum temperature and humidity.
c. Press and release the “IN” key again to return to the normal
mode (timeout of viewing minimum/maximum values will
occur if no keys are pressed for fifteen seconds).
Note: To reset the indoor minimum and maximum temperature
and humidity, first display the values you wish to reset (minimum
or maximum). Next press and hold the “SET” key for at least
three seconds. You will see then that the values will reset to the
current temperature and humidity and corresponding time.
2. Outdoor Minimum and Maximum Temperature
The indoor weather station automatically stores the minimum and
maximum outdoor temperature. The minimum and maximum
values are updated automatically when a new minimum or
maximum is recorded, or until manually reset.
a. From the normal display mode, press and release the
“OUT/+” key once to view the outdoor maximum
temperature (“MAX” will be displayed above the outdoor
temperature).
b. Press and release the “OUT/+” key again to view the outdoor
minimum temperature.
c. Press and release the “OUT/+” key again to return to the
normal mode (timeout of viewing minimum/maximum values
will occur if no keys are pressed for fifteen seconds).
Note: To reset the outdoor minimum and maximum temperature,
first display the values you wish to reset (minimum or maximum).

15
Next press and hold the “SET” key for at least three seconds. You
will see then that the values will reset to the current temperature
and corresponding time.
B. Multiple Remote Temperature Sensors
The WS-7394U is able to receive signals from 3 different remote
sensors. These extra remote sensors can be purchased through the same
dealer as this unit. A TX4U will monitor the temperature, a TX3U will
monitor temperature and display the temperature on its LCD, a TX3UP
will monitor the temperature via a probe for measuring soil or water
temperatures and a TX6U will monitor the temperature only.
Note: When setting up multiple units it is important to insert batteries
first into all the remote sensors, and in numeric sequence. Second
install batteries into the indoor weather station. Transmission
problems will arise if this is not done correctly and if the total time for
set-up exceeds 6 minutes
1. Set Up of Multiple Units
a. It is necessary to remove the batteries from all units currently
in operation.
b. Remove the battery covers to all remote sensors.
c. Place all remote sensors in a numeric sequential order.
d. In sequential order, install batteries following the same battery
installation procedures seen in Detailed Set-Up Guide section
of this manual.
e. Install batteries into the indoor weather station.
f. Follow the Detailed Set-Up Guide for programming and
operating instructions.
2. Viewing and Operating with Multiple Remote Sensors
a. To view the temperature of a different remote sensor press and
release the “CH” button. A shift from one “boxed” number to
the next should be observed in the OUTDOOR LCD.
b. The minimum and maximum temperature of the additional
remote sensor can be displayed by pressing the “OUT/+”
button.
c. To reset the minimum and maximum temperature readings
press and hold the “SET” button for 3 seconds and that
temperature record for that remote sensor will be reset only.

16
Each remote sensor will have its own minimum and maximum values
stored.
C. Comfort Indicator for Indoor Temperature and Humidity
1. The comfort level indicator appears inbetween the indoor
tempearture and humidity.
2. The indicator will display a “happy-face” when the temperature is
between 68°F and 79°F (20°C and 25.9°C), and the humidity is
between 45% and 64%.
3. A “sad-face” will be displayed when the temperature and humidity
are outside the mentioned ranges.
D. Weather Forecast Icon and Pressure Trend Indicators
The weather forecasting feature is estimated to be 75% accurate, and is
based solely upon the change of air pressure over time. The WS-
7394U averages past air-pressure readings to provide an accurate
forecast—creating a necessity to disregard all weather forecasting for
12-24 hours after the unit has been set-up, reset, or moved from one
altitude to another (i.e. from one floor of a building to another floor).
In areas where the weather is not affected by the change of air pressure,
this feature will be less accurate.
1. Weather Icons
a. There are 3 possible weather icons that will be displayed at
various times in the center of the indoor weather station.
iSunny—indicates that the weather is expected to improve
(not that the weather will be sunny).
ii Sun with Clouds—indicates that the weather is expected to
be fair (not that the weather will be sunny with clouds).
iii Clouds with Rain—indicates that the weather is expected
to get worse (not that the weather will be rainy).
b. The weather icons change when the unit detects a change in
air pressure.
c. The icons change in order, from “sunny” to “sun with clouds”
to “clouds with rain” or the reverse.
d. It will not change from “sunny” directly to “clouds with rain”,
although it is possible for the change to occur quickly.

17
e. If the symbols do not change, the weather has not changed (or
the change has been slow and gradual).
f. The sensitivity of the change in foreacst icon is set by the user
in section F of the Detailed Set Up Guide.
E. Weather Tendency Arrows
1. Along with the forecast icon there
is a pressure tendency arrow.
2. There is one that points up (on the
left side of the LCD) and one that
points down (on the right side of
the LCD).
3. These arrows reflect current changes in the air pressure.
4. An arrow pointing up indicates that the air pressure is increasing
and the weather is expected to improve or remain good.
5. An arrow pointing down indicates that the air pressure is
decreasing and the weather is expected to become worse or remain
poor.
6. No arrow means the pressure is stable.
7. A storm can be expected if there is a drop of 4 hPa or more in less
than 6 hours. The clouds with rain icon will be displayed and the
tendency arrow that points down will be flashing—indicating the
storm warning feature has been activated. The flashing will stop
when the air pressure stabilizes or begins to rise.
F. Barometric Air Pressure Reading
1. The actual barometric air pressure is displayed directly under the
weather forecast icon
2. The relative air pressure is calibrated by the user through the
programming mode.
3. Please Follow the programming instructions in section F of the
Detailed Set Up Guide to set this feature.
G. Air Pressure History Bar Chart
1. The bar graph shows in hPa (Hekto Pascal) the recorded air
pressure over the past 12-hours.
2. The horizontal axis shows the hours at increments of -12 hours, -9
hours, -6 hours, -3 hours, and 0 hours (current).
3. The vertical axis is set by hPa: the “0” on this axis represents the
current hPa, and + or – 1,3,5, or 7 shows (in hPa) how high or low
the past air pressure was as compared to the current one.
4. The “0” on the vertical axis indicates the current air pressure value.
Pressure trend
arrow

18
5. The “0h” on the horizontal axis indicates the current hour, thus the
current air pressure also.
6. Each bar on the bar graph represents a value of 0.03 hPa, and each
bar also has a corresponding value on the verticle axis.
7. Air pressure trends can be determined by simply glancing at the
bar graph.
a. If the bars are rising (higher on the right than the left) then the
air pressure has a rising trend, and the weather should
improve.
b. If the bars are dropping (lower on the right than the left) then
the air pressure has a falling trend, and the weather should
worsen.
8. Multiply the two values to find past air pressure (note the + or –
sign of values on the verticle axis); i.e. 0.03 hPa x 3 = 0.09 hPa,
now add this value to the air pressure (in LCD 4) to evaluate what
past air pressures have been.
9. The bar chart will constantly scroll to avoid burnout of the LCD.
Note: This feature cannot be turned off.

19
VII. MOUNTING
Note: Before permanently mounting, ensure that the indoor weather station is
able to receive signals from the sensors and WWVB signal at the desired
location. To achieve a true temperature reading, avoid mounting the remote
temperature sensor (or any sensor) where direct sunlight can reach the remote
sensor. We recommend that you mount the remote sensor on a North-facing
wall or under an eve. The sending range of the remote temperature sensor is
300-ft (100m) however obstacles such as walls, concrete, and large metal
objects can reduce the range. Place all units in their desired location, and wait
approximately 15 minutes before permanently mounting to ensure that there is
proper reception. If the indoor weather station loses the signal from the remote
sensor, it will display the last temperature reading for 15 minutes. After 15
minutes of not receiving any signals, the remote temperature will display “- -.-”.
A. Mounting the Remote Temperature Sensor
The remote temperature sensor can be mounted in two ways:
•with the use of screws
•using the adhesive tape
1. MOUNTING WITH SCREWS
a. Remove the mounting bracket from the remote
temperature sensor.
b. Place the mounting bracket over the desired location.
c. Through the three screw holes of the bracket, mark
the mounting surface with a pencil.
d. Screw mounting bracket onto the mounting surface.
Ensure that the screws are flush with the bracket.
e. Insert the remote temperature sensor into the bracket.
2. MOUNTING WITH ADHESIVE TAPE
a. With a nonabrasive solution, clean and dry the back
of the mounting bracket and the mounting surface to
ensure a secure hold. The mounting surface should
be smooth and flat.
b. Remove the protective strip from one side of the tape.
c. Adhere the tape to the designated area on the back of
the mounting bracket.
d. Remove the protective strip from the other side of the
tape.
e. Position the remote temperature sensor in the desired
location, ensuring that the indoor weather station can
receive the signal.

20
B. Mounting the WS-7394U Indoor Weather Station
The indoor weather station can be mounted in two ways:
• with the table stand
• on the wall with the use of a wall hanging screw (not included)
1. USING THE TABLE STAND
The indoor weather station comes with the table stand
already mounted. If you wish to use the table-stand all
that is required is to place the indoor weather station in an
appropriate location.
2. WALL MOUNTING
a. Remove the table-stand. To do this, pull down on the
stand from the rear and rotate forward.
b. Fix a screw (not included) into the desired wall,
leaving approximately 3/16 of an inch (5mm)
extended from the wall.
c. Place the indoor weather station onto the screw using
the hanging hole on the backside.
d. Gently pull the indoor weather station down to lock
the screw into place.
Maintenance and Care Instructions
A. Extreme temperatures, vibration, and shock should be avoided to
prevent damage to the units.
B. Clean displays and units with a soft, damp cloth. Do not use solvents
or scouring agents; they may mark the displays and casings.
C. Do not submerge in water.
D. Immediately remove all low powered batteries to avoid leakage and
damage.
E. Opening the casings invalidates the warranty. Do not try to repair the
unit. Contact La Crosse Technology for repairs.
