Voltage Peak Limiter Load vs Power Tables

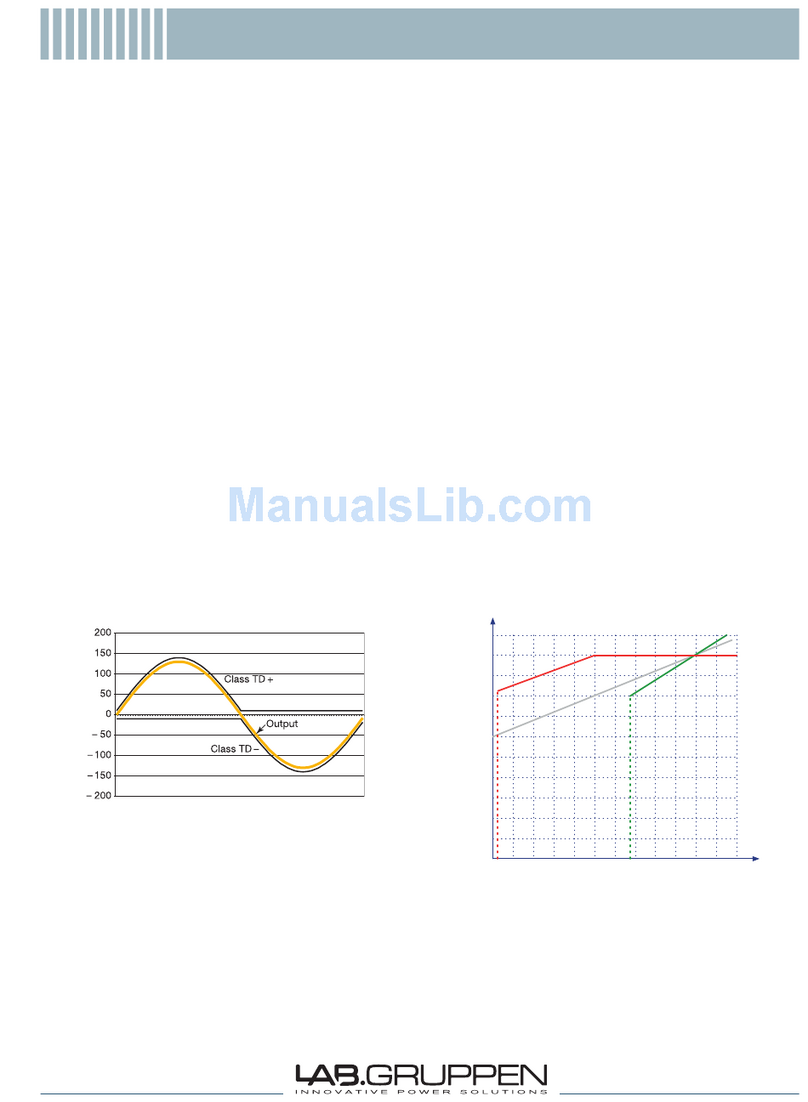

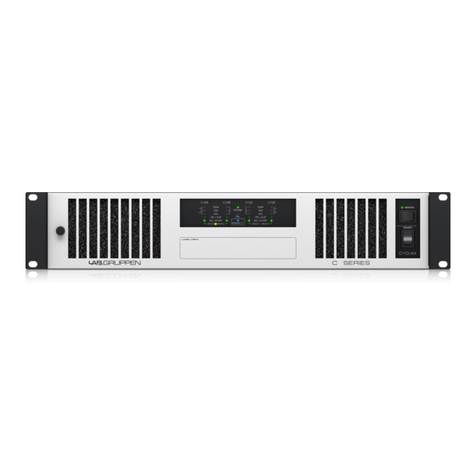

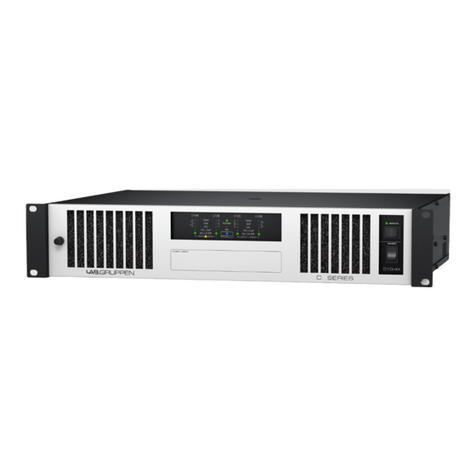

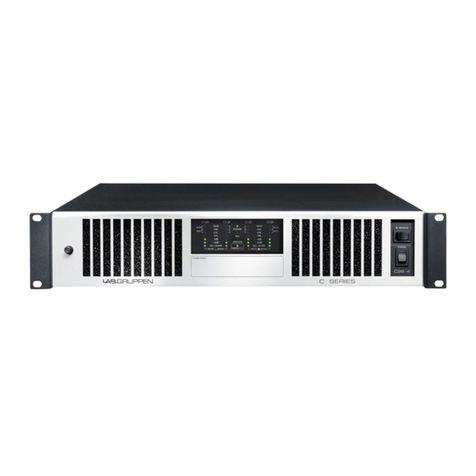

C Series C 20:8X, C 10:8X, C 10:4X, C 5:4X: Dedicated Installation Amplifiers
C Series amplifiers include the user-definable Voltage Peak Limiter (VPL) function. Rear-panel DIP-switch settings allow the output voltage
to be adjusted and consequently the output power available. The following tables provide information, for the listed C Series models, about
resultant output power at typical loads (single-channel and bridged operation) with the available VPL settings.
Lab.gruppen ab •Sweden
internationaL contact • [email protected] | uS contact • [email protected]
www.labgruppen.com
VPL Setting
V peak Vrms 16 !8 !4 !2 !Hi Z
100 V 100 71 *250 *250 **250 n.r. 250
63 V 63 45 125 250 **250 n.r. n.a.
45 V 45 32 60 125 250 **125 n.a.
32 V 32 23 30 60 125 **125 n.a.
* = PAL limited to this power when all channels driven
** = Current limited to this power
n.r. = Not recommended
n.a. = Not applicable
VPL Setting V peak Vrms
16 !8 !4 !2 !Hi Z
100 V 200 141 *500 **500 n.r. n.r. 500
63 V 126 90 500 **500 n.r. n.r. 500
45 V 90 64 250 500 **250 n.r. n.a.
32 V 64 45 125 250 **250 n.r. n.a.
* = PAL limited to this power when all channels driven
** = Current limited to this power
n.r. = Not recommended
n.a. = Not applicable
Voltage Peak Limiter
Output power bridged per two channels (W)
Load
C 20:8X / C 10:4X
Voltage Peak Limiter
Output power per channel (W)
Load
VPL Setting
V peak Vrms 16 !8 !4 !2 !Hi Z
100 V 100 71 *125 *125 n.r. n.r. 125
63 V 63 45 125 *125 **125 n.r. n.a
45 V 45 32 60 125 **125 **60 n.a
32 V 32 23 30 60 125 **60 n.a
* = PAL limited to this power when all channels driven
** = Current limited to this power
n.r. = Not recommended
n.a.= Not applicable
VPL Setting
V peak Vrms 16 !8 !4 !2 !Hi Z
100 V 200 141 *250 **250 n.r. n.r. 250
63 V 126 90 **250 **250 n.r. n.r. 250
45 V 90 64 250 **250 **125 n.r. n.a.
32 V 64 45 125 250 **125 n.r. n.a.
* = PAL limited to this power when all channels driven
** Current limited to this power
n.r. = Not recommended
n.a.= Not applicable
C 10:8X / C 5:4X
Voltage Peak Limiter
Output power bridged per two channels (W)
Load
Voltage Peak Limiter
Output power per channel (W)
Load
Item no. VPL-CSX
