iBox COSI 221
Operating Manual
Add this manual to your Laetus system file!
2 Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10
© Copyright Laetus This manual may not be translated, copied or reprinted, in whole or in
extracts, without prior written permission from Laetus.
Limitation of warranty The information in this manual has been compiled and edited with the
utmost care.
Laetus reserves the right to make changes to this manual and, in the
course of technological progress, to make improvements on the devices
without prior notice.
The correctness and completeness of this manual can therefore not be
guaranteed.
Contact We are contactable world-wide:
Contact: cont[email protected]
Hotline: [email protected]
Homepage: http://www.laetus.com
You can find your regional Laetus representatives in the Internet on the
page "Contact".
Operating Manual Laetus web technology iBox-COSI 221
Laetus-Number of this manual: 13 9 66 0802
Document Versions
Manual
Version
Firmware
Version
Date
Week
Created Checked Extensions to the Previous Version
1.0.x 1.0.x 2003-09 M R-K KU T
J G
Initial version
1.0.x 1.0.x
2004-21
2005-34
M R-K
M R-K
KU T
J G
Chapter "Access Rights for the Users Acounts"
New document-format, new screenshots
Text extended / updated
Updating screenshots vers. 1.0.8 / correction term
chapter 4
1.1.x 1.1.x 2006-39 M R-K Setup menu - iBox-COSI221 as slave device
integrated in the ARGUS wt10-Server
Meaning of the "Variable" setting - activated or
deactivated in the "Setup - Setup 1" menu
Changes to the access rights for the user accounts
OP and TECH in the various menus
New layout
1.1.x 2.0.x 2009-09 Moneke Zorn New hardware => Installation Manual
Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10 5
Access Rights for the Users Accounts
The functions of the wt-devices
can be accessed after entering the user name and
the corresponding password and that applies only for the main control device. (See as
well chapter "Logging On and Of as a User" in the "Operating Manual-NAVIGATOR").
If the wt-device is integrate into ARGUS wt10-Server, then apply the
"User Management" in the ARGUS wt10-Server.
For the main control device
is three fixed users. This cannot changed:
OP
TECH
ADMIN
Note
You cannot blocked the passwords in the main control device, even if you
repeatedly wrong entering.
In the standard version are possible the following acces rights (in the various
menus) for the users:
User Production Setup Service Administration
Without
login
view only limited access blocked only wt-device info
OP
****
-Current Data,
-Timing Diagram,
-Contrast Level,
-Installation (Setup 1,
Setup 2, Configuration,
Identification)
view.
-Fault Readings delete.
-Setup 1,
-Setup 2,
modification
allowed.
-Configuration,
Identification view.
blocked -wt-Device Infos (under
"Identification") and
Accounts Infos view.
TECH
****
-Current Data,
-Timing Diagram,
-Contrast Level,
-Installation (Setup 1,
Setup 2, Configuration,
Identification)
view
-Fault Readings delete.
-Reset Counters
-Setup 1,
-Setup 2,
-Configuration
modification
allowed,
-Identification
view.
-switch on the
position LED.
-load factory
settings.
-wt-Device Infos (under
"Identification") and
Accounts Infos view.
ADMIN
****
full access full access full access full access
6 Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10
Table of Contents
Access Rights for the Users Accounts . . . . . . . . . . . . . . . . . . . 5
1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.1 Device Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2. Selecting the iBox-COSI 221 in the "Laetus NAVIGATOR" . . 11
3. Service – Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.1 "Service" Menu – Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.2 "Service" Menu in Detail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4. Setup – Product Format Parameters . . . . . . . . . . . . . . . . . . . . 17
4.1 "Setup" – Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 "Setup" Menu in Detail – Setup1 . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.2.1 Evaluation Status – Active / Bypassed. . . . . . . . . . . . . . . . . . . . . . . 21
4.2.2 Code Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.2.3 Reference Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.3 Setup Menu in Detail – Setup 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.3.1 Digital Level: 0 to 30% . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.3.2 Sensitivity – Normal / Medium / High . . . . . . . . . . . . . . . . . . . . . . . . 27
4.3.3 Result Pulse Output – Immediately / End of Gate . . . . . . . . . . . . . . 28
4.3.4 Tube Orientation Signal – Deactivated / by Length / by Bars / by Time
29
4.3.5 Orientation Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.3.6 Code Print – Normal / Inverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.3.7 Decoder – Forwards / Backwards . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.4 Setup – Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.4.1 Gate – External / Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.4.2 Gate-Polarity – Negative / Positive . . . . . . . . . . . . . . . . . . . . . . . . . 37
4.4.3 Result Pulse Width: 1ms...500ms . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.4.4 Reading Direction – Forwards / Backwards . . . . . . . . . . . . . . . . . . . 39
4.5 Setup – Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4.6 Setting variable data / iBox-COSI 221 as a slave device
in the ARGUS wt10-Server41
4.7 Meaning of the "Variable" setting - activated or deactivated
in the "Setup - Setup 1" menu45
4.7.1 Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
4.7.2 Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5. Production – Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
5.1 "Production" Menu – Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
5.2 "Production" Menu in Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
5.2.1 Current Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10 7
5.2.2 Fault Readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
5.2.3 Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
5.2.4 Contrast Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
5.2.5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
6. Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
6.1 "Administration" Menu – Overview
63
6.2 "Administration" Menu in Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
7. Sample Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7.1 Tube Filler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
8. Error Messages and Remedies. . . . . . . . . . . . . . . . . . . . . . . . . 68
Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10 9
Introduction
1. Introduction
1.1 Device Description
The COSI 221 is a barcode reader that recognizes and identifies code on
packaging material.
Our developments unite comfortable operation and a graphic user
interface. Together with the Laetus web technology (wt), the COSI 221
stands for reliable recognition of PHARMA-CODETM on various different
products.
The iBox-COSI 221 is connected with the evaluation unit (e.g.
COMMANDER 12-01) via the Ethernet interface.

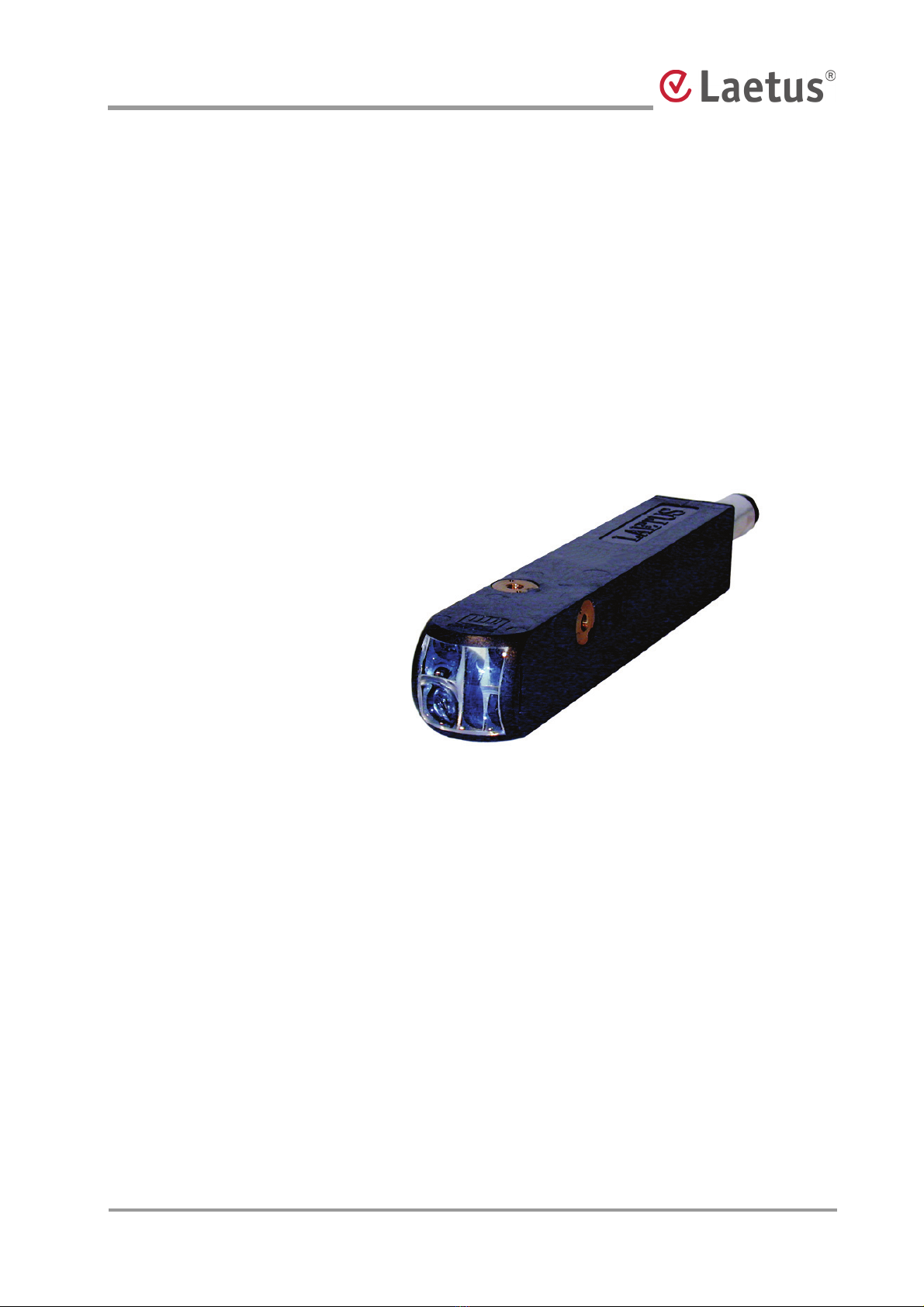

Fig.1 COSI 221 - Barcode reader
10 Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10
Introduction
The iBox was developed by us and processes and transmits sensor data
to the control device or computer. For this, you need the graphical user
interface of the Laetus NAVIGATOR, from which all Laetus wt-devices can
be operated.
Fig.2 iBox-COSI 221
The operation of the COSI 221 is easily learned. Commands are entered
using a touch-sensitive screen (touchscreen) or common entry devices of
a computer such as mouse and keyboard.
The device is started using the machine. You do not have to switch on the
COSI 221 and the iBox separately.
OUT 1 OUT 2 OU T 3 OUT4 OUT 5 OU T 6 IN1 IN 2
CAN LINK
1 2 3 4 5 6 7 81 2 3 4 5 6 7 8
OUT 1 OUT 2 OU T 3 OUT4 OUT 5 OU T 6 IN1 IN 2
CAN LINK
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
109 11 12 13 14 15 16109 11 12 13 14 15 16109 11 12 13 14 15 16
1 OUT1 DeviceReady
2 OUT2 Machine Enable
3 OUT3 GateOut
4 OUT4 Good
5 OUT5 Fault
6 OUT6 reserved
7 iBox GND
8 iBox +24V D C
OUT7
OUT8
19 CAN +
10 CA N
11 CA N
12 I/O 0 V
13 I/O 0 V
14 I/O +24 V DC
15 IN1 reserved
16 IN2 Gate In
12345678
X
1
:
9 10111213 141516
X
2
:
OUT 1 OUT 2 OU T 3 OUT 4 OUT5 OU T 6 IN1 IN 2
CAN LINK
1 2 3 4 5 6 7 8
109 11 12 13 14 15 16
COMMANDER
COSI 221
iBox
Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10 11
Selecting the iBox-COSI 221 in the "Laetus NAVIGATOR"
2. Selecting the iBox-COSI 221 in the "Laetus NAVIGATOR"
Press the wt-Devices button in the "Main Menu" of the "Laetus NAVIGATOR". The
"Discovery of wt-Devices" menu (in the NAVIGATOR) appears.

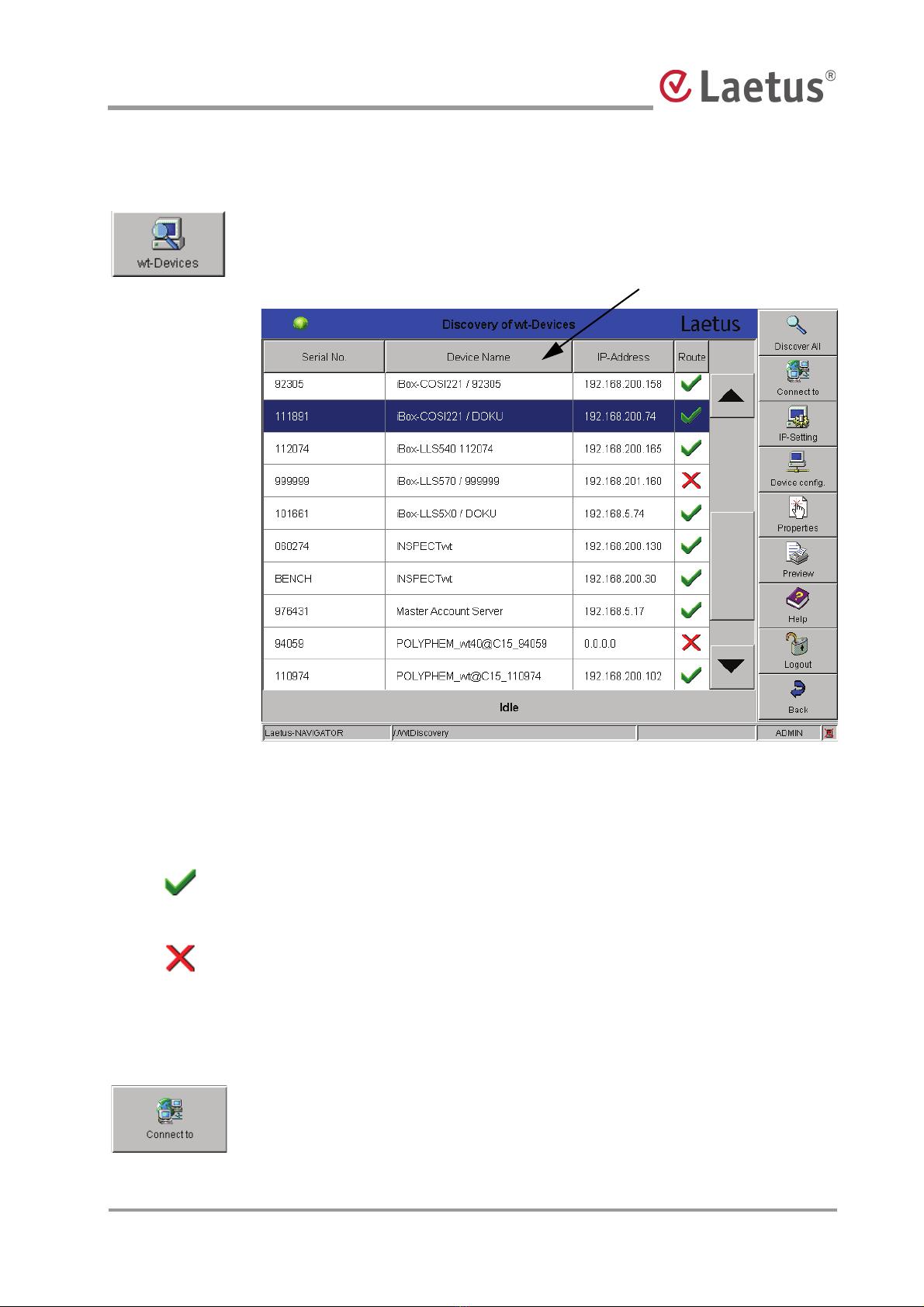

Fig. 3 List of active wt-devices in the NAVIGATOR
The right column labelled Route indicates the following:
The wt-device is located in the same network, i.e. a connection is possible.
The wt-device is not located in the same network. IP-configuration must be carried
out.
The "Discovery of wt-devices" menu enables you to sort the wt-devices by serial
number, name, IP address or route. They are sorted by pressing the corresponding
column header: press "Device Name" in order to sort the wt-devices by name.
Select the desired wt-device from this list (e.g. iBox-COSI221 / DOKU). Then
press the Connect to button in order to establish a connection to the iBox-
COSI 221.
Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10 13
Selecting the iBox-COSI 221 in the "Laetus NAVIGATOR"
In the status bar of the main menu is this description also used in the iBox-COSI 221
for the tabular display of a menu containing information on the session number,
IP- address and the logged in user.
Fig. 5 Active NAVIGATOR-Sessions
14 Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10
Service – Operation
3. Service – Operation
Note Inactive buttons have a gray symbol and gray writing. Entry fields are
displayed in gray. This means that either the user does not have the
corresponding access rights or the current operating mode does not permit
this function.
Once you have established a connection to the wt-device, press the Service button
in the Main Menu. The "Service" menu appears.
3.1 "Service" Menu – Overview
Factory Settings Clicking on the Factory Settings button causes
the iBox-COSI221 to revert to the Laetus
shipping status (predefined values).
This function turns the red
positioning lamp on the sensor head on and off.
Login / Logout If you are logged in and do not perform any
operations, you will be automatically logged out
after the time period set under Auto logout time
(in the "NAVIGATOR") has elapsed. The
operating elements become inactive.
Back The Back button returns you to the "Main
Menu".
Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10 15
Service – Operation
3.2 "Service" Menu in Detail
The "Service" menu appears:
Fig. 6 Service menu
The Product Name field displays the current product name of the loaded product, if
the sensor head is integrated into the ARGUS wt10-Server.
Sensor Name displays the name of the wt-device, e.g. iBox-COSI 221 / DOKU.
Switch on the position LED: this function switches on or off the red position LED in
the sensor head. A thin red line is produced on the code level. This positioning aid
allows you to adjust the sensor head parallel to the code and to center it on the code.
Fig. 7 Switch off the position LED
The name of the currently loaded product appears here.
16 Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10
Service – Operation
If you would like to return the iBox-COSI221 to the Laetus shipping status, click on
the Factory Settings button.
The following menu appears:
Fig. 8 Question to load the factory settings
If you select Yes, the factory settings will be loaded.
The product data will be loaded:
Fig. 9 Loading and saving the product data
If you click on Cancel, the process is terminated.
No entries can be made in this menu (Fig. 6).
Note All parameters of the sensor head are reset to their factory settings.
Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10 17
Setup – Product Format Parameters
4. Setup – Product Format Parameters
In the main menu, press the Setup button. The "Setup - Setup1" menu appears.
4.1 "Setup" – Overview
By selecting one of the tab cards, menu dialogs
appear for setting parameters or the sensor data
can be visualised (under "Identification").
Next
With Next and Previous, you can switch between
the tab cards.
Previous
Setup 1 – setting parameters Select evaluation status
Select code type
Enter reference code
Setup 2 – setting parameters Select: digital level, sensitivity, result pulse output,
tube orientation signal, orientation parameter, code
print, decoder.
Configuration Select gate
Select gate polarity
Select result pulse width
Select reading direction
Identification View data: sensor name, sensor type, serial
number, batch number, software version, hardware
version.
Save Save changed data.
18 Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10
Setup – Product Format Parameters
If you are logged in and do not perform any operations, you will be automatically
logged out after the time period set under Auto logout time (in the "NAVIGATOR") has
elapsed. The operating elements become inactive.
The Back button returns you to the "Main Menu".
Note Inactive buttons have a gray symbol and gray writing. Entry fields are
displayed in gray. This means that either the user does not have the
corresponding access rights or the current operating mode does not
permit this function.
Saving Data
To store your settings permanently, you have to save them before leaving a menu.
To do so, press the Save button. A small window is opened displaying the progress
of the saving process. Once saving is completed, the sensor uses the set values.
Fig. 10 Save product data
Note As long as the save is still in progress, you can still interrupt it.
To do so, press the Cancel button in the save window. The process is
interrupted and the system reverts to the previously used data.
Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10 19
Setup – Product Format Parameters

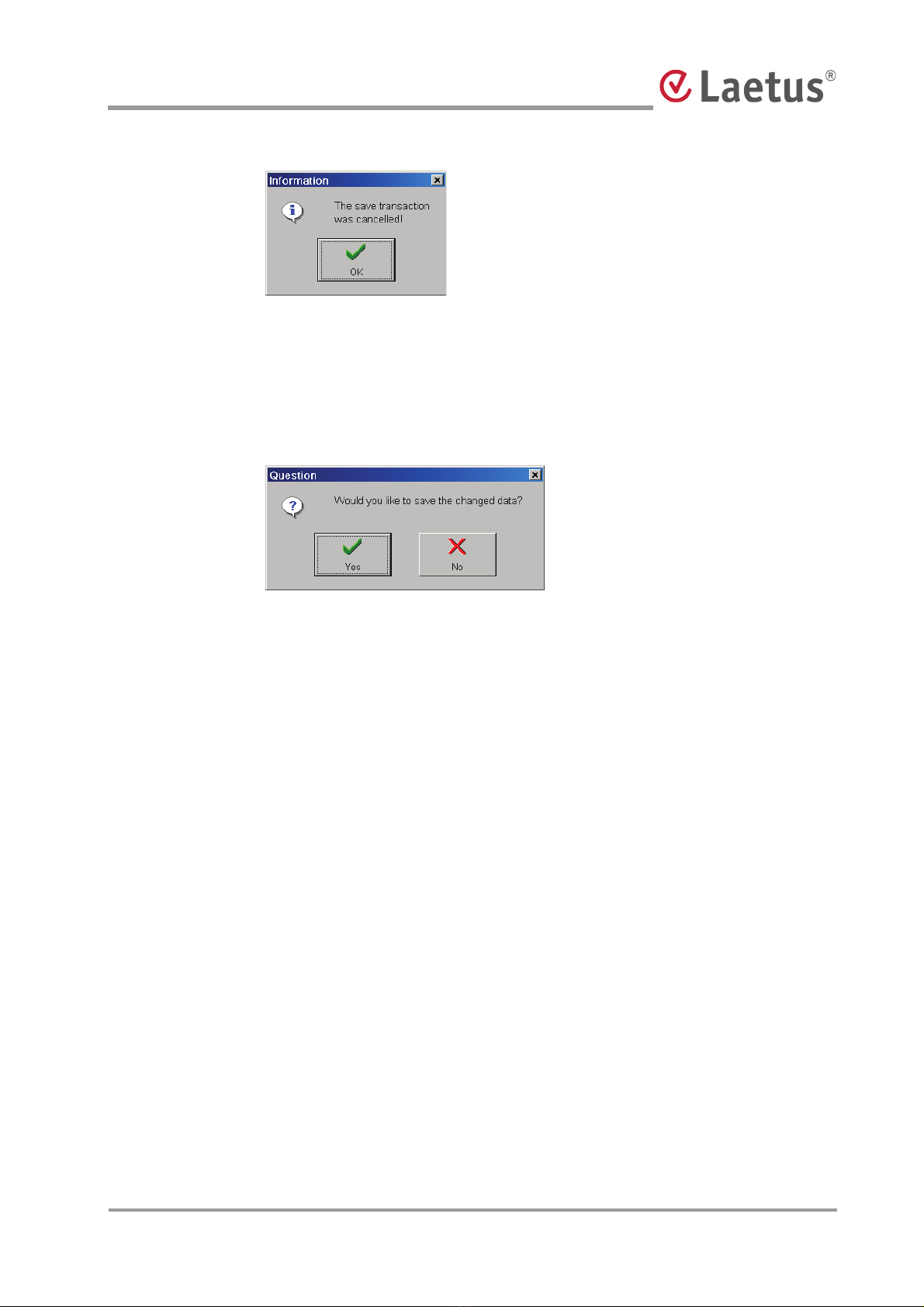

Fig. 11 Information
Close this window by pressing OK. The system only becomes active after you
perform this confirmation. If you close the window and if you press the Back button,
the following question appears:
Fig. 12 Reminder for saving changed data
20 Laetus web technology | 13 9 66 0802 | FirmwareVersion 1.1.x/2.0.x | 2009-10
Setup – Product Format Parameters
4.2 "Setup" Menu in Detail – Setup1
In order to setup the wt-device and ready it for operation, press the Setup button in
the "Main Menu".
The "Setup – Setup 1" menu is opened.
Fig. 13 Setup – Setup 1 menu
Here you can select and edit the:
Evaluation Status
Code Type
Reference Code
This manual suits for next models
1
Table of contents
