Laguna Bay Spas Spa User manual

Owner’s
Manual

2
For technical assistance or warranty service requests, please call a
technical support representative at 877-722-4097. Factory trained
technical support representatives are available Monday - Friday
from 8:30 am to 5 pm EST.
You may be asked to email pictures of your area of concern to
the technical support representative. Pictures allow us to better
diagnose the problem and provide service in an ecient and timely
manner. Please be prepared to email pictures if you are asked to do
so.
When you call, please have the following information to expedite
your service request:
Spa Model
Spa Serial Number
Date of Purchase
Dealer Name
List of chemicals you are using in your spa
Technical Assistance

3
Technical Support Contact Information................................................................2
Warnings
Children and Pets....................................................................................................4
Electrical Component Installation.........................................................................5
Electrical Installation Do’s & Don’ts......................................................................6
Avoidable Risks........................................................................................................7
Hyperthermia...........................................................................................................8
Spa Cover..................................................................................................................9
FCC.........................................................................................................................10
Canadian Installation............................................................................................11
Site Selection
ings to Consider................................................................................................12
Installing Spa Cover Clips....................................................................................13
Electrical Information
Avoiding Risk of Electrocution............................................................................14
110V Spa Installation............................................................................................15
220V Spa Installation............................................................................................16

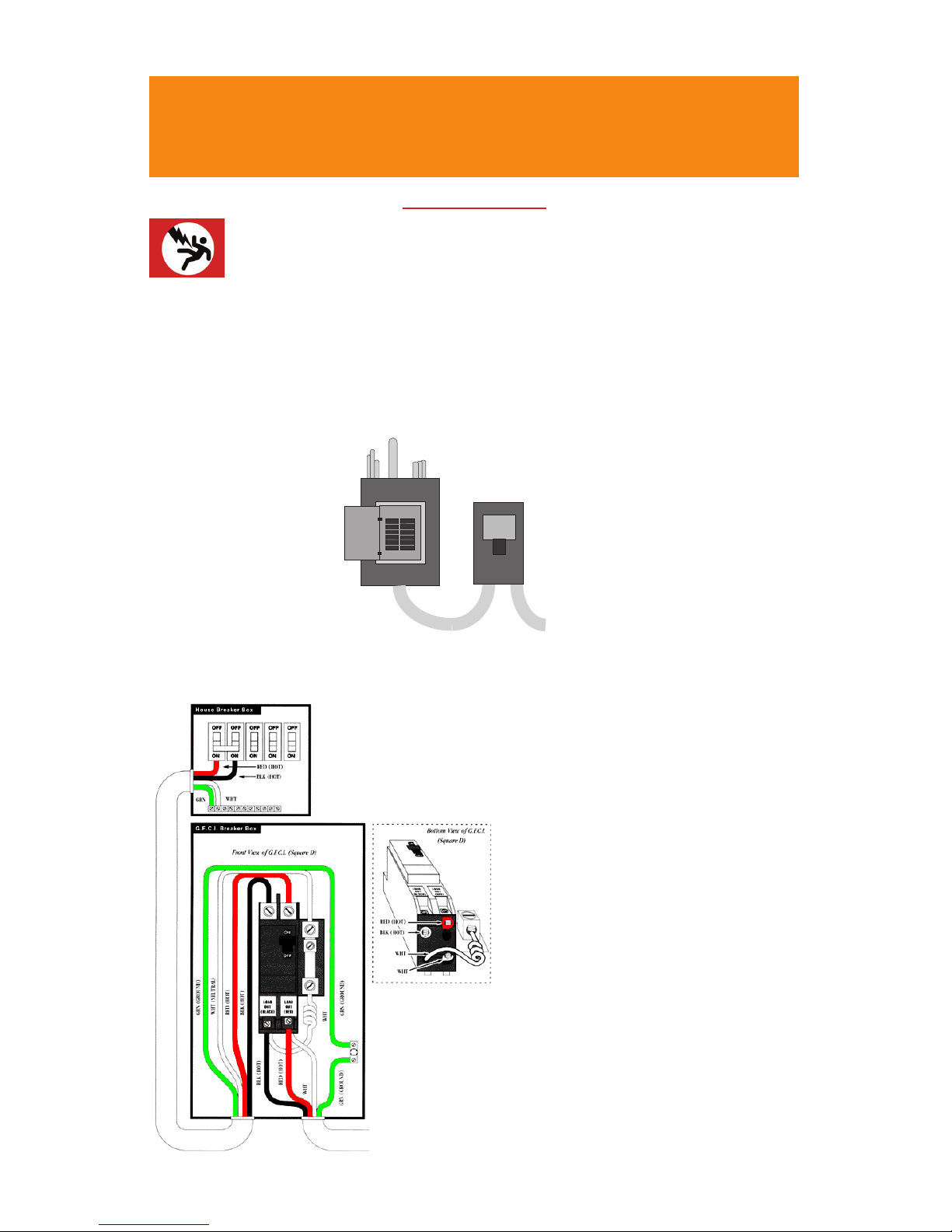

GFCI Wiring Diagram..........................................................................................16
220V Spa Pack Wiring Diagram..........................................................................17
Getting Started
Spa Components List.....................................................................................18 -21
Instructions for Filling the Spa....................................................................22 - 23
Topside Controls
Operating Modes...................................................................................................24
Spa Controls...........................................................................................................25
Setting the Water Temperature............................................................................26
Changing Operating Modes.................................................................................27
Setting Programming Cycles.......................................................................27 - 28
Troubleshooting Error Codes......................................................................29 - 30
Water Chemistry
Recommended Levels...........................................................................................31
Interactions of Common Chemicals...........................................................32 - 33
Heavy Cleaning Instructions........................................................................33 -34
Common Sense of Water Chemistry...................................................................34
Do’s and Don’ts of Water Chemistry...................................................................35
Water Chemistry Trouble Shooting....................................................................36
Spa Trouble Shooting Guide................................................................37 - 38
Warranty Agreement ...........................................................................39 - 43
Index

Read and Carefully Follow Instructions !
Basic safety precautions must be followed including:
HAZARDOUS TO UNATTENDED CHILDREN!
Risk of ChildRen dRowning. Extreme caution must be used to
prevent unauthorized access by children. To avoid accidents, ensure that
children cannot use a spa unless they are supervised at all times. To reduce
risk of injury, do not allow children to use this product unless they are closely
supervised at all times. To reduce the risk of injury, lower water temperature
when spa is used by children. Lower water temperatures are recommended
since children are especially sensitive to hot water.
DO:
Make sure you always lock child resistant locks on the spa cover aer use
for your children’s safety. Every Laguna Bay Spa is equipped with a locking
cover that meets the ATSM F1346-91 Standard for Safety Covers. ere is no
representation that the use of the cover, locking clips or actual locks will not
prevent access to the spa.
Test the water temperature with your hands before allowing children to enter
the spa to be sure that it’s comfortable. Children are especially sensitive to hot
water.
Remind children that wet surfaces are slippery. Make sure that children are
careful when entering and exiting the spa.
Check with local authorities regarding fencing requirements for spas in
your area.
DON’T:
Allow children or pets on the spa cover. Most spa covers have a maximum
weight load of 20 lbs. Covers are strong enough to withstand the weight of one
foot of snow. ey are not designed to support the weight of people or pets.
Sitting on the cover may cause the foam inserts to break.
Allow children to have unsupervised access to the spa. Children should
always be in the company of a responsible adult to make sure children do not
have access to the spa.
IMPORTANT INFORMATION
ABOUT SPA SAFETY
4

AVOIDING THE RISK OF ELECTROCUTION
LAGUNA BAY SPAS RECOMMENDS THAT YOUR SPA BE INSTALLED BY A
LICENSED ELECTRICIAN.
To ensure the spa functions properly and to ensure your warranty is not
compromised by improper installation, you must have a licensed electrician
install all electrical components. Connect only to a grounded source.
If your spa model is equipped with a cord, do not bury the cord. A buried cord
may result in death or serious injury due to electrocution if direct burial-type
cable is not used, or if improper digging occurs.
Install at least ve feet (1.5m ) from all metal surfaces. If this is not possible, a
ground terminal (pressure wire connector) is provided on the control box inside
the unit to permit connection with solid copper bonding conductor between this
point and any metal equipment, metal water pipe, metal enclosures of electrical
equipment, or conduit within ve feet (1.5m) and within sight of the spa.
Do not permit any electrical appliances, such as lights, telephones, radios or
televisions within ve feet (1.5m) of the spa unless they were built in by the
manufacturer. Failure to maintain a safe distance may result in death or serious
injury from electrocution if the appliance should fall into the spa.
WARNING
Your spa requires a Ground Fault Circuit Interrupter for user and
equipment protection in compliance with section 680-42 of the
National Electrical Code, ANSI/NFPA 70-1993. To ensure proper
operation of the important safety device, test according to the
following instructions with regard to your electrical conguration.
CORDCONNECTED 115 VOLT, 20 AMP
Plug the spa directly into the power source. Do not use an extension cord or
surge protector. e GFCI is located at the end of the power cord.
Before each use, with the unit operating, push the “test” button.
e unit should stop operating and the GFCI power indicator will
go out. Wait 30 seconds and then reset the GFCI by pushing the
“RESET” button. e GFCI power indicator will turn on, restoring
the power to the spa. If the interrupter does not perform in this
IMPORTANT INFORMATION
ABOUT SPA SAFETY
5
