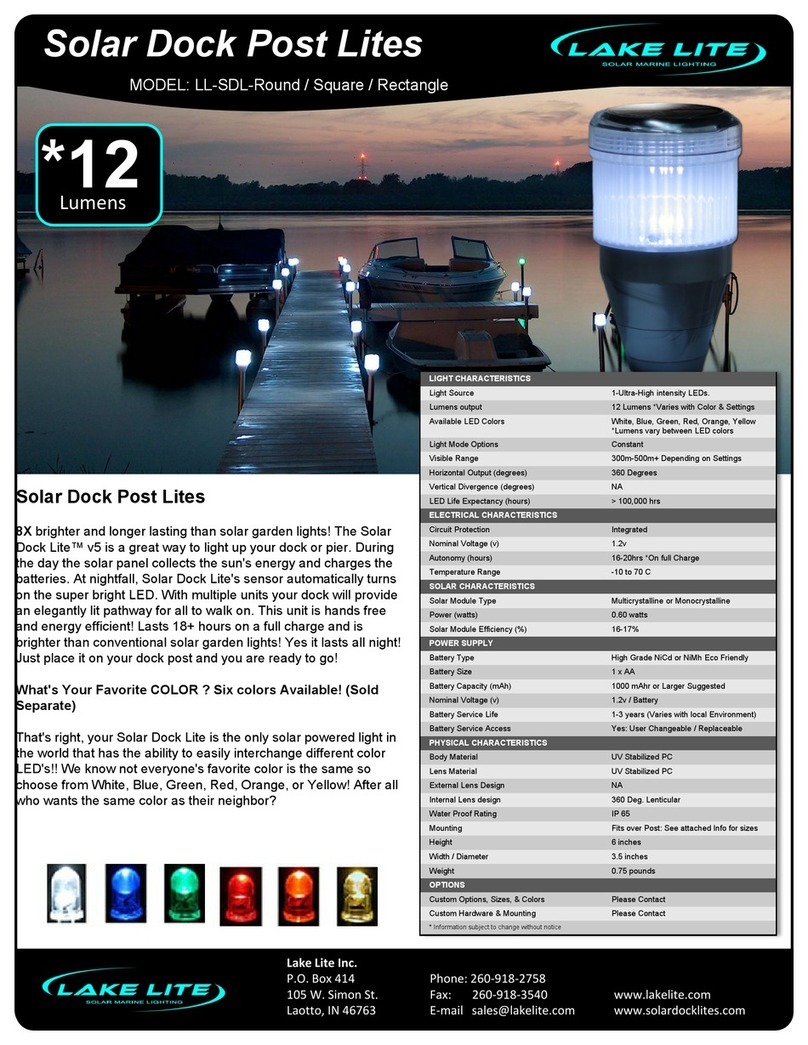

Lake Lite Solar Dock Lite LL-SDL-Round User manual

Solar Dock Post Lites
MODEL: LL-SDL-Round / Square / Rectangle
Solar Underglow: Model: LL
-SDL-UG-X
Description
Lake Lite Inc.
2301 Fairfield Ave, Suite 107
Fort Wayne, IN 46807
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com
www.solarmarinelites.com
LIGHT CHARACTERISTICS
Light Source 1-Ultra-High intensity LEDs.
Lumens output 12 Lumens *Varies with Color & Settings
Available LED Colors White,Blue, Green, Red, Orange, Yellow
Light Mode Options Constant
Visible Range 300m-500m+ Depending on Settings
Horizontal Output (degrees) 360 Degrees
Vertical Divergence (degrees) NA
LED Life Expectancy (hours) > 100,000 hrs
ELECTRICAL CHARACTERISTICS
Circuit Protection Integrated
Nominal Voltage (v) 1.2v
Autonomy (hours) 16-20hrs *On full Charge
Temperature Range -10 to 70 C
SOLAR CHARACTERISTICS
Solar Module Type Multicrystalline or Monocrystalline
Power (watts) 0.60 watts
Solar Module Efficiency (%) 16-17%
POWER SUPPLY
Battery Type High Grade NiCd or NiMh Eco Friendly
Battery Size 1 x AA
Battery Capacity (mAh) 1000 mAhr or Larger Suggested
Nominal Voltage (v) 1.2v / Battery
Battery Service Life 1-3 years (Varies with local Environment)
Battery Service Access Yes: User Changeable / Replaceable
PHYSICAL CHARACTERISTICS
Body Material UV Stabilized PC
Lens Material UV Stabilized PC
External Lens Design NA
Internal Lens design 360 Deg. Linticular
WaterProof Rating IP 65
Mounting Fits over Post: See attached Info for sizes
Height xxmm
Width / Diameter xxmm
Weight ___G
OPTIONS
Custom Options, Sizes, & Colors Please Contact
Custom Hardware & Mounting Please Contact
* Information subject to change without notice
Solar Dock Post
Lites
8X
brigthter
and longer lasting than solar garden lights! The Solar
Dock Lite™ v5 is a great way to light up your dock or pier. During
the day the solar panel collects the sun's energy and charges the
batteries. At nightfall, Solar Dock Lite's sensor automatically
turns on the super bright LED. With multiple units your dock will
provide an elegantly lit pathway for all to walk on. This unit is
hands free and energy efficient! Lasts 18+ hours on a full charge
and is brighter than conventional solar garden lights! Yes it lasts
all night! Just place it on your dock post and you are ready to go!
What's Your Favorite
COLOR ? Six colors Available! (Sold
Separate)
That's right, your Solar Dock Lite is the only solar powered light
in the world that has the ability to easily interchange different
color LED's!! We know not everyone's favorite color is the same
so choose from White,
Blue, Green, Red, Orange, or Yellow!
After all who wants the same color as their neighbor?
Lumens
12

Owner Registration Card
Please fill out and affix proper postage and return this owner
registration card within 10 days to insure that your new Solar Dock
Lite is covered by the limited warranty.
Purchaser’s Name .
Address .
State .Zip .
Purchase Date: .Number of Lights: .
Where Purchased (Store Name): .
Model No LL-SDL-(Round / Rectangle / Square)
UPC No. Varies On Different Models
Lake Lite Inc.
2301 Fairfield Ave, Suite 107, Fort Wayne, IN 46807
Lake Lite Inc. 1-Year Limited Warranty
The retailer warrants the Solar Lites to be free from defects in workmanship and material present
at time of shipment from the factory for a period of one year after the date of purchase by the
original purchaser. We agree to correct such defects without chargeor at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty service,
you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling
the product are you responsibility. Damage to any part such as by accident or misuse or improper
installation or by affixing any accessories, is not covered by this warranty. There is no other
express warranty. The retailer hereby disclaims any and all warranties, including but not limited
to, those of merchantabilityand fitness for a particularpurpose to the extent permitted by law. The
duration of any implied warranty, which cannot be disclaimed, is limited to the time period as
specified in the express warranty. Some states do no allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for
incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accordedby law. Some states do not allow the exclusion
of incidental or consequentialdamage, so the above exclusion or limitation may apply to you.
This warranty gives specific legal rights, and you may also have other rights, which vary from
state to state. This warranty supersedes all prior warranties.
Dimensions = mm
Lake Lite Inc.
2301 Fairfield Ave, Suite 107
Fort Wayne, IN 46807
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com
www.solarmarinelites.com
Solar Dock Post Lites
MODEL: LL-SDL-Round / Square / Rectangle

Lake Lite Inc.
2301 Fairfield Ave, Suite 107
Fort Wayne, IN 46807
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com
www.solarmarinelites.com
Solar Dock Post Lites
MODEL: LL-SDL-Round / Square / Rectangle
Battery Installation SDL-v.4
Mounting Instructions -Round, Square, Rectangle, Flat Surface
1.Twist off top and place battery in correct position.
2.Place retaining clip over battery and SNAP in place.
3.Twist top back on: Make sure you tighten snugly to
properly seal your lite!
Universal
Flat Surface Mount
Replace inside bolts
with suitable mounting
screws. (mounting
screws not provided)
Use appropriate screw
for desired material.
Fits
2-3/8” OD Post
Fits
1-7/8” OD Post
Fits
1-5/8” OD Post
•If your light is slightly loose on the post you may add a layer or two of tape around your
post before securing it to the post with the provided set screw.
•If you have a a 2.00” OD post NOT a 1-7/8” OD post you will need a separate fitting (not
included). There is only approximately 1/8" difference in size which DOES require the
separate fitting. Note, you may have both sizes if you have added new sections to your
dock. Please call [phone] for the needed fitting.
Fits Inside
Brock Post &
3-1/4” ID Post
Remove Brock top cap,
and press light inside
the pipe. You may
need to clear the glue
from the inside of the
pipe for your light to
fit. You may drill a set
screw if you wish.
Optional Light Options
Square & Rectangle
Please call or ask dealer
2” X 2” Square
2” X 1-1/2”
Rectangle
NOTE: There are two battery clips to securely hold the batteries in the battery holder so they do not fall
out. Please don’t forget to use them or throw them away
STOP !: DO NOT RETURN TO STORE: Missing Parts? Problem? Light not working? For any issue or problem
please send email to [email protected] with name, address, problem or missing parts. Lake Lite Inc. can quickly
correct any issue, problem, or question you may have. Please email a short description of your issue to
[email protected] with name, address, phone number and someone will be happy to quickly assist you.
No email access please call: Ph: 260-918-2758.
MODELS: LL-SDL-ROUND LL-SDL-SQUARE LL-SDL-RECTANGLE
NEW:
Watch Online
Installation Video!

Lake Lite Inc.
2301 Fairfield Ave, Suite 107
Fort Wayne, IN 46807
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com
www.solarmarinelites.com
WARNING ! WARNING ! WARNING ! WARNING ! WARNING ! WARNING !
Changing LED Colors & LED Installation Color LED’s -Sold Separately
NOTE: Do not worry if you accidently plug the LED in backwards, it will NOT damage the circuit, the LED will simply will not
illuminate. To correct, turn the LED around and reinsert into the socket.
NOTE: Battery must have some charge in order to see if LED illuminates: Generally batteries come with a small amount of charge.
Also, LED will not illuminate if solar panel is exposed to enough light: (try in dark area)
NOTE: If using Color LEDs, there is NO way to tell which color is which until the LED is installed and illuminating.
Continue below
Make sure you have the following items seen below: Cut Longer (+) side to same length as the (-) side.
Bend LED gently as seen. NOTE bend direction.
NEW: Watch Online Video
for Installing & Changing
LED Colors!
NOTE: Battery Clip
Proper Installation of battery, battery clip & 8mm LED
POWER BOOST:
Use Jumper on power boost pins to increase
brightness of your Solar Dock Lite. NOTE:
Power Boost option uses 2X more power.
You may want to purchase higher capacity
batteries such as “AA” Size 1.2volt
Rechargeable NiMh 1500mA – 2000+mA
“U” Channel O-Ring Seal:
Please check your O-ring Seal and make sure
its properly in place, if it is twisted or out of
place, you can run a small flat screw-driver,
toothpick or other small device around the O-
Ring seal to make sure its properly in place.
When looking into the top make
sure the O-Ring “U” shaped
channel is facing upward.
Solar Dock Post Lites
MODEL: LL-SDL-Round / Square / Rectangle

Lake Lite Inc.
2301 Fairfield Ave, Suite 107
Fort Wayne, IN 46807
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com
www.solarmarinelites.com
Solar Dock Post Lites
MODEL: LL-SDL-Round / Square / Rectangle
Q: My light does not work.
1. Make sure battery is securely in place & in proper position.
2. Your LED may be installed backwards. Try reversing.
Q: I replaced my LED with a different color LED but it did not illuminate.
1. The battery must be chargedand the LED must be properly installed in order for the LED to illuminate.
2. After installing the LED try placing the unit in a darkarea. The light is activated and turned on by the dark.
3. FOLLOW INSTRUCTIONS AGAIN CAREFULLY!
4. You may also visit www.lakelite.com for more detailed instructions or call Lake Lite at 260-918-2758.
5.
Q: My light has a short run time.
1. Improper location. The light is powered by the sunlight, place light in direct sunlight.
2. Batteries may be dead, replace with new Ni-Cd or Ni-Mh batteries.
3. You may be using the BOOST option with low capacity batteries: Try purchasing Ni-Mh types of 2000-2500mA.
Q: My light is very dim.
1. LED may have poor connection in socket: Check connection:(in a very rare instancethe LED may be faulty, please contact us)
2. Batteries may be dead, replace with new Ni-Cd or Ni-Mh batteries. – This is the most common reason.
3. Dock Lite is in a shaded area and is not receiving full sunlight throughout the day. Place in sunny area not shaded by objects.
Q: My Solar Dock Lite fits very tight or veryloose on my dock post.
1. Make sure there are no abrasionson your post. If so, file or sand to clean excess paint, burrs, or abrasions.These are very common!
2. Pipe sizes & tolerances vary; you may wrap you post with Duct Tape or equivalent to provide a more snug fit.
3. Secure light by tightening set bolt.
4. If you have a LAKESHORE PRODUCTS INC. dock you may need a separate 2.00 OD Exact fitting. Please call.
Q: I am having troubles securing my Solar Dock Lite using the universal flat surface mount.
1. Use mounting screws or bolts that fit your mounting requirements. (not included)
2. Make sure mounting holes are sealed if placing in a wet area! (i.e. caulk or equivalent)
IMPORTANT: For best performance, replace with rechargeable AA Ni-Cd or Ni-Mh batteries every 2 seasons of use!
CAUTION: CONTAINS NICKEL-CADMIUM BATTERIES. BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.
Troubleshooting
Storage Tips (Winter)
Extreme winter weather can reduce the life expectancy of your Solar Dock Lite
1. Cold weather can dramatically reduce the life expectancy of your rechargeableNi-Cd or Ni-Mh battery.
2. Store your Solar Dock Lite inside during cold months when your dock is not in use
3. If you have glued your Solar Dock Lite base unit to your Brock post you may simply remove the Solar Top (Electronics Portion) and store
inside if you don’t plan to store you Brock posts inside.
